Chery SQR 7160 sedan. Manual - part 4













9. ELECTRICAL CIRCUIT

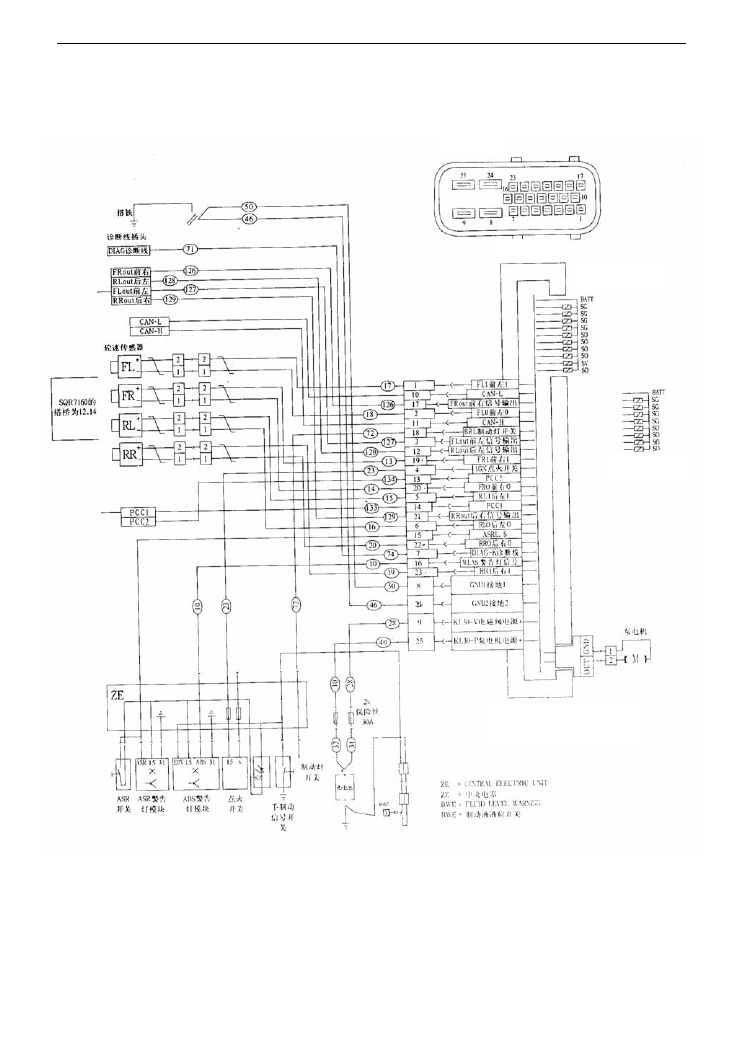

MK20-I/EABS，EDS And ASR Electrical Circuit



PIN

ECU

Valve coil(EDS)

Only for ABS

Pin 8,9,21,25:4.8mm width

Other pins:1.5mm width

9







10. FAULT W/CODE DIAGNOSTIC CHART

1

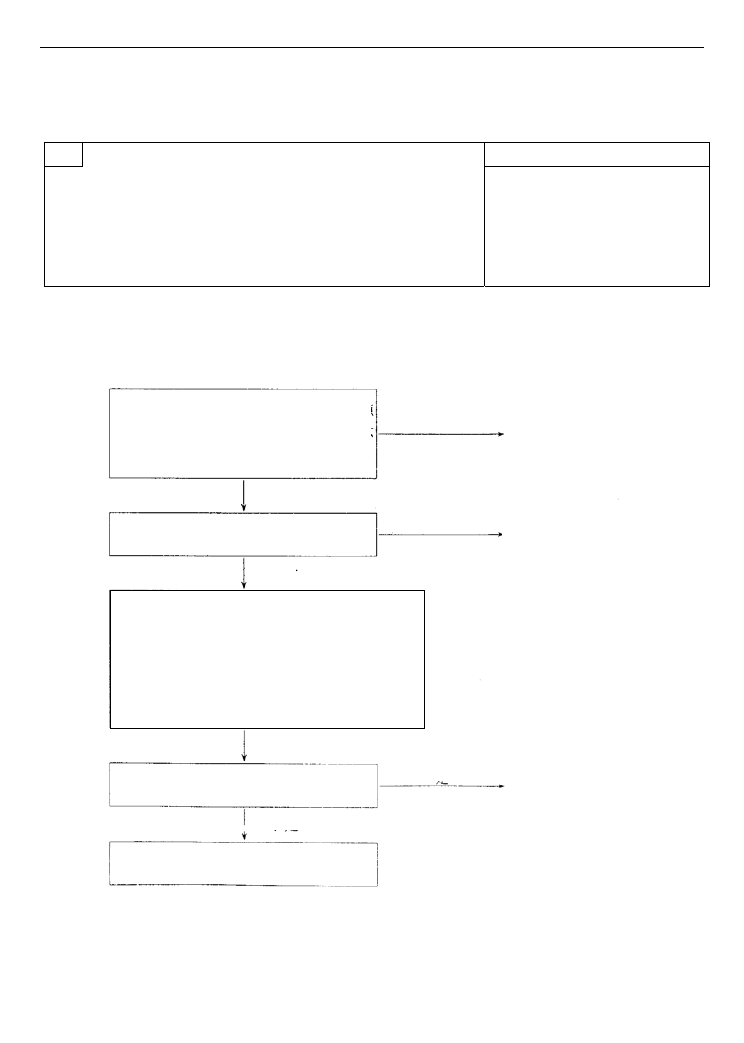

Code 01276

Possible causes

［Note］After vehicle speed is over 20 KM/H, code will be set when ABS

ECU detect motor operate incorrectly.

［Method］This code may be set for loose or disconnected wiring harness

between motor and ECU. Perform code test by actuating motor using

HYDRAULIC UNIT FUNCTION TEST on scan tool.

●  short to power or ground

●  loose engine wiring hareness

● defective motor



Note：

If battery is over discharged, motor actuating will fail. Check if battery voltage is normal before motor actuating test.

Perform motor actuating test when vehicle is staionary.



Disconnect motor harness connector,

Connect power directly to motor connector.

Does motor operate?

NO

Replace hydraulic controlled unit.

YES

NO

Replace fuse or harness.

Check fuse and ABS ECU connector

Connect motor harness.

Turn ignition to ON position.

Clear fault codes.

Perform hydraulic controlled unit test using scan tool.

YES

YES

Replace ECU

Does problem occur again?

NO

Go to INTERMITTENT FAULT DIAGNOSTIC

10















2

Code 00283，00285，00290，00287 Possible

causes

［Note］  When no open circuit detected, code will be set if no signal output

after vehicle over 20km/h.

［Method］  Code may be set for uninstalled sensor, sensor coil or harness

short, big gap between sensor and gear ring, uninstalled or defective gear ring.

●  Sensor not installed

● Short in sensor coil or harness

short.

● Big gap between sensor and gear

ring.

●  Gear ring not installed

● Defective ABS ECU.







456















Sensor installed correctly?

NO

Reinstall the sensor

Check sensor output voltage

YES

Normal

Replace ABS ECU

Not okay

Check each sensor

Not okay

Replace

Okay

Check each sensor gear ring

Not okay

Relpace

Normal

Check wheel bearing gap

Not okay

Repair or replace

Okay

Check wiring harness sensor

and ABS ECU

11







3 Code

00283，00285，00290，00287 Possible

causes

［Note］When vehicle speed is over 20km/h，code will be set if sensor signal

is not within the gap specification.

［Method］Code may be set for sensor coil or wiring harness intermittent

poor contact or short, weak sensor signal caused by big gap between sensor

and gear ring or defective gear ring teeth..

● sensor coil harness intermittent

poor contact or short.

●big or small air gap between sensor

and gear ring

●damaged gear ring teeth

big bearing gap

defective ABS ECU







Reinstall sensor

NO

Sensor installed correctly?

YES

Replace

Not normal

Not normal

Check sensor output voltage

Check each wheel sensor

Normal

Not normal

Replace

Check each wheel sensor gear ring

Normal

Replace ABS ECU

Normal

Not Normal

Repair or replace

Check wheel bearing gap

Normal

Check wiring harness between

sensor and ABS ECU

12
