Chery SQR 7160 sedan. Manual - part 3









5. MK20-I/E SYSTEM

5.1 Checking ABS warning light

        Check if ABS warning light is as following:

        Ⅰ.When ignition turned ON,    ABS goes on for about 1.7 senconds，then goes off。

        Ⅱ. If ABS warning light is not as specified, a problem is indicated and the fault code must be retrived.

        Ⅲ. If ABS warning light does not go on after igniton turned on, repair problem referring to FAULT W/O CODE

DIAGNOSTIC CHART.

5.2 Reading condition information

        After turning on scan tool, enter 03 at ADDRESS, press Q , following data will be displayed：

    1.Example，ECU No. and Version No.

      1JO 907 379P ABS MK20I/E

    2. Code (Codierung) ：×××××

    3. Factory code (WSC) ：×××××

5.3 Retriving Fault Code

        Enter 02 at FUNCTION SELECT, press Q, fault number will be displayed. Then press  “→”, fault code

and related information of each fault will be listed.

5.4 Clearing Fault Code

        Enter 05 at FUNCTION SELECT, press Q, fault code will be cleared. If failed to clear the code, the fault is a hard

fault. If stored code can be cleared, it indicates an intermittent fault, which can be detected only during a vehicle drive

test.

5.5 Fault Code Display Method

System Problem

Displayed Code

Never happened before

No fault code

No problem so far

(ABS warning light is off)

Happened sometime before

Intermittent code

Never happened before

Not intermittent code

Still exist so far

(ABS warning light is on)

Happened sometime before

Intermittent code AND

Not intermittent code



5







6. Hydraulic Controlled Unit Diagnostic

6.1 Hydraulic controlled unit can be diagnosed using scan tool. Follow below
procedures after entering 03.



Step Action

Taken

Data

Displayed

Resullt Under Normal

Condition

01

Hydraulish ABS Pumpe V64

(Hydraulic pump test)



02

Bremse Bestatigung

(Depress brake pedal)



03

EVL:0V AVL：0V    Rad blockiert

 (Normal Open Valve：0V

Normal Closed Valve： 0V    Wheel Block?)

Wheel Block

04

EVL：UBAT        AVL：0V    Rad blockiert

(Normal Open Valve：POWER ON

Normal Closed Valve：0V   Wheel Block?)

Wheel Block

05

EVL：UBAT        AVL：UBAT        Rad frei

(Normal Open Valve：POWER ON

Normal Closed Valve：POWER ON   Wheel can spin

freely)

Wheel can spin freely;

pedal kick back; pump

motor running sound can

be heard.

06

EVL：UBAT        AVL：0V        Rad frei

(Normal Open Valve：POWER ON

Normal Closed Valve：0V   Wheel can spin freely)

Wheel

can

spin

freely;

07

Depress Brake Pedal

And Keep Depressed

EVL：0V        AVL：0V    Rad blockiert

(Normal Open Valve：0V

Normal Closed Valve：0V    Wheel block?)

Wheel Block,

Pedal descent silghtly

08

Realse Brake Pedal

Bremwd losen (Release Brake Pedal)





6.2 Perform above test procedures on each wheel.
Sequences : LF→RF→LR→RR.

6











7. Quick Fault Repairing Index

7.1 Fault w/code check chart index

Code

Fault description

Diagnosing object

Check chart No.

Page No.

65535

Electronic controlled unit

Defective



P.29

01276

ABS Hydraulic pump

Inoperative motor

1

P.12

00283

LF Wheel Speed Sensor

00285

RF Wheel Speed Sensor

00290

LR Wheel Speed Sensor

00287

RR Wheel Speed Sensor

Electrical and

mechanical problem

2，3，4 P.13，P.14，P.15

01044

ABS wrong programing



5

P.16

00688

Voltage supply terminal 30



6

P.17

01130

ABS abnormal operating

Unreasonable signal

7

P.18



7.2 Fault w/o code check chart index

Problem Sympton

Check chart No.

Page No.

Igniton turned to ON position (engine off), ABS warning light is off

1

P.19

After engine running, ABS warning light does not go off.

2

P.20

Uneven two sides’ brake force

Insufficient brake force

ABS operate when slightly depress brake pedal

(Vehicle is stationary)

ABS operate when slightly depress brake pedal

(Vehicle is operating)

Abornal

ABS operating

Brake pedal vibrate heavily when ABS operating

3 P.21

Brake pedal travel too long

4

P.22

Brake pedal depressing need a great force.

5

P.23

No fault code output (does not communicate with scan tool).

6

P.24

7

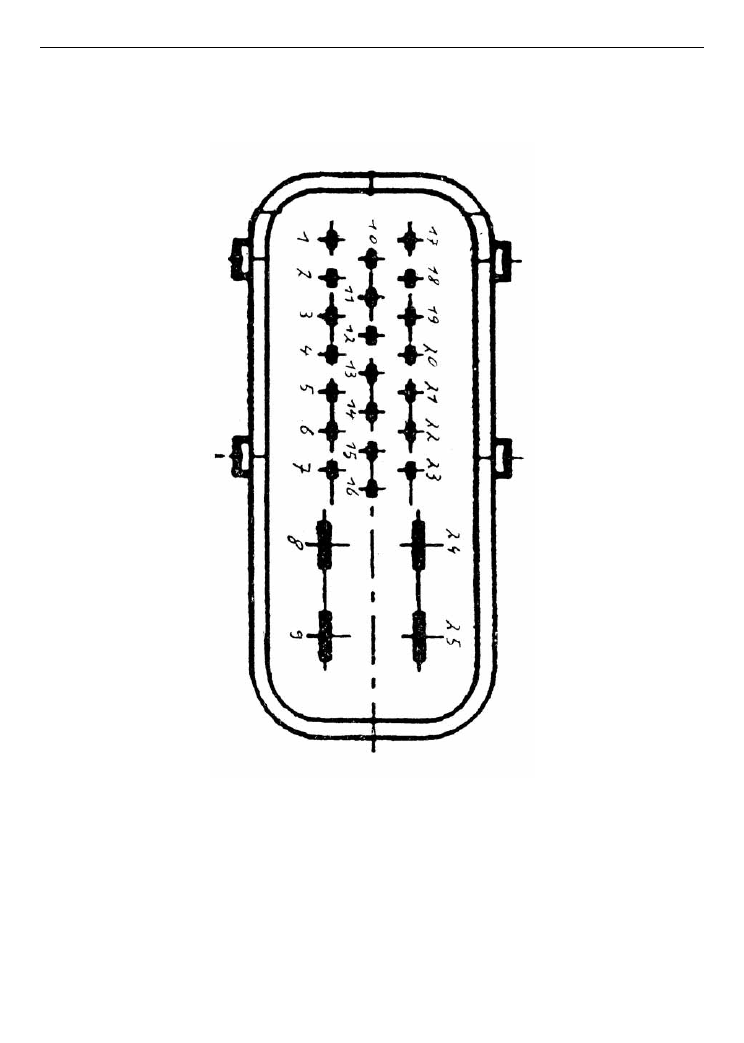

8. ABS ECU SOCKET



8
