9.2

External Audio Source Connection -

R199- , Removing and Installing

⇒ “9.2.1  External Multimedia Device Interface R215 , Removing

and Installing”, page 61
⇒ “9.2.2  External Audio Source Connection R199 , Removing

and Installing”, page 61

9.2.1

External Multimedia Device Interface -

R215- , Removing and Installing

The External Multimedia Device Interface - R215- is located in the

front center console storage compartment.
Removing
– Turn off the ignition and all electrical equipment.
– Remove the ignition key, if equipped.
– Remove the front center console storage compartment. Refer

to ⇒  Body Interior; Rep. Gr.  68 ; Center Console; Front Center

Console Storage Compartment, Removing and Installing .

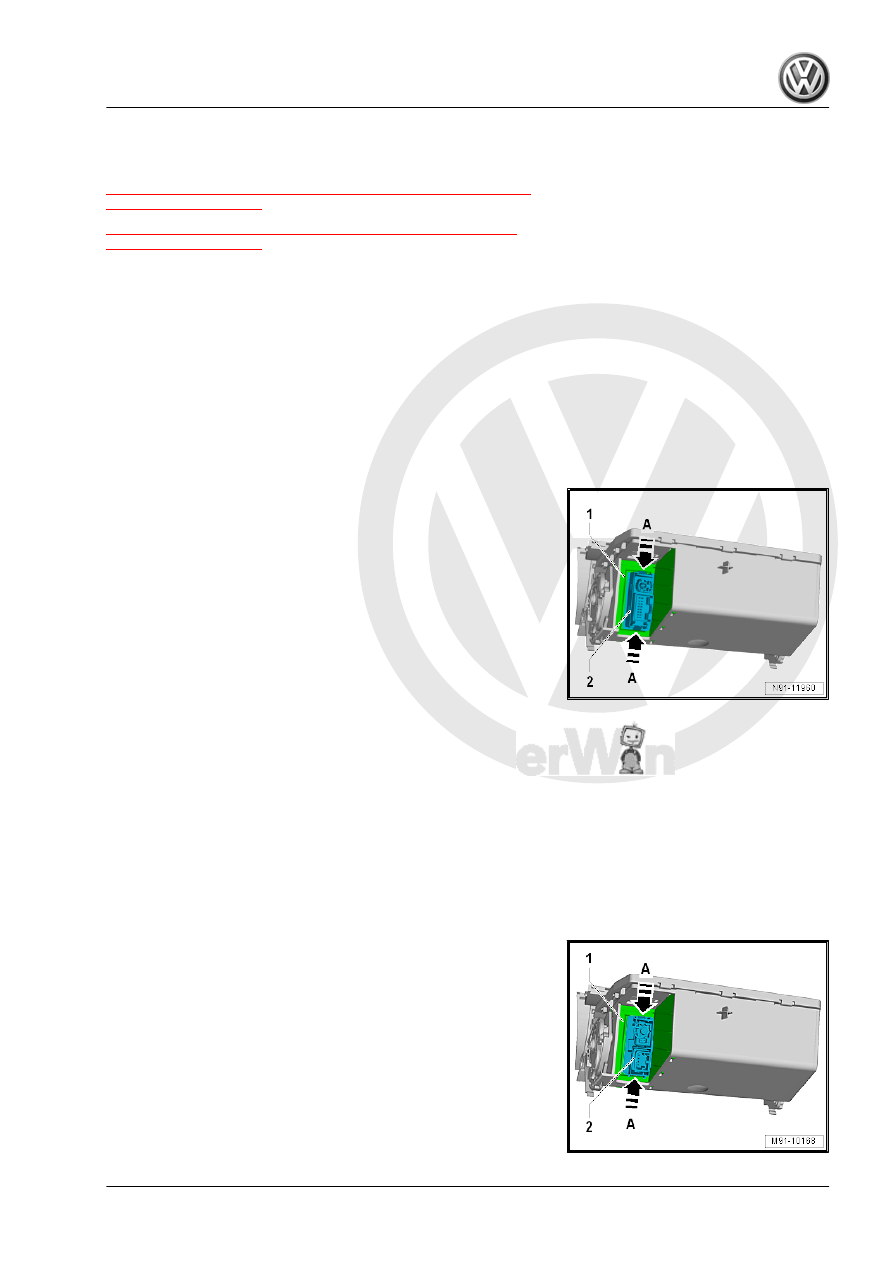

– Press the retaining tabs in direction of -arrow A- on the Exter‐

nal Multimedia Device Interface - R215- -1-.

– Remove the External Multimedia Device Interface - R215-

-2- from the storage compartment -1-.

Installing
Install in reverse order of removal.

9.2.2

External Audio Source Connection -

R199- , Removing and Installing

The External Audio Source Connection - R199- is located in the

front center console storage compartment.
Removing
– Turn off the ignition and all electrical equipment.
– Remove the ignition key, if equipped.
– Remove the front center console storage compartment. Refer

to ⇒  Body Interior; Rep. Gr.  68 ; Center Console; Front Center

Console Storage Compartment, Removing and Installing .

– Press the retaining tabs in direction of -arrow A- on the Exter‐

nal Audio Source Connection - R199- -1-.

– Remove the External Audio Source Connection - R199- -2-

from the storage compartment -1-.

Installing
Install in reverse order of removal.

9.3

USB Distributor - R293- , Removing and

Installing

The USB Distributor - R293- is located under the right center con‐

sole next to the shifter. The USB Distributor - R293- provides a

connection for several USB devices, such as USB Charging

Socket 1 - U37- and External Audio Source Connection - R199- ,

to a USB connection in the Information Electronics Control Mod‐

ule 1 - J794- .
Removing
– Turn off the ignition and all electrical equipment.
– Remove the ignition key, if equipped.
– Remove the center console insert. Refer to ⇒  Body Interior;

Rep. Gr.  68 ; Center Console; Center Console Insert, Re‐

moving and Installing .

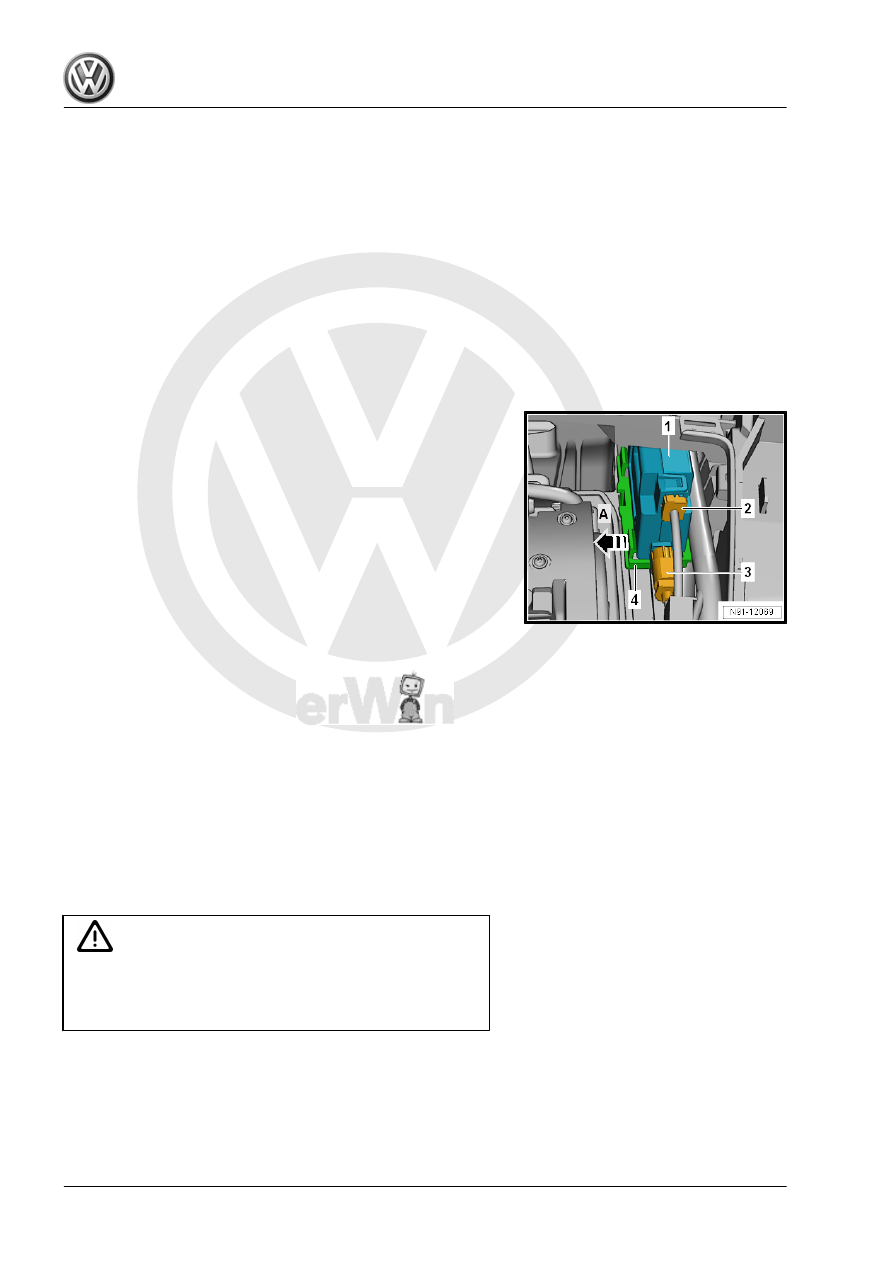

– Press the catch on the bracket for the USB Distributor - R293-

-4- in direction of -arrow A-.

– Lift the USB Distributor - R293- -1- and remove it toward the

rear.

– Release and disconnect the connectors -2 and 3-.
Installing
Install in reverse order of removal.

9.4

USB Charging Socket 1 - U37- , Remov‐

ing and Installing

Special tools and workshop equipment required
♦ Trim Removal Wedge - 3409-
♦ Torque Wrench 1783 - 2-10Nm - VAG1783-
The USB Charging Socket 1 - U37- is located in the center con‐

sole storage compartment. It is a component of the Storage

Compartment with Cell Phone Interface - R265- and serves as a

charging connection for the Cellular Telephone - R54- .
Removing
– Turn off the ignition and all electrical equipment.
– Remove the ignition key, if equipped.

Caution

Risk of damaging the component surfaces.

♦ When positioning a prying tool, put commercially available

adhesive tape over the component in the visible area.

– Fold the center console armrest up.

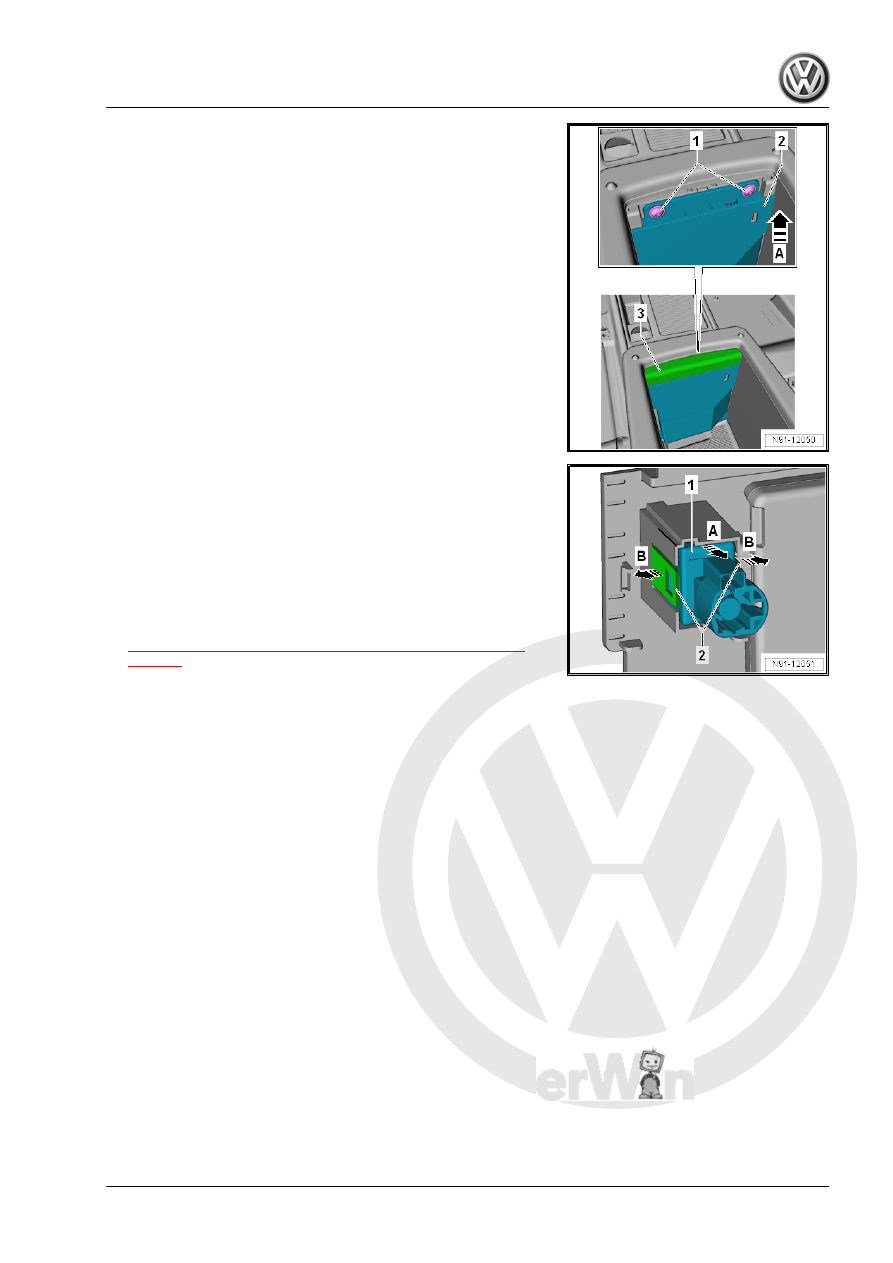

– Pry off the cover -3- using the Trim Removal Wedge - 3409- .
– Remove the bolts -1-.
– Remove the mounting plate -2- from the storage compartment

in direction of -arrow A-

– Release and disconnect the connectors.

– Push the catches -2- in direction of -arrow B- off of the USB

Charging Socket 1 - U37- .

– Remove the USB Charging Socket 1 - U37- -1- in direction of

-arrow A-.

Installing
Install in reverse order of removal.
Tightening Specifications
♦ Refer to

⇒ “5.2 Component Location Overview - Telephone System”,

page 40

10

Mobile Online Services

⇒ “10.1 Overview - Mobile Online Services”, page 64
⇒ “10.2 Component Location Overview - Mobile Online Services”,

page 65
⇒ “10.3  Control Module for Emergency Call Module and Com‐

munication Unit J949 , Removing and Installing”, page 66

10.1

Overview - Mobile Online Services

The mobile online services are based on the Online Connectivity

Unit (OCU) and the Control Module for Emergency Call Module

and Communication Unit - J949- , EL2.
The Control Module for Emergency Call Module and Communi‐

cation Unit - J949- is safeguarded against a crash by being

installed behind the Instrument Cluster - KX2- . The Control Mod‐

ule for Emergency Call Module and Communication Unit - J949-

contains a telephone module, emergency call module and a

compass module. For determining location, the Control Module

for Emergency Call Module and Communication Unit - J949- con‐

tains a GPS receiver. A separate SIM card is installed for the

emergency call function and roadside assistance. Additional on‐

line services are available with a respective contract.

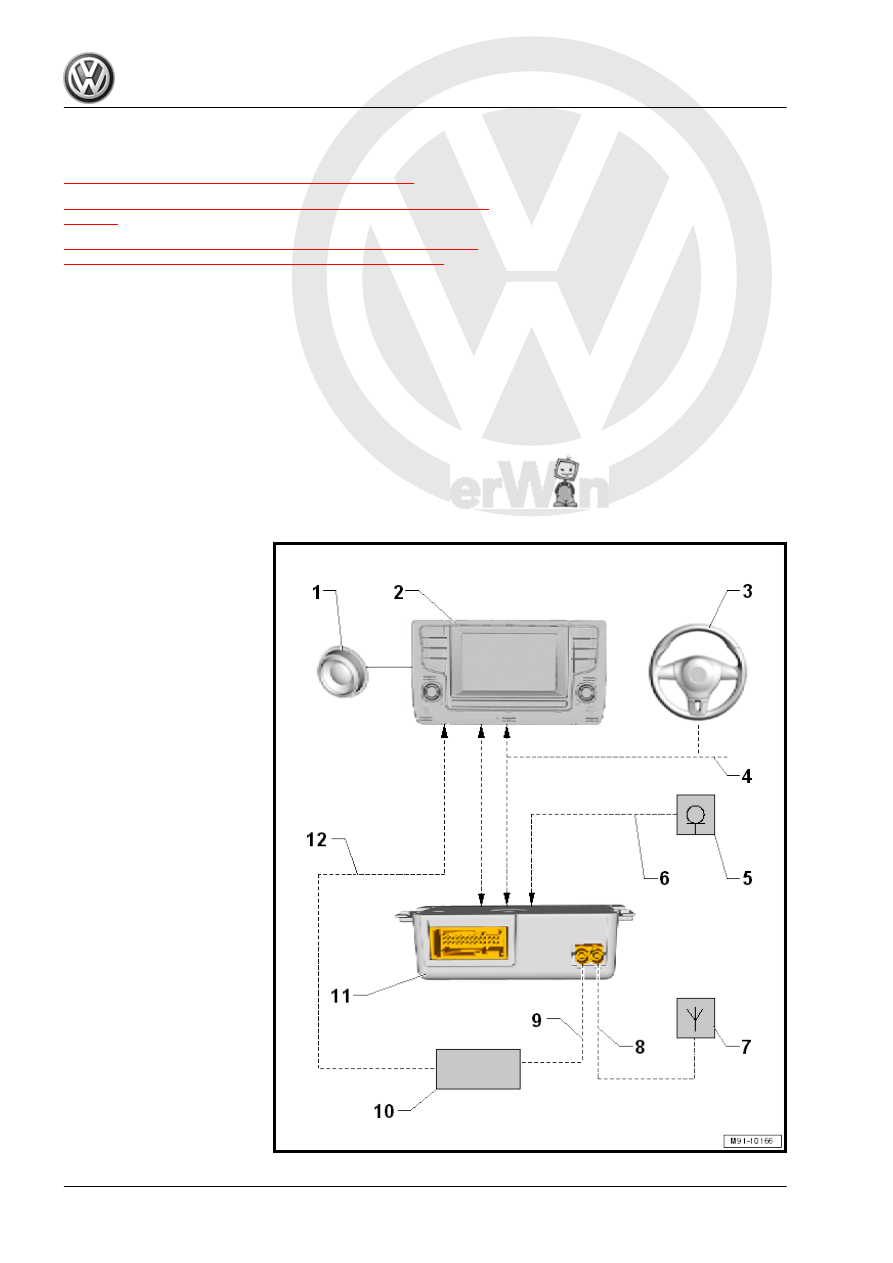

1 - Sound System
2 - Radio/Navigation System
3 - Multifunction Steering

Wheel
4 - CAN Bus
5 - Telephone Microphone -

R38-
6 - Wire from Front Interior

Lamp - W1-
7 - GSM Antenna 2 - R267-

❑ Only with Bluetooth

hands-free calling, 9ZX

8 - Wire from GSM Antenna 2

- R267-
9 - GPS Antenna - R50- / GSM

Antenna - R205- wire

❑ Only with radio without

navigation, I8D and

without telephone, 9W0

10 - Roof Antenna - RX5-

❑ GPS Antenna - R50- /

GSM Antenna - R205-

11 - Control Module for Emer‐

gency Call Module and Com‐

munication Unit - J949-
12 - GPS Antenna - R50- wire

❑ Only with navigation

7UF, 7UG
