– Remove the Throttle Valve Control Module - GX3- . Refer to

⇒ “4.5  Throttle Valve Control Module GX3 , Removing and

Installing”, page 309

 .

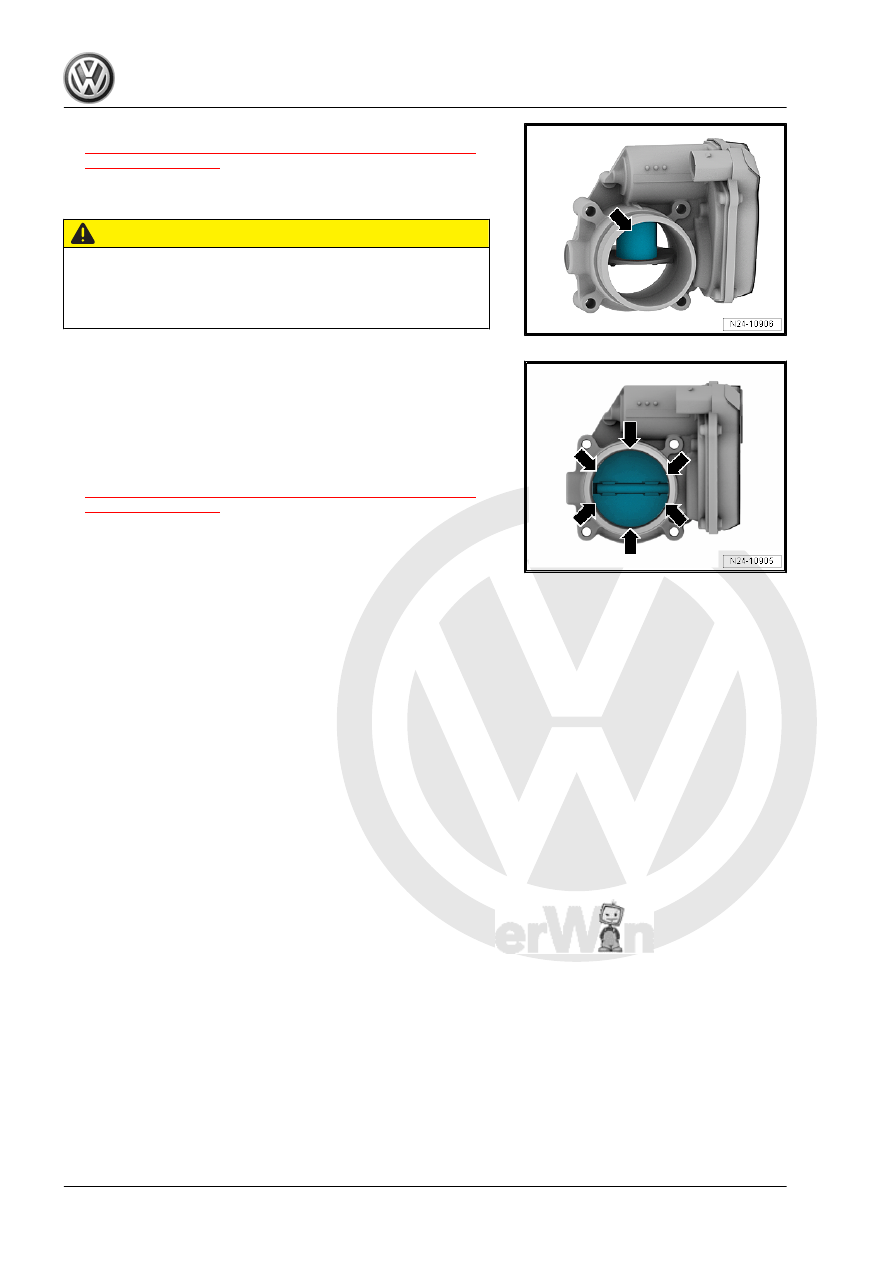

– Open the throttle valve by hand and hold it in this position using

a plastic or wood wedge -arrow-.

CAUTION

Risk of injury from acetone. Acetone is highly flammable and

can cause eye and skin irritation.
– Wear protective eyewear.
– Wear safety gloves.

– Clean the throttle valve connection thoroughly with acetone

and a brush especially in the area near -arrows- the closed

throttle valve.

– Wipe the throttle valve connections with a lint-free cloth.
– Let the acetone dry completely.
– Install the Throttle Valve Control Module - GX3- . Refer to

⇒ “4.5  Throttle Valve Control Module GX3 , Removing and

Installing”, page 309

 .

– Erase the adaptation values and then adapt the Engine Con‐

trol Module - J623- to the Throttle Valve Control Module . Use

a Vehicle Diagnostic Tester to do so.

5

Sensors

⇒ “5.1 Overview - Structure Borne Sound Actuator and Control

Module”, page 313
⇒ “5.2  Fuel Pressure Sensor G247 , Removing and Installing”,

page 314
⇒ “5.3  Fuel Pressure Sensor G247 , Checking”, page 316
⇒ “5.4  Low Fuel Pressure Sensor G410 , Removing and Instal‐

ling”, page 318

5.1

Overview - Structure Borne Sound Actuator and Control Module

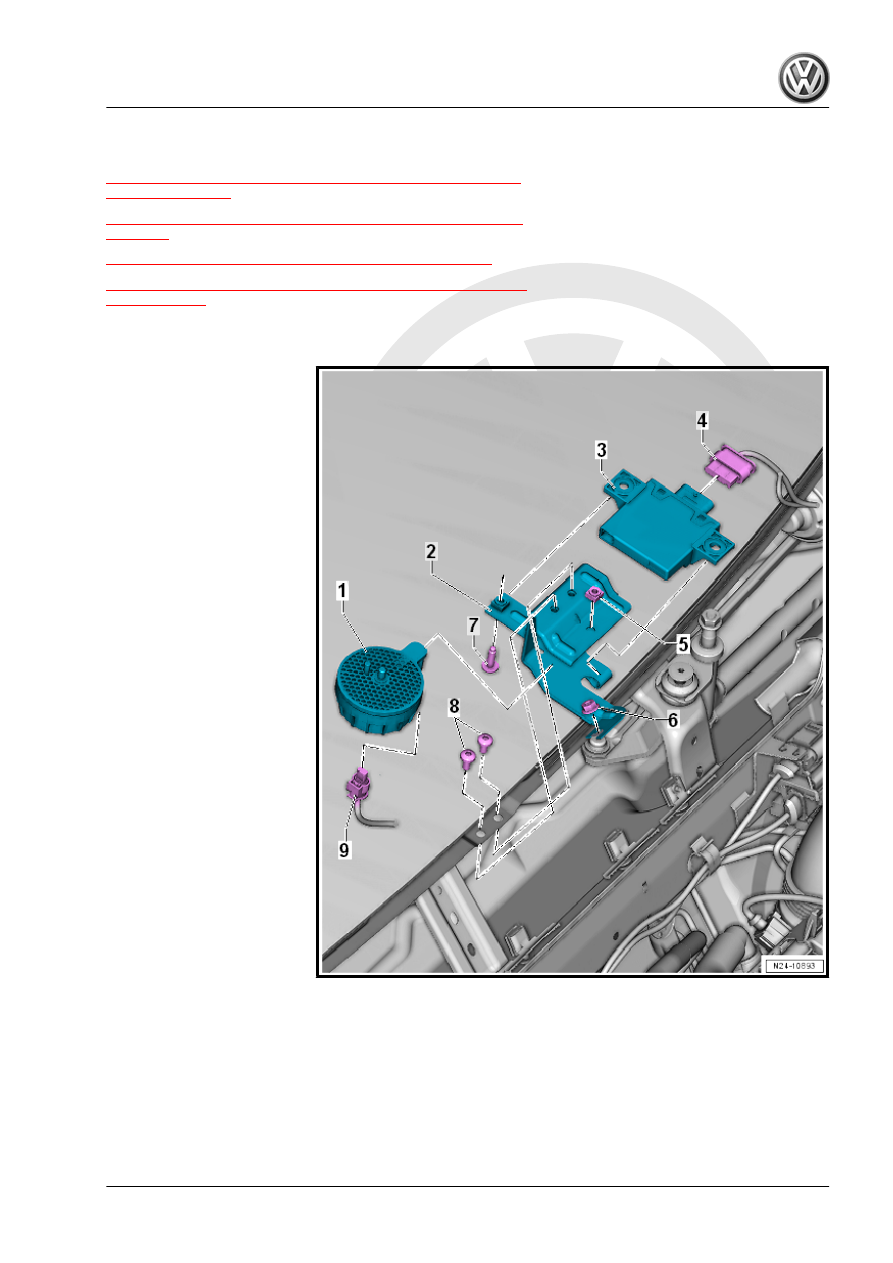

1 - Structure-Borne Sound Ac‐

tuator - R214-

❑ Component location: in‐

side the plenum cham‐

ber

❑ To remove and install,

remove the plenum

chamber cover. Refer to

⇒  Body Exterior; Rep.

Gr.  50 ; Bulkhead; Ple‐

num Chamber Cover,

Removing and Instal‐

ling .

❑ Fastened with the nut

-5- to the bracket

2 - Bracket

❑ For the Structure-Borne

Sound Actuator - R214-

and Structure Borne

Sound Control Module -

J869-

❑ Can only be replaced

when the windshield is

removed

3 - Structure Borne Sound

Control Module - J869-

❑ Component location: in‐

side the plenum cham‐

ber

❑ To remove and install,

remove the plenum

chamber cover. Refer to

⇒  Body Exterior; Rep.

Gr.  50 ; Bulkhead; Ple‐

num Chamber Cover,

Removing and Instal‐

ling .

❑ Depending on the version, secured with a screw or with two nuts

4 - Connector

❑ For the Structure Borne Sound Control Module - J869-

5 - Nut

❑ 7 Nm
❑ For the Structure-Borne Sound Actuator - R214-

6 - Nut

❑ 9 Nm

7 - Bolt/Nut

❑ 3 Nm
❑ For the Structure Borne Sound Control Module - J869-

8 - Bolt

❑ 9 Nm

9 - Connector

❑ For the Structure-Borne Sound Actuator - R214-

5.2

Fuel Pressure Sensor - G247- , Remov‐

ing and Installing

Special tools and workshop equipment required
♦ Elbow Assembly Tool - T10118-
♦ Socket - 27mm - T40218-
If the Fuel Pressure Sensor - G247- fails, the Fuel Pressure Reg‐

ulator Valve - N276- will switch off, the electric fuel pump is fully

activated and the engine will be driven by the existing fuel pres‐

sure. This will reduce the engine torque dramatically.
Removing

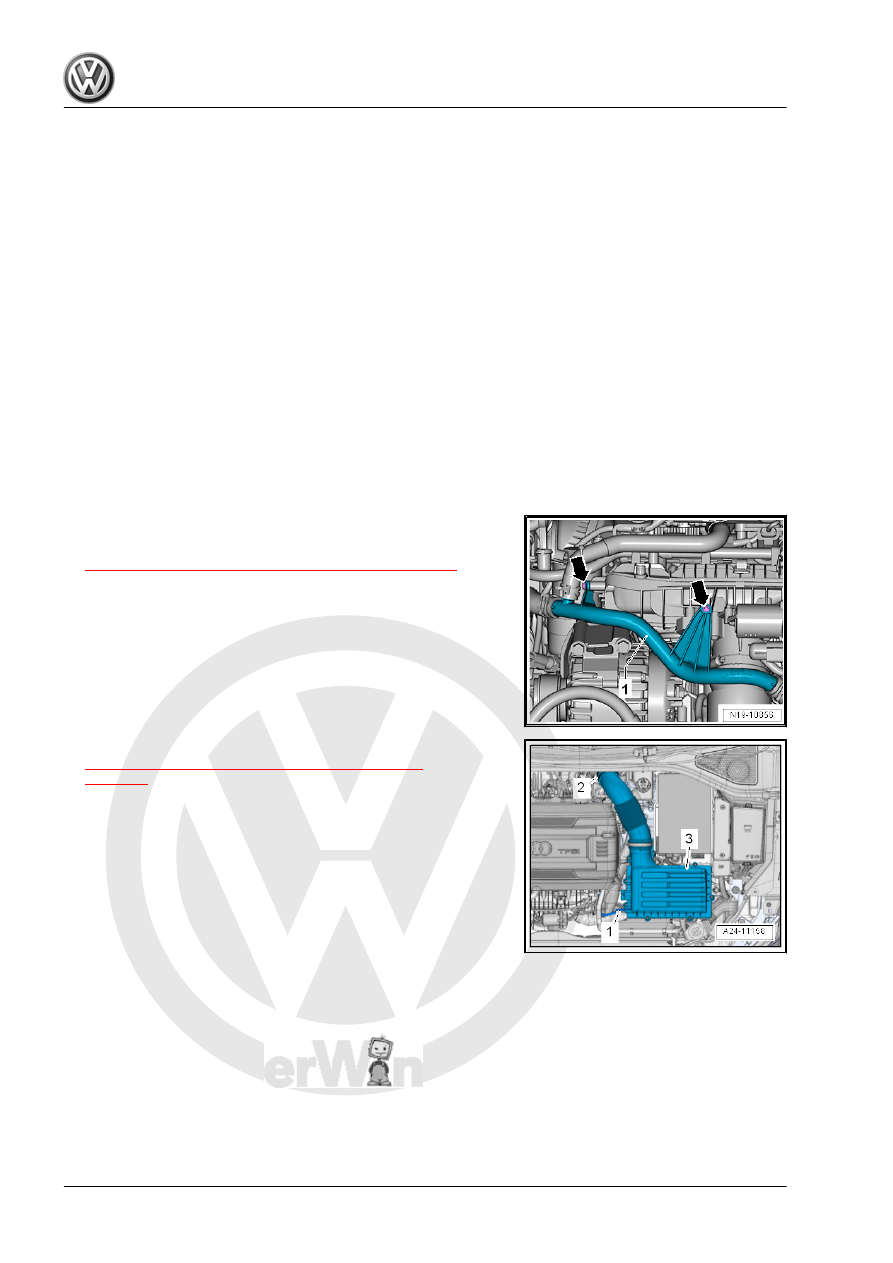

– Remove the engine cover. Refer to

⇒ “3.1 Engine Cover, Removing and Installing”, page 38

 .

– Remove the bolts -arrows-.

– Remove the air filter housing -3-. Refer to

⇒ “3.2 Air Filter Housing, Removing and Installing”,

page 294

 .

– Remove the left and right bolt -arrow-.
– Unclip and remove the lower section -1- of the air duct.
– Remove the noise insulation. Refer to ⇒  Body Exterior; Rep.

Gr.  66 ; Noise Insulation; Overview - Noise Insulation .

– Free up the coolant hose -3-.
– Remove the connector -1- from the Charge Air Pressure Sen‐

sor - G31- .

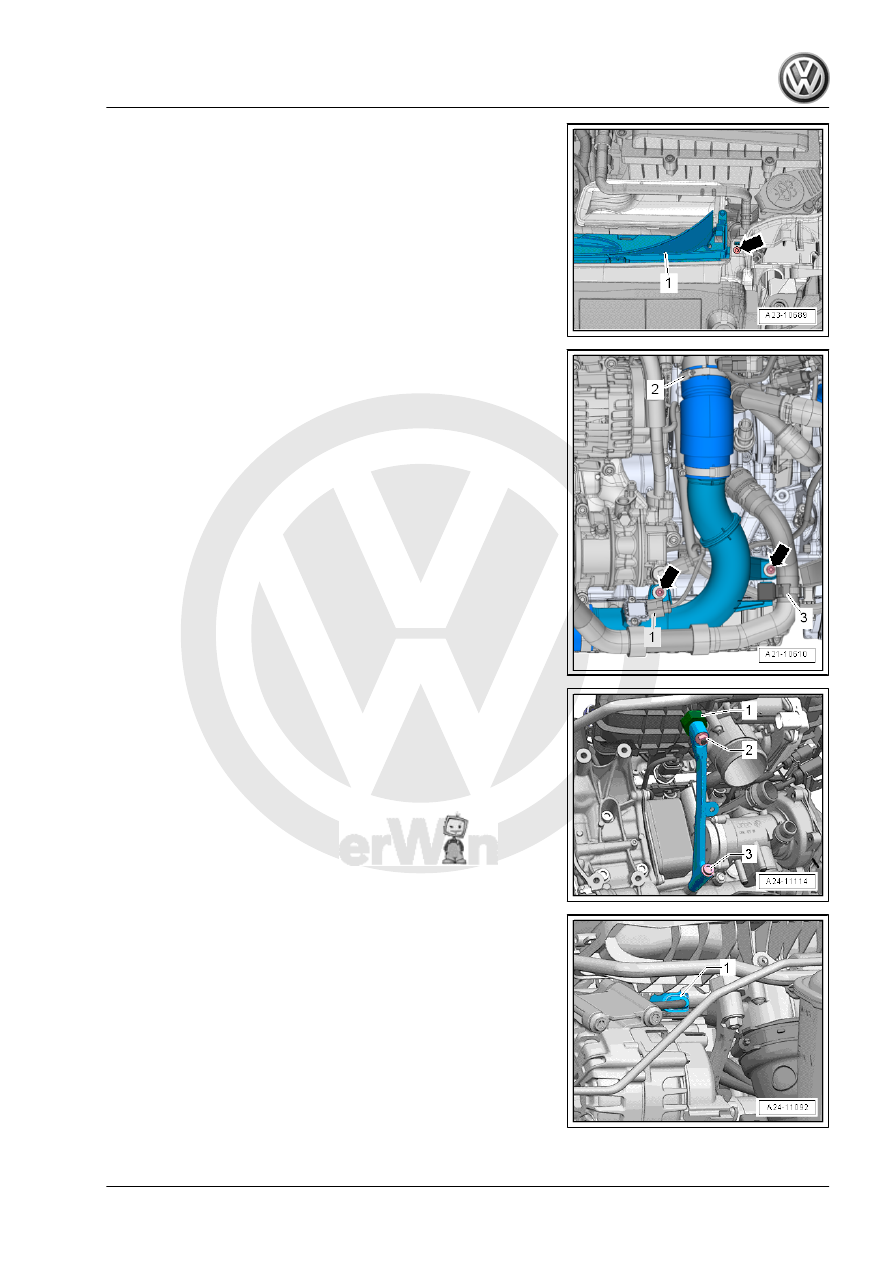

– Remove the bolts -arrows-.
– Loosen air guide hose clamp -2- and remove the air duct hose

from the Throttle Valve Control Module - GX3- downward.

– Remove the nut -2- and bolt -3- and then remove the intake

manifold support.

– Remove the rubber bushing -1- for the intake manifold sup‐

port.

– Use the Elbow Assembly Tool - T10118- -1- to release the

connector from the Fuel Pressure Sensor - G247- .
