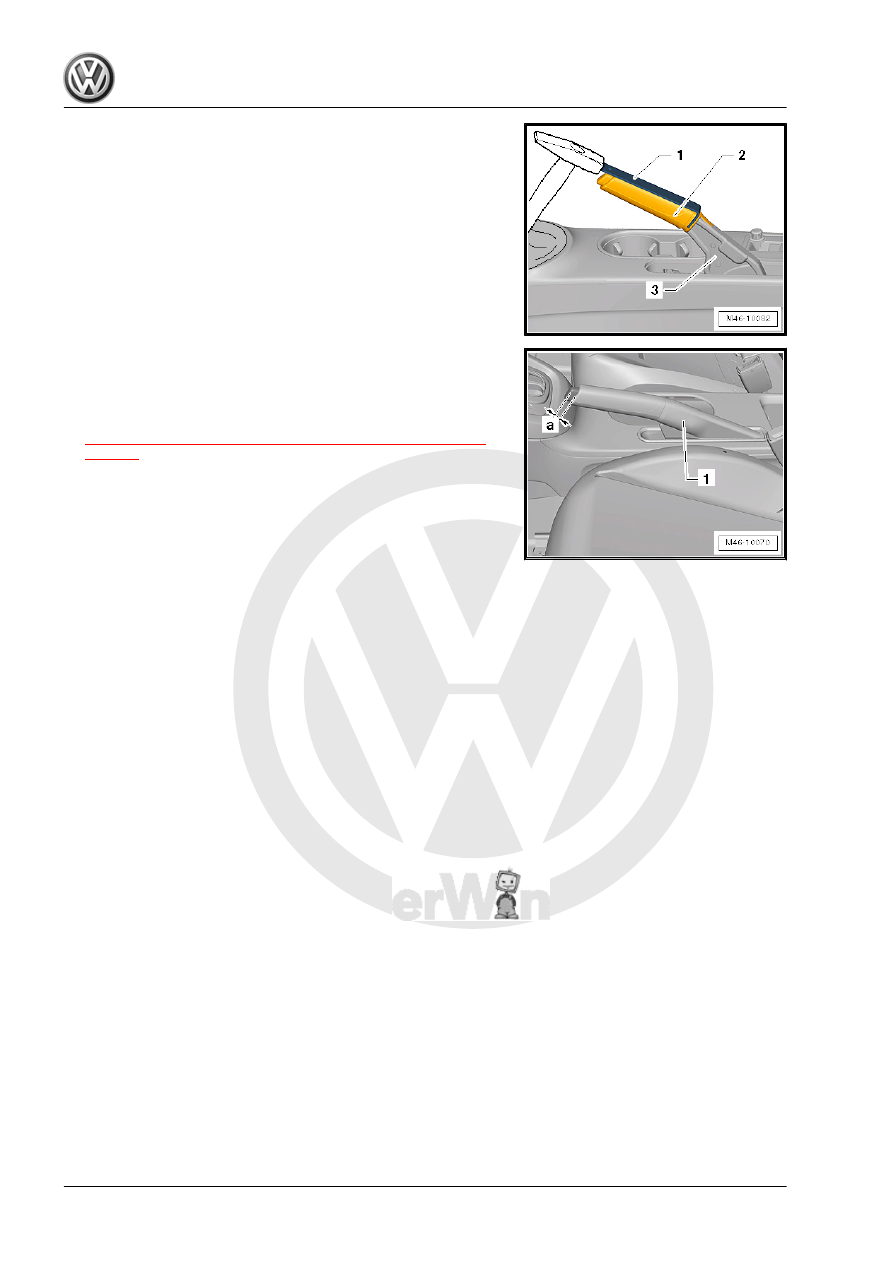

– Put tape over the handle -2- to prevent it from getting dam‐

aged.

– Install the handle -2- on the parking brake lever -3-.
– Use the Assembly Tool - T10488- -1-.

– Mount the handle carefully on the parking brake lever -1- until

dimension -a- is reached.
Dimension -a-: 10 mm ± 1 mm

– Install the parking brake lever trim. Refer to

⇒ “1.20 Parking Brake Lever Trim, Removing and Installing”,

page 38

 .

2

Equipment

⇒ “2.1 Overview - Screen Separator”, page 41
⇒ “2.2 Overview - Sun Visors”, page 43
⇒ “2.3 Overview - Roof Grab Handle”, page 44
⇒ “2.4 Screen Separator, Removing and Installing”, page 44
⇒ “2.5 Screen Separator Mount, Removing and Installing”,

page 45
⇒ “2.6 Screen Separator Bracket, Removing and Installing”, page

46
⇒ “2.7 Screen Separator Mount, Removing and Installing”,

page 46
⇒ “2.8 Sun Visor, Removing and Installing”, page 47
⇒ “2.9 Sun Visor Center Support, Removing and Installing”, page

49
⇒ “2.10 Roof Grab Handle, Removing and Installing”, page 50
⇒ “2.11 Roof Grab Handle Bracket, Removing and Installing”,

page 52

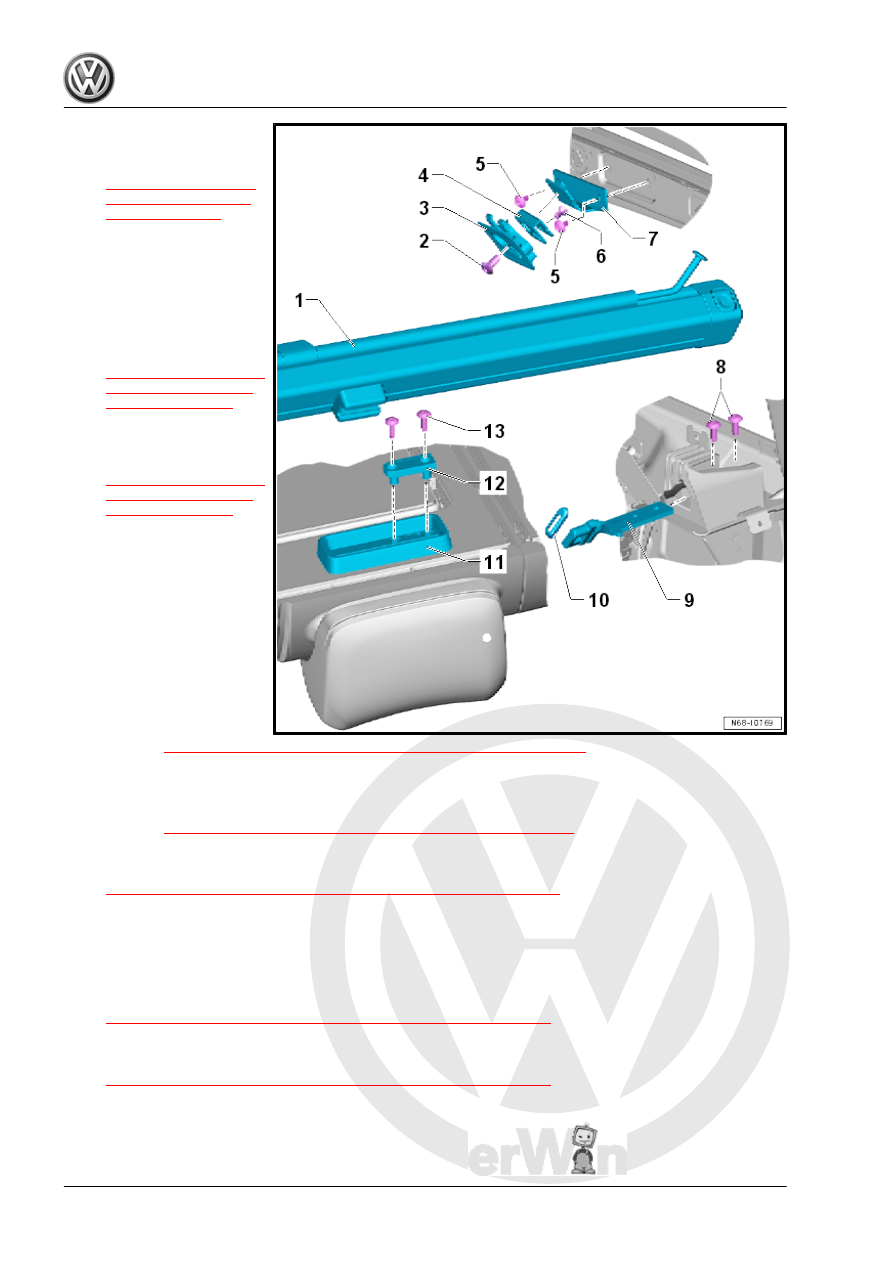

2.1

Overview - Screen Separator

1 - Screen Separator

❑ Removing and instal‐

ling. Refer to

⇒ “2.4 Screen Separa‐

tor, Removing and In‐

stalling”, page 44

 .

2 - Screw

❑ 4.5 Nm

3 - Mount Trim

❑ Allocation. Refer to the

Parts Catalog.

❑ Removing and instal‐

ling. Refer to

⇒ “2.7 Screen Separator

Mount, Removing and

Installing”, page 46

 .

4 - Screen Separator Mount

❑ Removing and instal‐

ling. Refer to

⇒ “2.7 Screen Separator

Mount, Removing and

Installing”, page 46

 .

5 - Screw

❑ 4.5 Nm
❑ Quantity: 2

6 - Screw

❑ 1.5 Nm

7 - Mount Bracket

❑ Allocation. Refer to the

Parts Catalog.

❑ Removing
– Remove the headliner.

Refer to

⇒ “7.3.2 Headliner, Removing and Installing, Wagon”, page 301

 .

– Remove the screws -5- and the mount bracket.

8 - Screw

❑ Refer to

⇒ “1.3 Overview - Outer Rear Three-Point Seat Belt”, page 88

9 - Screen Separator Bracket

❑ Removing and installing. Refer to

⇒ “2.6 Screen Separator Bracket, Removing and Installing”, page 46

 .

10 - Rubber Grommet

❑ Slide over the screen separator bracket and insert into the luggage compartment side trim panel

11 - Mount

❑ On the right 2/3 rear seat backrest
❑ Removing and installing. Refer to

⇒ “2.5 Screen Separator Mount, Removing and Installing”, page 45

 .

12 - Selector

❑ Removing and installing. Refer to

⇒ “2.5 Screen Separator Mount, Removing and Installing”, page 45

 .

13 - Bolt

❑ 8 Nm
❑ Quantity: 2

Note

♦

Remove the locking fluid from

the bolt threads using a wire

brush. Then insert the bolts with

locking compound. Refer to the

Parts Catalog.

♦

Remove the locking fluid from

the bolt holes, for example using

a thread tap.

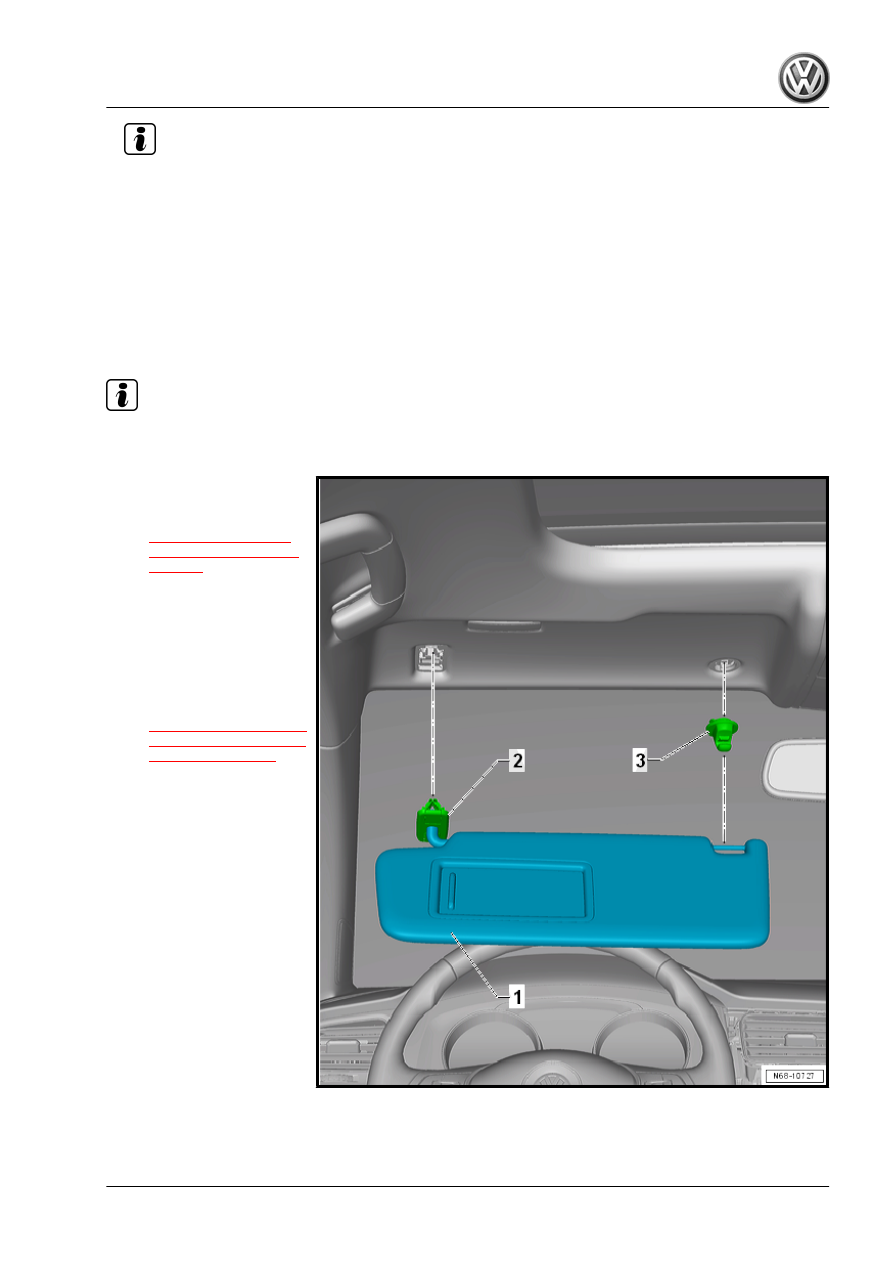

2.2

Overview - Sun Visors

Note

The overview illustration shows the driver side. The illustration for the front passenger side is identical.

1 - Sun Visor

❑ Removing and instal‐

ling. Refer to

⇒ “2.8 Sun Visor, Re‐

moving and Installing”,

page 47

 .

2 - Sun Visor Mount

❑ Cannot be removed

from the sun visor

3 - Center Support

❑ For the sun visor
❑ Removing and instal‐

ling. Refer to

⇒ “2.9 Sun Visor Center

Support, Removing and

Installing”, page 49

 .
