Door Handle, Removing and Installing

Note

The following describes the removal and installation of the right door handle. The left side is identical.

Removing
For notes and procedures regarding a door handle with the key‐

less access authorization system. Refer to ⇒  Electrical Equip‐

ment; Rep. Gr.  94 ; Access/Start Authorization .
– Remove the cap. Refer to

⇒ “2.10 Cap, Removing and Installing”, page 173

 .

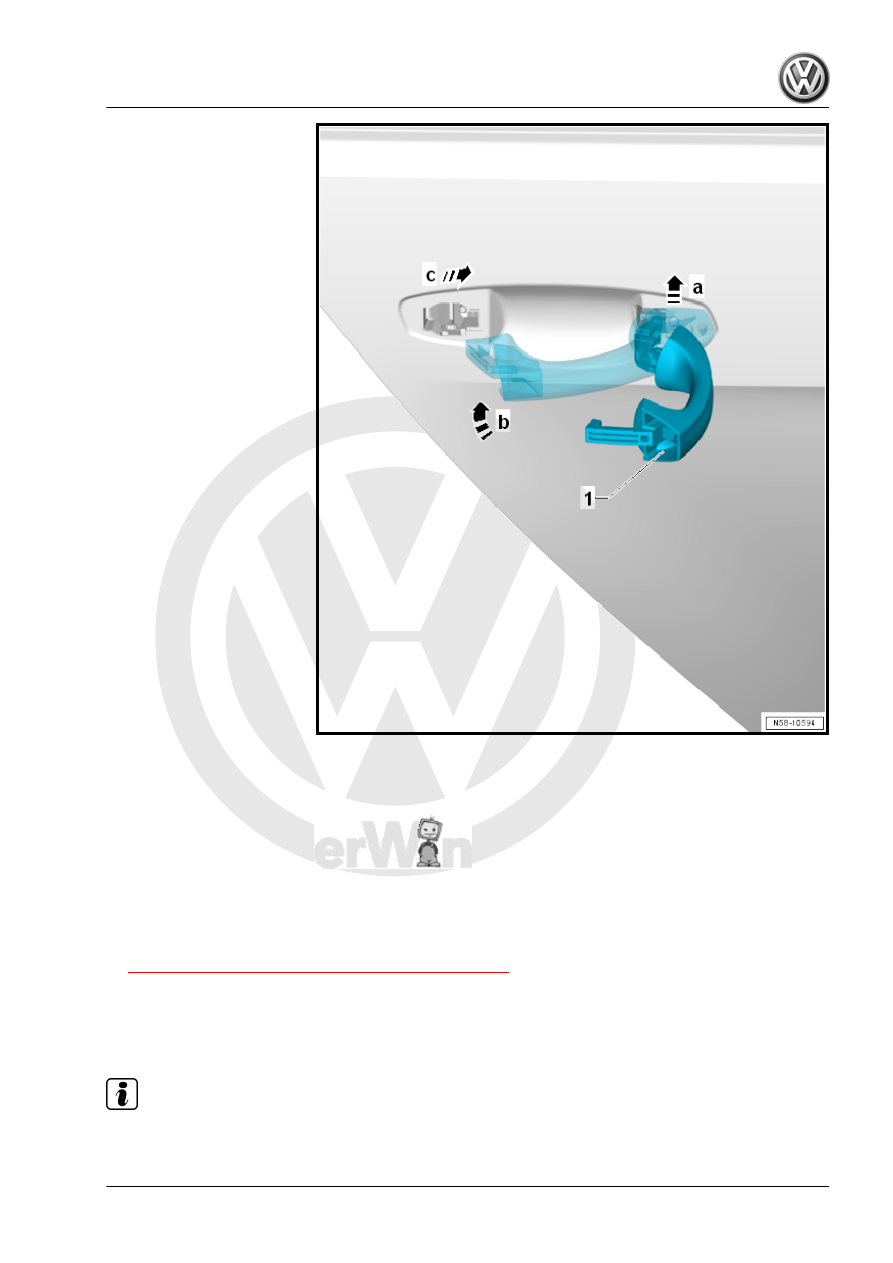

– Pull the door handle -1- slightly to the rear in direction of

-arrow a- and out of the bracket mount.

– Pivot the door handle in the direction of -arrow b-.
– Remove the door handle from the bracket -1- in direction of

-arrow c-.

Installing

For notes and procedures regarding a door handle with the key‐

less access authorization system. Refer to ⇒  Electrical Equip‐

ment; Rep. Gr.  94 ; Access/Start Authorization .

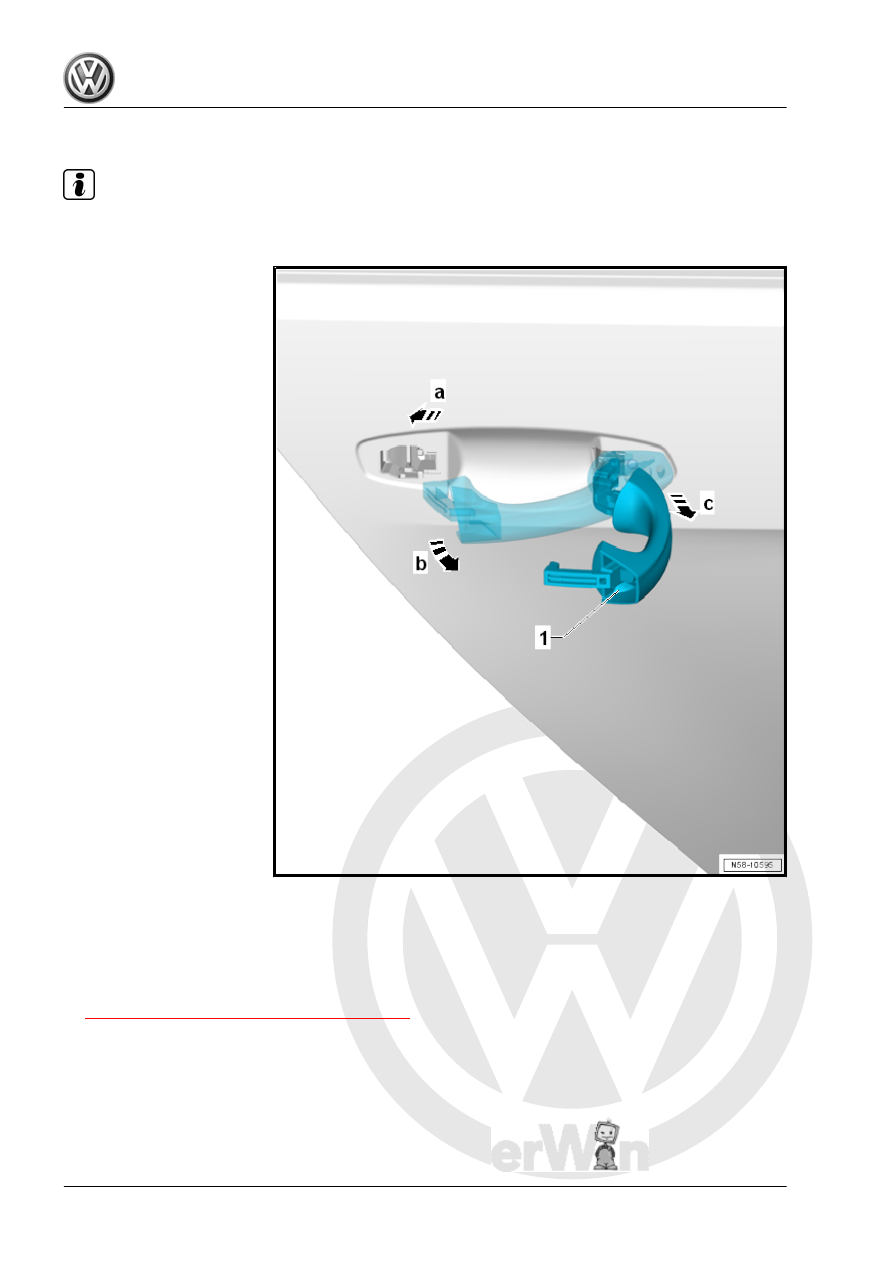

– Insert the door handle -1- into the bracket at a right angle in

direction of -arrow a-.

– Pivot the door handle -1- into the door in direction of

-arrow b-.

– Push the door handle toward the front in direction of

-arrow c- into the mount in the bracket.

– Install the cap. Refer to

⇒ “2.11 Door Handle, Removing and Installing”, page 176

 .

2.12

Bracket, Removing and Installing

Special tools and workshop equipment required
♦ Torque Wrench 1783 - 2-10Nm - VAG1783-

Note

The following describes the removal and installation of the left bracket. The right side is identical.

Removing
– Remove the rear door trim panel. Refer to ⇒  Body Interior;

Rep. Gr.  70 ; Rear Door Trim Panels; Rear Door Trim Panel,

Removing and Installing .

– Remove the door inner cover. Refer to

⇒ “2.8 Door Inner Cover, Removing and Installing”,

page 170

 .

– Remove the door handle. Refer to

⇒ “2.11 Door Handle, Removing and Installing”, page 176

 .

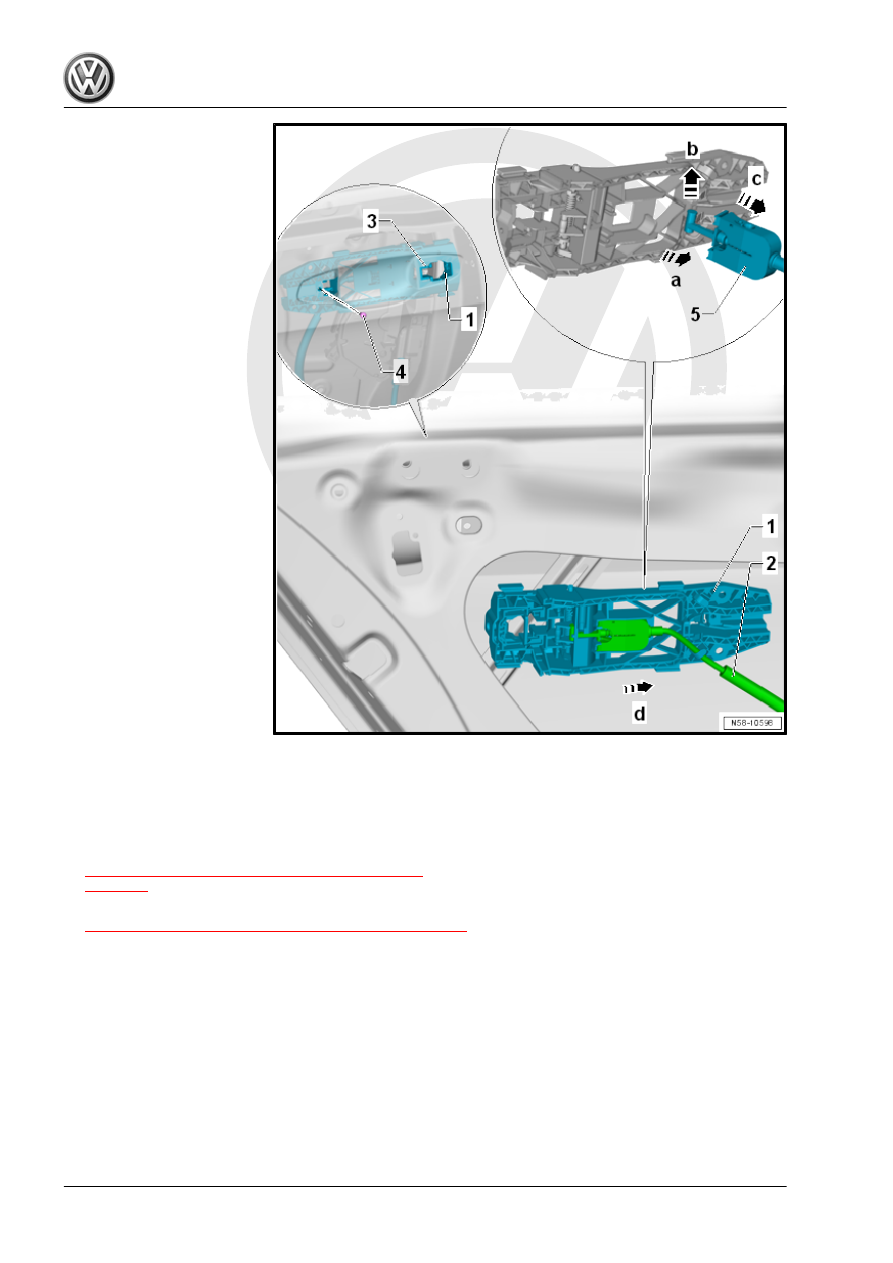

– Remove the bolt -4- and remove the backing plate -3-.
– Push the bracket -1- slightly toward the rear and remove it from

the door in direction of -arrow d-.

Detach the Release Cable.
– Release the retainer -5- and pivot it out of the mount in the

bracket in direction of -arrow a-.

– Remove the pin for the release cable from the mount in direc‐

tion of -arrow b-.

– Remove the release cable -2- from the bracket -1- in direction

of -arrow c-.

Installing

Securing the Release Cable

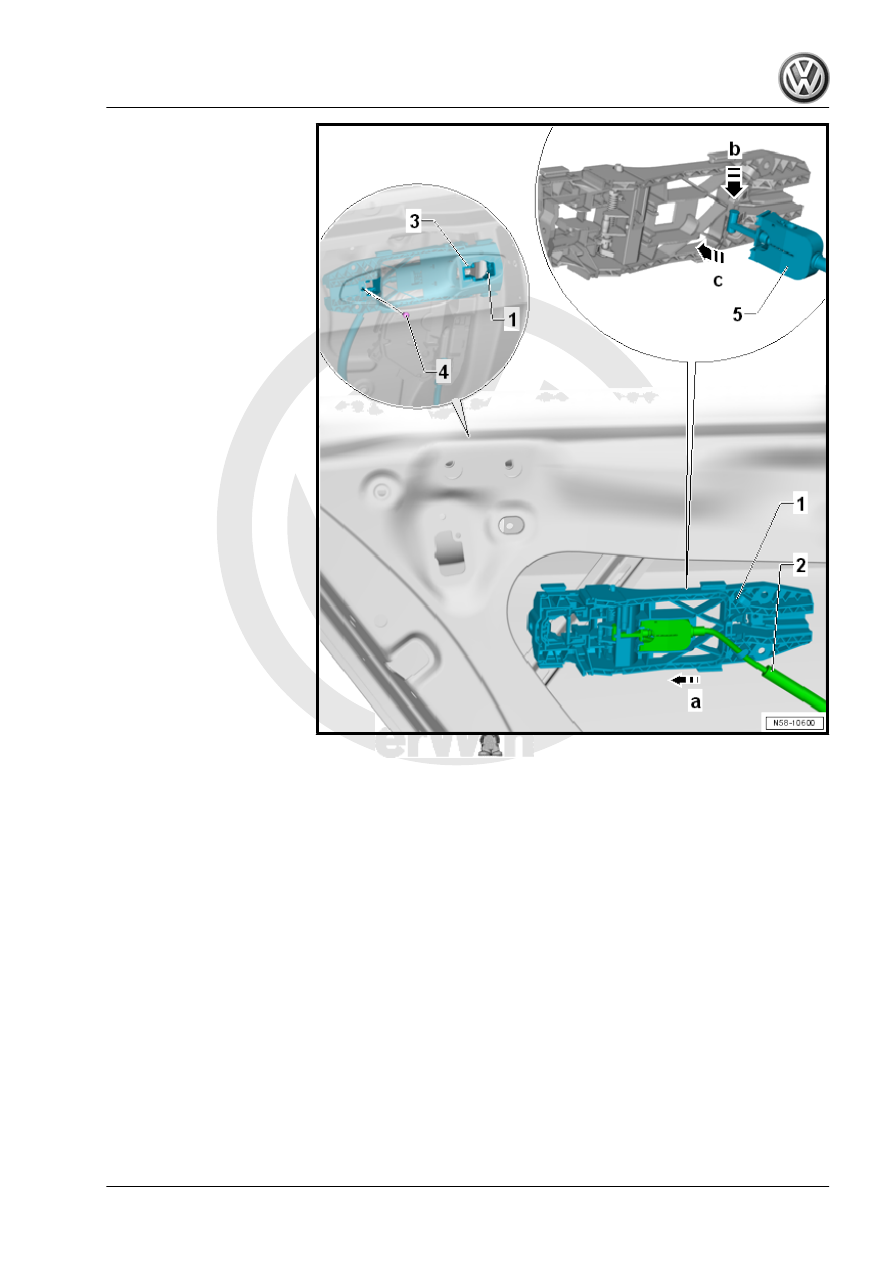

– Guide the release cable -2- in the bracket -1-.
– Install the release cable bolts in the mount in direction of

-arrow b-.

– Pivot the retainer -5- into the mount in the bracket in direction

of -arrow c- and engage.

– Guide the bracket -1- into the door in direction of -arrow a-.
– Push the bracket slightly forward.
– Install the backing plate -3- and tighten the screw -4-.
Installation is performed in reverse order of the removal.
Tightening Specifications

2.13

Door Lock, Removing and Installing

Special tools and workshop equipment required
♦ Torque Wrench 1331 5-50Nm - VAG1331-
♦ Cylinder Head Bolt Socket - 3410-
