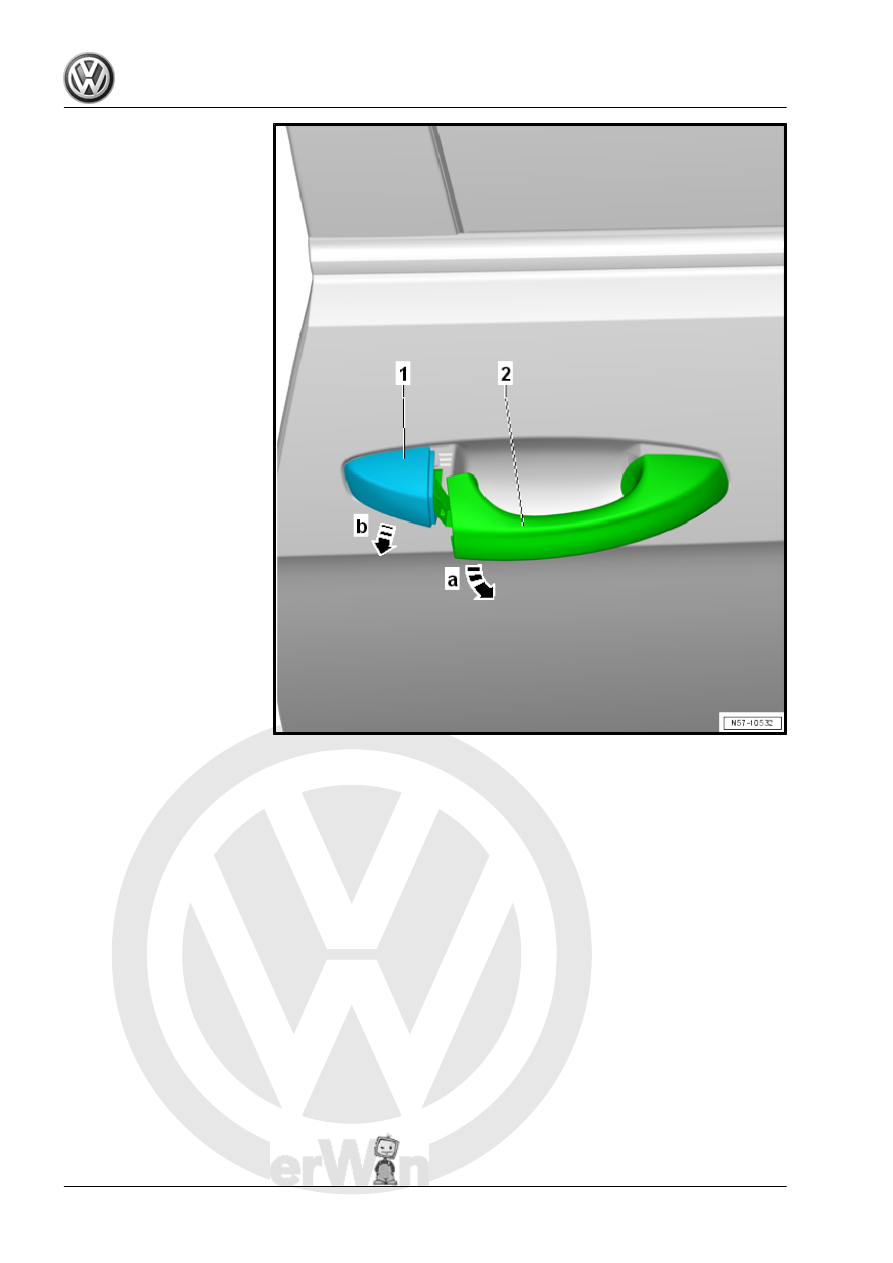

– Remove the door handle -1- from the door.
– Gently push the lock cylinder cap -2- at an angle from above

in direction of -arrow a- onto the lock cylinder.

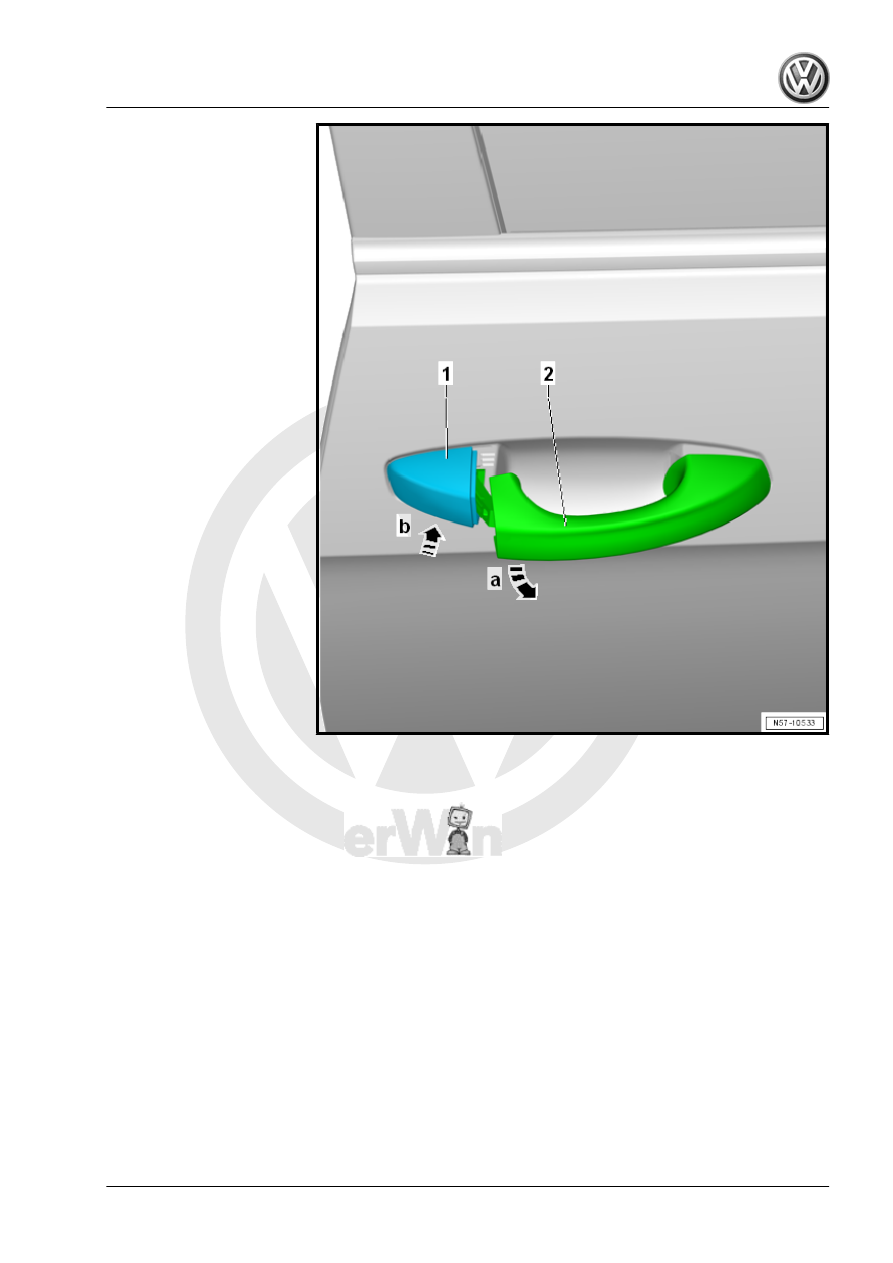

– Press the lock cylinder cap -2- onto the door in direction of

-arrow b- until the cap engages with the lock cylinder.

2.9

Cap without Lock Cylinder, Removing

and Installing

Special tools and workshop equipment required
♦ Lock Cylinder Housing Assembly Tool - T10389-

Note

This cap is installed where there is no lock cylinder.

Removing

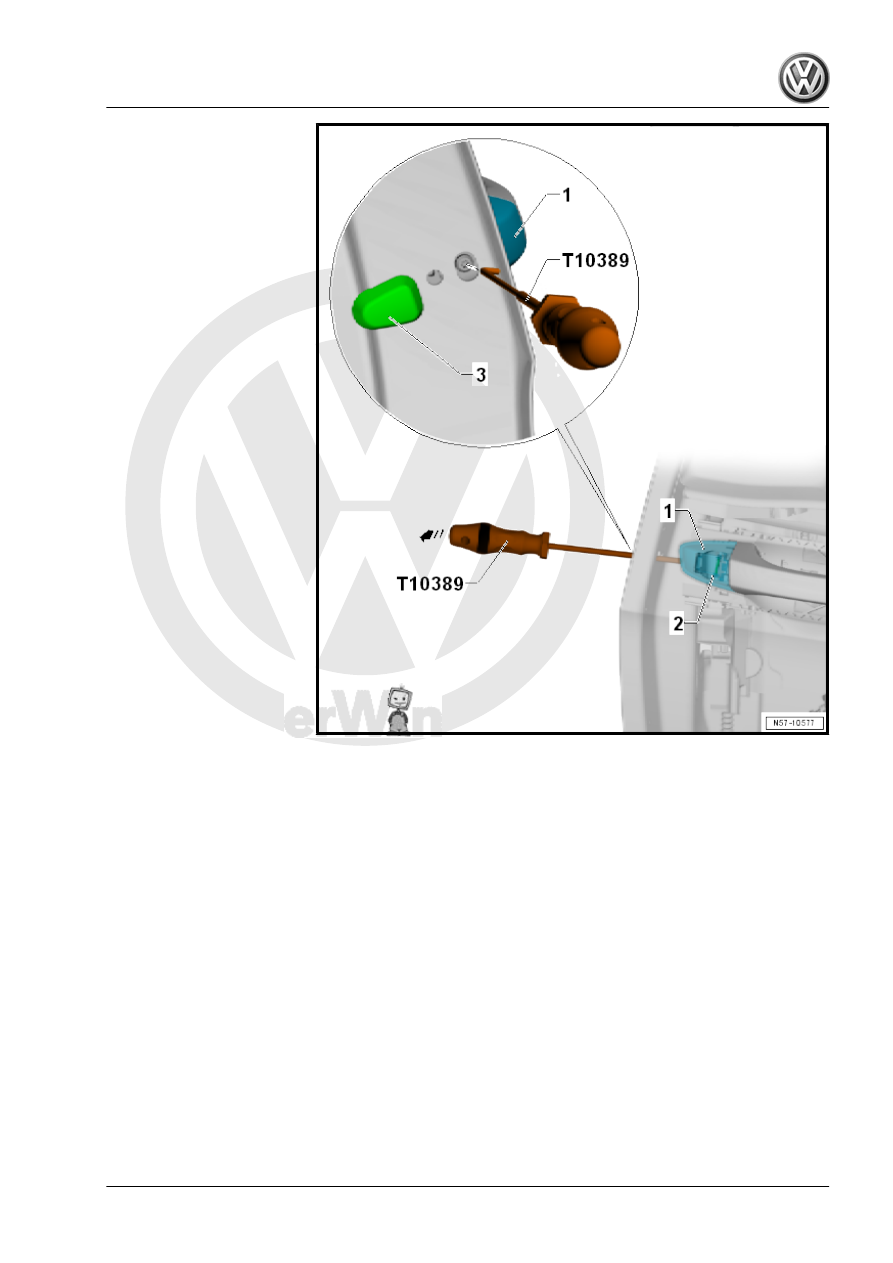

– Remove the plugs -3-.
– Guide the Lock Cylinder Housing Assembly Tool - T10389-

approximately 44 mm behind the bracket locking hook -2-.

– Pull the Lock Cylinder Housing Assembly Tool - T10389- ap‐

proximately 5 mm toward the rear in direction of -arrow- until

the hook releases.

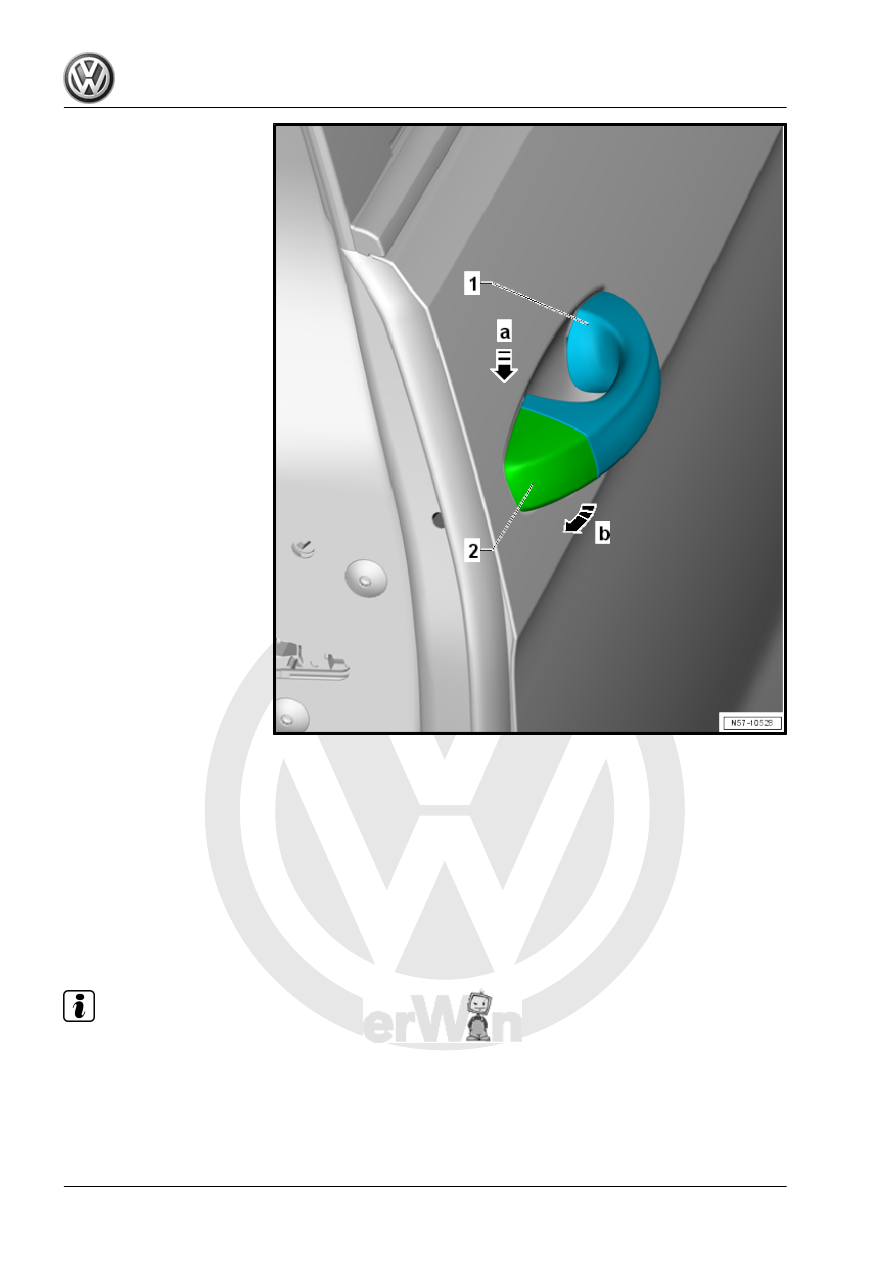

– Remove the door handle -2- from the door in direction of

-arrow a-.

– Remove the cap -1- from the bracket in direction of -arrow b-.
Installing

– Remove the door handle -2- from the door in the direction of

-arrow a-.

– Insert the cap -1- into the bracket in direction of -arrow b-.
