Volkswagen Golf / Golf GTI / Jetta. Manual - part 685

- Clip in trim piece - 1 - into glass panel for sunroof - 2 - .

- Hook in trim piece - 1 - at top, rear, into glass panel for
sunroof - 2 - .

- Engage trim piece - 1 - at top, rear, with glass panel for
sunroof - 2 - .

- Engage trim piece - 1 - with securing rails - 3 - .

Panel seal, replacing

- Removing glass panel for sunroof

60-2, Removing

glass panel for sunroof

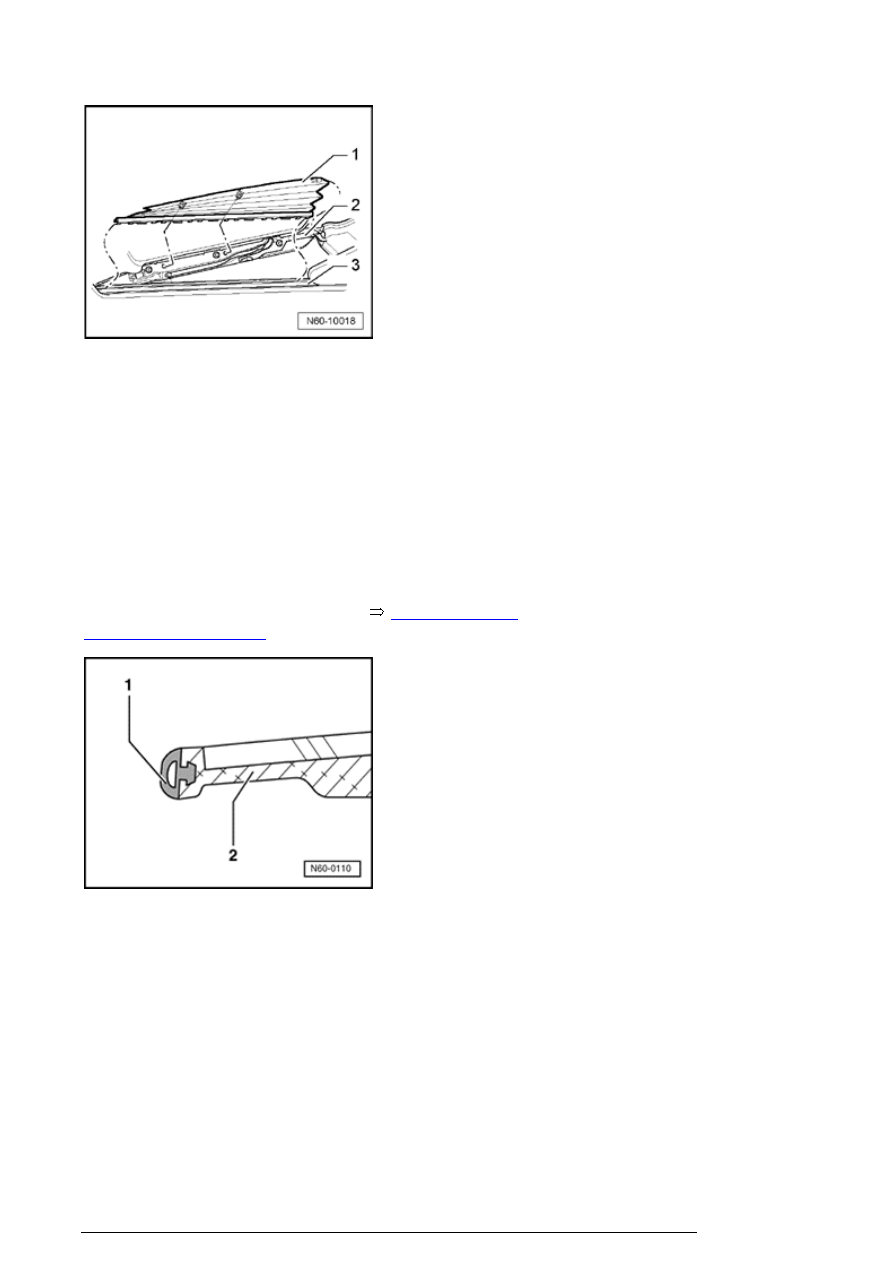

- Pull off seal - 1 - from glass panel.

- Press in new seal at center into glass panel - 2 - .

Note:

Coat edge of panel with soapy water to facilitate installation
of seal.

Wind deflector, removing

- Open sunroof completely.

Sunroof with glass panel (Webasto)

13/2/2005

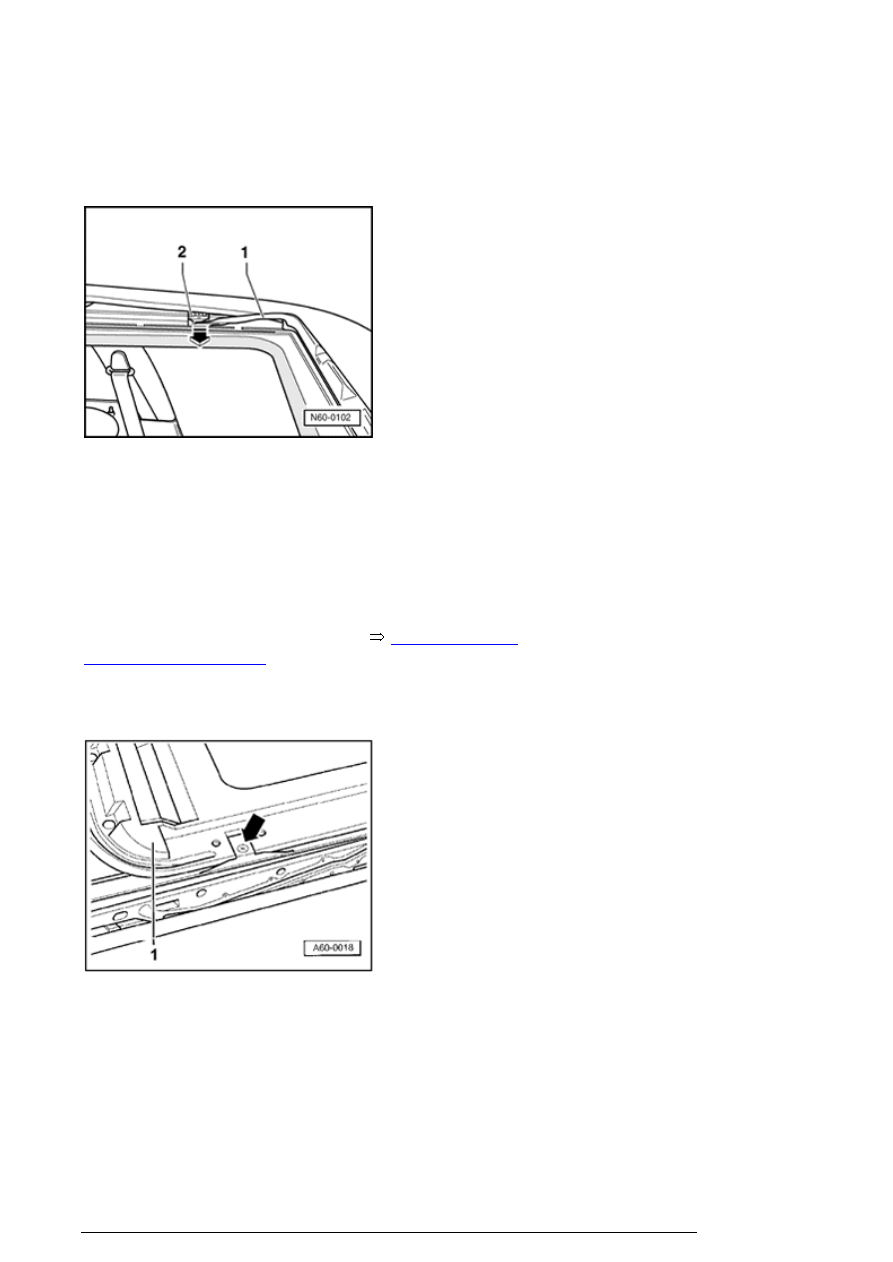

- Press out wind deflector - 1 - downward and
simultaneously toward vehicle center - arrow - on both
sides out of guide - 2 - .

- Remove wind deflector.

Sliding headliner, removing

- Removing glass panel for sunroof

60-2, Removing

glass panel for sunroof

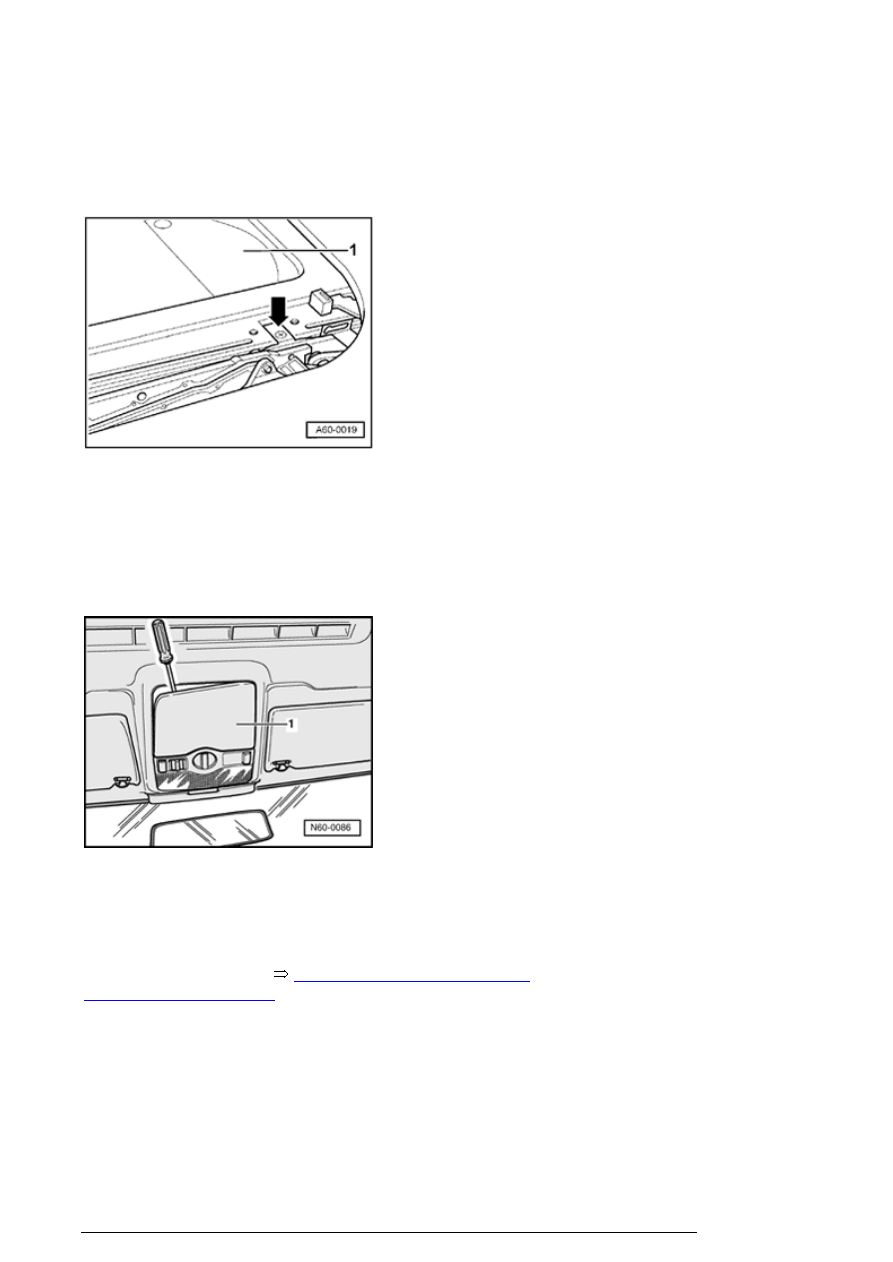

- Slide back sliding headliner slightly to facilitate
installation.

- Remove front bolts - arrow - at left and right. Slide out
slider toward front over stop - 1 - .

- Slide sliding headliner toward front.

Sunroof with glass panel (Webasto)

13/2/2005

- Remove rear bolts - arrow - at left and right. Slide slider
toward rear and remove sliding headliner - 1 - upward.

Drive motor for sunroof, removing

- Disconnect Ground (GND) strap from battery.

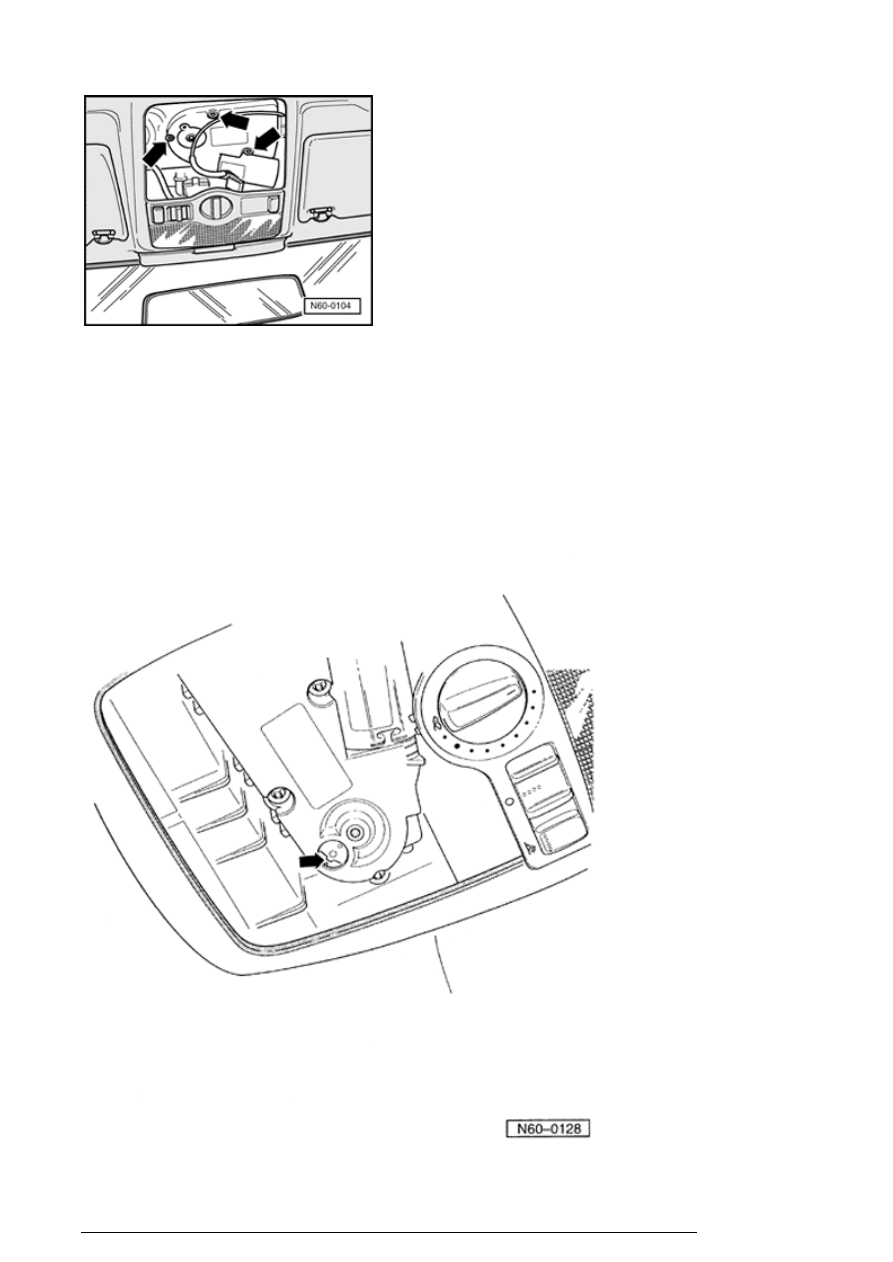

- Unclip cover - 1 - for drive motor.

Note:

Only remove and install drive motor for sunroof when roof
is closed (zero position

60-2, Drive motor for sunroof,

adjusting (zero position)

- Unclip and disconnect connector.

Sunroof with glass panel (Webasto)

13/2/2005

- Remove bolts - arrows - and remove drive motor for
sunroof.

Bolts for drive motor are microencapsulated and must
always be replaced (3.5 Nm).

Drive motor for sunroof, adjusting (zero
position)

Sunroof with glass panel (Webasto)

13/2/2005
