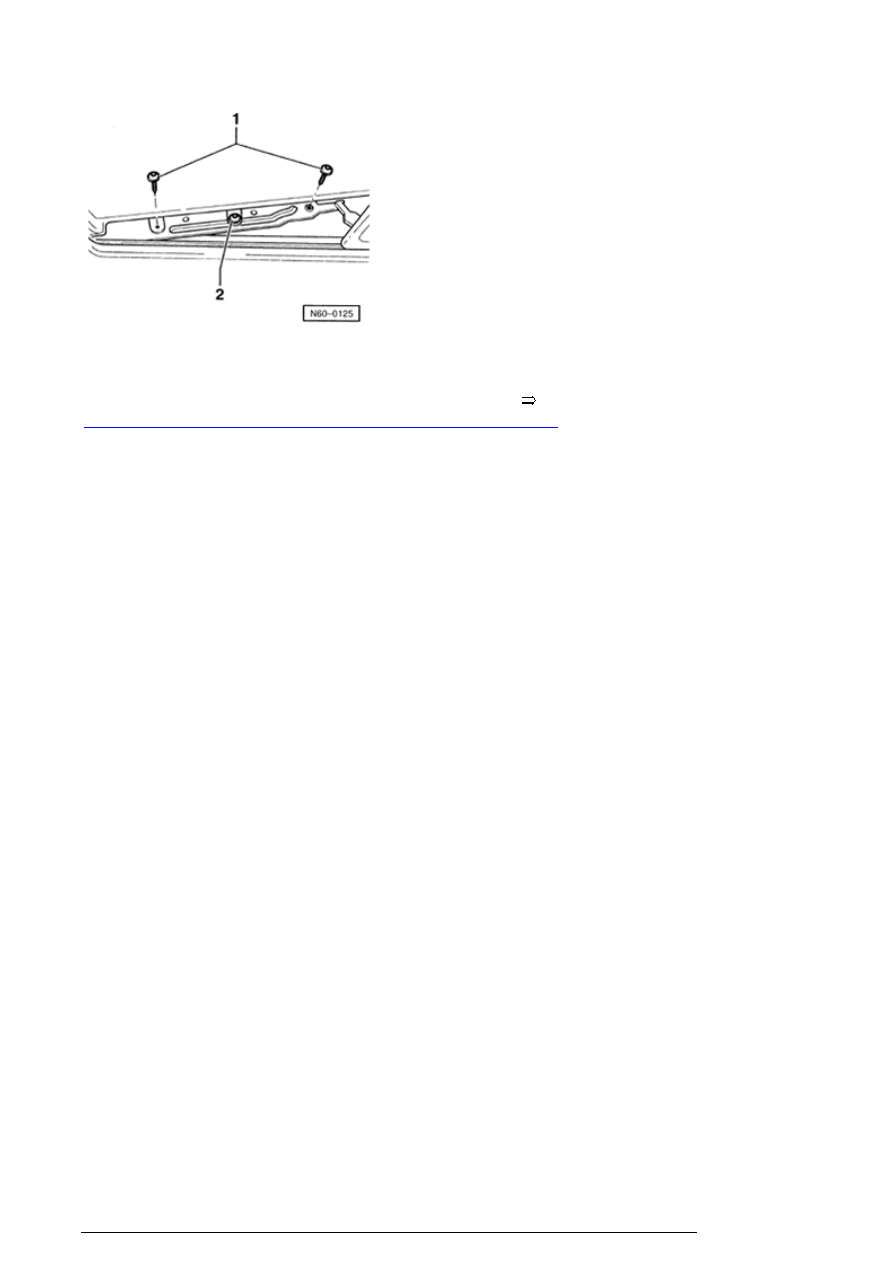

- Slightly tighten securing bolts - 1 - and - 2 - (Torx T25).

- Adjusting glass panel for sunroof (height adjustment)



60-2, Glass panel for sunroof (height adjustment), adjusting



Note:

Tighten securing bolts after panel height adjustment (4.5
Nm).




Vehicles up to calender week 35 2002 (CW 35/02)

- Install lower trim and upper trim after panel height
adjustment.



Vehicles from calender week 36 2002 (CW 36/02) on



In vehicles from calender week 36 2002 (CW 36/02) on, a
trim piece is installed in place of a lower trim and an upper
trim.

Note:

Trim piece and trim must not be replaced against each
other. Clearance for mechanical components is otherwise
not guaranteed.

Install trim piece after panel height adjustment.


Glass panel for sunroof (height adjustment),
adjusting

Note:

Glass panel height adjustment is to be performed after
glass panel has been closed out of sliding position.




Zero position of sunroof OK.

Sunroof with glass panel (Webasto)

13/2/2005





- Tilt sunroof open.

- Slide sliding headliner toward rear.



Vehicles up to calender week 35 2002 (CW 35/02)

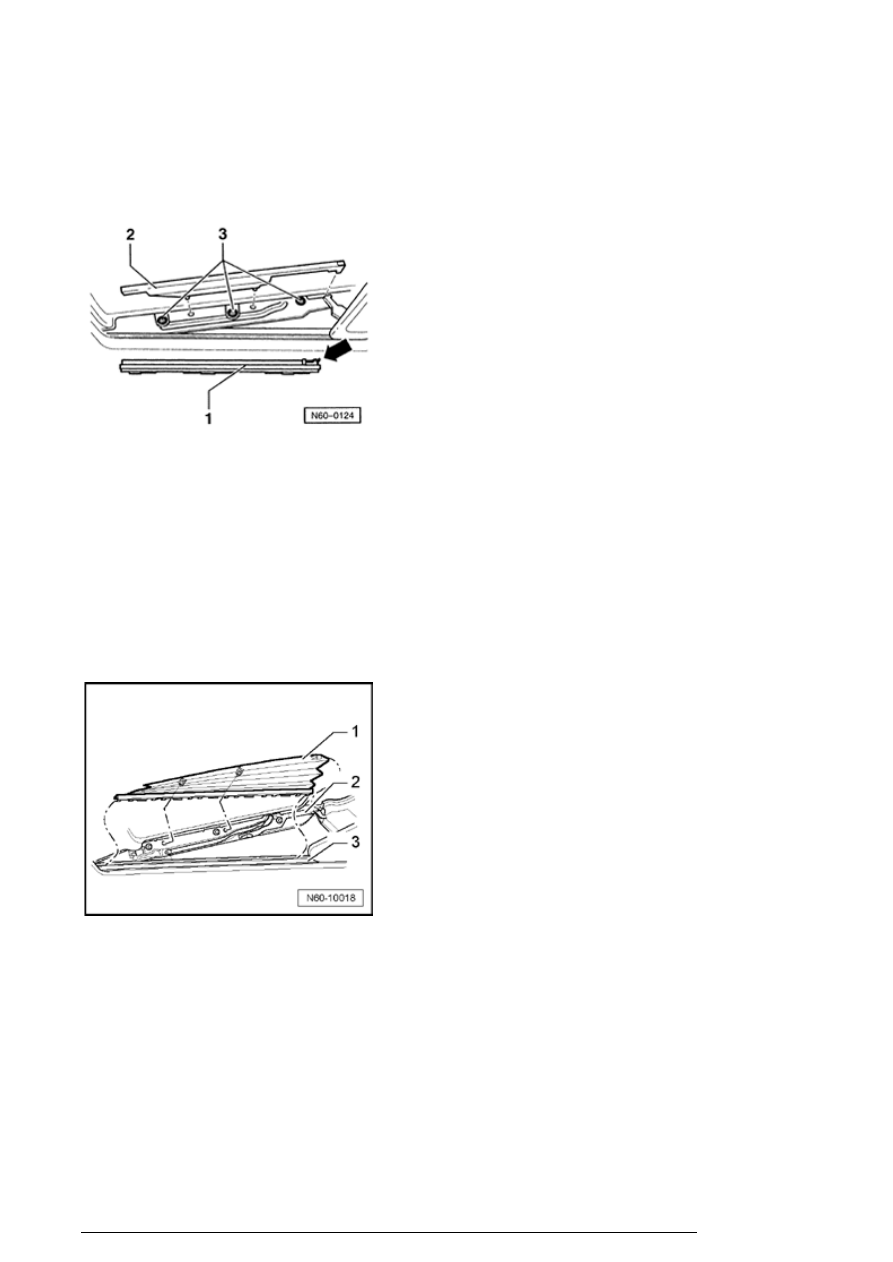

- Unclip lower trim - 1 - in rear area - arrow - , slide toward
front and remove from roof frame.

- Unclip upper trim - 2 - at front and in center and unhook at
rear.



Vehicles from calender week 36 2002 (CW 36/02) on



In vehicles from calender week 36 2002 (CW 36/02) on, a
trim piece is installed in place of a lower trim and an upper
trim.

- Unclip lower trim - 1 - from securing rails - 3 - .

- Unclip lower trim - 1 - at top, rear, from glass panel for
sunroof - 2 - .

- Unhook lower trim - 1 - at top, rear, from glass panel for
sunroof - 2 - .

- Unclip lower trim - 1 - from glass panel for sunroof - 2 - .

- Remove lower trim - 1 - .



Sunroof with glass panel (Webasto)

13/2/2005







Continued for all vehicles

- Loosen securing bolts - 3 - (Torx T25; 4.5 Nm).

- Close glass panel, open and close again (sequence must
be observed for a proper adjustment).

- Perform glass panel height adjustment at front and rear
on both sides as follows:

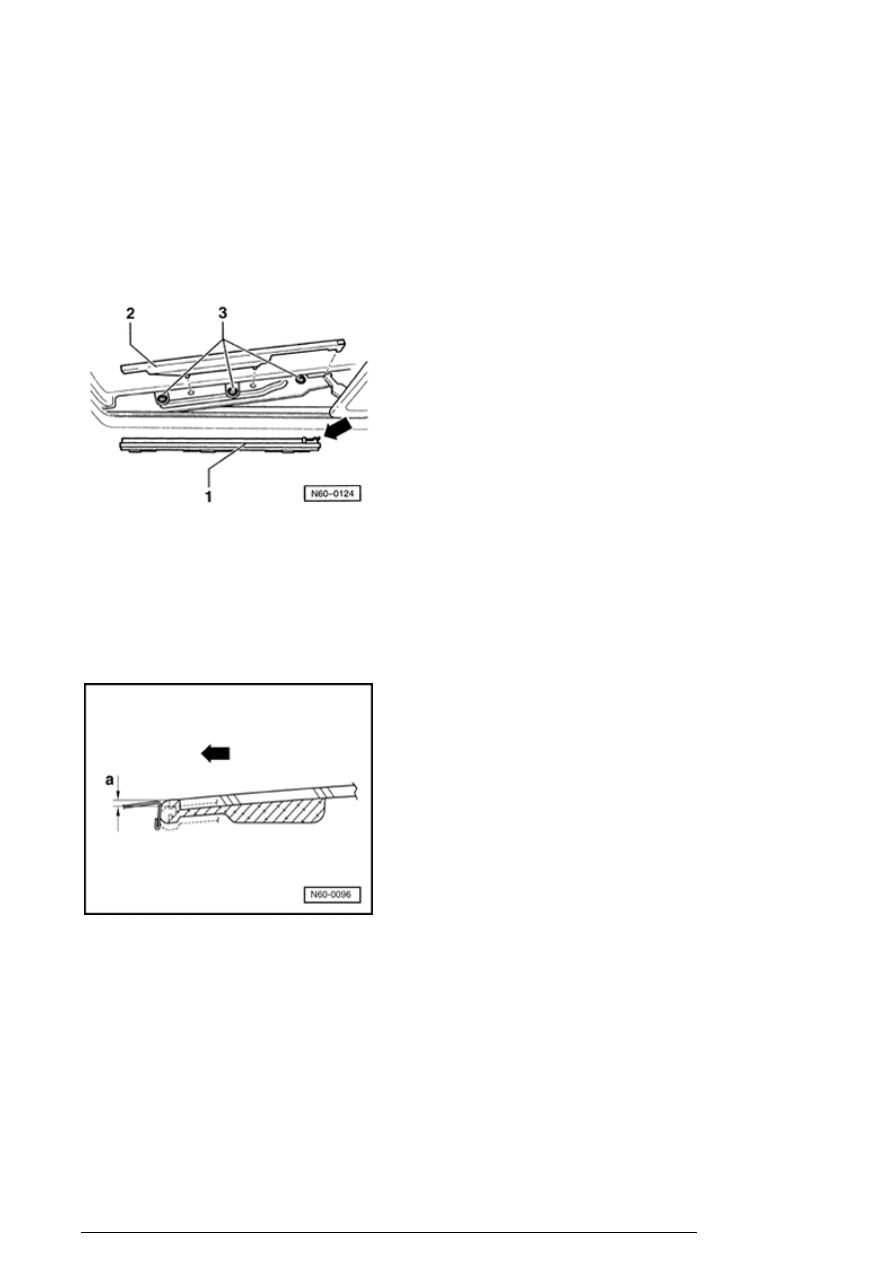

Panel adjustment at front:

- a - = 0 - 1 mm lower than roof

- arrow - = direction of travel

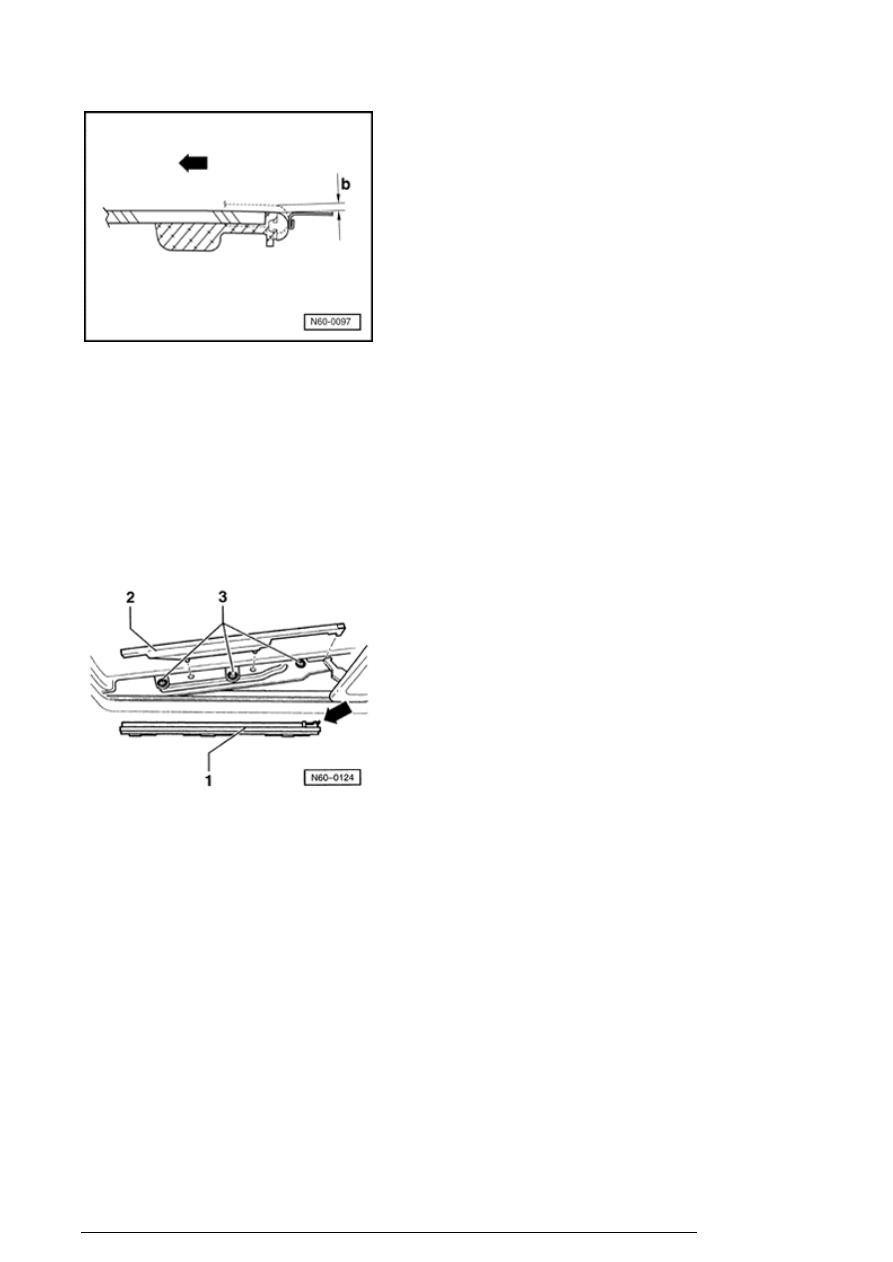

Panel adjustment at rear:

- b - = 0 - 1 mm higher than roof

Sunroof with glass panel (Webasto)

13/2/2005





- arrow - = direction of travel

- Tighten glass panel bolts (4.5 Nm).



Always adjust left and right-hand glass panel sides
symmetrically.

- Tilt sunroof open.



Vehicles up to calender week 35 2002 (CW 35/02)

- Hook upper trim - 2 - at rear and in center and clip in at
front.

- Slide lower trim - 1 - in direction of - arrow - into rear
elongated hole and clip in at front area.



Vehicles from calender week 36 2002 (CW 36/02) on

Note:

In vehicles from calender week 36 2002 (CW 36/02) on, a
trim piece is installed in place of a lower trim and an upper
trim.

Trim piece and trim must not be replaced against each
other. Clearance for mechanical components is otherwise
not guaranteed.


Sunroof with glass panel (Webasto)
