Volkswagen Passat / Passat Variant (2011 year). Manual - part 66

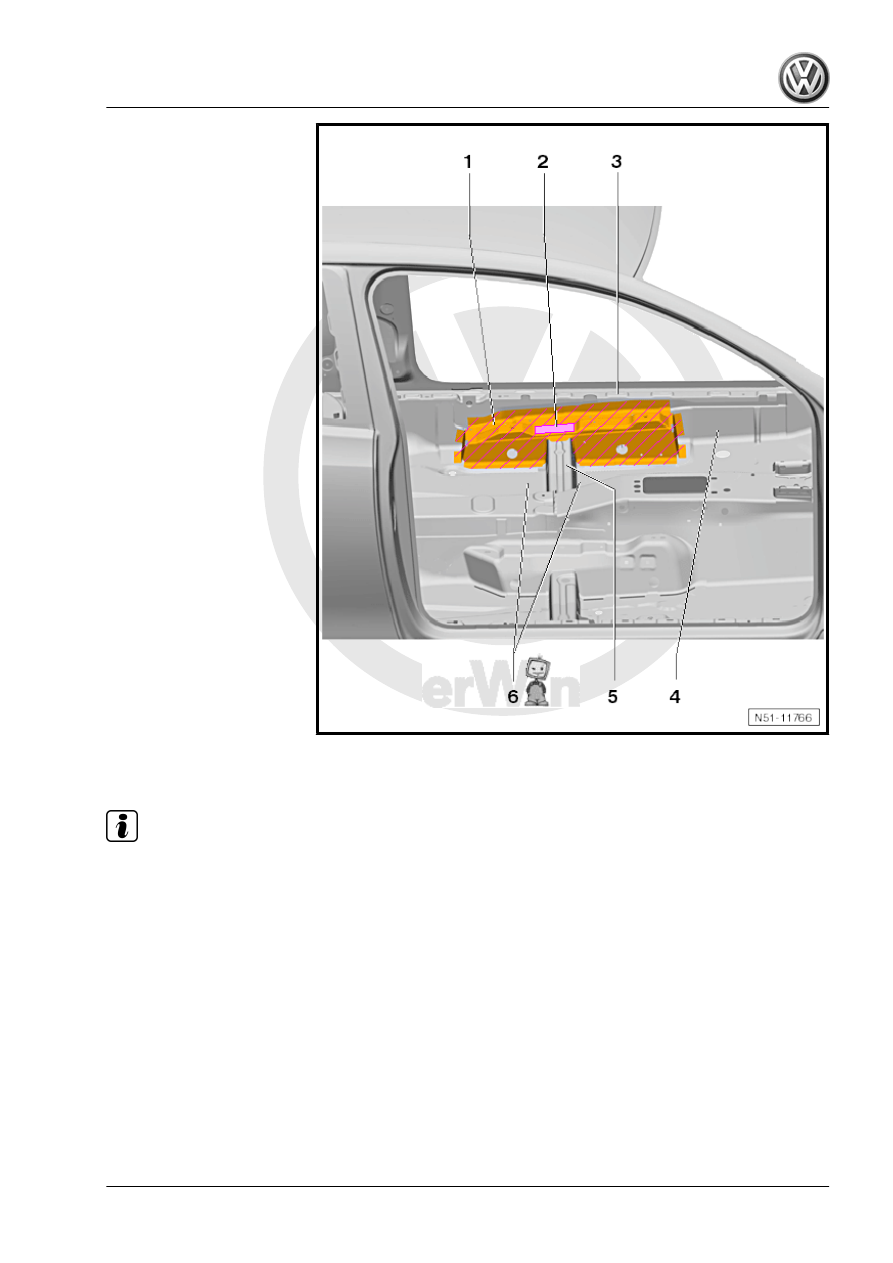

cross member
2 - Vehicle identification num‐

ber (only on right-hand side of

vehicle)
3 - Inner side member assem‐

bly panel
4 - Inner side member
5 - Middle seat cross member
6 - Floor panel

19.1

Tools

Note

♦

The use of different types and different thicknesses of steel

requires that only the welding units (inverters) authorised by

Volkswagen AG may be used to carry out repairs properly.

♦

The welding units (inverters) and body tools authorised by

Volkswagen AG are listed in ⇒  ServiceNet, Workshop Equip‐

ment, EH catalogue, Workshop equipment, Body and paint‐

work .

Passat 2011 ➤ , Passat Variant 2011 ➤

19. Renewing outer mounting for seat cross member

261

Removing

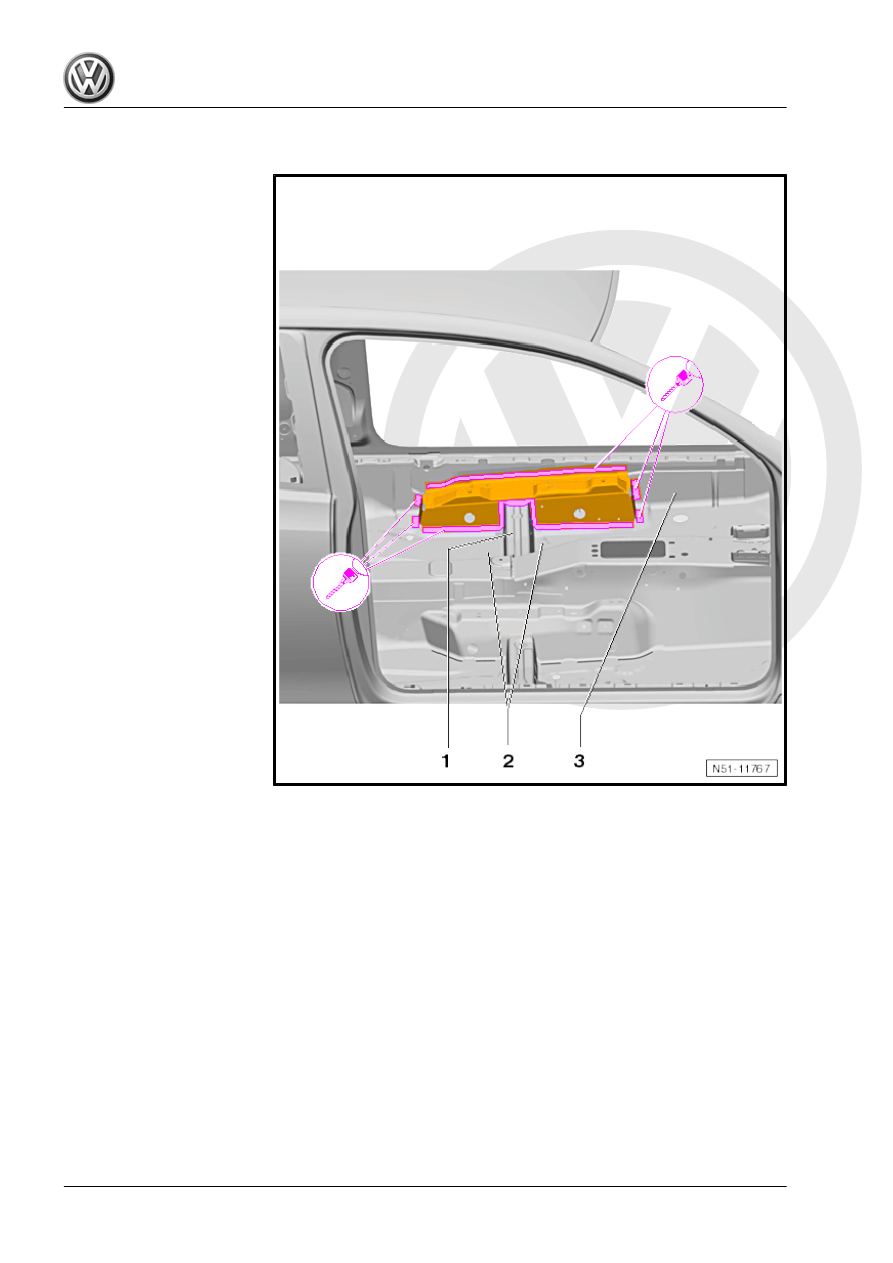

– Separate original joints to middle cross member -1- for seat,

to floor panel -2- and to side member -3-.

Passat 2011 ➤ , Passat Variant 2011 ➤

262

19.3

Installing

Note

Only welding units authorised by Volkswagen AG may be used

⇒ page 261

 .

19.3.1

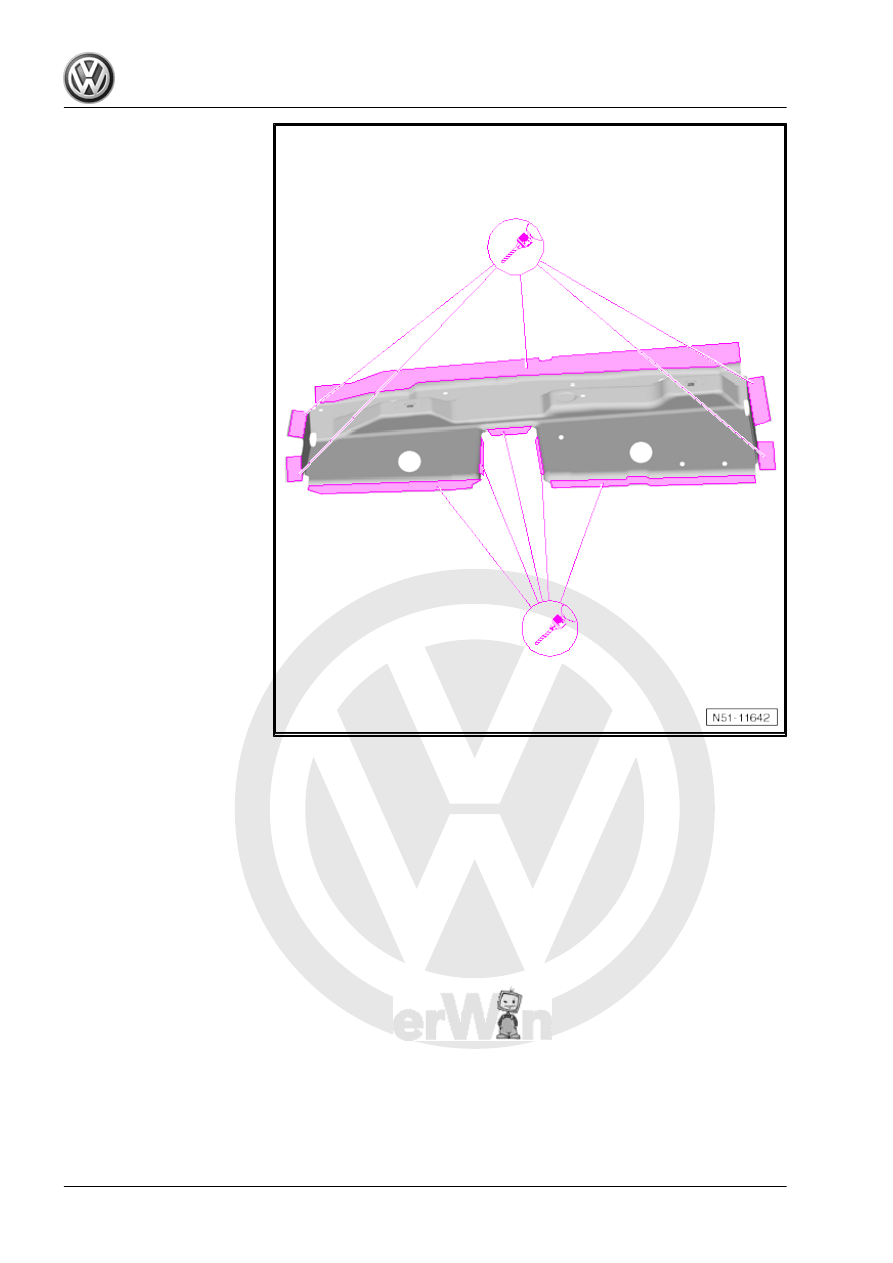

Preparing new part

New part
♦ Outer mounting for seat cross member

Note

Before installing, reinstate vehicle identification number if necessary.

Passat 2011 ➤ , Passat Variant 2011 ➤

19. Renewing outer mounting for seat cross member

263

19.3.2

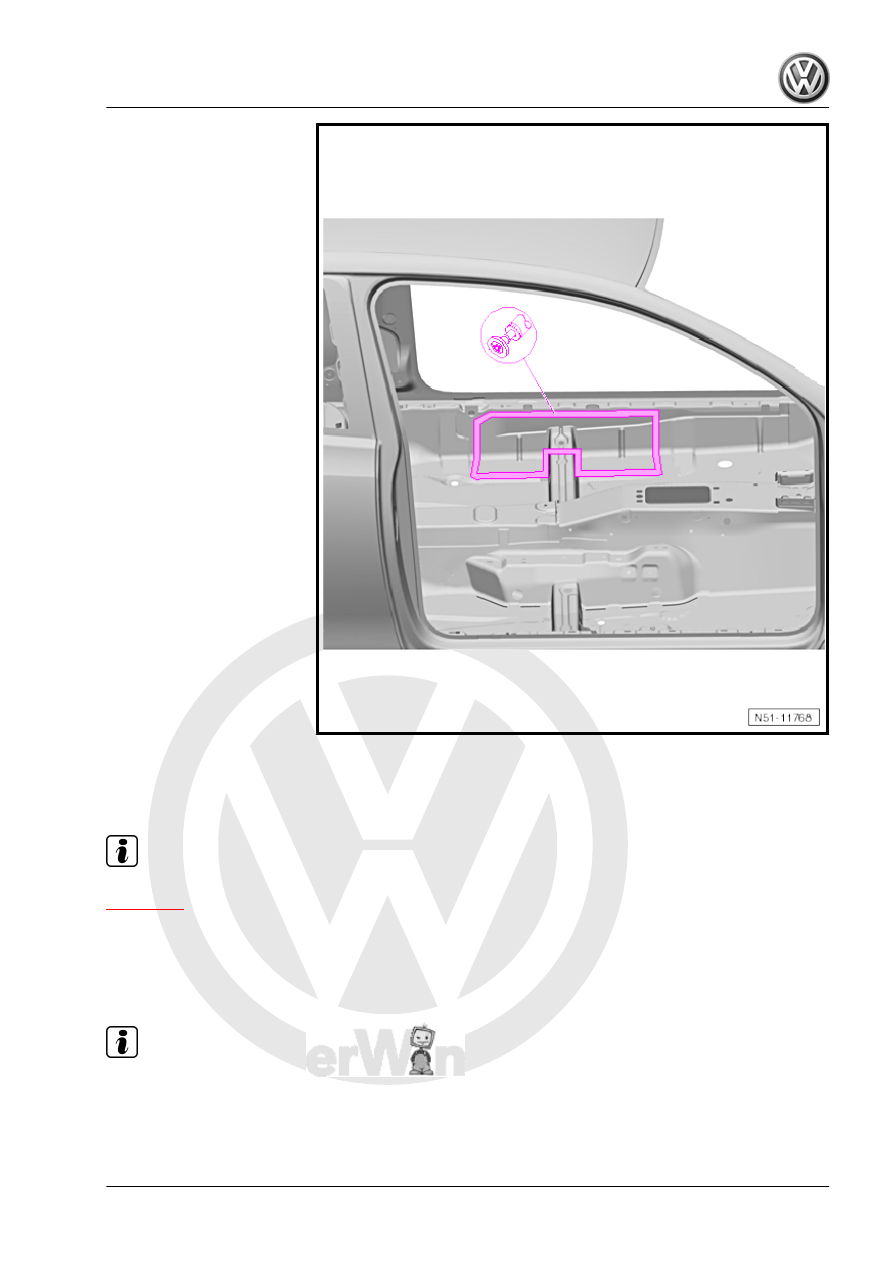

Welding in

– Adapt new part to fit and fix in position.

Passat 2011 ➤ , Passat Variant 2011 ➤
