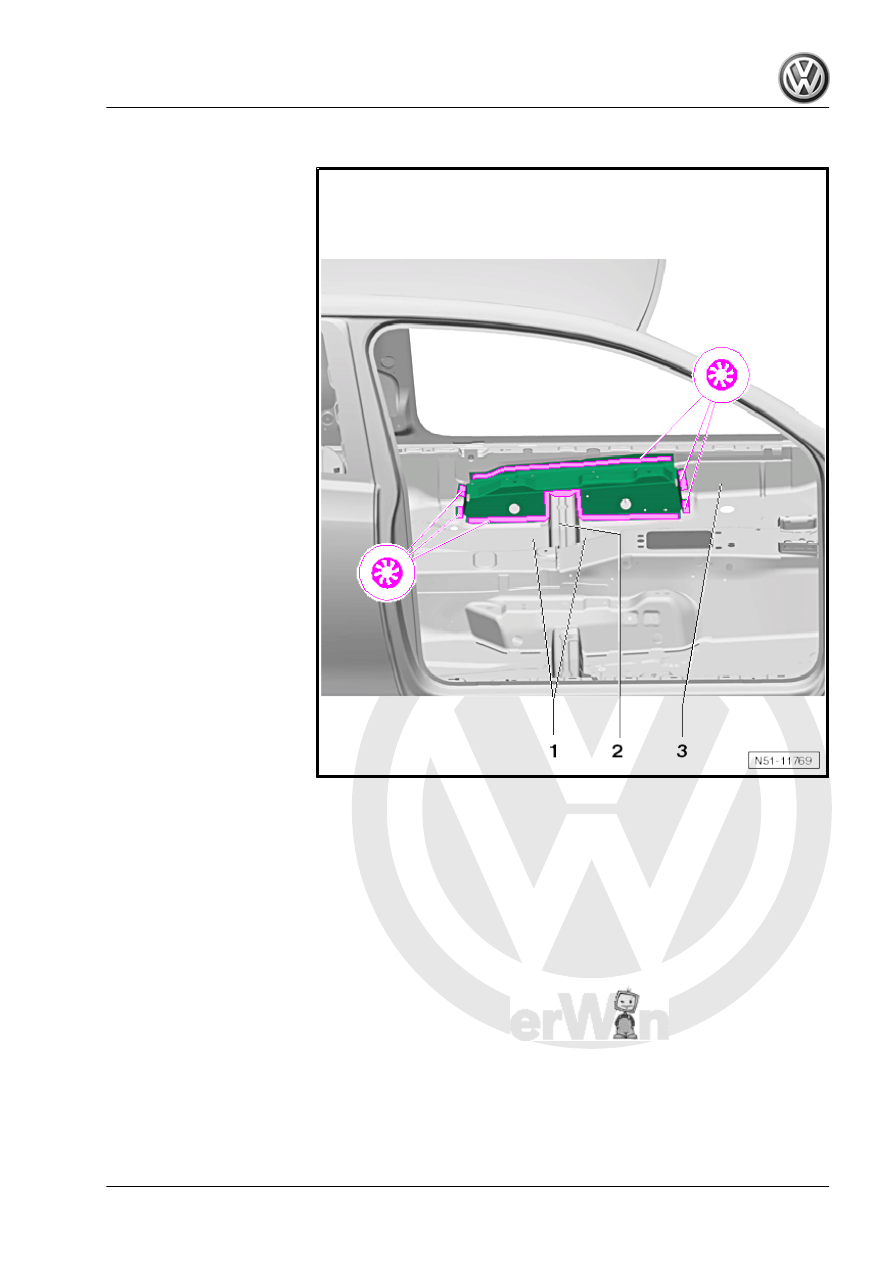

– Weld outer mounting for seat cross member to floor panel

-1-, to middle cross member -2- for seat and to inner side

member -3-, SG plug weld.

Passat 2011 ➤ , Passat Variant 2011 ➤

19. Renewing outer mounting for seat cross member

265

RO: 53 05 55 50

1

Renewing rear cross panel

Includes: cross member for rear cross panel, left and right exhaust

system retainers and lock carrier

WARNING

Observe safety notes!

Safety notes ⇒ General Information; Body Repairs, General Body

Repairs ; Safety notes
• Spare wheel well already removed

⇒ page 370

 .

1 - Cross panel
2 - Lock carrier
3 - Right exhaust system re‐

tainer
4 - Cross member for rear

cross panel
5 - Left exhaust system retain‐

er

Passat 2011 ➤ , Passat Variant 2011 ➤

266

Tools

Note

♦

The use of different types and different thicknesses of steel

requires that only the welding units (inverters) authorised by

Volkswagen AG may be used to carry out repairs properly.

♦

The welding units (inverters) and body tools authorised by

Volkswagen AG are listed in ⇒  ServiceNet, Workshop Equip‐

ment, EH catalogue, Workshop equipment, Body and paint‐

work .

1.2

Removing

– Separate original outer joint.

Passat 2011 ➤ , Passat Variant 2011 ➤

1. Renewing rear cross panel

267

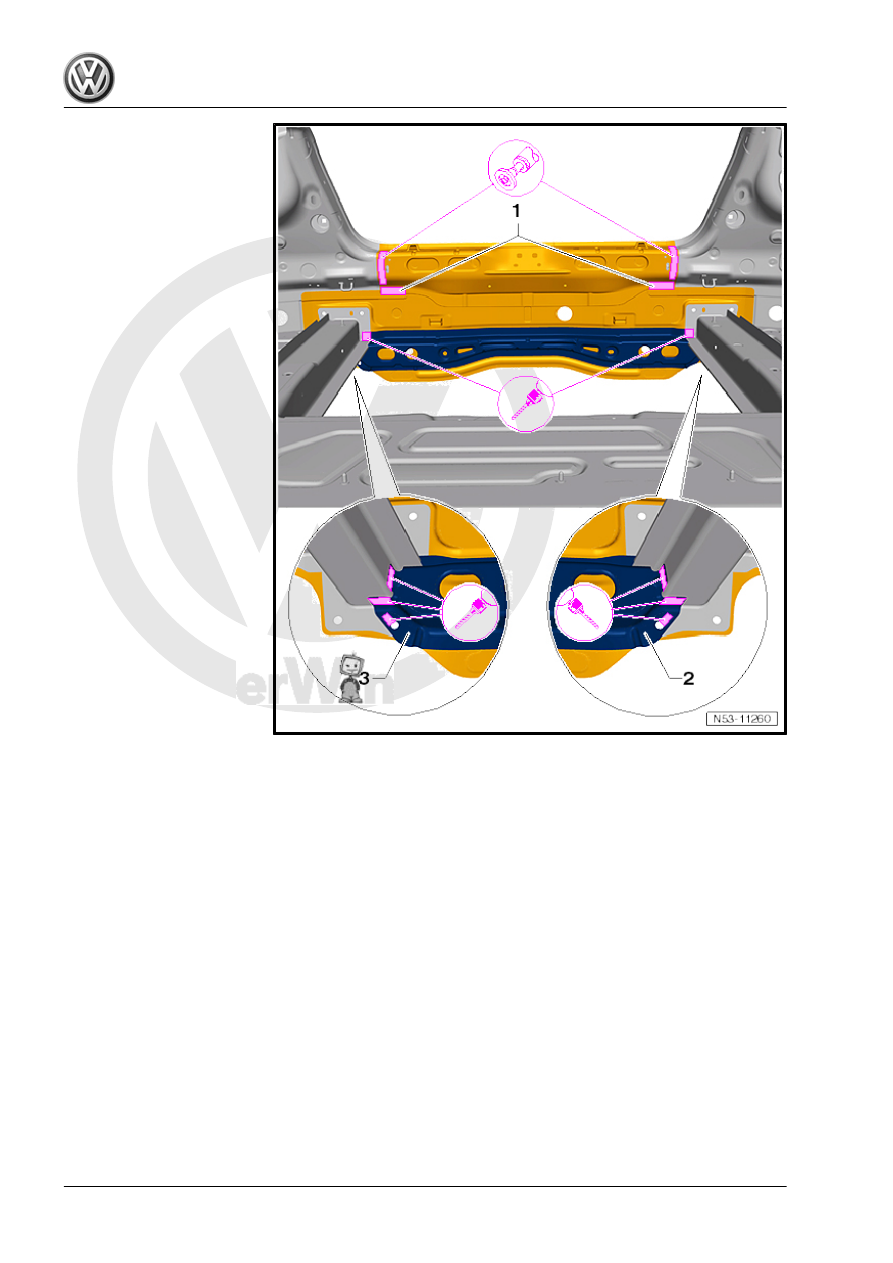

tainers -2 and 3-.
