Volkswagen Passat / Passat Variant (2011 year). Manual - part 65

18.3

Installing

Note

Only welding units authorised by Volkswagen AG may be used

⇒ page 255

 .

18.3.1

Preparing new part

New part
♦ Inner mounting for seat cross member

Passat 2011 ➤ , Passat Variant 2011 ➤

18. Renewing inner mounting for seat cross member

257

18.3.2

Welding in

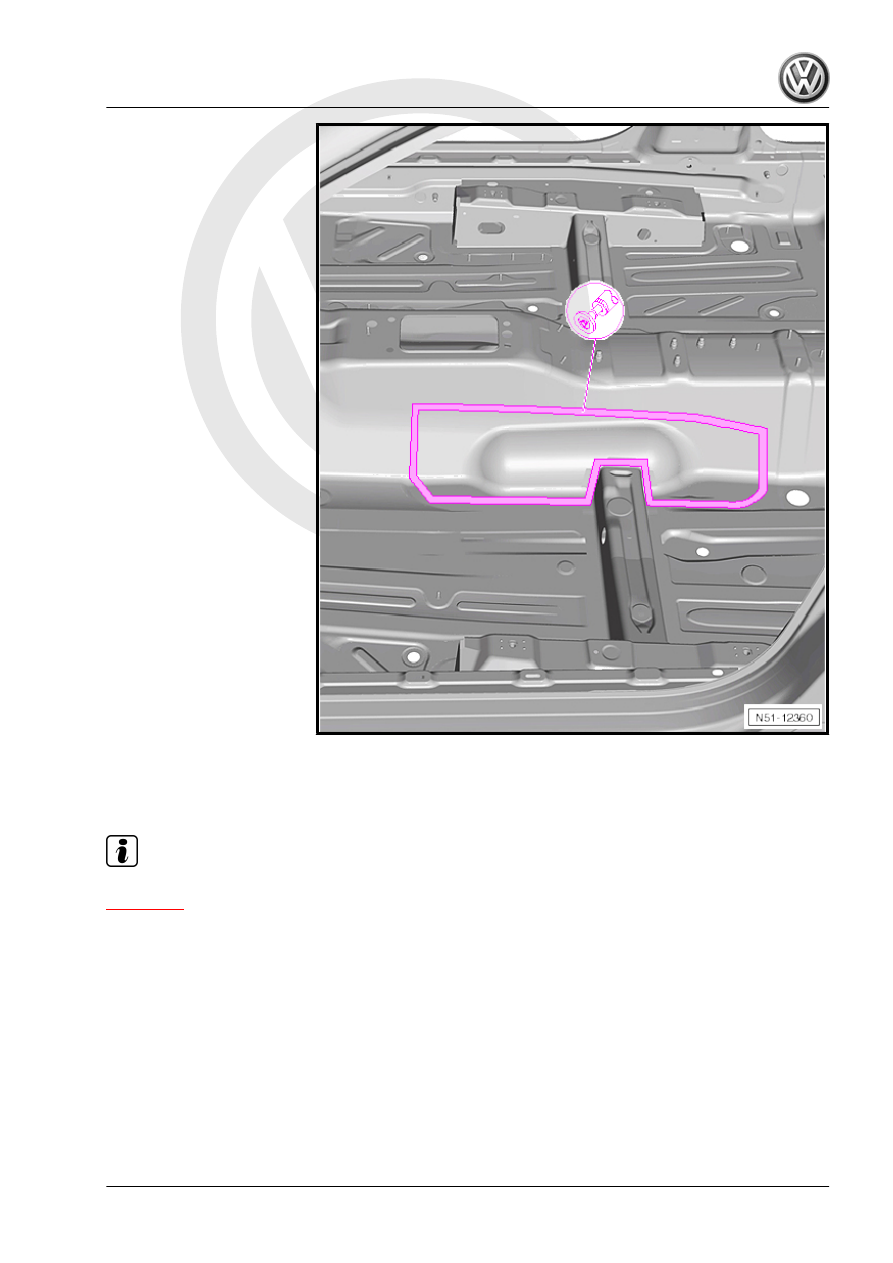

– Adapt new part and fix in position.
– Check fit to middle seat cross member and to seat.

Passat 2011 ➤ , Passat Variant 2011 ➤

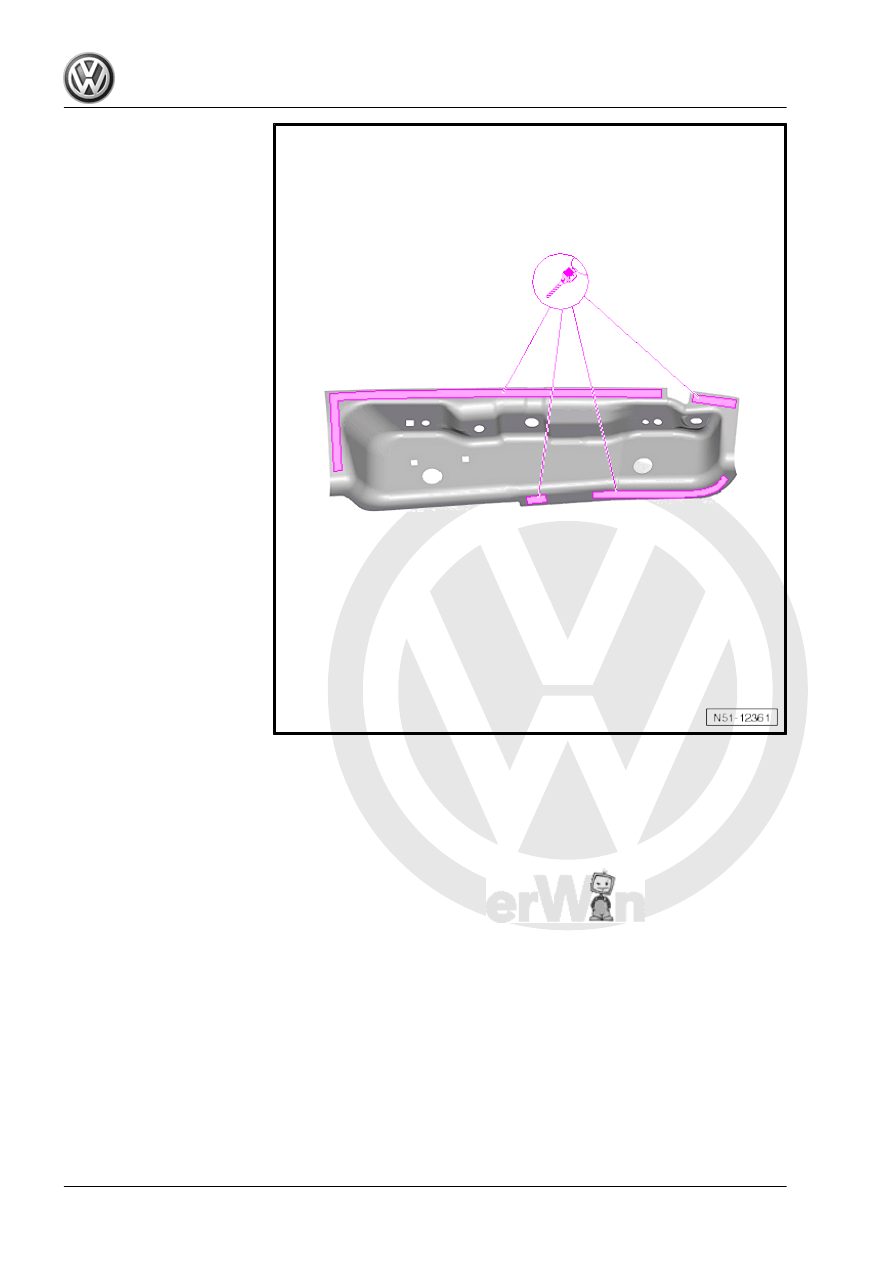

258

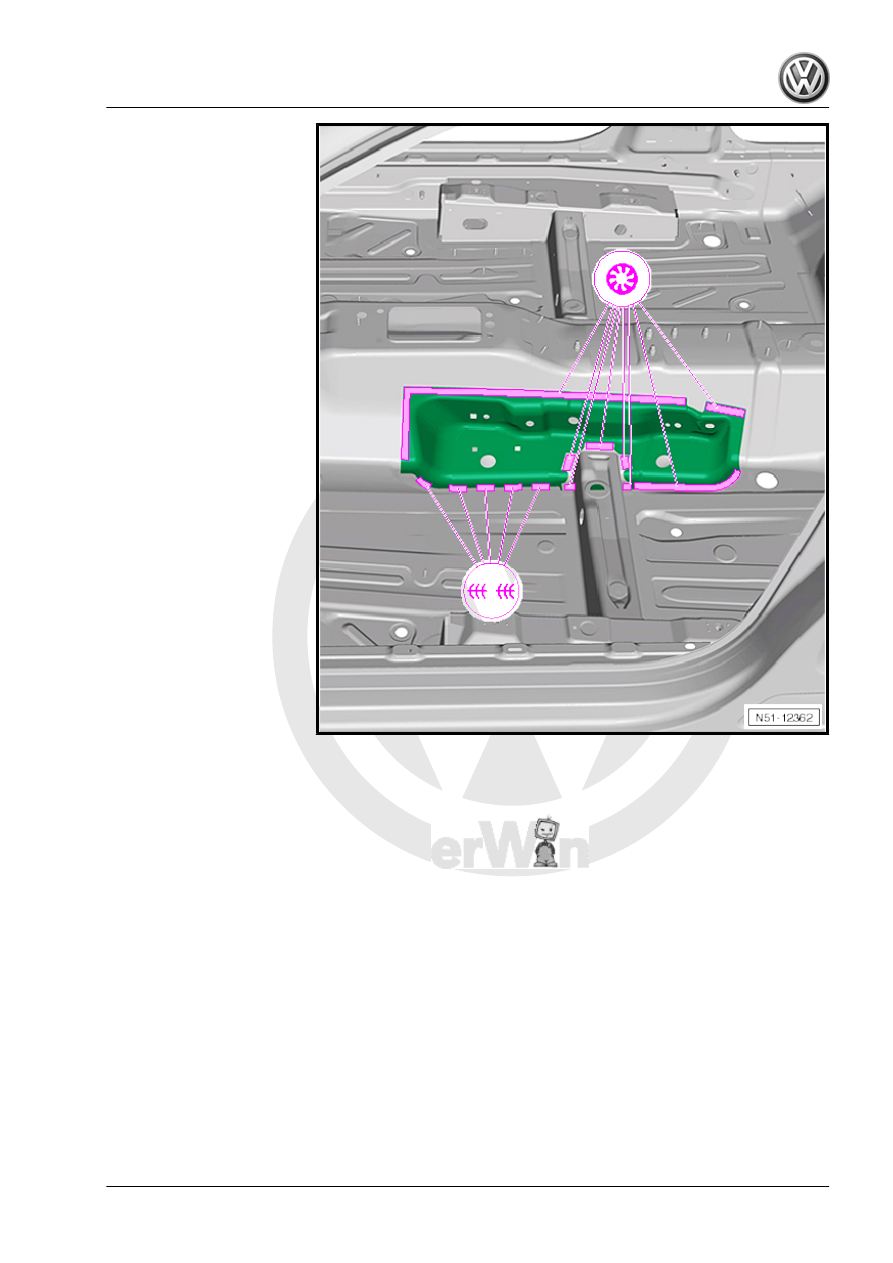

and middle seat cross member, SG plug weld seam.

– Weld in remaining joint, SG staggered continuous weld seam.

Passat 2011 ➤ , Passat Variant 2011 ➤

18. Renewing inner mounting for seat cross member

259

19

Renewing outer mounting for seat

cross member

WARNING

Observe safety notes!

Safety notes ⇒ General Information; Body Repairs, General Body

Repairs ; Safety notes

Note

♦

If a thread in the outer mounting for the seat cross member is

damaged, the component must be replaced.

♦

If outer mounting for seat cross member (with vehicle identity

number) has to be renewed, repair must be documented ac‐

cording to market-specific legislation.

♦

The vehicle identification number should be reinstalled/re‐

stamped before the outer mounting for the seat cross member

is welded in.

Passat 2011 ➤ , Passat Variant 2011 ➤

260
