set and fix in place.

– Check fit with bolt-on parts.

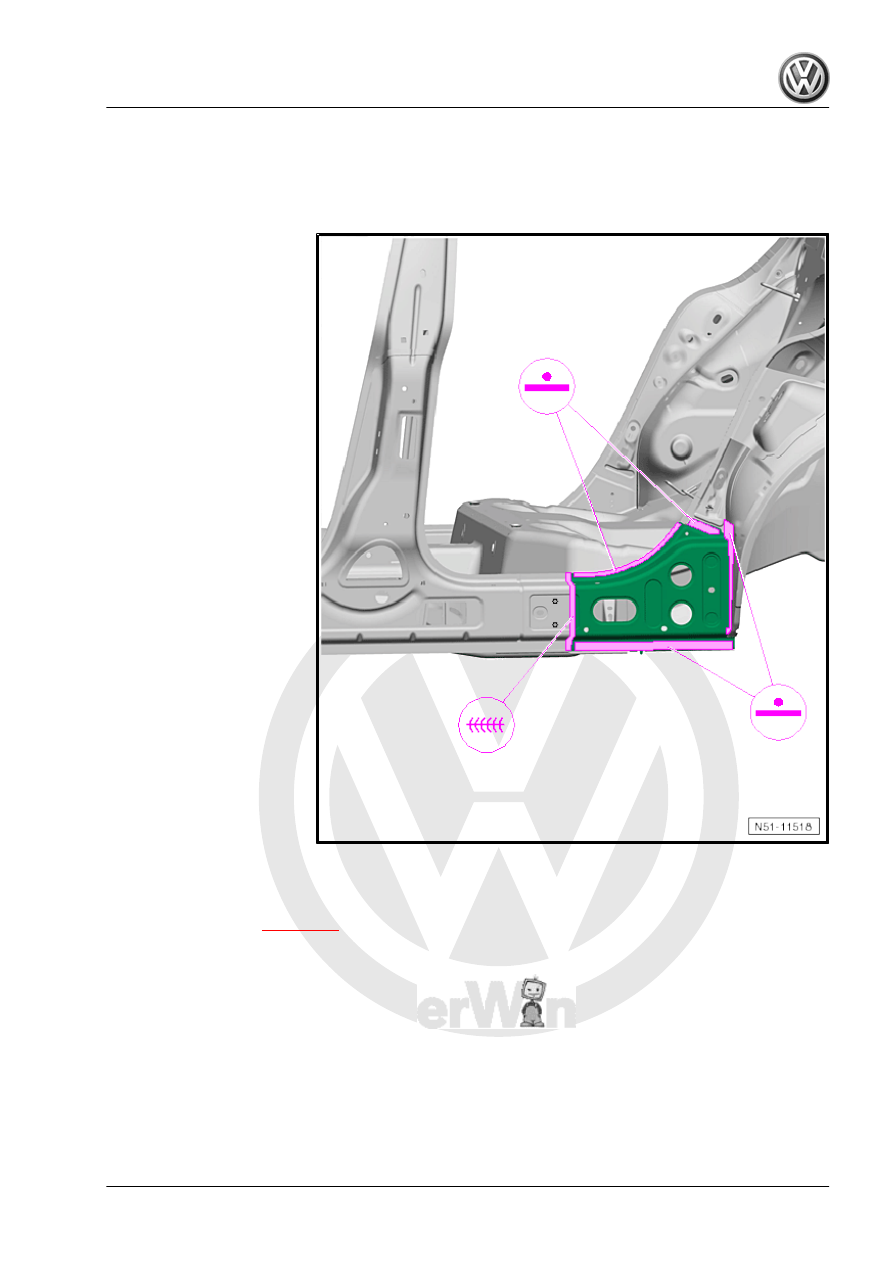

– Weld in rear side member reinforcement, SG continuous weld

seam and RP spot weld seam.

– Install side member

⇒ page 232

 .

Passat 2011 ➤ , Passat Variant 2011 ➤

16. Renewing rear side member reinforcement

249

17

Renewing seat middle cross member

WARNING

Observe safety notes!

Safety notes ⇒ General Information; Body Repairs, General Body

Repairs ; Safety notes
• Outer seat cross member mounting already removed

⇒ page 260

 .

17.1

Tools

Note

♦

The use of different types and different thicknesses of steel

requires that only the welding units (inverters) authorised by

Volkswagen AG may be used to carry out repairs properly.

♦

The welding units (inverters) and body tools authorised by

Volkswagen AG are listed in ⇒  ServiceNet, Workshop Equip‐

ment, EH catalogue, Workshop equipment, Body and paint‐

work .

Passat 2011 ➤ , Passat Variant 2011 ➤

250

Removing

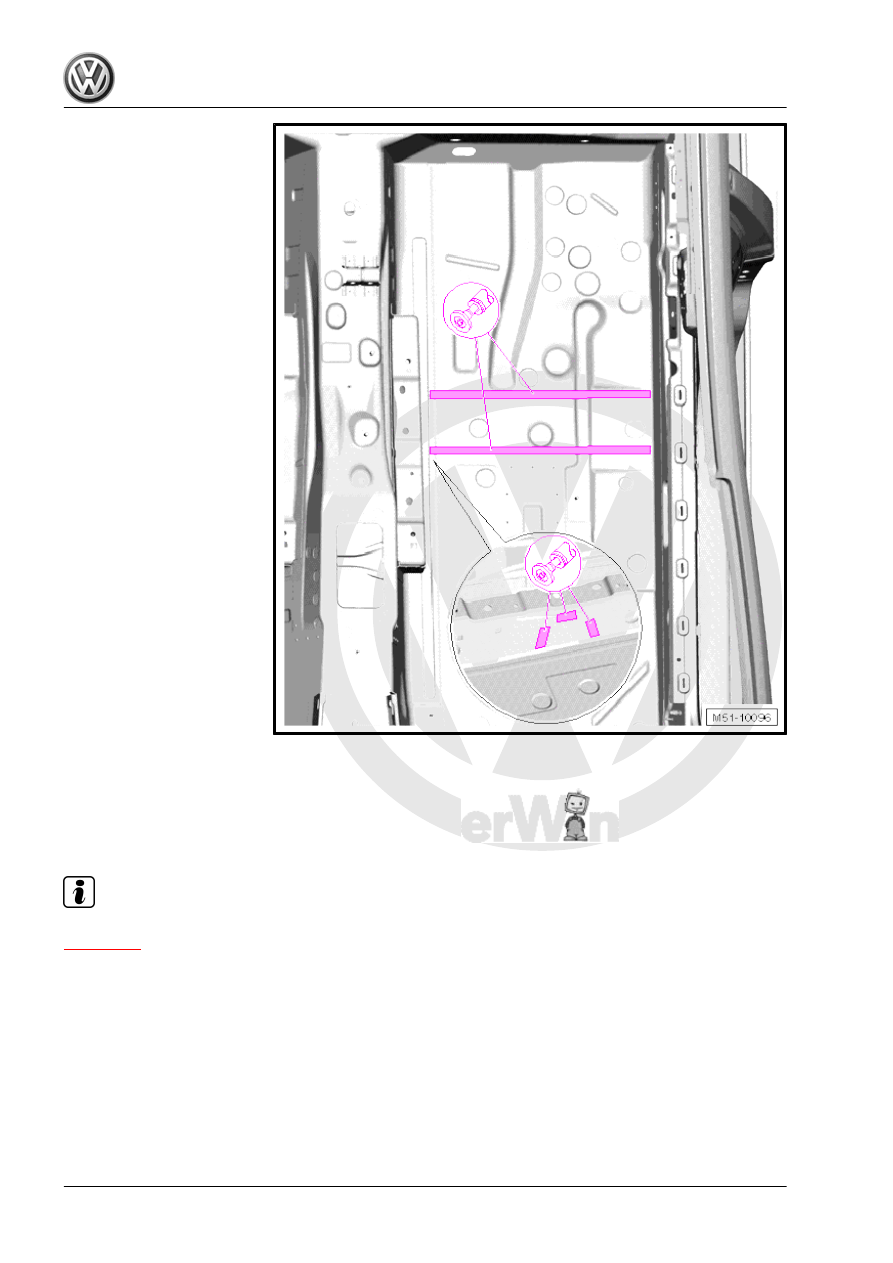

– Separate original joint to inner mounting for seat cross mem‐

ber and to floor panel.

– Separate bonded connection -1- to floor panel.

Passat 2011 ➤ , Passat Variant 2011 ➤

17. Renewing seat middle cross member

251

surface back to bare metal.

17.3

Installing

Note

Only welding units authorised by Volkswagen AG may be used

⇒ page 250

 .

17.3.1

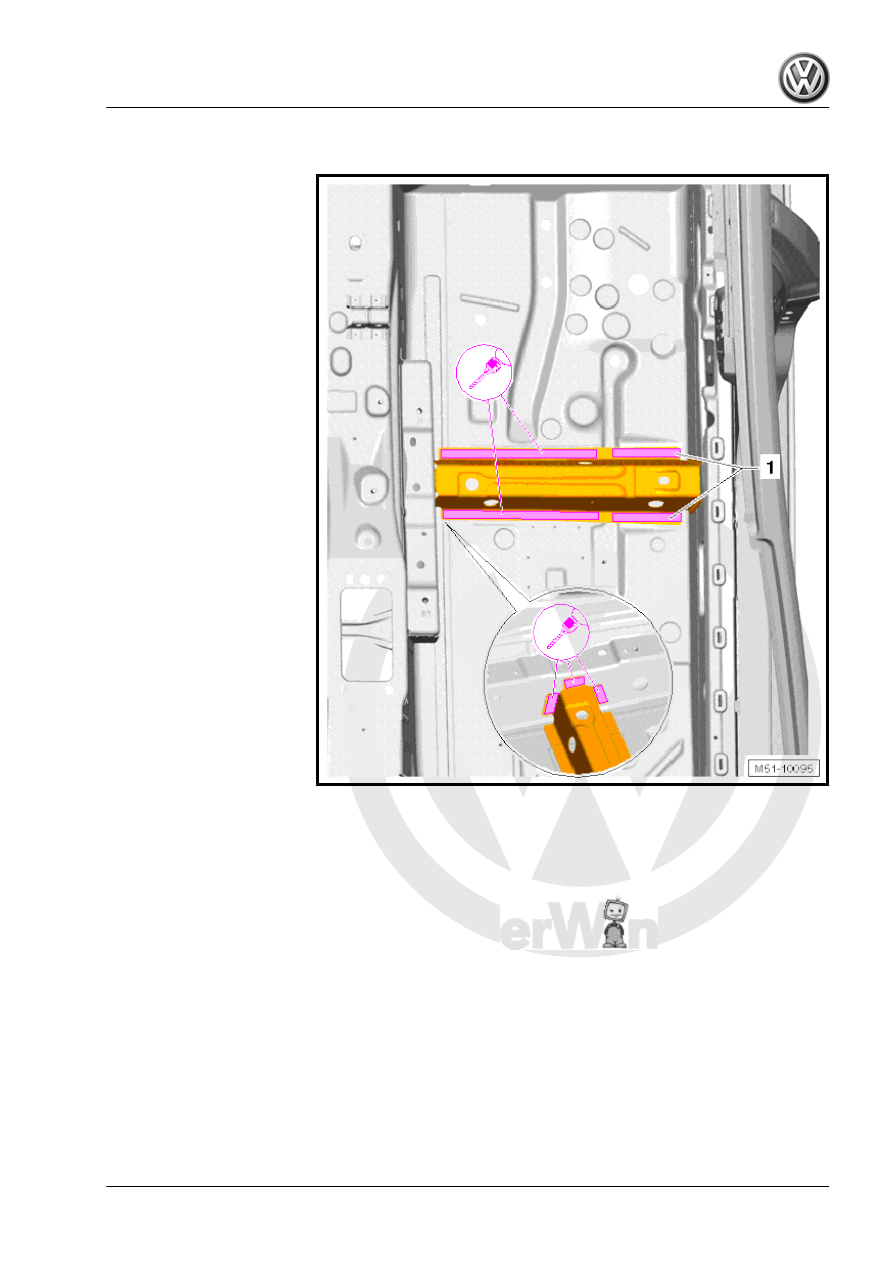

Preparing new part

New part
♦ Seat mounting
♦ 2K body adhesive -D 180 KD3 A2-
