17.3.2

Welding in

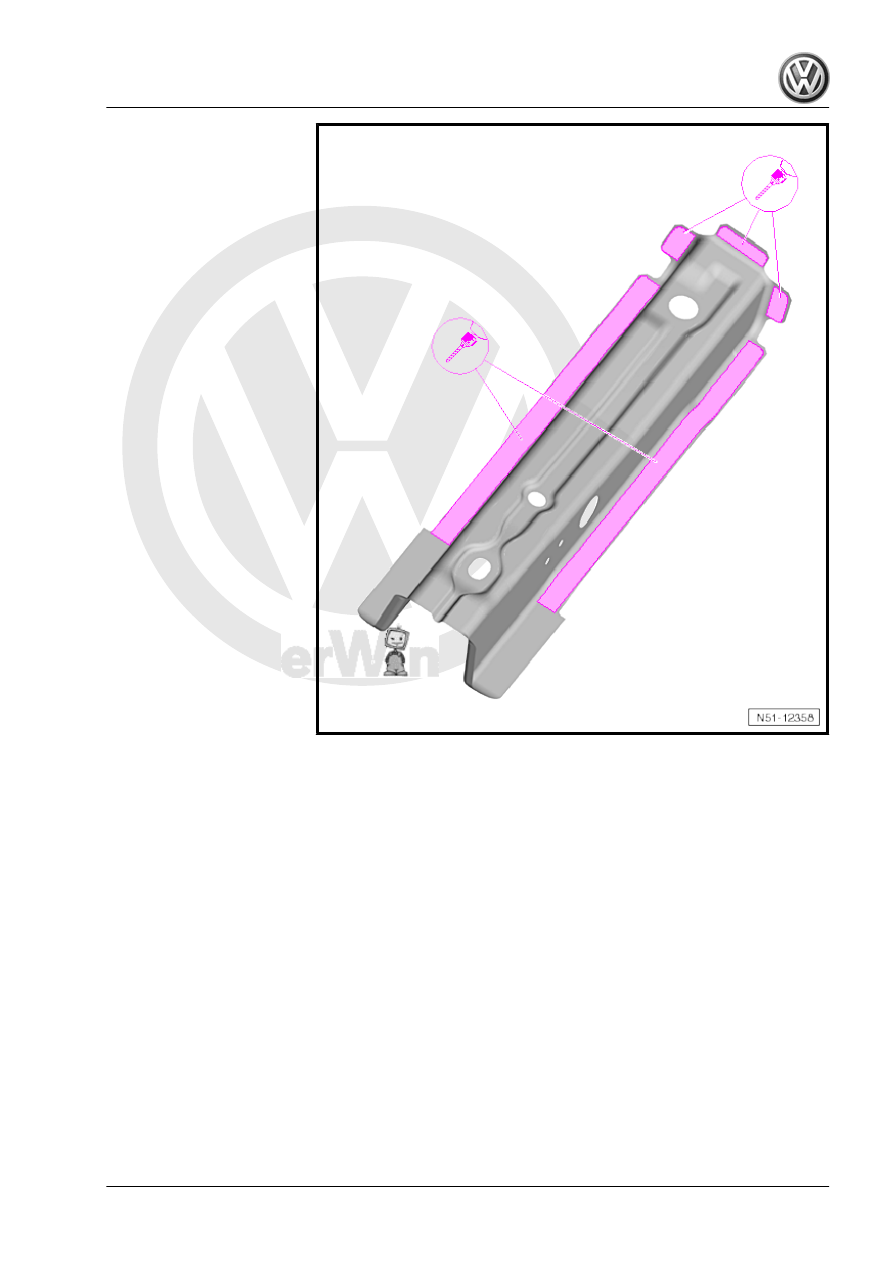

– Adapt new part and fix in position.

Passat 2011 ➤ , Passat Variant 2011 ➤

17. Renewing seat middle cross member

253

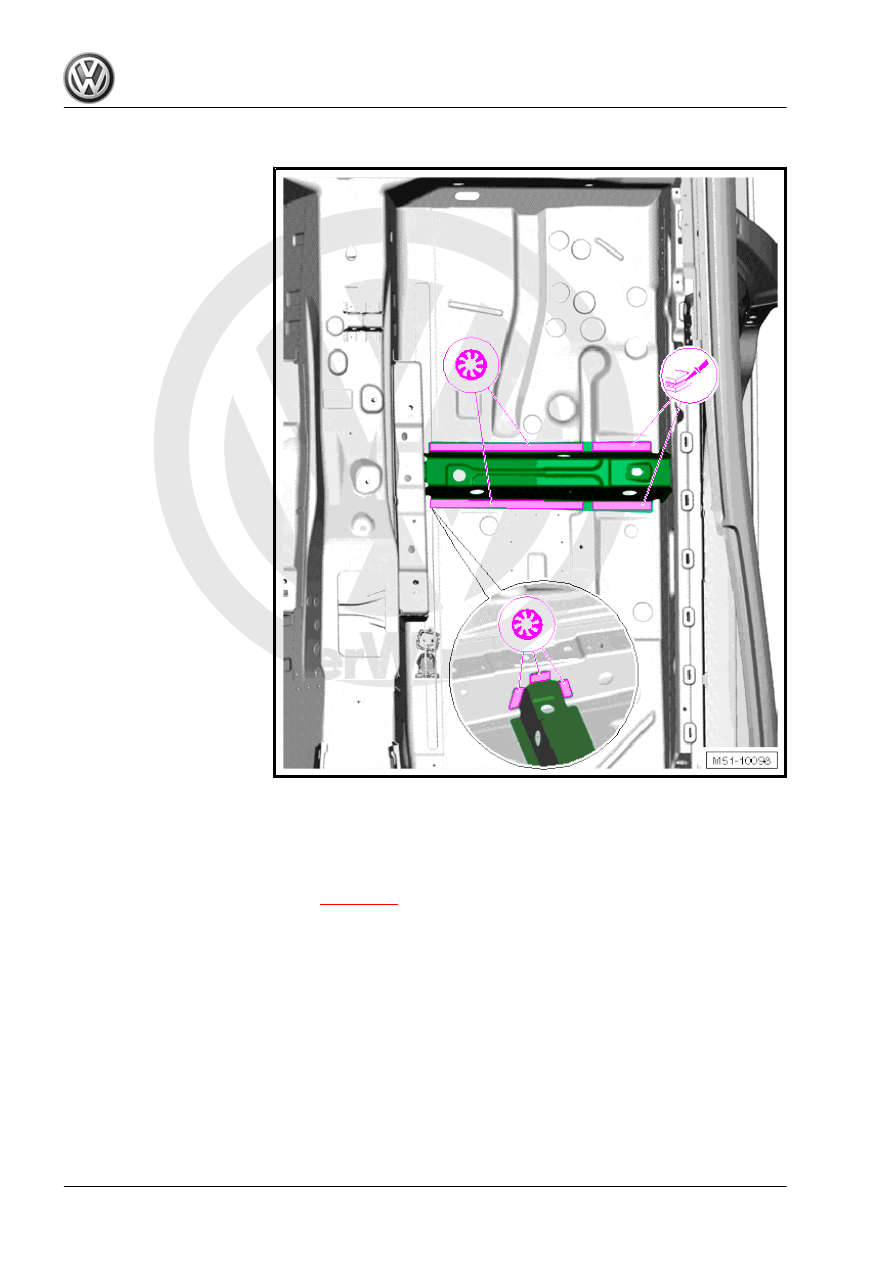

– Apply 2K body adhesive -D 180 KD3 A2- to areas bonded in

the factory.

– Weld seat cross member to inner mounting for seat cross

member and to floor panel, SG plug weld seam.

– Install outer cross member for seat

⇒ page 263

 .

Passat 2011 ➤ , Passat Variant 2011 ➤

254

18

Renewing inner mounting for seat

cross member

WARNING

Observe safety notes!

Safety notes ⇒ General Information; Body Repairs, General Body

Repairs ; Safety notes

Note

If a thread in the inner mounting for the seat cross member is

damaged, the component must be replaced.

18.1

Tools

Note

♦

The use of different types and different thicknesses of steel

requires that only the welding units (inverters) authorised by

Volkswagen AG may be used to carry out repairs properly.

♦

The welding units (inverters) and body tools authorised by

Volkswagen AG are listed in ⇒  ServiceNet, Workshop Equip‐

ment, EH catalogue, Workshop equipment, Body and paint‐

work .

Passat 2011 ➤ , Passat Variant 2011 ➤

18. Renewing inner mounting for seat cross member

255

Removing

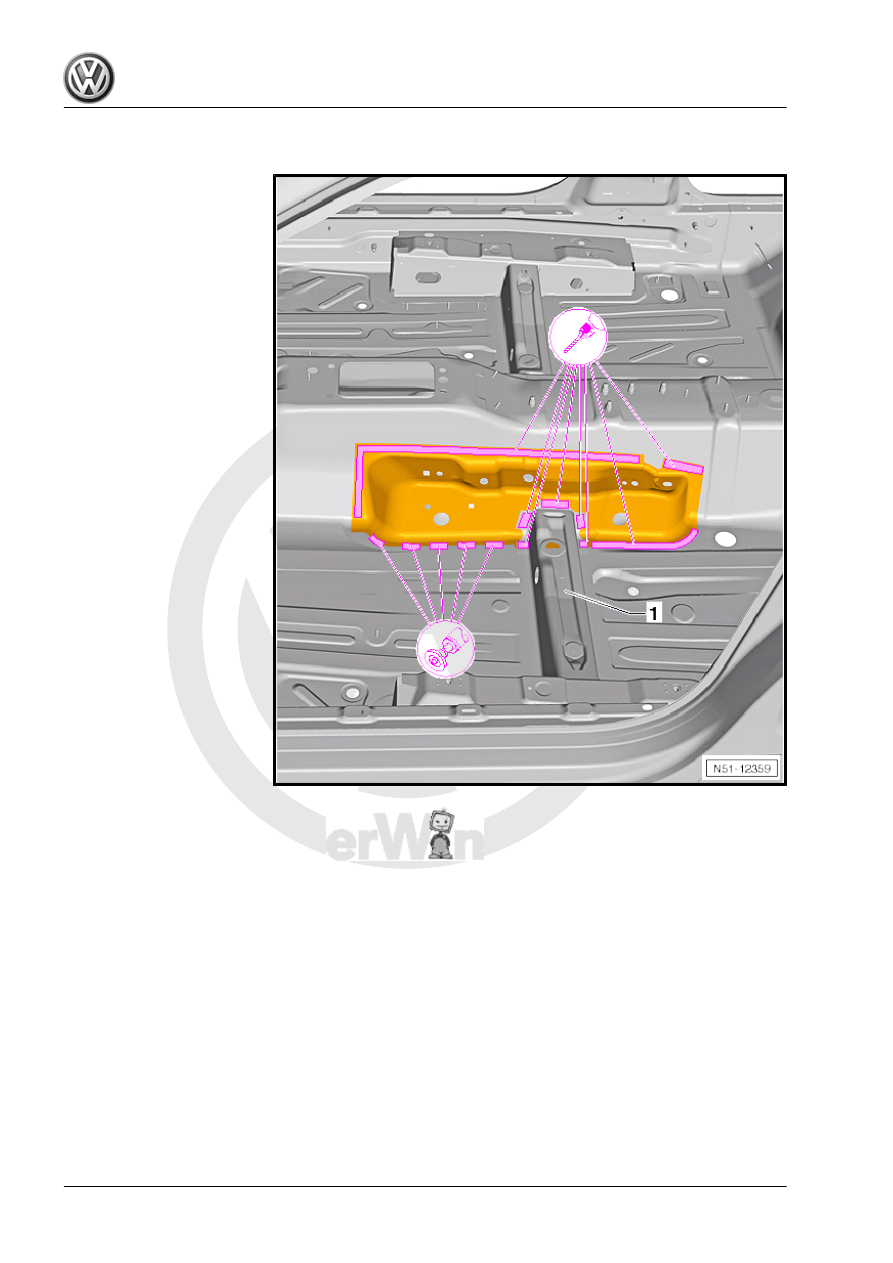

– Separate original joint to centre tunnel, to floor panel and to

middle seat cross member -1-.

Passat 2011 ➤ , Passat Variant 2011 ➤

256
