Volkswagen Jetta / Jetta Hybrid. Manual - part 70

plastic wedge -2- and hammer -3-.

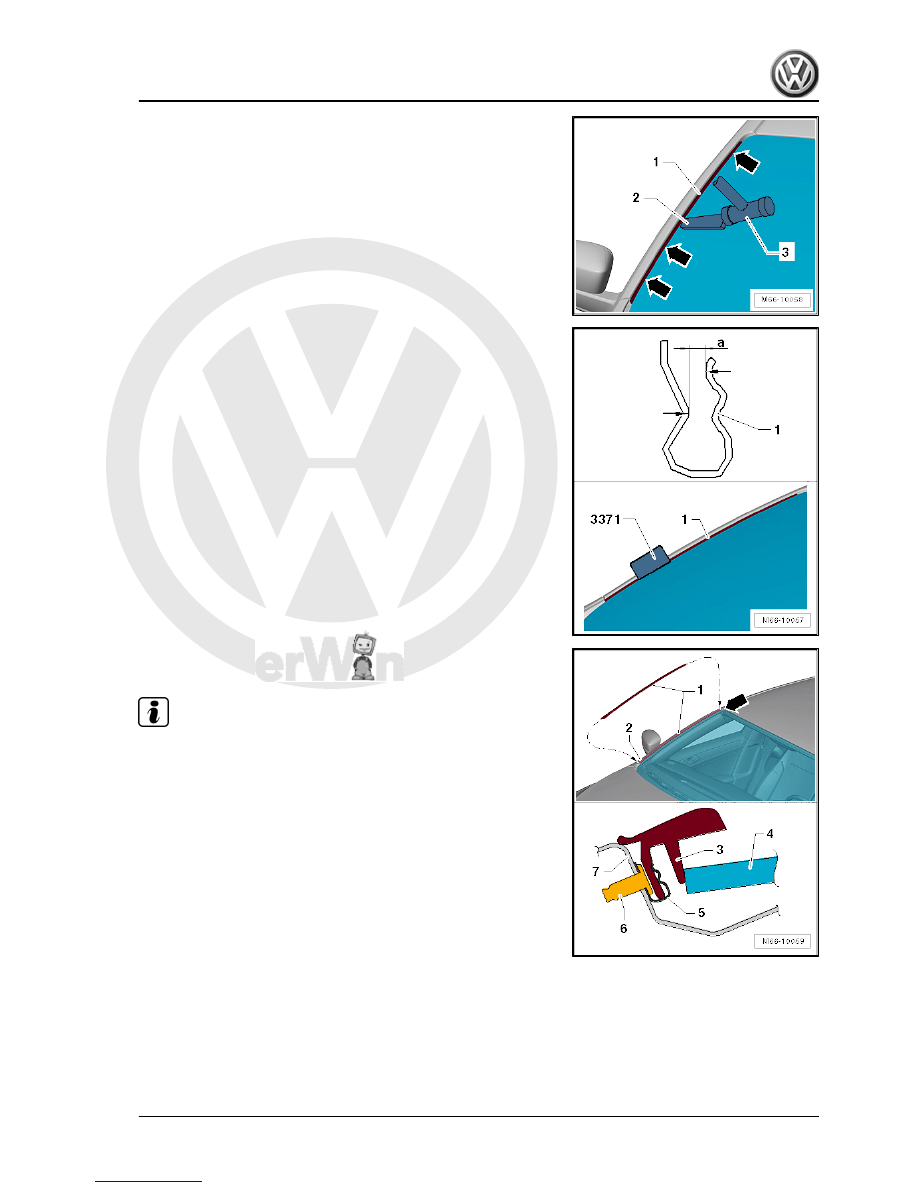

– Check gap -a- again over complete length of retaining strip

-1-, after making changes, using gauge -3371- .

• Distance -a- between -arrows-: 0.9…1.1 mm

– Press water channel -1- into retaining strip -5-, starting from

top -arrow-.

Note

The water channel -1- should not protrude above the edge of the

roof (wind noises).

– When doing this, guide water channel lip -3- behind edge of

windscreen -4-.

6 - Pop rivet
7 - Body flange
– Bond adhesive tape of retaining strip on front wing -2- as fol‐

lows.

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

5. Mouldings and trims

277



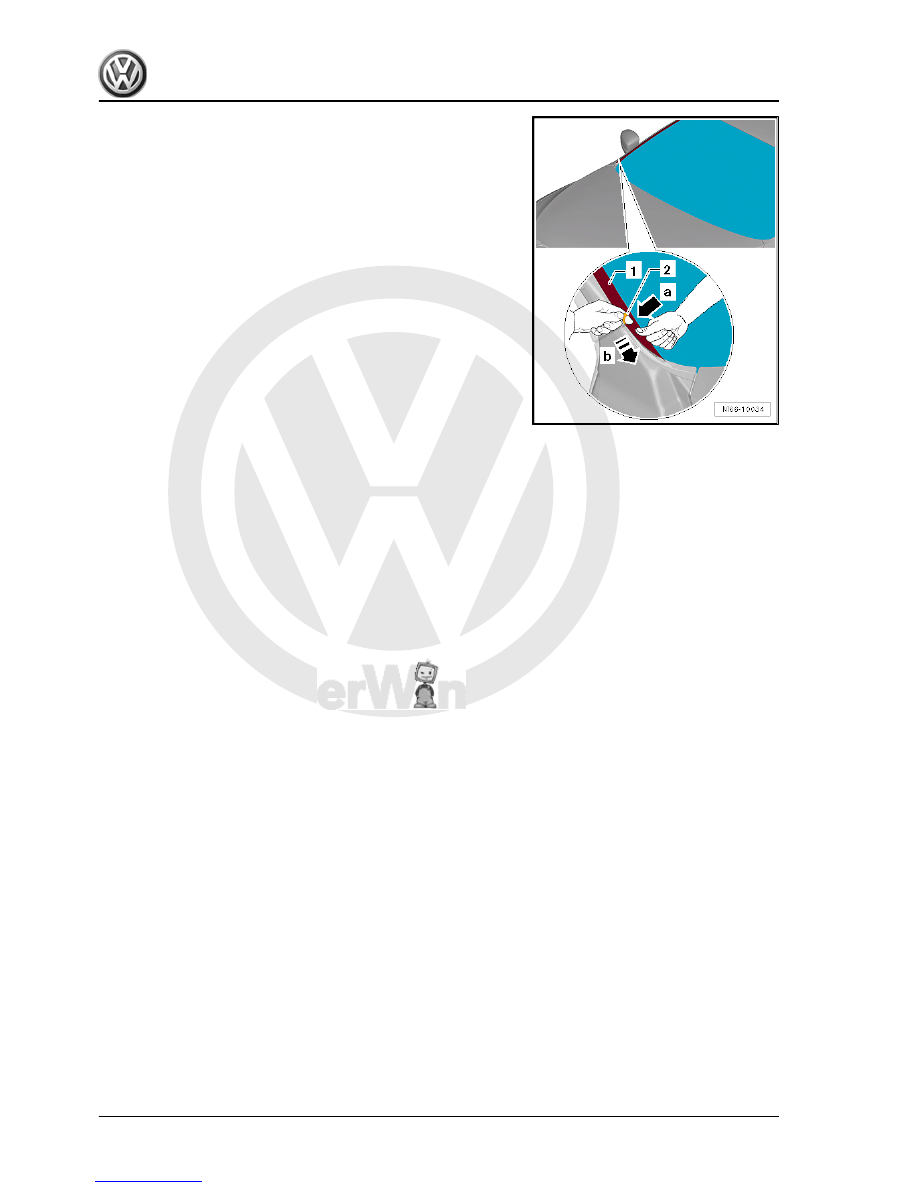

– Pull off protective backing -2- in direction of -arrow b- and

press water channel onto front wing firmly.

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

278



Note

Only the left side is shown. The right side is similar.

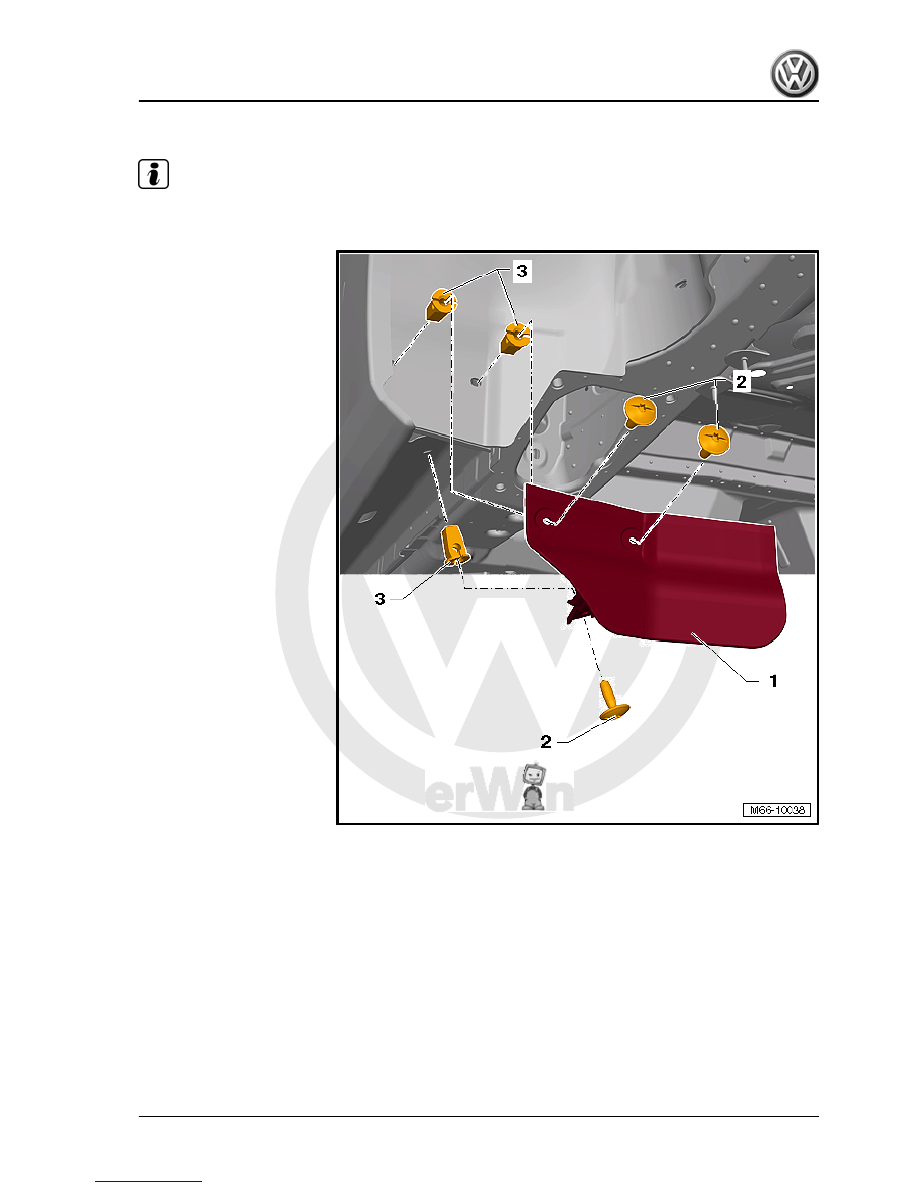

1 - Side member cover

❑ Removing
– Unscrew bolts -2- and

remove sill panel cover.

❑ Installing

• Check spreader nuts -3- for

damage and renew if nec‐

essary.

– Locate sill cover, screw

bolts -2- in and tighten.

2 - Bolt

❑ Qty. 3.
❑ Specified torque: 2 Nm

3 - Expanding nut

❑ Qty. 3.
❑ Renew if damaged

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

5. Mouldings and trims

279

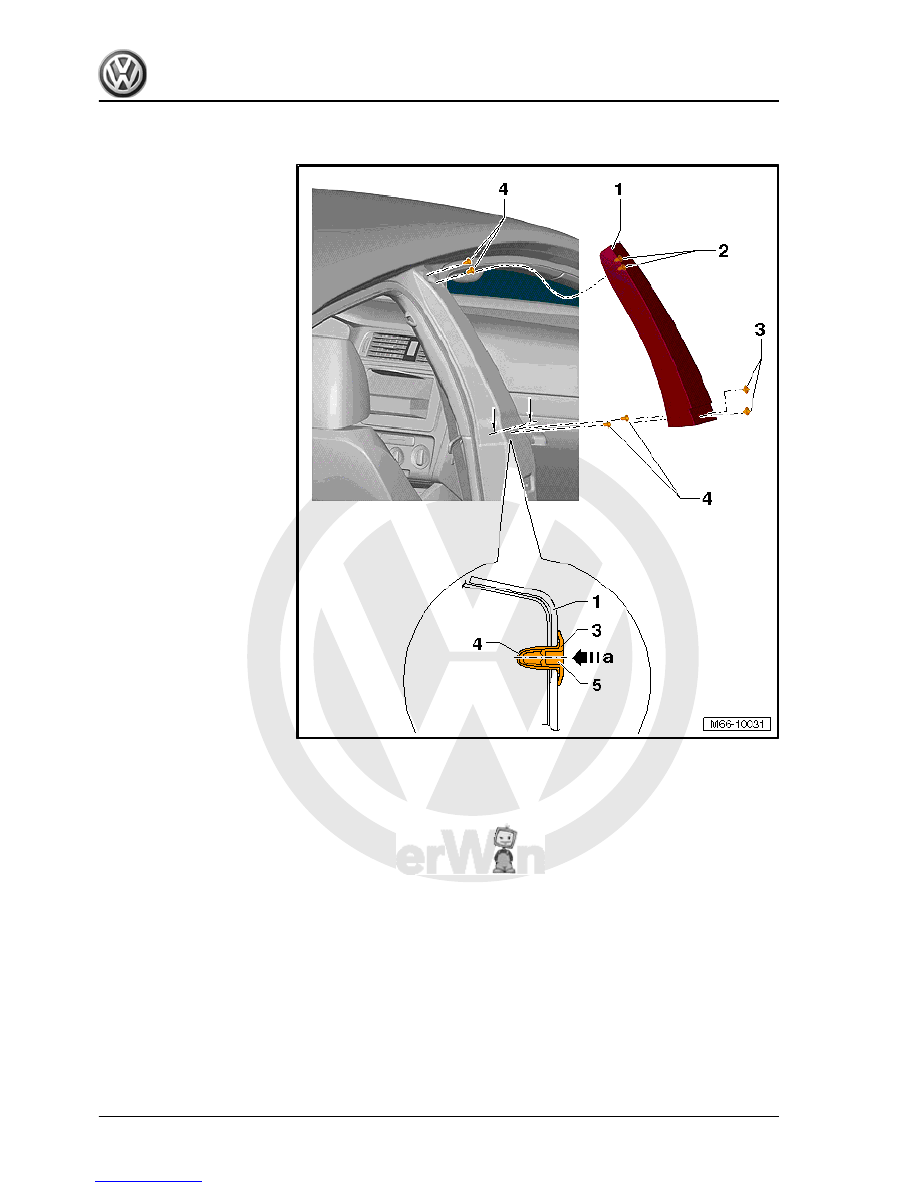

1 - B-pillar trim
2 - Securing pins

❑ Part of trim.

3 - Clip
4 - Grommet

❑ Qty. 4.

5 - Spreader rivet

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

280
