– With the help of a second mechanic, place rear spoiler -2- on

rear lid and align rear spoiler.

– Press left and right outer sides down onto rear lid -arrows- and

simultaneously pull off remaining protective foil of double-si‐

ded adhesive tape -3- on rear spoiler -2-.

– Press rear spoiler -2- on evenly along the entire length.
• Observe minimum curing period

⇒ page 273

 .

Minimum curing period

WARNING

♦ The vehicle is safe to use and can be operated only after

the minimum curing period is completed.



Adhesive sealant

Minimum cur‐

ing period in

hours

Rear spoiler onto rear

lid

1K glass adhesive ⇒

Electronic parts cata‐

logue “ETKA”

3

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

4. Rear spoiler

273



5.1

Water deflector

5.1.1

Tools

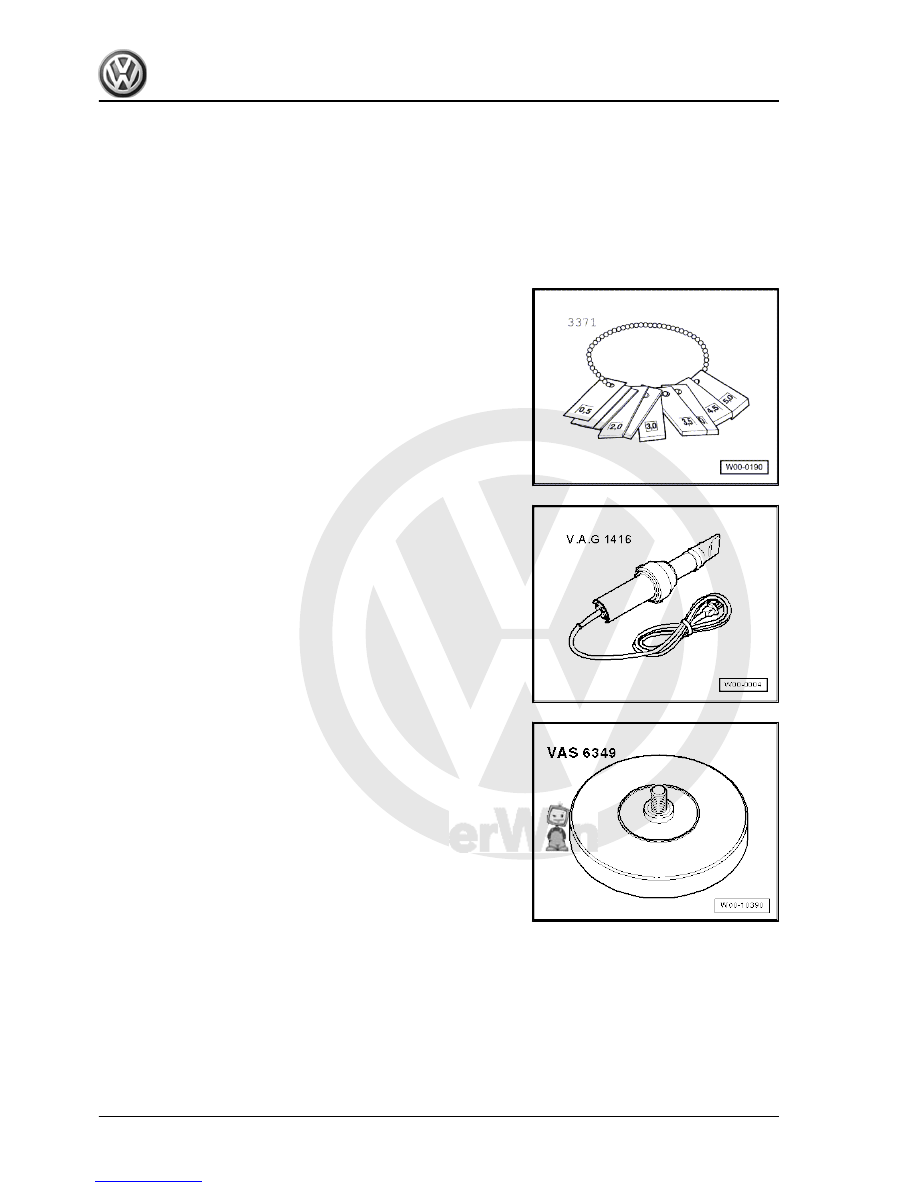

Special tools and workshop equipment required
♦ Setting gauge -3371-

♦ Hot air blower -V.A.G 1416-

♦ Adhesive strip remover -VAS 6349-

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

274



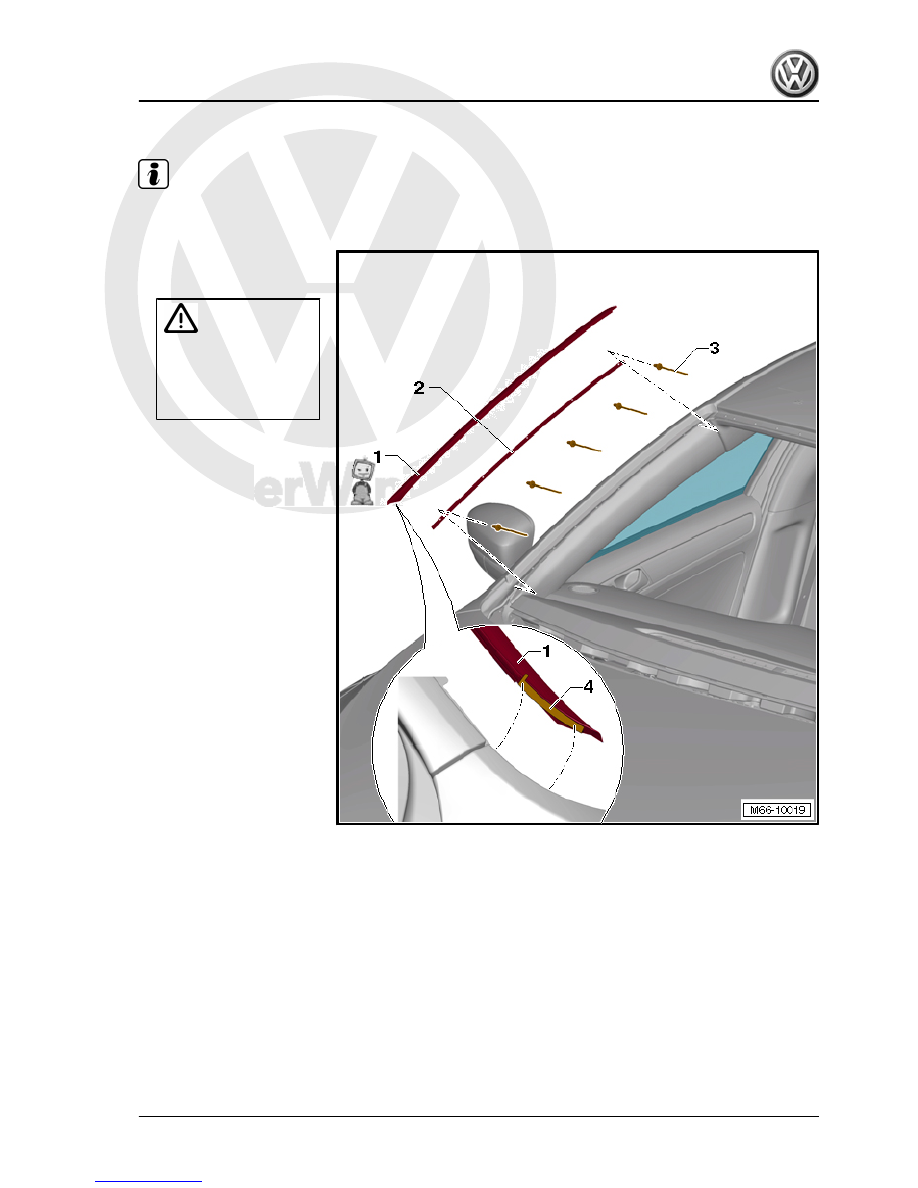

Note

The right side is shown. The left side is similar.

1 - Water deflector
2 - Retaining strip

Caution

Only remove and install

with  windscreen  re‐

moved  as  otherwise

windscreen  will  become

damaged.

3 - Pop rivet

❑ Qty. 5.
❑ Drill out pop rivets to re‐

move retaining strip.

❑ To install retaining strip,

install pop rivets using

rivet pliers (e.g. -VAS

5072- )

4 - Adhesive tape

❑ Part of water channel
❑ Only remove protective

film just before bonding

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

5. Mouldings and trims

275

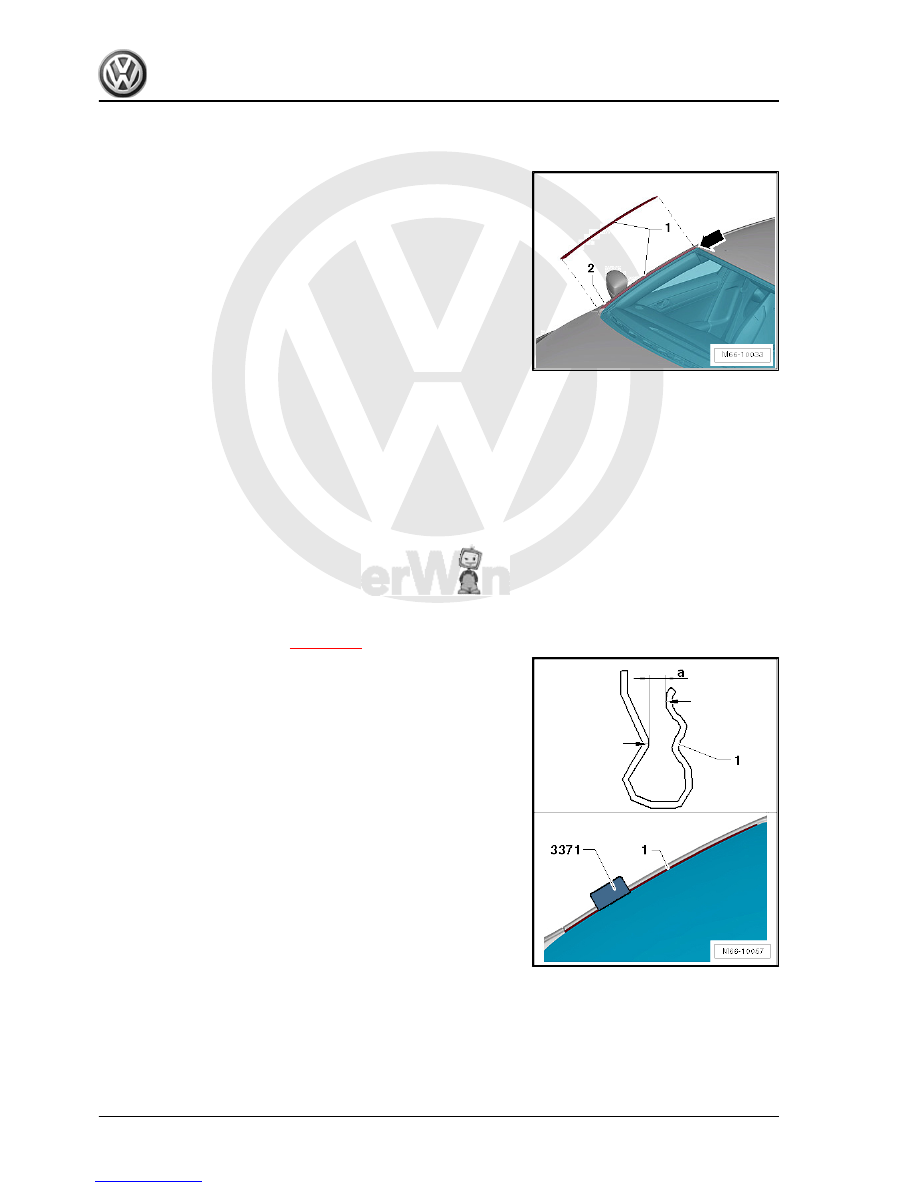

Carry out following work:
– Lever out water channel -1- from retaining strip, starting from

top -arrow-.

– Gently heat up adhesive tape of retaining strip on front wing

-2- using hot air gun -V.A.G 1416- and carefully pull off.

5.1.4

Installing

Fitting notes
♦ If a water channel is removed and installed, only use adhesive

remover -D 002 000 10- to remove any adhesive residue.

♦ Remove any existing adhesive residue of adhesive tape using

adhesive strip remover -VAS 6349- .

♦ Ensure that surfaces to be bonded are free of dust and grease.
♦ Bond water channel immediately after cleaning.
♦ Remove protective backing immediately before installation.
♦ Working temperature is approx. 21 °C.
Carry out following work:
Follow installation instructions

⇒ page 276

 .

– Check gap -a- over complete length of retaining strip -1- using

gauge -3371- .

• Distance -a- between -arrows-: 0.9…1.1 mm

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤
