6-2. Using the interior lights

rior

ures

COROLLA_TMMMS_TMMC_U

■

Front interior light

Off
Door position
On

■

Personal lights

When a light is on due to its door link switch, the light will not turn off
even if the lens or switch is pressed.

Front interior light/personal lights



Type A



Type B



Type A



Type B

On/off

On
Off

386

6-2. Using the interior lights

COROLLA_TMMMS_TMMC_U

On
Door position
Off

■

Illuminated entry system



Vehicles without a smart key system

When the interior light switch is in the door position, the interior light automat-
ically turns on/off according to the engine switch position, whether the doors
are locked/unlocked and whether the doors are open/closed.



Vehicles with a smart key system

When the interior light switch is in the door position, the interior light and
engine switch light automatically turn on/off according to engine switch mode,
the presence of the electronic key, whether the doors are locked/unlocked
and whether the doors are open/closed.

■

To prevent battery discharge
The following lights will go off automatically after 20 minutes:

●

Front interior light/personal lights

●

Rear interior light

●

Trunk light

■

Customization
Setting (e.g. the time elapsed before lights turn off) can be changed.
(Customizable features:

P. 564)

Rear interior light

387

rior

ures

COROLLA_TMMMS_TMMC_U

6-3. Using the storage features

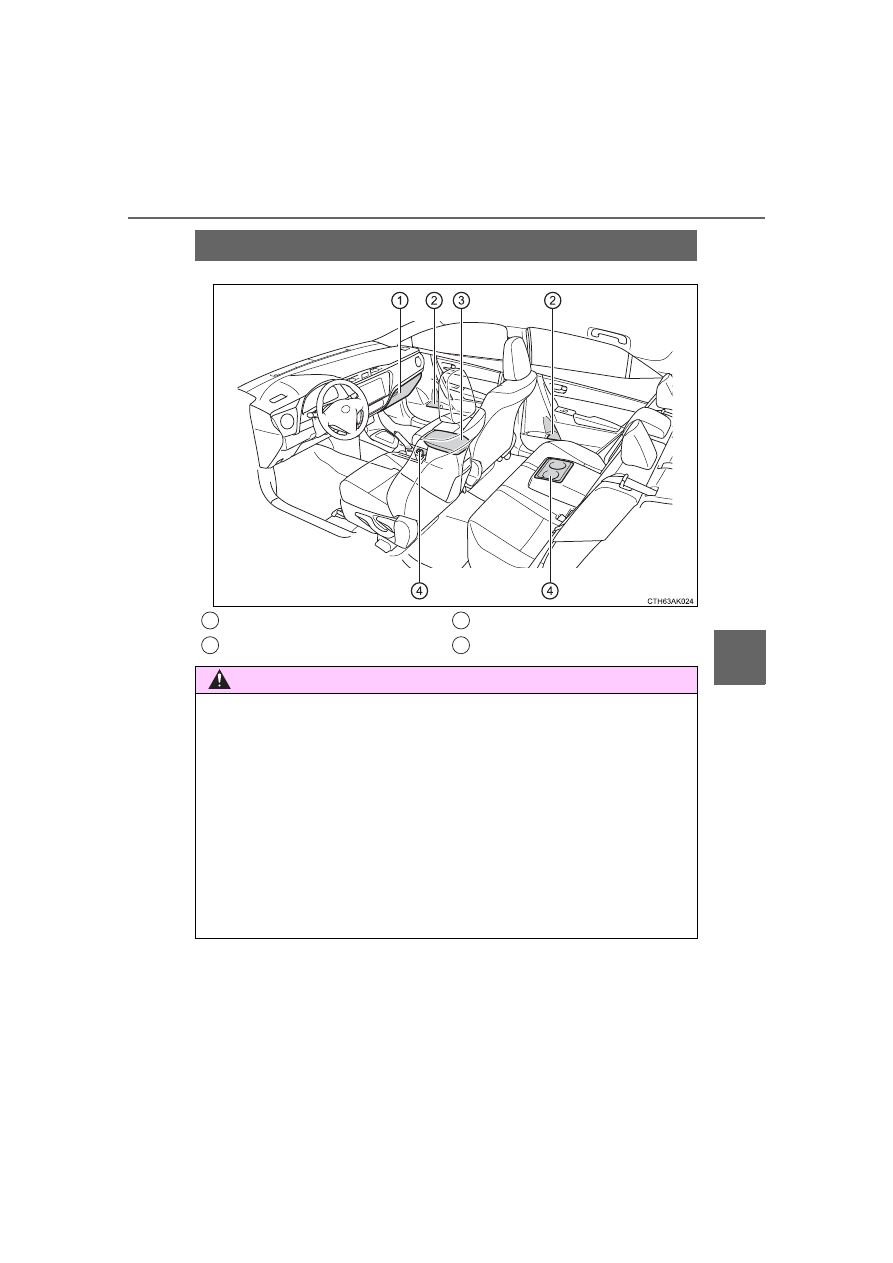

List of storage features

Glove box

(

P. 388)

Bottle holders

(

P. 389)

Console box

(

P. 388)

Cup holders

(

P. 390)

WARNING

■

Items that should not be left in the storage spaces
Do not leave glasses, lighters or spray cans in the storage spaces, as this
may cause the following when cabin temperature becomes high:

●

Glasses may be deformed by heat or cracked if they come into contact
with other stored items.

●

Lighters or spray cans may explode. If they come into contact with other
stored items, the lighter may catch fire or the spray can may release gas,
causing a fire hazard.

■

When driving or when the storage compartments are not in use
Keep the lids closed.
In the event of sudden braking or sudden swerving, an accident may occur
due to an occupant being struck by an open lid or the items stored inside.

388

6-3. Using the storage features

COROLLA_TMMMS_TMMC_U

Pull up the lever to open the glove
box.



Console box

Lift the lid while pulling up the
knob on the right side.



Upper level box

Lift the lid while pulling up the
knob on the left side.

Glove box

Console box

389

6-3. Using the storage features

rior

ures

COROLLA_TMMMS_TMMC_U

■

Front

■

Rear

■

When using the holder as a bottle holder

●

When storing a bottle, close the cap.

●

The bottle may not be stored depending on its size or shape.

Bottle holders

WARNING

■

Items unsuitable for the bottle holder
Do not place anything other than a bottle in the bottle holders.
Other items may be thrown out of the holders in the event of an accident or
sudden braking and cause injury.

NOTICE

■

Items that should not be stowed in the bottle holders
Put the cap on before stowing a bottle. Do not place open bottles in the bot-
tle holders, or glass or paper cups containing liquid. The contents may spill
and glass cups may break.

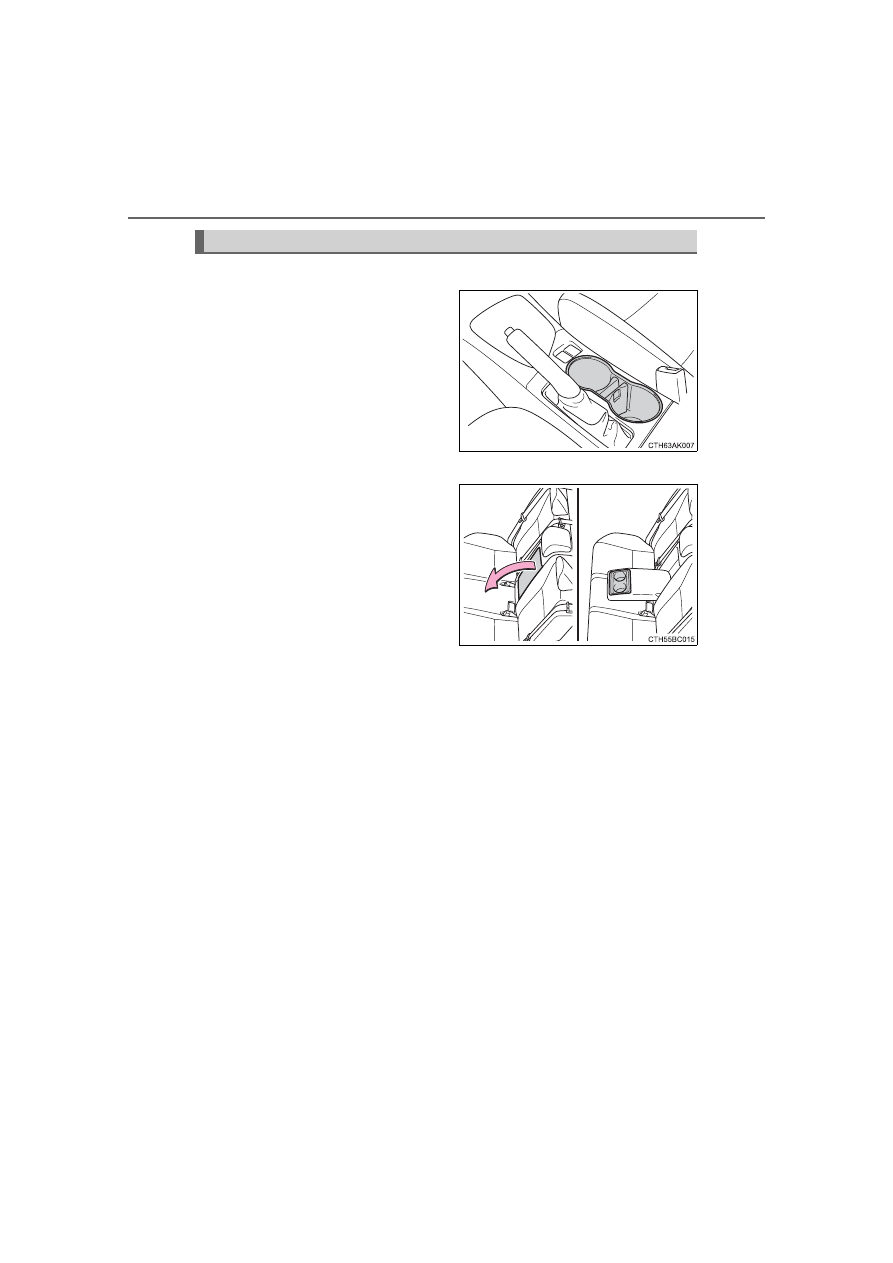

390

6-3. Using the storage features

COROLLA_TMMMS_TMMC_U

■

Front

■

Rear (if equipped)
Pull the armrest down.

Cup holders

391

6-3. Using the storage features

rior

ures

COROLLA_TMMMS_TMMC_U

■

Adjusting the size of the cup holder (front)

■

Removing the cup holder insert (front)

Remove the cup holder insert.

Change the cup holder insert position.

The cup holder insert may be removed for
cleaning.

WARNING

■

Items unsuitable for the cup holders
Do not place anything other than cups or aluminum cans in the cup holders.
Other items may be thrown out of the holders in the event of an accident or
sudden braking, causing injury. If possible, cover hot drinks to prevent
burns.

392

COROLLA_TMMMS_TMMC_U

6-4. Other interior features

To  set  the  visor  in  the  forward
position, flip it down.
To set the visor in the side posi-
tion,  flip  down,  unhook,  and
swing it to the side.
To use the side extender, place
the  visor  in  the  side  position,
then  slide  it  backward.  (if
equipped)

Slide the cover to open.

The vanity light turns on when the
cover is opened.

If the vanity lights remain on for 20 minutes while the engine is off, the lights
will turn off automatically.

The clock can be adjusted.

Adjusts the hours
Adjusts the minutes
Rounds to the nearest hour

: e.g.1:00 to 1:29

 1:00

1:30 to 1:59

 2:00

Other interior features

Sun visors

Vanity mirrors

Clock

393

6-4. Other interior features

rior

ures

COROLLA_TMMMS_TMMC_U

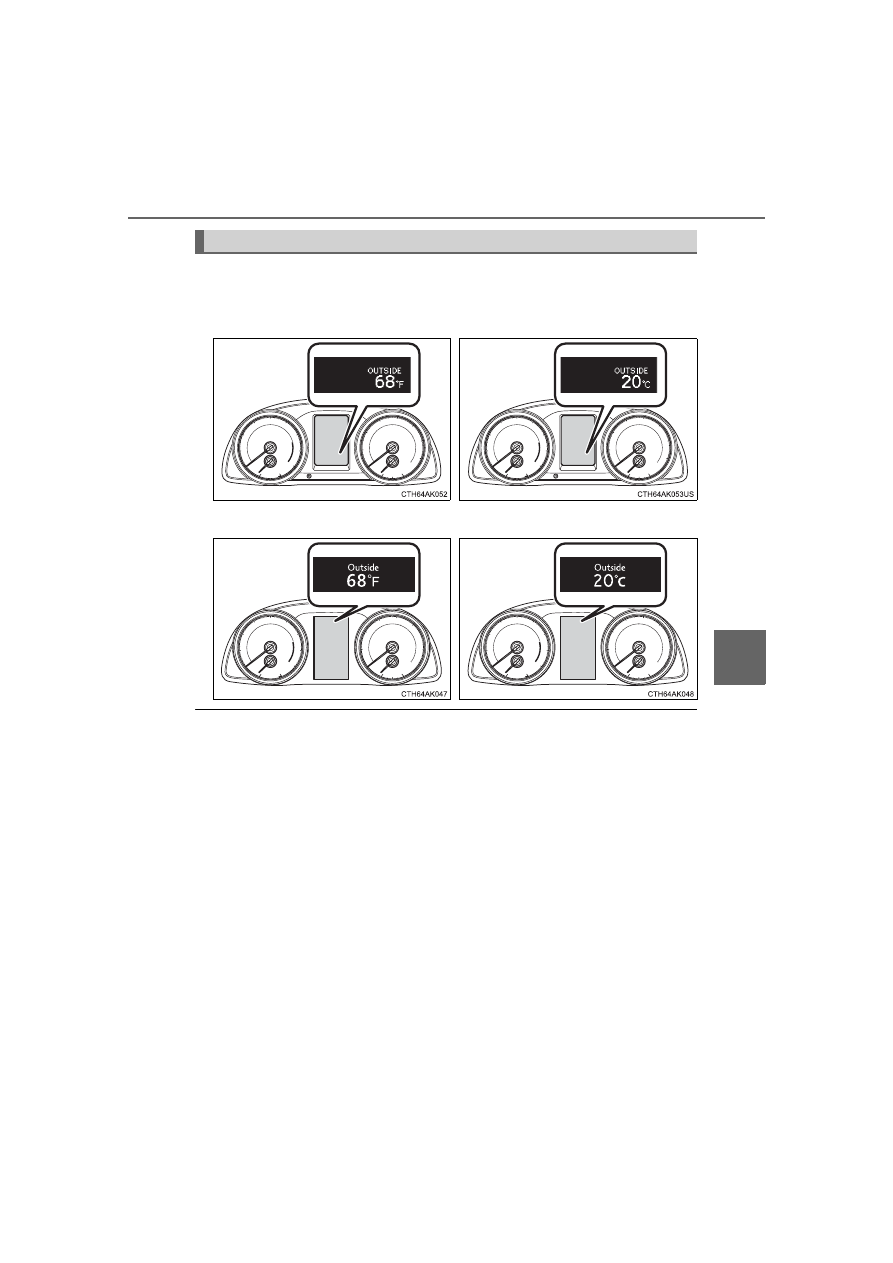

The temperature display shows temperatures within the range of -40

F

(-40

C) to 122F (50C).

■

The outside temperature is displayed when



Vehicles without a smart key system

The engine switch is in the “ON” position.



Vehicles with a smart key system

The engine switch is in IGNITION ON mode.

■

Display
In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change.

●

When the vehicle is stopped, or moving at low speeds (less than 9 mph [15
km/h]).

●

When the outside temperature has changed suddenly (at the entrance/exit
of a garage, tunnel, etc.)

■

When “--

F” or “--C” is displayed

The system may be malfunctioning. Take your vehicle to your Toyota dealer.

Outside temperature display



Type A



Type B



Type C



Type D

394

6-4. Other interior features

COROLLA_TMMMS_TMMC_U

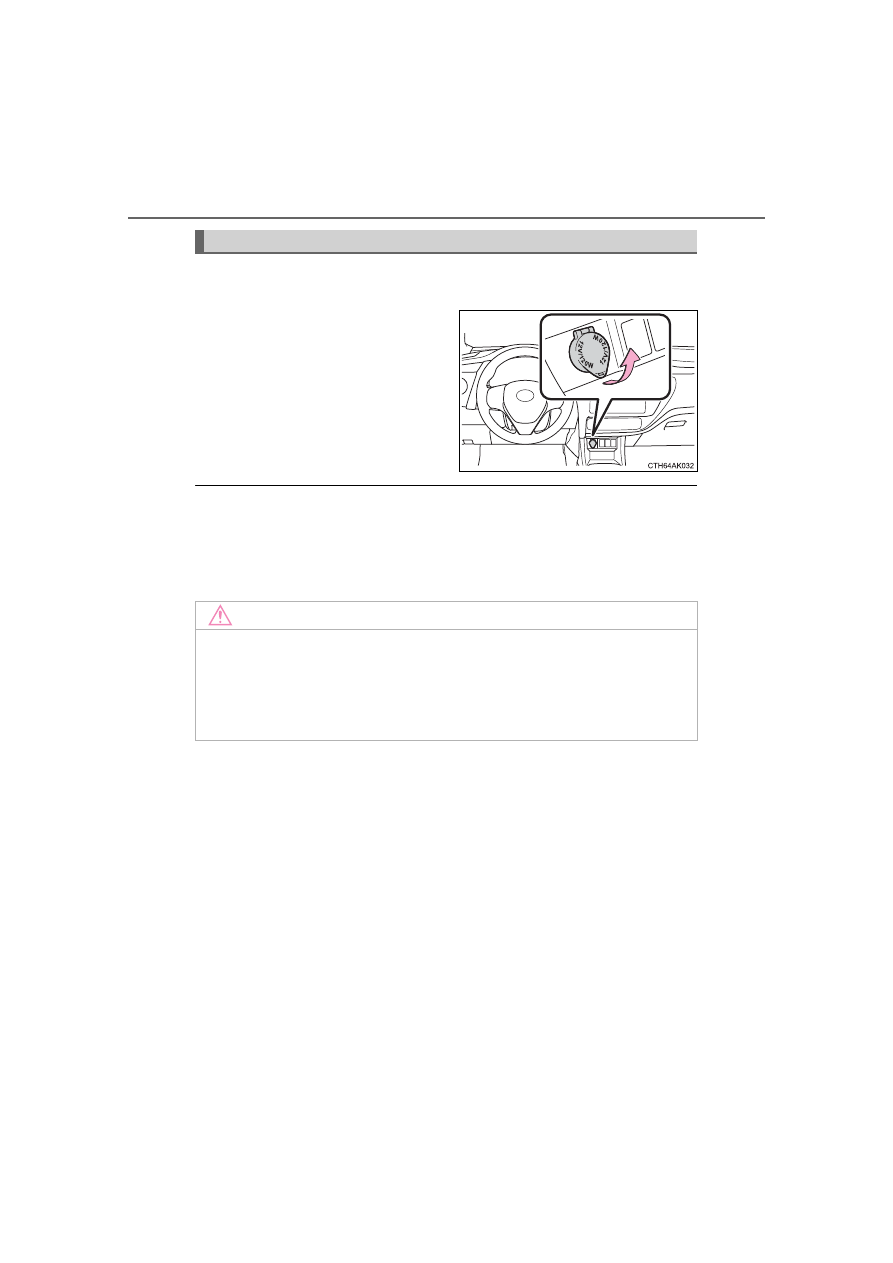

Please use as a power supply for electronic goods that use less than
12 VDC/10 A (power consumption of 120 W).
Open the lid.

■

The power outlet can be used when



Vehicles without a smart key system

The engine switch is in the “ACC” or “ON” position.



Vehicles with a smart key system

The engine switch is in ACCESSORY or IGNITION ON mode.

Power outlet

NOTICE

●

To avoid damaging the power outlet, close the power outlet lid when the
power outlet is not in use. Foreign objects or liquids that enter the power
outlet may cause a short circuit.

●

To prevent battery discharge, do not use the power outlet longer than nec-
essary when the engine is off.

395

6-4. Other interior features

rior

ures

COROLLA_TMMMS_TMMC_U

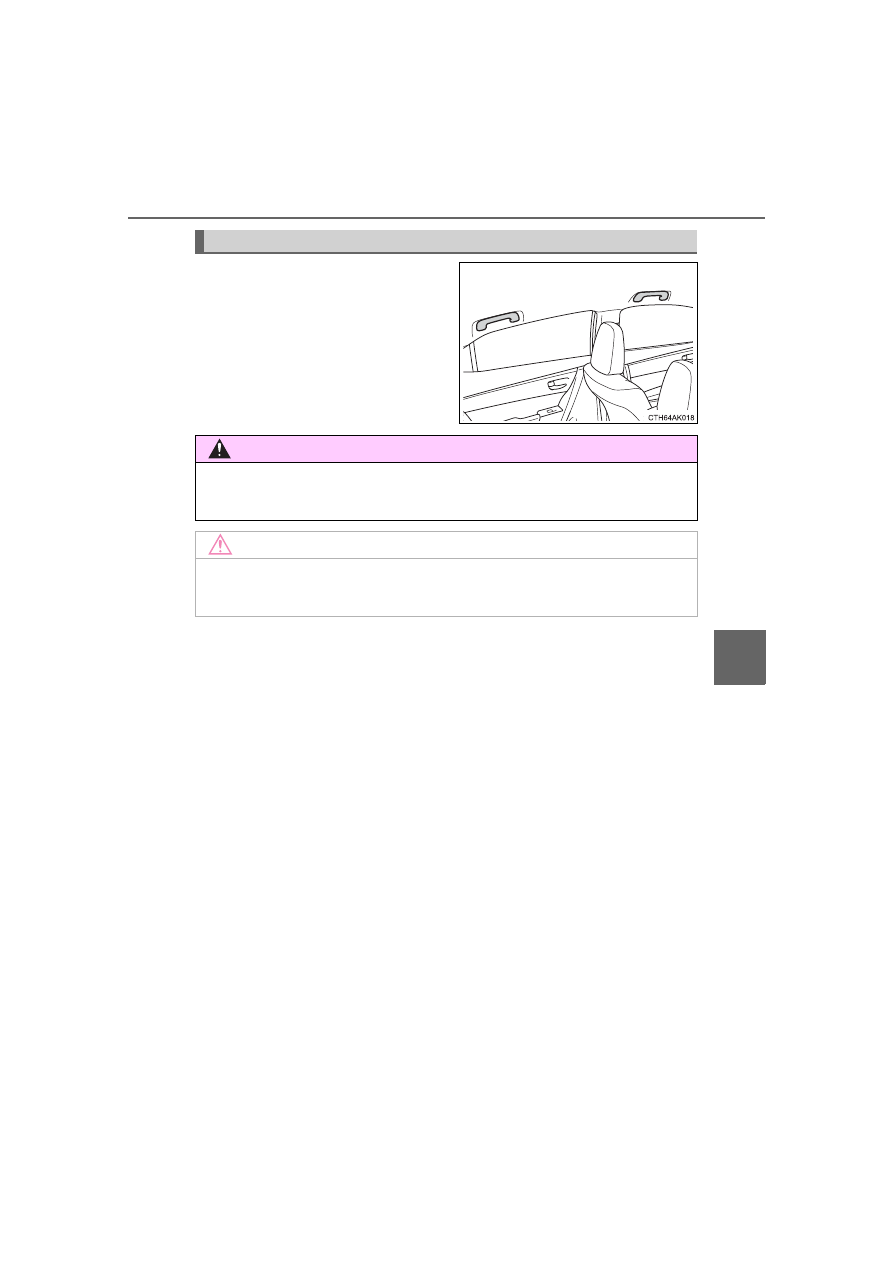

An assist grip installed on the ceil-
ing can be used to support your
body while sitting on the seat.

Assist grips

WARNING

Do not use the assist grip when getting in or out of the vehicle or rising from
your seat.

NOTICE

To prevent damage to the assist grip, do not put a heavy load on the assist
grip.

396

6-4. Other interior features

COROLLA_TMMMS_TMMC_U

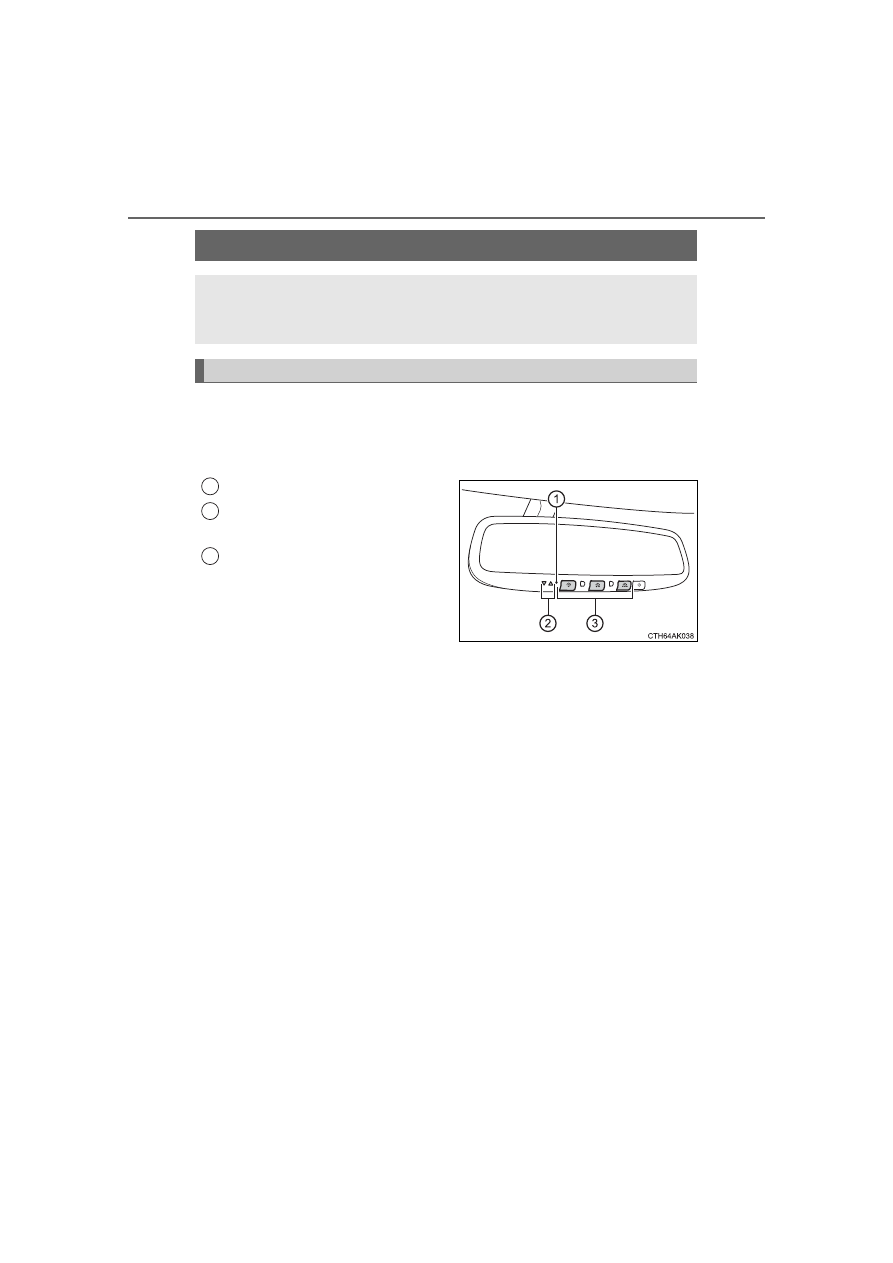

The HomeLink

wireless control system in your vehicle has 3 buttons

which can be programmed to operate 3 different devices. Refer to the
programming methods on the following pages to determine the
method which is appropriate for the device.

HomeLink

indicator light

Garage door operation indica-
tors
Buttons

■

Before programming the HomeLink

● During programming, it is possible that garage doors, gates, or

other devices may operate. For this reason, make sure that peo-
ple and objects are clear of the garage door or other devices to
prevent injury or other potential harm.

● It is recommended that a new battery be placed in the remote

control transmitter for more accurate programming.

● Garage door opener motors manufactured after 1995 may be

equipped with rolling code protection. If this is the case, you may
need a stepladder or other sturdy, safe device to reach the
“learn” or “smart” button on the garage door opener motor.

Garage door opener



: If equipped

The garage door opener can be programmed to operate garage
doors, gates, entry doors, door locks, home lighting systems,
security systems, and other devices.

HomeLink

397

6-4. Other interior features

rior

ures

COROLLA_TMMMS_TMMC_U

■

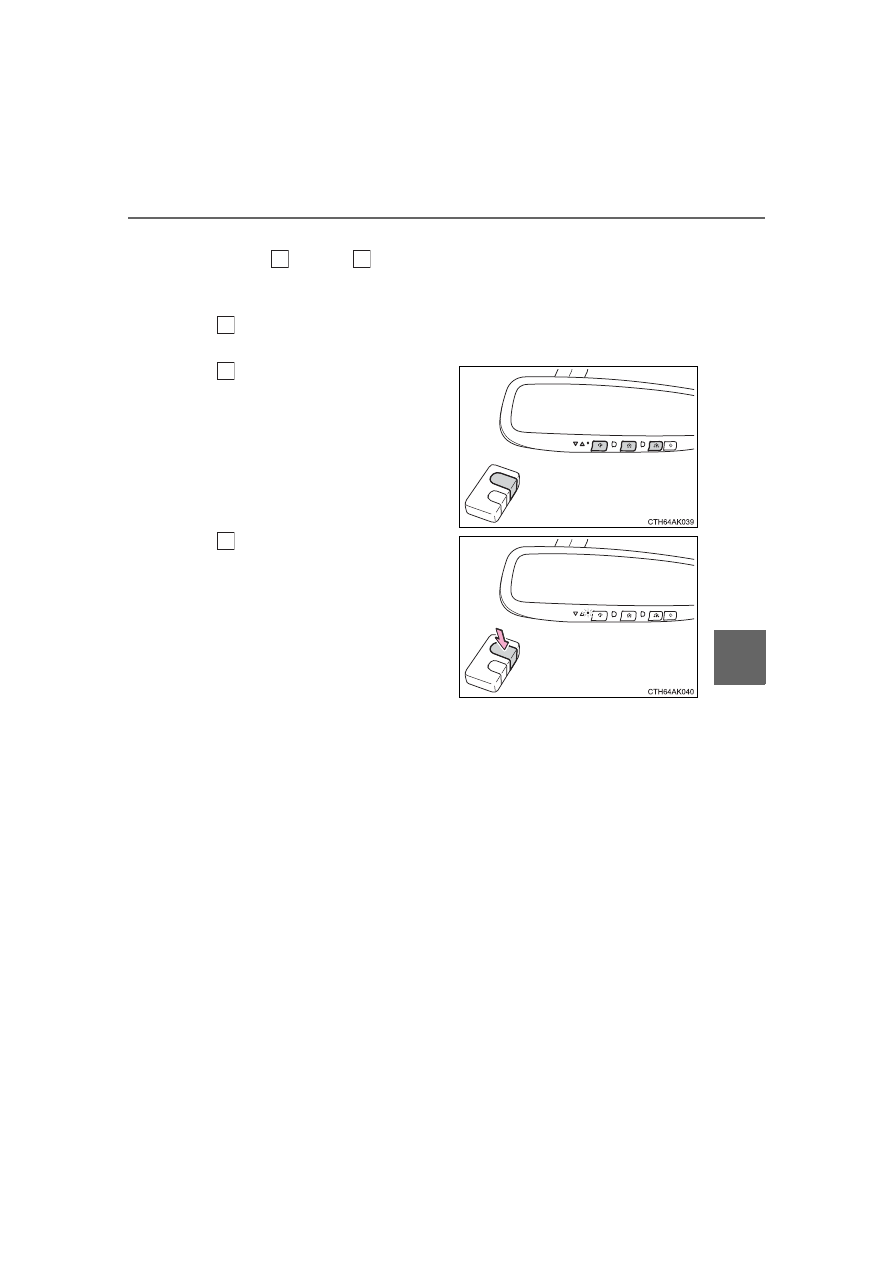

Programming the HomeLink

Steps

through

must be performed within 60 seconds, other-

wise the indicator light will stop flashing and programming will not
be able to be completed.

Press and release the HomeLink

button you want to program

and check that the HomeLink

indicator light flashes orange.

Point  the  remote  control
transmitter  for  the  device  at
the rear view mirror, 1 to 3 in.
(25  to  75  mm)  from  the
HomeLink

buttons.

Keep the HomeLink

indicator

light in view while programming.

Program a device.



Programming a device
other than an entry gate
(for U.S.A. owners)

Press and hold the remote
control transmitter button
until the HomeLink

indicator

light  changes  from  slowly
flashing  orange  to  rapidly
flashing  green  (rolling  code)
or  continuously  lit  green
(fixed code), then release the
button.



Programming an entry gate (for U.S.A. owners)/Programming
a device in the Canadian market

Press and release the remote control transmitter button at 2 sec-
ond intervals, repeatedly, until the HomeLink

indicator light

changes from slowly flashing orange to rapidly flashing green
(rolling code) or continuously lit green (fixed code).

398

6-4. Other interior features

COROLLA_TMMMS_TMMC_U

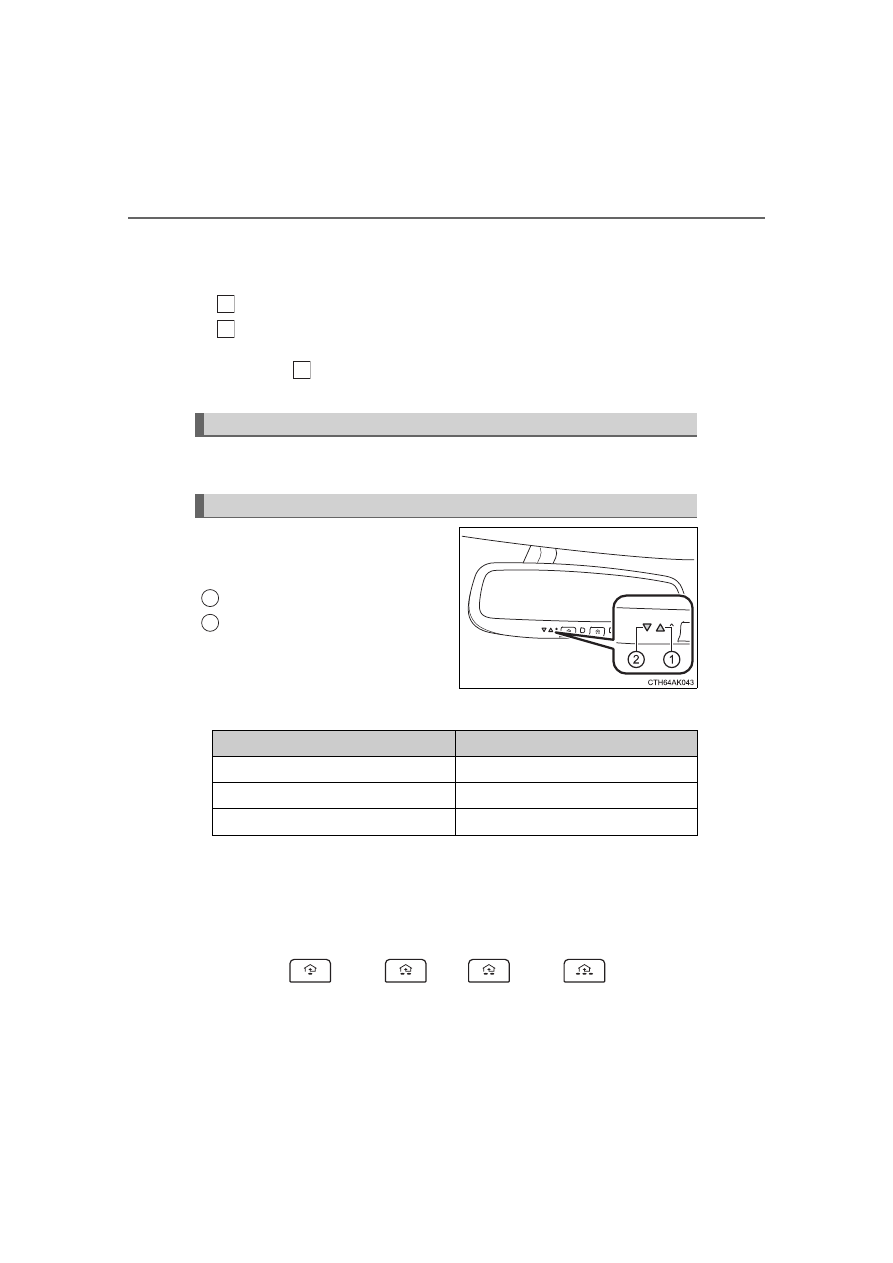

Test the HomeLink

operation by pressing the newly pro-

grammed button and observing the indicator light:

● Indicator light illuminates: Programming of a fixed code device

has completed. The garage door or other device should operate
when a HomeLink

button is pressed and released.

● Indicator light flashes rapidly: The garage door opener motor or

other device is equipped with a rolling code. To complete pro-
gramming, firmly press and hold the HomeLink

button for 2 sec-

onds then release it.

● If the garage door or other device does not operate, proceed to

“Programming a rolling code system”.
Repeat the steps above to program another device for any of the
remaining HomeLink

buttons.

■

Programming a rolling code system
2 or more people may be necessary to complete rolling code pro-
gramming.

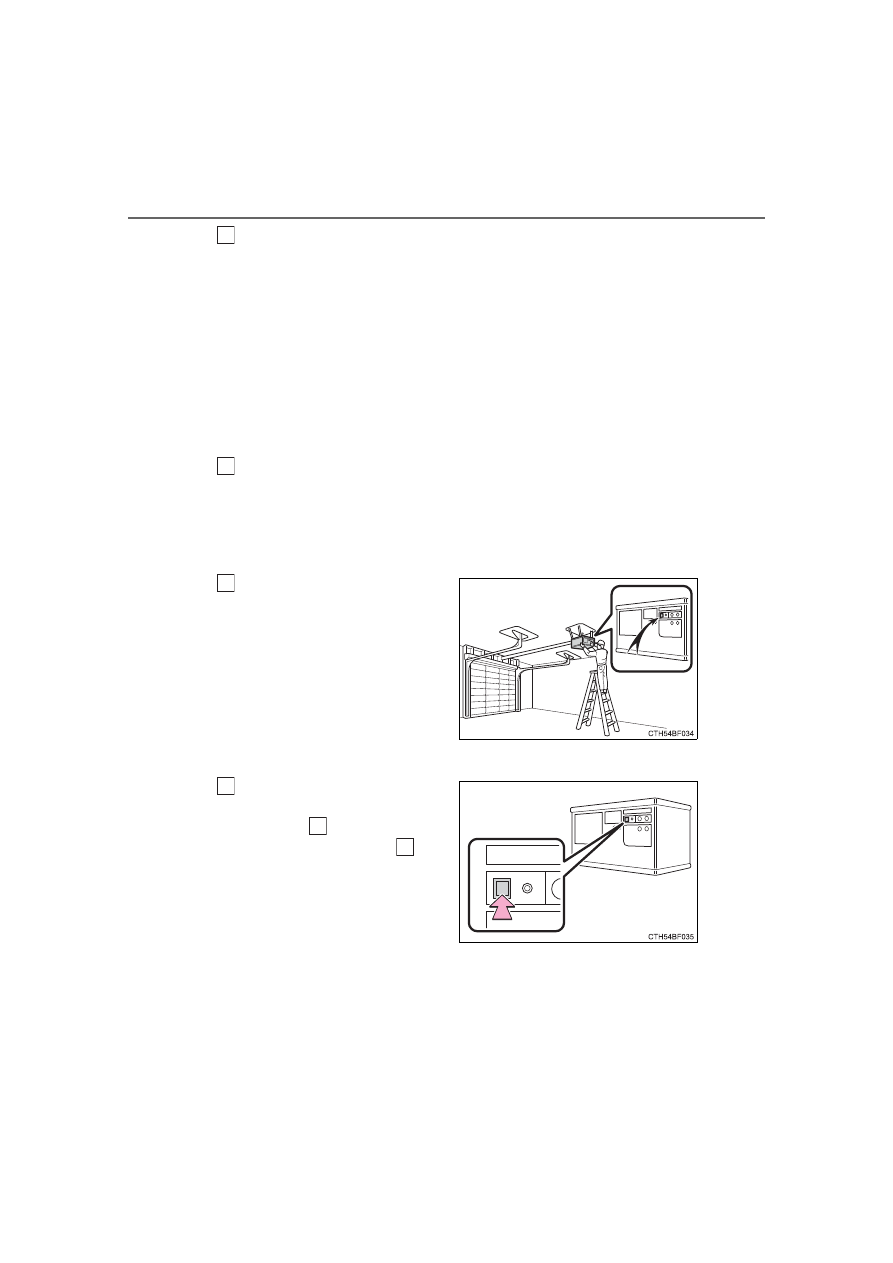

Locate the “Learn” or “Smart”
button on the garage door
opener motor in the garage.

This button can usually be found
where the hanging antenna wire
is  attached  to  the  unit.  The
name  and  color  of  the  button
may  vary  by  manufacturer.
Refer  to  the  Owner’s  manual
supplied  with  the  garage  door
opener motor for details.

Press and release the
“Learn” or “Smart” button.
Perform

within 30 sec-

onds after performing

399

6-4. Other interior features

rior

ures

COROLLA_TMMMS_TMMC_U

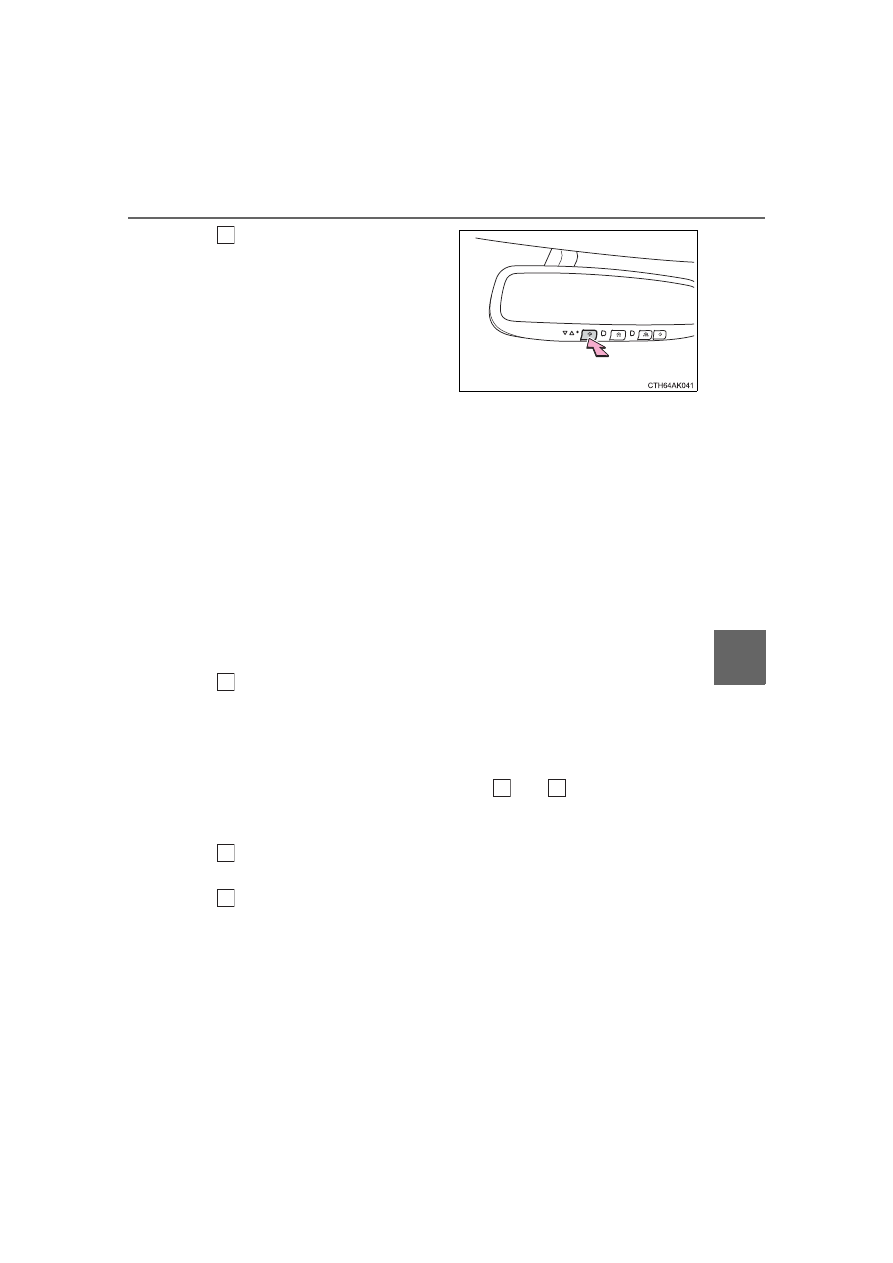

Press and hold the desired
HomeLink

button (inside the

vehicle) for 2 seconds and
release it. Repeat this
sequence

(press/hold/

release)  up  to  3  times  to
complete programming.
If  the  garage  door  opener
motor  operates  when  the
HomeLink

button

pressed, the garage door
opener motor recognizes the
HomeLink

signal.

■

Enabling 2-way communication with a garage door (only avail-
able for compatible devices)
When enabled, 2-way communication allows you to check the sta-
tus of the opening and closing of a garage door through indicators
in your vehicle.
2-way communication is only available if the garage door opener
motor used is a compatible device. (To check device compatibility,
refer to www.HomeLink.com.)

Within 5 seconds after programming the garage door opener has
been completed, if the garage door opener motor is trained to
HomeLink

, both garage door operation indicators will flash rap-

idly green and the light on the garage door opener motor will
blink twice, indicating that 2-way communication is enabled.

If the indicators do not flash, perform

and

within the first 10

presses of the HomeLink

button after programming has been

completed.

Press a programmed HomeLink

button to operate a garage

door.
Within 1 minute of pressing the HomeLink

button, after the

garage door operation has stopped, press the “Learn” or “Smart”
button on the garage door opener motor. Within 5 seconds of the
establishment of 2-way communication with the garage door
opener, both garage door operation indicators in the vehicle will
flash rapidly green and the light on the garage door opener motor
will blink twice, indicating that 2-way communication is enabled.

400

6-4. Other interior features

COROLLA_TMMMS_TMMC_U

■

Reprogramming a single HomeLink

button

When the following procedure is performed, buttons which already
have devices registered to them can be overwritten:

With one hand, press and hold the desired HomeLink

button.

When the HomeLink

indicator starts flashing orange, continue

to hold the HomeLink

button and perform “Programming Home-

Link

”

(it takes 20 seconds for the HomeLink

indicator to

start flashing).

Press the appropriate HomeLink

button. The HomeLink

indicator

light should turn on.

The status of the opening and
closing of a garage door is shown
by the indicators.

Opening
Closing

This function is only available if the
garage door opener motor used is
a compatible device. (To check
device compatibility, refer to
www.HomeLink.com.)

The indicators can operate within approximately 820 ft. (250 m) of
the garage door. However, if there are obstructions between the
garage door and the vehicle, such as houses and trees, feedback
signals from the garage door may not be received. To recall the pre-
vious door operation status, press and release either HomeLink

buttons

and

simultane-

ously. The last recorded status will be displayed for 3 seconds.

Operating the HomeLink

Garage door operation indicators

Color

Status

Orange (flashing)

Currently opening/closing

Green

Opening/closing has completed

Red (flashing)

Feedback signals cannot be received

Content .. 23 24 25 26 ..
