Toyota Corolla (2019 year). Instruction

2. Instrument cluster

Instru

me
nt clu

ster

COROLLA_TMMMS_TMMC_U

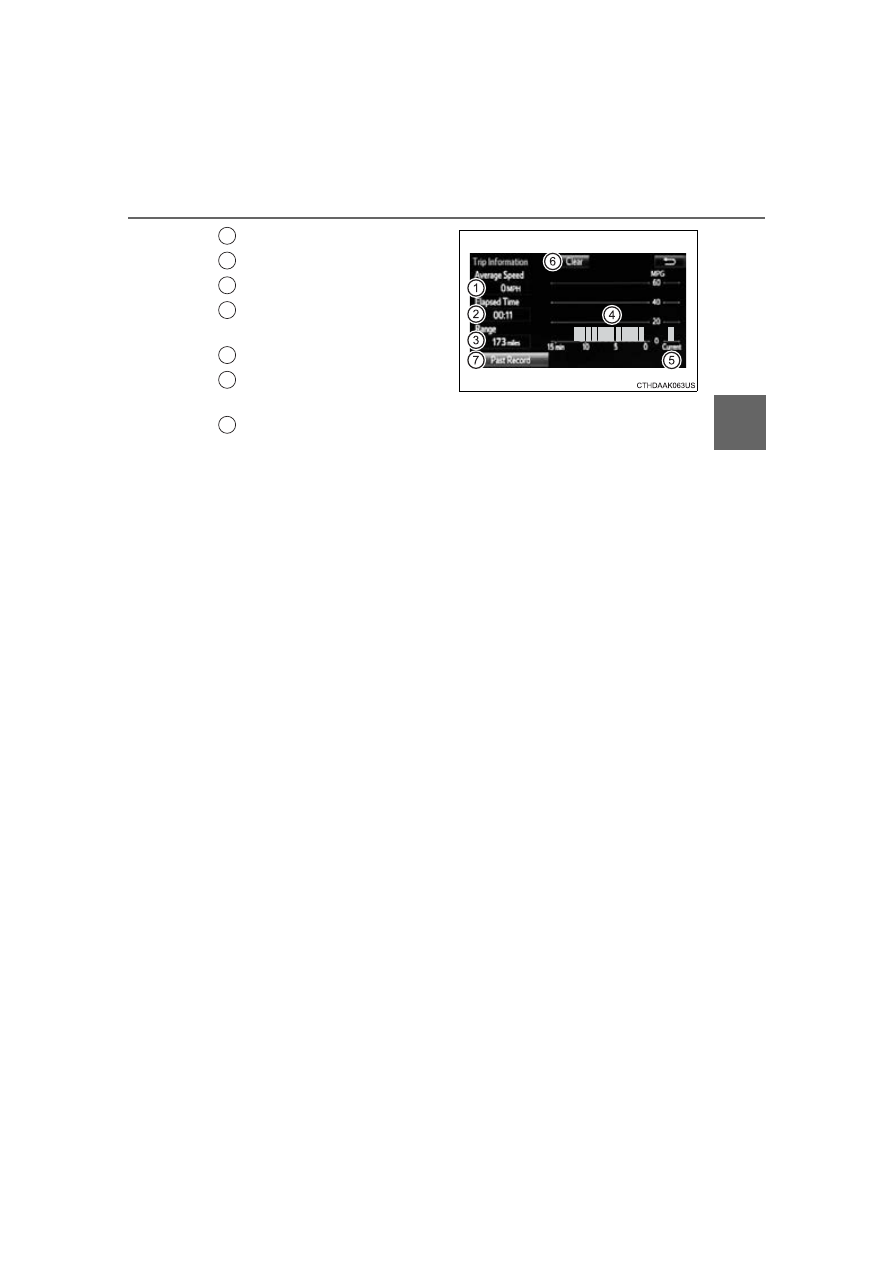

Average vehicle speed
Elapsed time
Range
Previous fuel consumption
per minute
Current fuel consumption
Reset the trip information
data
“Past Record” screen appears

Vehicles without a smart key system:
Average fuel consumption for the past 15 minutes is divided by color
into past averages and averages attained since the engine switch was
last turned to the “ON” position. Use the displayed average fuel con-
sumption as a reference.
Vehicles with a smart key system:
Average fuel consumption for the past 15 minutes is divided by color
into past averages and averages attained since the engine switch was
last turned to IGNITION ON mode. Use the displayed average fuel
consumption as a reference.

This image is an example only.

2. Instrument cluster

COROLLA_TMMMS_TMMC_U

■

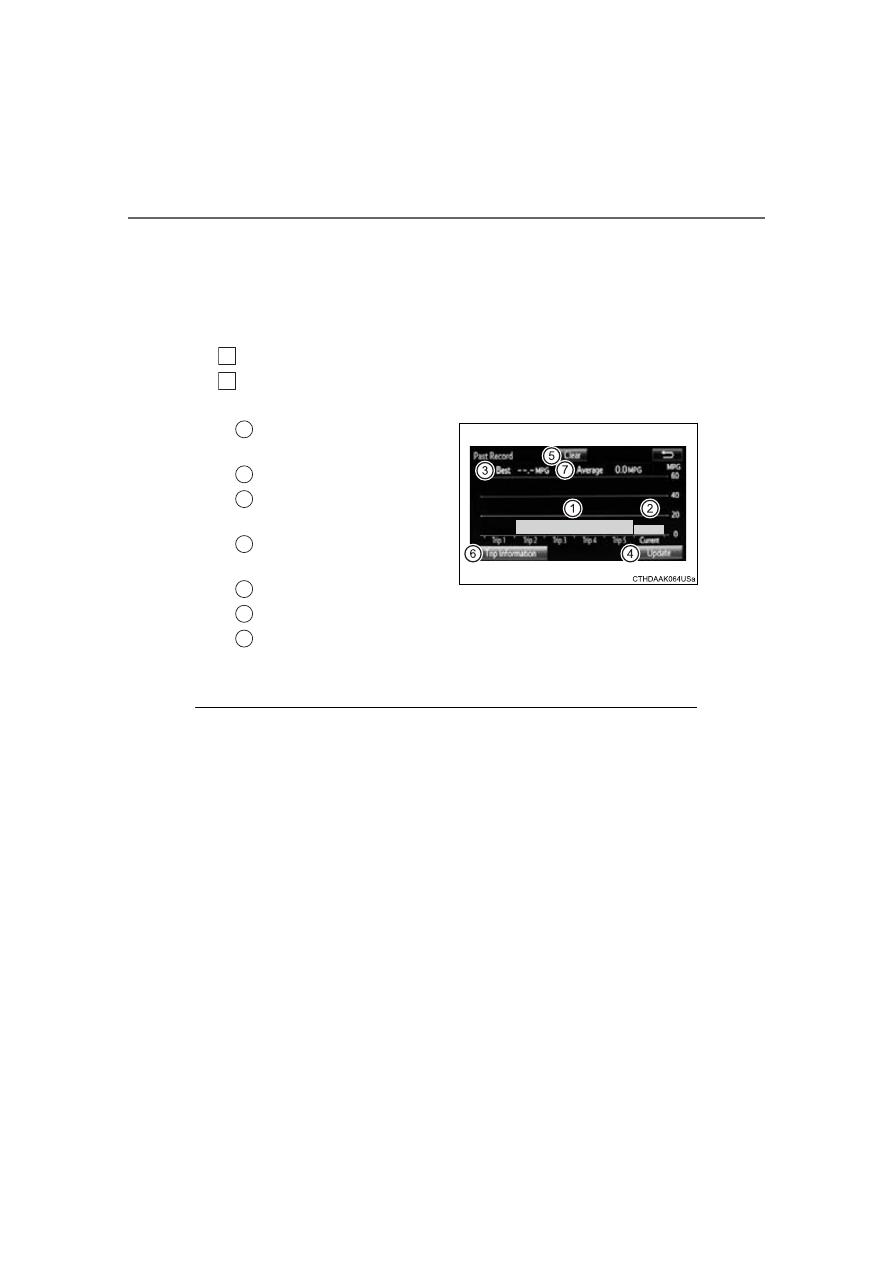

Past record



Entune Audio

Press the “CAR” button.

If the “Trip Information” screen is displayed, select “Past Record”.



Entune Audio Plus or Entune Premium Audio
Press the “APPS” button.
Touch “Eco” on the “Apps” screen.

If the “Trip Information” screen is displayed, select “Past Record”.

Previous  fuel  economy
record
Current fuel economy
Best  recorded  fuel  econ-
omy
Update  the  past  record
data
Reset the past record data
“Trip Information” screen appears
Average recorded fuel economy

These images are examples only, and may vary slightly from actual
conditions.

■

Resetting the data
Selecting “Clear” on the “Trip Information” screen will reset the consumption
data.
Selecting “Clear” on the “Past Record” screen will reset the past record data.

■

Updating the past record data
Selecting “Update” on the “Past Record” screen will update the past record
data.

■

Cruising range
Displays the estimated maximum distance that can be driven with the quan-
tity of fuel remaining.
This distance is computed based on your average fuel consumption.
As a result, the actual distance that can be driven may differ from that dis-
played.

2. Instrument cluster

Instru

me
nt clu

ster

COROLLA_TMMMS_TMMC_U

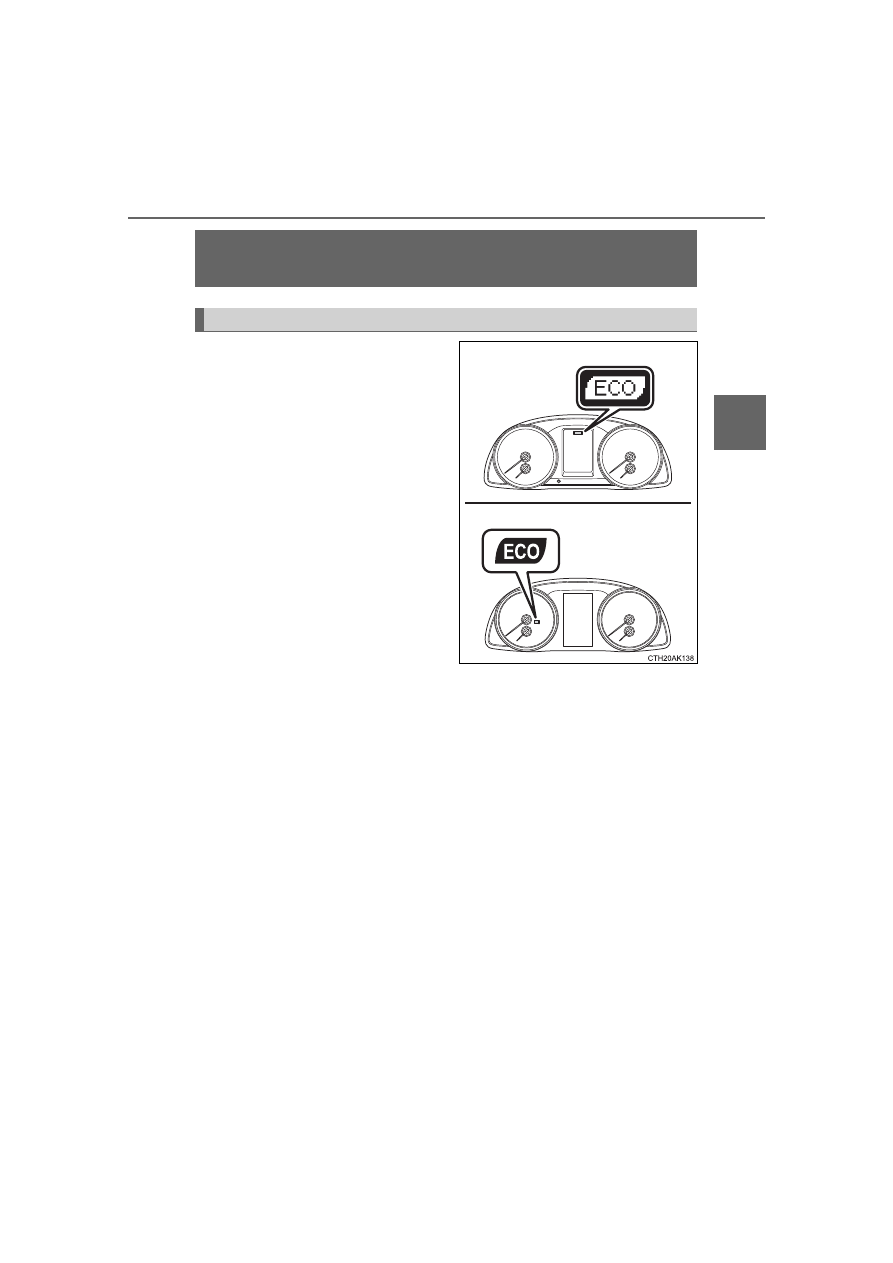

During  Eco-friendly  acceleration
operation (Eco driving), Eco Driv-
ing  Indicator  Light  will  turn  on.
When  the  acceleration  exceeds
Zone of Eco driving, and when the
vehicle  is  stopped,  the  light  turns
off.

Eco Driving Indicator (vehicles with a con-

tinuously variable transmission)

Eco Drive Indicator Light



Monochrome display



Color display

100

2. Instrument cluster

COROLLA_TMMMS_TMMC_U

Suggests Zone of Eco driving with
current Eco driving ratio based on
acceleration.

Eco driving ratio based on
acceleration

If the acceleration exceeds Zone of
Eco driving, the right side of Eco
Driving Indicator Zone Display
blinks.

Zone of Eco driving



Vehicles with a monochrome display
P. 83



Vehicles with a color display
P. 93

■

Operation of Eco Driving Indicator
Eco Driving Indicator will not operate in the following conditions:

●

The shift lever is in any position other than D.

●

Paddle shift switch

is operated.

●

Sport mode

is selected.

●

The vehicle speed is approximately 80 mph (130 km/h) or higher.

: If equipped

Eco Drive Indicator Zone Display



Monochrome display



Color display

Eco Driving Indicator Light customization

102

COROLLA_TMMMS_TMMC_U

3-1. Key information

The following keys are provided with the vehicle.



Vehicles without a smart key system (type A)

Keys
Key number plate



Vehicles without a smart key system (type B)

Keys

Operating the wireless remote con-
trol function

Key number plate



Vehicles with a smart key system

Electronic keys

• Operating the smart key system

(

P. 122)

• Operating the wireless remote

control function

Mechanical keys
Key number plate

Keys

The keys

103

3-1. Key information

Op
eration

f each

compo

nen
t

COROLLA_TMMMS_TMMC_U



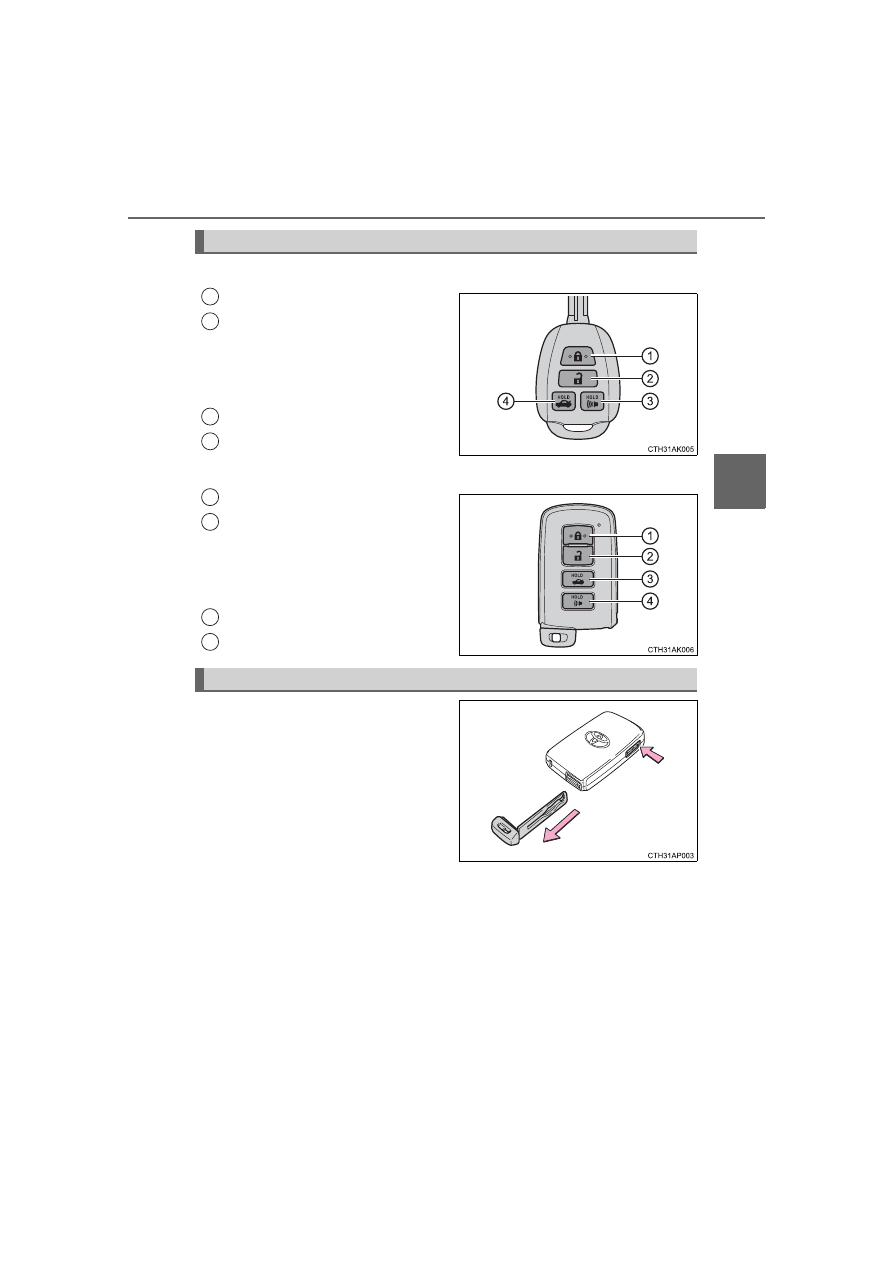

Vehicles without a smart key system

Locks all the doors (

P. 108)

Unlocks all the doors (

P. 108)

Pressing the button unlocks the
driver’s door. Pressing the button
again within 5 seconds unlocks the
other doors.

Sounds the alarm (

P. 104)

Opens the trunk (

P. 118)



Vehicles with a smart key system

Locks all the doors (

P. 109)

Unlocks all the doors (

P. 109)

Pressing the button unlocks the
driver’s door. Pressing the button
again within 5 seconds unlocks the
other doors.

Opens the trunk (

P. 118)

Sounds the alarm (

P. 104)

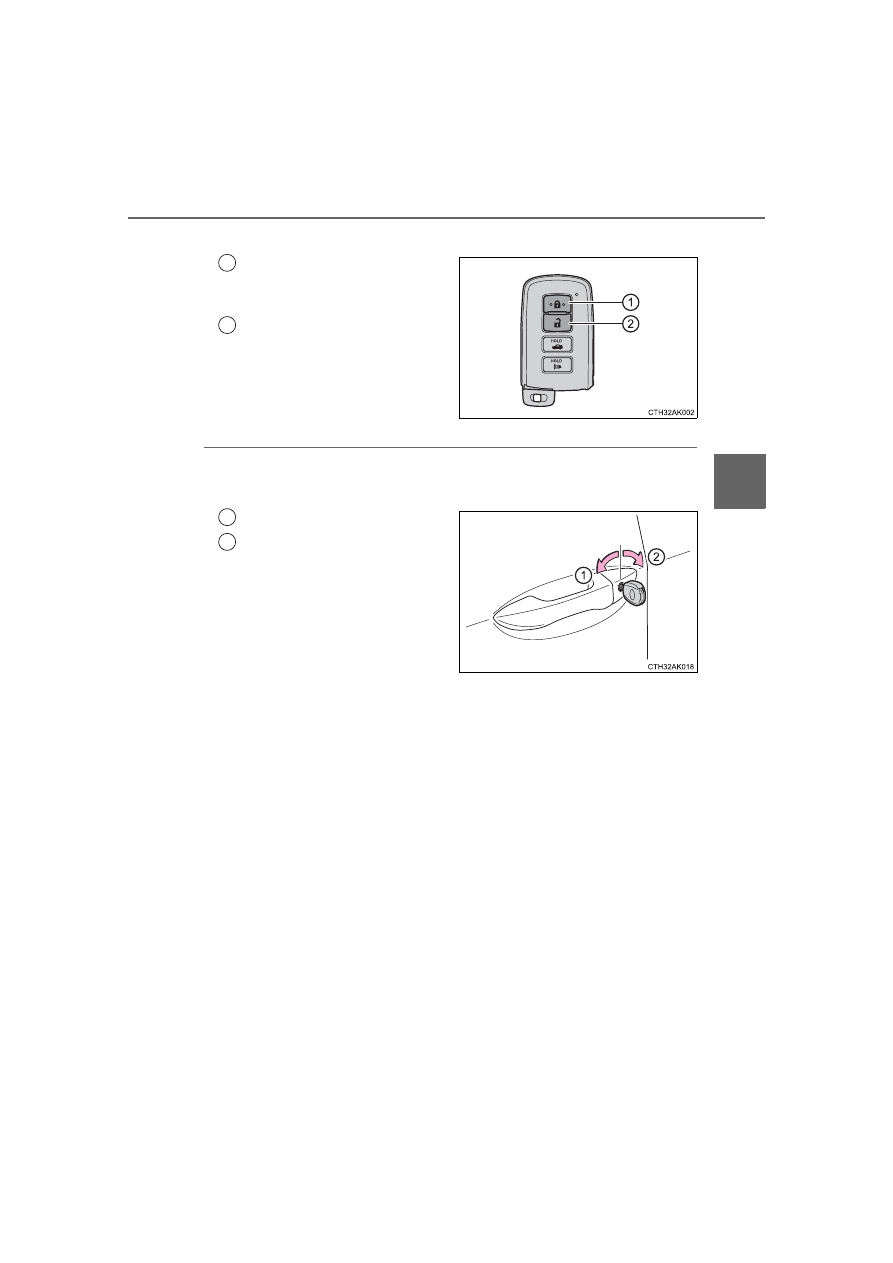

To take out the mechanical key,
push the release button and take
the key out.

The  mechanical  key  can  only  be
inserted  in  one  direction,  as  the
key only has grooves on one side.
If  the  key  cannot  be  inserted  in  a
lock  cylinder,  turn  it  over  and  re-
attempt to insert it.
After  using  the  mechanical  key,  store  it  in  the  electronic  key.  Carry  the
mechanical key together with the electronic key. If the electronic key bat-
tery  is  depleted  or  the  entry  function  does  not  operate  properly,  you  will
need the mechanical key. (

P. 523)

Wireless remote control (if equipped)

Using the mechanical key

104

3-1. Key information

COROLLA_TMMMS_TMMC_U

■

Panic mode (with a wireless remote control function)



Vehicles without a smart key system



Vehicles with a smart key system

■

If you lose your keys
New genuine keys can be made by your Toyota dealer using the other key
(vehicles without a smart key system) or mechanical key (vehicles with a
smart key system) and the key number stamped on your key number plate.
Keep the plate in a safe place such as your wallet, not in the vehicle.

■

When riding in an aircraft
When bringing a key with wireless remote control function onto an aircraft,
make sure you do not press any button on the key while inside the aircraft
cabin. If you are carrying the key in your bag etc., ensure that the buttons are
not likely to be pressed accidentally. Pressing a button may cause the key to
emit radio waves that could interfere with the operation of the aircraft.

When

is pressed for longer than

about  one  second,  an  alarm  will  sound
intermittently  and  the  vehicle  lights  will
flash  to  deter  any  person  from  trying  to
break into or damage your vehicle.
To stop the alarm, press any button on the
wireless remote control.

When

is pressed for longer than

105

3-1. Key information

Op
eration

f each

compo

nen
t

COROLLA_TMMMS_TMMC_U

■

Key battery depletion (vehicles with a wireless remote control function)



Vehicles without a smart key system

If the wireless remote control function does not operate, the battery may be
depleted. Replace the battery when necessary. (

P. 455)



Vehicles with a smart key system

●

The standard battery life is 1 to 2 years.

●

If the battery becomes low, an alarm will sound in the cabin when the engine
stops. (

P. 503)

●

As the electronic key always receives radio waves, the battery will become
depleted even if the electronic key is not used. The following symptoms indi-
cate that the electronic key battery may be depleted. Replace the battery
when necessary. (

P. 455)

• The smart key system or the wireless remote control does not operate.
• The detection area becomes smaller.
• The LED indicator on the key surface does not turn on.

●

To avoid serious deterioration, do not leave the electronic key within 3 ft. (1
m) of the following electrical appliances that produce a magnetic field:
• TVs
• Personal computers
• Cellular phones, cordless phones and battery chargers
• Recharging cellular phones or cordless phones
• Table lamps
• Induction cookers

■

Replacing the battery
P. 455

■

Confirmation of the registered key number
The number of keys already registered to the vehicle can be confirmed. Ask
your Toyota dealer for details.

■

If a wrong key is used (vehicles with a smart key system)
The key cylinder rotates freely to isolate inside mechanism.

106

3-1. Key information

COROLLA_TMMMS_TMMC_U

■

Certification for the wireless remote control



For the U.S.A.

FCC ID: HYQ23AAH

FCC ID: HYQ12BEL

NOTE:
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful interfer-
ence, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
FCC WARNING:
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
For 12BEL
The FCC ID/IC Certification number is affixed inside the equipment. You can
find the ID/number when replacing the battery.



For Canada

NOTE:
This device  complies with Industry Canada’s  licence-exempt RSSs. Opera-
tion is subject to the following two conditions: (1) This device may not cause
interference;  and  (2)  This  device  must  accept  any  interference,  including
interference that may cause undesired operation of the device.
For 12BEL/12BDP
The FCC ID/IC Certification number is affixed inside the equipment. You can
find the ID/number when replacing the battery.
NOTE:
Le  présent  appareil  est  conforme  aux  CNR  d'lndustrie  Canada  appli-
cables aux appareils radio exempts de licence. L'exploitation est autori-
sée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de
brouillage;  (2)  l'utilisateur  de  l'appareil  doit  accepter  tout  brouillage
radioélectrique subi, même si le brouillage est susceptible d'en compro-
mettre le fonctionnement.
Pour 12BEL/12BDP
L’identification FCC/le numéro d’accréditation IC est apposé(e) à l’intérieur de
l’appareil.  Cette  identification/ce  numéro  est  visible  au  remplacement  de  la
pile.

■

Customization
Settings (e.g. wireless remote control system) can be changed.
(Customizable features:

P. 564)

107

3-1. Key information

Op
eration

f each

compo

nen
t

COROLLA_TMMMS_TMMC_U

NOTICE

■

To prevent key damage

●

Do not drop the keys, subject them to strong shocks or bend them.

●

Do not expose the keys to high temperatures for long periods of time.

●

Do not get the keys wet or wash them in an ultrasonic washer etc.

●

Do not attach metallic or magnetic materials to the keys or place the keys
close to such materials.

●

Do not disassemble the keys.

●

Do not attach a sticker or anything else to the surface of the electronic key
and key (with a wireless remote control function).

●

Vehicles with a smart key system: Do not place the keys near objects that
produce magnetic fields, such as TVs, audio systems and induction cook-
ers, or medical electrical equipment, such as low-frequency therapy equip-
ment.

■

Carrying the electronic key on your person (vehicles with a smart key
system)
Carry the electronic key 3.9 in. (10 cm) or more away from electric appli-
ances that are turned on. Radio waves emitted from electric appliances
within 3.9 in. (10 cm) of the electronic key may interfere with the key, caus-
ing the key to not function properly.

■

In case of a smart key system malfunction or other key-related prob-
lems (vehicles with a smart key system)
Take your vehicle with all the electronic keys provided with your vehicle to
your Toyota dealer.

■

When an electronic key is lost (vehicles with a smart key system)
If the electronic key remains lost, the risk of vehicle theft increases signifi-
cantly. Visit your Toyota dealer immediately with all remaining electronic
keys that was provided with your vehicle.

108

COROLLA_TMMMS_TMMC_U

3-2. Opening, closing and locking the doors

◆

Smart key system (if equipped)

Carry the electronic key to enable this function.

Grip the driver’s door handle
to unlock the door. Grip the
passenger’s door handle to
unlock all the doors.

Make sure to touch the sensor
on the back of the handle.
The doors cannot be unlocked
for 3 seconds after the doors are
locked.

: The door unlock settings can be changed. (

P. 115)

Touch the lock sensor (the indentation on the upper part of the
door handle) to lock all the doors.

Check that the door is securely locked.

◆

Wireless remote control (if equipped)



Vehicles without a smart key system

Locks all the doors

Check that the door is securely
locked.

Unlocks all the doors

Pressing the button unlocks the
driver’s door. Pressing the but-
ton again within 5 seconds
unlocks the other doors.

Doors

Unlocking and locking the doors from the outside

109

3-2. Opening, closing and locking the doors

Op
eration

f each

compo

nen
t

COROLLA_TMMMS_TMMC_U



Vehicles with a smart key system

Locks all the doors

Check that the door is securely
locked.

Unlocks all the doors

Pressing the button unlocks the
driver’s door. Pressing the but-
ton again within 5 seconds
unlocks the other doors.

◆

Key

Turning the key operates the doors as follows:



Vehicles without a smart key system

Locks all the doors
Unlocks all the doors

Driver’s  side  only:  Turning  the
key  unlocks  the  driver's  door.
Turning  the  key  again  unlocks
the other doors.



Vehicles with a smart key system

The doors can also be locked and unlocked with the mechanical
key. (

P. 523)

110

3-2. Opening, closing and locking the doors

COROLLA_TMMMS_TMMC_U

■

Operation signals
A buzzer sounds and the emergency flashers flash to indicate that the doors
have been locked/unlocked. (Locked: once; Unlocked: twice)

■

Security feature
If a door is not opened within approximately 60 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again.

■

When the door cannot be locked by the lock sensor on the upper part of
the door handle

■

Door lock buzzer
If an attempt to lock the doors using the wireless remote control or smart key
system is made when a door is not fully closed, a buzzer will sound for 5 sec-
onds. Fully close the door, and lock the vehicle again.

■

Setting the alarm (if equipped)
Locking the doors will set the alarm system. (

P. 69)

■

If the smart key system or the wireless remote control does not operate
properly
Use the mechanical key to lock and unlock the doors. (

P. 523)

Replace the battery with a new one if it is depleted. (

P. 455)

If the door will not lock even when the top-
side sensor area is touched, try using
your palm to touch the lock sensor.

111

3-2. Opening, closing and locking the doors

Op
eration

f each

compo

nen
t

COROLLA_TMMMS_TMMC_U

◆

Door lock switches

Locks all the doors
Unlocks all the doors

◆

Inside lock buttons

Locks the door
Unlocks the door

The  front  doors  can  be  opened
by  pulling  the  inside  handle
even  if  the  lock  buttons  are  in
the lock position.

Move the inside lock button to the lock position.
Close the door.



Vehicles without a smart key system

The door cannot be locked if either of the front doors is open and the
key is in the engine switch.



Vehicles with a smart key system

The door cannot be locked if the engine switch is in ACCESSORY or
IGNITION ON mode, or the electronic key is left inside the vehicle.
However, the key may not be detected correctly and the door may be
locked.

Unlocking and locking the doors from the inside

Locking the doors from the outside without a key

112

3-2. Opening, closing and locking the doors

COROLLA_TMMMS_TMMC_U

The door cannot be opened from
inside the vehicle when the lock is
set.

Unlock
Lock

These locks can be set to prevent
children from opening the rear
doors. Push down on each rear
door switch to lock both rear doors.

Rear door child-protector lock

Toyota Corolla (2019 year). Instruction - part 7
