3-2. Opening, closing and locking the doors

Op
eration

f each

compo

nen
t

COROLLA_TMMMS_TMMC_U

The following functions can be set or cancelled:

: Vehicles with a continuously variable transmission

: Vehicles with a smart key system

Automatic door locking and unlocking systems

Function

Operation

Shift position linked door locking
function

Shifting the shift lever out of P locks
all doors.

Shift position linked door unlocking
function

Shifting the shift lever to P unlocks
all doors.

Speed linked door locking function

All doors are locked when the vehi-
cle speed is approximately 12 mph
(20 km/h) or higher.

Driver’s door linked door unlocking
function



Vehicles without a smart key sys-
tem

All  doors  are  unlocked  when  the
driver's  door  is  opened  within
approximately 45 seconds of turning
the  engine  switch  to  “ACC”  or
“LOCK”.



Vehicles with a smart key system

All  doors  are  unlocked  when  the
driver's  door  is  opened  within
approximately 45 seconds of turning
the  engine  switch  to  ACCESSORY
mode or OFF.

114

3-2. Opening, closing and locking the doors

COROLLA_TMMMS_TMMC_U

■

Setting and canceling the functions
To switch between set and canceled, follow the procedure below:

Vehicles  without  a  smart  key  system:  Close  all  the  doors  and
switch the engine switch to the “ON” position. (Perform step
within 20 seconds.)
Vehicles with a smart key system: Close all the doors and switch
the  engine  switch  to  IGNITION  ON  mode.  (Perform  step
within 20 seconds.)
Shift the shift lever to P or N,
and  press  and  hold  the
driver's  door  lock  switch
(

) for

approximately 5 seconds and
then release.

The  shift  lever  and  switch  posi-
tions  corresponding  to  the
desired  function  to  be  set  are
shown as follows.
Use the same procedure to cancel the function.

: Vehicles with a continuously variable transmission

: Vehicles with a smart key system

When the setting or canceling operation is complete, all doors are
locked and then unlocked.

Function

Shift lever

position

Driver’s door lock

switch position

Shift position linked door lock-
ing function

Shift position linked door
unlocking function

Speed linked door locking func-
tion

Driver's door linked door
unlocking function

115

3-2. Opening, closing and locking the doors

Op
eration

f each

compo

nen
t

COROLLA_TMMMS_TMMC_U

■

Switching the door unlock function (vehicles with a smart key system)
It is possible to set which doors the entry function unlocks using the wireless
remote control.

Turn the engine switch off.

When the indicator light on the key surface is not on, press and hold

for approximately 5 seconds while pressing and holding

The setting changes each time an operation is performed, as shown below.
(When changing the setting continuously, release the buttons, wait for at least
5 seconds, and repeat step

Vehicles with an alarm: To prevent unintended triggering of the alarm, unlock
the doors using the wireless remote control and open and close a door once
after the settings have been changed. (If a door is not opened within 60 sec-
onds after

is pressed, the doors will be locked again and the alarm will

automatically be set.)
In case that the alarm is triggered, immediately stop the alarm. (

P. 69)

Multi-information display

Unlocking

function

Beep

Monochrome

display

Color display

Holding

the

driver’s

door

handle unlocks
only the driver’s
door.

Exterior:
Beeps 3 times
Interior: Pings
once

Holding the front
passenger’s
door

handle

unlocks all the
doors.

Holding

either

front door han-
dle unlocks all
the doors.

Exterior:
Beeps twice
Interior: Pings
once

116

3-2. Opening, closing and locking the doors

COROLLA_TMMMS_TMMC_U

■

Conditions affecting the operation of the smart key system or wireless
remote control (with a wireless remote control function)



Vehicles without a smart key system

The wireless remote control function may not operate normally in the follow-
ing situations:

●

When the wireless key battery is depleted

●

Near a TV tower, radio station, electric power plant, airport or other facility
that generates strong radio waves

●

When carrying a portable radio, cellular phone or other wireless communi-
cation devices

●

When multiple wireless keys are in the vicinity

●

When the wireless key is in contact with, or is covered by a metallic object

●

When a wireless key (that emits radio waves) is being used nearby

●

When the wireless key has been left near an electrical appliance such as a
personal computer

●

If window tint with a metallic content or metallic objects are attached to the
rear window



Vehicles with a smart key system

P. 125

■

Customization
Settings (e.g. unlocking function using a key) can be changed.
(Customizable features:

P. 564)

WARNING

■

To prevent an accident
Observe the following precautions while driving the vehicle.
Failure to do so may result in a door opening and an occupant falling out,
resulting in death or serious injury.

●

Always use a seat belt.

●

Always lock all the doors.

●

Ensure that all doors are properly closed.

●

Do not pull the inside handle of the doors while driving.
The doors may be opened and the passengers are thrown out of the vehi-
cle and it may result in serious injury or death.
Be especially careful for the front doors, as the doors may be opened
even if the inside lock buttons are in locked position.

●

Set the rear door child-protector locks when children are seated in the rear
seats.

117

3-2. Opening, closing and locking the doors

Op
eration

f each

compo

nen
t

COROLLA_TMMMS_TMMC_U

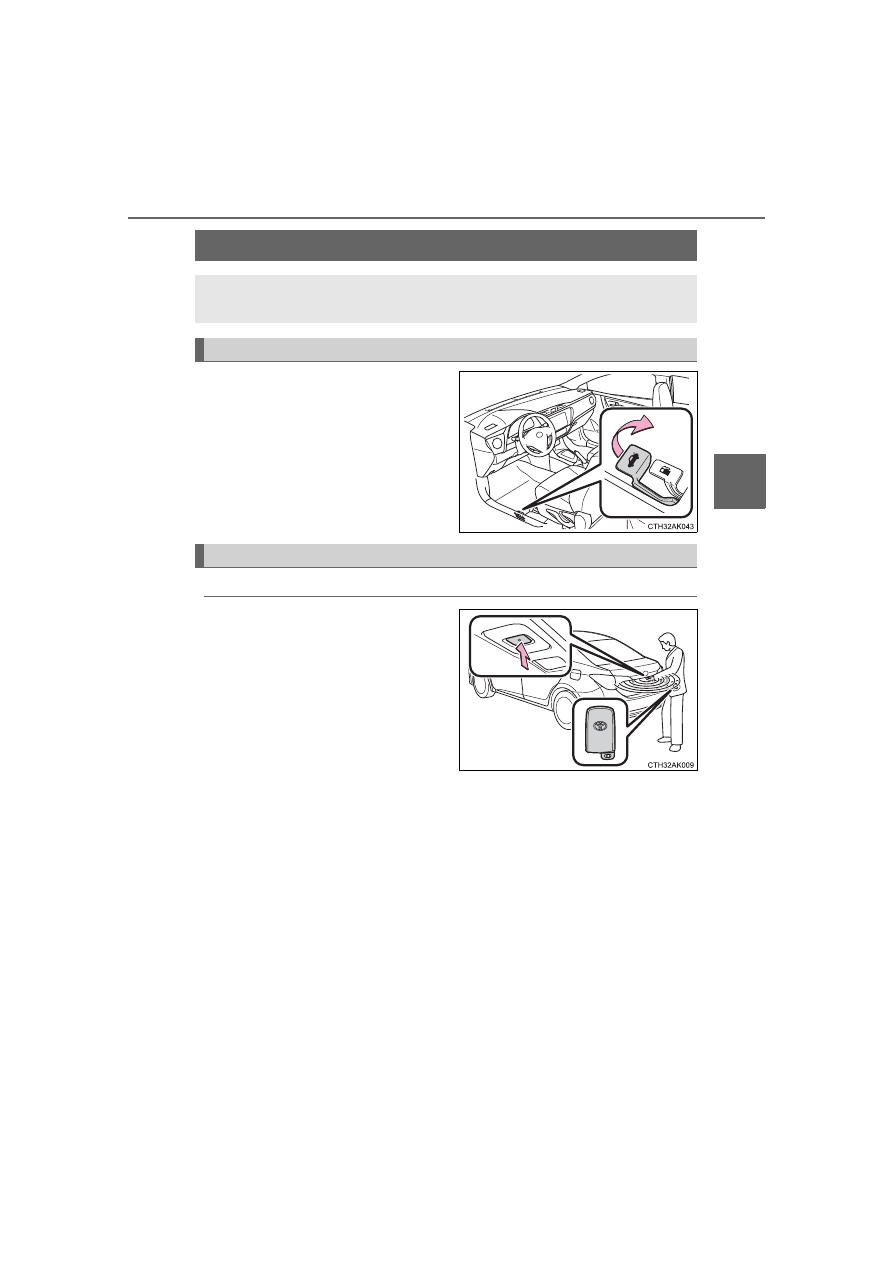

Pull up the lever to release the
trunk lid.

◆

Smart key system (if equipped)

While carrying the electronic
key, press the button on the
trunk lid.

When all the doors are unlocked
with  the  power  door  lock  sys-
tem,  the  trunk  can  be  opened
without  carrying  the  electronic
key.

Trunk

The trunk can be opened using the trunk opener, entry function,
wireless remote control or key.

Opening the trunk from inside the vehicle

Opening the trunk from outside the vehicle

118

3-2. Opening, closing and locking the doors

COROLLA_TMMMS_TMMC_U

◆

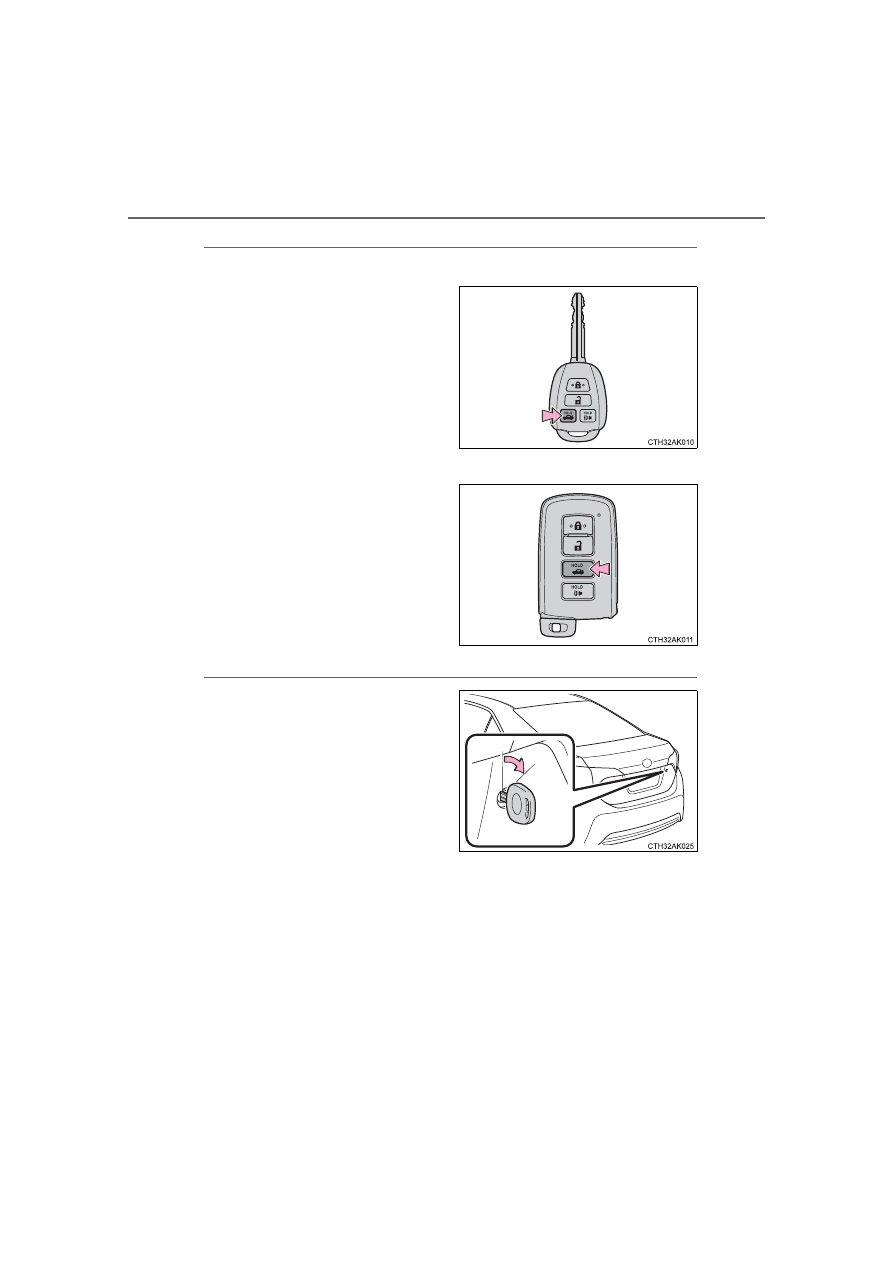

Wireless remote control (if equipped)



Vehicles without a smart key system

Press and hold the switch.



Vehicles with a smart key system

Press and hold the switch.

◆

Key (vehicles with a key cylinder on the trunk lid)

Turn the key clockwise to
release the trunk lid.

119

3-2. Opening, closing and locking the doors

Op
eration

f each

compo

nen
t

COROLLA_TMMMS_TMMC_U

■

Operation signal (with a wireless remote control function)
A buzzer sounds to indicate that the trunk has been opened.

■

Trunk light
The trunk light turns on when the trunk is opened.

■

Function to prevent the trunk being locked with the electronic key inside
(vehicles with a smart key system)

●

When all doors are being locked, closing the trunk lid with the electronic key
left inside the trunk will sound an alarm.
In this case, the trunk lid can be opened by pressing the trunk release but-
ton on the trunk lid.

●

Even when the spare electronic key is put in the trunk with all the doors
locked, the key confinement prevention function can be activated so the
trunk can be opened. In order to prevent theft, take all electronic keys with
you when leaving the vehicle.

●

Even when the electronic key is put in the trunk with all the doors are locked,
the key may not be detected depending on the places and the surrounding
radio wave conditions. In this case, the key confinement prevention function
cannot be activated, causing the doors to lock when the trunk is closed.
Make sure to check where the key is before closing the trunk.

●

The key confinement prevention function cannot be activated if any one of
the doors is unlocked. In this case, open the trunk using the trunk opener.

■

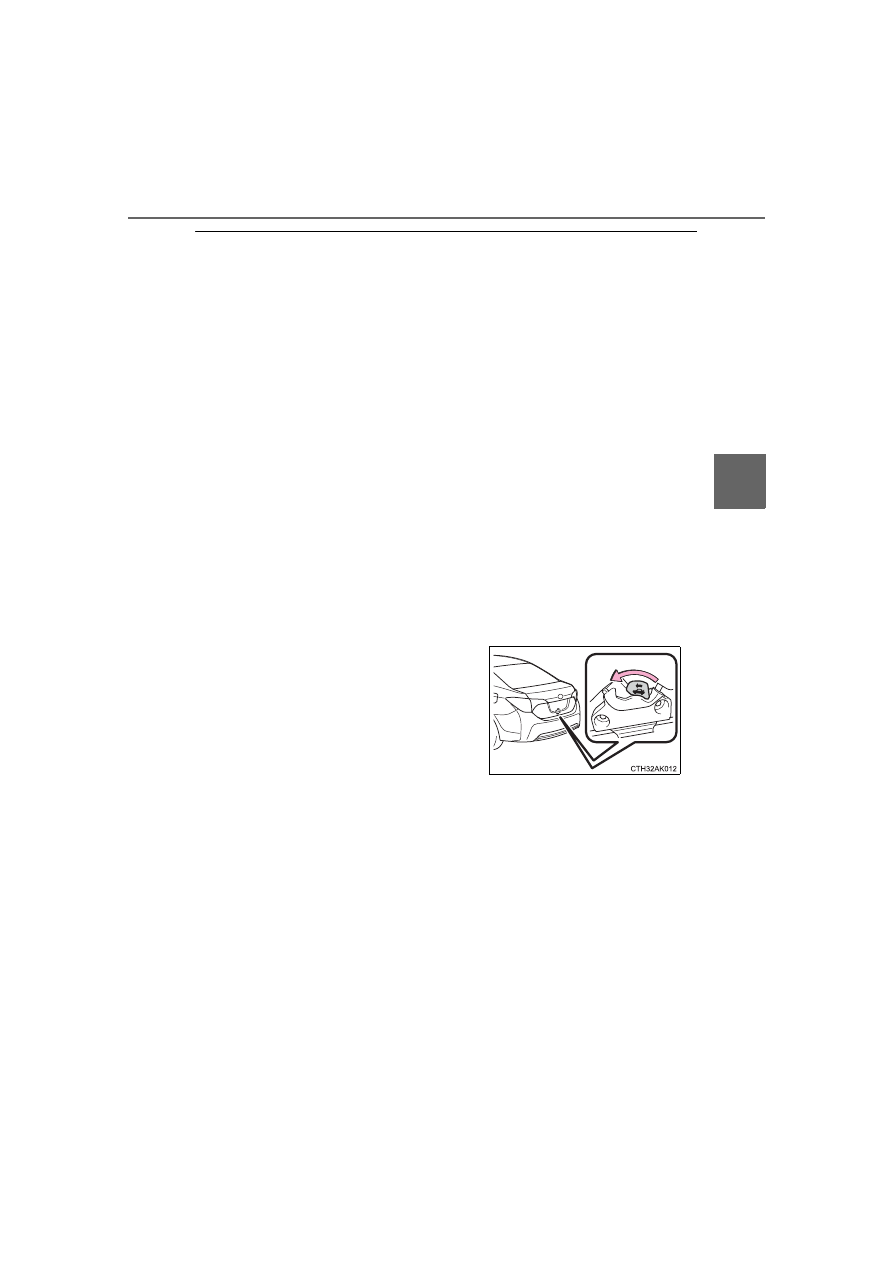

Internal trunk release lever

■

Customization
The trunk unlocking operation can be changed.
(Customizable features:

P. 564)

The  trunk  lid  can  be  opened  by  pushing
the  glow-in-the-dark  lever  located  on  the
inside of the trunk lid to the side.
The  lever  will  continue  to  glow  for  some
time after the trunk lid is closed.

120

3-2. Opening, closing and locking the doors

COROLLA_TMMMS_TMMC_U

WARNING

■

Caution while driving

●

Keep the trunk lid closed while driving.
If the trunk lid is left open, it may hit near-by objects while driving or lug-
gage in the trunk may be unexpectedly thrown out, causing an accident.
In addition, exhaust gases may enter the vehicle, causing death or a seri-
ous health hazard. Make sure to close the trunk lid before driving.

●

Before driving the vehicle, make sure that the trunk lid is fully closed. If the
trunk lid is not fully closed, it may open unexpectedly while driving, caus-
ing an accident.

●

Never let anyone sit in the trunk. In the event of sudden braking or a colli-
sion, they are susceptible to death or serious injury.

■

When a child is in the vehicle
Observe the following precautions.
Failure to do so may result in death or serious injury.

●

Do not allow a child to play in the trunk.
If a child is accidentally locked in the trunk, the child could suffer from heat
exhaustion, suffocation or other injuries.

●

Do not allow a child to open or close the trunk lid.
Doing so may cause the trunk lid to operate unexpectedly, or cause the
child’s hands, head, or neck to be caught by the closing trunk lid.

121

3-2. Opening, closing and locking the doors

Op
eration

f each

compo

nen
t

COROLLA_TMMMS_TMMC_U

WARNING

■

Using the trunk
Observe the following precautions.
Failure to do so may cause parts of the body to be caught, resulting in seri-
ous injury.

●

Remove any heavy loads, such as snow and ice, from the trunk lid before
opening it. Failure to do so may cause the trunk lid to suddenly shut again
after it is opened.

●

When opening or closing the trunk lid, thoroughly check to make sure the
surrounding area is safe.

●

If anyone is in the vicinity, make sure they are safe and let them know that
the trunk is about to open or close.

●

Use caution when opening or closing the trunk lid in windy weather as it
may move abruptly in strong wind.

●

Do not attach any accessories other than genuine Toyota parts to the trunk
lid. Such additional weight on the trunk lid may cause the lid to suddenly
shut again after it is opened.

●

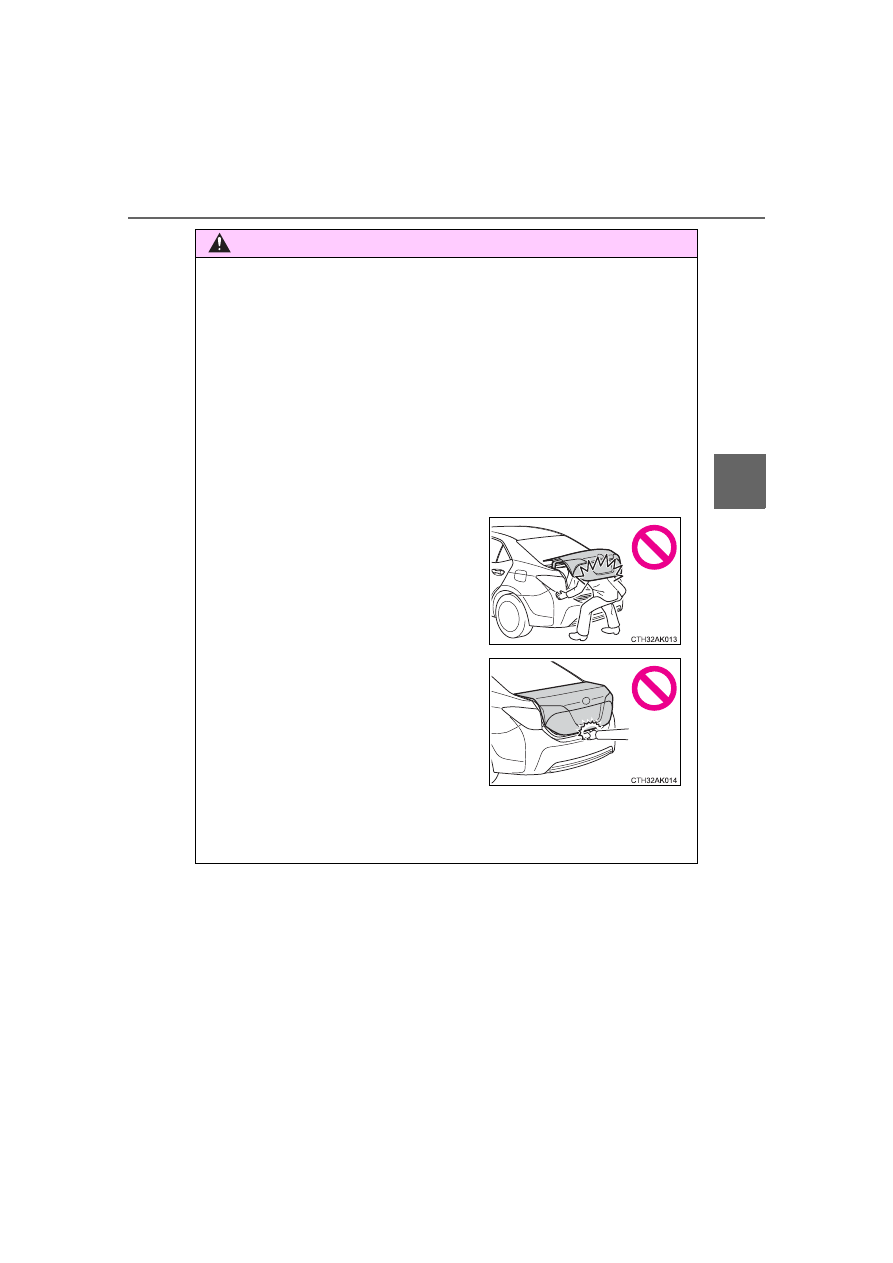

The  trunk  lid  may  suddenly  shut  if  it  is
not  opened  fully.  It  is  more  difficult  to
open or close the trunk lid on an incline
than  on  a  level  surface,  so  beware  of
the  trunk  lid  unexpectedly  opening  or
closing  by  itself.  Make  sure  that  the
trunk lid is fully open and secure before
using the trunk.

●

When closing the trunk lid, take extra
care to prevent your fingers etc. from
being caught.

●

When closing the trunk lid, make sure to
press it lightly on its outer surface. If the
trunk handle is used to fully close the
trunk lid, it may result in hands or arms
being caught.

122

3-2. Opening, closing and locking the doors

COROLLA_TMMMS_TMMC_U

● Locks and unlocks the doors (P. 108)
● Opens the trunk (P. 117)
● Starts the engine (P. 174)

■

Antenna location

Smart key system



: If equipped

The following operations can be performed simply by carrying
the electronic key on your person, for example in your pocket.
(The driver should always carry the electronic key.)

Antennas outside the cabin
Antennas inside the cabin
Antenna inside the trunk
Antenna outside the trunk

123

3-2. Opening, closing and locking the doors

Op
eration

f each

compo

nen
t

COROLLA_TMMMS_TMMC_U

■

Effective range (areas within which the electronic key is detected)

■

Alarms and warning indicators
A combination of exterior and interior alarms as well as warning messages
shown on the multi-information display are used to prevent theft of the vehicle
and accidents resulting from erroneous operation. Take appropriate mea-
sures in response to any warning message on the multi-information display.
(

P. 489)

The following table describes circumstances and correction procedures when
only alarms are sounded.

When locking or unlocking the
doors

The  system  can  be  operated  when
the electronic key is within about 2.3
ft.  (0.7  m)  of  either  of  the  outside
front  door  handles.  (Only  the  doors
detecting the key can be operated.)

When starting the engine or changing engine switch modes

The system can be operated when the electronic key is inside the
vehicle.

When opening the trunk

The system can be operated when the electronic key is within about
2.3 ft. (0.7 m) of the trunk release button.

Alarm

Situation

Correction procedure

Exterior alarm sounds
once for 5 seconds

An attempt was made
to lock the vehicle while
a door was open.

Close all of the doors
and lock the doors
again.

The trunk was closed
while the electronic key
was still inside the trunk
and all the doors were
locked.

Retrieve the electronic
key from the trunk and
close the trunk lid.

Interior alarm sounds
continuously

The engine switch was
turned to ACCESSORY
mode while the driver’s
door was open (or the
driver’s

door

was

opened

while

the

engine switch was in
ACCESSORY mode).

Turn the engine switch
off and close the
driver’s door.

124

3-2. Opening, closing and locking the doors

COROLLA_TMMMS_TMMC_U

■

Battery-saving function
The battery-saving function will be activated in order to prevent the electronic
key battery and the vehicle battery from being discharged while the vehicle is
not in operation for a long time.

●

In the following situations, the smart key system may take some time to
unlock the doors.
• The electronic key has been left in an area of approximately 6 ft. (2 m) of

the outside of the vehicle for 10 minutes or longer.

• The smart key system has not been used for 5 days or longer.

●

If the smart key system has not been used for 14 days or longer, the doors
cannot be unlocked at any doors except the driver’s door. In this case, take
hold of the driver’s door handle, or use the wireless remote control or the
mechanical key, to unlock the doors.

■

Electronic Key Battery-Saving Function
When battery-saving mode is set, battery depletion is minimized by stopping
the electronic key from receiving radio waves.

Press

twice while pressing and

holding

. Confirm that the electronic

key indicator flashes 4 times.
While the battery-saving mode is set, the
smart key system cannot be used. To
cancel the function, press any of the elec-
tronic key buttons.

125

3-2. Opening, closing and locking the doors

Op
eration

f each

compo

nen
t

COROLLA_TMMMS_TMMC_U

■

Conditions affecting operation
The smart key system uses weak radio waves. In the following situations, the
communication between the electronic key and the vehicle may be affected,
preventing the smart key system, wireless remote control and engine immobi-
lizer system from operating properly. (Ways of coping:

P. 523)

●

When the electronic key battery is depleted

●

Near a TV tower, electric power plant, gas station, radio station, large dis-
play, airport or other facility that generates strong radio waves or electrical
noise

●

When carrying a portable radio, cellular phone, cordless phone or other
wireless communication device

●

When the electronic key is in contact with, or is covered by the following
metallic objects
• Cards to which aluminum foil is attached
• Cigarette boxes that have aluminum foil inside
• Metallic wallets or bags
• Coins
• Hand warmers made of metal
• Media such as CDs and DVDs

●

When other wireless keys (that emit radio waves) are being used nearby

●

When carrying the electronic key together with the following devices that
emit radio waves
• Another vehicle’s electronic key or a wireless key that emits radio waves
• Personal computers or personal digital assistants (PDAs)
• Digital audio players
• Portable game systems

●

If window tint with a metallic content or metallic objects are attached to the
rear window

●

When the electronic key is placed near a battery charger or electronic
devices

126

3-2. Opening, closing and locking the doors

COROLLA_TMMMS_TMMC_U

■

Note for the entry function

●

Even when the electronic key is within the effective range (detection areas),
the system may not operate properly in the following cases:
• The electronic key is too close to the window or outside door handle, near

the ground, or in a high place when the doors are locked or unlocked.

• The electronic key is near the ground or in a high place, or too close to

the rear bumper center when the trunk is opened.

• The electronic key is on the instrument panel, rear package tray or floor,

or in the door pockets or glove box when the engine is started or engine
switch modes are changed.

●

Do not leave the electronic key on top of the instrument panel or near the
door pockets when exiting the vehicle. Depending on the radio wave recep-
tion conditions, it may be detected by the antenna outside the cabin and the
doors will become lockable from the outside, possibly trapping the electronic
key inside the vehicle.

●

As long as the electronic key is within the effective range, the doors may be
locked or unlocked by anyone. However, only the doors detecting the elec-
tronic key can be used to unlock the vehicle.

●

Even if the electronic key is not inside the vehicle, it may be possible to start
the engine if the electronic key is near the window.

●

The doors may unlock or lock if a large amount of water splashes on the
door handle, such as in the rain or in a car wash, when the electronic key is
within the effective range. (The doors will automatically be locked after
approximately 60 seconds if the doors are not opened and closed.)

●

If the wireless remote control is used to lock the doors when the electronic
key is near the vehicle, there is a possibility that the door may not be
unlocked by the entry function. (Use the wireless remote control to unlock
the doors.)

●

Touching the door lock or unlock sensor while wearing gloves may prevent
lock or unlock operation.

●

When the lock operation is performed using the lock sensor, recognition sig-
nals will be shown up to two consecutive times. After this, no recognition
signals will be given.

●

If the door handle becomes wet while the electronic key is within the effec-
tive range, the door may lock and unlock repeatedly. In this case, follow the
following correction procedures to wash the vehicle:
• Place the electronic key in a location 6 ft. (2 m) or more away from the

vehicle. (Take care to ensure that the key is not stolen.)

• Set the electronic key to battery-saving mode to disable the smart key

system. (

P. 124)

127

3-2. Opening, closing and locking the doors

Op
eration

f each

compo

nen
t

COROLLA_TMMMS_TMMC_U

●

If the electronic key is inside the vehicle and a door handle becomes wet
during a car wash, a message may be shown on the multi-information dis-
play and a buzzer will sound outside the vehicle. To turn off the alarm, lock
all the doors.

●

The lock sensor may not work properly if it comes into contact with ice,
snow, mud, etc. Clean the lock sensor and attempt to operate it again.

●

If there is another electronic key in the detection area, it may take slightly
longer to unlock the doors after the door handle is gripped.

●

Fingernails may scrape against the door during operation of the door han-
dle. Be careful not to injure fingernails or damage the surface of the door.

●

A sudden handle operation or a handle operation immediately after entering
the effective range may prevent the doors from being unlocked. Touch the
door unlock sensor and check that the doors are unlocked before pulling the
door handle again.

●

Unlocking the vehicle may take more time if another electronic key is within
the effective range.

■

When the vehicle is not driven for extended periods

●

To prevent theft of the vehicle, do not leave the electronic key within 6 ft. (2
m) of the vehicle.

●

The smart key system can be deactivated in advance. (

P. 564)

■

To operate the system properly
Make sure to carry the electronic key when operating the system. Do not get
the electronic key too close to the vehicle when operating the system from the
outside of the vehicle.
Depending on the position and holding condition of the electronic key, the key
may not be detected correctly and the system may not operate properly. (The
alarm may go off accidentally, or the door lock prevention function may not
operate.)

■

If the smart key system does not operate properly

●

Locking and unlocking the doors: Use the mechanical key. (

P. 523)

●

Starting the engine:

P. 524

■

Customization
Settings (e. g. smart key system) can be changed.
(Customizable features:

P. 564)

■

If the smart key system has been deactivated in a customized setting

●

Locking and unlocking the doors and opening the trunk:
Use the wireless remote control or mechanical key. (

P. 1 18, 523)

●

Starting the engine and changing engine switch modes:

P. 524

●

Stopping the engine:

P. 175

128

3-2. Opening, closing and locking the doors

COROLLA_TMMMS_TMMC_U

■

Certification for the smart key system



For the U.S.A.

FCC ID: HYQ23AAB

FCC ID: HYQ14FBA

NOTE:
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful interfer-
ence, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
FCC WARNING:
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.



For Canada

NOTE:
This device complies with Industry Canada’s licence-exempt RSSs. Opera-
tion is subject to the following two conditions: (1) This device may not cause
interference; and (2) This device must accept any interference, including
interference that may cause undesired operation of the device.



For the U.S.A.

FCC ID: NI4TMLF10-51
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful interfer-
ence, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.



For Canada

This device  complies with Industry Canada’s  licence-exempt RSSs. Opera-
tion is subject to the following two conditions: (1) This device may not cause
interference;  and  (2)  This  device  must  accept  any  interference,  including
interference that may cause undesired operation of the device.
NOTE:
Le  présent  appareil  est  conforme  aux  CNR  d’lndustrie  Canada  appli-
cables aux appareils radio exempts de licence. L’exploitation est autori-
sée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de
brouillage;  (2)  l’utilisateur  de  l’appareil  doit  accepter  tout  brouillage
radioélectrique subi, même si le brouillage est susceptible d’en compro-
mettre le fonctionnement.

Content .. 6 7 8 9 ..
