Toyota Corolla (2019 year). Instruction

1-1. For safe use

Fo
r safety and securi

COROLLA_TMMMS_TMMC_U

WARNING

■

When installing a child restraint system

●

When using the LATCH anchors for a child restraint system, move the seat
as far back as possible, with the seatback close to the child restraint sys-
tem.

●

When a booster seat is installed, always ensure that the shoulder belt is
positioned across the center of the child’s shoulder. The belt should be
kept away from the child’s neck, but not so that it could fall off the child’s
shoulder. Failing to do so may result in death or serious injury in the event
of sudden braking, sudden swerving or an accident.

●

Ensure that the belt and plate are securely locked and the seat belt is not
twisted.

●

Shake the child restraint system left and right, and forward and backward
to ensure that it has been securely installed.

●

After securing a child restraint system, never adjust the seat.

●

Follow all installation instructions provided by the child restraint system
manufacturer.

●

When securing some types of child restraint systems in rear seats, it may
not be possible to properly use the seat belts in positions next to the child
restraint without interfering with it or affecting seat belt effectiveness. Be
sure your seat belt fits snugly across your shoulder and low on your hips. If
it does not, or if it interferes with the child restraint, move to a different
position. Failure to do so may result in death or serious injury.

■

Do not use a seat belt extender
If a seat belt extender is used when installing a child restraint system, the
seat belt will not securely hold the child restraint system, which could cause
death or serious injury to the child or other passengers in the event of a sud-
den braking, sudden swerving or an accident.

■

To correctly attach a child restraint system to the anchors
When using the LATCH anchors, be sure that there are no foreign objects
around the anchors and that the seat belt is not caught behind the child
restraint system. Make sure the child restraint system is securely attached,
or it may cause death or serious injury to the child or other passengers in
the event of a sudden braking, sudden swerve or an accident.

1-1. For safe use

COROLLA_TMMMS_TMMC_U

Exhaust gas precautions

Harmful substance to the human body is included in exhaust
gases if inhaled.

WARNING

Exhaust gases include harmful carbon monoxide (CO), which is colorless and
odorless. Observe the following precautions.
Failure to do so may cause exhaust gases enter the vehicle and may lead to
an accident caused by light-headedness, or may lead to death or a serious
health hazard.

■

Important points while driving

●

Keep the trunk lid closed.

●

If you smell exhaust gases in the vehicle even when the trunk lid is closed,
open the windows and have the vehicle inspected at your Toyota dealer as
soon as possible.

■

When parking

●

If the vehicle is in a poorly ventilated area or a closed area, such as a
garage, stop the engine.

●

Do not leave the vehicle with the engine on for a long time.
If such a situation cannot be avoided, park the vehicle in an open space
and ensure that exhaust fumes do not enter the vehicle interior.

●

Do not leave the engine running in an area with snow build-up, or where it
is snowing. If snowbanks build up around the vehicle while the engine is
running, exhaust gases may collect and enter the vehicle.

■

Exhaust pipe
The exhaust system needs to be checked periodically. If there is a hole or
crack caused by corrosion, damage to a joint or abnormal exhaust noise, be
sure to have the vehicle inspected and repaired by your Toyota dealer.

Fo
r safety and securi

COROLLA_TMMMS_TMMC_U

1-2. Theft deterrent system

Vehicles without a smart key sys-
tem:
The  indicator  light  flashes  after
the  key  has  been  removed  from
the  engine  switch  to  indicate  that
the system is operating.
The  indicator  light  stops  flashing
after the registered key has been
inserted into the engine switch to
indicate that the system has been
canceled.
Vehicles with a smart key system:
The indicator light flashes after the engine switch has been turned off
to indicate that the system is operating.
The  indicator  light  stops  flashing  after  the  engine  switch  has  been
turned  to ACCESSORY  or  IGNITION  ON  mode  to  indicate  that  the
system has been canceled.

Engine immobilizer system

The vehicle’s keys have built-in transponder chips that prevent
the engine from starting if a key has not been previously regis-
tered in the vehicle’s on-board computer.
Never leave the keys inside the vehicle when you leave the vehi-
cle.
This system is designed to help prevent vehicle theft but does
not guarantee absolute security against all vehicle thefts.

1-2. Theft deterrent system

COROLLA_TMMMS_TMMC_U

■

System maintenance
The vehicle has a maintenance-free type engine immobilizer system.

■

Conditions that may cause the system to malfunction

●

If the grip portion of the key is in contact with a metallic object

●

If the key is in close proximity to or touching a key to the security system
(key with a built-in transponder chip) of another vehicle

■

Certifications for the engine immobilizer system



For the U.S.A.

FCC ID: WRKRI-44BTY

FCC ID: NI4TMIMB-3

This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful interfer-
ence, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.



For Canada

This device  complies with Industry Canada’s  licence-exempt RSSs. Opera-
tion is subject to the following two conditions: (1) This device may not cause
interference;  and  (2)  This  device  must  accept  any  interference,  including
interference that may cause undesired operation of the device.
Le  présent  appareil  est  conforme  aux  CNR  d’lndustrie  Canada  applicables
aux appareils radio exempts de licence. L’exploitation est autorisée aux deux
conditions  suivantes  :  (1)  l’appareil  ne  doit  pas  produire  de  brouillage;  (2)
l’utilisateur  de  l’appareil  doit  accepter  tout  brouillage  radioélectrique  subi,
même si le brouillage est susceptible d’en compromettre le fonctionnement.

NOTICE

■

To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.

1-2. Theft deterrent system

Fo
r safety and securi

COROLLA_TMMMS_TMMC_U

The alarm uses light and sound to give an alert when an intrusion is
detected.
The alarm is triggered in the following situations when the alarm is
set:
● A locked door or trunk is unlocked or opened in any way other than

using the entry function, wireless remote control or mechanical key.
(The doors will lock again automatically.)

● The hood is opened.

Close the doors, trunk and hood,
and lock all the doors. The system
will be set automatically after 30
seconds.

The indicator light changes from
being on to flashing when the sys-
tem is set.

Do one of the following to deactivate or stop the alarm:
● Unlock the doors or open the trunk.
● Vehicles without a smart key system:

Turn the engine switch to the “ACC” or “ON” position, or start the
engine. (The alarm will be deactivated or stopped after a few sec-
onds.)

● Vehicles with a smart key system:

Turn the engine switch to ACCESSORY or IGNITION ON mode, or
start the engine. (The alarm will be deactivated or stopped after a
few seconds.)

Alarm



: If equipped

The alarm

Setting the alarm system

Deactivating or stopping the alarm

1-2. Theft deterrent system

COROLLA_TMMMS_TMMC_U

■

System maintenance
The vehicle has a maintenance-free type alarm system.

■

Items to check before locking the vehicle
To prevent unexpected triggering of the alarm and vehicle theft, make sure of
the following:

●

Nobody is in the vehicle.

●

The windows and moon roof are closed before the alarm is set.

●

No valuables or other personal items are left in the vehicle.

■

Triggering of the alarm
The alarm may be triggered in the following situations:
(Stopping the alarm deactivates the alarm system.)

■

Alarm-operated door lock
In the following cases, depending on the situation, the door may automatically
lock to prevent improper entry into the vehicle:

●

The doors are unlocked manually without the mechanical key and the alarm
is triggered.

●

While the alarm is operating, the doors are unlocked manually without the
mechanical key.

●

When recharging or replacing the battery

●

A person inside the vehicle opens a
door, the trunk or hood, or unlocks the
vehicle using a door lock switch or inside
lock button.

●

The battery is recharged or replaced
when the vehicle is locked. (

P. 529)

NOTICE

■

To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.

2. Instrument cluster

Instru

me
nt clu

ster

COROLLA_TMMMS_TMMC_U

Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.

Warning lights

(U.S.A.)

Brake system warning
light (

P. 480)

Slip indicator (

P. 481)

(Canada)

Brake system warning
light (

P. 480)

Low fuel level warning
light (

P. 481)

(U.S.A.)

Malfunction

indicator

lamp (

P. 480)

Driver’s and front pas-
senger’s

seat

belt

reminder light (

P. 481)

(Canada)

Malfunction

indicator

lamp (

P. 480)

Rear passengers’ seat
belt reminder lights
(

P. 481)

SRS warning light
(

P. 480)

1, 4

PCS warning light
(

P. 482)

(U.S.A.)

ABS warning light
(

P. 481)

(Orange)

LDA (Lane Departure
Alert with steering con-
trol) indicator (

P. 482)

(Canada)

ABS warning light
(

P. 481)

Master warning light
(

P. 481)

Electric power steering
system warning light
(

P. 481)

1, 2

Tire pressure warning

light (

P. 482)

2. Instrument cluster

COROLLA_TMMMS_TMMC_U

: These lights turn on when the engine switch is turned to the “ON” position

(vehicles without a smart key system) or the engine switch is turned to
IGNITION ON mode (vehicles with a smart key system), to indicate that a
system check is being performed. They will turn off after the engine is
started, or after a few seconds. There may be a malfunction in a system if
a light does not come on, or turn off. Have the vehicle inspected by your
Toyota dealer.

: If equipped

: This light illuminates on the center panel.

: The light flashes to indicate a malfunction.

2. Instrument cluster

Instru

me
nt clu

ster

COROLLA_TMMMS_TMMC_U

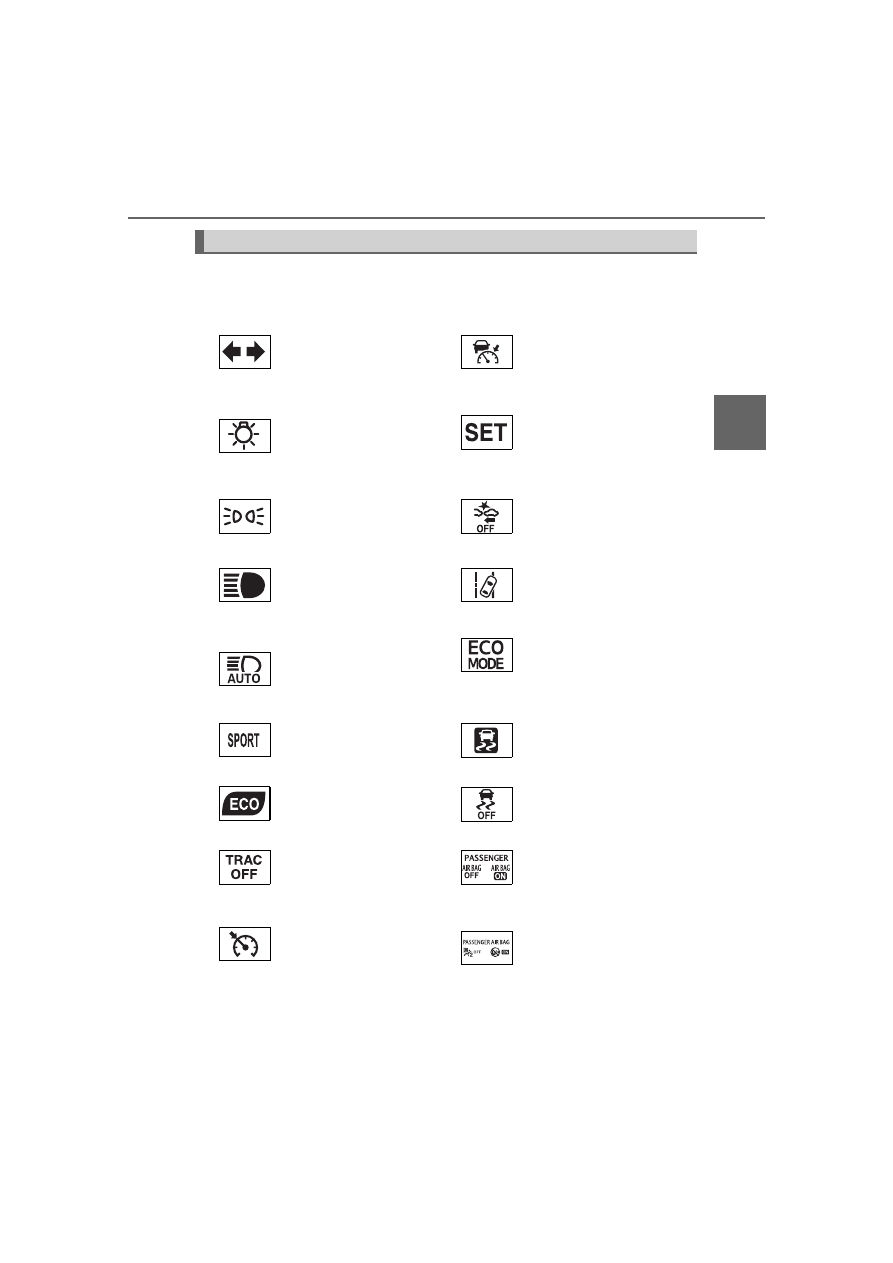

The indicators inform the driver of the operating state of the vehicle’s
various systems.

Indicators

Turn signal indicator
(

P. 191)

Dynamic radar cruise
control (vehicle-to-vehi-
cle

distance

control

mode) indicator
(

P. 239)

(U.S.A.)

Headlight indicator
(

P. 193)

Dynamic radar cruise
control “SET”
indicator (

P. 239 , 243)

(Canada)

Tail light indicator
(

P. 193)

1, 6

PCS warning light
(

P. 217)

Headlight high beam
indicator (

P. 195)

LDA (Lane Departure
Alert with steering con-
trol) indicator (

P. 230)

Automatic High Beam
indicator (

P. 198)

“ECO MODE” indicator
(

P. 182)

Sport mode indicator
(

P. 185)

1, 3

Slip indicator (

P. 258)

1, 2, 4

Eco Driving Indicator
Light (

P. 99)

VSC OFF indicator
(

P. 259)

1, 2

“TRAC OFF” indicator
(

P. 258)

1, 5

(U.S.A.)

“AIR BAG ON/OFF” indi-
cator (

P. 47)

Dynamic radar cruise
control (constant speed
control mode) indicator
(

P. 243)

1, 5

(Canada)

“AIR BAG ON/OFF” indi-
cator (

P. 47)

2. Instrument cluster

COROLLA_TMMMS_TMMC_U

: These lights, except those shown on the multi-information display, turn on

when the engine switch is turned to the “ON” position (vehicles without a
smart key system) or the engine switch is turned to IGNITION ON mode
(vehicles with a smart key system) to indicate that a system check is being
performed. They will turn off after the engine is started, or after a few sec-
onds. There may be a malfunction in a system if a light does not come on,
or turn off. Have the vehicle inspected by your Toyota dealer.

: If equipped

: The light flashes to indicate that the system is operating.

: The light does not turn on when the system is disabled.

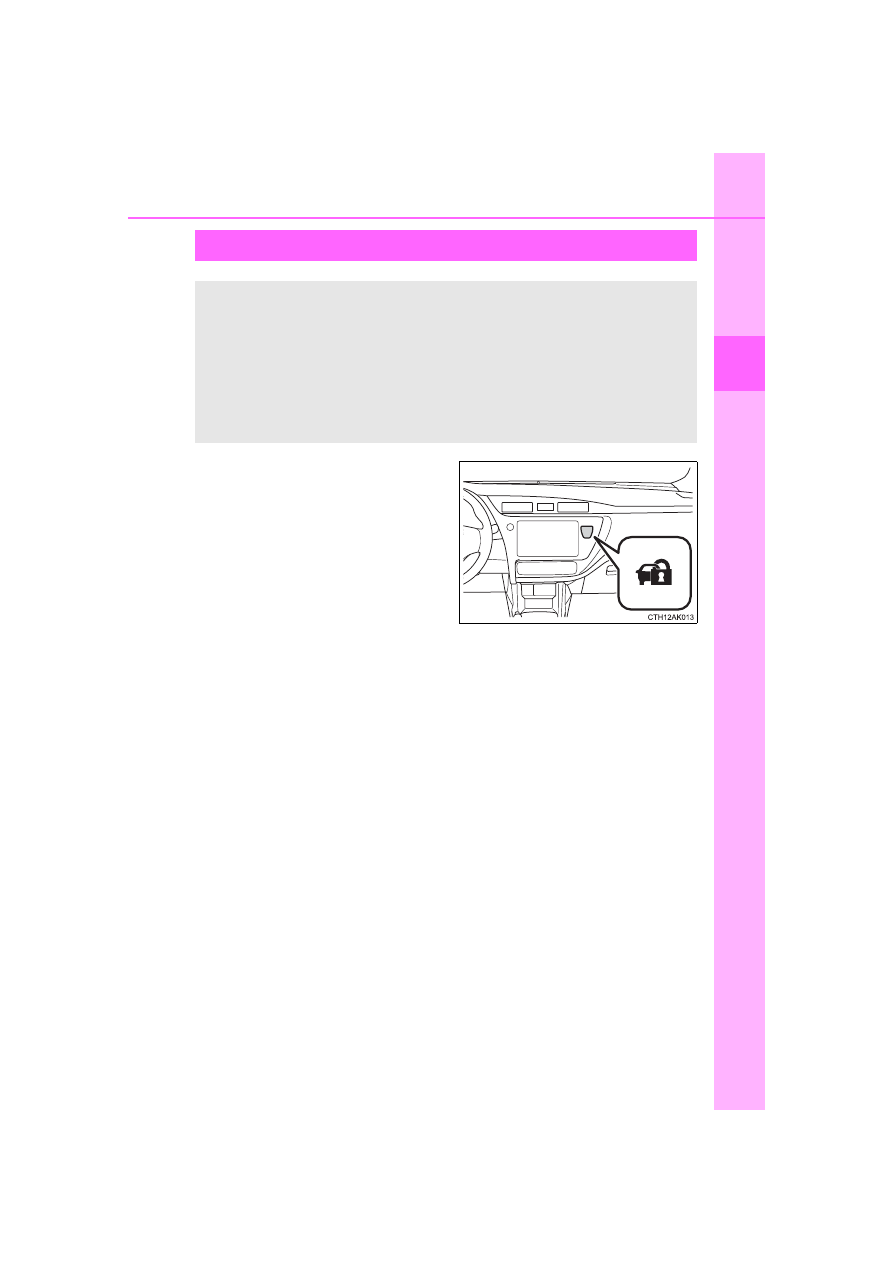

: This light illuminates on the center panel.

: The light turns on when the system is off.

: When the outside temperature is approximately 37°F (3°C) or lower, the

indicator will flash 10 times, then stay on.

Security indicator
(

P. 67, 69)

2, 7

Low outside tempera-
ture indicator (

P. 86)

WARNING

■

If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning lights not
come on when you start the engine, this could mean that these systems are
not available to help protect you in an accident, which could result in death
or serious injury. Have the vehicle inspected by your Toyota dealer immedi-
ately if this occurs.

2. Instrument cluster

Instru

me
nt clu

ster

COROLLA_TMMMS_TMMC_U

Tachometer

Displays the engine speed in revolutions per minute.

Multi-information display

The multi-information display presents the driver with a variety of driving-
related data including the current outside air temperature.

Speedometer
Fuel gauge
Display change button (for Canada)

Switches the trip information and instrument panel light control.

Display change button (for U.S.A.)

Switches the trip information.

Engine coolant temperature gauge

Displays the engine coolant temperature.

Gauges and meters (vehicles with a mono-

chrome display)

The displayed content may differ depending on the type of
meter.

2. Instrument cluster

COROLLA_TMMMS_TMMC_U

Driving assist information
(

P . 99, 235)

Driving monitor (

P. 81)

Warning messages (

P. 489)

Eco Driving Indicator Zone Dis-
play

(

P. 100)

Outside temperature display
(

P. 393)

Trip information (

P. 80)

Shift position and gear position
indicator

(

P. 181 , 184)

: Vehicles with a continuously variable transmission

Multi-information display

2. Instrument cluster

Instru

me
nt clu

ster

COROLLA_TMMMS_TMMC_U

When  the  tail  lights  are  on,  the  brightness  of  the  instrument  panel
lights  can  be  adjusted.  (On  vehicles  with  an  automatic  light  control
system,  the  instrument  panel  lights  can  be  adjusted  when  the  sur-
rounding area is dark and the tail lights are on.)
The  brightness  of  the  clock  light  can  be  adjusted  regardless  of
whether the tail lights are on or off.



For U.S.A.

Brighter
Darker



For Canada

Press  the  display  change  button
repeatedly  to  display  the  instru-
ment panel lights control display.
To  adjust  the  brightness,  press
and  hold  the  display  change  but-
ton.

Instrument panel light control

2. Instrument cluster

COROLLA_TMMMS_TMMC_U

■

Switching the display
Items displayed can be switched by pressing the display change
button.

■

Odometer
Displays the total distance the vehicle has been driven.

■

Trip meter A/trip meter B
Displays the distance the vehicle has been driven since the meter
was last reset. Trip meters A and B can be used to record and dis-
play different distances independently.

Press and hold the display change button to reset.

Trip information



For U.S.A.



For Canada

Toyota Corolla (2019 year). Instruction - part 5
