4-3. Do-it-yourself maintenance
■ Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the headlight lens does
not indicate a malfunction.
Contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional, for more information in the following situations:
● Large drops of water are built up on the inside of the lens.
● Water has built up inside the headlight.
■ Discharge headlights (if equipped)
If voltage to the discharge bulbs is insufficient, the bulbs may not come on,
or may go out temporarily. The discharge bulbs will come on when normal
power is restored.
■ LED light bulbs
The front position lights/daytime running lights (discharge headlights), stop
lights and high mounted stoplight consist of a number of LEDs. If any of the
LEDs burn out, take your vehicle to any authorized Toyota dealer or repairer,
or another duly qualified and equipped professional to have the light
4
replaced.
If two or more LEDs in a stop light burn out, your vehicle may not conform to
local laws (ECE).
■ When replacing light bulbs
P. 504
527
VERSO_EE_OM64517E
4-3. Do-it-yourself maintenance
WARNING
■ Replacing light bulbs
● Turn off the lights. Do not attempt to replace the bulb immediately after
turning off the lights.
The bulbs become very hot and may cause burns.
●Do not touch the glass portion of the light bulb with bare hands.
When it is unavoidable to hold the glass portion, use and hold with a clean
dry cloth to avoid getting moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or crack.
●Fully install light bulbs and any parts used to secure them. Failing to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
● Vehicles with discharge headlights:
While the headlights are turned on, and
for a short time after they have been
turned off, metal components at the
rear of the headlight assembly will be
extremely hot. To prevent burns, do not
touch these metal components until you
are certain they have cooled down.
Metal
components
528
VERSO_EE_OM64517E
4-3. Do-it-yourself maintenance
WARNING
■ Discharge headlights (if equipped)
●Contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional, before replacing the discharge headlights
(including light bulbs).

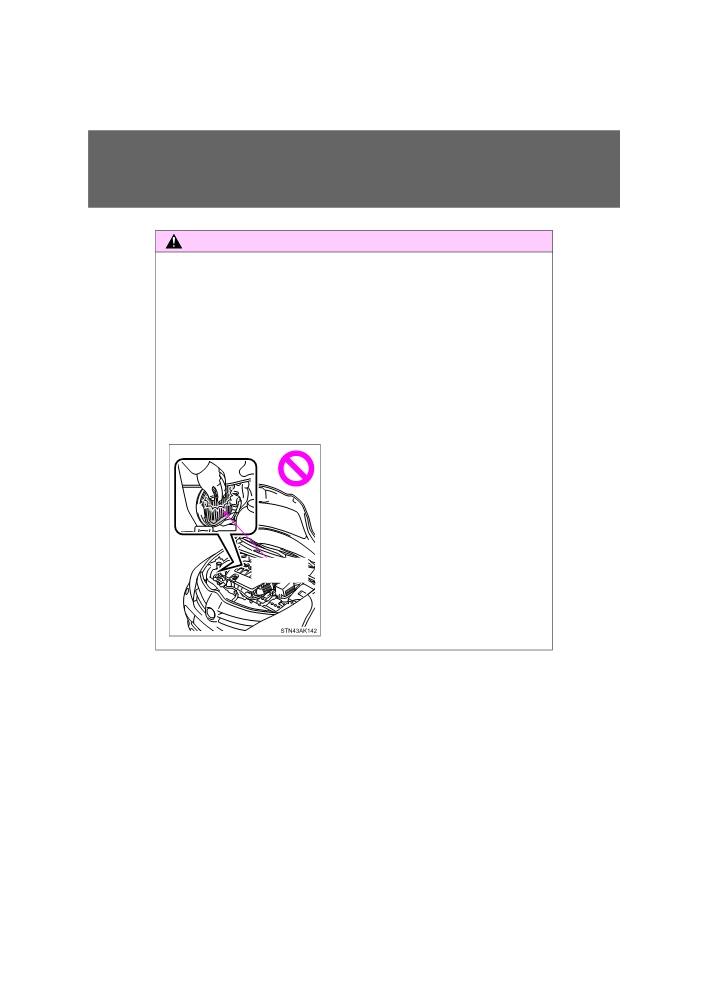

●Do not touch the high-intensity discharge headlight’s high voltage socket
when the headlights are turned on.
An extremely high voltage of 30000 V will be discharged and could result
in serious injury or death by electric shock.
●Do not attempt to repair or disassemble light bulbs, connectors, electric
circuits or component parts.
Doing so may result in death or serious injury due to electric shock.
■ To prevent damage or fire
Make sure bulbs are fully seated and locked.
4
529
VERSO_EE_OM64517E
4-3. Do-it-yourself maintenance
530
VERSO_EE_OM64517E
When trouble arises
5
5-1.
Essential information
5-2.
Steps to take in an
Emergency flashers
532
emergency
If your vehicle needs to
If a warning light turns on
be towed
533
or a warning buzzer
sounds
542
If you think something is
wrong
540
If a warning message is
displayed
551
Fuel pump shut off system
(gasoline engine)
541
If you have a flat tire
(vehicles with
spare tire)
566
If you have a flat tire
(vehicles with emergency
tire puncture repair kit)
583
If the engine will not
start
600
If the shift lever cannot be
shifted from “P” (vehicles
with a Multidrive)
603
If you lose your keys
604
If you cannot operate
the back door opener
605
If the electronic key does
not operate properly
(vehicles with smart
entry & start system)
606
If the vehicle battery is
discharged
609
If your vehicle overheats... 613
If the vehicle becomes
stuck
617
If your vehicle has to
be stopped in
an emergency
619
531
VERSO_EE_OM64517E
5-1. Essential information

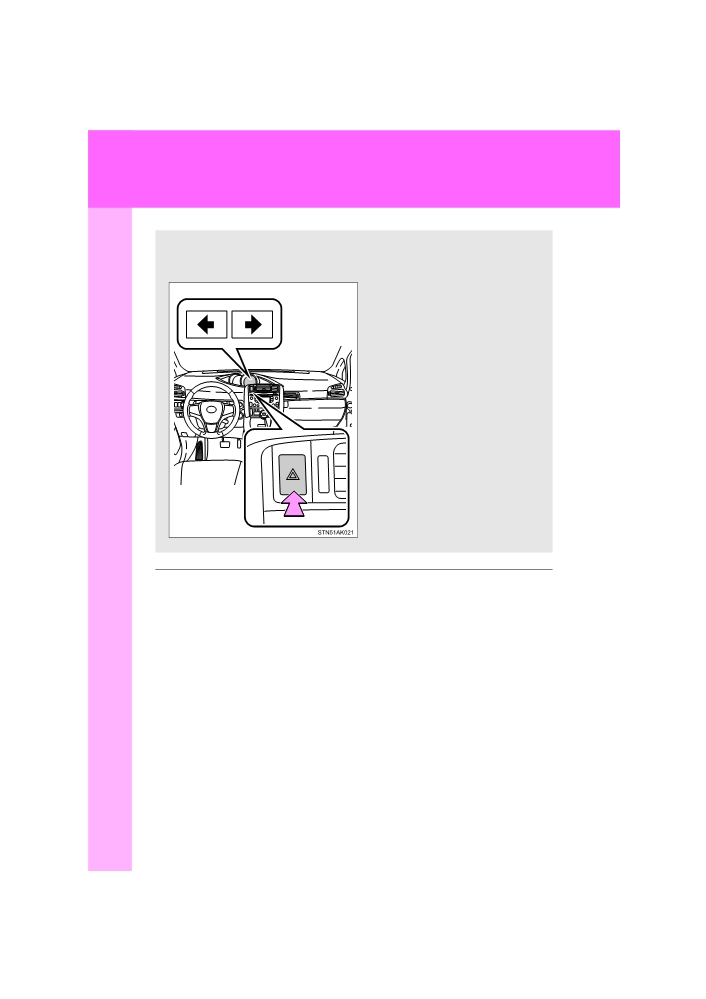

Emergency flashers
The emergency flashers are used to warn other drivers when the
vehicle has to be stopped in the road due to a breakdown, etc.
Press the switch.
All the turn signal lights will
flash.
To turn them off, press the
switch once again.
■ Emergency flashers
If the emergency flashers are used for a long time while the engine is not
operating, the battery may discharge.
532
VERSO_EE_OM64517E
5-1. Essential information
If your vehicle needs to be towed
If towing is necessary, we recommend having your vehicle towed by
any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional, such as or commercial towing service,
using a wheel-lift type truck or a flatbed truck.
Use a safety chain system for all towing, and abide by all state/pro-
vincial and local laws.
Situations when it is necessary to contact dealers before towing
The following may indicate a problem with your transmission. Contact
any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional or commercial towing service before tow-
ing.
● The engine is running, but the vehicle does not move.
● The vehicle makes an abnormal sound.

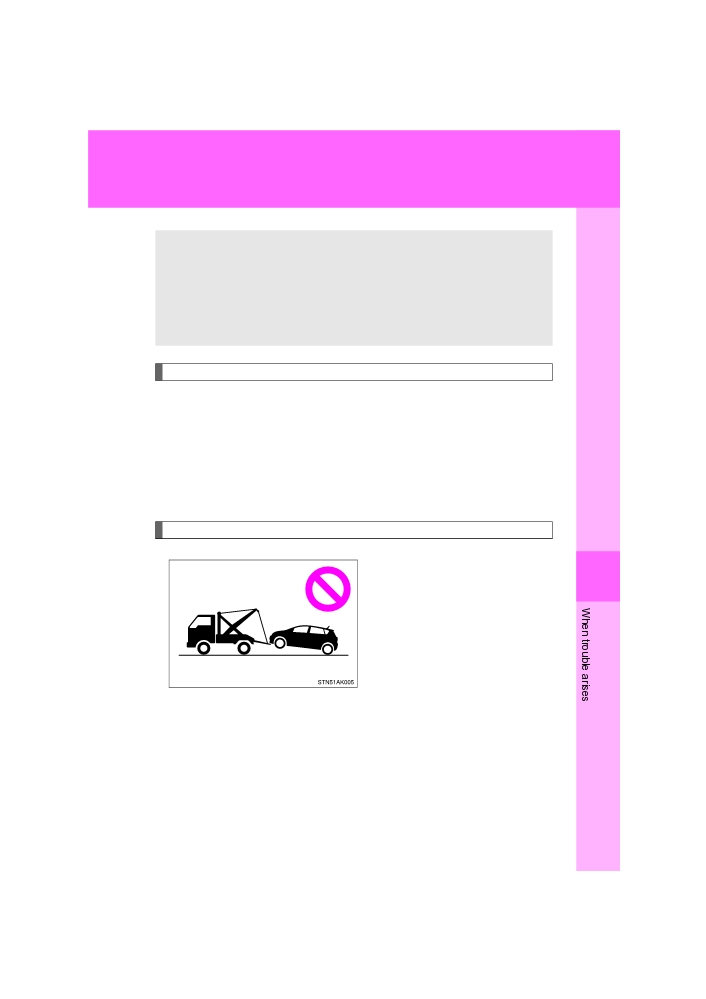

Towing with a sling-type truck
Do not tow with a sling-type truck
5
to prevent body damage.
533
VERSO_EE_OM64517E
5-1. Essential information

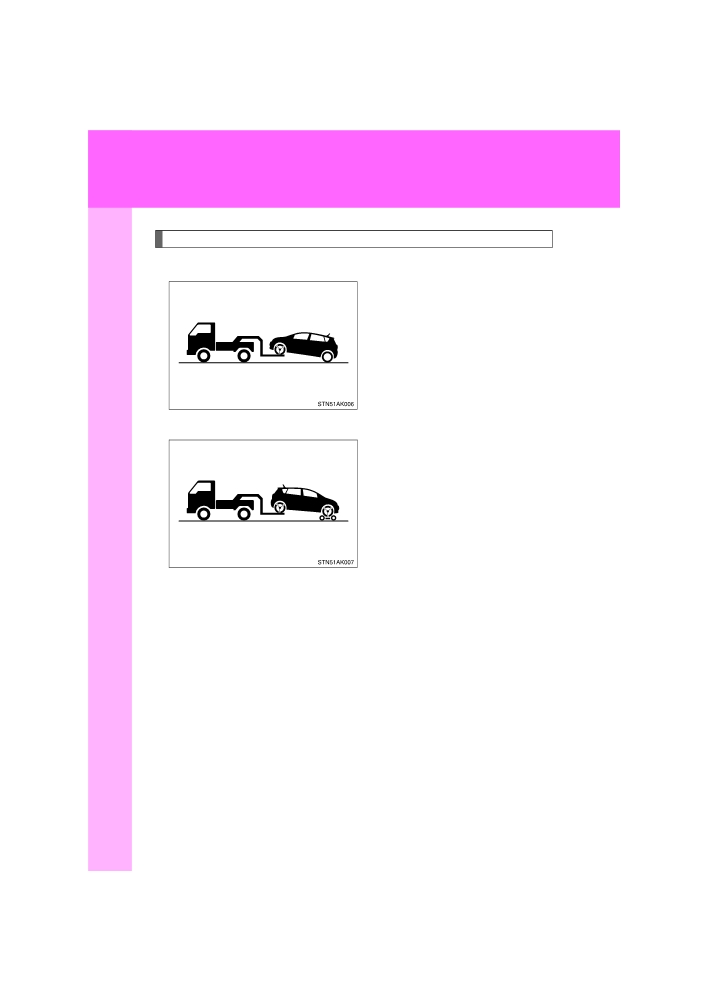

Towing with a wheel-lift type truck
From the front
Release the parking brake.
From the rear
Use a towing dolly under the
front wheels.
534
VERSO_EE_OM64517E
5-1. Essential information

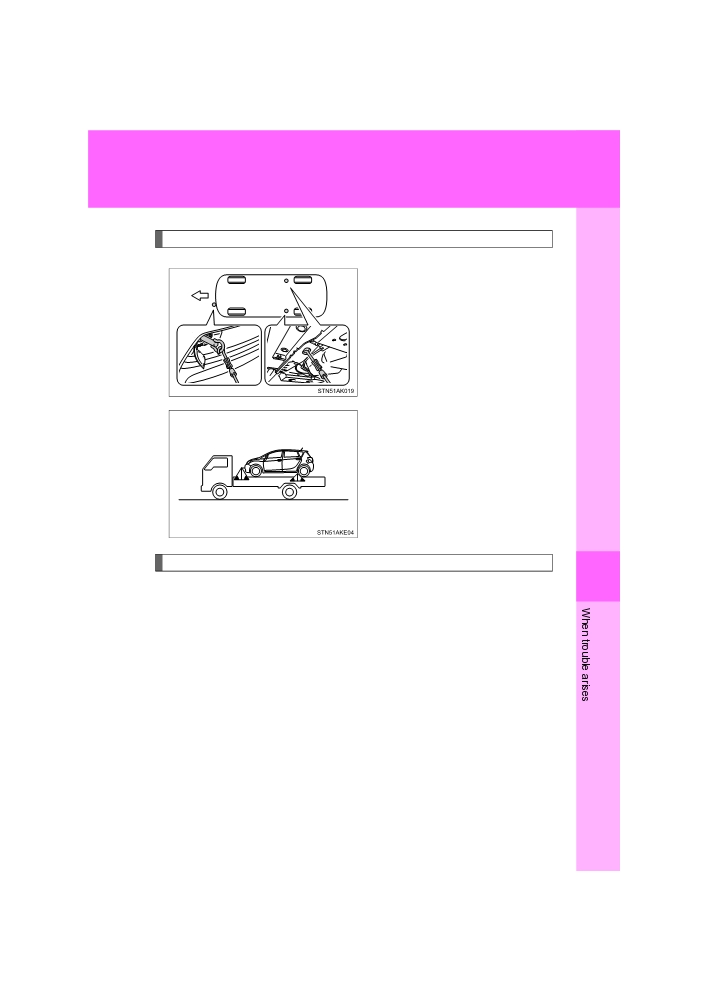

Using a flatbed truck
If your vehicle is transported by a
Front
flatbed truck, it should be tied
down at the locations shown in
the illustration.
If you use chains or cables to tie
down your vehicle, the angles
shaded in black must be 45
Do not overly tighten the tie
downs or the vehicle may be
damaged.
Emergency towing
5
If a tow truck is not available in an emergency, your vehicle may be
temporarily towed using cables or chains secured to the emergency
towing eyelets. This should only be attempted on hard surfaced roads
for at most 80 km (50 miles) at under 30 km/h (18 mph).
A driver must be in the vehicle to steer and operate the brakes. The
vehicle’s wheels, drivetrain, axles, steering and brakes must be in
good condition.
535
VERSO_EE_OM64517E
5-1. Essential information

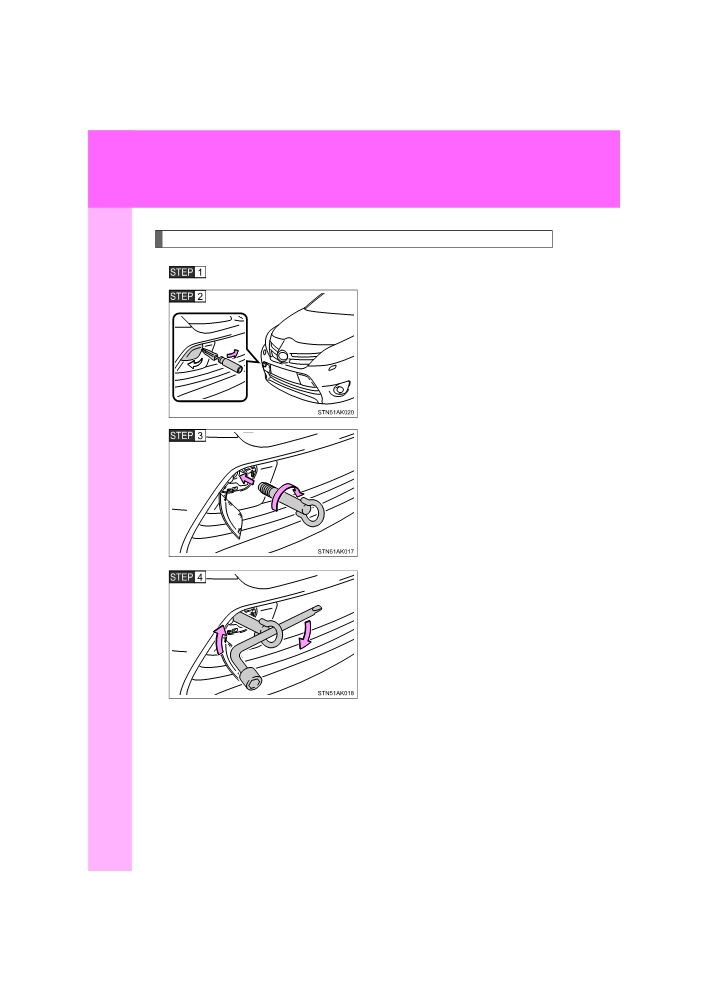

Emergency towing procedure
Take out the towing eyelet. (P. 566, 584)
Remove the eyelet cover using a
flathead screwdriver.
To protect the bodywork, place a
rag between the screwdriver and
the vehicle body, as shown in the
illustration.
Insert the towing eyelet into the
hole and tighten partially by
hand.
Tighten down the towing eyelet
securely using a wheel nut
wrench or hard metal bar.
536
VERSO_EE_OM64517E
5-1. Essential information
Securely attach cables or chains to the towing eyelet.
Take care not to damage the vehicle body.
Vehicles without smart entry & start system: Enter the vehicle
being towed and start the engine.
If the engine does not start, turn the engine switch to the “ON” posi-
tion.
Vehicles with smart entry & start system: Enter the vehicle
being towed and start the engine.
If the engine does not start, turn the “ENGINE START STOP” switch
to IGNITION ON mode.
Shift the shift lever to “N” and release the parking brake.
Vehicles with a Multidrive: When the shift lever cannot be
shifted. P. 603)
■ While towing
If the engine is not running, the power assist for the brakes and steering will
not function, making steering and braking more difficult.
■ Wheel nut wrench
Wheel nut wrench is installed in luggage compartment. (P. 566, 584)
5
537
VERSO_EE_OM64517E
5-1. Essential information
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.

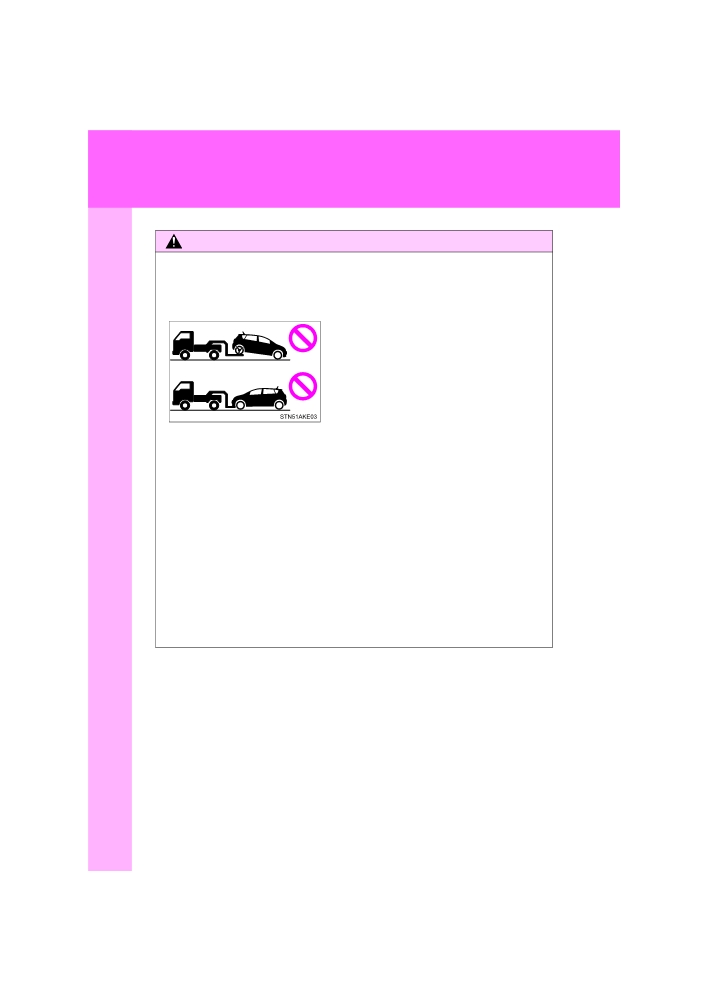

■ When towing the vehicle
Be sure to transport the vehicle with the
front wheels raised or with all four wheels
raised off the ground. If the vehicle is
towed with the front wheels contacting the
ground, the drivetrain and related parts
may be damaged.
■ While towing
●When towing using cables or chains, avoid sudden starts, etc. which place
excessive stress on the towing eyelets, cables or chains. The towing eye-
lets, cables or chains may become damaged, broken debris may hit peo-
ple and cause serious damage.
●Do not turn the engine switch to the “LOCK” position (vehicles without
smart entry & start system) or the “ENGINE START STOP” switch off
(vehicles with smart entry & start system).
There is a possibility that the steering wheel is locked and cannot be oper-
ated.
■ Installing towing eyelets to the vehicle
Make sure that towing eyelets are installed securely.
If not securely installed, towing eyelets may come loose during towing.
538
VERSO_EE_OM64517E
5-1. Essential information
NOTICE
■ To prevent damage to the vehicle when towing using a wheel-lift type
truck
● Vehicles without smart entry & start system: Do not tow the vehicle from
the rear when the engine switch is in the “LOCK” position or the key is
removed. The steering lock mechanism is not strong enough to hold the
front wheels straight.
● Vehicles with smart entry & start system: Do not tow the vehicle from the
rear when the “ENGINE START STOP” switch is off. The steering lock
mechanism is not strong enough to hold the front wheels straight.
● When raising the vehicle, ensure adequate ground clearance for towing at
the opposite end of the raised vehicle. Without adequate clearance, the
vehicle could be damaged while being towed.
■ To prevent damage to the vehicle when towing with a sling-type truck
Do not tow with a sling-type truck, either from the front or rear.
■ To prevent damage to the vehicle during emergency towing
Do not secure cables or chains to the suspension components.
5
539
VERSO_EE_OM64517E
5-1. Essential information
If you think something is wrong
If you notice any of the following symptoms, your vehicle probably
needs adjustment or repair. Contact any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional, as
soon as possible.
■ Visible symptoms
● Fluid leaks under the vehicle
(Water dripping from the air conditioning after use is normal.)
● Flat-looking tires or uneven tire wear
● High engine coolant temperature warning light flashes or
comes on
● Low engine coolant temperature indicator comes on or does
not come on continuously
■ Audible symptoms
● Changes in exhaust sound
● Excessive tire squeal when cornering
● Strange noises related to the suspension system
● Pinging or other noises related to the engine
■ Operational symptoms
● Engine misfire, stumbling or running rough
● Appreciable loss of power
● Vehicle pulls heavily to one side when braking
● Vehicle pulls heavily to one side when driving on a level road
● Loss of brake effectiveness, spongy feeling, pedal almost
touches the floor
540
VERSO_EE_OM64517E
5-1. Essential information
Fuel pump shut off system (gasoline engine)
To minimize the risk of fuel leakage when the engine stalls or an air-
bag inflates upon collision, the fuel pump shut off system stops sup-
plying fuel to the engine.
Follow the procedure below to restart the engine after the system is
activated.
Vehicles without smart entry & start system:
Turn the engine switch to the “ACC” or “LOCK” position.
Vehicles with smart entry & start system:
Turn the “ENGINE START STOP” switch to ACCESSORY mode
or off.
Restart the engine.
NOTICE
■ Before starting the engine
Inspect the ground under the vehicle.
If you find that fuel has leaked onto the ground, the fuel system has been
damaged and is in need of repair. Do not restart the engine.
5
541
VERSO_EE_OM64517E
5-2. Steps to take in an emergency

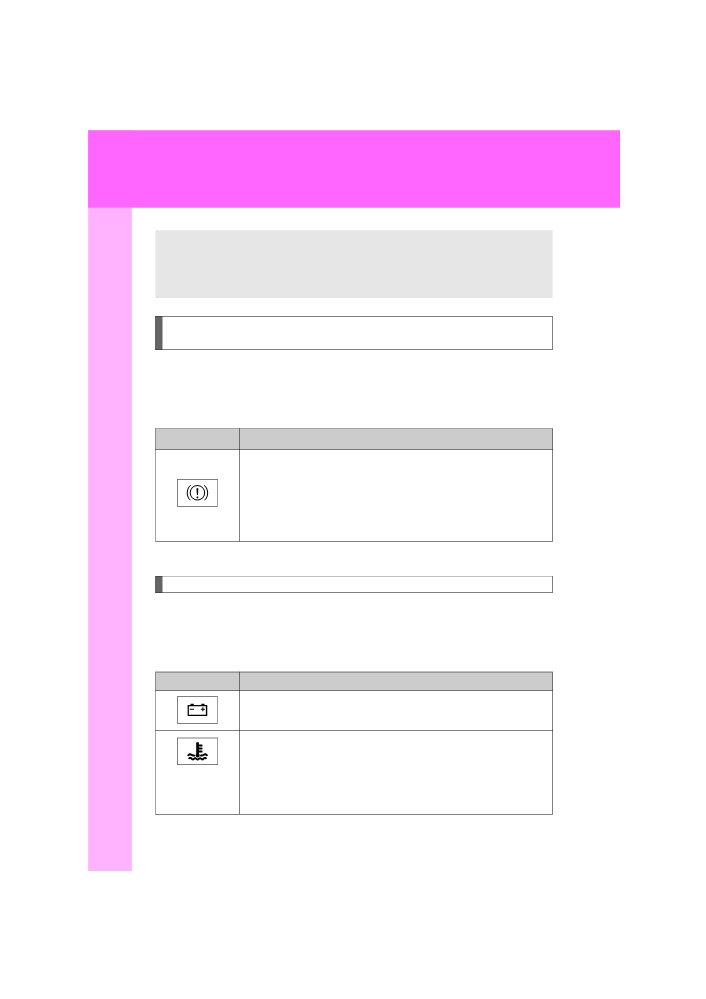

If a warning light turns on or a warning buzzer sounds...
Calmly perform the following actions if any of the warning lights turn
on or flash. If a light turns on or flashes, but then turns off, this does
not necessarily indicate a malfunction in the system.
Stop the vehicle immediately. Continuing to drive the vehicle
may be dangerous.
The following warning indicates a possible problem in the brake sys-
tem. Immediately stop the vehicle in a safe place and contact any
authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
Warning light
Warning light/Details
Brake system warning light (warning buzzer)*
• Low brake fluid
• Malfunction in the brake system
This light also comes on when the parking brake is not
released. If the light turns off after the parking brake is fully
released the system is operating normally.
*: Parking brake engaged warning buzzer: (P. 555)
Stop the vehicle immediately.
The following warnings indicate the possibility of damage to the vehi-
cle that may lead to an accident. Immediately stop the vehicle in a
safe place and contact any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.
Warning light
Warning light/Details
Charging system warning light
Indicates a malfunction in the vehicle’s charging system.
High engine coolant temperature warning light
Indicates that the engine is overheating.
(Red warning
As the coolant temperature rises, it changes from flashing
light flashes or
to comes on. (P. 613)
comes on)
542
VERSO_EE_OM64517E
5-2. Steps to take in an emergency

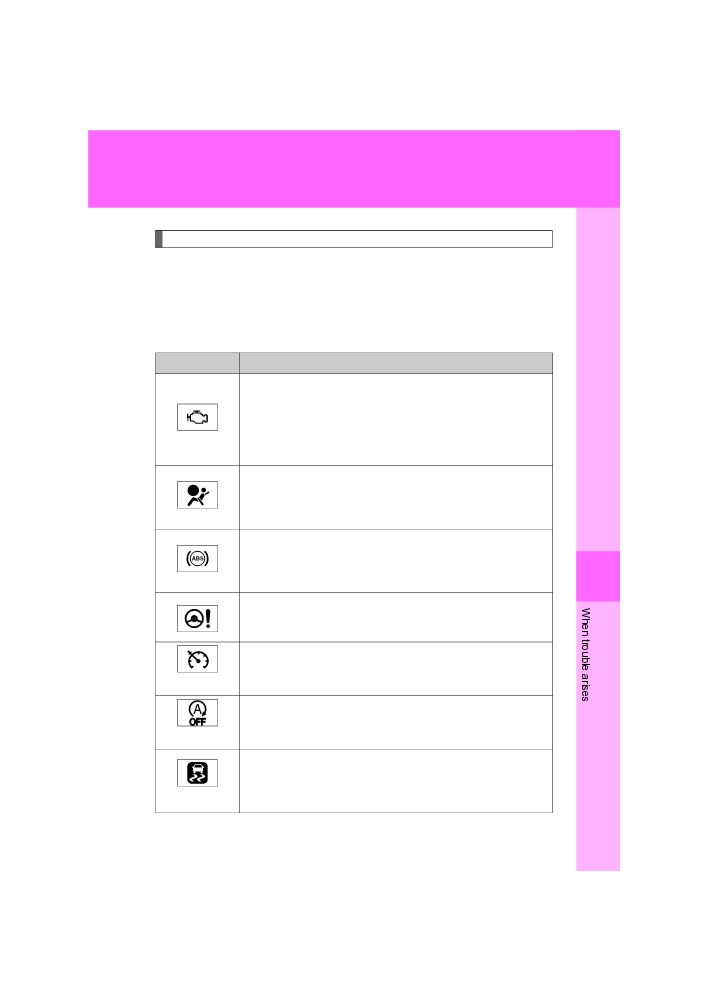

Have the vehicle inspected immediately.
Failing to investigate the cause of the following warnings may lead to
the system operating abnormally and possibly cause an accident.
Have the vehicle inspected by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional, immedi-
ately.
Warning light
Warning light/Details
Malfunction indicator lamp
Indicates a malfunction in:
• The emission control system;
• The electronic engine control system;
• The electronic throttle control system;
• The electronic Multidrive control system. (if equipped)
SRS warning light
Indicates a malfunction in:
• The SRS airbag system;
• The seat belt pretensioner system.
ABS warning light
Indicates a malfunction in:
• The ABS;
5
• The brake assist system.
Electric power steering system warning light (warning
buzzer)
Indicates a malfunction in the EPS system.
Cruise control warning light (if equipped)
Indicates a malfunction in the cruise control system.
(Flashes)
Stop & Start cancel indicator light (if equipped)
Indicates a malfunction in the Stop & Start system.
(Flashes)
Slip indicator light
Indicates a malfunction in:
• The VSC+ system; or
(Comes on)
• The TRC system.
543
VERSO_EE_OM64517E
