4-3. Do-it-yourself maintenance
Replacing light bulbs

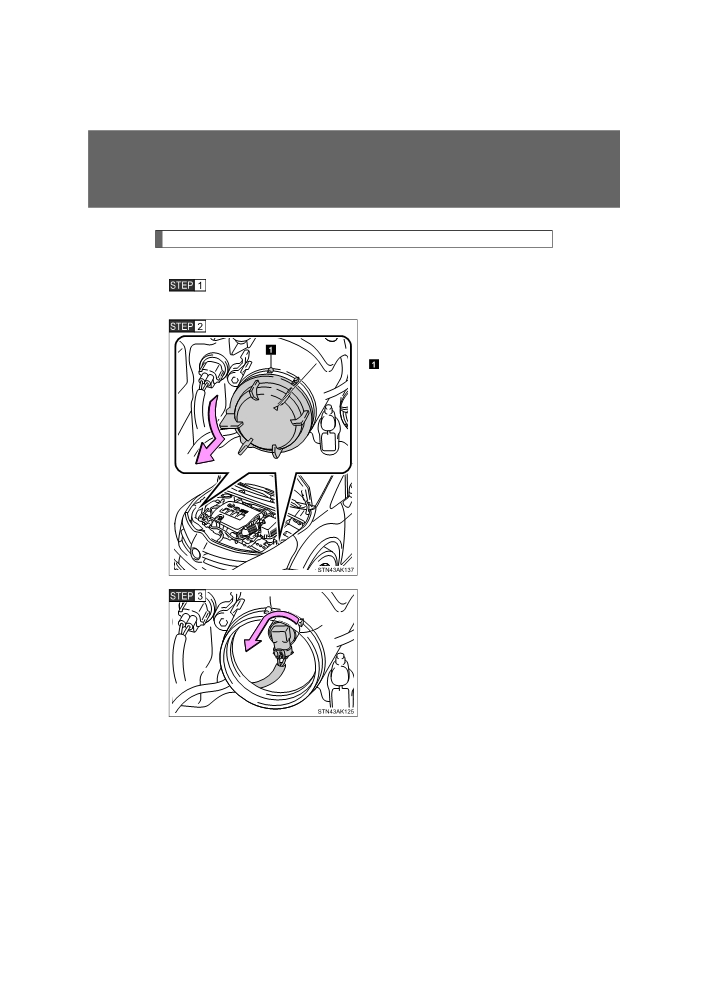

■ Headlight low beam (halogen headlights)
Removing the air cleaner duct and/or moving the washer fluid
filler opening. (P. 508)
Turn the cover to the open posi-
tion and remove it.
Open position
Turn the bulb base counterclock-
wise.
510
VERSO_EE_OM64517E
4-3. Do-it-yourself maintenance

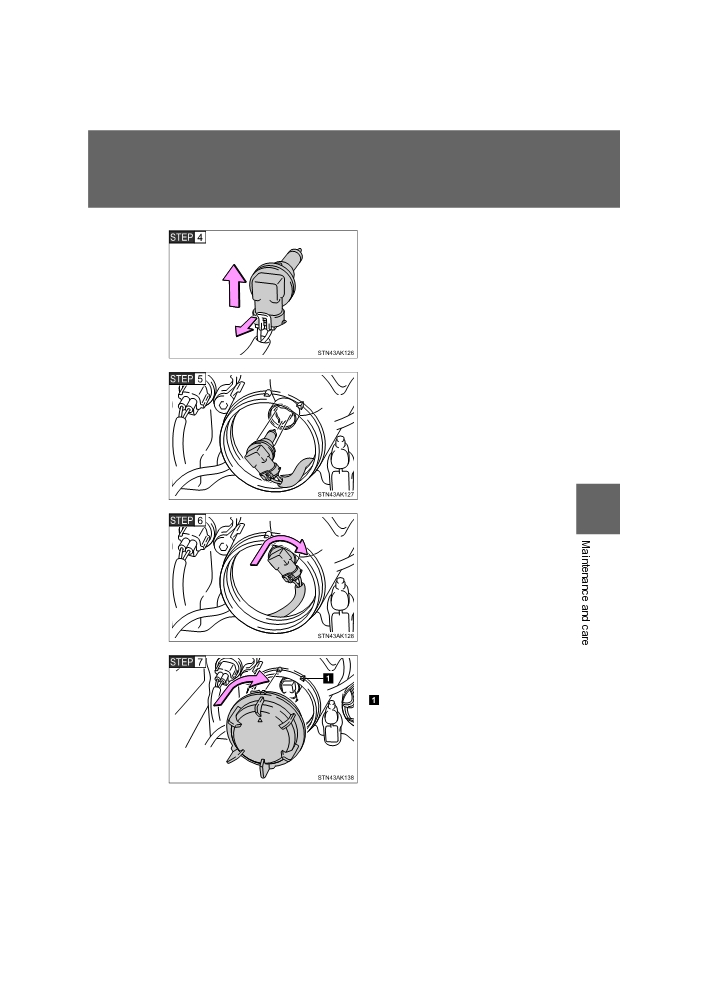

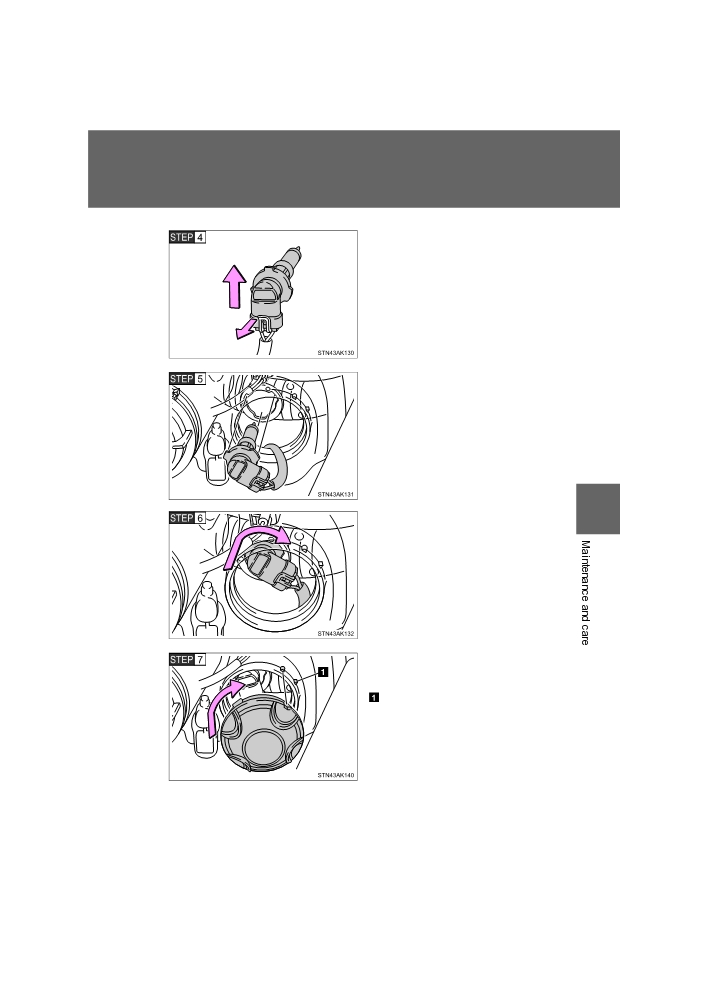

Unplug the connector while pull-
ing the lock release.
Replace the light bulb, and install
the bulb base.
Align the 3 tabs on the light bulb
with the mounting, and insert.
4
Turn and secure the bulb base.
Shake the bulb base gently to
check that it is not loose, turn the
headlight low beam on once and
visually confirm that no light is
leaking through the mounting.
Install and turn the cover to the
closed position.
Closed position
511
VERSO_EE_OM64517E
4-3. Do-it-yourself maintenance
After replacing the light bulb, air cleaner duct, and/or washer
fluid filler opening, return it to the original position. (P. 508)

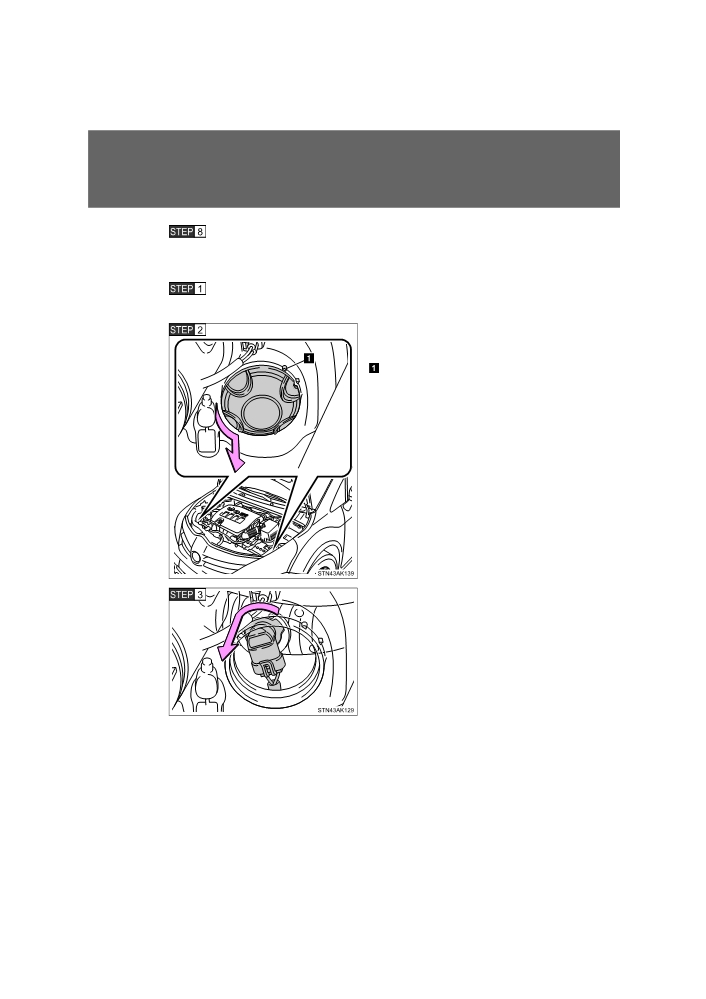

■ Headlight high beam (halogen headlights)
Removing the air cleaner duct and/or moving the washer fluid
filler opening. (P. 508)
Turn the cover to the open posi-
tion and remove it.
Open position
Turn the bulb base counterclock-
wise.
512
VERSO_EE_OM64517E
4-3. Do-it-yourself maintenance
Unplug the connector while pull-
ing the lock release.
Replace the light bulb, and install
the bulb base.
Align the 3 tabs on the light bulb
with the mounting, and insert.
4
Turn and secure the bulb base.
Shake the bulb base gently to
check that it is not loose, turn the
headlight high beam on once and
visually confirm that no light is
leaking through the mounting.
Install and turn the cover to the
closed position.
Closed position
513
VERSO_EE_OM64517E
4-3. Do-it-yourself maintenance
After replacing the light bulb, air cleaner duct, and/or washer
fluid filler opening, return it to the original position. (P. 508)

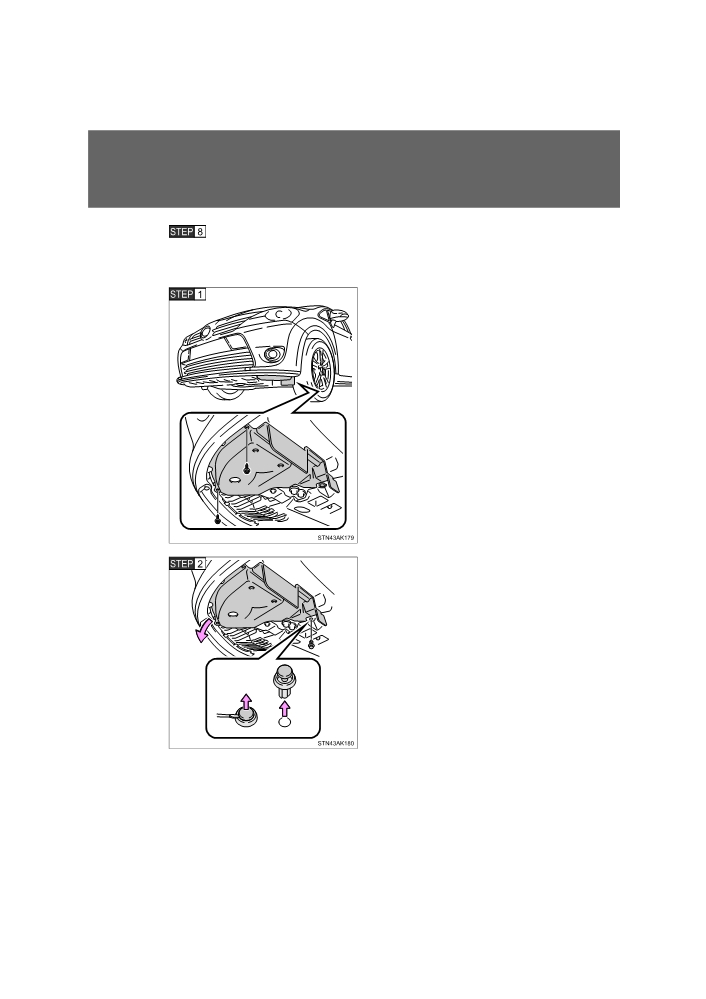

■ Front fog light
Remove the 2 bolts.
Remove the clip and then par-
tially remove the fender liner.
514
VERSO_EE_OM64517E
4-3. Do-it-yourself maintenance

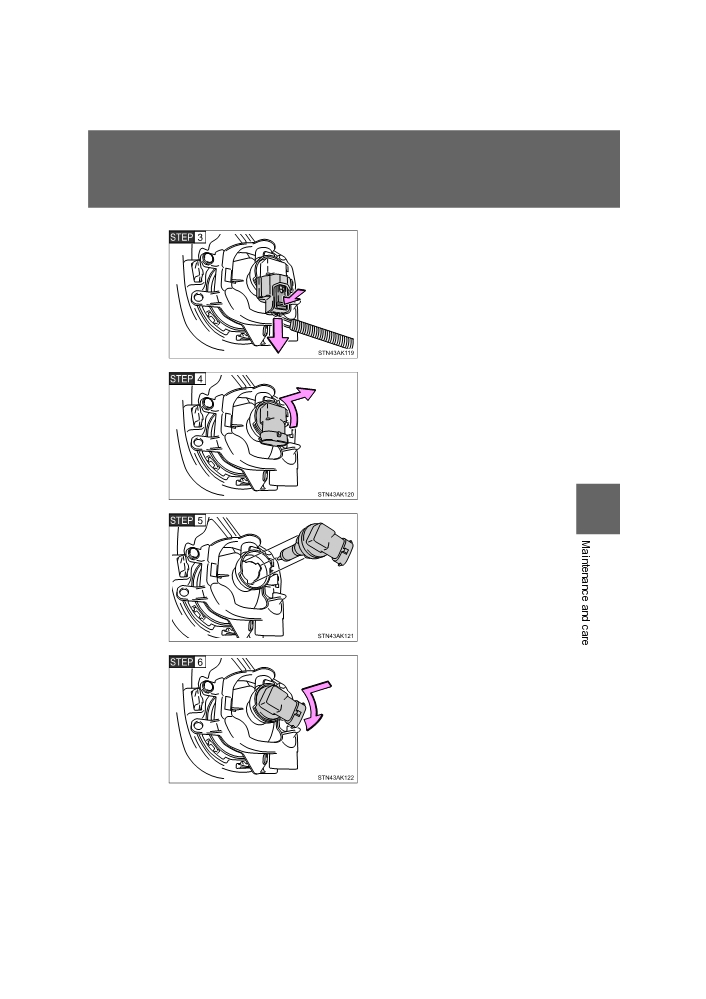

Unplug the connector while
depressing the lock release.
Turn the bulb base counterclock-
wise.
4
Replace the light bulb, and install
the bulb base.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the bulb base.
515
VERSO_EE_OM64517E
4-3. Do-it-yourself maintenance
Install the connector.
Shake the bulb base gently to
check that it is not loose, turn the
front fog light on once and visu-
ally confirm that no light is leaking
through the mounting.
When installing the fender liner, install by conducting
and
with the directions reversed.

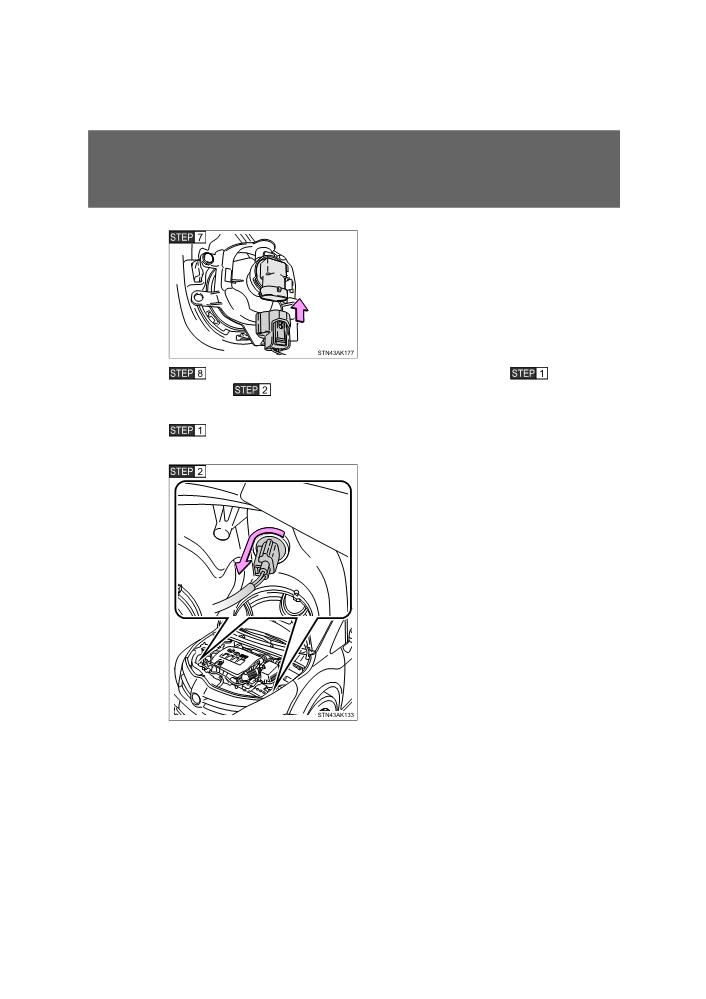

■ Front position light/daytime running light (halogen headlights)
Removing the air cleaner duct and/or moving the washer fluid
filler opening. (P. 508)
Turn the bulb base counterclock-
wise.
516
VERSO_EE_OM64517E
4-3. Do-it-yourself maintenance
Remove the light bulb.
When installing, reverse the steps listed.

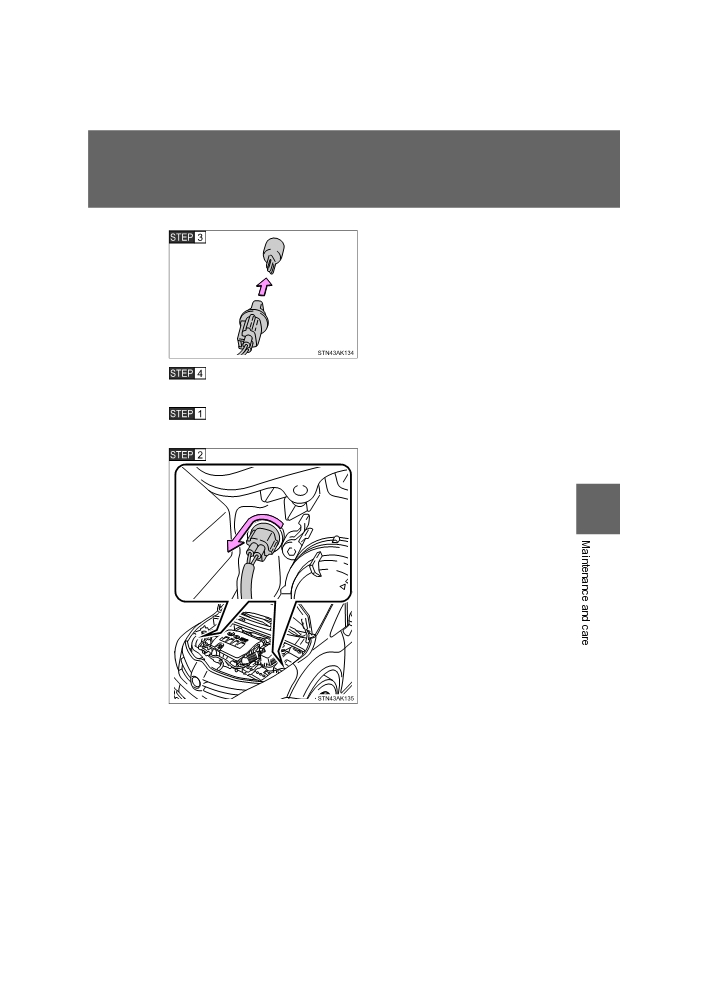

■ Front turn signal light
Removing the air cleaner duct and/or moving the washer fluid
filler opening. (P. 508)
Turn the bulb base counterclock-
wise.
4
517
VERSO_EE_OM64517E
4-3. Do-it-yourself maintenance
Remove the light bulb.
When installing, reverse the steps listed.

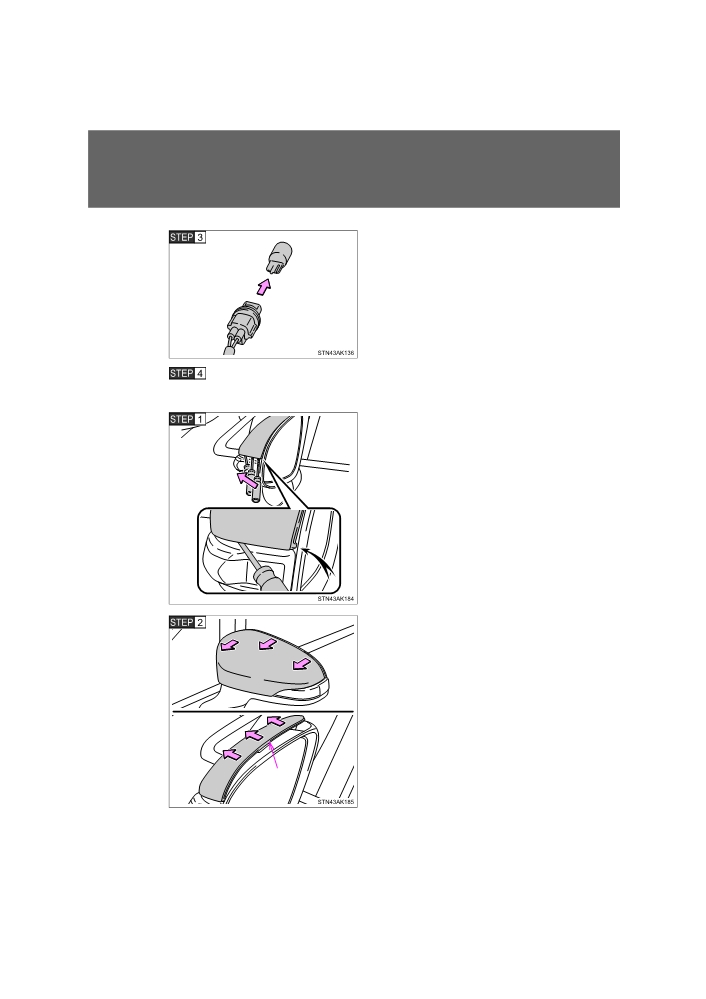

■ Side turn signal lights
Insert a flathead screwdriver and
release the claw for the outside
rear view mirror cover.
To prevent damaging the vehicle,
wrap the flathead screwdriver
with a tape.
Release the cover claws span-
ning over the entire perimeter.
Claw
518
VERSO_EE_OM64517E
4-3. Do-it-yourself maintenance

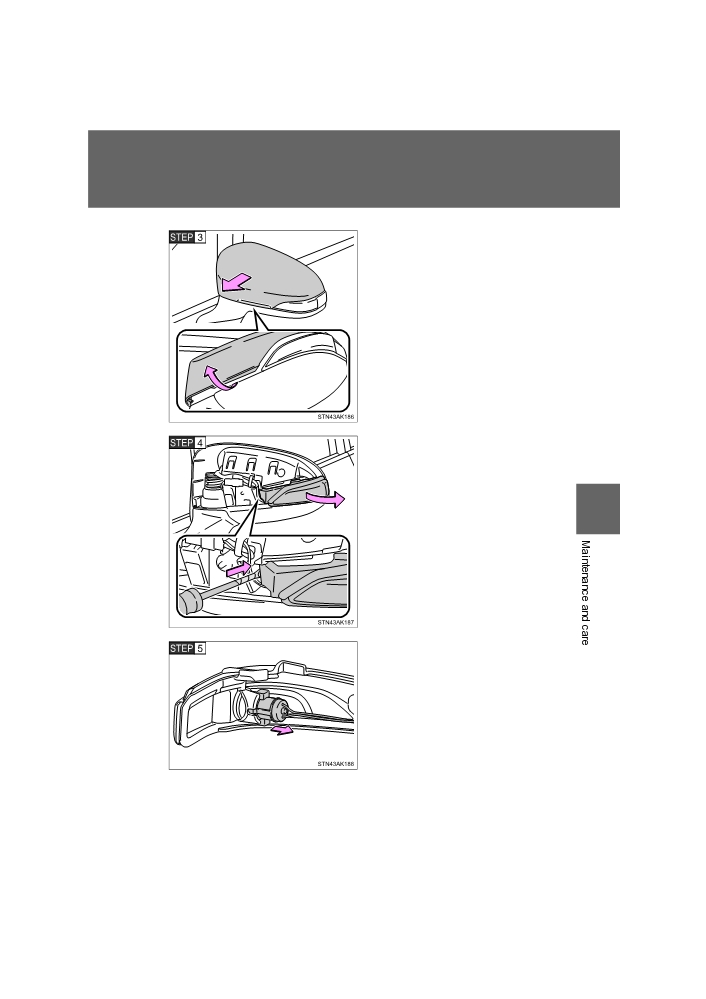

Release the claw of the bottom
part of the cover and then
remove the cover.
Insert a flathead screwdriver and
remove the lens to the outside.
4
Remove the socket from the side
turn signal light housing.
519
VERSO_EE_OM64517E
4-3. Do-it-yourself maintenance

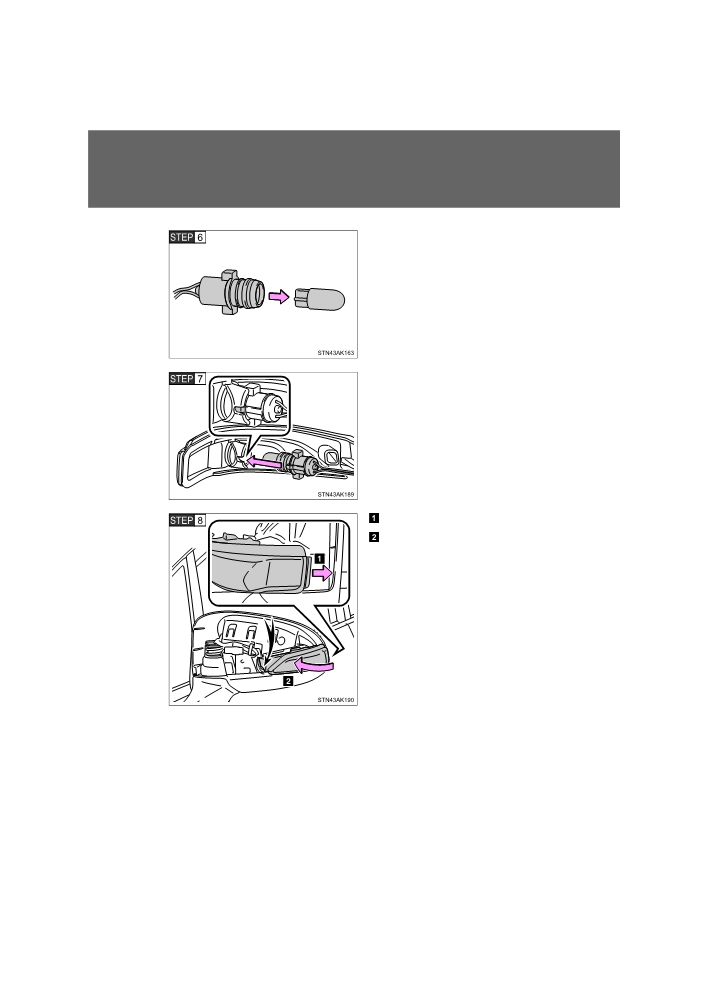

Remove the bulb.
Replace the bulb and install the
socket to the side turn signal
light housing.
Align the grooves of the socket to
the side turn signal light housing.
Insert the claw of the lens.
Attach the lens.
Arrange the wire harness on the
back side of the lens.
520
VERSO_EE_OM64517E
4-3. Do-it-yourself maintenance

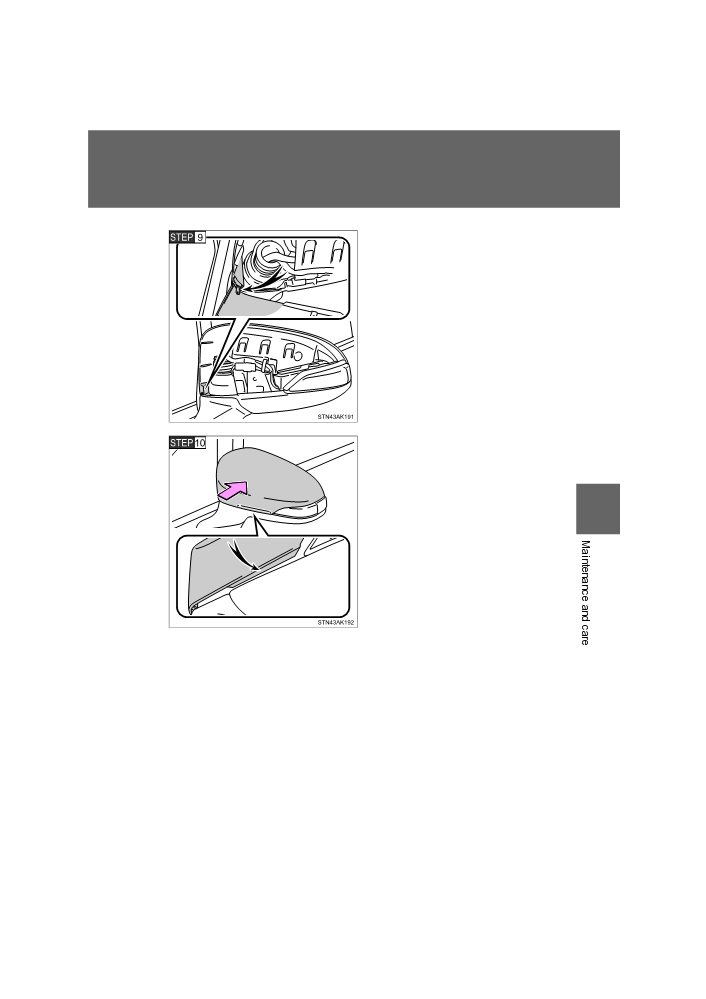

Insert the claw of the cover.
Attach the claw on the bottom
part of the cover.
4
521
VERSO_EE_OM64517E
4-3. Do-it-yourself maintenance

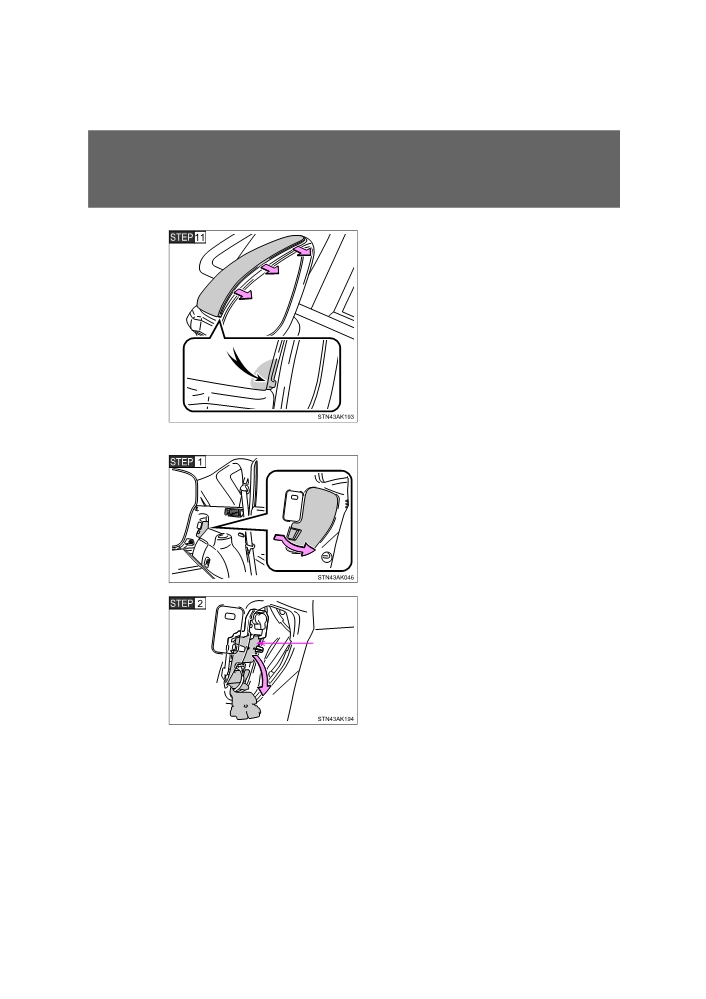

Attach the cover claws spanning
over the entire perimeter.
Finally, confirm that the outside
claw is securely fitted.
■ Back-up light/rear fog light, tail light and rear turn signal light
Open the back door and remove
the cover.
Peel back the cushion material.
Cushion
material
522
VERSO_EE_OM64517E
4-3. Do-it-yourself maintenance

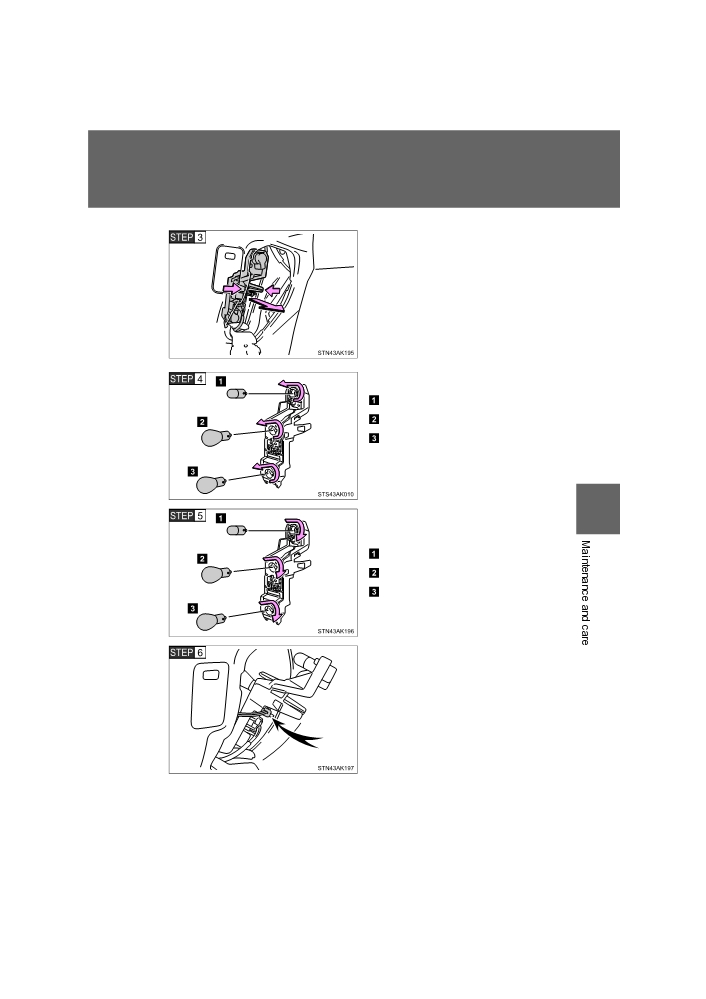

Disengage the
2 claws and
remove the rear combination
light socket.
Remove the light bulb.
Tail light
Rear turn signal light
Back-up light or rear fog light
4
Align the tabs and while pushing,
twist and install the bulb.
Tail light
Rear turn signal light
Back-up light or rear fog light
Check that the wire harness is
attached to the clamp.
523
VERSO_EE_OM64517E
4-3. Do-it-yourself maintenance

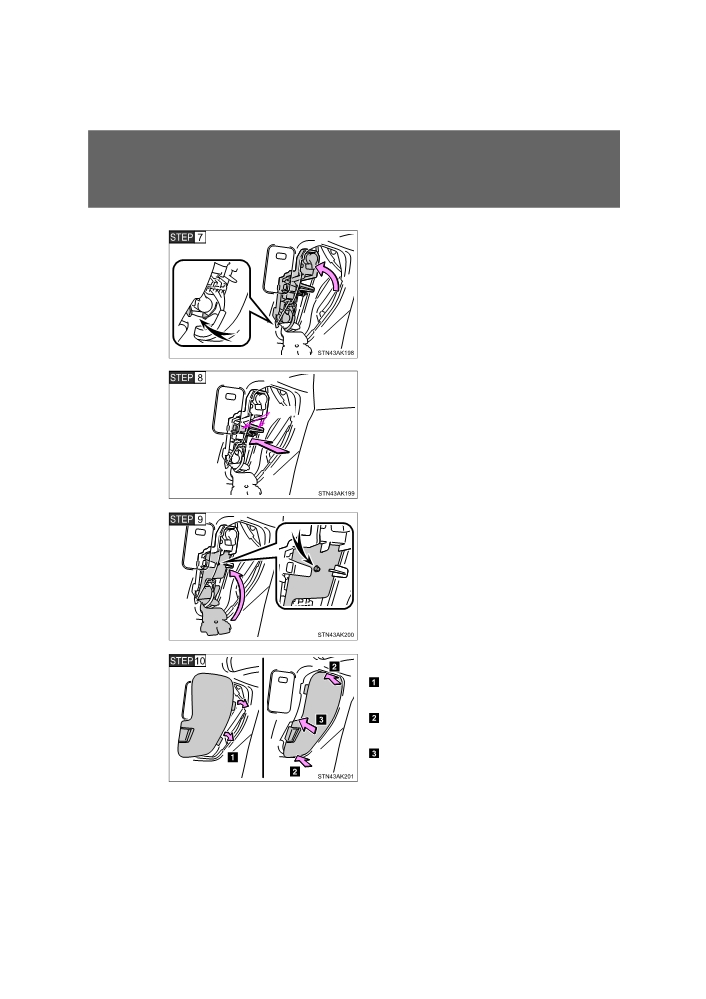

Attach the rear combination light
socket.
Check that the claw for the under-
side of the socket is inserted.
Lock the claw of the rear combi-
nation light socket.
Claw
Attach the cushion material.
Push the cushion material onto
the pin in the center of the
socket.
Install the cover.
Align the cover claws with the
notches.
Push on the upper and lower
parts of the cover.
Lock the inside of the cover.
524
VERSO_EE_OM64517E
4-3. Do-it-yourself maintenance

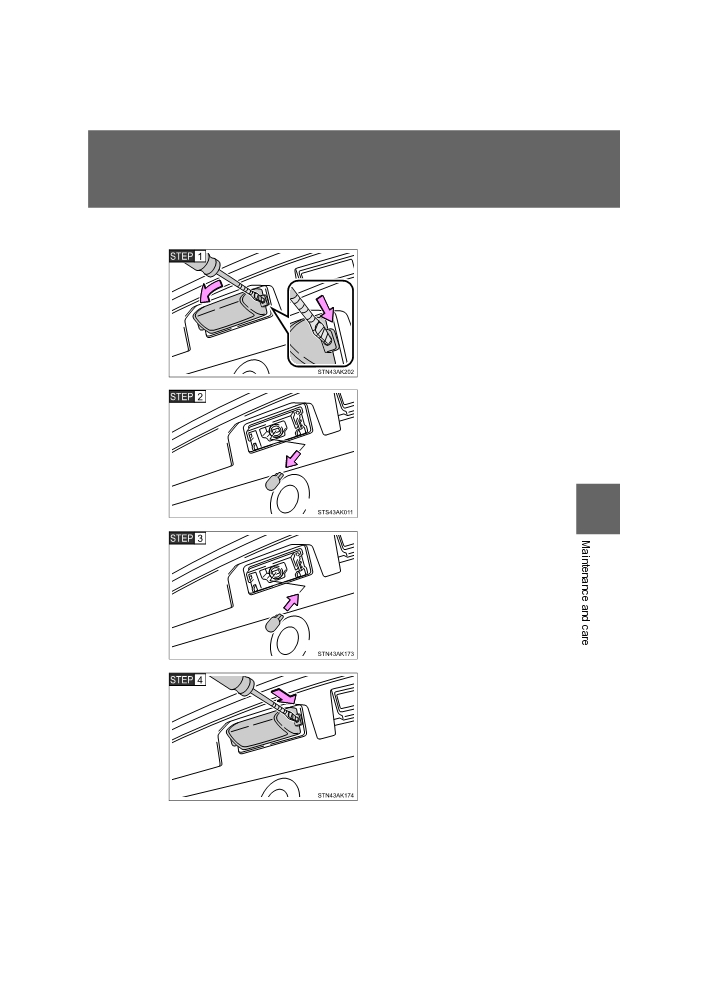

■ License plate light
Remove the cover.
Insert a properly sized screw-
driver into the hole of the cover,
and ply off the cover as shown in
the illustration.
To prevent damaging the vehicle,
wrap the screwdriver with a tape.
Remove the light bulb.
4
Install the new bulb.
Install the cover.
Insert a properly sized screw-
driver into one of the holes, push
the screwdriver until clicking
sound is heard. Repeat for the
other hole.
525
VERSO_EE_OM64517E
4-3. Do-it-yourself maintenance

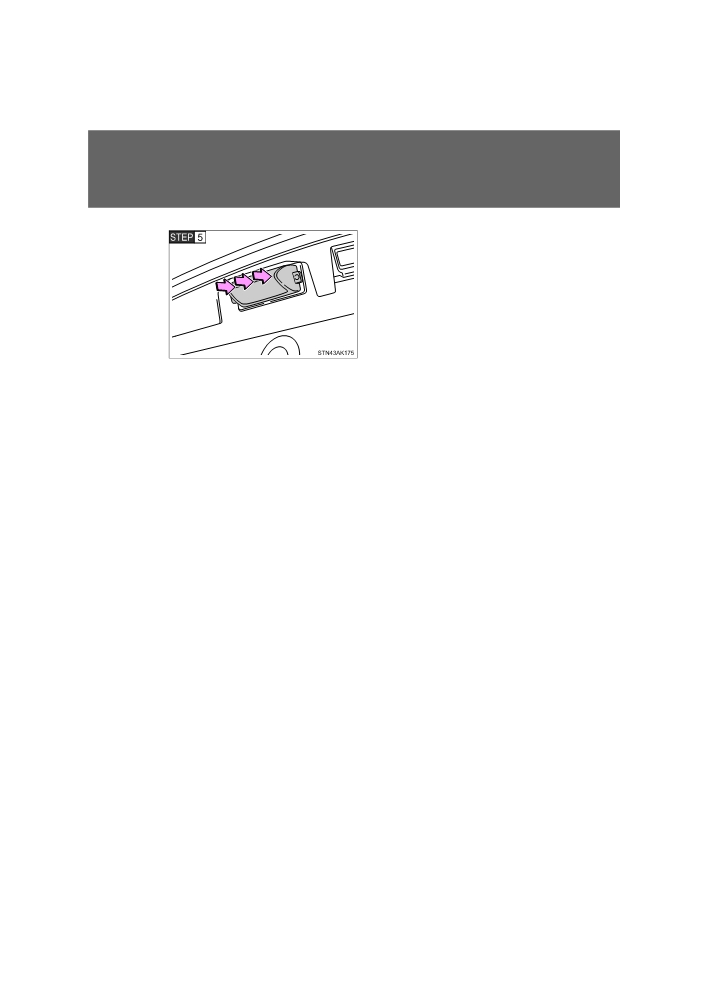

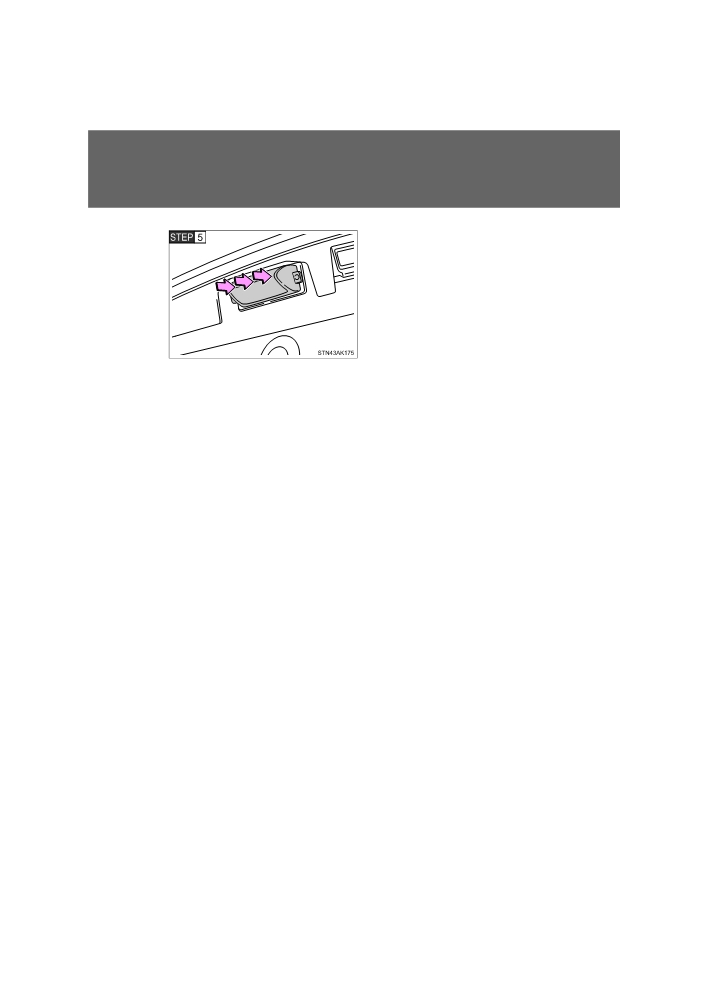

Make sure that the cover is
secured by pressing on the
entire cover.
■ Lights other
than the above
If any of the lights listed below has burnt out, have it replaced by
any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
● Headlights (discharge headlights)
● Front position lights/daytime running lights
(discharge head-
lights)
● High mounted stoplight
● Stop lights
