4-3. Do-it-yourself maintenance

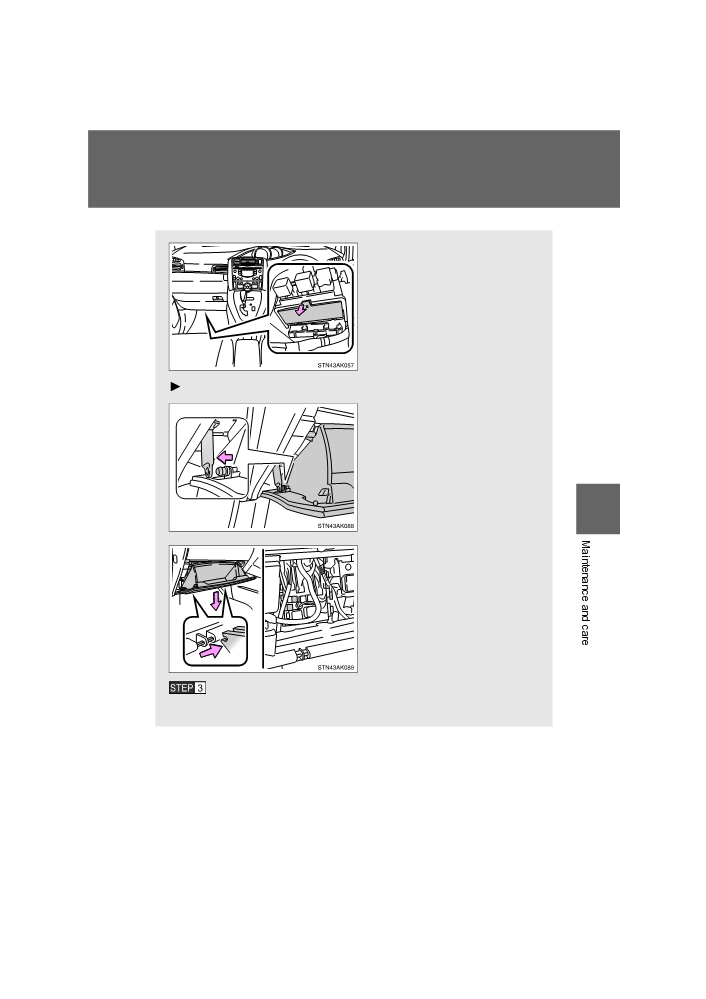

Remove the lid.
Type B
1. Open the glove box. Slide
off the damper.
4
2. Lift the glove box to discon-
nect the claws at the bottom
and remove it.
After a system failure, see “Fuse layout and amperage
ratings” (P. 496) for details about which fuse to check.
493
VERSO_EE_OM64517E
4-3. Do-it-yourself maintenance

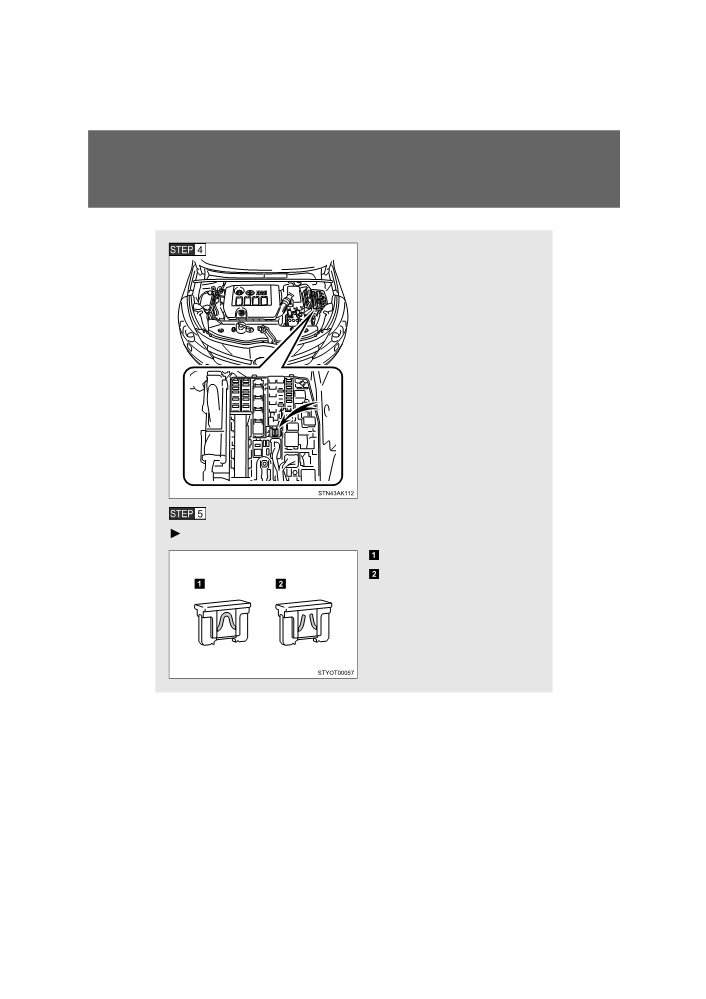

Remove the fuse with the pull-
out tool.
Check if the fuse has
blown.
Type A
Normal fuse
Blown fuse
Replace it with one of an
appropriate amperage rating.
The amperage rating can be
found on the fuse box lid.
494
VERSO_EE_OM64517E
4-3. Do-it-yourself maintenance

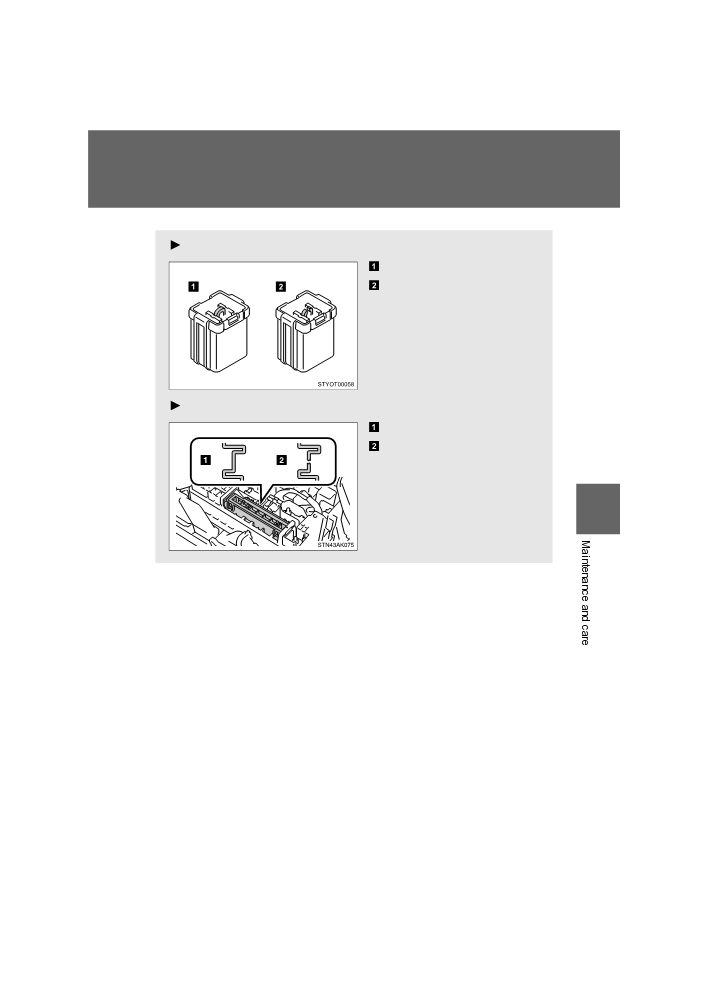

Type B
Normal fuse
Blown fuse
Contact any authorized Toyota
dealer or repairer, or another
duly qualified and equipped
professional.
Type C
Normal fuse
Blown fuse
Contact any authorized Toyota
dealer or repairer, or another
duly qualified and equipped
4
professional.
495
VERSO_EE_OM64517E
4-3. Do-it-yourself maintenance

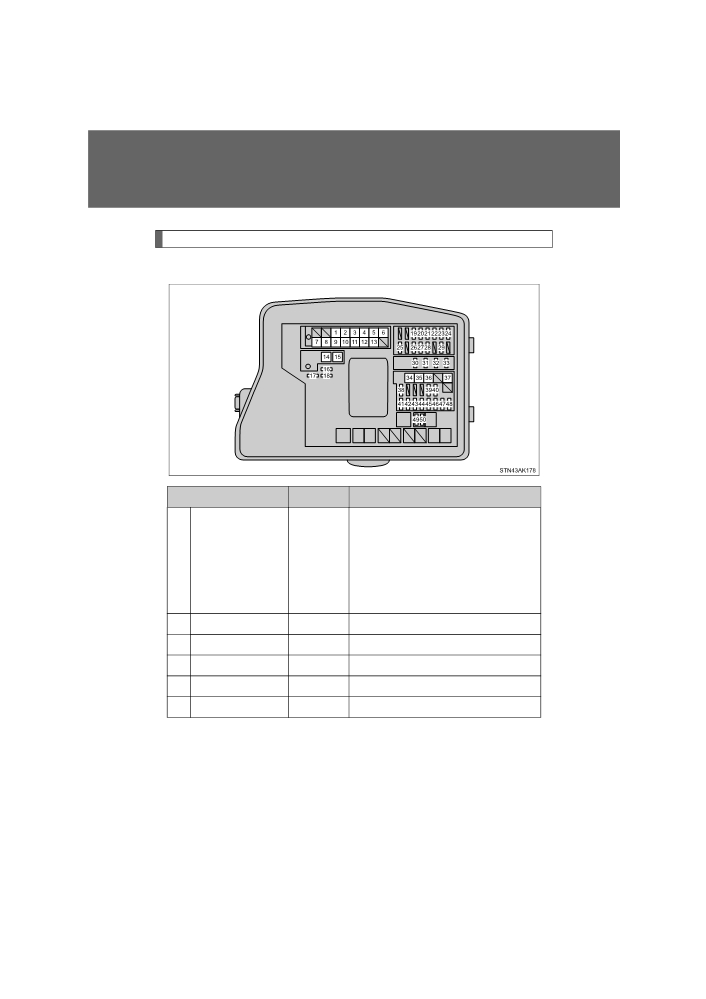

Fuse layout and amperage ratings
■ Engine compartment
Fuse
Ampere
Circuit
ECU-IG NO.2, HTR-IG, WIPER,
RR WIPER, WASHER, ECU-IG
NO.1, ECU-IG NO.3, SEAT HTR,
1
TO IP J/B*1
120 A
AM1*3, DOOR, STOP, FR DOOR,
POWER, RR DOOR, RL DOOR,
OBD, ACC-B, RR FOG, FR FOG,
DEF, TAIL, SUNROOF, DRL
2
H-LP CLN
30 A
Headlight cleaners
3
RDI FAN
40 A
Electric cooling fan(s)
4
CDS FAN*1
30 A
Electric cooling fan(s)
5
ABS NO.1
50 A
Anti-lock brake system, VSC+
6
HTR*2
50 A
Air conditioning system
496
VERSO_EE_OM64517E
4-3. Do-it-yourself maintenance
Fuse
Ampere
Circuit
Charging system, RDI FAN, CDS
FAN, H-LP CLN, ABS NO.1, ABS
NO.2, HTR, PWR OUTLET, HTR
SUB NO.1, HTR SUB NO.2, HTR
SUB NO.3, ECU-IG NO.2, HTR-IG,
WIPER, RR WIPER, WASHER,
7
ALT*2
120 A
ECU-IG NO.1, ECU-IG NO.3,
SEAT HTR, AM1*3, DOOR, STOP,
FR DOOR, POWER, RR DOOR,
RL DOOR, OBD, ACC-B, RR FOG,
FR FOG, DEF, TAIL, SUNROOF,
DRL
EPS*2
80 A
Electric power steering
8
GLOW*1
80 A
Engine glow system
9
EPS*1
80 A
Electric power steering
10
P-SYSTEM*2
30 A
VALVEMATIC system
4
11
FUEL HTR*1
50 A
Fuel heater
EFI MAIN*2, IGT/INJ*2, HORN,
P/I*2
50 A
IG2
12
H-LP LH LO, H-LP RH LO, H-LP LH
H-LP MAIN*1
50 A
HI, H-LP RH HI
P/I*1
50 A
HORN, IG2, ELEC FUEL PMP
13
H-LP LH LO, H-LP RH LO, H-LP
H-LP MAIN*2
50 A
LH HI, H-LP RH HI
14
BBC*1
40 A
Stop & Start system
15
EFI MAIN*1
50 A
EFI NO.1, EFI NO.2, EFI NO.4
497
VERSO_EE_OM64517E
4-3. Do-it-yourself maintenance
Fuse
Ampere
Circuit
16
SPARE
10 A
Spare fuse
17
SPARE
30 A
Spare fuse
18
SPARE
20 A
Spare fuse
Multiport fuel injection system/
EFI MAIN
19
7.5 A
sequential multiport fuel injection
NO.2*1
system
Smart entry & start system, air con-
20
ECU-B2
10 A
ditioning system, power windows,
gateway ECU
21
D.C.C
SHORT
No circuit
Gauges and meters, sub-battery,
steering sensor, double locking
22
ECU-B
10 A
system, wireless remote control,
smart entry & start system
23
RAD NO.1*2
20 A
Audio system
Luggage compartment light, vanity
24
DOME
10 A
lights, front door courtesy lights,
personal/interior lights, foot lights
25
AM2 NO.2
7.5 A
Starting system
Turn signal lights, emergency
26
TURN-HAZ
10 A
flashers
27
ETCS*2
10 A
Electronic throttle control system
28
AM2
30 A
Starting system
29
STRG LOCK
20 A
Steering lock system
Multiport fuel injection system/
30
IGT/INJ*2
15 A
sequential multiport fuel injection
system
498
VERSO_EE_OM64517E
4-3. Do-it-yourself maintenance
Fuse
Ampere
Circuit
Multiport fuel injection system/
EFI MAIN*2
20 A
sequential multiport fuel injection
31
system, EFI NO.1, EFI NO.2
FUEL PUMP*1
30 A
Fuel pump
32
HORN
15 A
Horn
33
IG2
15 A
IGN, METER
50 A*1
34
HTR SUB NO.1
Air conditioning system
30 A*2
35
HTR*1
50 A
Air conditioning system
36
HTR SUB NO.2
30 A
Air conditioning system
37
HTR SUB NO.3
30 A
Air conditioning system
38
PWR OUTLET
15 A
Power outlet
39
ABS NO.2
30 A
Anti-lock brake system, VSC+
4
40
STV HTR*1
25 A
Power heater
Multiport fuel injection system/
41
EFI NO.4*1
20 A
sequential multiport fuel injection
system
42
IG2 NO.2*2
7.5 A
Starting system
Multiport fuel injection system/
15 A*1
sequential multiport fuel injection
system, Stop & Start system
43
EFI NO.2
Multiport fuel injection system/
10 A*2
sequential multiport fuel injection
system
499
VERSO_EE_OM64517E
4-3. Do-it-yourself maintenance
Fuse
Ampere
Circuit
Multiport fuel injection system/
7.5 A*1
sequential multiport fuel injection
system
44
EFI NO.1
Multiport fuel injection system/
10 A*2
sequential multiport fuel injection
system
Right-hand headlight (high beam)*4,
45
H-LP RH HI
10 A
right-hand headlight solenoid*5
Left-hand headlight (high beam)*4,
46
H-LP LH HI
10 A
left-hand headlight solenoid*5
10 A*4
Right-hand headlight (low beam)
47
H-LP RH LO
Right-hand discharge headlight
15 A*5
(low and high beam)
10 A*4
Left-hand headlight (low beam)
48
H-LP LH LO
Left-hand discharge headlight (low
15 A*5
and high beam)
49
RDI EFI*1
5 A
Electric cooling fan(s)
50
CDS EFI*1
5 A
Electric cooling fan(s)
*1: Vehicles with diesel engine
*2: Vehicles with gasoline engine
*3: Vehicles without smart entry & start system
*4: Vehicles with halogen headlights
*5: Vehicles with discharge headlights
500
VERSO_EE_OM64517E
4-3. Do-it-yourself maintenance

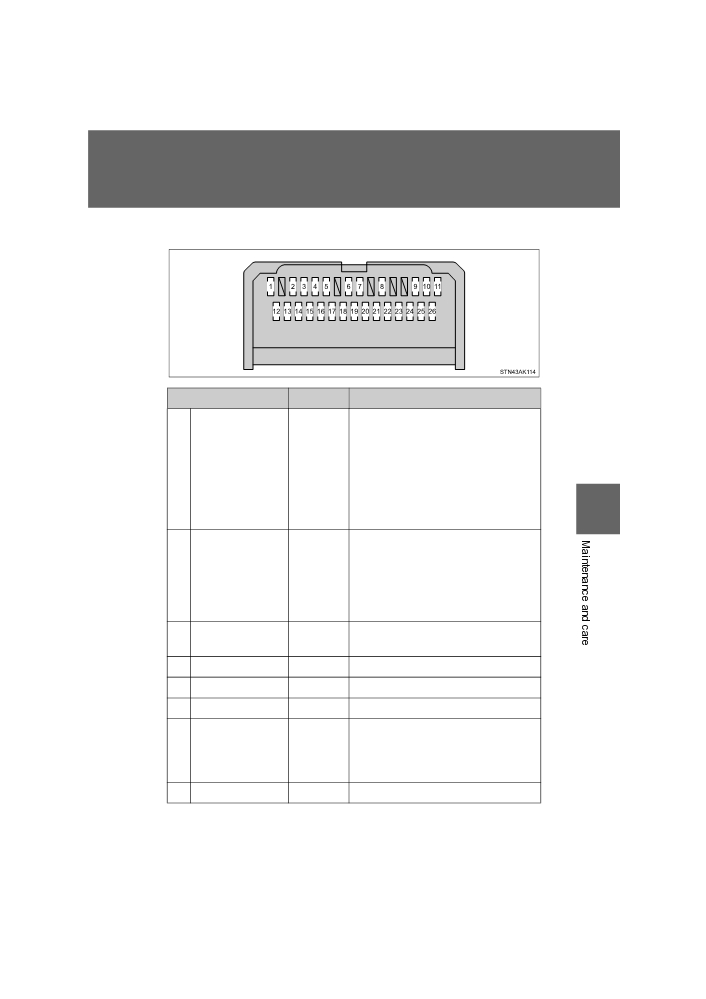

■ Under the instrument panel (type A)
Fuse
Ampere
Circuit
Front position lights, tail lights,
license plate lights, rear fog light,
front fog lights, manual headlight
leveling system, instrument cluster
1
TAIL
10 A
lights, glove box light, switch illumi-
nation, Toyota parking assist-sen-
sor ECU, PCS (Pre-Collision
4
System) switch
Panoramic roof shade, auto anti-
glare inside rear view mirror, smart
entry & start system, audio system,
2
ECU-IG NO.3
10 A
Stop & Start system*1, PCS (Pre-
Collision System), buzzer, gate-
way ECU
Power windows (front passenger
3
FR DOOR
20 A
side)
4
RL DOOR
20 A
Power windows (rear left)
5
RR DOOR
20 A
Power windows (rear right)
6
CIG
15 A
Power outlets
Shift lock system, audio system,
main body ECU, power outlet, out-
7
ACC
7.5 A
side rear view mirrors, Stop & Start
system*1, gateway ECU
8
MIR HTR
10 A
Outside rear view mirror defoggers
501
VERSO_EE_OM64517E
4-3. Do-it-yourself maintenance
Fuse
Ampere
Circuit
9
RR FOG
7.5 A
Rear fog light
Steering lock system, SRS airbag
system, multiport fuel injection sys-
10
IGN
7.5 A
tem/sequential multiport fuel injec-
tion system, starting system,
gateway ECU
Gauges and meters, Stop & Start
11
METER
7.5 A
system*1
12
SEAT HTR
15 A
Seat heaters
Air conditioning system, power
13
HTR-IG
10 A
heater
Windshield wipers, rain-sensing
14
WIPER
25 A
windshield wipers
15
RR WIPER
15 A
Rear window wiper
Windshield washers, rear window
16
WASHER
15 A
washer
Main body ECU*2, electric cooling
fan(s), shift lock system, anti-lock
brake system, steering sensor, yaw
rate sensor, VSC+, headlight
17
ECU-IG NO.1
10 A
cleaners, SEQUENTIAL switch,
automatic headlight leveling sys-
tem, electric power steering, tire
pressure warning system
Back-up light, charging system*2,
emergency flashers, rear window
defogger, “PASSENGER AIRBAG”
18
ECU-IG NO.2
10 A
indicator, air conditioning system,
Toyota parking assist-sensor indi-
cator, Toyota parking assist-sensor
switch, sub-battery
502
VERSO_EE_OM64517E
4-3. Do-it-yourself maintenance
Fuse
Ampere
Circuit
19
OBD
7.5 A
On-board diagnosis system
Stop lights, high mounted stop-
light, anti-lock brake system,
20
STOP
10 A
VSC+, shift lock system, starting
system
21
SUNROOF
20 A
Panoramic roof shade
22
DOOR
25 A
Power door lock system
23
ACC-B
25 A
CIG, ACC
24
DRL
7.5 A
Daytime running lights
25
FR FOG
7.5 A
Front fog lights
26
AM1*3
7.5 A
Starting system
*1: Vehicles with diesel engine
*2: Vehicles with gasoline engine
*3: Vehicles without smart entry & start system
4
503
VERSO_EE_OM64517E
4-3. Do-it-yourself maintenance

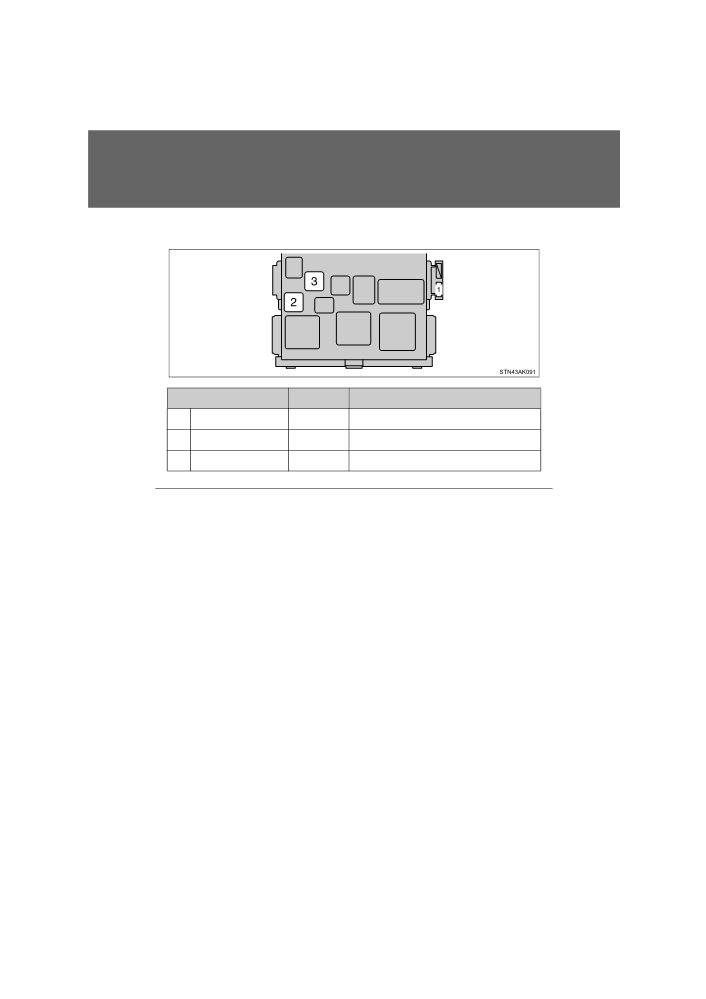

■ Under the instrument panel (type B)
Fuse
Ampere
Circuit
1
WIPER NO.2
7.5 A
Charging system
2
POWER
30 A
Power windows (driver side)
3
DEF
30 A
Rear window defogger, MIR HTR
■ After a fuse is replaced
● If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacement. (P. 506)
●If the replaced fuse blows again, have the vehicle inspected by any
authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
■ If there is an overload in the circuits
The fuses are designed to blow, protecting the wiring harness from damage.
■ When replacing light bulbs
Toyota recommends that you use genuine Toyota products designed for this
vehicle. Because certain bulbs are connected to circuits designed to prevent
overload, non-genuine parts or parts not designed for this vehicle may be
unusable.
504
VERSO_EE_OM64517E
4-3. Do-it-yourself maintenance
WARNING
■ To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage to the vehicle, and possibly a fire or
injury.
●Never use a fuse of a higher amperage rating than indicated, or use any
other object in place of a fuse.
●Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
●Do not modify the fuse or the fuse box.
NOTICE
■ Before replacing fuses
Have the cause of electrical overload determined and repaired by any autho-
4
rized Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional, as soon as possible.
505
VERSO_EE_OM64517E
4-3. Do-it-yourself maintenance

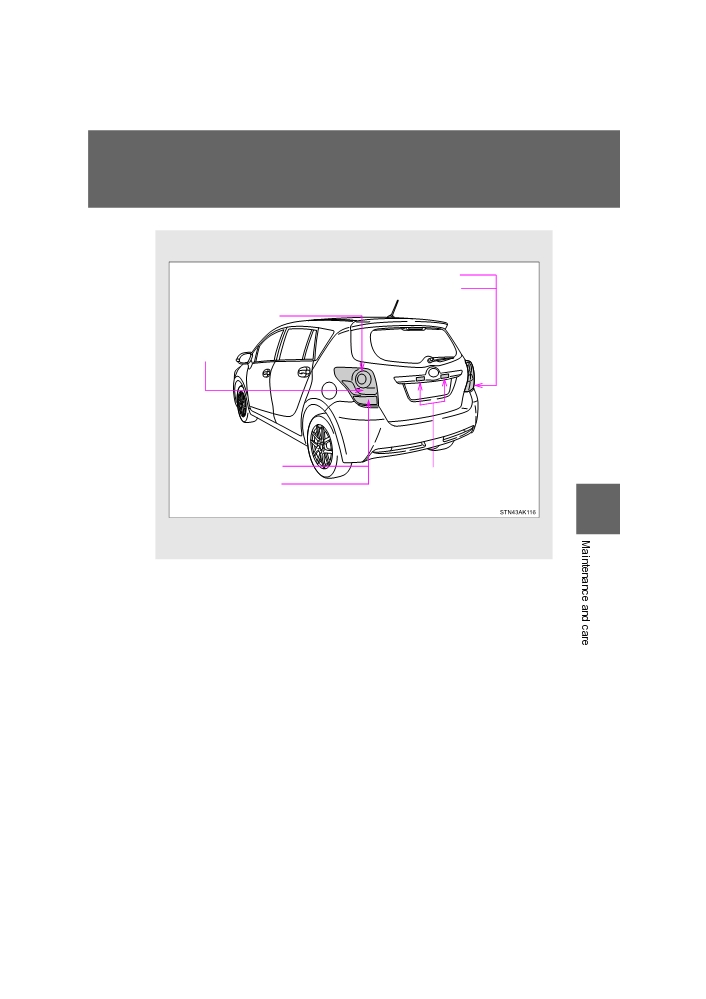

Light bulbs
You may replace the following bulbs yourself. The difficulty level of
replacement varies depending on the bulb. As there is a danger that
components may be damaged, we recommend that replacement is
carried out by any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional.
■ Prepare a replacement light bulb
Check the wattage of the light bulb being replaced. (P. 642)
■ Remove the engine compartment cover
P. 452

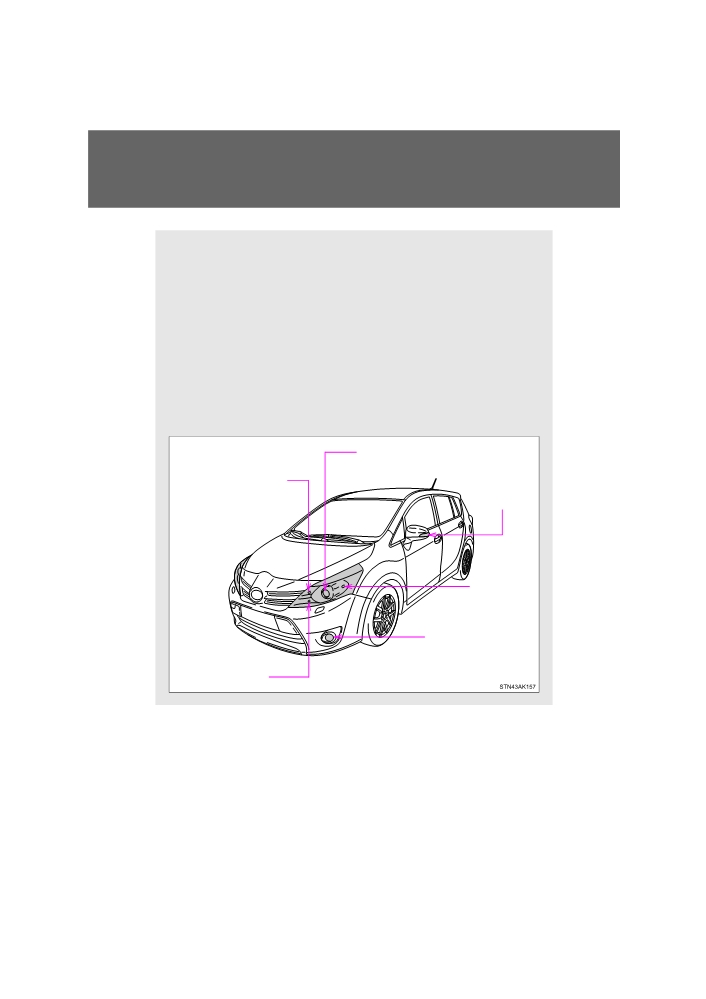

■ Front bulb locations
Front position light/
Headlight low beam
daytime running light
(halogen headlights)
(halogen headlights)
Side turn
signal lights
Front turn
signal light
Front fog light
Headlight high beam
(halogen headlights)
506
VERSO_EE_OM64517E
4-3. Do-it-yourself maintenance
■ Rear bulb locations
Back-up light*1
Rear fog light*2
Tail light
Rear turn
signal light
Rear fog light*1
License plate lights
Back-up light*2
4
*1: Left-hand drive vehicles
*2: Right-hand drive vehicles
507
VERSO_EE_OM64517E
4-3. Do-it-yourself maintenance

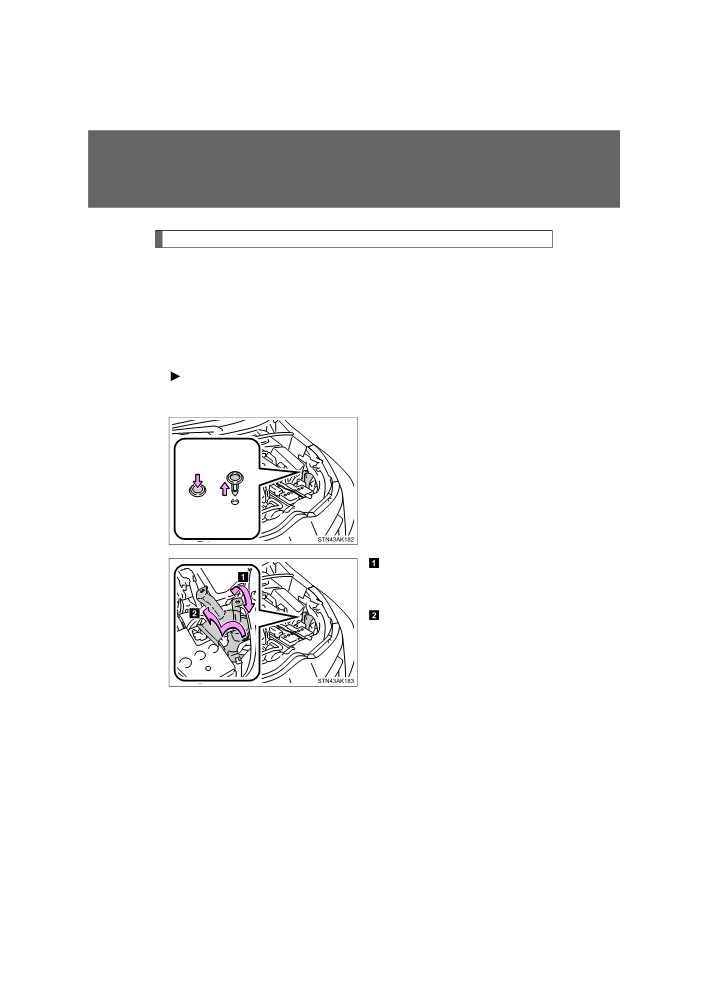

When replacing the light bulbs
■ When replacing the following bulbs:
● Headlight (halogen headlights)
● Front position light/daytime running light (halogen headlights)
● Front turn signal light
■ Before replacing the bulbs
Left side
Remove the upper part of the air cleaner duct.
Remove the securing clip.
Move the upper part of the air
cleaner duct forward and
back.
Remove the duct part while
turning it.
After replacing the bulbs, make
sure to firmly install the upper part
of the air cleaner duct and secure
it with the clip.
508
VERSO_EE_OM64517E
4-3. Do-it-yourself maintenance

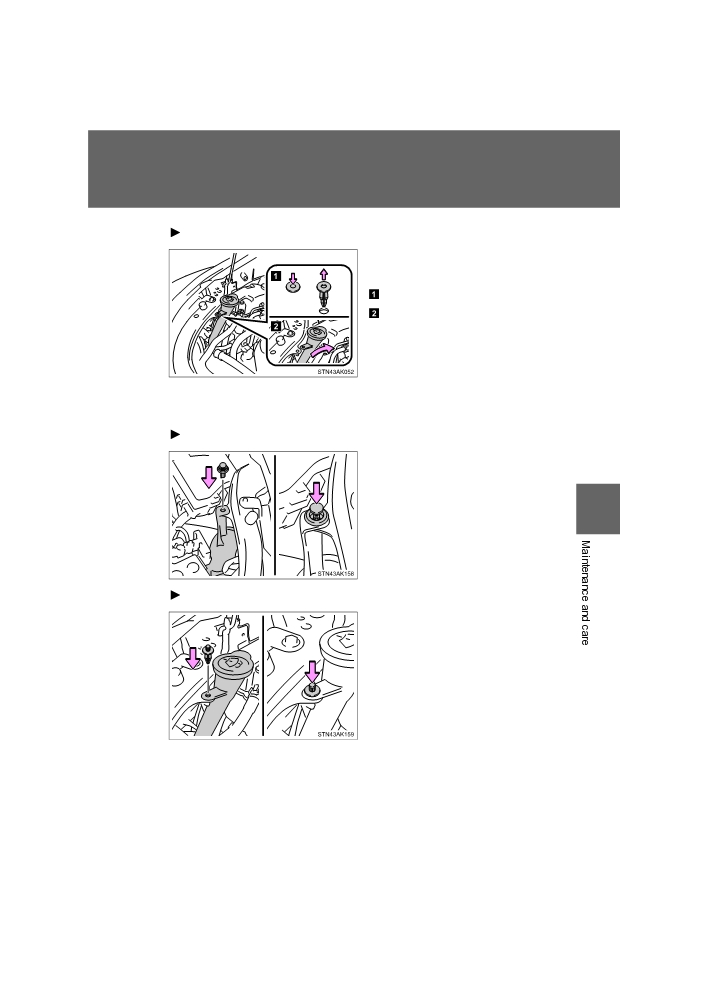

Right side
Move the washer fluid filler open-
ing.
Remove the securing clip.
Move the washer fluid filler
opening.
After replacing the bulbs, make
sure to firmly install the washer
fluid filler opening and secure it
with the clip.
■ After replacing the bulbs
Left side
Make sure to secure the upper
part of the air cleaner duct with
the clip.
4
Right side
Make sure to secure the washer
fluid filler opening with the clip.
509
VERSO_EE_OM64517E
