5-2. Steps to take in an emergency

Warning light

Warning light/Details

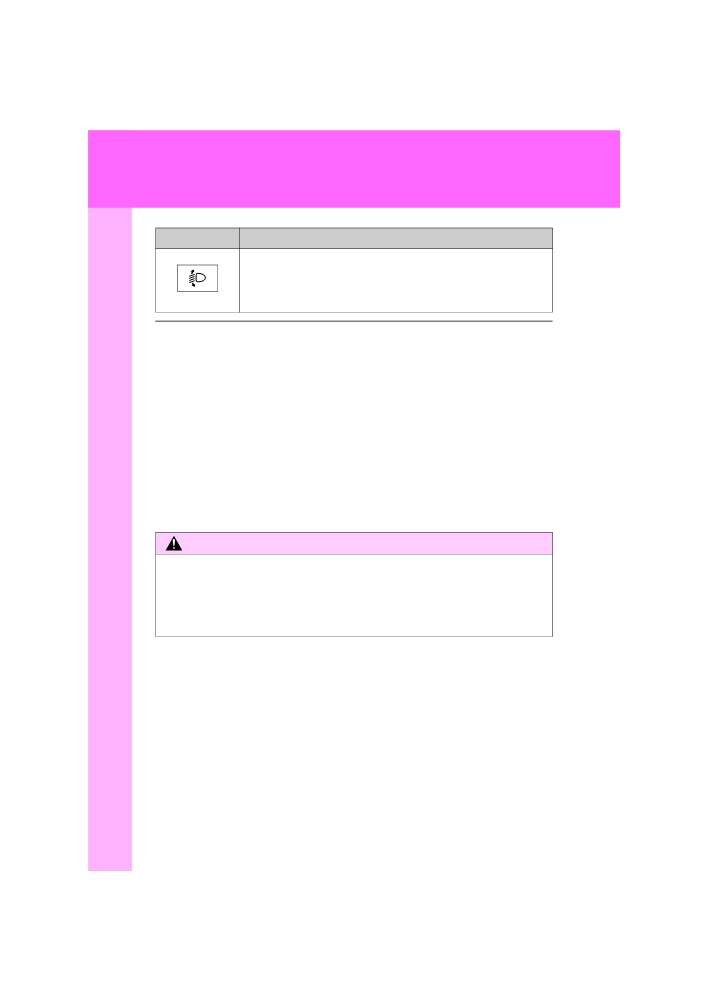

Automatic headlight leveling system warning light

(if equipped)

Indicates a malfunction in the automatic headlight leveling

system.

■ If the malfunction indicator lamp comes on while driving

For some models, the malfunction indicator lamp will come on if the fuel tank

becomes completely empty. If the fuel tank is empty, refuel the vehicle

immediately. The malfunction indicator lamp will go off after several trips.

If the malfunction indicator lamp does not go off, contact any authorized

Toyota dealer or repairer, or another duly qualified and equipped profes-

sional.

■ Electric power steering system warning light (warning buzzer)

When the battery charge becomes insufficient or the voltage temporarily

drops, the electric power steering system warning light may come on and the

warning buzzer may sound.

WARNING

■ When the electric power steering system warning light comes on

The steering wheel may become extremely heavy.

If the steering wheel becomes heavier than usual when operating, hold

firmly and operate it using more force than usual.

544

VERSO_EE_OM64517E

5-2. Steps to take in an emergency

Follow the correction procedures.

After taking the specified steps to correct the suspected problem,

check that the warning light turns off.

Warning light

Warning light/Details

Correction procedure

PCS warning light

(if equipped)

When the warning light

Have the vehicle inspected

flashes (and a buzzer

by any authorized Toyota

sounds):

dealer or repairer, or

Indicates a malfunction in

another duly qualified and

the PCS (Pre-Collision Sys-

equipped professional

tem)

immediately.

When the warning light illu-

minates:

Indicates that the PCS (Pre-

Collision System) is tempo-

rarily unavailable, possibly

• Clear the dirt, fog, conden-

due to either of the follow-

sation, ice, stickers, etc.

ing:

(P. 265)

• The part of the windshield

• Wait for a while until the

5

around the front sensor

area around the front sen-

being dirty, fogged up or

sor has cooled down suffi-

covered with condensation,

ciently.

ice, stickers, etc.

• Front sensor temperature

being outside of its opera-

tional range.

When the warning light is

illuminated:

Either the VSC (Vehicle Sta-

To enable the PCS, enable

bility Control) system or

both the VSC system and

PCS (Pre-Collision System)

PCS. (P. 272, 318)

is disabled or both are dis-

abled.

545

VERSO_EE_OM64517E

5-2. Steps to take in an emergency

Warning light

Warning light/Details

Correction procedure

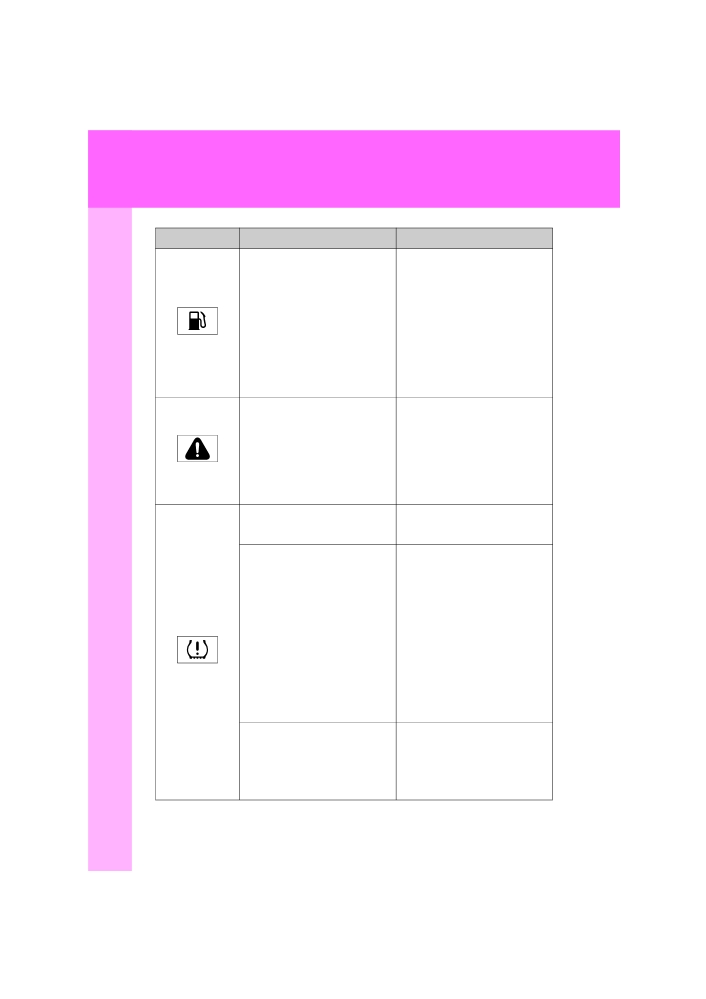

Low fuel level warning

light

Gasoline engine:

Indicates that remaining fuel

is about 9.0 L (2.4 gal.,

Refuel the vehicle.

2.0 Imp.gal.) or less.

Diesel engine:

Indicates that remaining fuel

is about 8.3 L (2.2 gal.,

1.8 Imp.gal.) or less.

Master warning light

A buzzer sounds and the

Take appropriate action in

warning light comes on or

accordance with the mes-

flashes to indicate that the

sage displayed on the multi-

master warning system

information display.

has detected a malfunc-

tion.

Tire pressure warning

light (if equipped)

Adjust the tire inflation pres-

sure to the specified level.

The light will turn off after a

few minutes. In case the

When the light comes on:

light does not turn off even

Low tire inflation pressure

if the tire inflation pressure

such as

is adjusted, have the sys-

• Natural causes (P. 548)

tem checked by any

• Flat tire (P. 566, 583)

authorized Toyota dealer

or repairer, or another duly

qualified and equipped

professional.

When the light comes on

Have the system checked

after blinking for 1 minute:

by any authorized Toyota

Malfunction in the tire pres-

dealer or repairer, or

sure warning system

another duly qualified and

(P. 549)

equipped professional.

546

VERSO_EE_OM64517E

5-2. Steps to take in an emergency

Warning light

Warning light/Details

Correction procedure

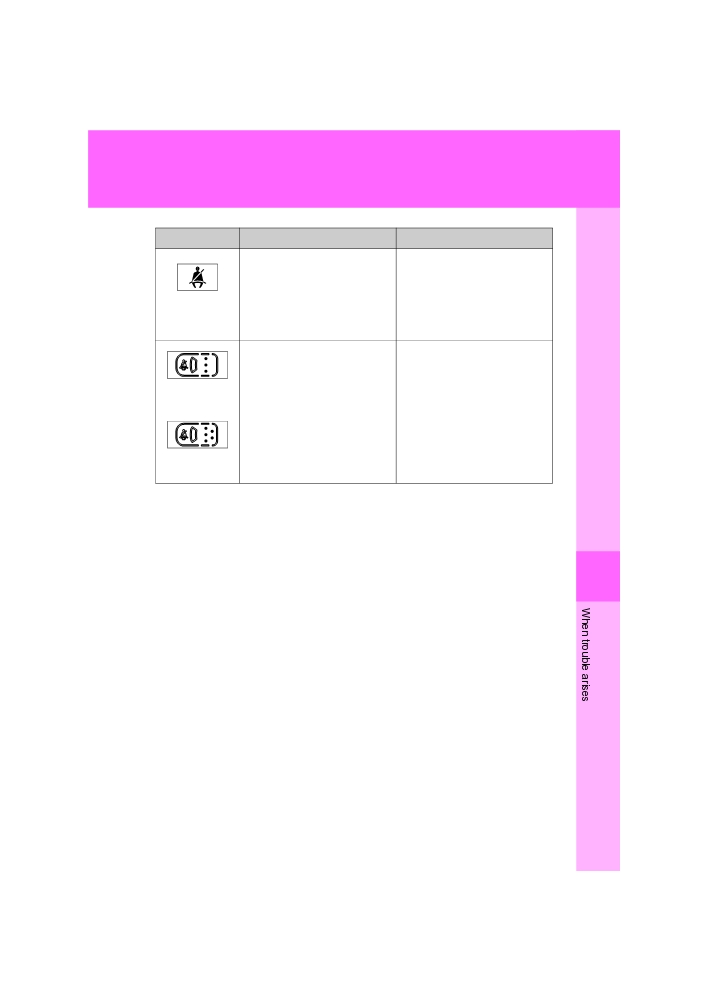

Driver’s and front passen-

ger’s seat belt reminder

light (warning buzzer)*1

Fasten the seat belts.

(On the instru-

Warns the driver and front

ment cluster)

passenger to fasten their

seat belts.

*3

Rear passenger’s seat

(On the center

belt reminder light

panel)

(warning buzzer)*2

Fasten the seat belt.

*4

Warns the rear passenger

to fasten his/her seat belt.

(On the center

panel)

*1: Driver’s and front passenger’s seat belt reminder:

The driver’s and front passenger’s seat belts reminder sounds to alert the

driver and front passenger that their seat belts are not fastened. The buzzer

sounds for 30 seconds after the vehicle has reached a speed of at least

20 km/h (12 mph). Then, if the seat belts are still unfastened, the buzzer will

sound in a different tone for 90 more seconds.

5

*2: Rear passenger’s seat belt reminders:

The rear passenger’s seat belt reminder sounds to alert the rear passenger

that his or her seat belt is not fastened. The buzzer sounds for 30 seconds

after the vehicle has reached a speed of at least 20 km/h (12 mph). Then, if

the seat belt is still unfastened, the buzzer will sound in a different tone for

90 more seconds.

*3: 5-passenger models

*4: 7-passenger models

547

VERSO_EE_OM64517E

5-2. Steps to take in an emergency

■ If the tire pressure warning system is not functioning (vehicles with a

tire pressure warning light system)

The tire pressure warning system will be disabled in the following conditions:

(When the condition becomes normal, the system will work properly.)

● If tires not equipped with tire pressure warning valves and transmitters

are used

● If the ID code on the tire pressure warning valves and transmitters is not

registered in the tire pressure warning computer

● If the tire inflation pressure is 380 kPa (3.9 kgf/cm2 or bar, 55 psi) or

higher

The tire pressure warning system may be disabled in the following condi-

tions:

(When the condition becomes normal, the system will work properly.)

● If electronic devices or facilities using similar radio wave frequencies are

nearby

●If a radio set at a similar frequency is in use in the vehicle

●If a window tint that affects the radio wave signals is installed

●If there is a lot of snow or ice on the vehicle, particularly around the

wheels or wheel housings

● If non-genuine Toyota wheels are used (Even if you use Toyota wheels,

the tire pressure warning system may not work properly with some types

5

of tires.)

● If tire chains are used

■ If the tire pressure warning light frequently comes on after blinking for

1 minute (vehicles with a tire pressure warning light system)

If the tire pressure warning light frequently comes on after blinking for 1 min-

ute when the engine switch (vehicles without smart entry & start system) or

the “ENGINE START STOP” switch (vehicles with smart entry & start sys-

tem) is turned on, have it checked by any authorized Toyota dealer or

repairer, or another duly qualified and equipped professional.

549

VERSO_EE_OM64517E

5-2. Steps to take in an emergency

WARNING

■ If the tire pressure warning light comes on (vehicles with a tire pres-

sure warning light system)

Be sure to observe the following precautions. Failure to do so could cause a

loss of vehicle control and result in death or serious injury.

●Stop your vehicle in a safe place as soon as possible. Adjust the tire infla-

tion pressure immediately.

● If the tire pressure warning light comes on even after tire inflation pressure

adjustment, it is probable that you have a flat tire. Check the tires. If a tire

is flat, change it with the spare tire and have the flat tire repaired by the

nearest any authorized Toyota dealer or repairer, or another duly qualified

and equipped professional.

● Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate, you

could lose control of the steering wheel or the brakes.

■ If a blowout or sudden air leakage should occur (vehicles with a tire

pressure warning light system)

The tire pressure warning system may not activate immediately.

NOTICE

■ To ensure the tire pressure warning system operates properly (vehi-

cles with a tire pressure warning light system)

Do not install tires with different specifications or makers, as the tire pres-

sure warning system may not operate properly.

550

VERSO_EE_OM64517E

5-2. Steps to take in an emergency

If a warning message is displayed

The multi-information display shows warnings of system malfunc-

tions, incorrectly performed operations, or shows messages that

indicate a need for maintenance. When a message is shown, perform

the correction procedure appropriate to the message.

Master warning light

The master warning light

comes on or flashes when a

message is being shown on

the multi-information display.

Multi-information display

If any of the warning messages is shown again after its correction

procedure has been performed, contact any authorized Toyota

dealer or repairer, or another duly qualified and equipped profes-

sional.

Stop the vehicle immediately.

5

The following warnings indicate the possibility of damage to the vehi-

cle that may lead to an accident. Immediately stop the vehicle in a

safe place and contact any authorized Toyota dealer or repairer, or

another duly qualified and equipped professional.

Warning message

Details

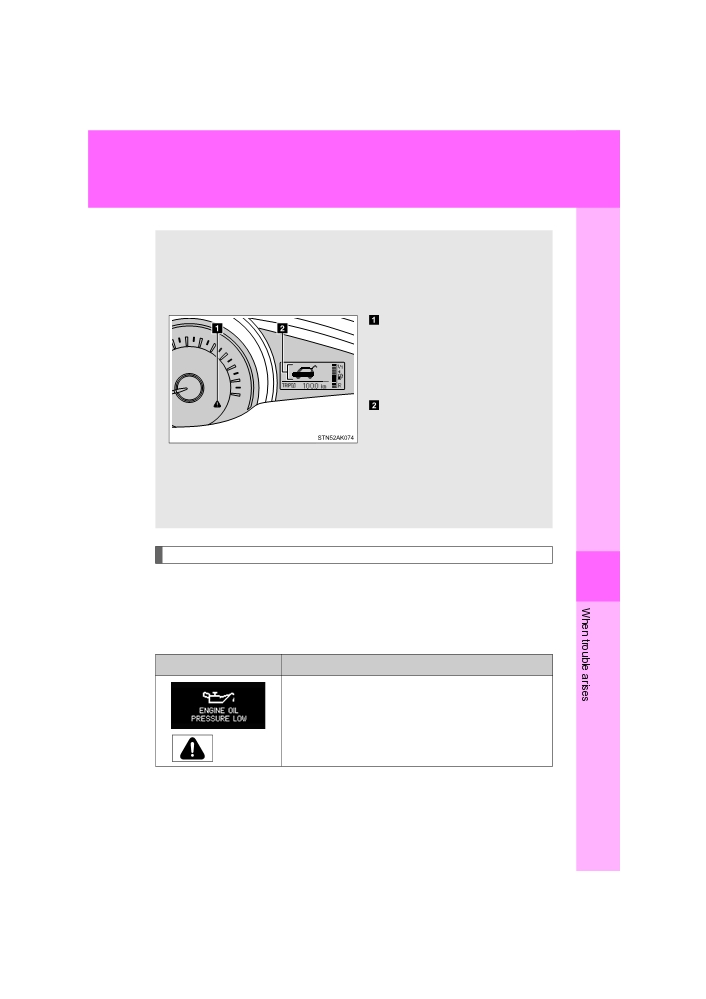

Indicates an abnormal engine oil pressure.

A buzzer also sounds.

The warning light may turn on if the engine oil

pressure is too low.

551

VERSO_EE_OM64517E

5-2. Steps to take in an emergency

Have the vehicle inspected immediately.

Failing to investigate the cause of the following warnings may lead to

the system operating abnormally and possibly cause an accident.

Have the vehicle inspected by any authorized Toyota dealer or

repairer, or another duly qualified and equipped professional, immedi-

ately.

Warning message

Details

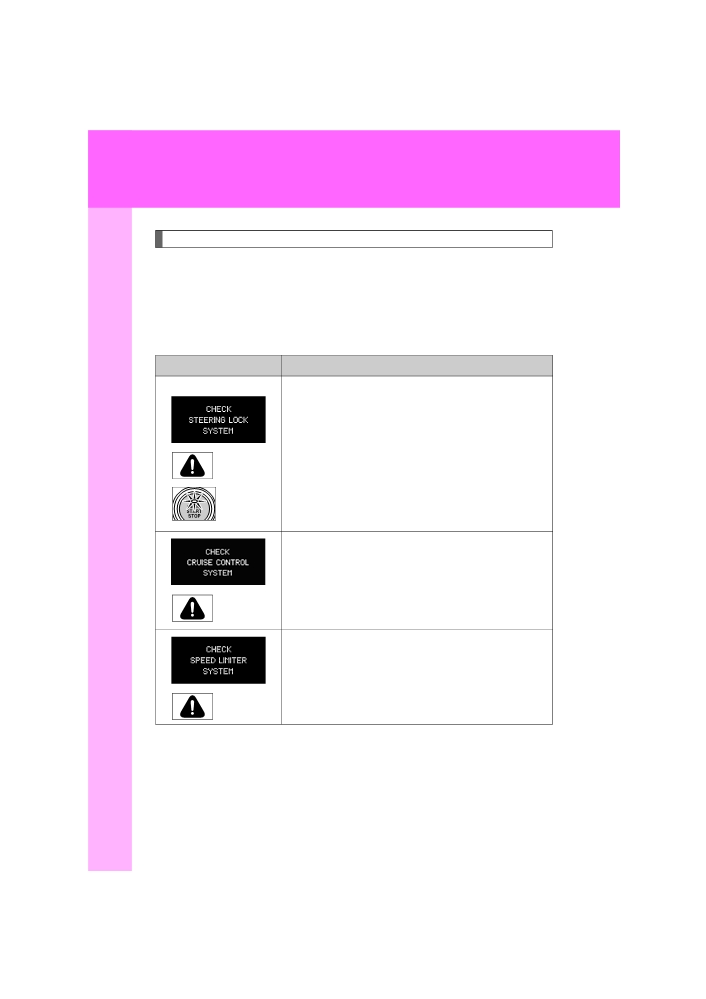

*1

Indicates a malfunction in the steering lock sys-

tem.

A buzzer also sounds.

(Amber

indicator

flashes)

Indicates a malfunction in the cruise control

system. (if equipped)

Press the “ON-OFF” button once to deactivate the

system, and then press the button again to reacti-

vate the system.

Indicates a malfunction in the speed limiter sys-

tem. (if equipped)

A buzzer also sounds.

552

VERSO_EE_OM64517E

5-2. Steps to take in an emergency

Warning message

Details

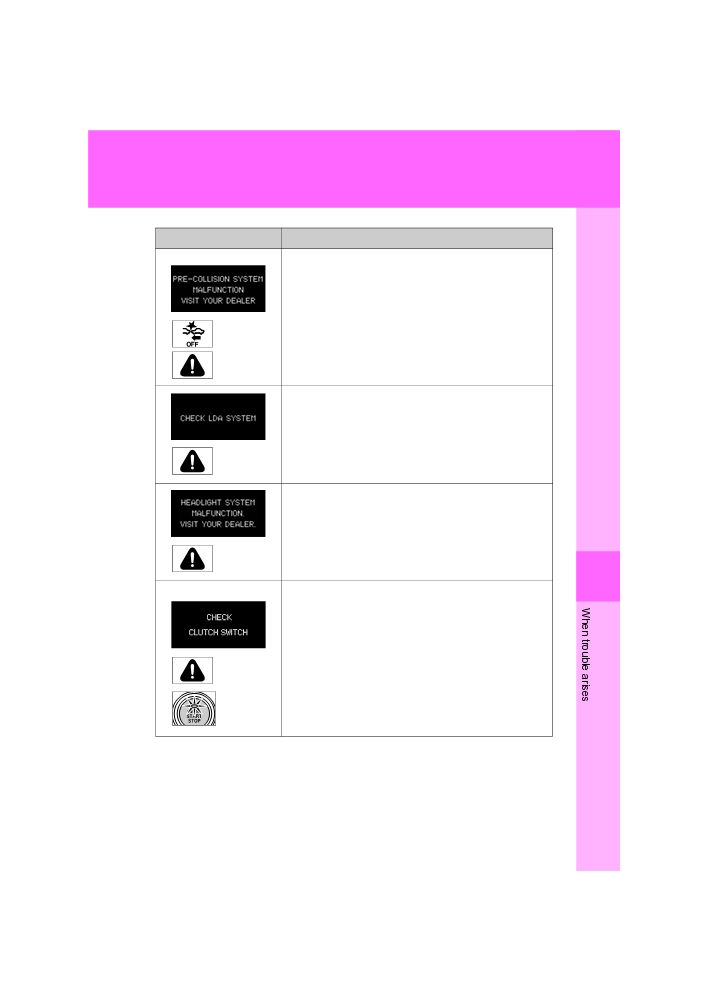

Indicates a malfunction in the PCS (Pre-Colli-

sion System) (if equipped)

A buzzer also sounds.

(Flashes)

Indicates a malfunction in the LDA (Lane Depar-

ture Alert) (if equipped)

A buzzer also sounds.

Indicates a malfunction in the Automatic High

Beam system (if equipped)

A buzzer also sounds.

5

*1

Indicates a malfunction in the clutch start sys-

tem.

A buzzer also sounds.

(Green

indicator

flashes)

553

VERSO_EE_OM64517E

5-2. Steps to take in an emergency

Warning message

Details

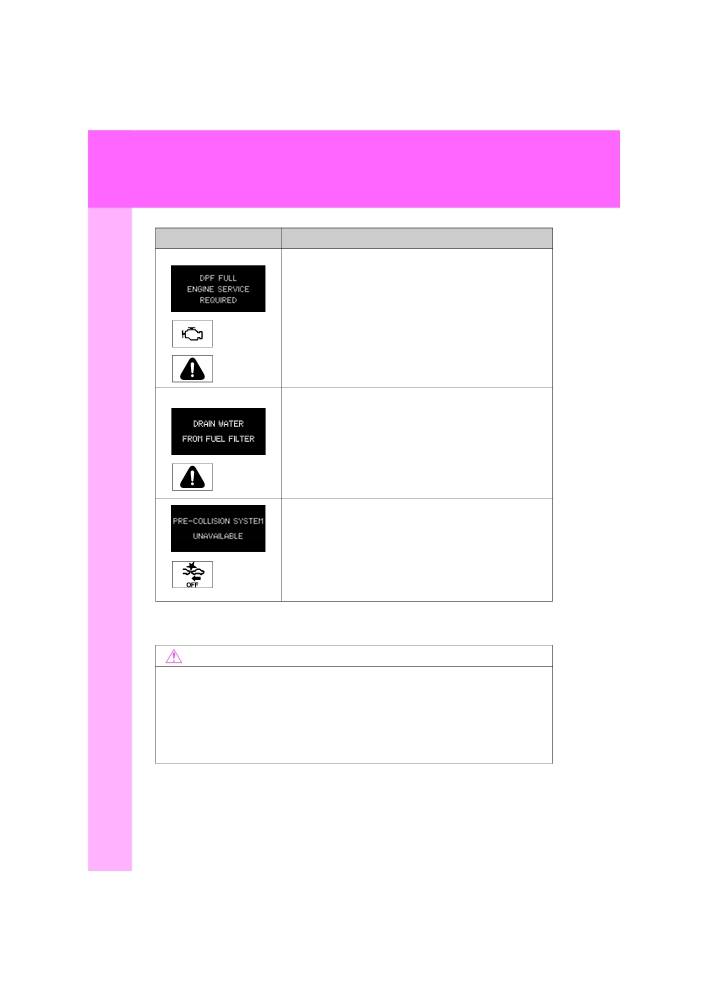

Indicates a malfunction in the DPF system

(Diesel engine only)

*2

Indicates an abnormal amount of water in the

fuel filter.

A buzzer also sounds.

Indicates that the pre-collision system is dis-

abled. (if equipped)

*1: Vehicles with smart entry & start system

*2: Diesel engine only

NOTICE

■ If the “DRAIN WATER FROM FUEL FILTER” warning message is dis-

played

Never drive the vehicle if the warning message is displayed. Continued driv-

ing with water accumulated in the fuel filter will damage the fuel injection

pump.

554

VERSO_EE_OM64517E

5-2. Steps to take in an emergency

Follow the correction procedures.

A buzzer sounds and a warning message is shown on the multi-infor-

mation display. After taking the specified steps to correct the sus-

pected problem, check that the warning light turns off.

Warning message

Details

Correction procedure

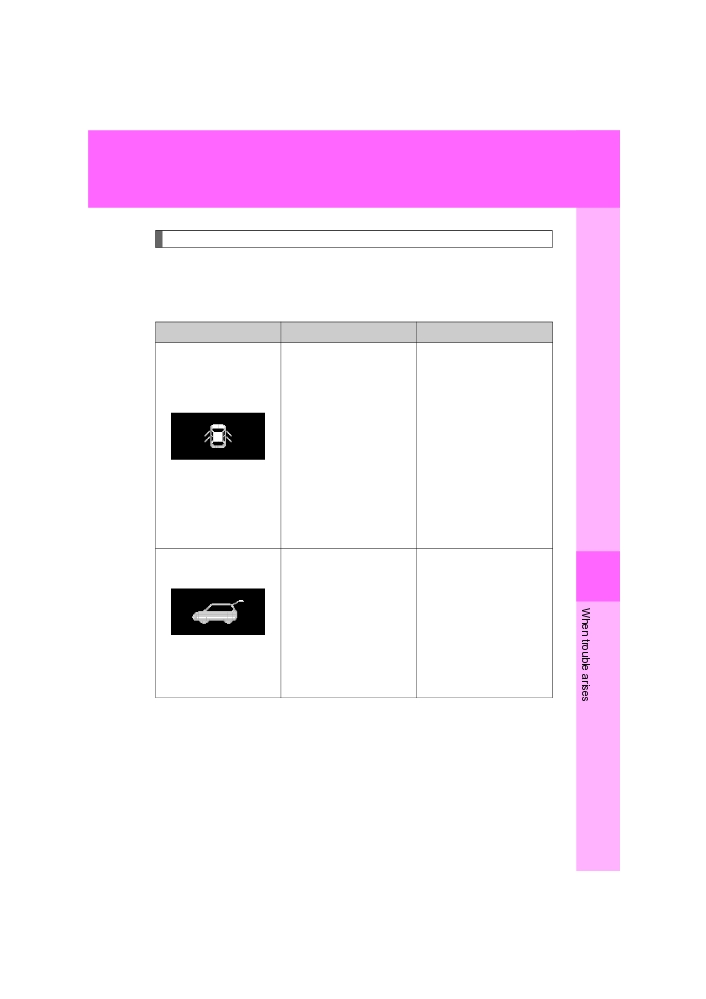

Indicates that one or

more of the side

doors is not fully

closed.

The system also indi-

cates which doors are

not fully closed.

Make sure that all of the

A buzzer sounds to

side doors are closed.

indicate that one or

more of the doors is

not fully closed (with

the vehicle having

reached a speed of

5 km/h [3 mph]).

Indicates that the

back door is not fully

5

closed.

A buzzer sounds to

indicate that one or

Close the back door.

more of the doors is

not fully closed (with

the vehicle having

reached a speed of

5 km/h [3 mph]).

555

VERSO_EE_OM64517E

5-2. Steps to take in an emergency

Warning message

Details

Correction procedure

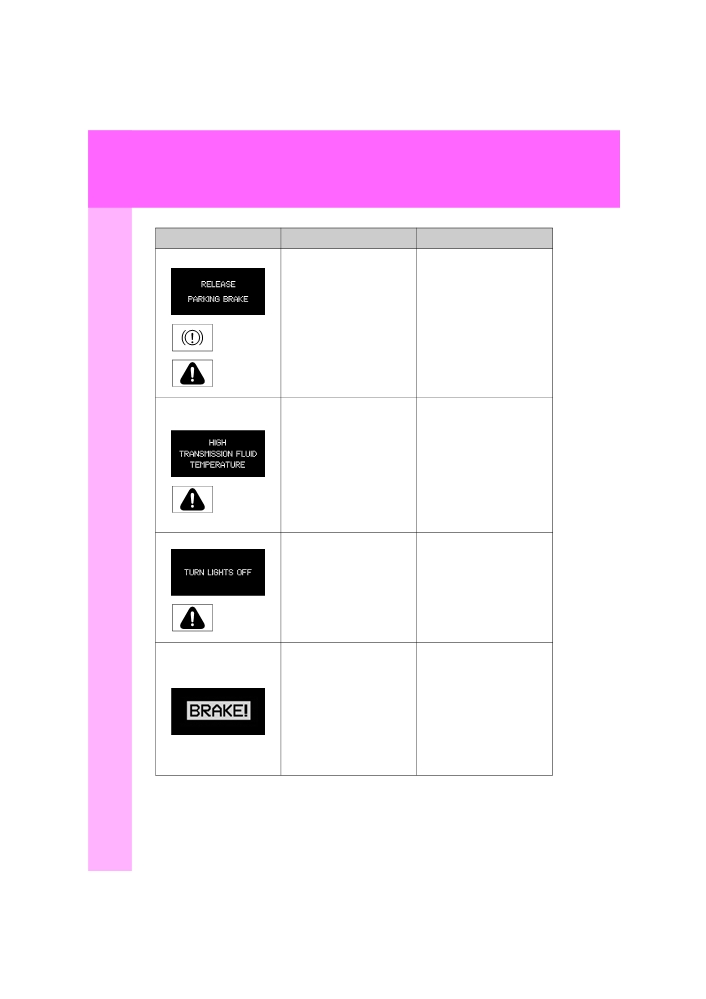

Indicates that the

parking brake is still

engaged.

A buzzer sounds to

indicate that parking

Release the parking

brake is still engaged

brake.

(with the vehicle hav-

ing reached a speed

(Flashes)

of more than 5 km/h

[3 mph]).

Stop the vehicle in a

*1

safe place and shift

lever to “P”.

Indicates that the Mul-

If the light does not go

tidrive fluid tempera-

off, contact any autho-

ture is too high.

rized Toyota dealer or

A buzzer also sounds.

repairer, or another duly

qualified and equipped

professional.

Indicates that the

headlight switch is left

on (with the key

Turn the headlight

removed and the

switch off.

driver’s door opened).

(Flashes)

A buzzer also sounds.

Indicates that:

• There is a high possi-

*2

bility of a frontal colli-

sion; or

Check the vehicle’s sur-

roundings and take eva-

• The pre-collision

sive action if necessary.

braking function is

operating

A buzzer also sounds.

556

VERSO_EE_OM64517E

5-2. Steps to take in an emergency

Warning message

Details

Correction procedure

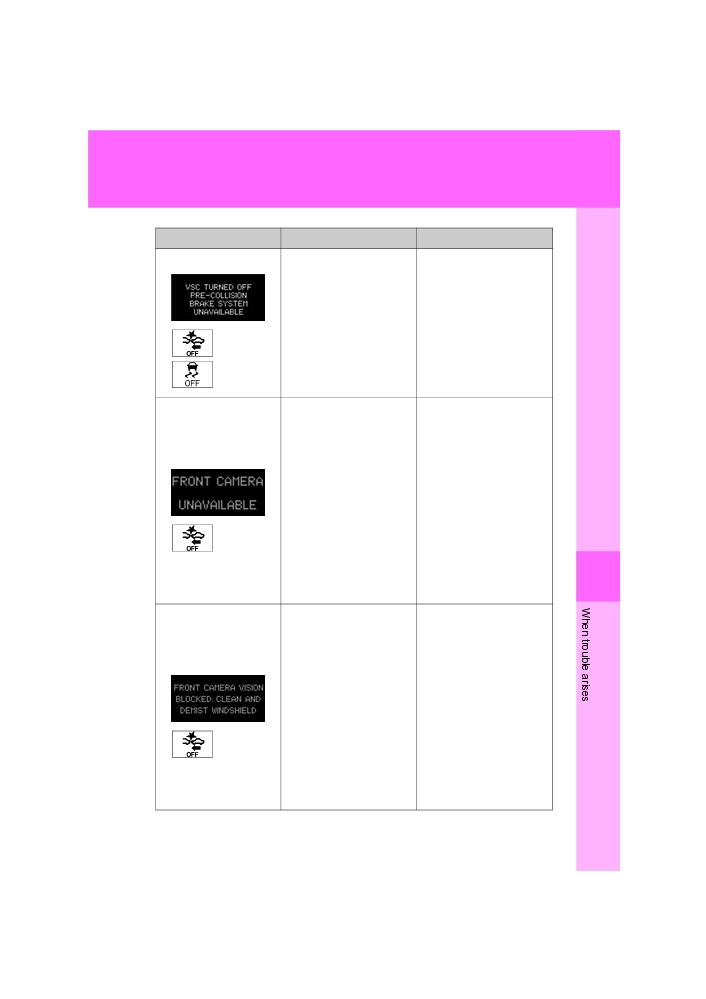

Indicates that, since

*2

the VSC (Vehicle Sta-

bility Control) system

was turned off, the

pre-collision braking

Turn the VSC on.

and pre-collision

(P. 282318)

brake assist are dis-

abled (The pre-colli-

sion warning function

will be operational)

The system is tempo-

rarily canceled

because the operating

The system can be

conditions of the front

operated when the

sensor (temperature,

operating conditions of

etc.) are not met.

the front sensor (tem-

The following systems

perature, etc.) are met.

may be suspended:

Turn the system off,

• PCS (Pre-Collision

wait for a while, and

System) (if equipped).

then turn the system

• LDA (Lane Departure

back on.

Alert) (if equipped);

• Automatic High Beam

5

(if equipped)

The area of the wind-

shield in front of the

front sensor is fogged

up or covered with

dirt, rain, ice, snow,

Turn the system off,

etc.

clear the windshield of

The following systems

dirt, fog, ice, etc. then

may be suspended:

turn the system back

• PCS (Pre-Collision

on. (P. 265)

System) (if equipped).

• LDA (Lane Departure

Alert) (if equipped);

• Automatic High Beam

(if equipped)

557

VERSO_EE_OM64517E

5-2. Steps to take in an emergency

Warning message

Details

Correction procedure

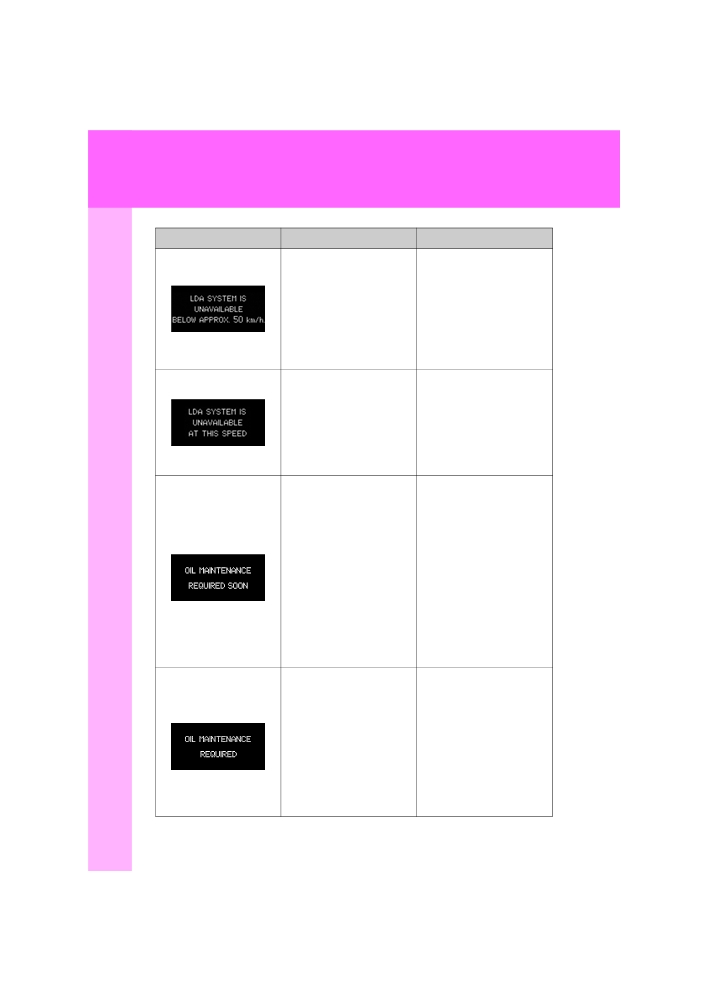

Indicates that the LDA

(Lane Departure Alert)

system cannot be

Drive the vehicle at

used because the

approximately 50 km/h

vehicle speed is lower

(32 mph) or higher.

than approximately

50 km/h (32 mph) (if

equipped).

Indicates that the LDA

(Lane Departure Alert)

system cannot be

Drive the vehicle while

used because the

lowering the vehicle

vehicle speed is out-

speed.

side of the operational

range (if equipped).

Check the level of

engine oil, and add if

necessary.

Indicates that engine

If necessary, have the

oil is scheduled to be

engine oil changed by

*3

changed. (The indica-

any authorized Toyota

tor will not work prop-

dealer or repairer, or

erly unless the oil

another duly qualified

maintenance data has

and equipped profes-

been reset.)

sional. After changing

the engine oil, the oil

change system should

be reset.

Check and have the

engine oil and oil filter

Indicates that the

changed by any autho-

*3

engine oil scheduled

rized Toyota dealer or

be changed. (After the

repairer, or another duly

engine oil is changed

qualified and equipped

and the oil mainte-

professional. After

nance data has been

changing the engine oil,

reset.)

the oil change system

should be reset.

558

VERSO_EE_OM64517E

5-2. Steps to take in an emergency

Warning message

Details

Correction procedure

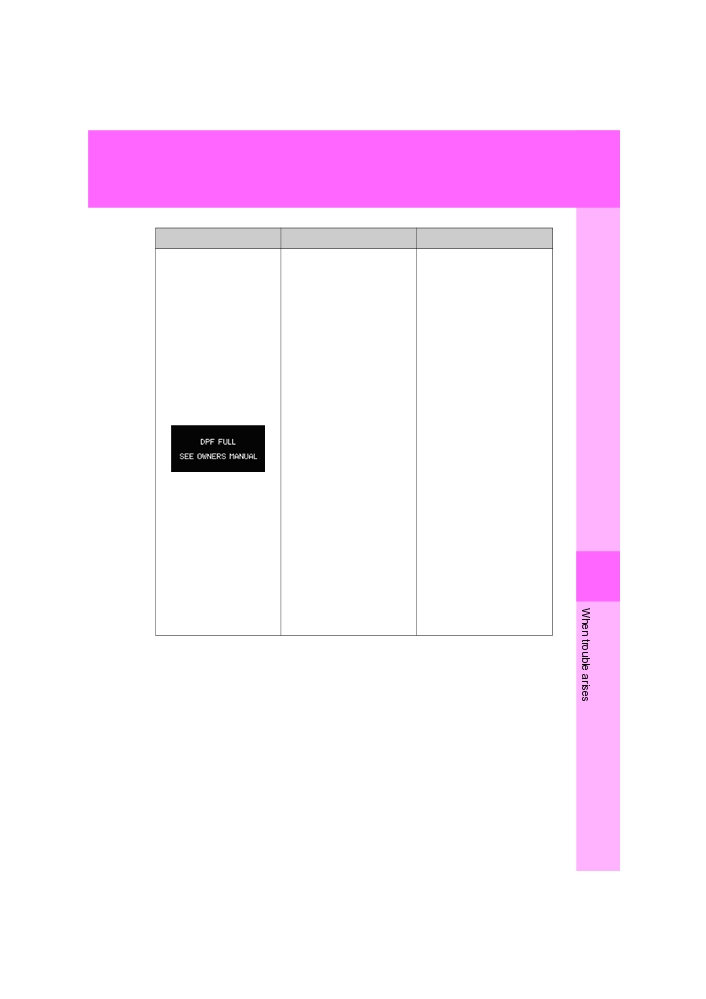

To clean the DPF cata-

lytic converter, drive the

vehicle at a speed of

65 km/h (40 mph) or

greater for 20 to 30 min-

utes as much as possi-

ble until the warning

• Indicates that the DPF

message turns off.

catalytic converter

Do not turn off the

needs to be cleaned

engine as much as pos-

due to repeated short

sible until the warning

*3

trips and/or low-speed

message turns off.

driving.

If it is not possible to

• Indicates that the

drive the vehicle at

amount of accumu-

speeds of 65 km/h

lated deposits in the

(40 mph) or greater, or

DPF catalytic con-

the DPF system warn-

verter has reached the

ing light does not turn

specified level.

off even after driving for

more than 30 minutes,

have the vehicle

inspected by any autho-

5

rized Toyota dealer or

repairer, or another duly

qualified and equipped

professional.

*

1: Vehicles with a Multidrive

*2: Vehicles with PCS (Pre-Collision System)

*3: Diesel engine only

559

VERSO_EE_OM64517E

5-2. Steps to take in an emergency

Follow the correction procedures. (vehicles with smart entry & start system)

After taking the specified steps to correct the suspected problem,

check that the warning light turns off.

Interior

Exterior

Correction

Warning message

Details

buzzer

buzzer

procedure

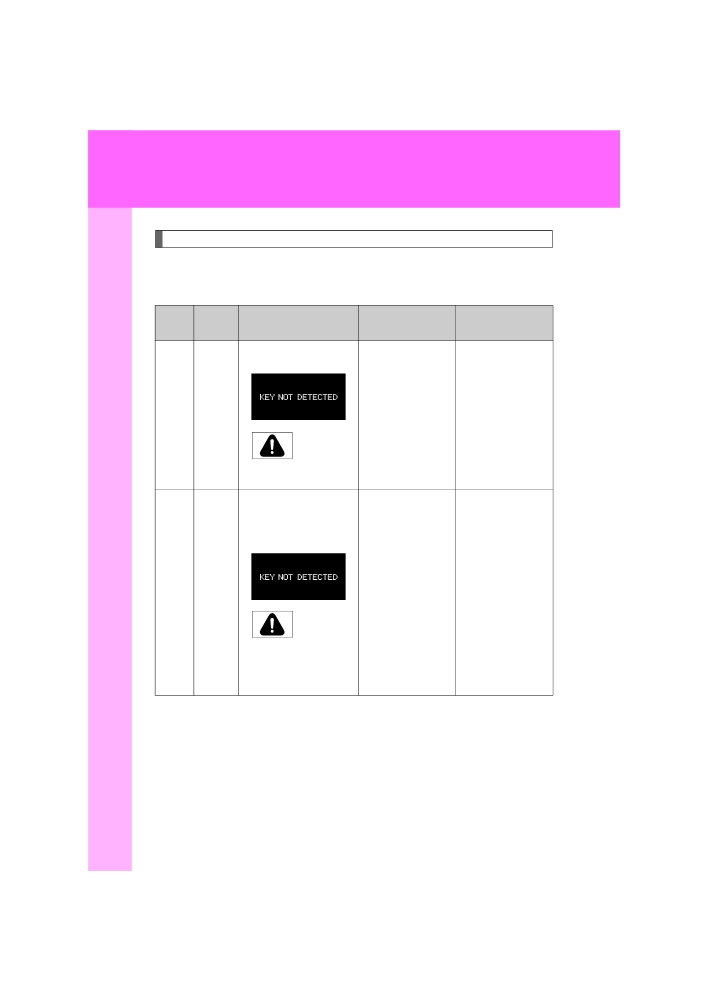

Indicates that

an attempt was

made to start

the engine with-

Confirm the

out the elec-

Once



location of the

tronic key being

electronic key.

present, or the

(Flashes)

electronic key

was not func-

tioning normally.

Indicates that a

door other than

the driver’s door

has been

opened or

closed with the

Confirm the

“ENGINE

Once

3 times

location of the

START STOP”

electronic key.

switch in any

(Flashes)

mode other

than off and the

electronic key

outside of the

detection area.

560

VERSO_EE_OM64517E

Content   ..  31  32  33  34   ..
