Toyota Verso (2017 year). Instruction - part 16

2-3. Operating the lights and wipers

Windshield wipers and washer

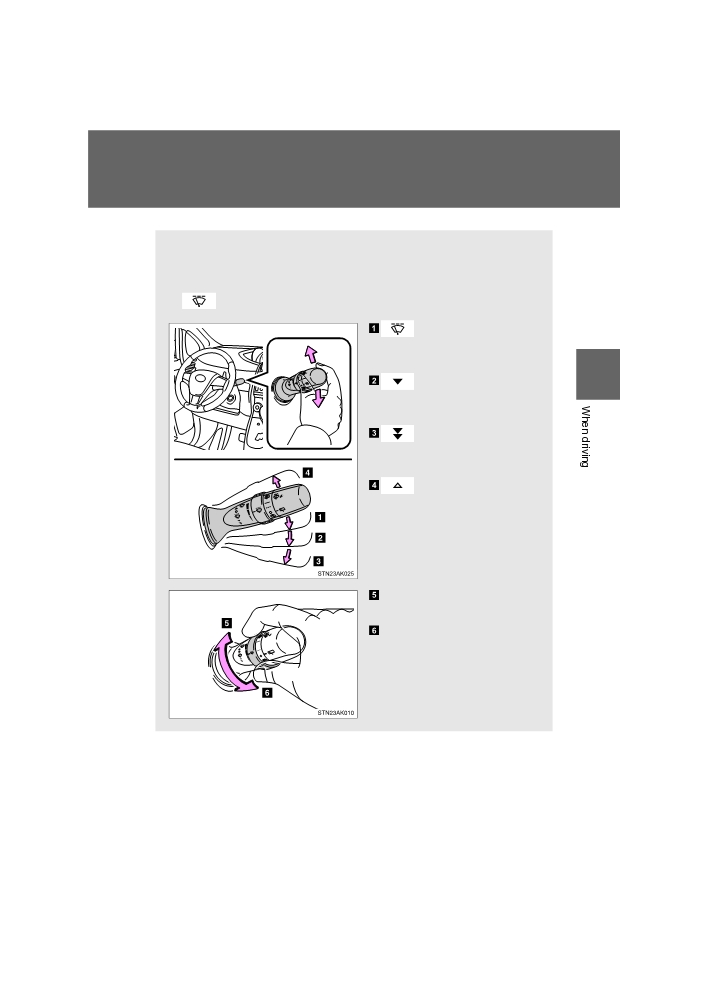

■ Intermittent windshield wipers with interval adjuster

(if

equipped)

Wiper intervals can be adjusted for intermittent operation (when

is selected).

Intermittent

wind-

shield wiper opera-

tion

2

Low speed wind-

shield wiper opera-

tion

High speed wind-

shield wiper opera-

tion

Temporary operation

Increases the intermittent

windshield wiper frequency

Decreases the intermittent

windshield wiper frequency

255

VERSO_EE_OM64517E

2-3. Operating the lights and wipers

Wash/wipe operation

Wipers operate automati-

cally.

Vehicles with headlight clean-

ers: P. 258

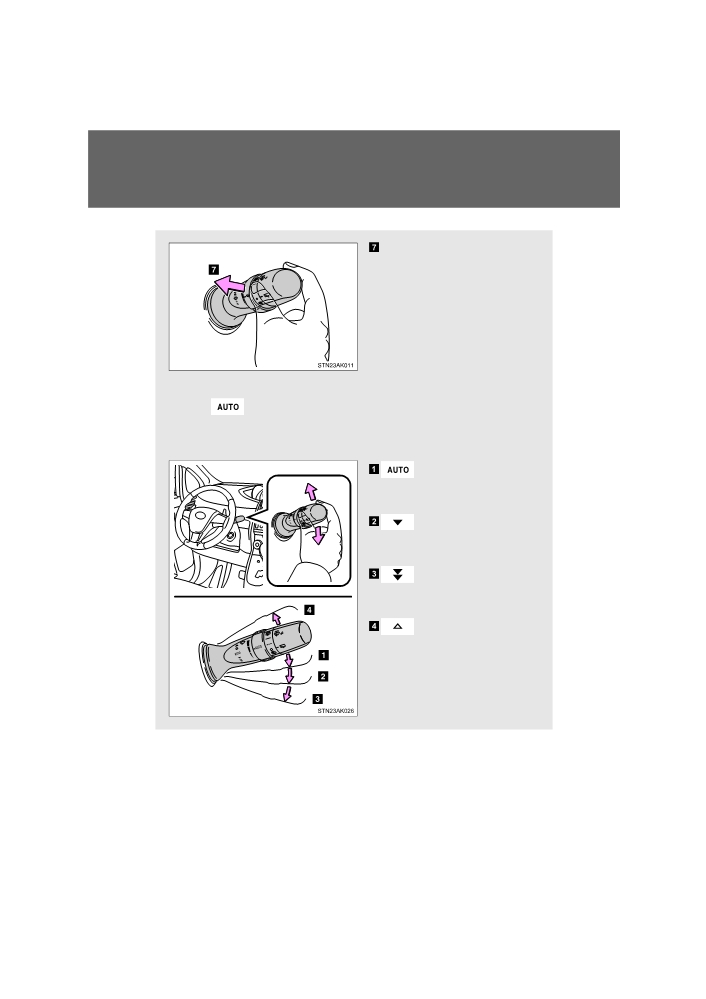

■ Rain-sensing windshield wipers (if equipped)

With

selected, the wipers will operate automatically when

the sensor detects falling rain. The system automatically adjusts

wiper timing in accordance with rain volume.

Rain-sensing wind-

shield wiper opera-

tion

Low speed wind-

shield wiper opera-

tion

High speed wind-

shield wiper opera-

tion

Temporary operation

256

VERSO_EE_OM64517E

2-3. Operating the lights and wipers

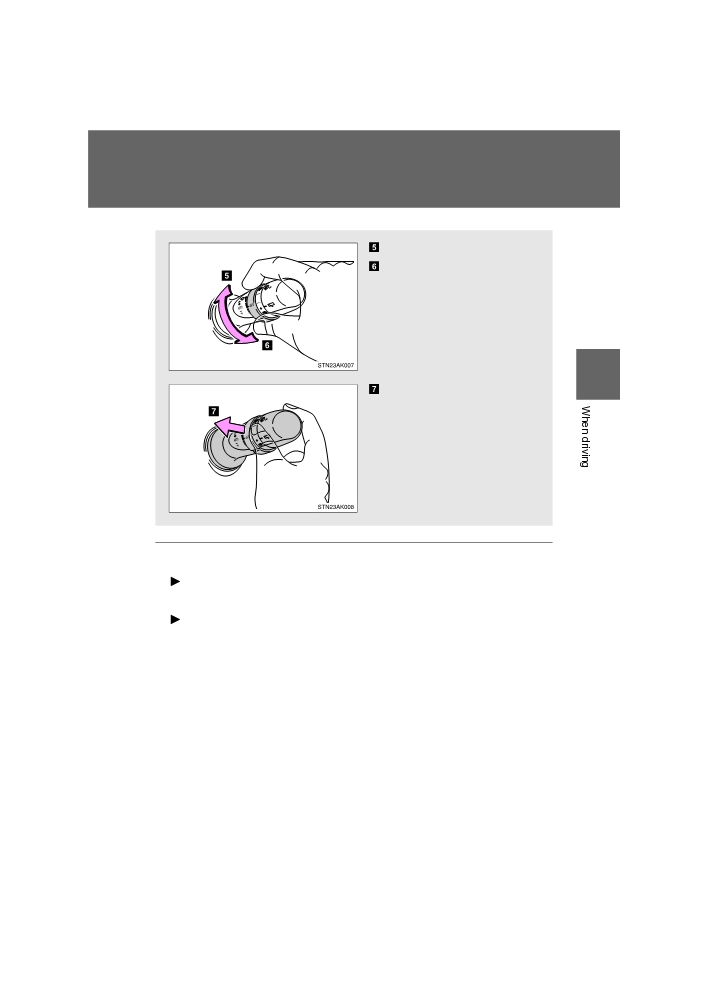

Sensor sensitivity (high)

Sensor sensitivity (low)

2

Wash/wipe operation

Wipers operate automati-

cally.

Vehicles with headlight clean-

ers: P. 258

■ The windshield wipers and washer can be operated when

Vehicles without smart entry & start system

The engine switch is in the “ON” position.

Vehicles with smart entry & start system

The “ENGINE START STOP” switch is in IGNITION ON mode.

257

VERSO_EE_OM64517E

2-3. Operating the lights and wipers

■ The headlight cleaners operation (if equipped)

Vehicles without smart entry & start system

When the windshield washer is operated with the engine switch in the

“ON” position and the headlights turned on, the headlight cleaners will

operate once. (Afterwards, the headlight cleaners operate automatically

once for every 5 times the windshield washer is operated.)

To operate the headlight cleaners again, pull back the washer lever 5

times.

(If the headlights are turned off and then on again, and then the wind-

shield washer is operated, the headlight cleaners will operate once.)

Vehicles with smart entry & start system

When the windshield washer is operated with the “ENGINE START

STOP” switch in IGNITION ON mode and the headlights turned on, the

headlight cleaners will operate once. (Afterwards, the headlight cleaners

operate automatically once for every 5 times the windshield washer is

operated.)

To operate the headlight cleaners again, pull back the washer lever 5

times.

(If the headlights are turned off and then on again, and then the wind-

shield washer is operated, the headlight cleaners will operate once.)

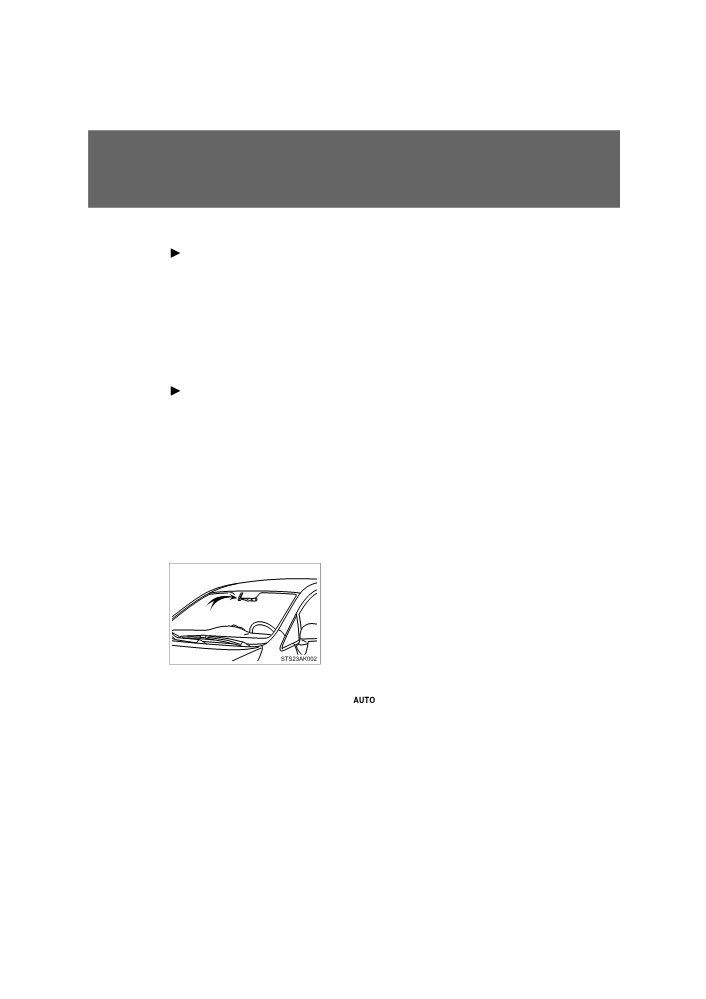

■ Rain drop sensor (vehicles with rain-sensing windshield wipers)

● The raindrop sensor judges the amount

of raindrops.

● Vehicles without smart entry & start system:

If the wiper switch is turned to the

position while the engine switch is

in the “ON” position, the wiper will operate once to show that AUTO mode

is activated.

If the wiper sensitivity is adjusted to higher, the wiper may operate once to

indicate the change of sensitivity.

258

VERSO_EE_OM64517E

2-3. Operating the lights and wipers

● Vehicles with smart entry & start system:

If the wiper switch is turned to the

position while the “ENGINE

START STOP” switch is in IGNITION ON mode, the wiper will operate

once to show that AUTO mode is activated.

If the wiper sensitivity is adjusted to higher, the wiper may operate once to

indicate the change of sensitivity.

● If the temperature of the raindrop sensor is 85°C (185°F) or higher, or

-40°C (-40°F) or lower, automatic operation may not occur. In this case,

operate the wipers in any mode other than AUTO.

2

■ If no windshield washer fluid sprays

Check that the washer nozzles are not blocked and if there is washer fluid in

the windshield washer fluid reservoir.

WARNING

■ Caution regarding the use of windshield wipers in AUTO mode

The windshield wipers may operate unexpectedly if the sensor is touched or

the windshield is subject to vibration in AUTO mode. Take care that your fin-

gers or anything else do not become caught in the windshield wipers.

■ Caution regarding the use of washer fluid

When it is cold, do not use the washer fluid until the windshield becomes

warm. The fluid may freeze on the windshield and cause low visibility. This

may lead to an accident, resulting in death or serious injury.

NOTICE

■ When the windshield is dry

Do not use the wipers, as they may damage the windshield.

■ When the washer fluid tank is empty

Do not use the washer when the washer fluid tank is empty. This may cause

the washer fluid pump to overheat.

■ When there is no windshield washer fluid spray from the nozzle

Damage to the washer fluid pump may be caused if the lever is pulled

toward you and held continually.

259

VERSO_EE_OM64517E

2-3. Operating the lights and wipers

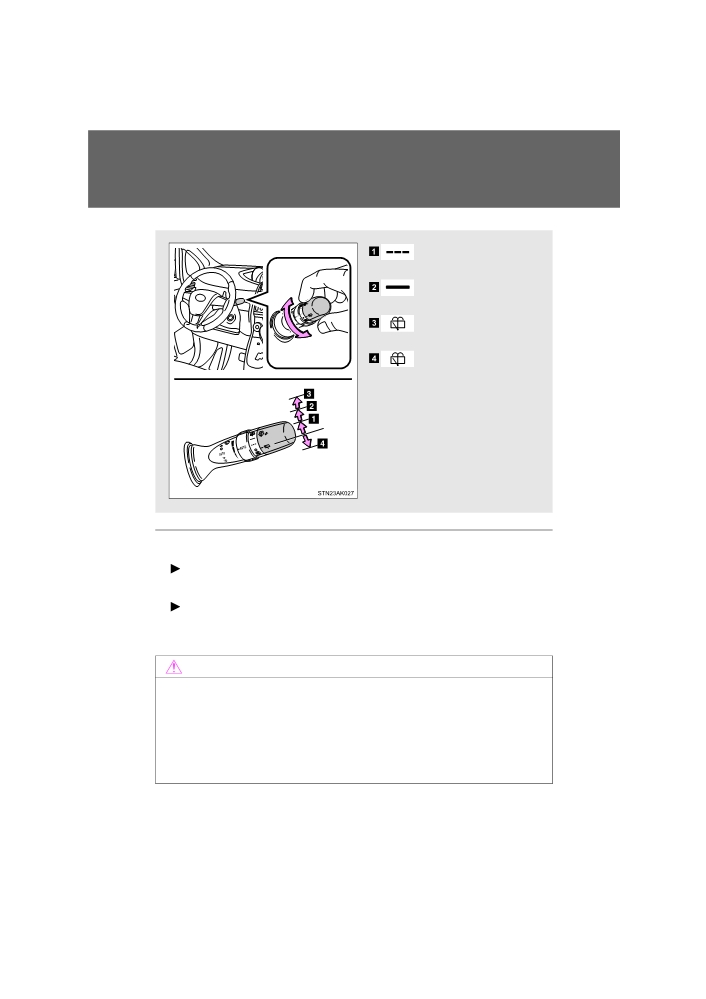

Rear window wiper and washer

Intermittent window

wiper operation

Normal window wiper

operation

Washer/wiper dual

operation

Washer/wiper dual

operation

■ The rear window wiper and washer can be operated when

Vehicles without smart entry & start system

The engine switch is in the “ON” position.

Vehicles with smart entry & start system

The “ENGINE START STOP” switch is in IGNITION ON mode.

NOTICE

■ When the rear window is dry

Do not use the wipers, as they may damage the rear window.

■ When the washer fluid tank is empty

Do not use the washer when the washer fluid tank is empty. This may cause

the washer fluid pump to overheat.

260

VERSO_EE_OM64517E

2-4. Toyota Safety Sense

Toyota Safety Sense

The Toyota Safety Sense consists of the following drive assist sys-

tems and contributes to a safe and comfortable driving experience:

■ PCS (Pre-Collision System)

P. 268

■ LDA (Lane Departure Alert)

P. 283

■ Automatic High Beam

2

P. 288

WARNING

■ Toyota Safety Sense

The Toyota Safety Sense is designed to operate under the assumption that

the driver will drive safely, and is designed to help reduce the impact to the

occupants and the vehicle in the case of a collision or assist the driver in nor-

mal driving conditions.

As there is a limit to the degree of recognition accuracy and control perfor-

mance that this system can provide, do not overly rely on this system. The

driver is always responsible for paying attention to the vehicle's surround-

ings and driving safely.

: If equipped

261

VERSO_EE_OM64517E

2-4. Toyota Safety Sense

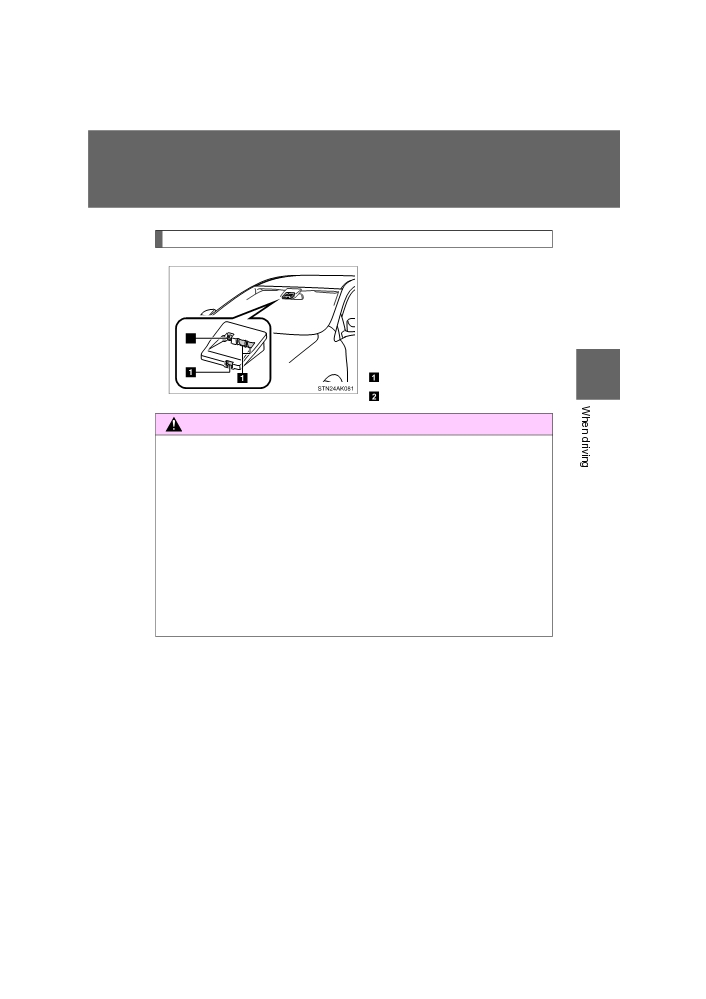

Front sensor

The front sensor is located on

the upper side of the windshield.

It consists of 2 types of sensors,

each of which detects informa-

2

tion necessary to operate the

drive assist systems.

2

Laser sensors

Monocular camera sensor

WARNING

■ Front sensor

The front sensor uses lasers to detect vehicles ahead of your vehicle. The

front sensor is classified as class 1M laser product according to the IEC

60825-1 standard. Under normal usage conditions, these lasers are not harm-

ful to the naked eye. However, it is necessary to observe the following precau-

tions.

Failure to do so may result in the loss of eyesight or severe visual impairment.

● To avoid hazardous laser radiation exposure, never attempt to disassem-

ble the front sensor (e.g. remove the lenses). When disassembled, the

front sensor is classified as a class 3B laser product according to the IEC

60825-1 standard. Class 3B lasers are hazardous and pose a risk of eye

injury under direct exposure.

263

VERSO_EE_OM64517E

2-4. Toyota Safety Sense

WARNING

●Do not attempt to look into the front sensor with a magnifying glass, micro-

scope or other optical instrument within a distance of less than 100 mm

(3.9 in.).

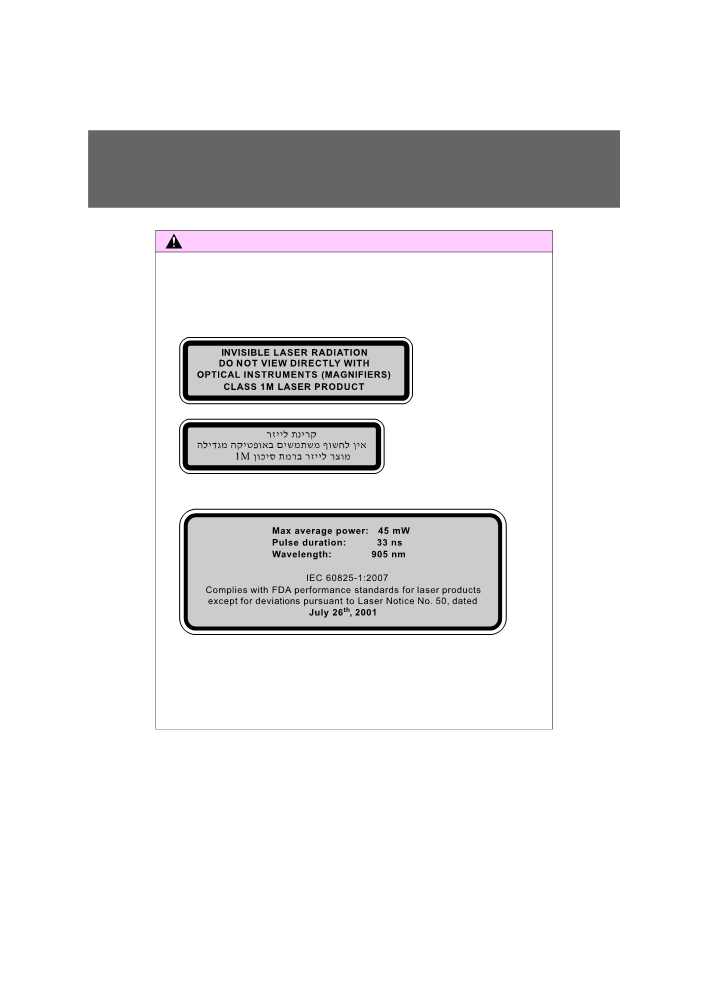

Laser classification label

Laser explanatory label

Laser emission data

Maximum average power: 45 mW

Pulse duration: 33 ns

Wave length: 905 nm

Divergence (horizontal  vertical): 28°  12°

264

VERSO_EE_OM64517E

2-4. Toyota Safety Sense

WARNING

■ To avoid malfunction of the front sensor

Observe the following precautions.

Otherwise, the front sensor may not operate properly, possibly leading to an

accident resulting in death or serious injury.

●Keep the windshield clean at all times. If the windshield is dirty or covered

with an oily film, water droplets, snow, etc., clear the windshield. If the

inner side of the windshield in front of the front sensor is dirty, contact any

2

authorized Toyota dealer or repairer, or another duly qualified and

equipped professional.

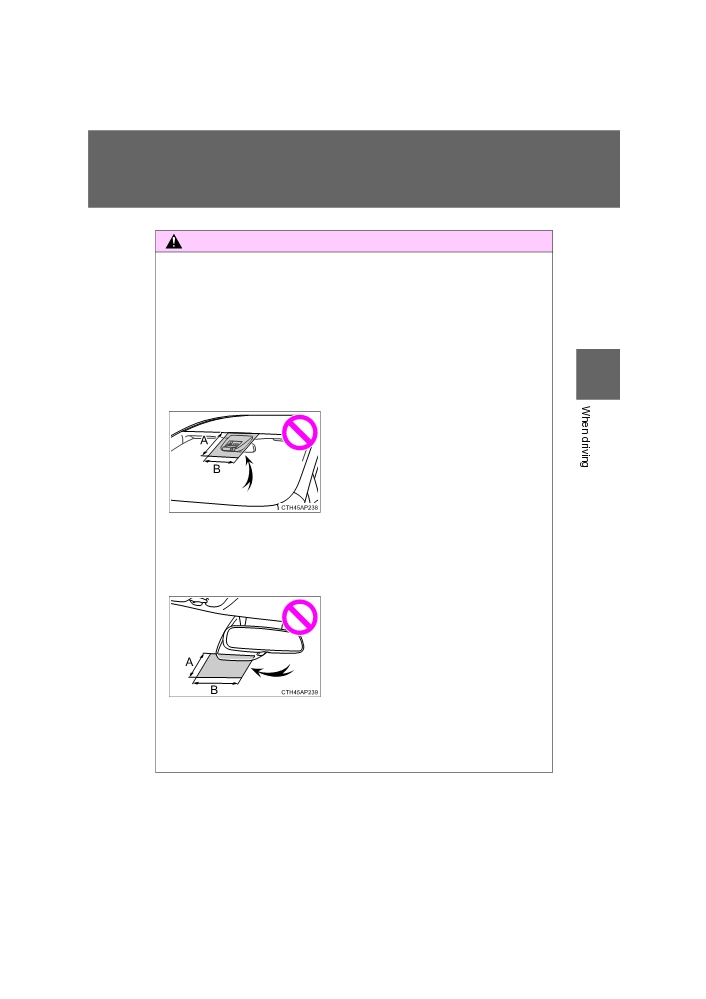

● Do not attach objects, such as stickers,

transparent stickers, etc., and so forth,

to the outer side of the windshield in

front of the front sensor (shaded area in

the illustration).

A: From the top of the windshield to

approximately

10 cm (4.0 in.) below

the bottom of the front sensor

B: Approximately

20 cm

(7.9 in.)

(Approximately 10 cm (4.0 in.) to the

right and left from the center of the

front sensor)

●Do not install or attach anything to the

inner side of the windshield under the

front sensor (shaded area in the illus-

tration).

A: Approximately 10 cm (4.0 in.) (Start-

ing from the bottom of the front sen-

sor)

B: Approximately

20 cm

(7.9 in.)

(Approximately 10 cm (4.0 in.) to the

right and left from the center of the

front sensor)

265

VERSO_EE_OM64517E

2-4. Toyota Safety Sense

WARNING

● If there is a large difference in temperature between the inside and outside

of the vehicle, such as in winter, the windshield is likely to fog up easily. If

the part of the windshield in front of the front sensor is fogged up or cov-

ered with condensation or ice, the PCS warning light may illuminate and

the system may be temporarily disabled. In this case, use the windshield

defogger to remove the fog, etc. (P. 340, 350)

● If the area of the windshield in front of the front sensor is covered with

water droplets, use the windshield wipers to remove them.

If the water droplets are not sufficiently removed, the performance of the

front sensor may be reduced.

● If water droplets cannot be properly removed from the area of the wind-

shield in front of the front sensor by the windshield wipers, replace the

wiper insert or wiper blade.

If the wiper inserts or wiper blades need to be replaced, contact any autho-

rized Toyota dealer or repairer, or another duly qualified and equipped pro-

fessional.

●Do not attach window tinting to the windshield.

●Replace the windshield if it is damaged or cracked.

If the windshield needs to be replaced, contact any authorized Toyota

dealer or repairer, or another duly qualified and equipped professional.

●Do not install an antenna in front of the sensor.

●Do not get the front sensor wet.

●Do not allow bright lights to shine into the front sensor.

●Do not dirty or damage the front sensor.

When cleaning the inside of the windshield, do not allow glass cleaner to

contact the lens. Also, do not touch the lens.

If the lens is dirty or damaged, contact any authorized Toyota dealer or

repairer, or another duly qualified and equipped professional.

266

VERSO_EE_OM64517E

2-4. Toyota Safety Sense

WARNING

●Do not subject the front sensor to a strong impact.

●Do not change the installation position or direction of the front sensor or

remove it.

●Do not disassemble the front sensor.

●Do not install an electronic device or device that emits strong electric

waves near the front sensor.

●Do not modify any components of the vehicle around the front sensor

2

(inside rear view mirror, sun visors, etc.) or ceiling.

●Do not attach any accessories that may obstruct the front sensor to the

hood, front grille or front bumper. Contact any authorized Toyota dealer or

repairer, or another duly qualified and equipped professional for details.

● If a surfboard or other long object is to be mounted on the roof, make sure

that it will not obstruct the front sensor.

●Do not modify the headlights or other lights.

●Do not attach anything to or place anything on the dashboard.

■ Installation area of front sensor on windshield

When the windshield is fogging up easily, the glass around the front sensor

may be hot due to the heater running. If the glass is touched, it may result in

burns.

267

VERSO_EE_OM64517E

2-4. Toyota Safety Sense

PCS (Pre-Collision System)

The pre-collision system uses the front sensor to detect vehicles in

front of your vehicle. When the system determines that the possibil-

ity of a frontal collision with a vehicle is high, warning operates to

urge the driver to take evasive action and the potential brake pres-

sure is increased to help the driver avoid the collision. If the system

determines that the possibility of a frontal collision with a vehicle is

extremely high, the brakes are automatically applied to help avoid

the collision or help reduce the impact of the collision.

The pre-collision system can be disabled/enabled and the warning tim-

ing can be changed. (P. 272)

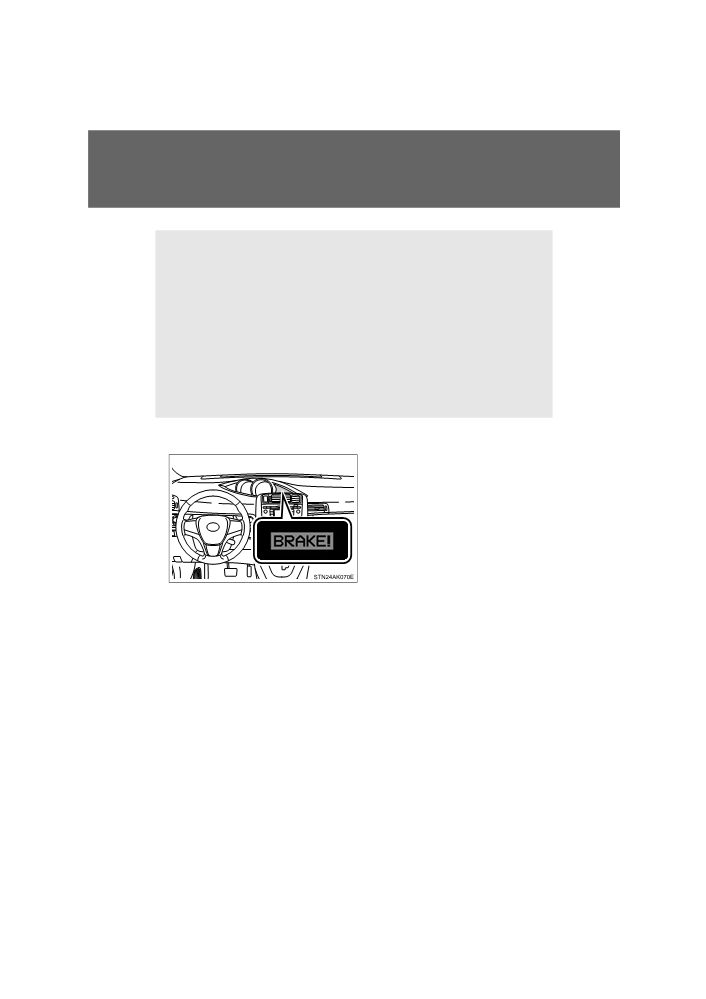

■ Pre-collision warning

When the system determines

that the possibility of a frontal

collision is high, a buzzer will

sound and a warning message

will be displayed on the multi-

information display to urge the

driver to take evasive action.

■ Pre-collision brake assist

When the system determines that the possibility of a frontal colli-

sion with a vehicle is high, the system applies greater braking force

in relation to how strongly the brake pedal is depressed.

■ Pre-collision braking

When the system determines that the possibility of a frontal colli-

sion with a vehicle is high, the system warns the driver. If the sys-

tem determines that the possibility of a collision is extremely high,

the brakes are automatically applied to help avoid the collision or

reduce the collision speed.

: If equipped

268

VERSO_EE_OM64517E

2-4. Toyota Safety Sense

WARNING

■ Limitations of the pre-collision system

●The driver is solely responsible for safe driving. Always drive safely, taking

care to observe your surroundings.

Do not use the pre-collision system instead of normal braking operations

under any circumstances. This system will not prevent collisions or lessen

collision damage or injury in every situation. Do not overly rely on this sys-

tem. Failure to do so may lead to an accident, resulting in death or serious

injury.

2

●Although this system is designed to help avoid and reduce the impact of a

collision, its effectiveness may change according to various conditions,

therefore the system may not always be able to achieve the same level of

performance.

Read the following conditions carefully. Do not overly rely on this system

and always drive carefully.

• Conditions under which the system may operate even if there is no

possibility of a collision: P. 275

• Conditions under which the system may not operate properly: P. 279

●Do not attempt to test the operation of the pre-collision system yourself, as

the system may not operate properly, possibly leading to an accident.

■ Pre-collision braking

●The pre-collision braking function may not operate if certain operations are

performed by the driver. If the accelerator pedal is being depressed

strongly or the steering wheel is being turned, the system may determine

that the driver is taking evasive action and possibly prevent the pre-colli-

sion braking function from operating.

● In some situations, while the pre-collision braking function is operating,

operation of the function may be canceled if the accelerator pedal is

depressed strongly or the steering wheel is turned and the system deter-

mines that the driver is taking evasive action.

269

VERSO_EE_OM64517E

2-4. Toyota Safety Sense

WARNING

● A large amount of braking force is applied while the pre-collision braking

function is operating. Additionally, as the operation of the pre-collision

braking function will be canceled after the vehicle has been stopped for

approximately 2 seconds if it is stopped by the operation of the pre-colli-

sion braking function, the driver should depress the brake pedal as neces-

sary.

● If the brake pedal is being depressed, the system may determine that the

driver is taking evasive action and possibly delay the operation timing of

the pre-collision braking function.

●While driving, such as when driving through a railway crossing, the system

may determine that the possibility of a collision with an object, such as rail-

way crossing barrier, is high and operate the pre-collision braking function.

To move the vehicle in an emergency, such as if the system operates in a

railway crossing, perform the following operations and then take the nec-

essary measures to ensure your safety.

• If the vehicle has been stopped, depress the accelerator pedal.

• If the vehicle is decelerating, fully depress the accelerator pedal.

(P. 274)

• Disable the pre-collision system. (P. 272)

■ When to disable the pre-collision system

In the following situations, disable the system, as it may not operate prop-

erly, possibly leading to an accident resulting in death or serious injury:

●When the vehicle is being towed

●When your vehicle is towing another vehicle

● When transporting the vehicle via truck, boat, train or similar means of

transportation

● When the vehicle is raised on a lift with the engine running and the tires

are allowed to rotate freely

270

VERSO_EE_OM64517E

2-4. Toyota Safety Sense

WARNING

● When inspecting the vehicle using a drum tester such as a chassis dyna-

mometer or speedometer tester, or when using an on vehicle wheel bal-

ancer

● If the vehicle cannot be driven in a stable manner, such as when the vehi-

cle has been in an accident or is malfunctioning

● When the vehicle is driven in a sporty manner or off-road

●When the condition of the tires is poor and they do not perform well

2

(P. 467)

●When tires of a size other than specified are installed

●When tire chains are installed

● When a compact spare tire or an emergency tire puncture repair kit is used

271

VERSO_EE_OM64517E

Content   ..  14  15  16  17   ..
