2-4. Toyota Safety Sense
Changing settings of the pre-collision system

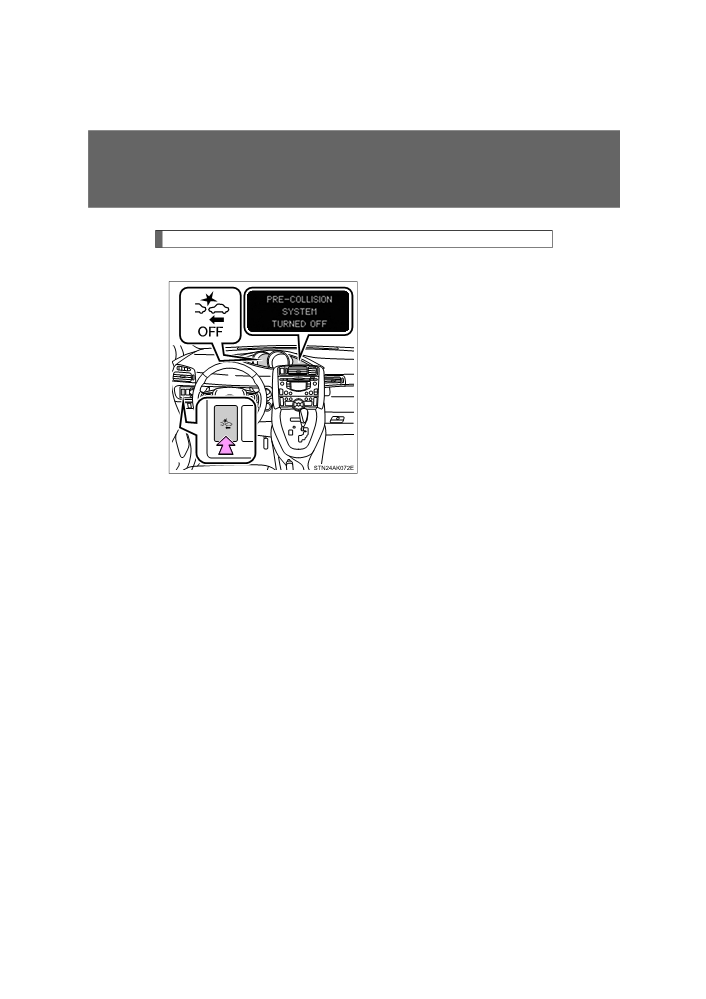

■ Enabling/disabling the pre-collision system
Press the PCS switch for 3 sec-
onds or more.
The PCS warning light will turn on
and a message will be displayed
in the multi-information display,
when the system is turned off.
To enable the system, press the
PCS switch again.
The pre-collision system is
enabled each time the engine is
started.
272
VERSO_EE_OM64517E
2-4. Toyota Safety Sense
■ Changing the pre-collision warning timing
Press the PCS switch to turn on the PCS activation indicator and
display the current warning timing in the multi-information display.

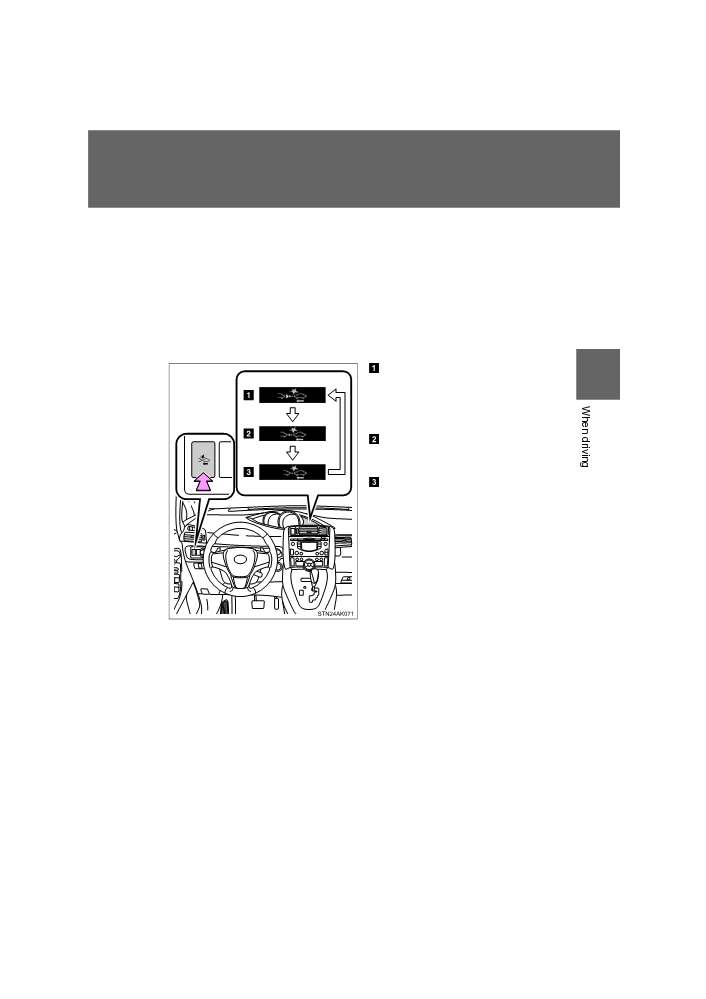

Each time the PCS switch is pressed in the displayed state, the
timing for the warning changes as follows:
If the operation timing setting has been changed, the setting will be
retained the next time the engine is started.
Far
2
The warning will begin to operate
earlier than with the default tim-
ing.
Middle
This is the default setting.
Near
The warning will begin to operate
later than with the default timing.
273
VERSO_EE_OM64517E
2-4. Toyota Safety Sense
■ Operational conditions
The pre-collision system is enabled and determines that the possibility of a
frontal collision with a vehicle is high.
Each function is operational at the following speeds:
●Pre-collision warning:
• Vehicle speed is approximately 15 to 140 km/h (10 to 86 mph).
• The relative speed between your vehicle and a preceding vehicle is
approximately 15 km/h (10 mph) or more.
●Pre-collision brake assist:
• Vehicle speed is approximately 30 to 80 km/h (19 to 49 mph).
• The relative speed between your vehicle and a preceding vehicle is
approximately 30 km/h (19 mph) or more.
●Pre-collision braking:
• Vehicle speed is approximately 10 to 80 km/h (7 to 49 mph).
• The relative speed between your vehicle and a preceding vehicle is
approximately 10 km/h (7 mph) or more.
The system may not operate in the following situations:
● If a battery terminal has been disconnected and reconnected and then
the vehicle has not been driven for a certain amount of time
● If the shift lever is in R
● If VSC is disabled (only the pre-collision warning function will be opera-
tional)
■ Cancelation of the pre-collision braking
● If either of the following occur while the pre-collision braking function is
operating, it will be canceled:
• The accelerator pedal is depressed strongly.
• The steering wheel is turned sharply or abruptly.
●If the vehicle is stopped by the operation of the pre-collision braking func-
tion, the operation of the pre-collision braking function will be canceled
after the vehicle has been stopped for approximately 2 seconds.
274
VERSO_EE_OM64517E
2-4. Toyota Safety Sense
■ Conditions under which the system may operate even if there is no
possibility of a collision
● In some situations such as the following, the system may determine that
there is a possibility of a frontal collision and operate.

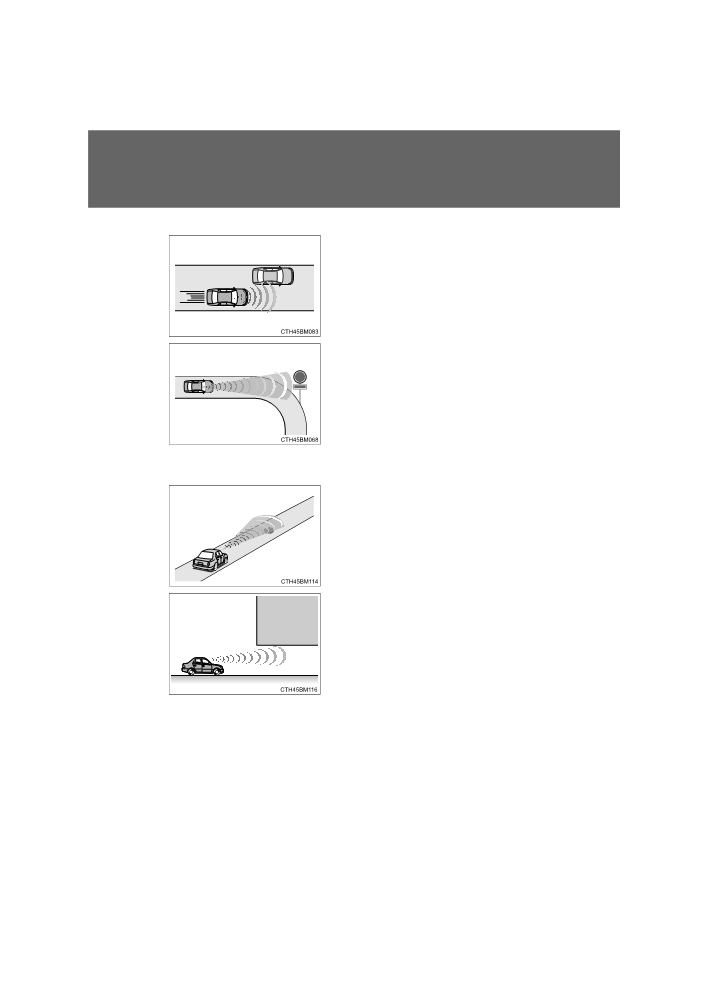

• When passing a vehicle in an
oncoming lane that is stopped to
make a right/left turn
2
• When passing an oncoming vehi-
cle while making a left or right turn
• When driving on a road where rel-
ative location to vehicle ahead in
an adjacent lane may change,
such as on a winding road
• When rapidly closing on a preced-
ing vehicle
• If the front of the vehicle is raised or lowered, such as when the road
surface is uneven or undulating
275
VERSO_EE_OM64517E
2-4. Toyota Safety Sense
• When passing extremely close to
a vehicle or structural object
• When there is a vehicle or object
by the roadside at the entrance of
a curve

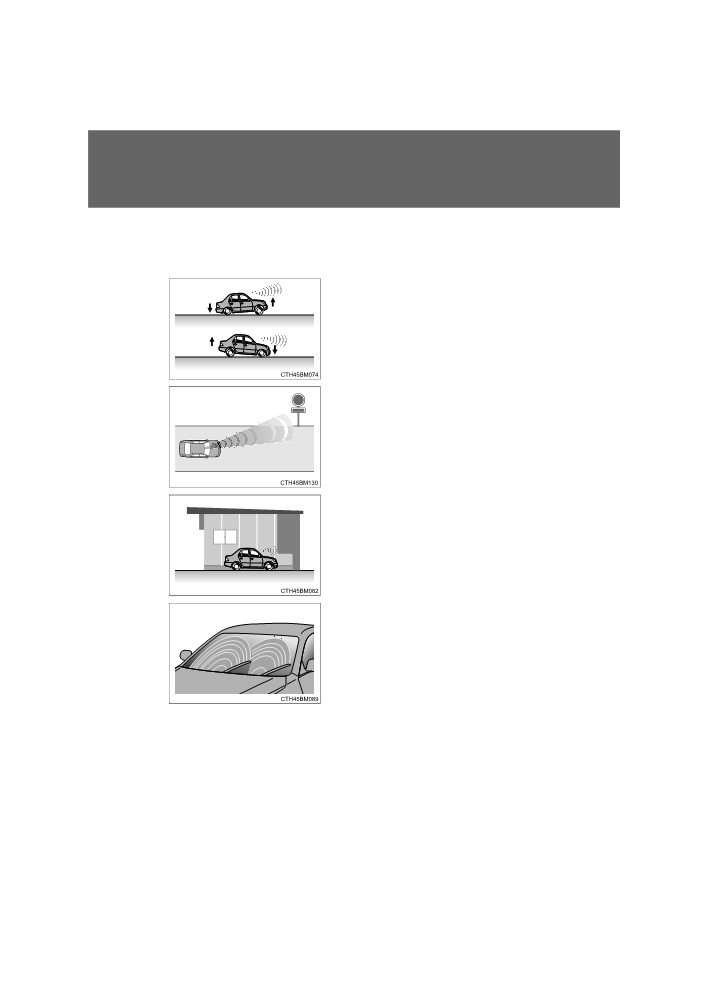

• When driving on a narrow path surrounded by a structure, such as in a
tunnel or on an iron bridge
• When there is a reflective object
(manhole cover, steel plate, etc.),
steps, dip, or a protrusion on the
road surface or roadside
• When passing through a place
with a low structure above the
road (low ceiling, traffic sign, etc.)
276
VERSO_EE_OM64517E
2-4. Toyota Safety Sense

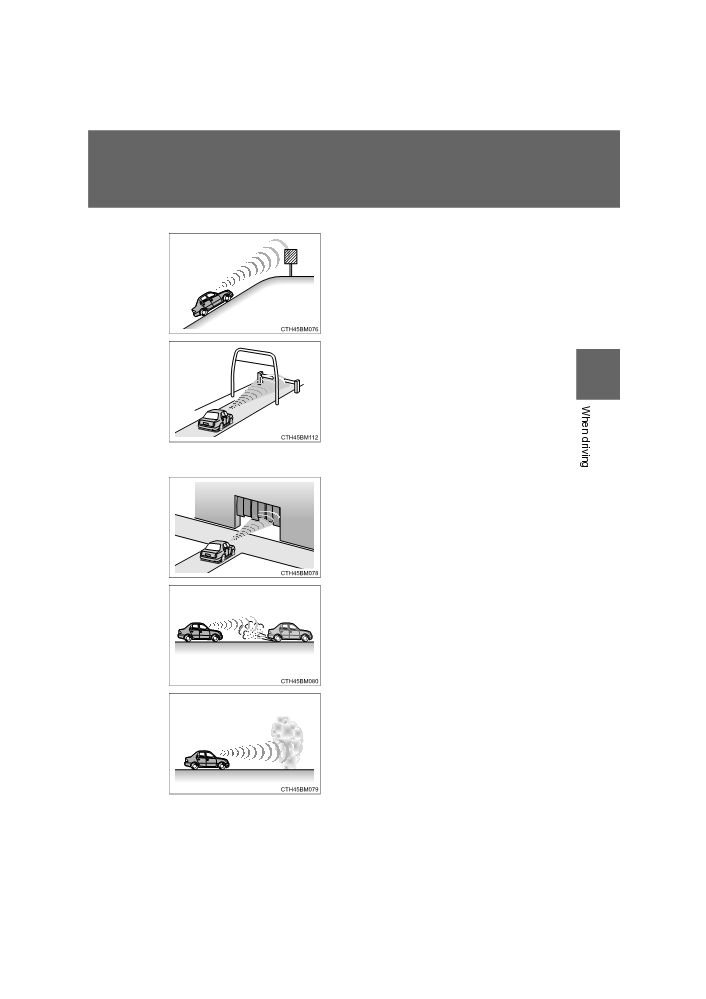

• When there is a structural object
(overpass, traffic sign, billboard,
street light, etc.) at the top of an
uphill road
• When rapidly closing on an elec-
tric toll gate barrier, parking area
barrier, or other barrier that opens
2
and closes
• When using an automatic car wash
• When approaching a low hanging
object that may contact the vehi-
cle, such as a banner, tree
branches or thick grass
• When the vehicle is hit by water,
snow, dust, etc. from a vehicle
ahead
• When driving through steam or
smoke
277
VERSO_EE_OM64517E
2-4. Toyota Safety Sense

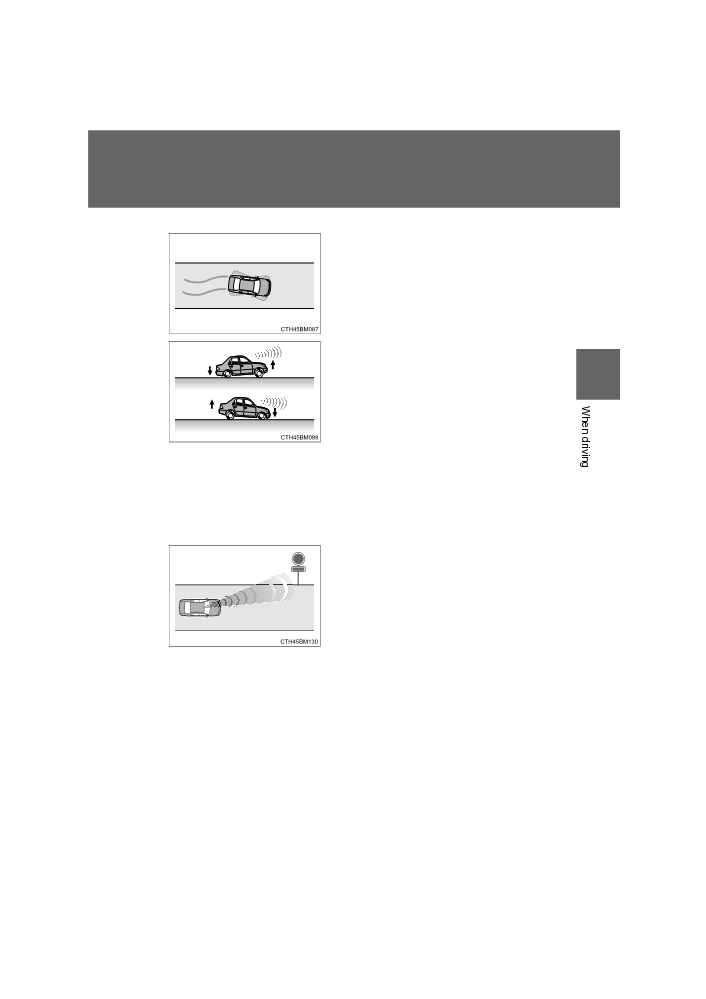

• When there are patterns or paint on the road or a wall that may be
mistaken for a vehicle
• When the front part of the vehicle
is raised or lowered
• When the sensor is misaligned
due to a strong impact being
applied to the sensor, etc.
• When the vehicle is being parked
in a place where there is a low
hanging object at the height of the
front sensor
• When the windshield is covered
with raindrops, etc.
278
VERSO_EE_OM64517E
2-4. Toyota Safety Sense
■ Situations in which the system may not operate properly
● In some situations such as the following, a vehicle may not be detected
by the front sensor, preventing the system from operating properly:
• If an oncoming vehicle is approaching your vehicle
• When approaching the side or front of a vehicle

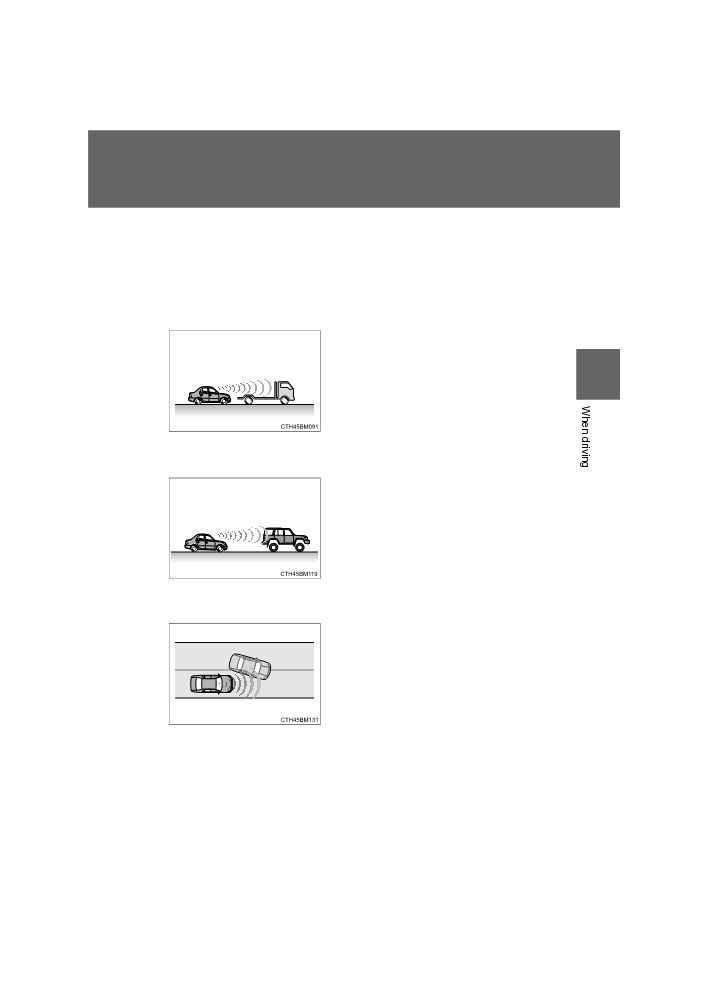

• If a preceding vehicle has a small rear end, such as an unloaded truck
• If a preceding vehicle has a low
rear end, such as a low bed trailer
2
• If a vehicle ahead is carrying a load which protrudes past its rear
bumper
• If a vehicle ahead has extremely
high ground clearance
• If a vehicle ahead is irregularly shaped, such as a tractor or side car
• If the sun or other light is shining directly on a vehicle ahead
• If a vehicle cuts in front of your
vehicle or emerges from beside a
vehicle
• If a vehicle ahead makes an abrupt maneuver (such as sudden
swerving, acceleration or deceleration)
• When suddenly cutting behind a preceding vehicle
279
VERSO_EE_OM64517E
2-4. Toyota Safety Sense
• When a vehicle ahead is not
directly in front of your vehicle

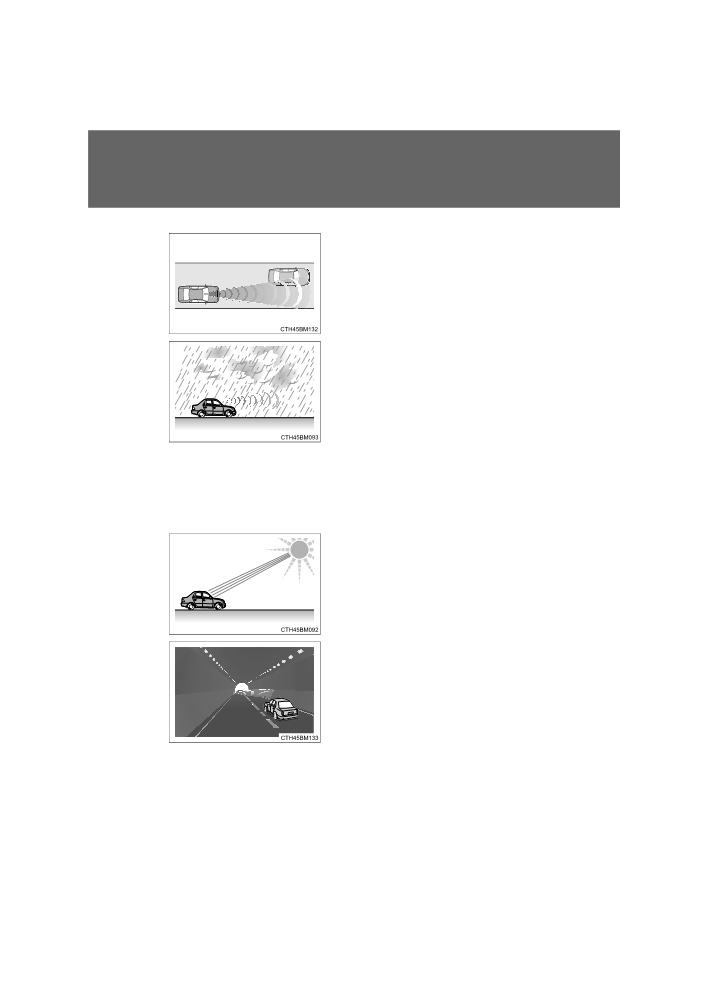

• When driving in inclement
weather such as heavy rain, fog,
snow or a sand storm
• When the vehicle is hit by water, snow, dust, etc. from a vehicle ahead
• When driving through steam or smoke that may obscure vehicles
ahead
• When driving in a place where the surrounding brightness changes
suddenly, such as at the entrance or exit of a tunnel
• When a very bright light, such as
the sun or the headlights of
oncoming traffic, shines directly
into the front sensor
• When the surrounding area is
dim, such as at dawn or dusk, or
while at night or in a tunnel
• While driving on a curve and for a certain amount of time after driving
on a curve
280
VERSO_EE_OM64517E
2-4. Toyota Safety Sense
• If your vehicle is skidding
• When the front part of the vehicle
is raised or lowered
2
• If the wheels are misaligned
• If a wiper blade is blocking the front sensor
• The vehicle is wobbling.
• The vehicle is being driven at extremely high speeds.
• When driving on roads with sharp bends or uneven surfaces
• When a preceding vehicle is a poor reflector of laser
• When the sensor is misaligned
due to a strong impact being
applied to the sensor, etc.
●In some situations such as the following, sufficient braking force may
not be obtained, preventing the system from performing properly:
• If the braking functions cannot operate to their full extent, such as
when the brake parts are extremely cold, extremely hot, or wet
• If the vehicle is not properly maintained (brakes or tires are exces-
sively worn, improper tire inflation pressure, etc.)
• When the vehicle is being driven on a gravel road or other slippery
surface
281
VERSO_EE_OM64517E
2-4. Toyota Safety Sense
■ If the PCS warning light flashes or illuminates, and a warning message is
displayed on the multi-information display
The pre-collision system may be temporarily unavailable or there may be a
malfunction in the system.
●In the following situations, the warning light will turn off, the message will
disappear and the system will become operational when normal operating
conditions return:
• When the area around the front sensor is hot, such as in the sun
• When the windshield is fogged up or covered with condensation or ice
(P. 340, 350)
• When the front sensor or the area around either sensor is cold, such as
in an extremely cold environment
• If the area in front of the front sensor is obstructed, such as when the
hood is open
●If the PCS warning light continues to flash or illuminate, or the warning
message does not disappear, the system may be malfunctioning. Have the
vehicle inspected by any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional immediately.
■ If VSC is disabled
● If TRC and VSC+ are disabled (P. 318), the pre-collision brake assist
and pre-collision braking functions are also disabled. However, the pre-col-
lision warning function will still operate.
●The PCS warning light illuminates and “VSC TURNED OFF PRE-COLLI-
SION BRAKE SYSTEM UNAVAILABLE” is displayed on the multi-informa-
tion display. (P. 551)
282
VERSO_EE_OM64517E
2-4. Toyota Safety Sense
LDA (Lane Departure Alert)
Summary of function
While driving on a road that has lane markers, this system recognizes
the lane markers using a camera as a sensor to alert the driver when
the vehicle deviates from its lane.
If the system judges that the vehicle has deviated from its lane, it
alerts the driver using a buzzer and indications on the multi-informa-
tion display.
2

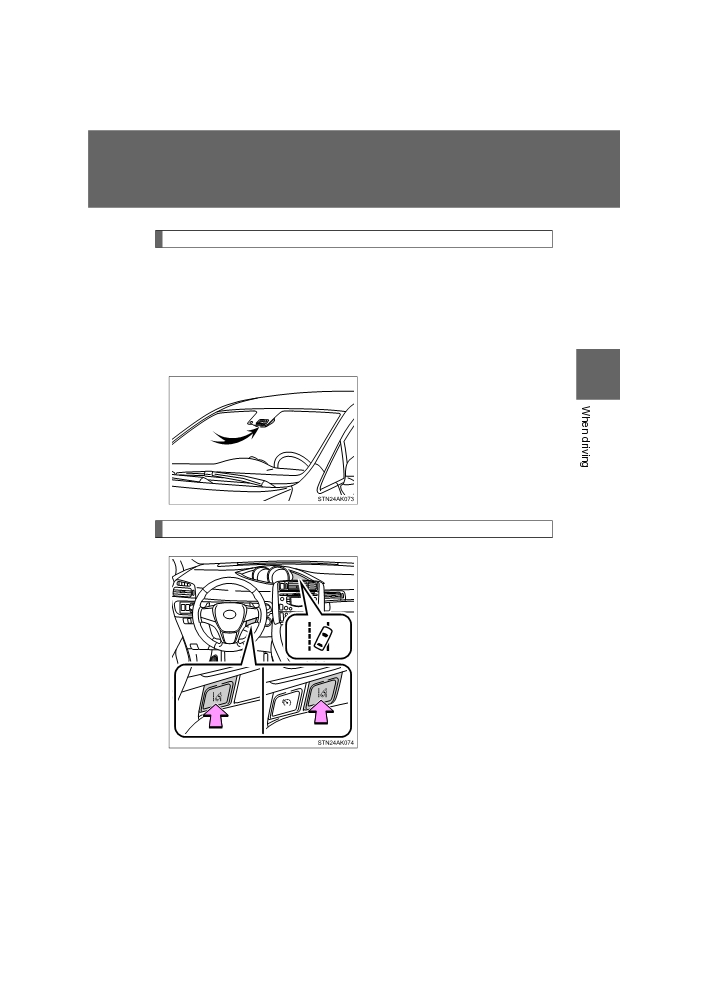

Front sensor
Turning the LDA system on
Press the LDA switch to activate
the system.
The LDA indicator will come on.
Press the switch again to turn the
LDA system off.
The LDA system will remain on or
off even if
the engine switch is
turned to “ON” position (vehicles
without smart entry & start sys-
tem) or the
“ENGINE START
STOP” switch is turned to IGNI-
TION ON
mode (vehicles with
smart entry & start system).
: If equipped
283
VERSO_EE_OM64517E
2-4. Toyota Safety Sense
Operating conditions
● When the vehicle speed is approximately 50 km/h (32 mph) or
more
● When the lane width is more than approximately 3 m (9.8 ft.)
● When driving on a straight road or through a curve with a radius of
more than approximately 150 m (492 ft.)

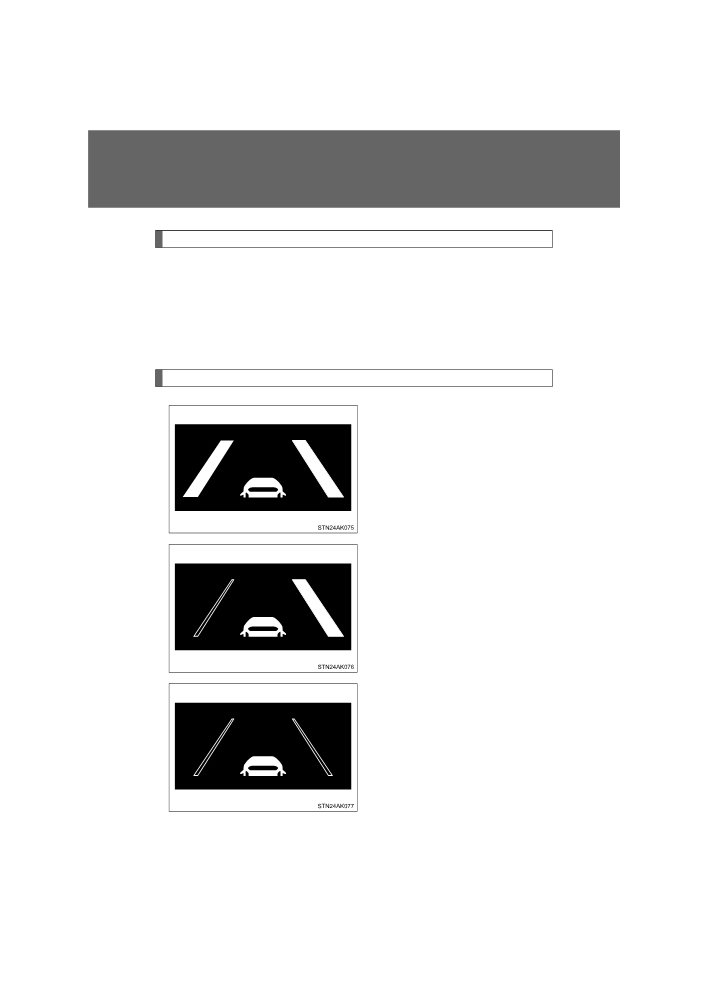

Indication on the multi-information display
When both of the lane lines are
bold:
Indicates that both right and left
lane markers are recognized.
If the vehicle deviates from the
lane, the lane lines of the devi-
ated side will flash.
When either of the lane lines are
bold:
Indicates that the bold lane
marker is recognized.
If the vehicle deviates from a lane
on the side with the recognized
lane markers, the lane lines will
flash.
When both of the lane lines are
narrow:
Indicates that no lane markers
are recognized or the LDA sys-
tem is temporarily canceled.
284
VERSO_EE_OM64517E
2-4. Toyota Safety Sense
■ Temporary cancelation of the LDA system functions
If any of the following occurs, the LDA system functions will be temporarily
canceled. The functions will resume after the necessary operating conditions
have returned.
●The turn signal lever is operated.
●The vehicle speed deviates from the operating range of the LDA system
functions.
●When the lane lines cannot be recognized while driving.
2
● When the lane departure warning sounds.
The lane departure warning function will not operate again for a several
seconds after it has been activated, even if the vehicle leaves the lane
again.
■ The lane departure warning
Depending on the audio system sound level or air conditioning fan noise
while the audio system or air conditioning system is in use, it may be difficult
to hear the warning sound.
■ After the vehicle has been parked in the sun
The LDA may not be available and a warning message (P. 551) will be dis-
played for a while after driving has started. When the temperature in the
cabin decreases and the temperature around the front sensor (P. 283)
becomes suitable for its operation, the functions will begin to operate.
■ If there are lane markers on only one side of the vehicle
The lane departure warning will not operate for the side on which lane mark-
ers could not be recognized.
■ Conditions in which the function may not operate correctly
In the following situations, the front sensor may be unable to recognize lane
markers causing the lane departure warning function to operate incorrectly.
However, this does not indicate a malfunction.
●When driving through an area, such as a tollbooth, a crossing or before a
ticket checkpoint
●When driving on a sharp curve
● When lane markers are extremely narrow or extremely wide
285
VERSO_EE_OM64517E
2-4. Toyota Safety Sense
●When the vehicle leans to one side an unusual amount due to a heavy
load or improper tire inflation pressure
●When the following distance between your vehicle and the vehicle ahead
is extremely short
● When the lane markers are yellow (These may be more difficult for the
system to recognize compared to white markers.)
● When the lane markers are broken, Botts’ dots (raised pavement mark-
ers) or stones
● When the lane markers are on a curb etc.
● When lane markers are obscured or partially obscured by sand, dirt, etc.
● When there are shadows on the road running parallel with lane markers,
or if a shadow covers the lane markers
● When driving on a particularly bright road surface, such as concrete
●When driving on a road surface that is bright due to reflected light
●When driving in a location where the light level changes rapidly, such as
the entrance to or exit from a tunnel
●When sunlight or the headlights of oncoming vehicles are shining directly
into the camera lens
● When driving on roads that are branching or merging
● When driving on a road surface that is wet due to rain, previous rainfall,
standing water, etc.
● When the vehicle experiences strong up-and-down motion such as when
driving on an extremely rough road or on a seam in the pavement
● When headlight brightness at nighttime is reduced due to dirt on the
lenses, or when the headlights are misaligned
●When driving on winding roads or roads that are uneven
● When driving on rough or unpaved roads
● When the windshield is dirty, or if raindrops, condensation or ice are
adhering to the windshield
● When the heater is blowing to the feet, the upper part of the windshield
may get fogged up and have a negative effect
●When cleaning the inside of the windshield, touching the lens or getting
glass cleaner on the lens may have a negative effect
286
VERSO_EE_OM64517E
2-4. Toyota Safety Sense
■ When changing the tires
Depending on the tires used, sufficient performance may not be maintain-
able.
■ Warning messages for the LDA system
Warning messages are used to indicate a system malfunction or to inform
the driver of the need for caution while driving.
WARNING
2
■ Before using the LDA system
Do not rely solely on the LDA system. The LDA system does not drive the
vehicle automatically, nor does it reduce the amount of care you need to
take. As such, the driver must always assume full responsibility for under-
standing his/her surroundings, for operating the steering wheel to correct the
driving line, and for driving safely.
Inappropriate or negligent driving could lead to an accident.
■ To avoid operating the LDA by mistake
Switch the LDA system off using the LDA switch when not in use.
NOTICE
■ To prevent damage to or incorrect operation of the LDA system
●Do not modify the headlights or attach stickers to the surface of the lights.
●Do not modify the suspension. If your suspension needs repairs, contact
any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
●Do not install or place anything on the hood or the grille. Also, do not install
a grille guard (bull bars, kangaroo bar etc.).
287
VERSO_EE_OM64517E
2-4. Toyota Safety Sense

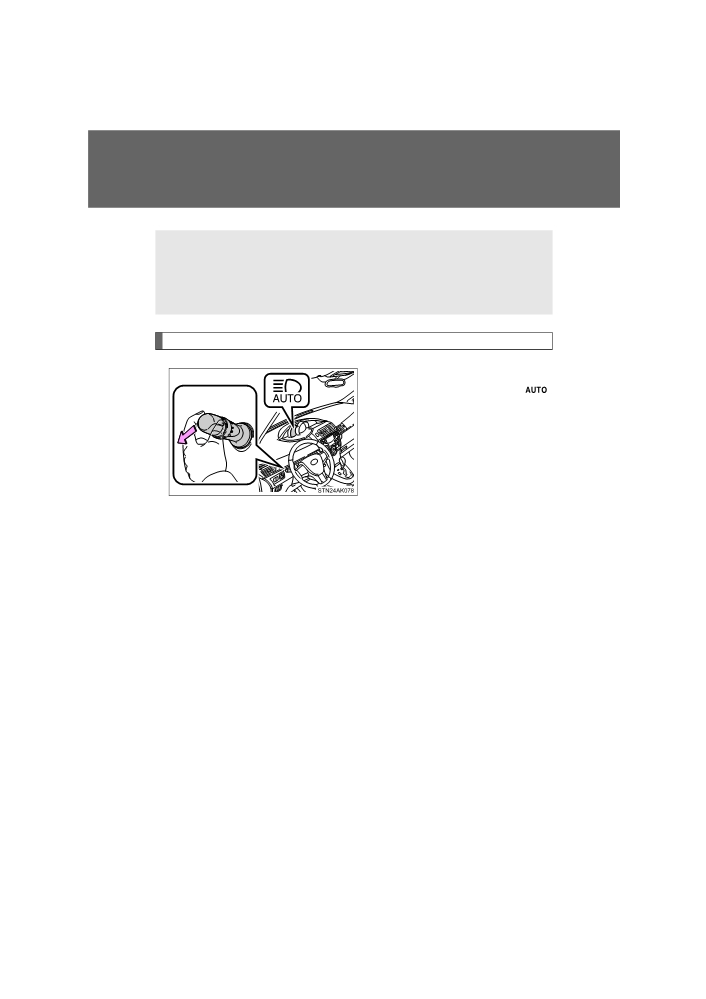

Automatic High Beam
The Automatic High Beam uses an in-vehicle front sensor to assess
the brightness of streetlights, the lights of oncoming and preceding
vehicles, etc., and automatically turns high beam on or off as neces-
sary.
Activating the Automatic High Beam system
Push the lever away from you
with the headlight switch in
position.
The Automatic High Beam indi-
cator will come on when the
headlights are turned on auto-
matically to indicate that the sys-
tem is active.
: If equipped
288
VERSO_EE_OM64517E
