2-1. Driving procedures
Horn

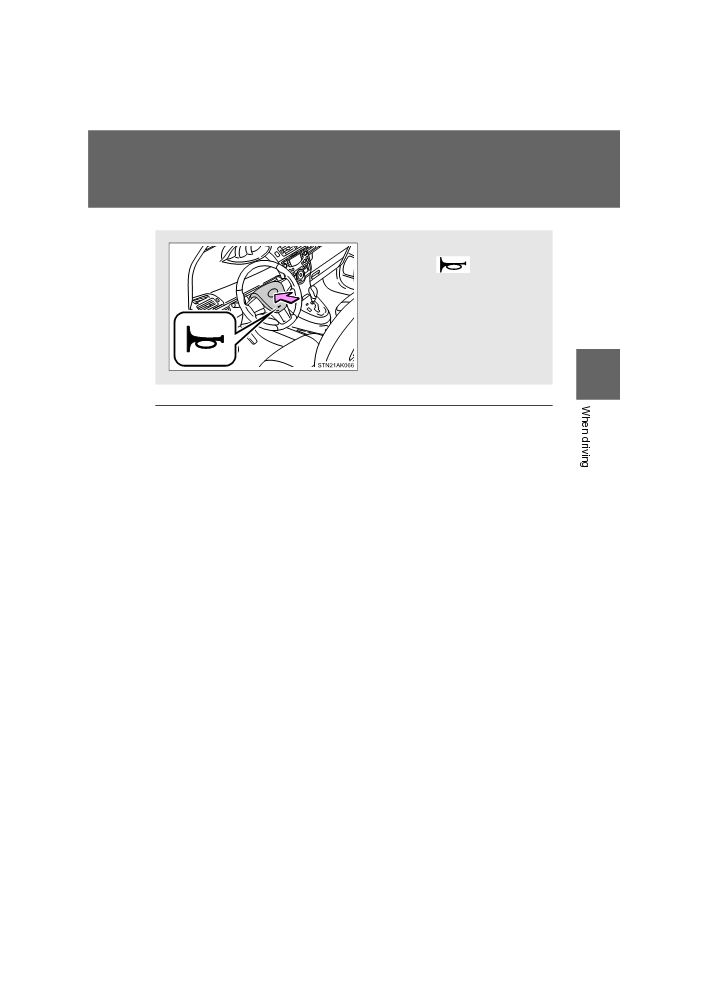

To sound the horn, press on or
close to the
mark.
2
■ After adjusting the steering wheel
Make sure that the steering wheel is securely locked.
The horn may not sound if the steering wheel is not securely locked.
(P. 104)
221
VERSO_EE_OM64517E
2-2. Instrument cluster
Gauges and meters

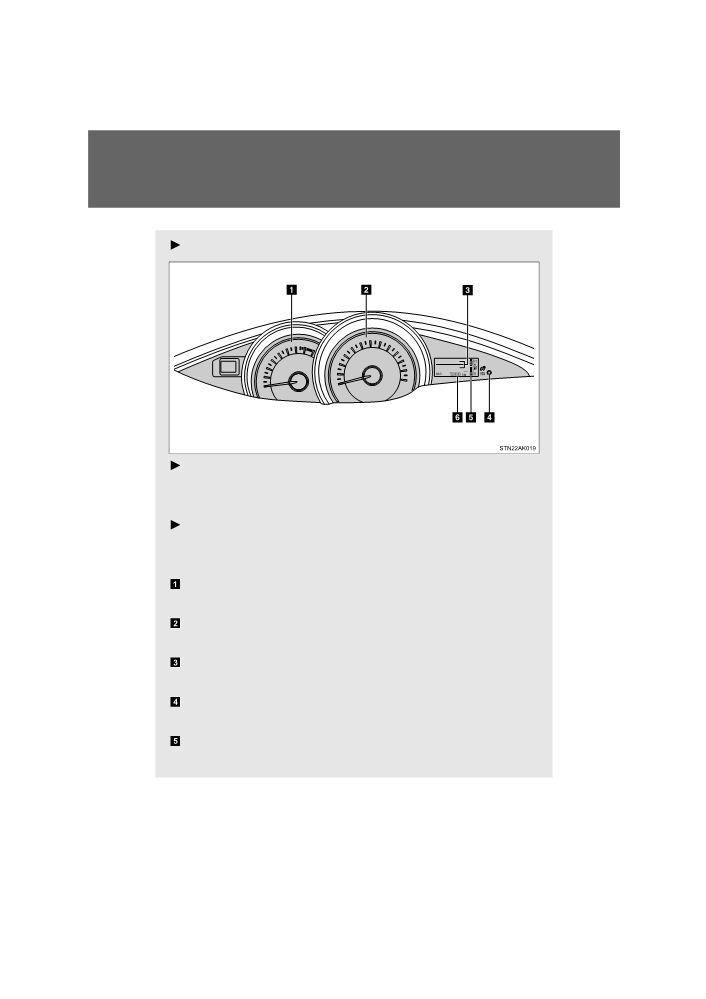

Left-hand drive vehicles
Vehicles without smart entry & start system
The following gauges, meters and displays illuminate when the
engine switch is in the “ON” position.
Vehicles with smart entry & start system
The following gauges, meters and displays illuminate when the
“ENGINE START STOP” switch is in IGNITION ON mode.
Tachometer
Displays the engine speed in revolutions per minute
Speedometer
Displays the vehicle speed
Multi-information display
Presents the driver with a variety of driving-related data (P. 232)
Display change button
P. 224
Fuel gauge
Displays the quantity of fuel remaining in the tank
222
VERSO_EE_OM64517E
2-2. Instrument cluster
Odometer, trip meter, Stop & Start system operation time, Stop &
Start system total operation time, maintenance required informa-
tion and instrument cluster light control display
P. 224

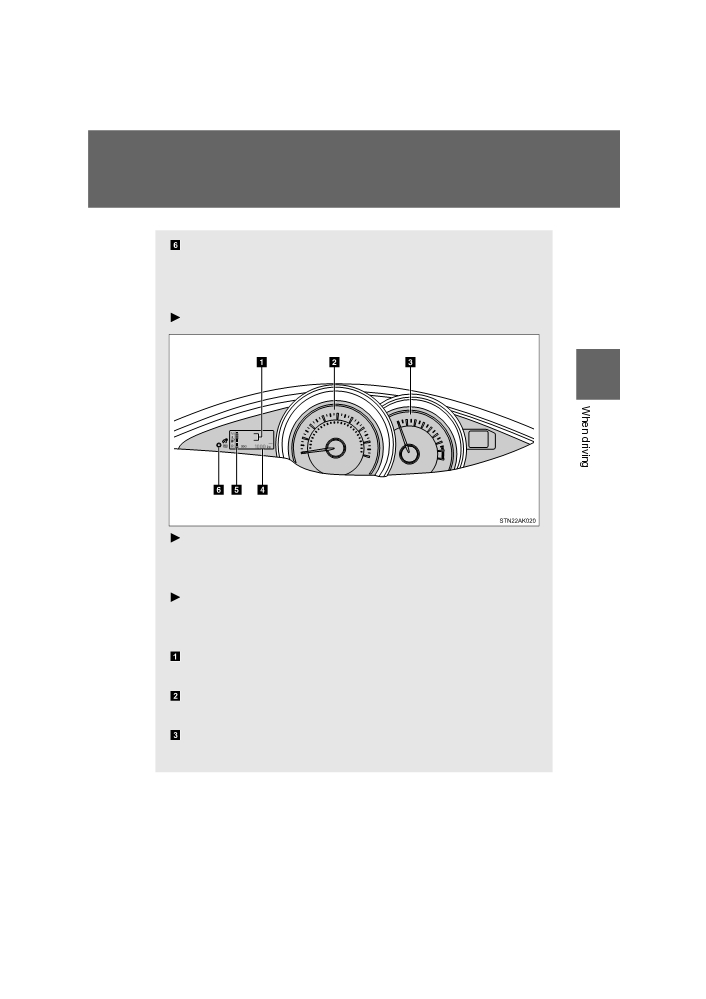

Right-hand drive vehicles
2
Vehicles without smart entry & start system
The following gauges, meters and displays illuminate when the
engine switch is in the “ON” position.
Vehicles with smart entry & start system
The following gauges, meters and displays illuminate when the
“ENGINE START STOP” switch is in IGNITION ON mode.
Multi-information display
Presents the driver with a variety of driving-related data (P. 232)
Speedometer
Displays the vehicle speed
Tachometer
Displays the engine speed in revolutions per minute
223
VERSO_EE_OM64517E
2-2. Instrument cluster
Odometer, trip meter, Stop & Start system operation time, Stop &
Start system total operation time, maintenance required informa-
tion and instrument cluster light control display
P. 224
Fuel gauge
Displays the quantity of fuel remaining in the tank
Display change button
P. 224

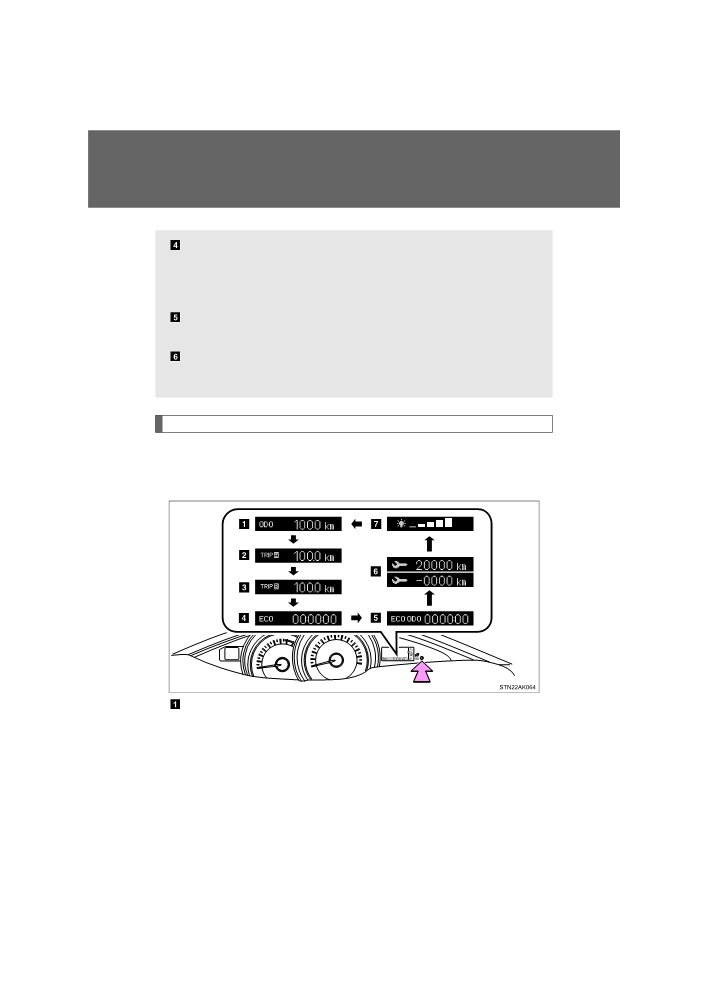

Changing the display
Items displayed can be switched by pressing the button (button
shown below).
This operation can also be done with the steering “TRIP” switch.
Odometer
Displays the total distance the vehicle has been driven.
224
VERSO_EE_OM64517E
2-2. Instrument cluster
Trip meter A
Displays the distance the vehicle has been driven since the meter
was last reset.
Pressing and holding the button will reset.
Trip meter B
Displays the distance the vehicle has been driven since the meter
was last reset.
Press and hold the button will reset.
2
Stop & Start system operation time (if equipped)
Displays the amount of time the engine was stopped due to opera-
tion of the Stop & Start system during the current trip.
Stop & Start system total operation time (if equipped)
Displays the total amount of time that the engine has been stopped
due to operation of the Stop & Start system since the system was
last reset.
Maintenance required information (diesel engine only)
Displays the remaining distance until the engine oil should be
changed. If “-” is displayed before distance, it means oil mainte-
nance is overdue. Have the engine oil changed by any authorized
Toyota dealer or repairer, or another duly qualified and equipped
professional.
• Displays the Maintenance required information when the engine switch
is turned to the “ON” position (vehicles without smart entry & start sys-
tem) or the “ENGINE START STOP” is switched to IGNITION ON mode
(vehicles with smart entry & start system).
• Maintenance required information reset method (P. 456).
225
VERSO_EE_OM64517E
2-2. Instrument cluster
Instrument cluster light control
The brightness of the instrument cluster lights, for when the head-
light switch is on, can be adjusted 5 brightness levels.
Press the display change button.
The button is pressed several times and the brightness control
screen appears.
When the button is pushed for more than 1 second, each second
the screen brightness changes. When the button is released, the
suitable brightness is selected.
The illumination level will be set automatically 10 seconds after the
switch was last pressed.
Pressing the display change button before the 10 seconds have
passed will also set the illumination level.
NOTICE
■ To prevent damage to the engine and its components
●Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.
●The engine may be overheating if the high engine coolant temperature
warning light (Red) flashes or comes on. In this case, immediately stop the
vehicle in a safe place, and check the engine after it has cooled com-
pletely. (P. 613)
226
VERSO_EE_OM64517E

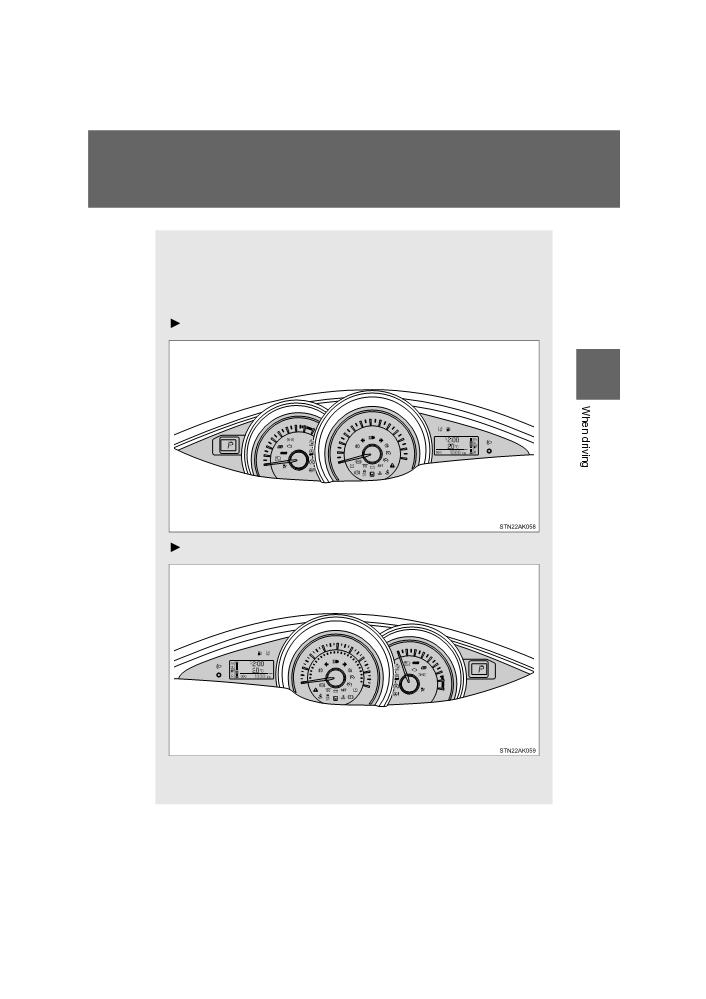

2-2. Instrument cluster
Indicators and warning lights
The indicator and warning lights on the instrument cluster and cen-
ter panel inform the driver of the status of the vehicle’s various sys-
tems.
For the purpose of explanation, the following illustration displays all
indicators and warning lights illuminated.
Instrument cluster (left-hand drive vehicles)*
2
Instrument cluster (right-hand drive vehicles)*
*: The units used on the speedometer, tachometer and some indicators
may differ depending on the engine, transmission, etc.
227
VERSO_EE_OM64517E
2-2. Instrument cluster

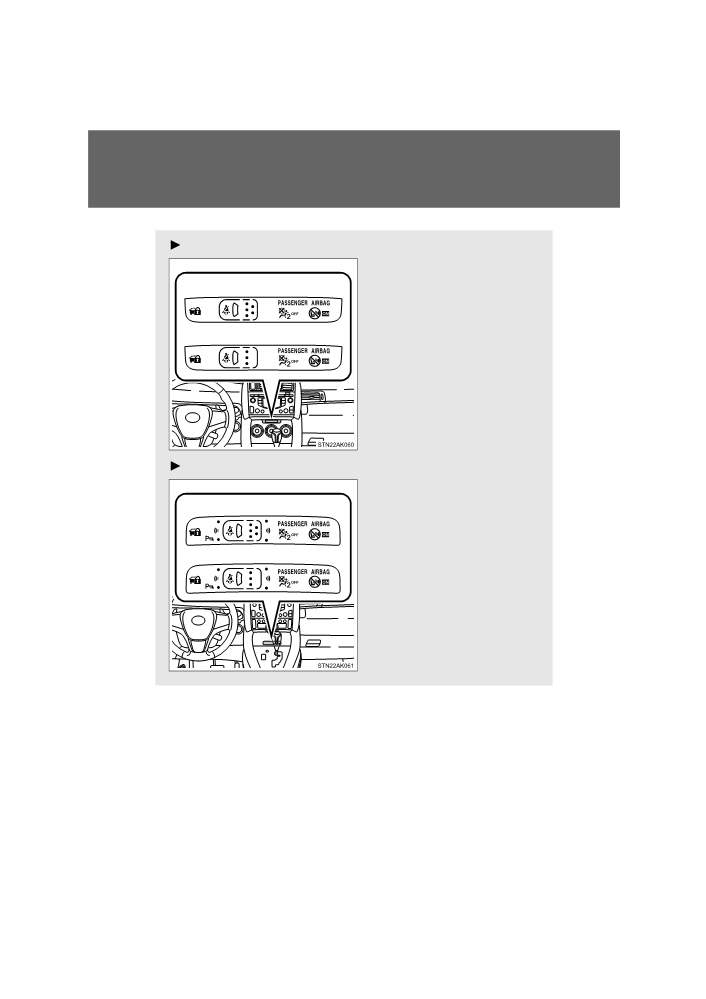

Center panel (vehicles with manual air conditioning system)
7-passenger models
5-passenger models
Center panel (vehicles with automatic air conditioning system)
7-passenger models
5-passenger models
228
VERSO_EE_OM64517E
2-2. Instrument cluster

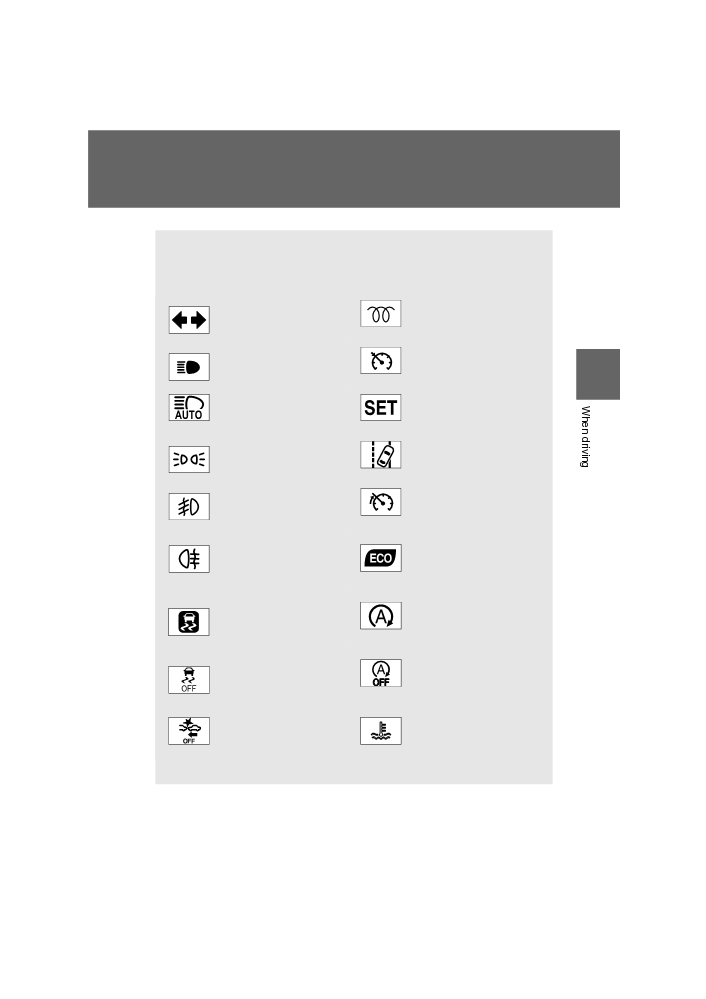

■ Indicators
The indicators inform the driver of the operating state of the
vehicle’s various systems.
Turn signal indicator
Engine preheating
(P. 218)
indicator (P. 198, 202)
(diesel engine)
Headlight high beam
Cruise control indicator
indicator (P. 249)
(P. 294)
2
(if equipped)
Automatic High Beam
“SET” indicator
indicator (P. 288)
(P. 294)
(if equipped)
(if equipped)
LDA (Lane Departure
Tail light indicator
Alert) indicator
(P. 248)
(if equipped)
(P. 283)
Front fog light indicator
Speed limiter indicator
(P. 254)
(P. 298)
(if equipped)
*1, 3
Rear fog light indicator
Eco Driving Indicator
(P. 254)
Light (P. 188, 242)
(if equipped)
*1
*1, 2
Stop & Start indicator
Slip indicator (P. 317)
(P. 309)
(if equipped)
*1
*1
VSC off indicator
Stop & Start cancel indi-
(P. 317)
cator (P. 310)
(if equipped)
*6
PCS (Pre-Collision
*4
Engine coolant tem-
System) warning light
perature indicator
(P. 272)
(if equipped)
(Blue)
229
VERSO_EE_OM64517E
2-2. Instrument cluster
*3

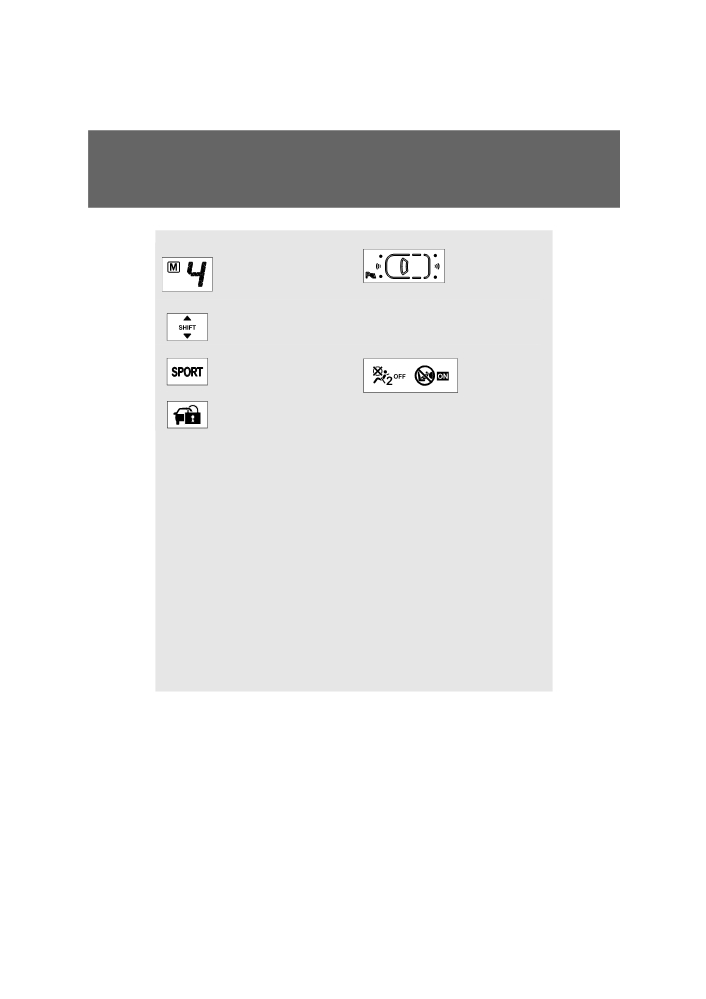

Shift position indicator
(P. 208)
(if equipped)
Toyota parking assist-sensor
*1, 5
Gear Shift Indicator
indicator (P. 301)
(P. 215)
*3
*1
“SPORT” indicator
(P. 209)
Security indicator
“PASSENGER AIRBAG” indicator
(P. 124, 137)
(P. 179)
*1: These lights turn on when the engine switch is turned to the “ON” posi-
tion
(vehicles without smart entry & start system) or the “ENGINE
START STOP” switch is turned to IGNITION ON mode (vehicles with
smart entry & start system) to indicate that a system check is being
performed. They will turn off after the engine is started, or after a few
seconds. There may be a malfunction in a system if a light does not
come on, or if the lights do not turn off. Have the vehicle inspected by
any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional for details.
*2: The light flashes to indicate that the system is operating.
*3: Vehicles with a Multidrive
*4: This indicator turns on in blue when the engine coolant temperature is
low.
*5: Vehicles with a manual transmission
*6: The light comes on when the system is turned off.
230
VERSO_EE_OM64517E
2-2. Instrument cluster

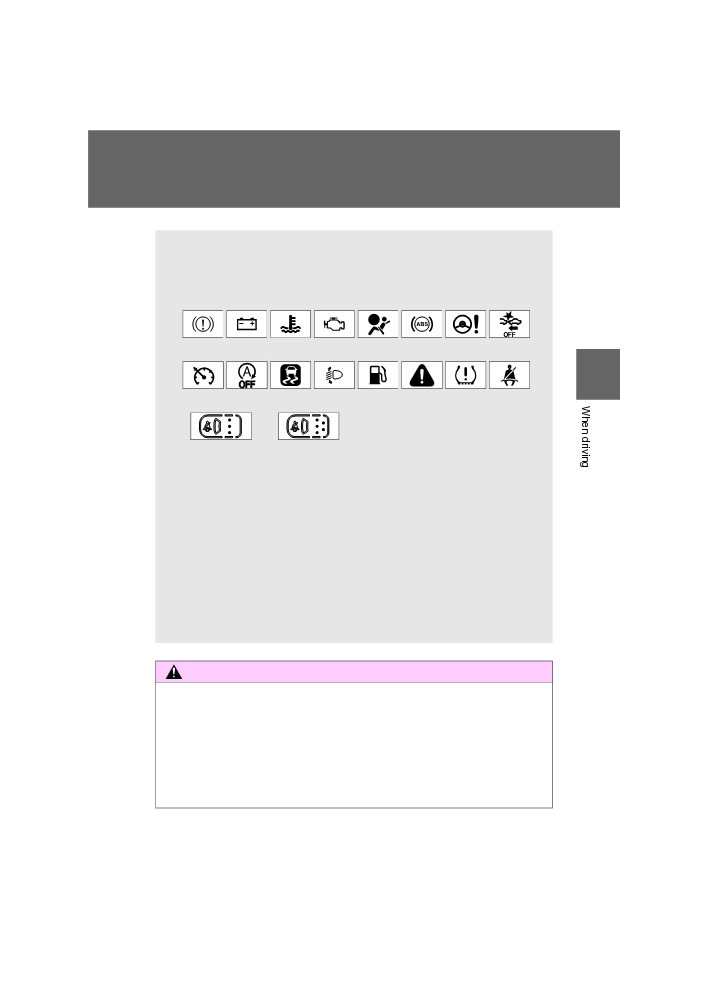

■ Warning lights
Warning lights inform the driver of malfunctions in any of the
vehicle’s systems. (P. 542)
*1
*1
*1
*1
*1
*1
*1
*1, 2
(Red)
(if equipped)
*2
*1, 2
*1, 3
*1
*1
*1
2
(if equipped)(if equipped)
(if equipped)
(if equipped)
(5-passenger models)
(7-passenger models)
*1: These lights turn on when the engine switch is turned to the “ON” posi-
tion
(vehicles without smart entry & start system) or the “ENGINE
START STOP” switch is turned to IGNITION ON mode (vehicles with
smart entry & start system) to indicate that a system check is being
performed. They will turn off after the engine is started, or after a few
seconds. There may be a malfunction in a system if a light does not
come on, or if the lights do not turn off. Have the vehicle inspected by
any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional for details.
*2: The light flashes to indicate a malfunction.
*3: The light comes on to indicate a malfunction.
WARNING
■ If a safety system warning light does not come on
Should a safety system light such as ABS and the SRS airbag warning light
not come on when you start the engine, this could mean that these systems
are not available to help protect you in an accident, which could result in
death or serious injury. Have the vehicle inspected by any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional imme-
diately if this occurs.
231
VERSO_EE_OM64517E
2-2. Instrument cluster

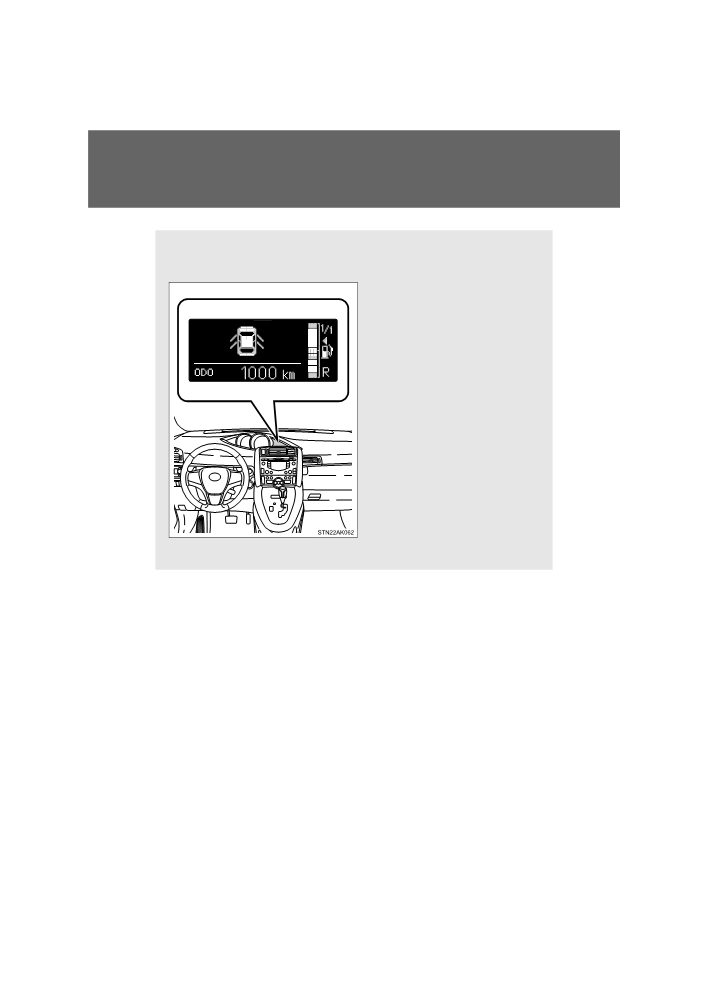

Multi-information display
The multi-information display presents the driver with a variety of
driving-related data.

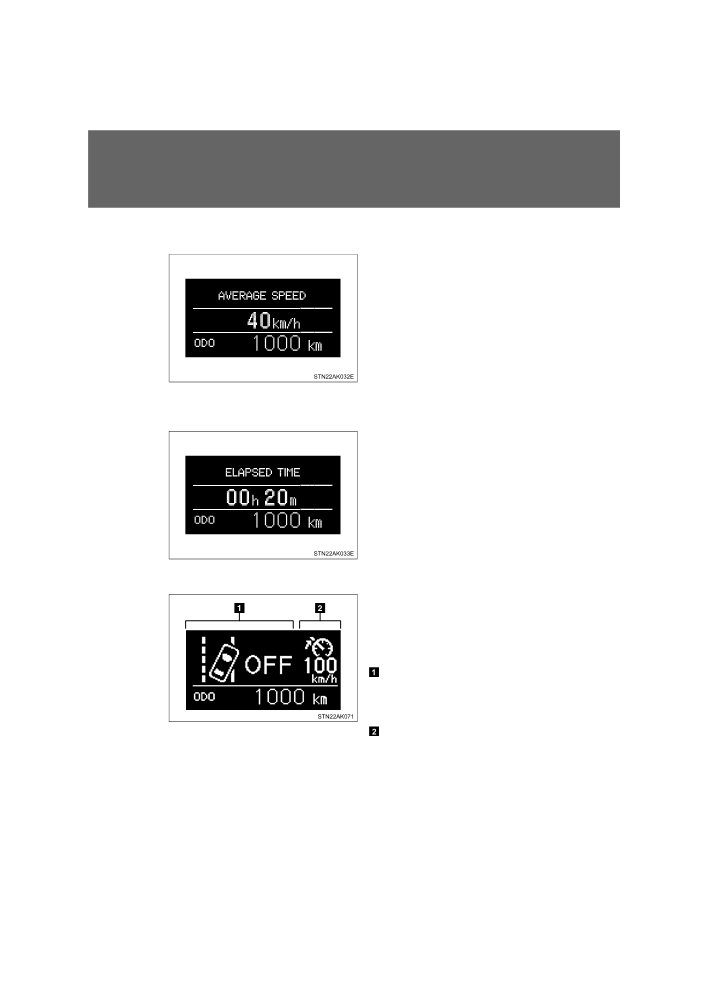

● Trip information
(P. 233)
Displays driving range, fuel
consumption and other cruis-
ing-related information.
● Date
(P. 233)
Indicates the date and sets it.
● Outside temperature display
(P. 233)
Indicates the outside tempera-
ture.
● Warning messages
(P. 551)
Automatically displayed when
a malfunction occurs in one of
the vehicle’s systems.
232
VERSO_EE_OM64517E
2-2. Instrument cluster
Switch the display
Display items can be switched
by pressing the “DISP” switch.
2
Trip information

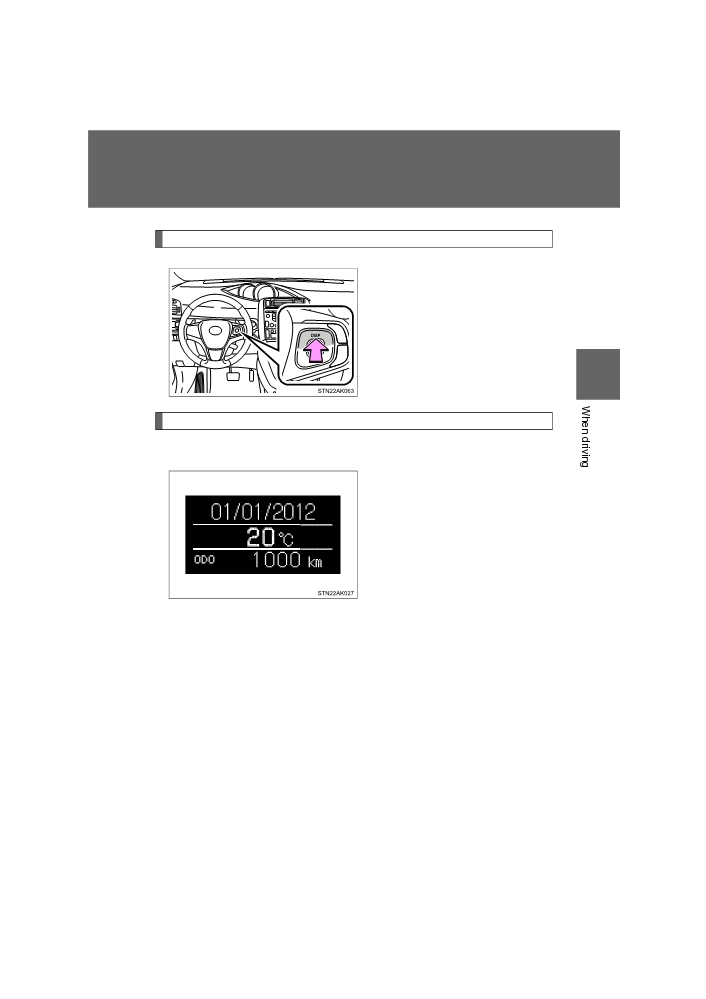

● Date and outside temperature display
Displays the date and outside
temperature.
The temperature range that can
be displayed is from
-40°C
(-40°F) to 50°C (122°F).
233
VERSO_EE_OM64517E
2-2. Instrument cluster

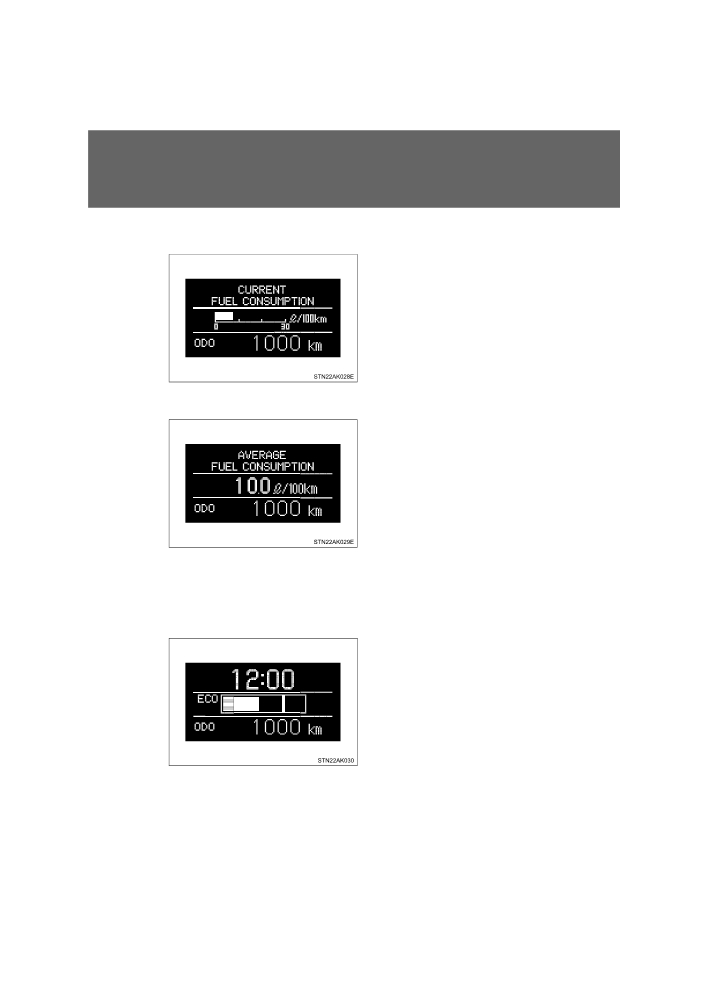

● Instantaneous fuel consumption
Displays the instantaneous fuel
consumption.
● Average fuel consumption
Displays the average fuel con-
sumption since the function was
last reset.
• The function can be reset by
pressing the “DISP” switch for
longer than
1 second when
the average fuel consumption
is displayed.
• Use the displayed average
fuel consumption as a refer-
ence.
● Eco Driving Indicator Zone Display (if equipped)
Eco Driving Indicator indicates
the range where acceleration is
Eco-friendly, “Zone of Eco driv-
ing” and Eco driving ratio based
on acceleration.
234
VERSO_EE_OM64517E
2-2. Instrument cluster

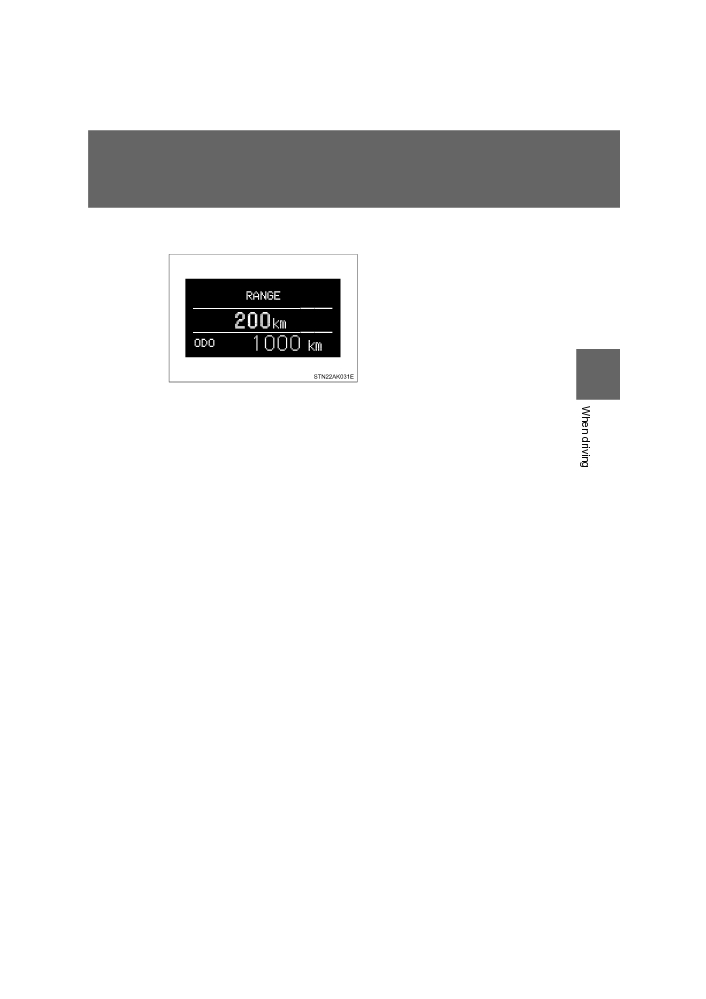

● Driving range
Displays the estimated maxi-
mum distance that can be driven
with the quantity of fuel remain-
ing.
•
This distance is computed
based on your average fuel
consumption. As a result, the
2
actual distance that can be
driven may differ from that dis-
played.
•
When only a small amount of
fuel is added to the tank, the
display may not be updated.
Vehicles without smart entry &
start system:
When refueling, turn the
engine switch to the “LOCK”
position. If the vehicle is refu-
eled without turning the
engine switch to the “LOCK”
position, the display may not
be updated.
Vehicles with smart entry &
start system:
When refueling, turn the
“ENGINE START STOP”
switch off. If the vehicle is
refueled without turning the
“ENGINE START STOP”
switch off, the display may not
be updated.
235
VERSO_EE_OM64517E
2-2. Instrument cluster
● Average vehicle speed
Displays the average vehicle
speed since the engine was
started or since the function was
last reset.
The function can be reset by
pressing the
“DISP” switch for
longer than 1 second when the
average vehicle speed is dis-
played.
● Elapsed time
Displays the elapsed time since
the engine was started or since
the function was last reset.
The function can be reset by
pressing the
“DISP” switch for
longer than 1 second when the
elapsed time is displayed.
● LDA (Lane Departure Alert) and speed limiter (if equipped)
The operation conditions for the
LDA (Lane Departure Alert) as
well as the speed limiter are dis-
played.
LDA (Lane Departure Alert) (if
equipped)
P. 283
Speed limiter (if equipped)
P. 298
236
VERSO_EE_OM64517E
2-2. Instrument cluster
Set up display
■ Before setting
Display the settings screen on the multi-information display
when the vehicle is stopped.

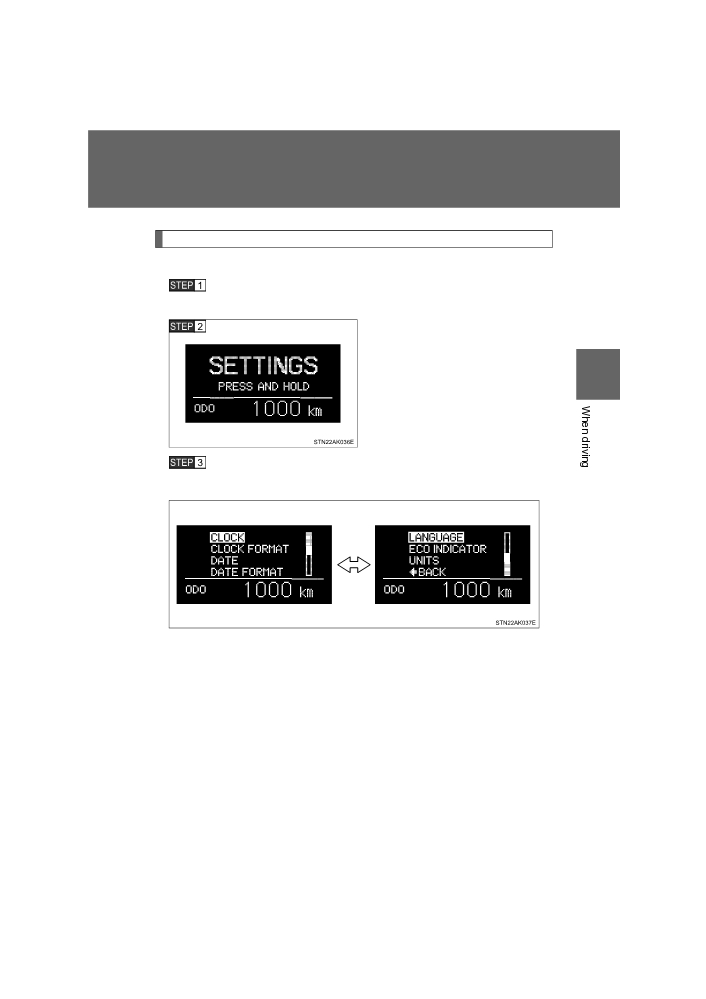

Press and hold the “DISP” switch
to enter the adjustment mode.
2
Select the desired item on the menu screen.
Press and hold the “DISP” switch to enter the adjustment mode.
237
VERSO_EE_OM64517E
