Doc ID: RM0000026GA02CX
Model Year: 2015
Model: Tundra
Prod Date Range: [08/2014 - ]
Title: DIFFERENTIAL: FRONT DIFFERENTIAL SIDE GEAR SHAFT OIL SEAL (for 4WD): REPLACEMENT; 2015 MY
Tundra [08/2014 - ]
REPLACEMENT
HINT:
The procedure described below is for the LH side. Use the same procedure for both the RH and LH sides,
unless otherwise specified.
1. DRAIN DIFFERENTIAL OIL

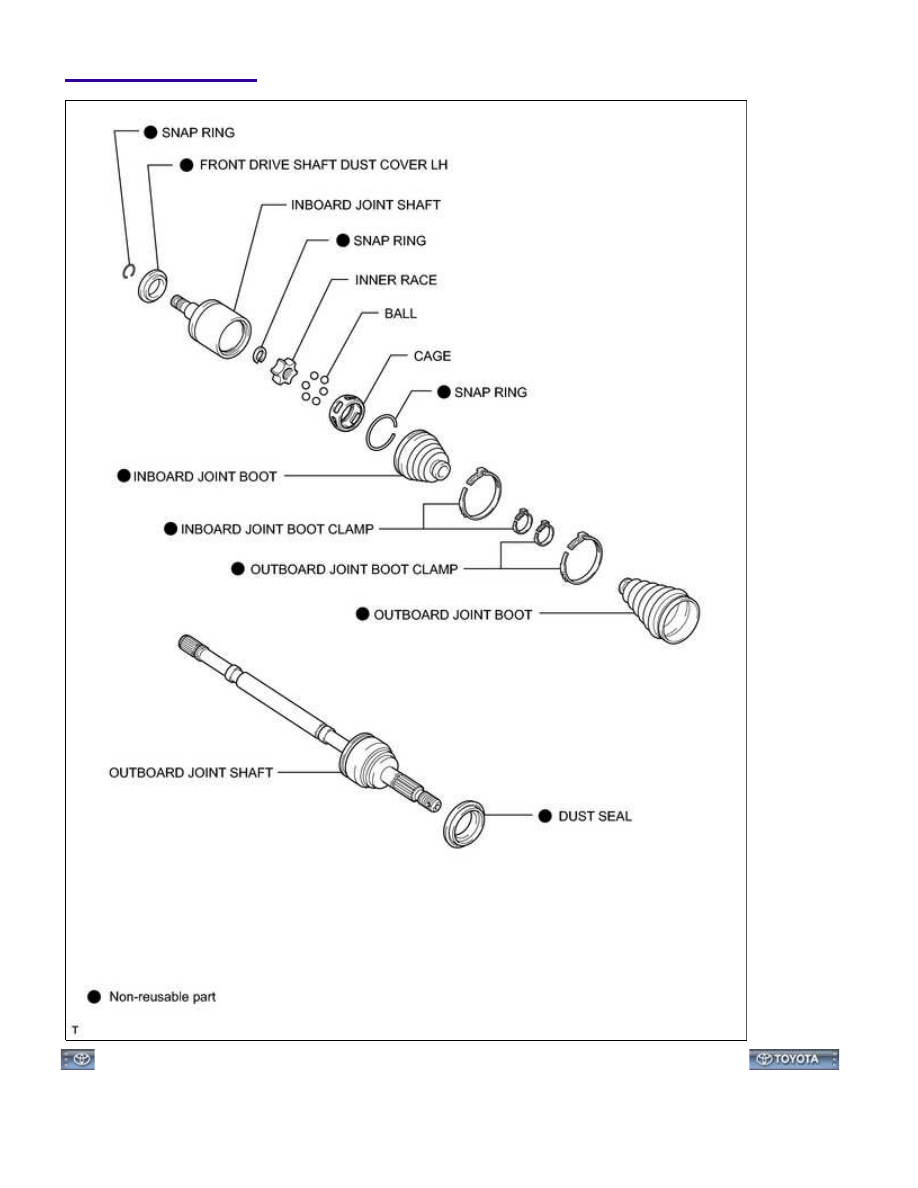

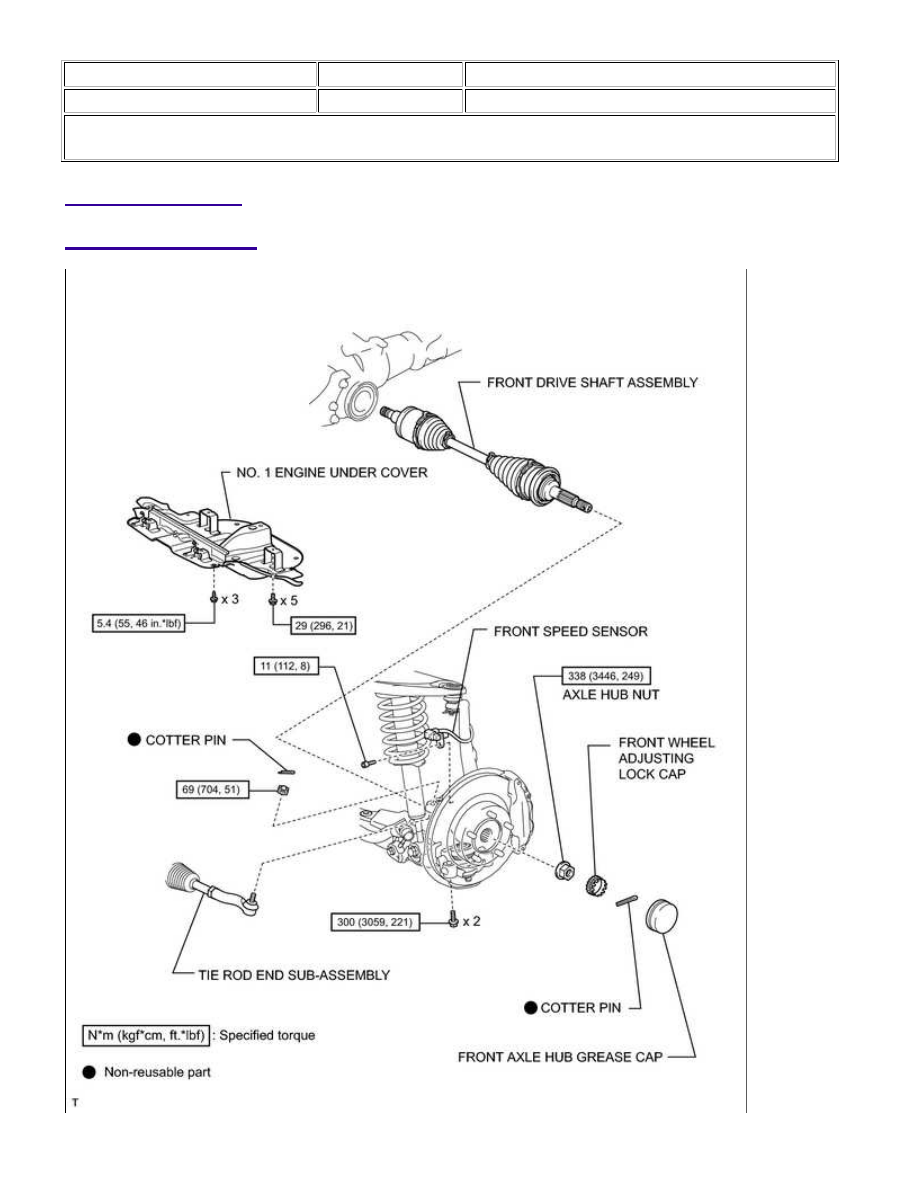

2. REMOVE FRONT DRIVE SHAFT ASSEMBLY LH
(a) Remove the front drive shaft
.
3. REMOVE DIFFERENTIAL SIDE GEAR SHAFT OIL SEAL

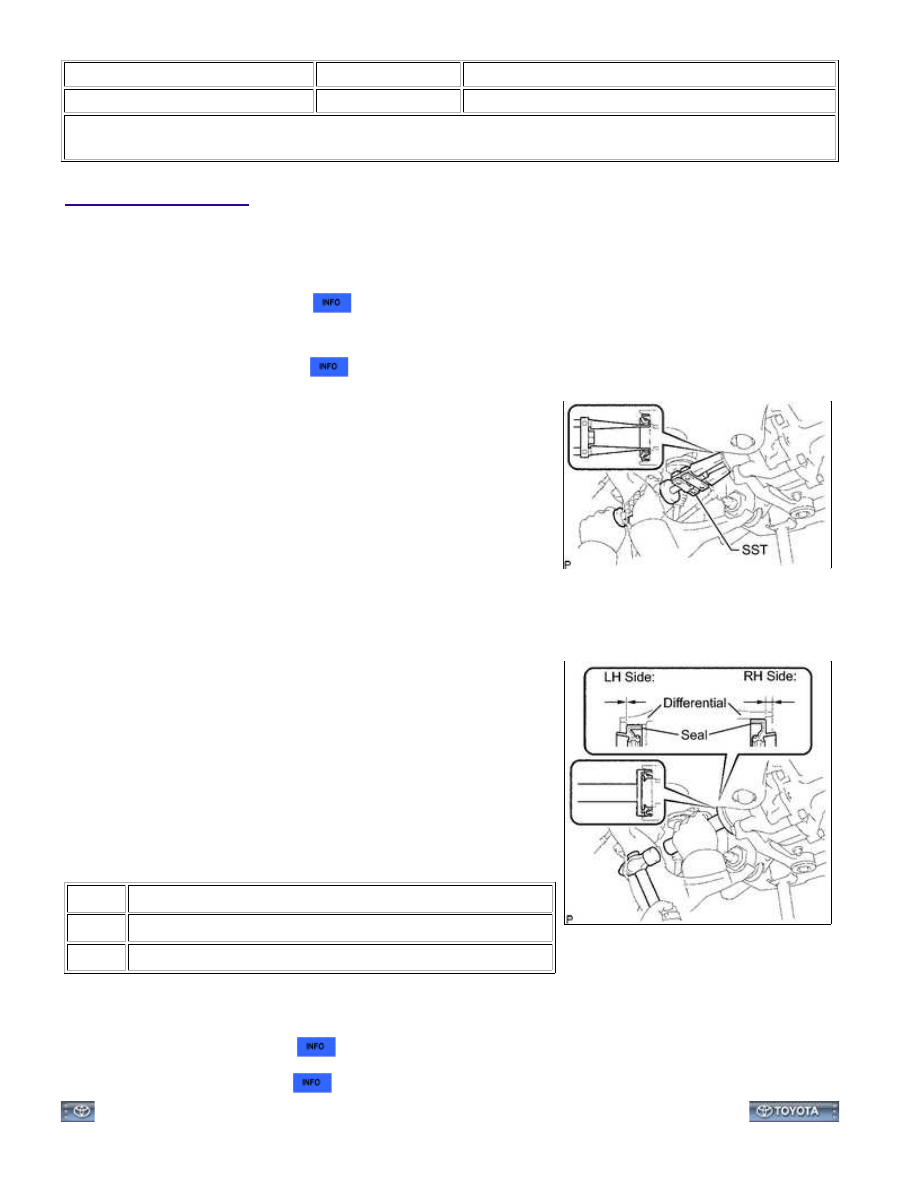

(a) Using SST, tap out the 2 oil seals.
SST: 09308-10010
4. INSTALL DIFFERENTIAL SIDE GEAR SHAFT OIL SEAL
(a) Apply MP grease to 2 new oil seals.
(b) Using SST and a hammer, tap in the 2 oil seals.
SST: 09550-00032
SST: 09950-70010
09951-07100
NOTICE:
Make sure the LH and RH oil seals are installed in the proper
locations.
Standard oil seal depth:
SIDE
SPECIFIED CONDITION
LH
-0.45 to 0.45 mm (-0.0177 to 0.0177 in.)
RH
4.8 to 5.8 mm (0.189 to 0.228 in.)
5. INSTALL FRONT DRIVE SHAFT ASSEMBLY LH
(a) Install the front drive shaft
.
6. ADD DIFFERENTIAL OIL
DIFFERENTIAL: FRONT DIFFERENTIAL SIDE GEAR SHAFT OIL...
