Toyota Tundra (2015 year). Manual - part 818
Last Modified: 9-16-2014
6.6 A
Doc ID: RM000002HW9018X
Model Year: 2015
Model: Tundra
Prod Date Range: [08/2014 - ]
Title: DIFFERENTIAL: FRONT DIFFERENTIAL CARRIER OIL SEAL (for 4WD): REPLACEMENT; 2015 MY Tundra
[08/2014 - ]

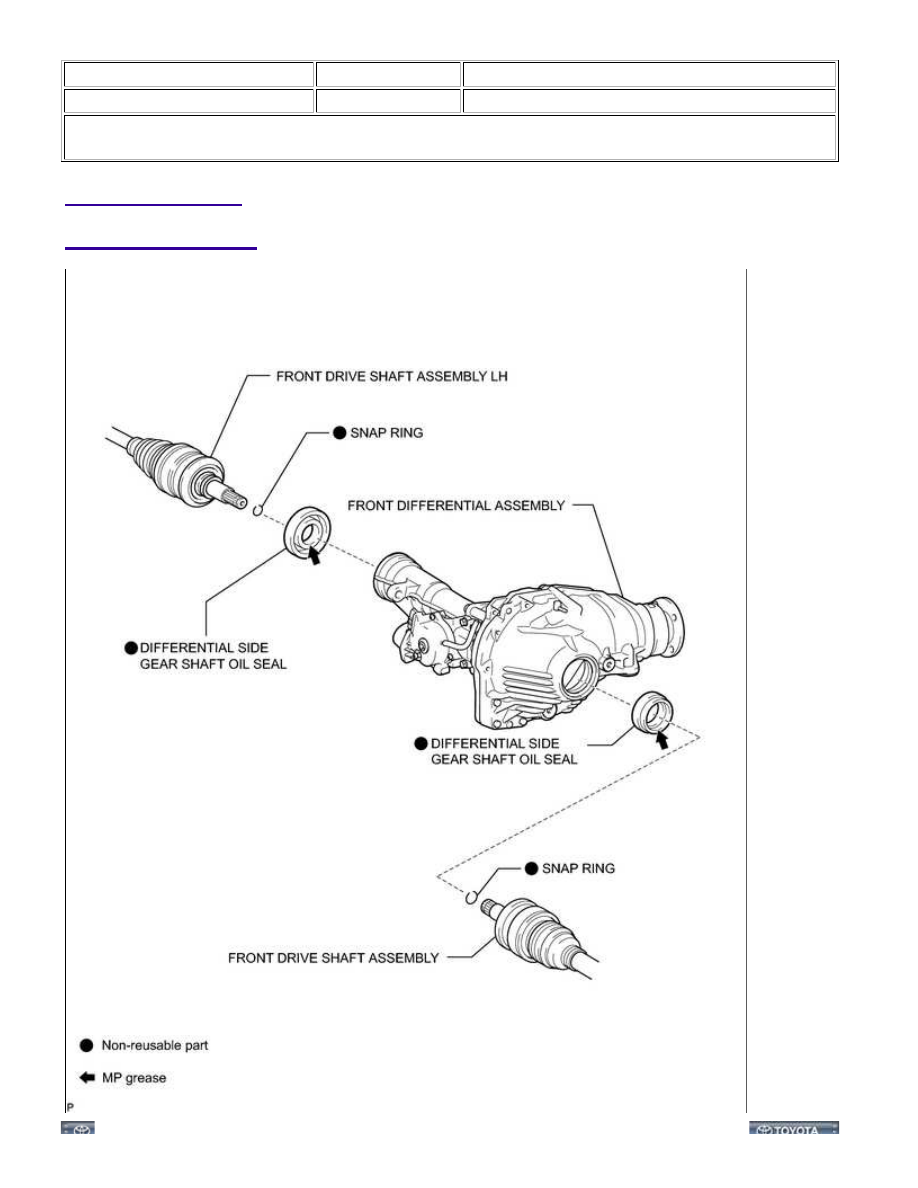

REPLACEMENT
1. DRAIN DIFFERENTIAL OIL
2. REMOVE FRONT DIFFERENTIAL CARRIER ASSEMBLY
(a) Remove the differential carrier
.
3. REMOVE FRONT DIFFERENTIAL TUBE ASSEMBLY
4. REMOVE FRONT DRIVE PINION COMPANION FLANGE FRONT NUT
5. REMOVE FRONT DRIVE PINION COMPANION FLANGE FRONT SUB-ASSEMBLY
6. REMOVE FRONT DIFFERENTIAL CARRIER OIL SEAL

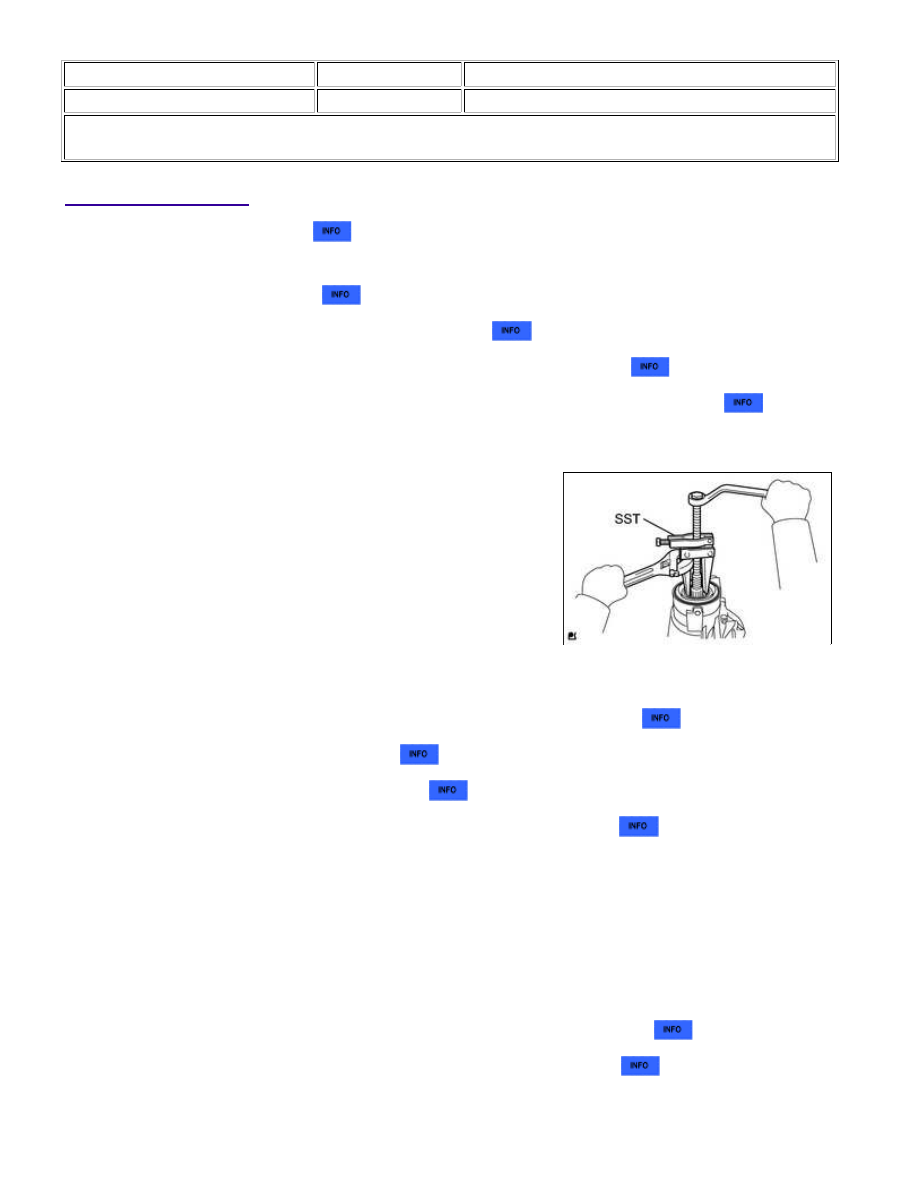

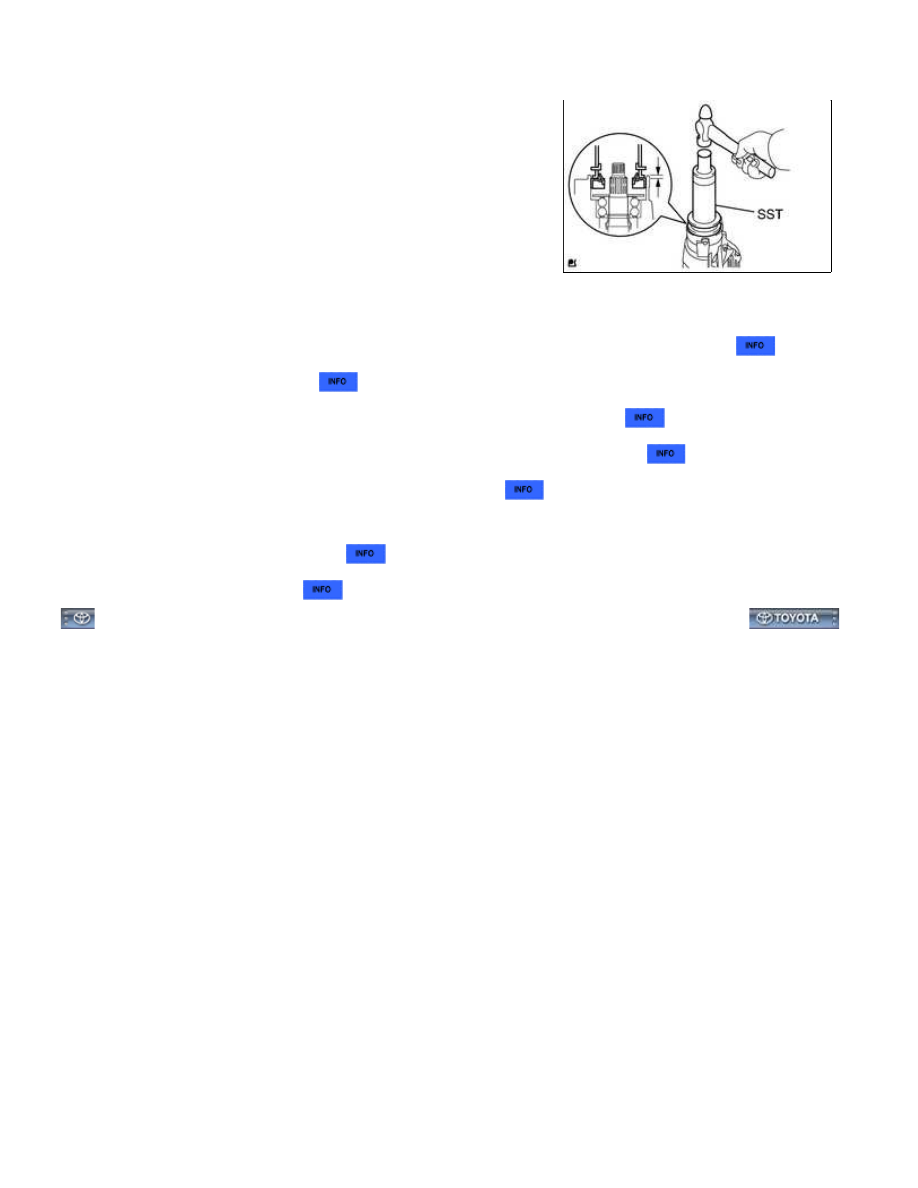

(a) Using SST, remove the oil seal.
SST: 09308-10010
7. REMOVE FRONT DIFFERENTIAL DRIVE PINION OIL SLINGER
8. REMOVE FRONT DIFFERENTIAL CROSS SHAFT BEARING RETAINER
9. REMOVE FRONT DIFFERENTIAL CASE
10. REMOVE DIFFERENTIAL DRIVE PINION
11. REMOVE FRONT DRIVE PINION FRONT RADIAL BALL BEARING
12. REMOVE FRONT DIFFERENTIAL DRIVE PINION BEARING SPACER
13. INSTALL FRONT DIFFERENTIAL DRIVE PINION BEARING SPACER
(a) Install a new bearing spacer.
14. TEMPORARILY INSTALL DIFFERENTIAL DRIVE PINION
15. INSTALL FRONT DIFFERENTIAL CASE
16. INSTALL FRONT DIFFERENTIAL CROSS SHAFT BEARING RETAINER
17. INSTALL FRONT DRIVE PINION FRONT RADIAL BALL BEARING
18. INSTALL FRONT DIFFERENTIAL DRIVE PINION OIL SLINGER
DIFFERENTIAL: FRONT DIFFERENTIAL CARRIER OIL SEAL (fo...
