7. INSTALL FRONT WHEEL

(a) Install the front wheels.

Torque:

for aluminum wheel -

131 N·m {1336 kgf·cm, 97ft·lbf}

for steel wheel -

209 N·m {2131 kgf·cm, 154ft·lbf}

DIFFERENTIAL: FRONT DIFFERENTIAL CARRIER ASSEMBLY (f...

Last Modified: 9-16-2014

6.6 K

Doc ID: RM000002IFF018X

Model Year: 2015

Model: Tundra

Prod Date Range: [08/2014 -           ]

Title: DIFFERENTIAL: FRONT DIFFERENTIAL CARRIER OIL SEAL (for 4WD): COMPONENTS; 2015 MY Tundra

[08/2014 -        ]

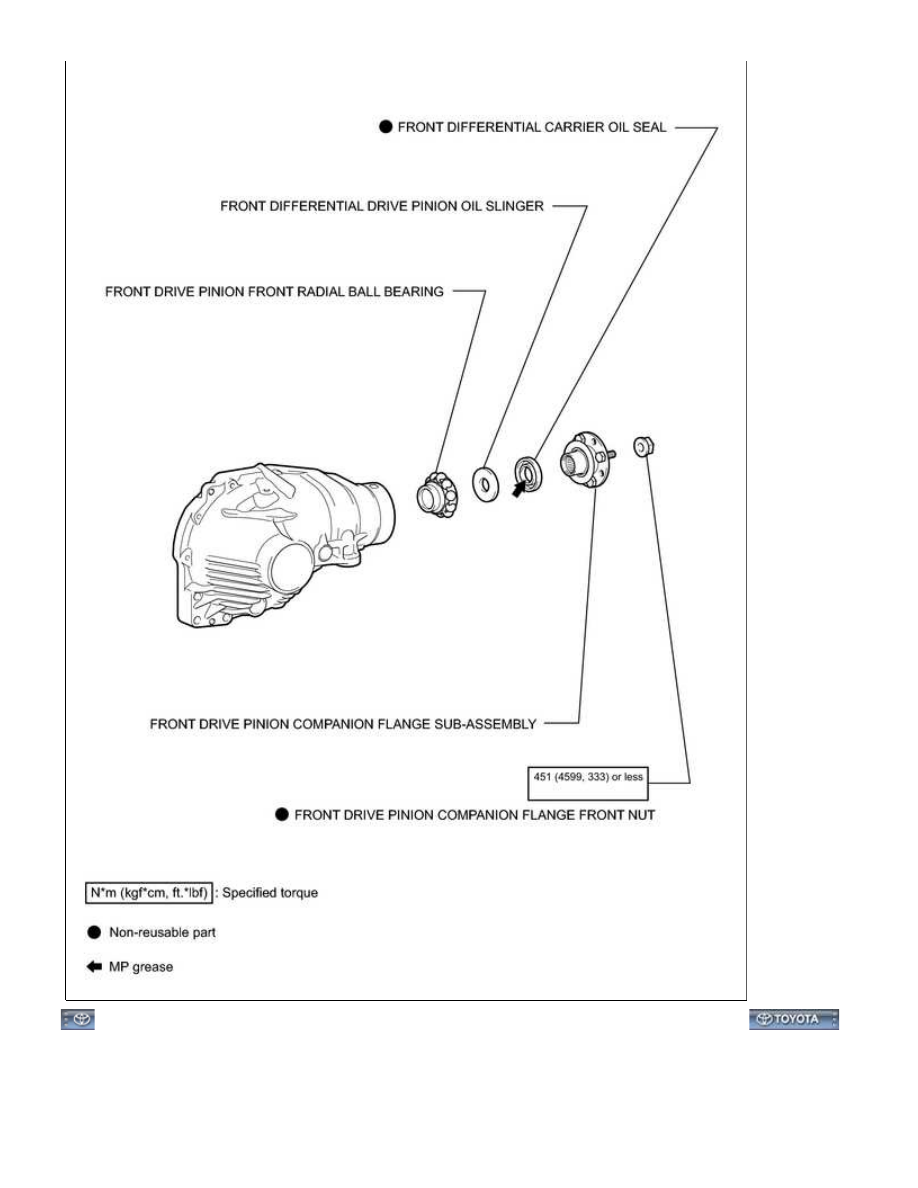

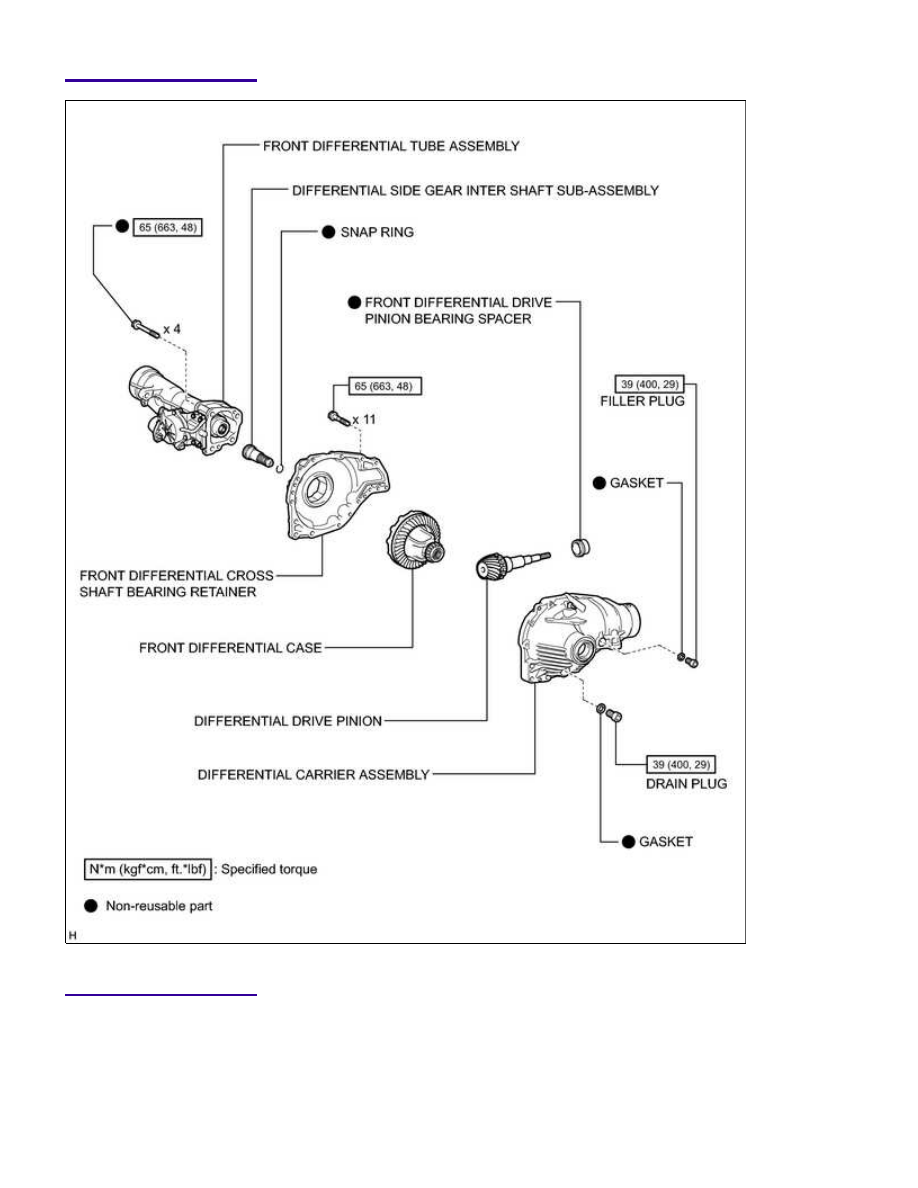

COMPONENTS

ILLUSTRATION

DIFFERENTIAL: FRONT DIFFERENTIAL CARRIER OIL SEAL (fo...

ILLUSTRATION

ILLUSTRATION

DIFFERENTIAL: FRONT DIFFERENTIAL CARRIER OIL SEAL (fo...

DIFFERENTIAL: FRONT DIFFERENTIAL CARRIER OIL SEAL (fo...
