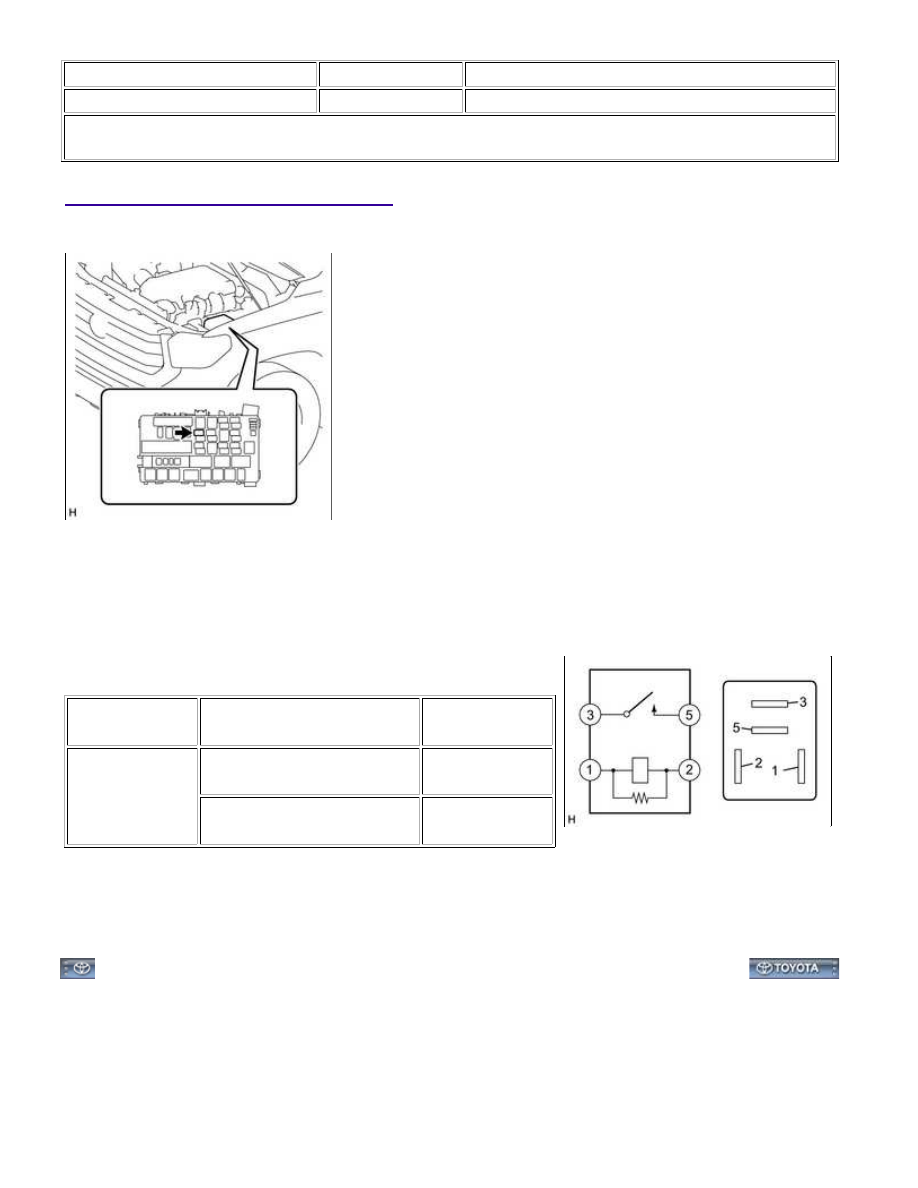

Last Modified: 9-16-2014 6.6 G Doc ID: RM000005KXB001X Model Year: 2015 Model: Tundra Prod Date Range: [08/2014 - ] Title: LIGHTING: DAYTIME RUNNING LIGHT RELAY: ON-VEHICLE INSPECTION; 2015 MY Tundra [08/2014 - ] ON-VEHICLE INSPECTION 1. INSPECT NO. 1 DAY TIME RUNNING LIGHT RELAY (a) Remove the No. 1 day time running light relay from the engine room relay box. (b) Check the resistance. (1) Measure the resistance according to the value(s) in the table below. Standard Resistance: TESTER CONNECTION CONDITION SPECIFIED CONDITION 3 - 5 Battery voltage not applied to terminals 1 and 2 10 kΩ or higher Battery voltage applied to terminals 1 and 2 Below 1 Ω If the result is not as specified, replace the No. 1 day time running light relay. (c) Install the No. 1 day time running light relay to the engine room relay box. LIGHTING: DAYTIME RUNNING LIGHT RELAY: ON-VEHICLE I... |
