Toyota Tundra (2015 year). Manual - part 2793





(2) Check the 2 capsules for deformation and damage.

STEERING COLUMN: STEERING COLUMN ASSEMBLY (for Manu...

Last Modified: 9-16-2014

6.6 A

Doc ID: RM000002ZQP01AX

Model Year: 2015

Model: Tundra

Prod Date Range: [08/2014 -           ]

Title: STEERING COLUMN: STEERING COLUMN ASSEMBLY (for Manual Tilt): REASSEMBLY; 2015 MY Tundra

[08/2014 -        ]

REASSEMBLY

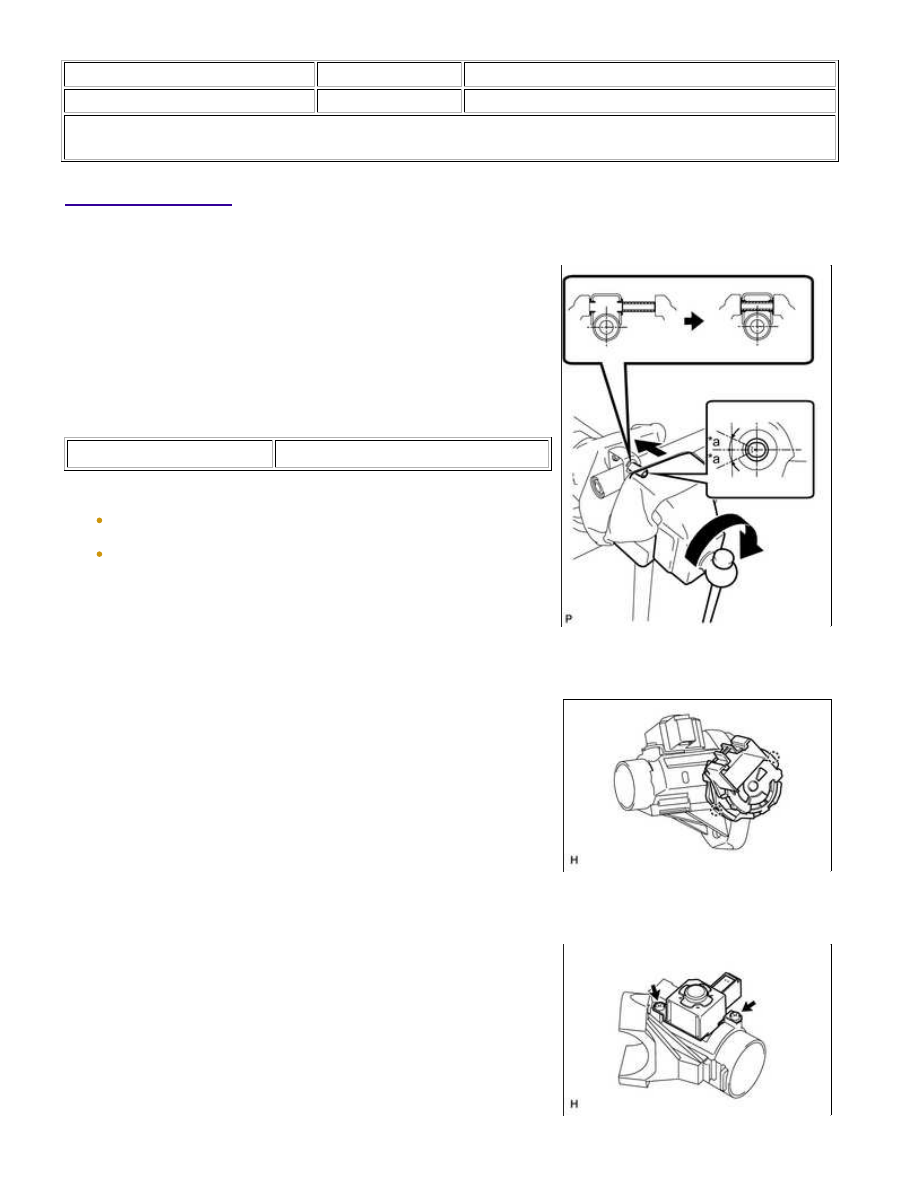

1. INSTALL STEERING COLUMN BRACKET SPACER

(a) Fix the steering column in a vise between aluminum plates or a

cloth. Then install the steering column bracket spacer to the

steering column.

Text in Illustration

*a

15°

NOTICE:

Install the steering column bracket spacer so that it is facing in
the direction shown in the illustration.
When using a vise, do not overtighten it.

2. INSTALL IGNITION SWITCH ASSEMBLY

(a) Attach the 2 claws to install the ignition switch to the steering

switch bracket.

3. INSTALL KEY INTERLOCK SOLENOID

(a) Install the key interlock solenoid to the steering lock with the 2

screws.

STEERING COLUMN: STEERING COLUMN ASSEMBLY (for Manu...

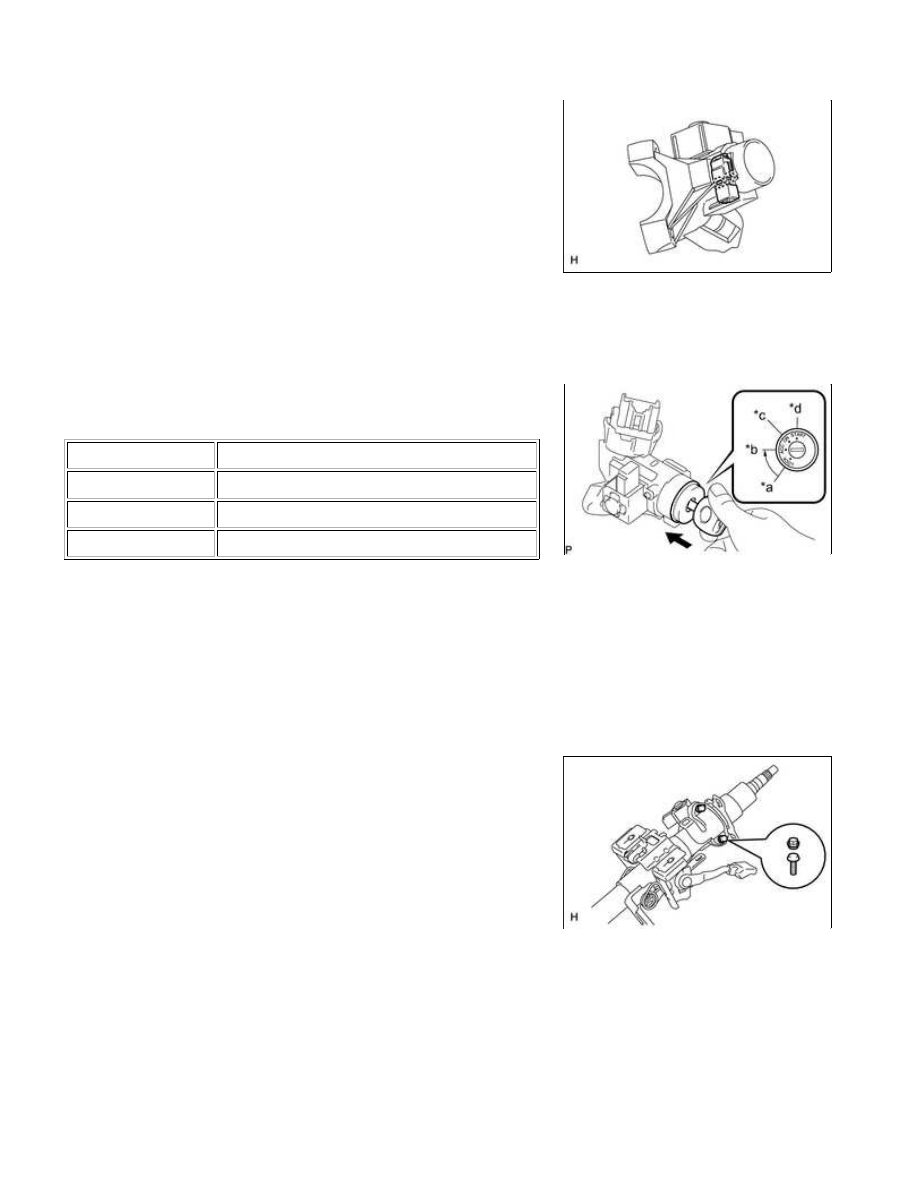

4. INSTALL UNLOCK WARNING SWITCH ASSEMBLY

(a) Attach the 2 claws to install the unlock warning switch to the

steering switch bracket.

5. INSTALL IGNITION SWITCH LOCK CYLINDER

(a) Check that the ignition switch lock cylinder is in the ACC position.

(b) Install the ignition switch lock cylinder to the steering lock.

Text in Illustration

*a

LOCK

*b

ACC

*c

ON

*d

START

(c) Check that the ignition switch lock cylinder is securely installed.

6. INSPECT STEERING LOCK OPERATION

7. INSTALL UPPER STEERING COLUMN CLAMP WITH SWITCH BRACKET ASSEMBLY

(a) Temporarily install the upper steering column with switch bracket and the steering lock bracket with 2 new

tapered-head bolts.

(b) Tighten the 2 tapered-head bolts until the bolt heads break off.

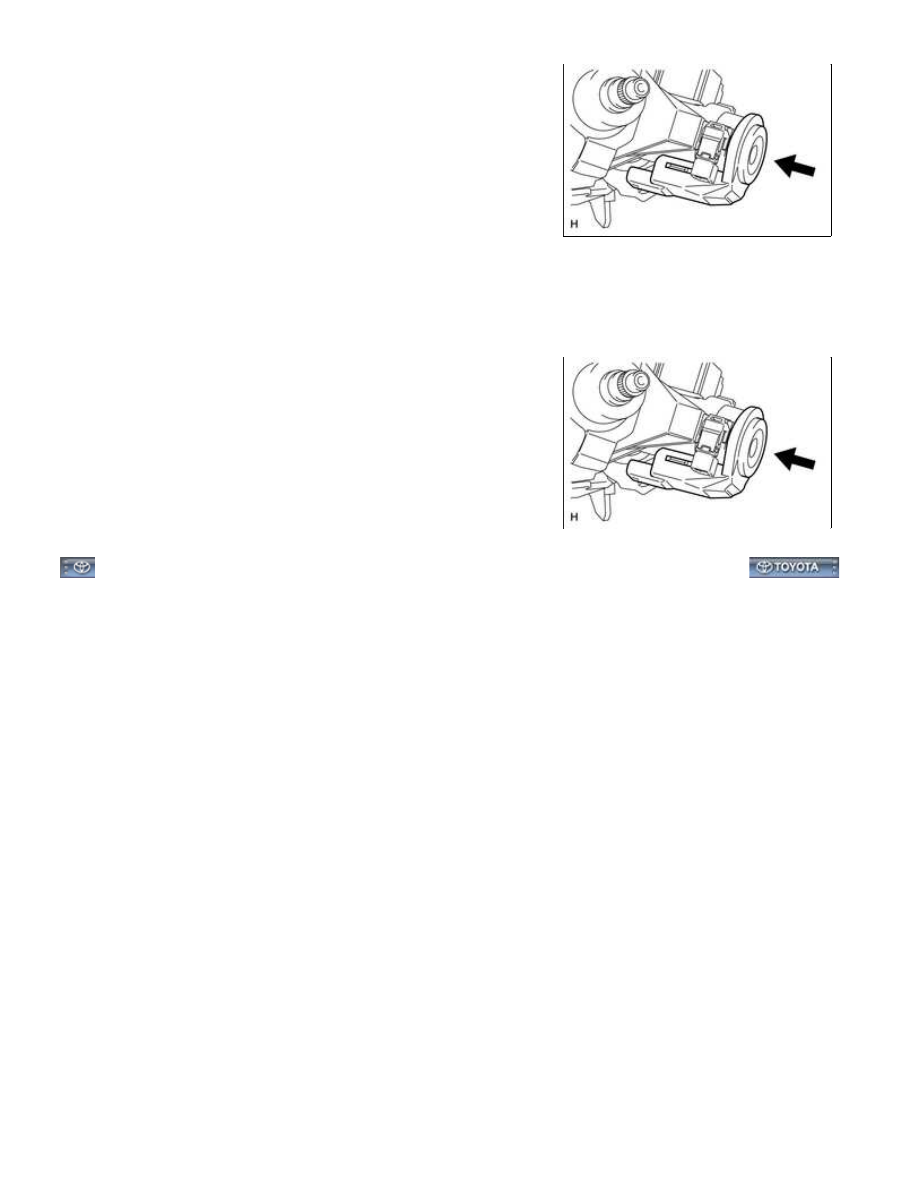

8. INSTALL TRANSPONDER KEY AMPLIFIER (w/ Engine Immobiliser System)

STEERING COLUMN: STEERING COLUMN ASSEMBLY (for Manu...

(b) Push the transponder key amplifier upward and install it to the

upper switch bracket.

NOTICE:

Do not push the amplifier up with excessive force.

9. INSTALL KEY CYLINDER LIGHT ASSEMBLY (w/o Engine Immobiliser System)

(b) Push the key cylinder light upward and install it to the switch

bracket.

NOTICE:

Do not push the key cylinder light up with excessive force.

STEERING COLUMN: STEERING COLUMN ASSEMBLY (for Manu...
