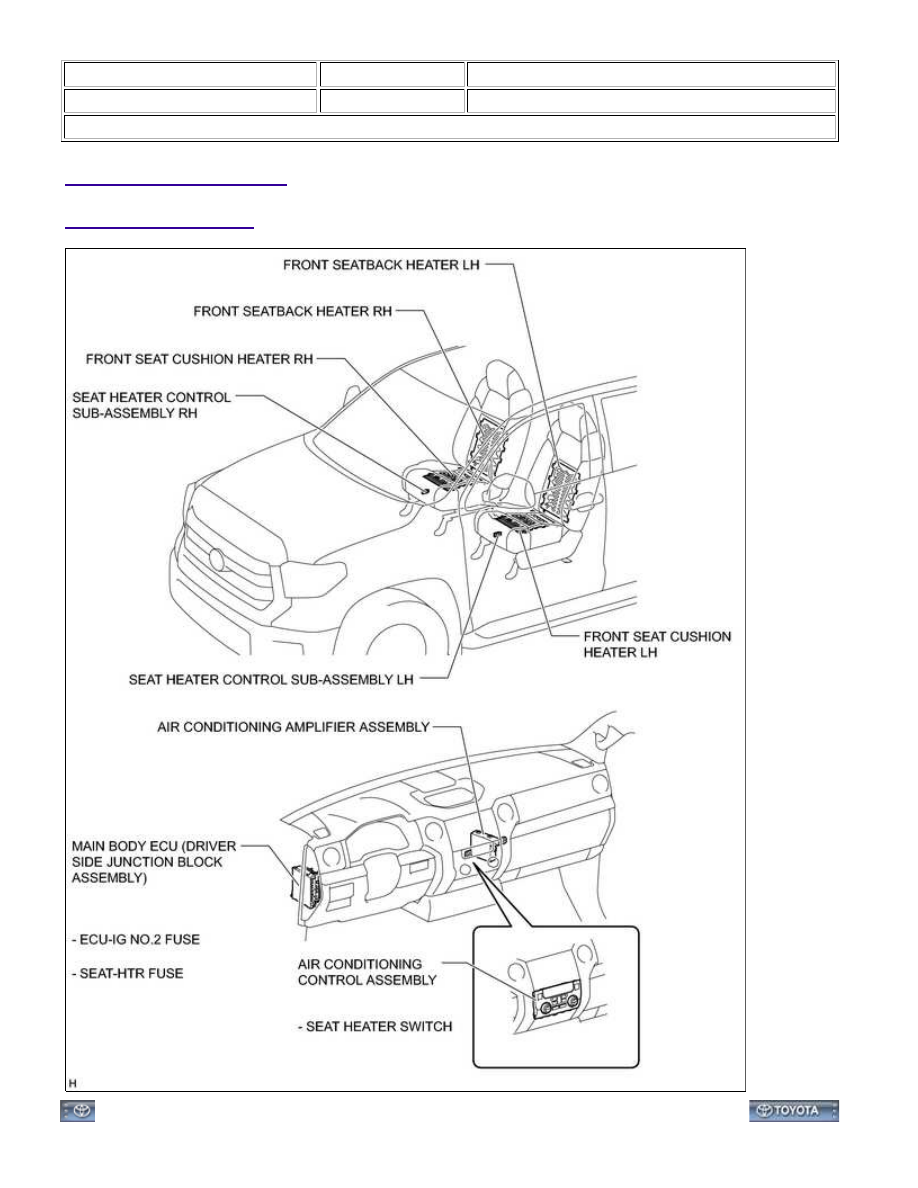

Last Modified: 9-16-2014 6.6 A Doc ID: RM000002VYF034X Model Year: 2015 Model: Tundra Prod Date Range: [08/2014 - ] Title: SEAT: SEAT HEATER SWITCH: INSTALLATION; 2015 MY Tundra [08/2014 - ] INSTALLATION 1. INSTALL AIR CONDITIONING CONTROL ASSEMBLY (SEAT HEATER SWITCH) (a) Attach the 3 clips to connect the air conditioning control assembly (seat heater switch) to the center lower instrument panel finish panel. (b) Connect each connector. (c) Attach the 8 clips, 2 claws and guide to install the air conditioning control assembly (seat heater switch) together with the center lower instrument panel finish panel. 2. INSTALL FRONT CONSOLE BOX 3. REMOVE REAR CONSOLE BOX ASSEMBLY 4. REMOVE CONSOLE BOX CARPET 5. REMOVE REAR CONSOLE END PANEL SUB-ASSEMBLY 6. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY 7. REMOVE UPPER REAR CONSOLE PANEL SUB-ASSEMBLY 8. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY SEAT: SEAT HEATER SWITCH: INSTALLATION; 2015 MY Tundra [0... |
