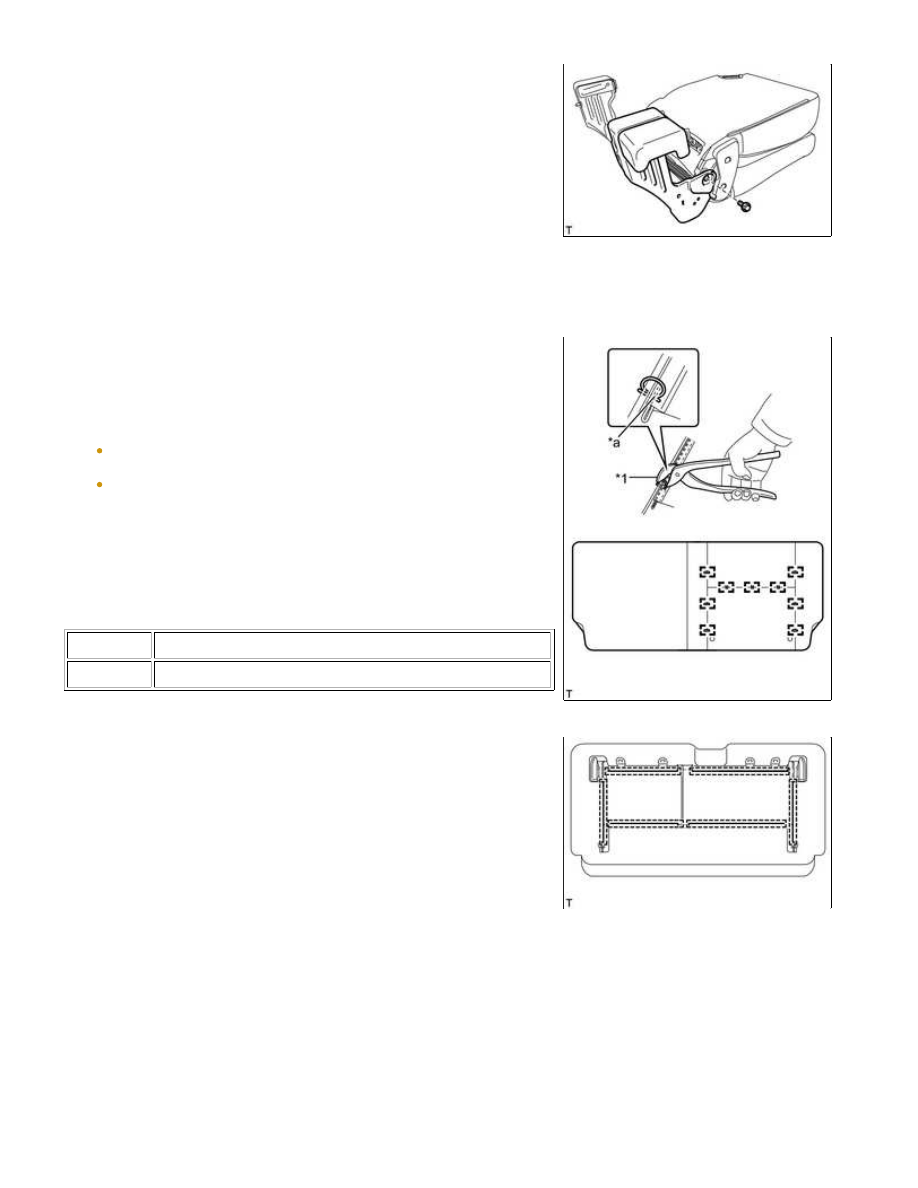

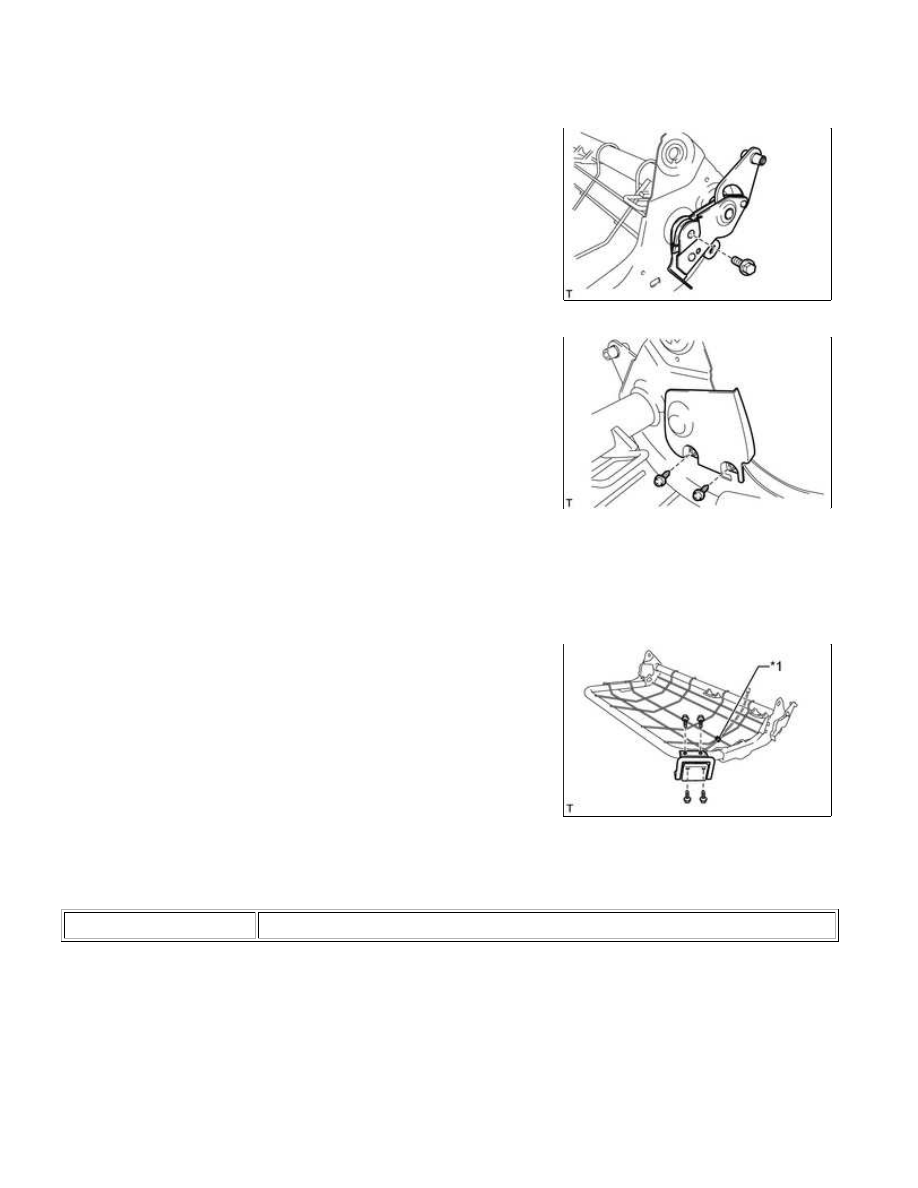

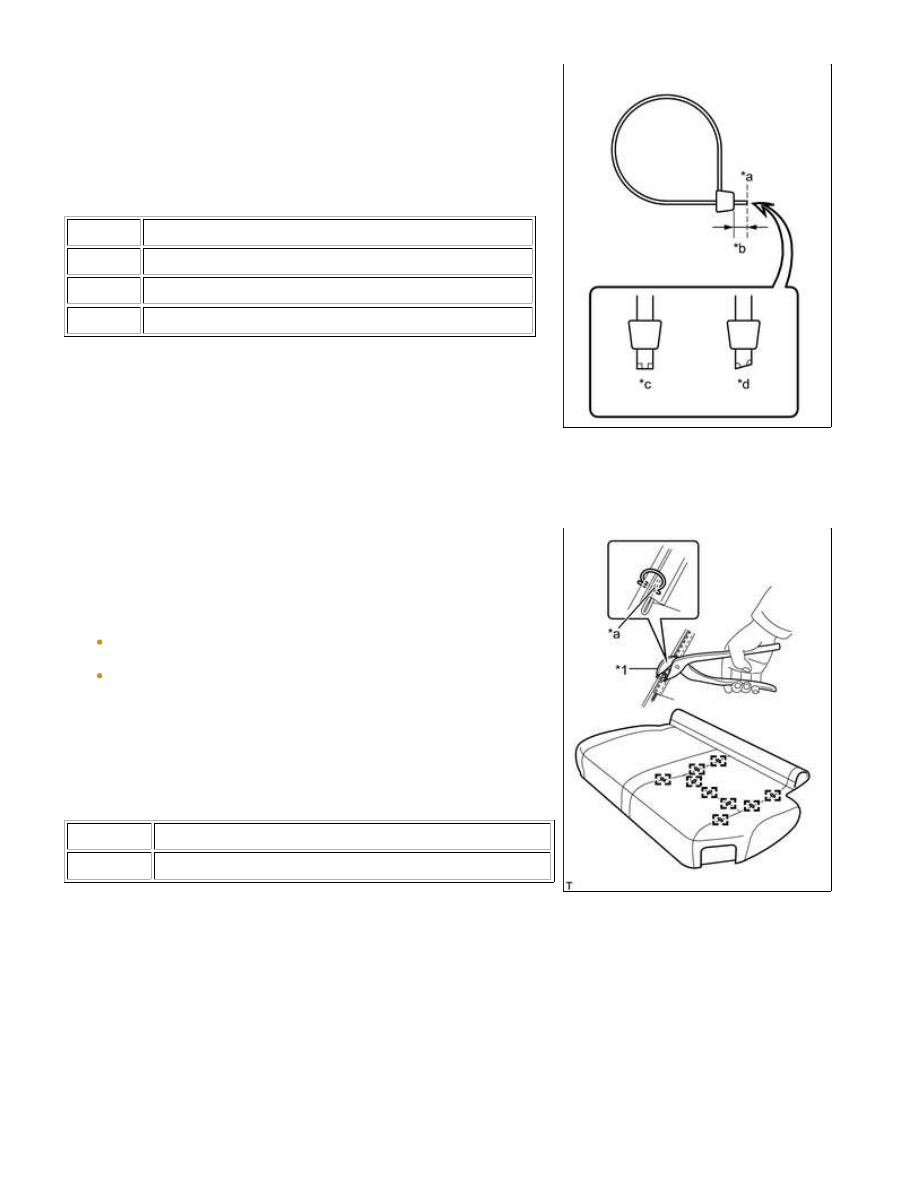

11. INSTALL REAR SEATBACK LOCK CONTROL BEZEL RH (a) Attach the 4 claws to install the rear seatback lock control bezel RH. 12. INSTALL REAR SEAT CUSHION ASSEMBLY RH (a) Using a T40 "TORX" socket wrench, install the rear seat cushion assembly RH with the 2 bolts. Torque: 23 N·m {235 kgf·cm, 17ft·lbf} 13. INSTALL OUTER REAR SEAT LOCK COVER RH (a) Attach the claw labeled B in the direction indicated by the arrow in the illustration, and then attach the clip and 2 claws labeled A to install the outer rear seat lock cover RH. (b) Install the screw. 14. INSTALL INNER REAR SEAT LOCK COVER RH (a) Attach the claw labeled B in the direction indicated by the arrow in the illustration, and then attach the 2 claws labeled A to install the inner rear seat lock cover RH. (b) Install the 2 screws. 15. INSTALL NO. 1 SEAT LEG SUB-ASSEMBLY (a) Install the No. 1 seat leg sub-assembly with the bolt. Torque: 60 N·m {612 kgf·cm, 44ft·lbf} (b) Using a T45 "TORX" socket wrench, install the bolt. Torque: 30 N·m {306 kgf·cm, 22ft·lbf} SEAT: REAR SEAT ASSEMBLY (for Double Cab): REASSEMBLY; 20... |
