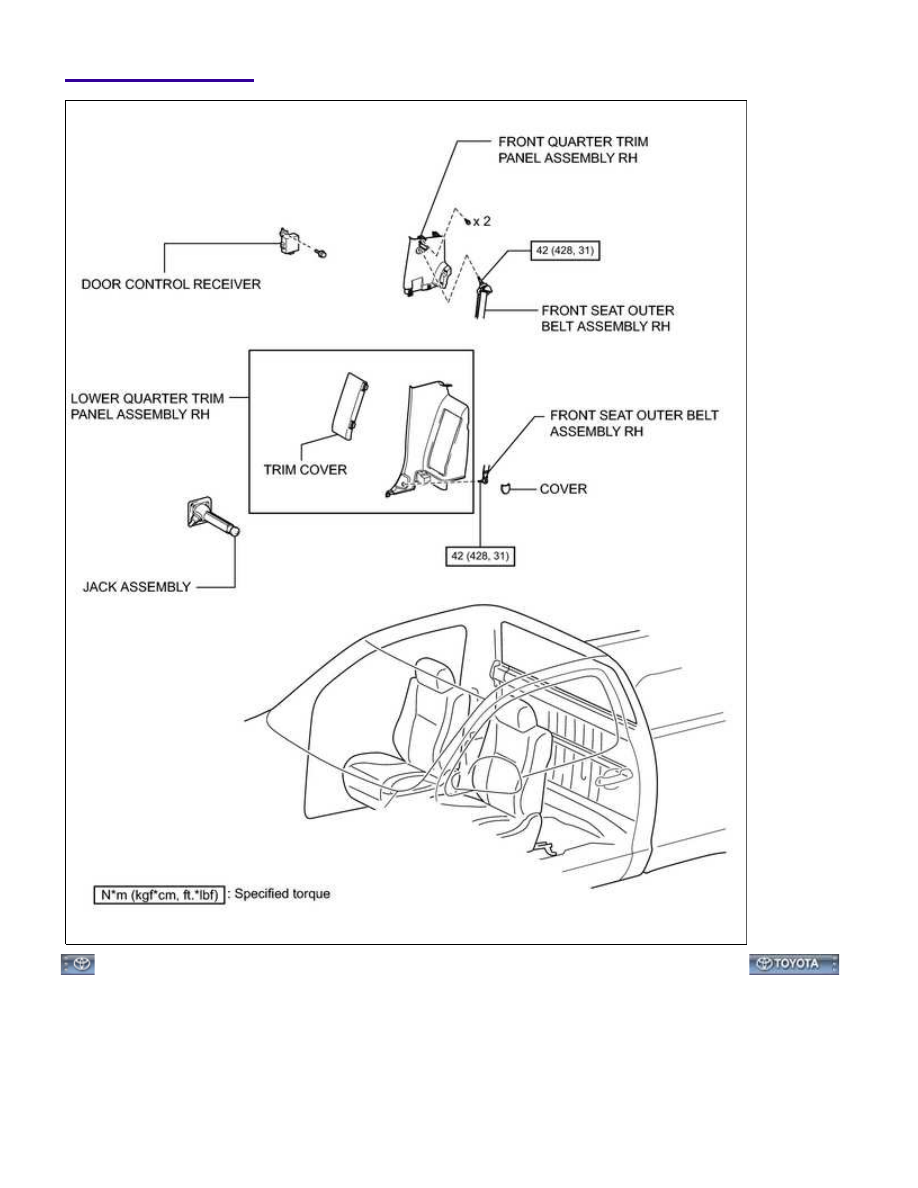

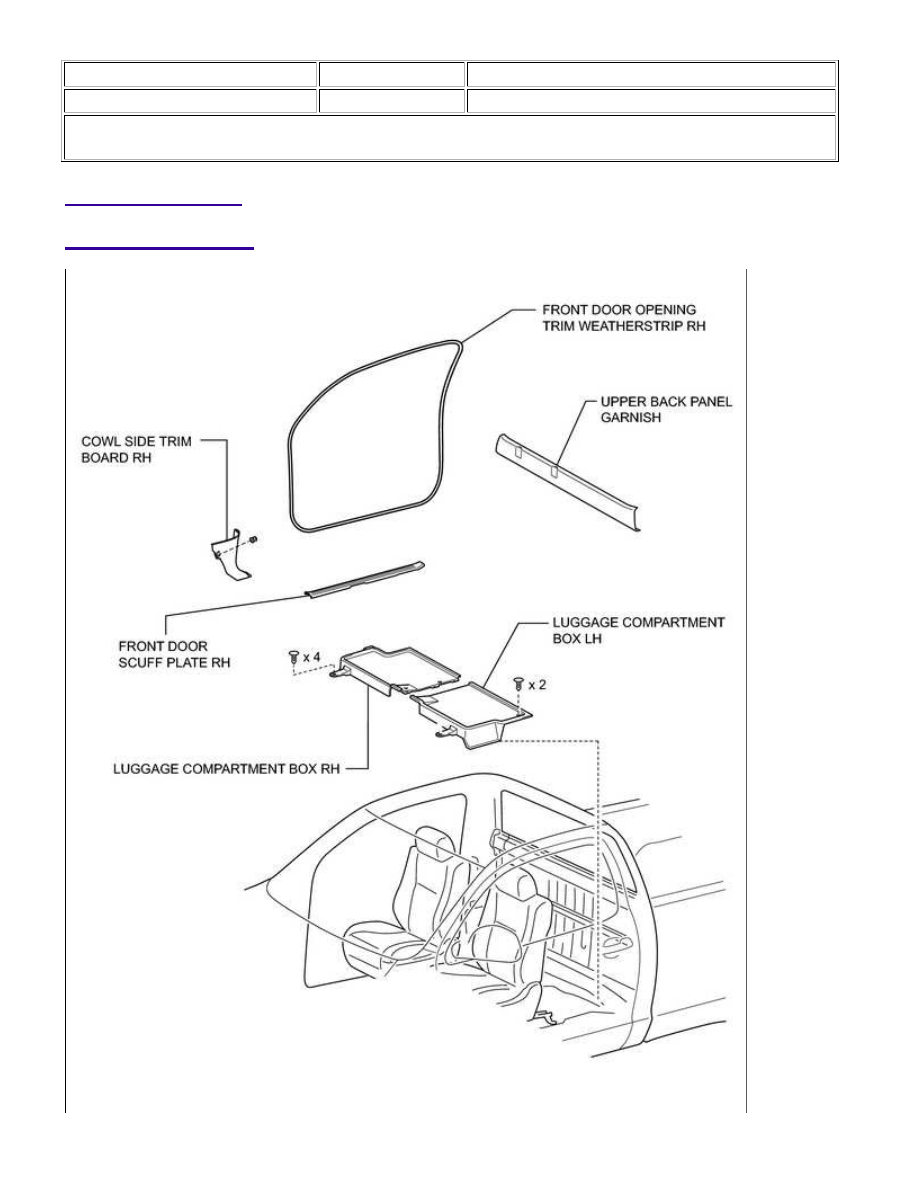

Last Modified: 9-16-2014 6.6 A Doc ID: RM000002ZYS00JX Model Year: 2015 Model: Tundra Prod Date Range: [08/2014 - ] Title: DOOR LOCK: DOOR CONTROL RECEIVER (for Double Cab): REMOVAL; 2015 MY Tundra [08/2014 - ] REMOVAL 1. REMOVE LUGGAGE COMPARTMENT SIDE COVER SUB-ASSEMBLY LH 2. REMOVE LUGGAGE COMPARTMENT SIDE COVER SUB-ASSEMBLY RH 3. REMOVE SEAT FLOOR BOX 4. REMOVE REAR SEAT ASSEMBLY 5. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH (a) Remove the rear door opening trim weatherstrip
. HINT: The procedures listed below are for the LH side. 6. REMOVE REAR DOOR SCUFF PLATE RH (a) Remove the rear door scuff plate
. HINT: The procedures listed below are for the LH side. 7. REMOVE LOWER QUARTER TRIM PANEL ASSEMBLY RH (a) Remove the lower quarter trim panel assembly

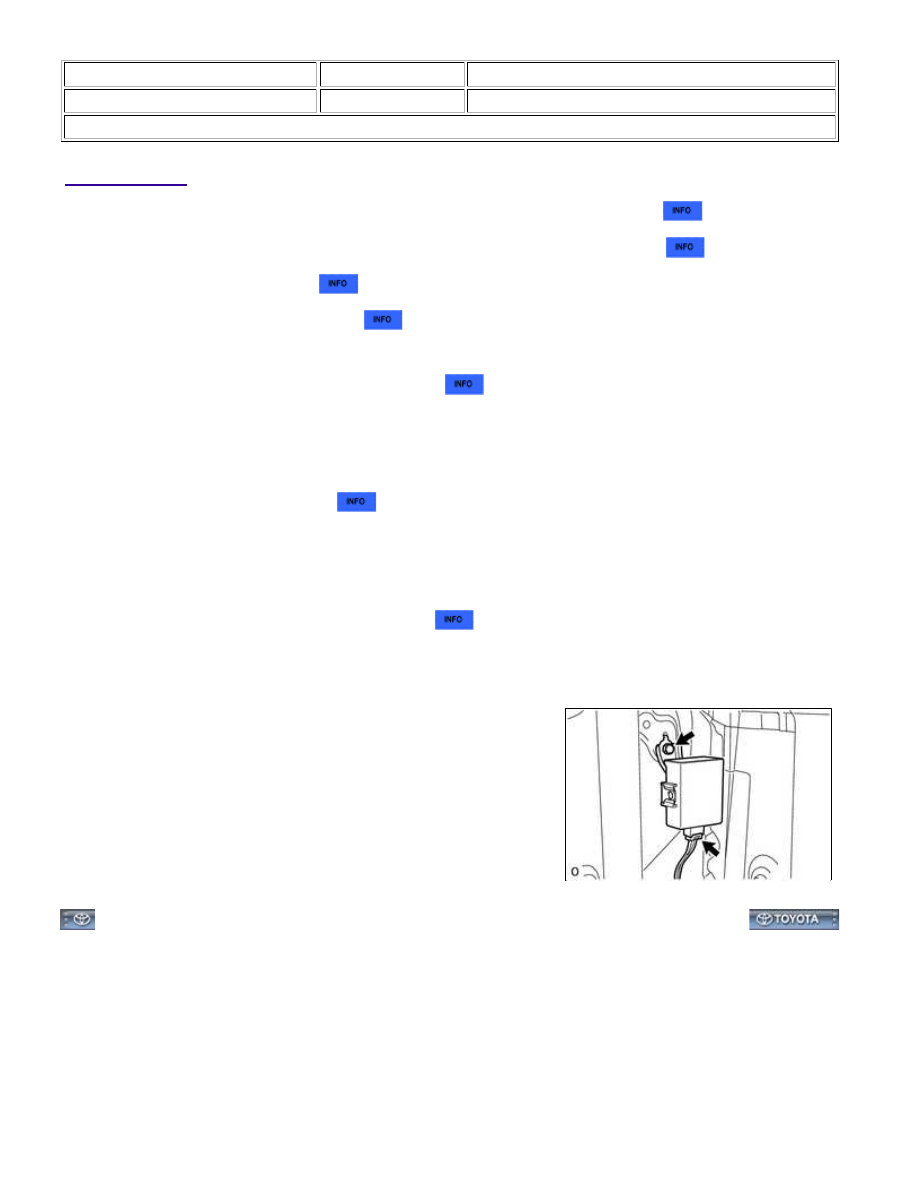

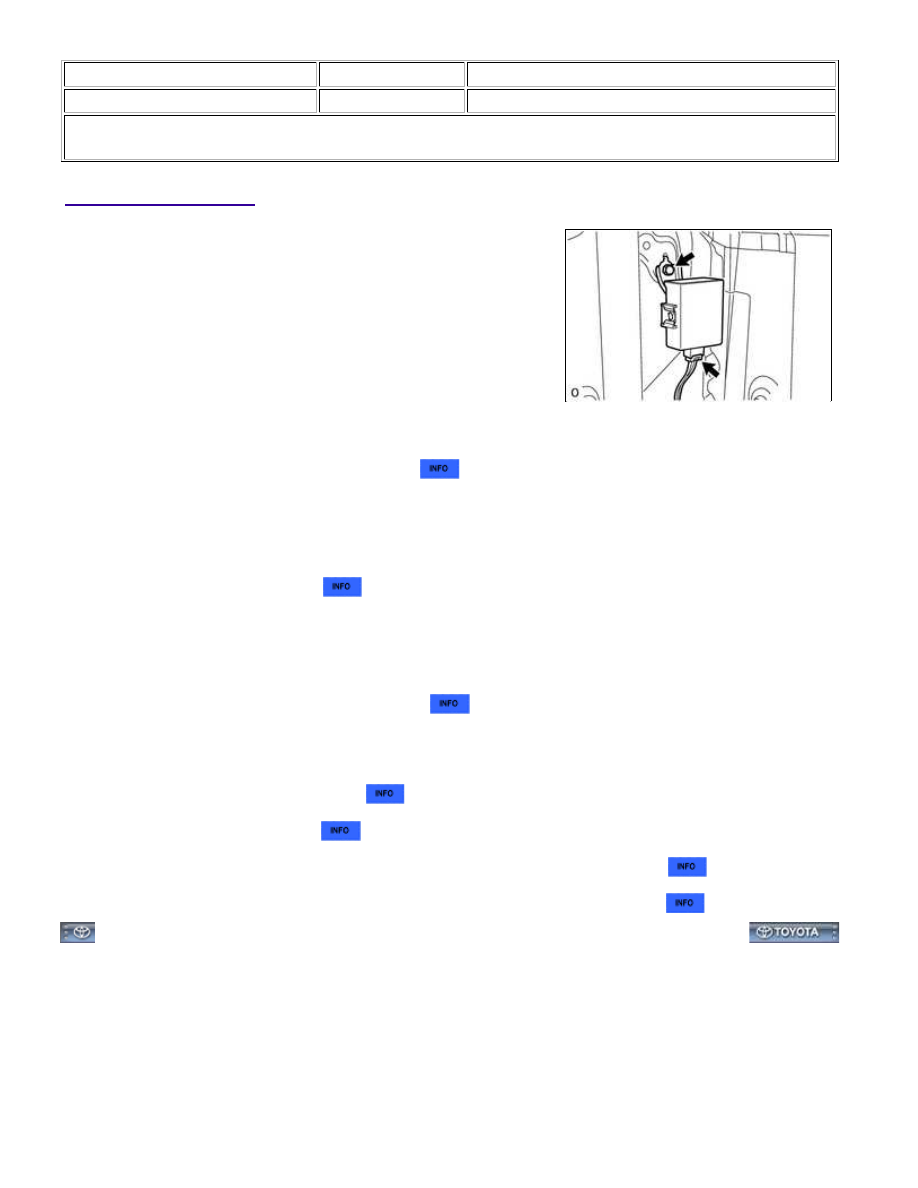

. HINT: The procedures listed below are for the LH side. 8. REMOVE DOOR CONTROL RECEIVER (a) Disconnect the connector. (b) Remove the bolt and door control receiver. DOOR LOCK: DOOR CONTROL RECEIVER (for Double Cab): REM... |
