Toyota Tundra (2015 year). Manual

Last Modified: 9-16-2014

6.6 A

Doc ID: RM0000030HF00BX

Model Year: 2015

Model: Tundra

Prod Date Range: [08/2014 - ]

Title: WINDSHIELD / WINDOWGLASS: POWER WINDOW REGULATOR MOTOR (for Front Door): REMOVAL; 2015

MY Tundra [08/2014 - ]

REMOVAL

HINT:

Use the same procedure for the LH side and RH side.
The procedure listed below is for the LH side.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the

SRS system.

NOTICE:

When disconnecting the cable, some systems need to be initialized after the cable is reconnected

2. REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG LH

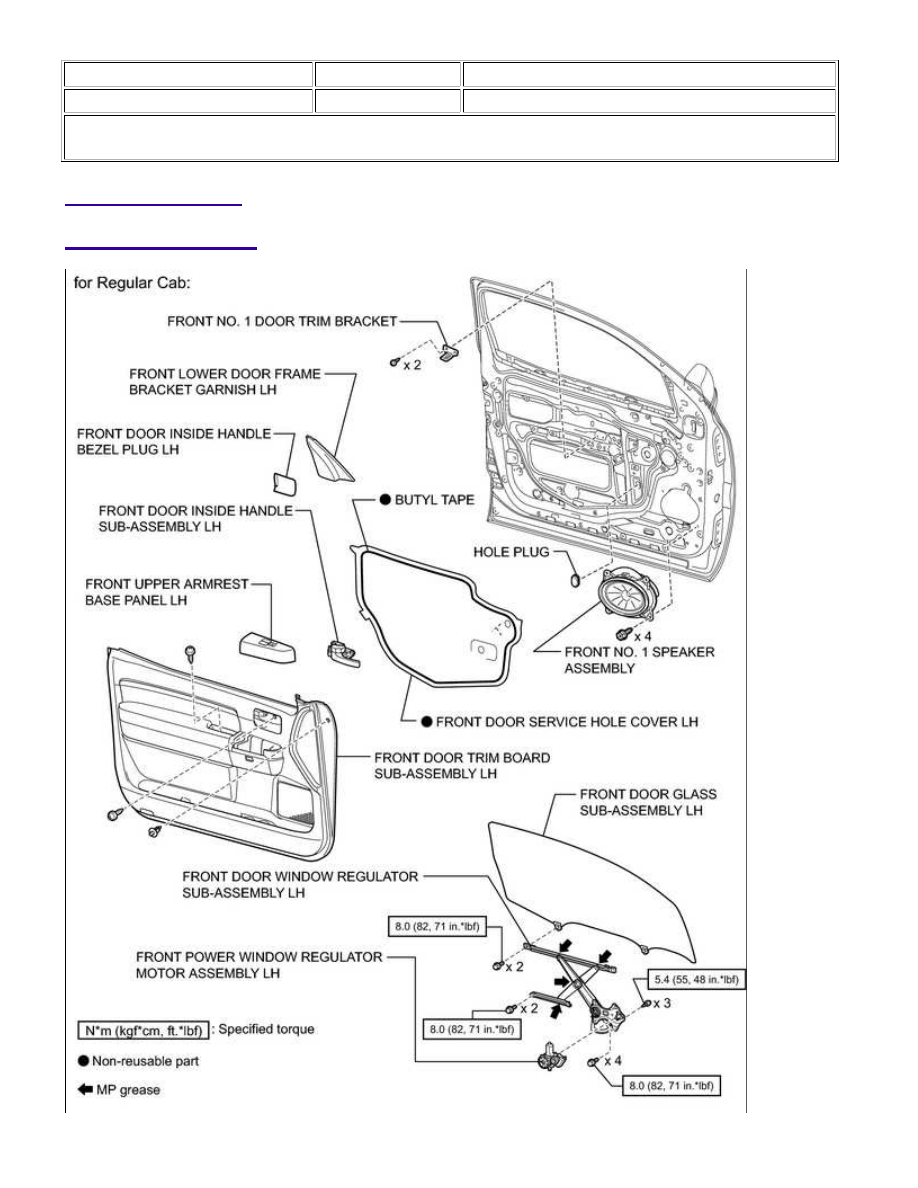

(a) for Regular Cab:

Remove the front door inside handle bezel plug LH

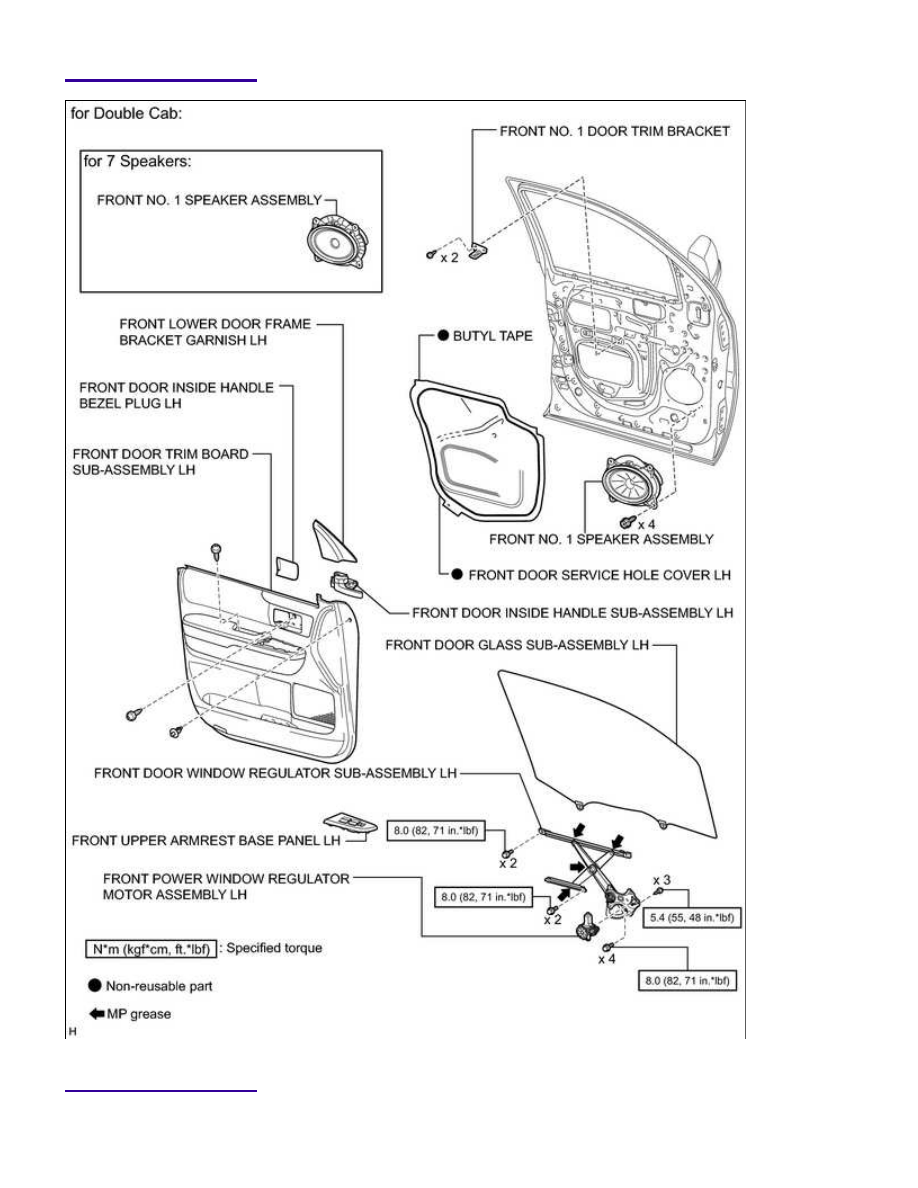

(b) for Double Cab:

Remove the front door inside handle bezel plug LH

3. REMOVE FRONT UPPER ARMREST BASE PANEL LH

4. REMOVE FRONT LOWER DOOR FRAME BRACKET GARNISH LH

(a) for Regular Cab:

Remove the front lower door frame bracket garnish LH

(b) for Double Cab:

Remove the front lower door frame bracket garnish LH

5. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH

(a) for Regular Cab:

Remove the front door trim board sub-assembly LH

(b) for Double Cab:

Remove the front door trim board sub-assembly LH

6. REMOVE FRONT NO. 1 SPEAKER ASSEMBLY

WINDSHIELD / WINDOWGLASS: POWER WINDOW REGULATO...
