Turn the ignition switch off and wait for at least 30 seconds.

4.

Turn the ignition switch to ON and turn the Techstream on [A].

5.

Enter the following menu items: Powertrain / Engine and ECT / Utility / Evaporative System Check

/ Automatic Mode.

6.

After the Evaporative System Check is completed, check for All Readiness by entering the following

menus: Powertrain / Engine and ECT / Utility / All Readiness.

7.

Input the DTC: P0455 or P0456.

8.

Check the DTC judgment result [B].

TESTER

DISPLAY

DESCRIPTION

NORMAL

DTC judgment completed

System normal

ABNORMAL

DTC judgment completed

System abnormal

INCOMPLETE

DTC judgment not completed

Perform driving pattern after confirming DTC enabling conditions

N/A

Unable to perform DTC judgment

HINT:

If the judgment result shows ABNORMAL, the system has a malfunction.

9.

If the test result is INCOMPLETE or N/A and no pending DTC is output, perform a universal trip and

check for permanent DTCs



.

HINT:

If a permanent DTC is output, the system is malfunctioning.
If no permanent DTC is output, the system is normal.

10.

3UR-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: P0455,P0456;...

Last Modified: 9-16-2014

6.6 C

Doc ID: RM0000012ME0NZX

Model Year: 2015

Model: Tundra

Prod Date Range: [08/2014 -           ]

Title: 3UR-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: P0500; Vehicle Speed Sensor "A"; 2015 MY Tundra

[08/2014 -        ]

DTC

P0500

Vehicle Speed Sensor "A"

DESCRIPTION

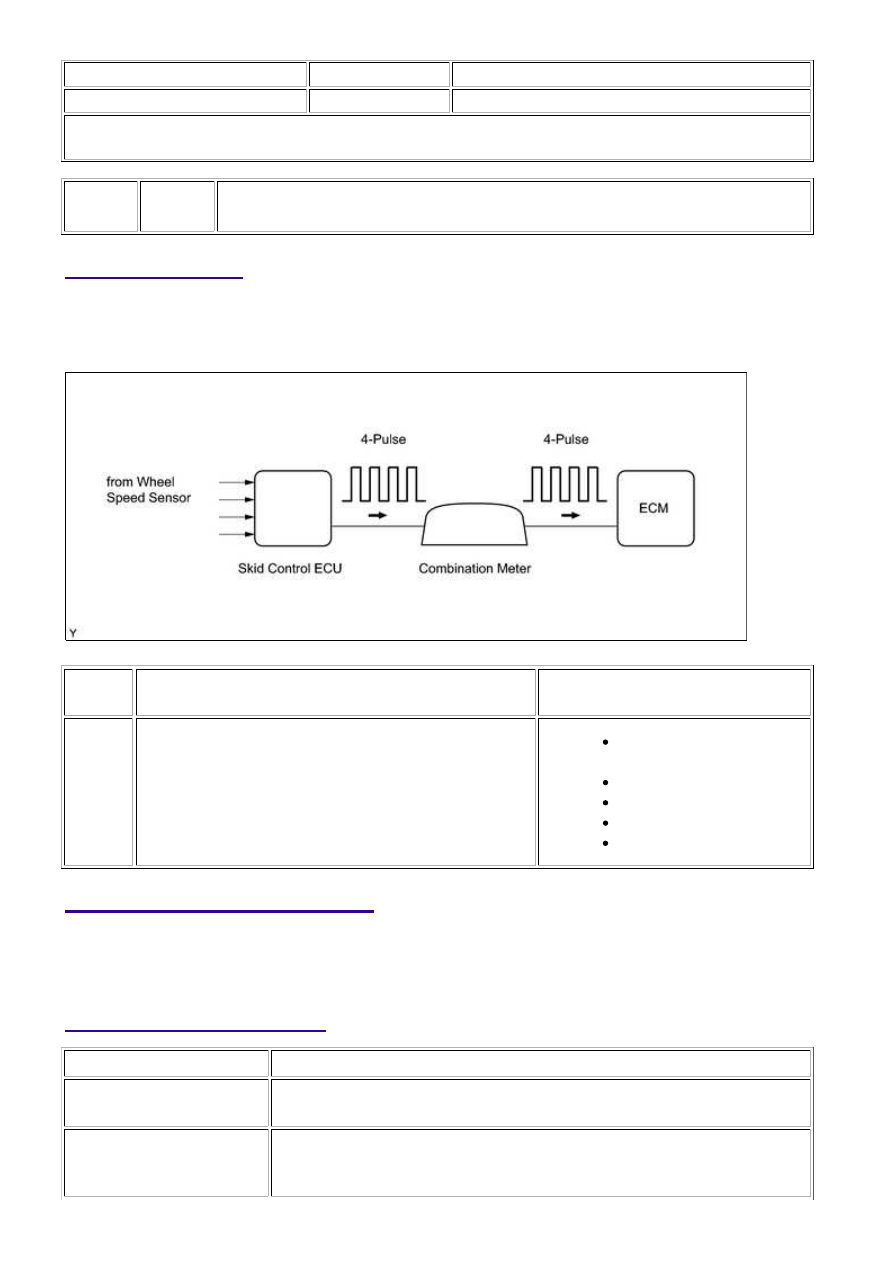

The speed sensor detects the wheel speed and sends the appropriate signals to the skid control ECU. The skid

control ECU converts these wheel speed signals into a 4-pulse signal and outputs it to the ECM via the

CODE

DTC DETECTION CONDITION

TROUBLE AREA

P0500

While vehicle being driven, no vehicle speed sensor signal

transmitted to ECM

(2 trip detection logic)

Open or short in speed

signal circuit

Wheel speed sensor

Combination meter

ECM

Skid control ECU

MONITOR DESCRIPTION

The ECM assumes that the vehicle is being driven when the indicated vehicle speed is more than 9 km/h (5.6

mph). If there is no speed signal from the combination meter despite these conditions being met, the ECM

interprets this as a malfunction in the speed signal circuit. The ECM then illuminates the MIL and sets the DTC.

MONITOR STRATEGY

Related DTCs

P0500: Vehicle speed sensor "A" pulse input error

Required

Sensors/Components (Main)

Vehicle Speed Sensor (VSS), Combination meter and Skid control ECU

Required

Sensors/Components

(Related)

Park / Neutral Position (PNP) switch, Engine Coolant Temperature (ECT)

sensor, Crankshaft Position (CKP) sensor, Throttle Position (TP) sensor and

Mass Air Flow (MAF) meter

3UR-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: P0500; Vehicl...

Duration

5 seconds

MIL Operation

2 driving cycles

TYPICAL ENABLING CONDITIONS

Monitor runs whenever following DTCs not present

None

Time after ignition switch off to ON

3 seconds or more

Vehicle speed

9 km/h (5.6 mph) or more

Battery voltage

8 V or more

Starter

OFF

TYPICAL MALFUNCTION THRESHOLDS

Vehicle speed sensor signal

No signal

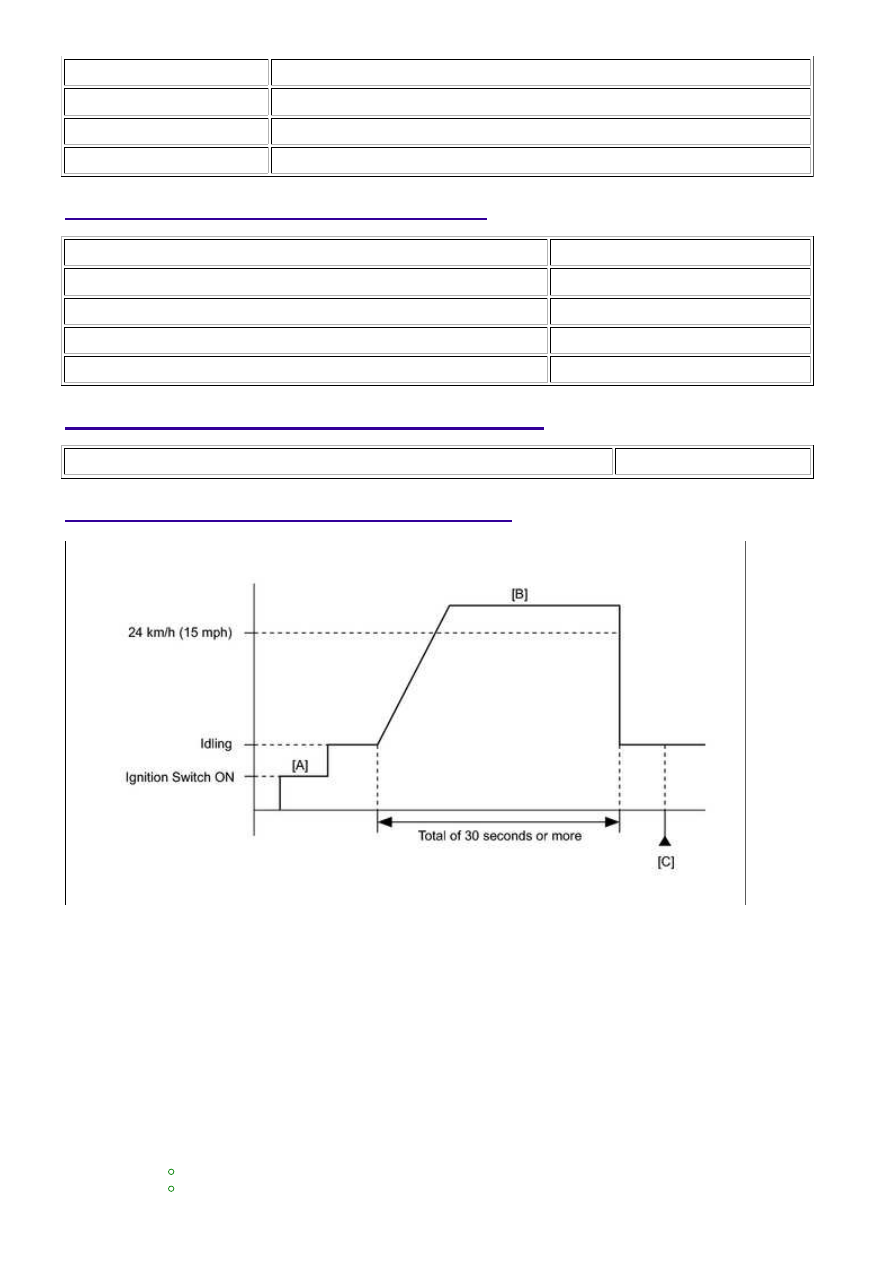

CONFIRMATION DRIVING PATTERN

Connect the Techstream to the DLC3.

1.

Turn the ignition switch to ON and turn the Techstream on.

2.

Clear DTCs (even if no DTCs are stored, perform the clear DTC operation).

3.

Turn the ignition switch off and wait for at least 30 seconds.

4.

Turn the ignition switch to ON and turn the Techstream on [A].

5.

Start the engine.

6.

Stop the vehicle.

8.

Enter the following menus: Powertrain / Engine and ECT / Trouble Codes [C].

9.

Read the Pending DTCs.

HINT:

If a pending DTC is output, the system is malfunctioning.
If a pending DTC is not output, perform the following procedure.

10.

3UR-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: P0500; Vehicl...

Enter the following menus: Powertrain / Engine and ECT / Utility / All Readiness.

11.

Input the DTC: P0500.

12.

Check the DTC judgment result.

TESTER

DISPLAY

DESCRIPTION

NORMAL

DTC judgment completed

System normal

ABNORMAL

DTC judgment completed

System abnormal

INCOMPLETE

DTC judgment not completed

Perform driving pattern after confirming DTC enabling conditions

N/A

Unable to perform DTC judgment

HINT:

If the judgment result shows ABNORMAL, the system has a malfunction.

13.

If the test result is INCOMPLETE or N/A and no pending DTC is output, perform a universal trip and

check for permanent DTCs



.

HINT:

If a permanent DTC is output, the system is malfunctioning.
If no permanent DTC is output, the system is normal.

14.

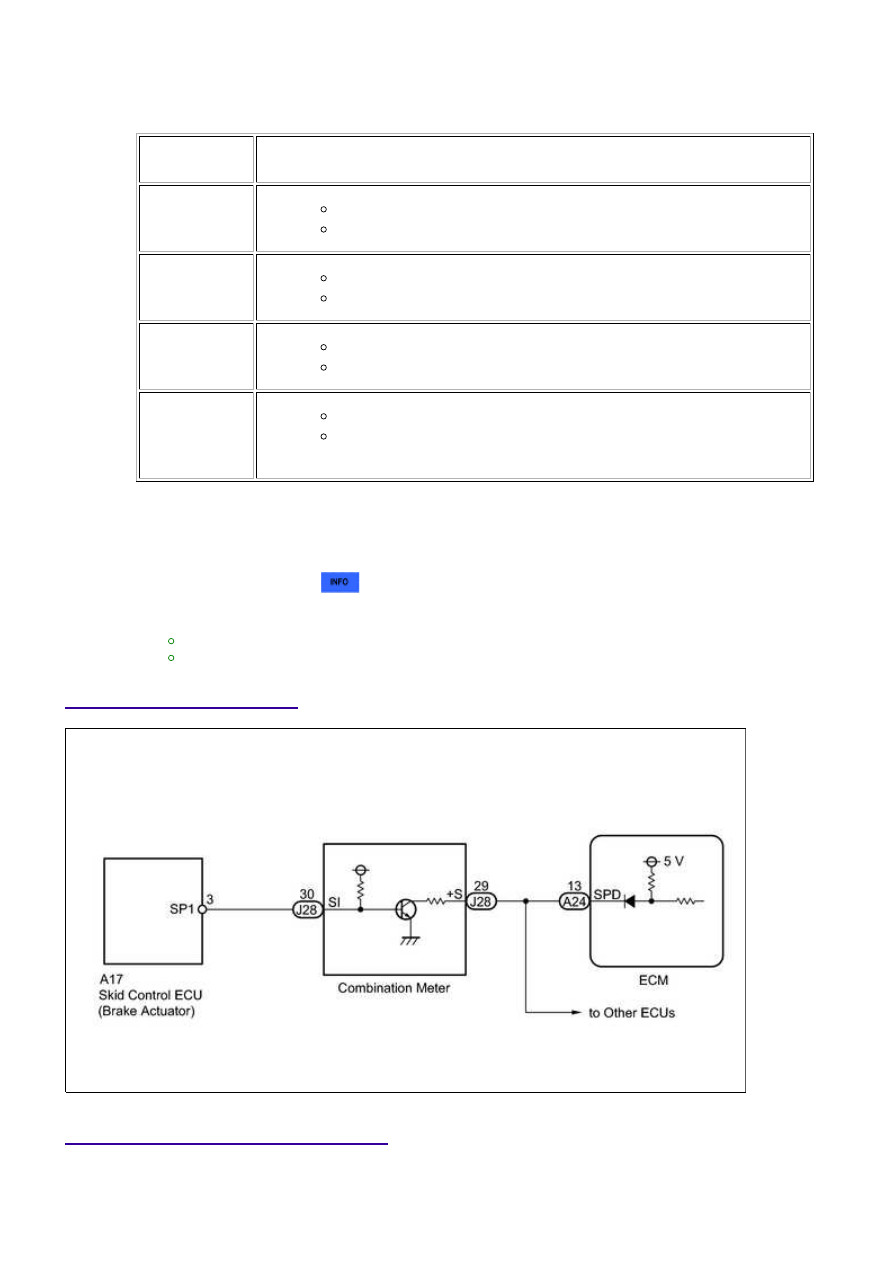

WIRING DIAGRAM

INSPECTION PROCEDURE

HINT:

Read freeze frame data using the Techstream. Freeze frame data records the engine condition when

3UR-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: P0500; Vehicl...
