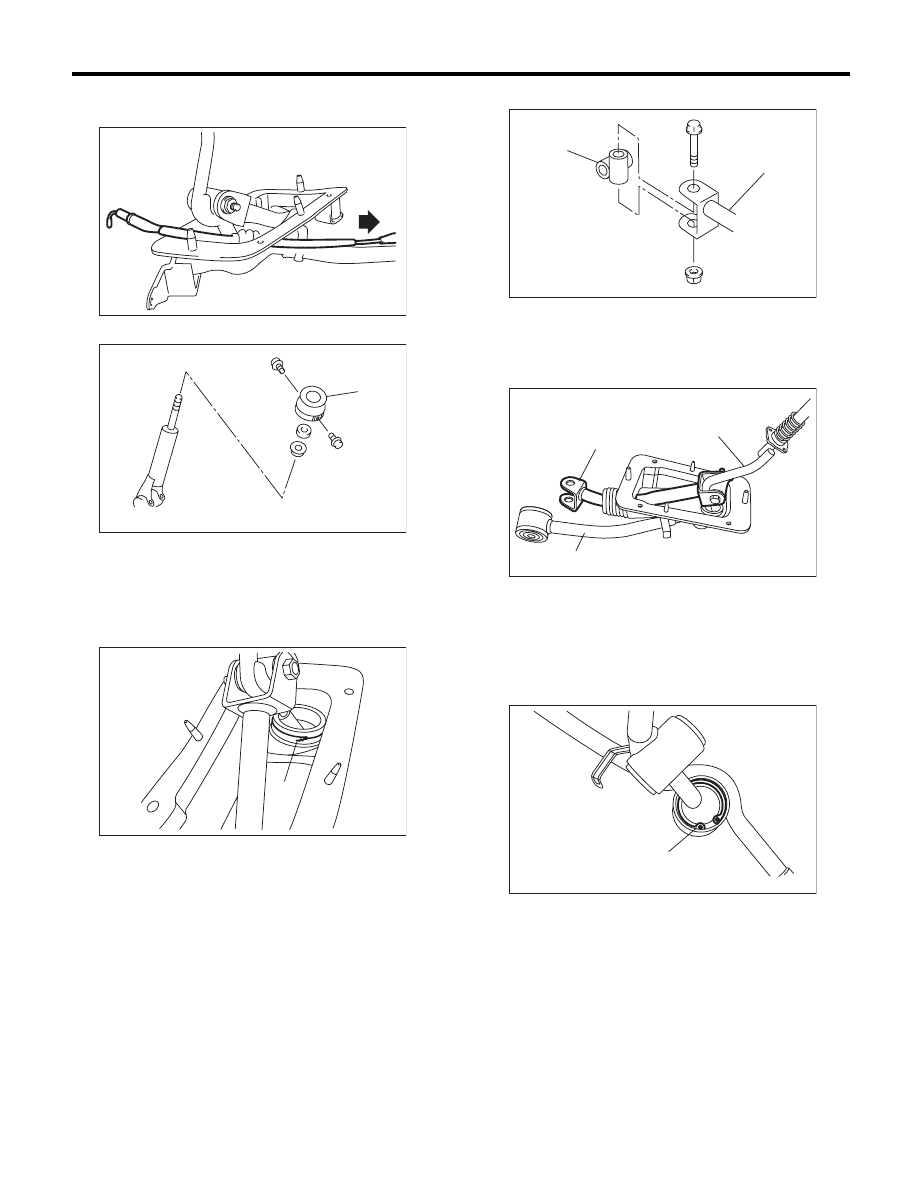

CS-47

MT Gear Shift Lever

CONTROL SYSTEMS

5) Remove the reverse check cable from the gear
shift assembly.

6) Remove the holder and spring.

7) Disassemble the lock wires.

NOTE:
Do not reuse the lock wire.

8) Remove the boss from the rod.

9) Remove the rod from lever.

10) Separate the rod and inner boot.
11) Remove the snap ring from the stay.

(A) Holder

(A) Lock wire

CS-00229

CS-00587

(A)

CS-00231

(A)

(A) Rod

(B) Boss

(A) Rod

(B) Lever

(C) Stay

(A) Snap ring

CS-00232

(B)

(A)

CS-00233

(C)

(A)

(B)

CS-00234

(A)

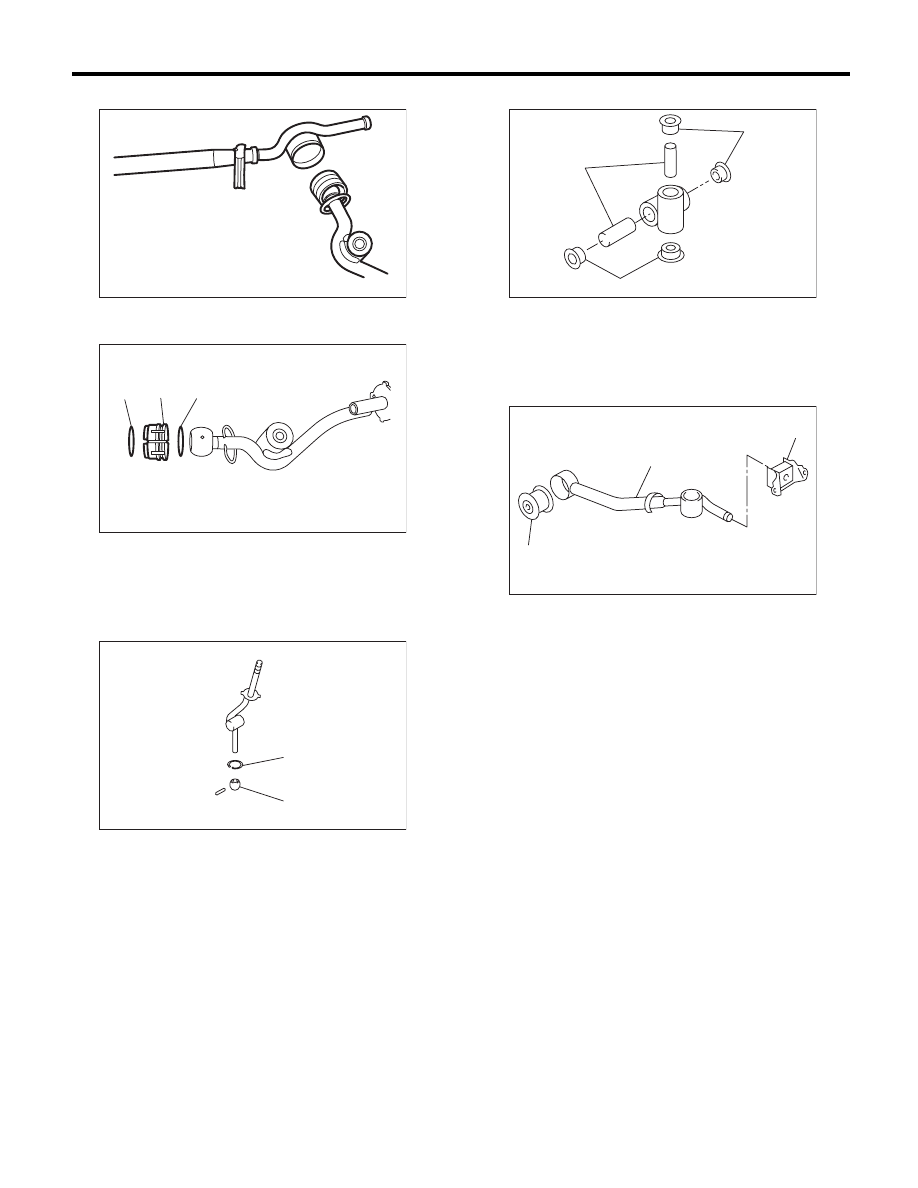

CS-48

MT Gear Shift Lever

CONTROL SYSTEMS

12) Separate the gear shift lever and the stay.

13) Remove the boot and bushing from gear shift
lever.

14) Remove the spring pin, and then remove the
bushing and snap ring.

15) Remove the bushing and spacer from the boss.

16) Remove the bushing and cushion rubber from
the stay.

(A) O-ring

(B) Bushing

(A) Bushing

(B) Snap ring

CS-00235

CS-00236

(A)

(B)

(A)

CS-00237

(A)

(B)

(A) Bushing

(B) Spacer

(A) Bushing

(B) Stay

(C) Cushion rubber

CS-00238

(B)

(A)

(A)

CS-00239

(B)

(C)

(A)

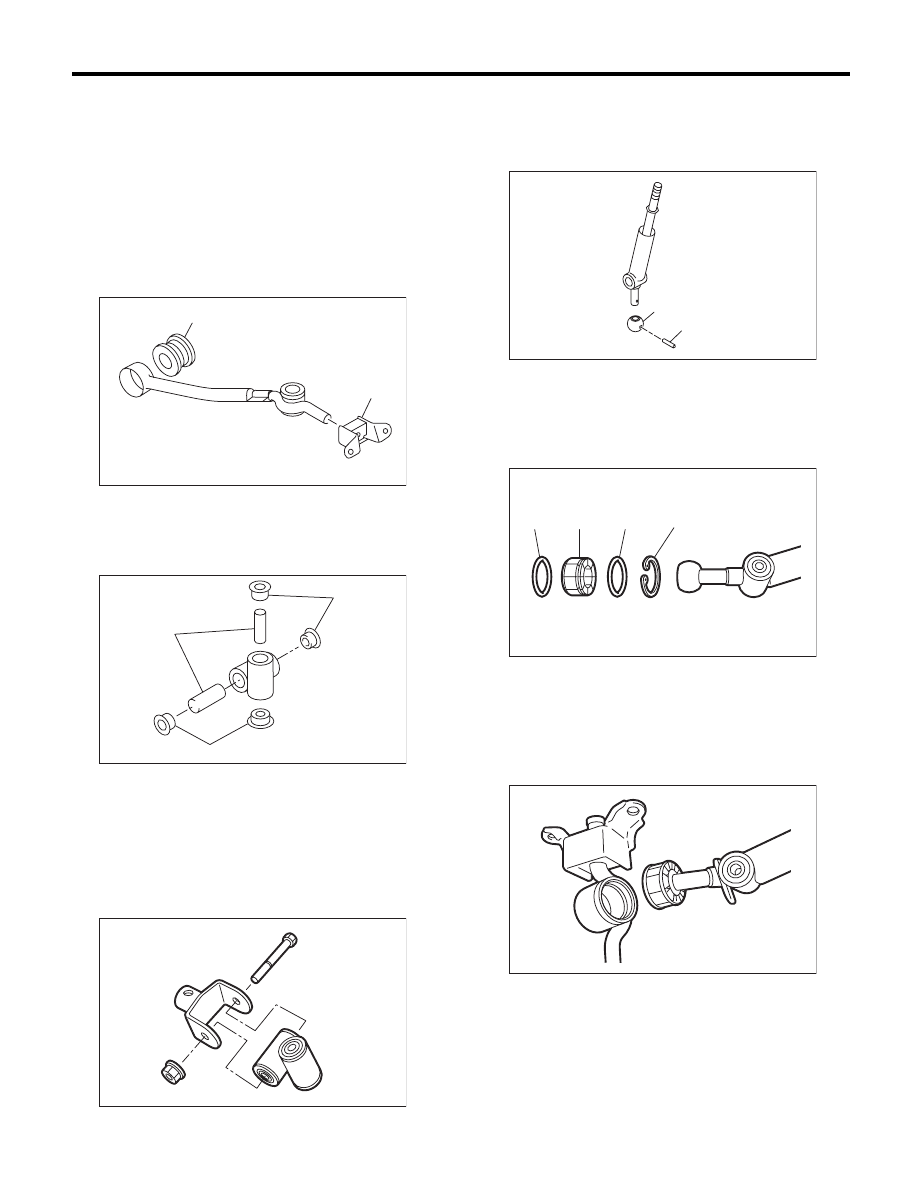

CS-49

MT Gear Shift Lever

CONTROL SYSTEMS

D: ASSEMBLY

1. 5MT MODEL

NOTE:
• Clean all the parts before assembly.
• Apply NIGTIGHT LYW No. 2 grease or the equiv-
alent to each part. <Ref. to CS-5, 5MT GEAR
SHIFT LEVER, COMPONENT, General Descrip-
tion.>
1) Mount the bushing and cushion rubber to the
stay.

2) Install the bushing and spacer to boss.

3) Using new self-locking nuts, install the boss to
the joint.

Tightening torque:

12 N·m (1.2 kgf-m, 8.9 ft-lb)

4) Install the snap ring to gear shift lever and install
the bushing.

NOTE:
Apply grease to the bushing.

5) Apply grease to the bushing and O-ring, and
then install to gear shift lever.

6) Apply sufficient grease into boss, and then install
the gear shift lever to the stay.

(A) Bushing

(B) Cushion rubber

(A) Bushing

(B) Spacer

CS-00061

(A)

(B)

CS-00238

(B)

(A)

(A)

CS-00322

(A) Spring pin

(B) Bushing

(A) O-ring

(B) Bushing

(C) Snap ring

CS-00060

(B)

(A)

CS-00320

(B)

(A)

(C)

(A)

CS-00319

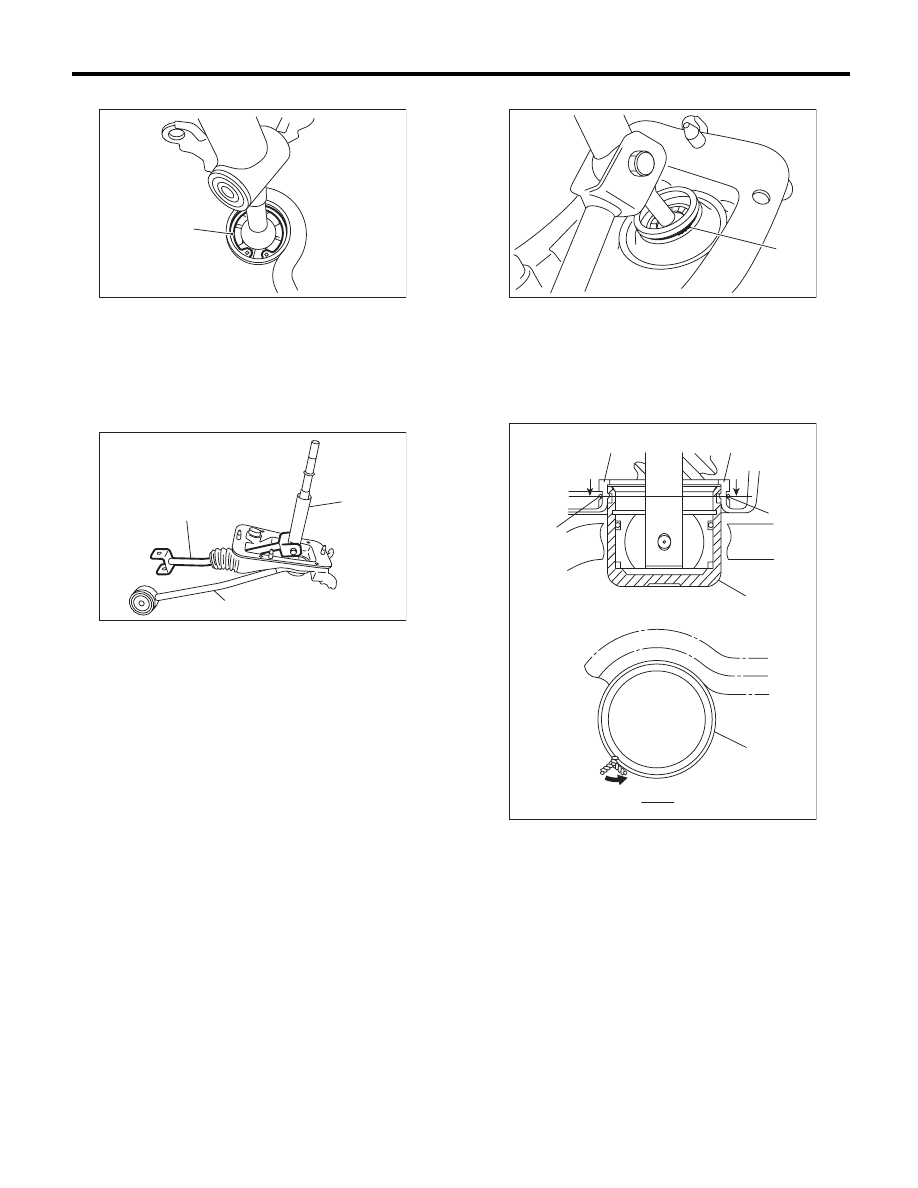

CS-50

MT Gear Shift Lever

CONTROL SYSTEMS

7) Install the washer and snap ring.

8) Insert the gear shift lever and rod into boot hole.
9) Install the rod.

Tightening torque:

18 N·m (1.8 kgf-m, 13.3 ft-lb)

10) Install a new lock wire.

NOTE:
• Install the lock wire to the stay groove.
• Bend the extra wire to the same direction of lock
wire winding.

(A) Snap ring

(A) Rod

(B) Lever

(C) Stay

CS-00318

(A)

(A)

(B)

(C)

CS-00317

(A) Lock wire

(A) Inner boot

(B) Lock wire

(C) Stay

(A)

CS-00316

CS-00240

(A)

(A)

(B)

(B)

B

B

(B)

B - B

(C)
