EB-8

General Description

EXTERIOR BODY PANELS

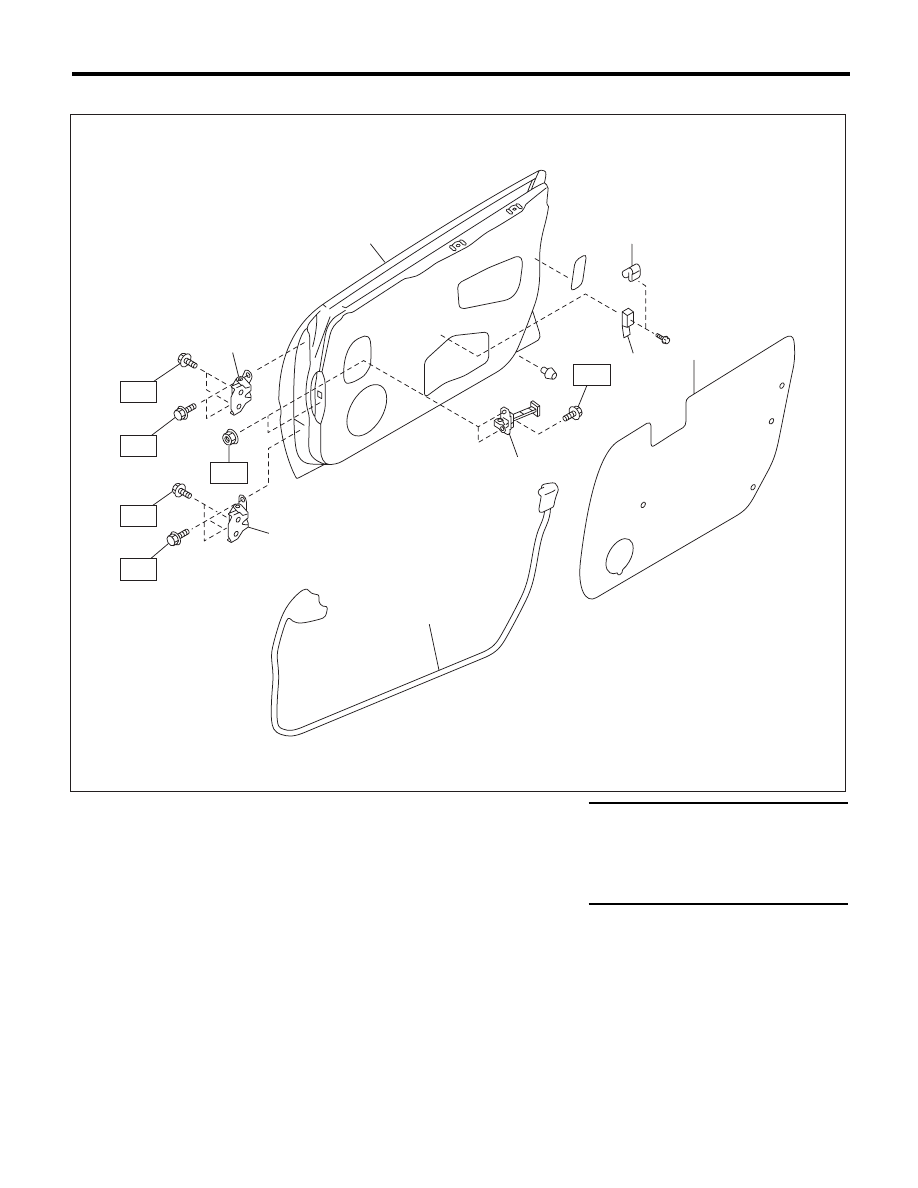

3. FRONT DOOR PANEL

(1)

Front door panel

(5)

Upper hinge

Tightening torque:N·m (kgf-m, ft-lb)

(2)

Sealing cover

(6)

Lower hinge

T1: 7.4 (0.75, 5.5)

(3)

Front door weather strip

(7)

Door trim bracket upper

T2: 24.5 (2.5, 18.1)

(4)

Checker

(8)

Door trim bracket lower

T3: 29.4 (3.0, 21.7)

T4: 32.3 (3.3, 23.8)

EB-00149

T4

T1

T3

T2

T3

T2

(6)

(3)

(5)

(1)

(7)

(8)

(2)

(4)

EB-9

General Description

EXTERIOR BODY PANELS

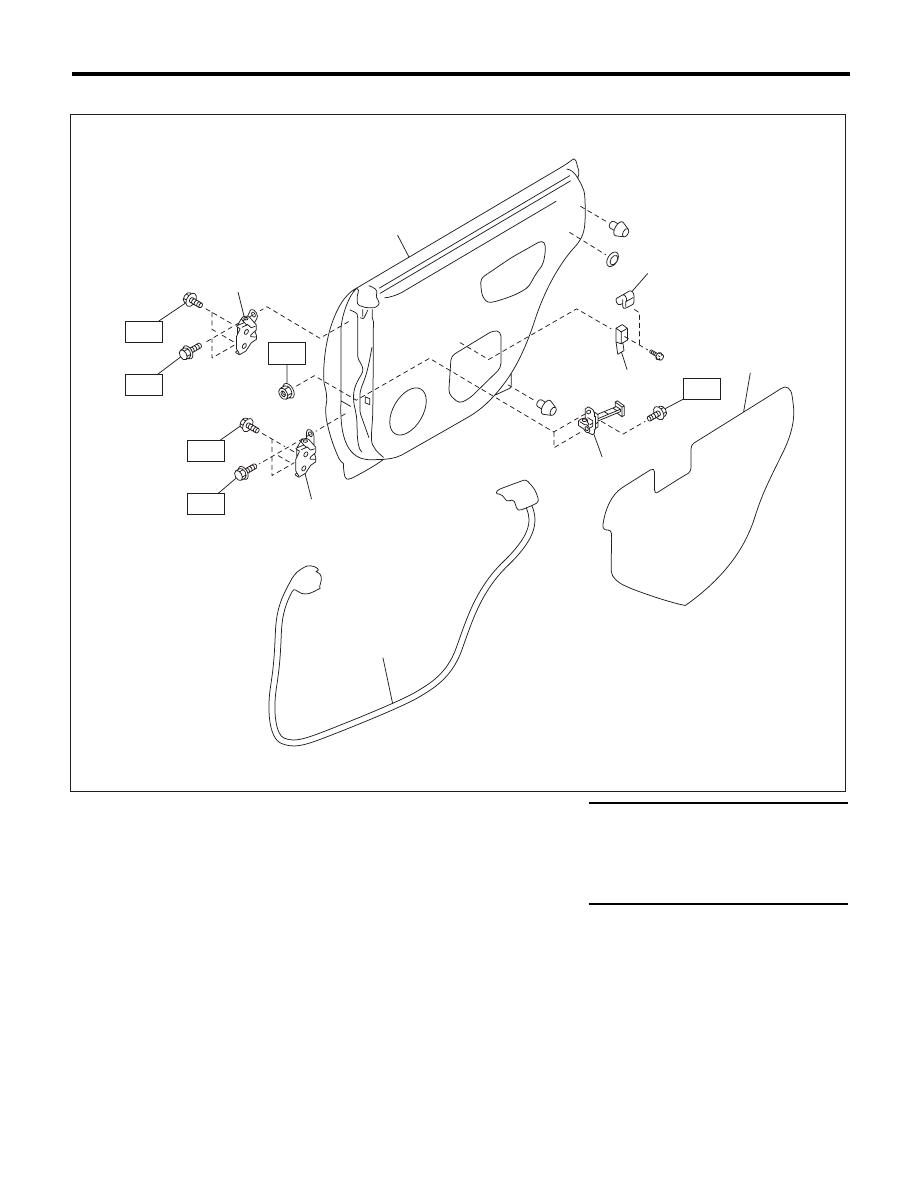

4. REAR DOOR PANEL

(1)

Rear door panel

(5)

Upper hinge

Tightening torque:N·m (kgf-m, ft-lb)

(2)

Sealing cover

(6)

Lower hinge

T1: 7.4 (0.75, 5.5)

(3)

Rear door weather strip

(7)

Door trim bracket upper

T2: 24.5 (2.5, 18.1)

(4)

Checker

(8)

Door trim bracket lower

T3: 29.4 (3.0, 21.7)

T4: 32.3 (3.3, 23.8)

EB-00150

T1

T3

T2

(5)

(1)

T3

T2

(6)

T4

(4)

(7)

(8)

(2)

(3)

EB-10

General Description

EXTERIOR BODY PANELS

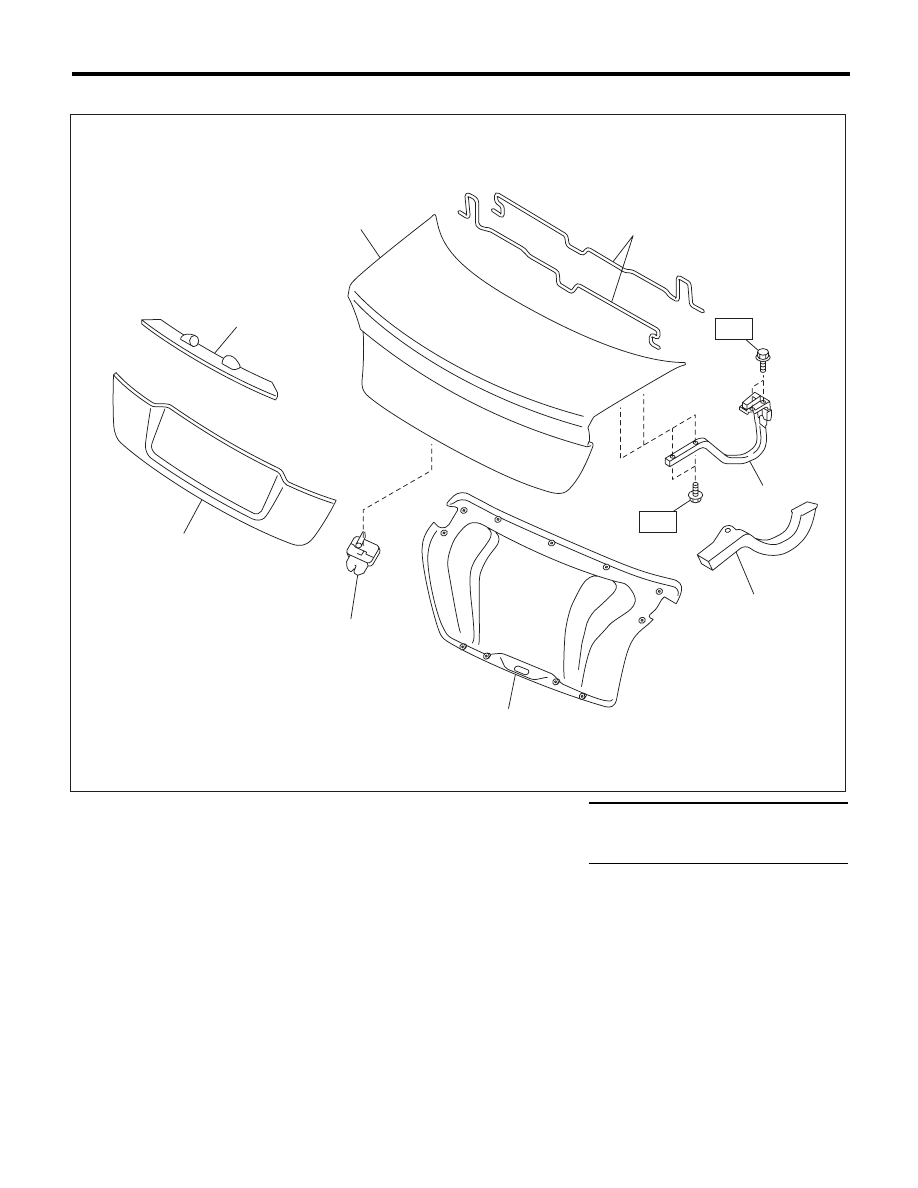

5. TRUNK LID PANEL

(1)

Trunk lid panel

(5)

Trunk lid trim

Tightening torque:N·m (kgf-m, ft-lb)

(2)

License plate light cover

(6)

Trunk lid arm cover

T1: 14 (1.43, 10.3)

(3)

Trunk lid garnish

(7)

Trunk lid arm ASSY

T2: 18 (1.8, 13.3)

(4)

Trunk lid lock ASSY

(8)

Torsion bar





EB-00365

(8)

(7)

(1)

(2)

(6)

(4)

(5)

T2

T1

(3)

EB-11

General Description

EXTERIOR BODY PANELS

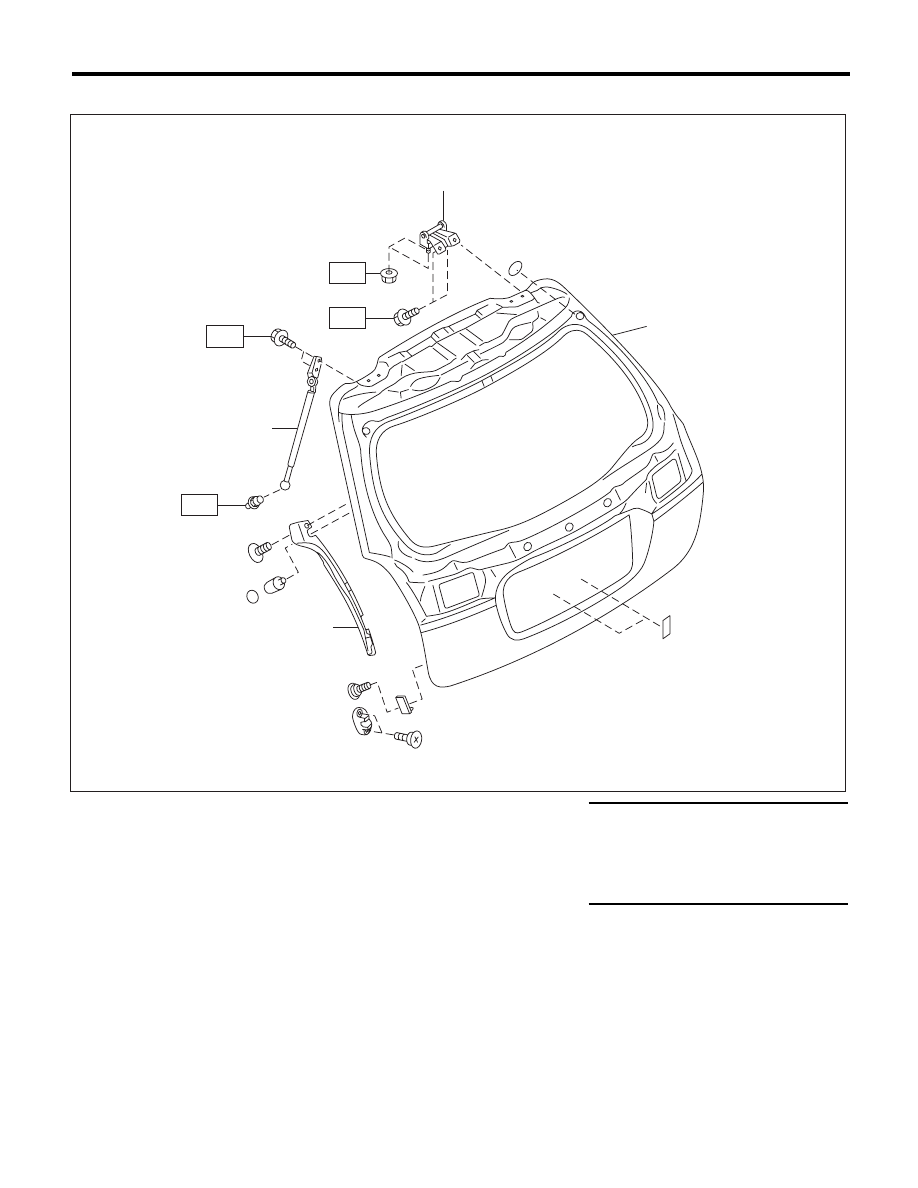

6. REAR GATE PANEL

(1)

Rear gate damper stay

(3)

Rear gate panel

Tightening torque:N·m (kgf-m, ft-lb)

(2)

Hinge

(4)

Rear gate side panel cover

T1: 10 (1.0, 7.4)

T2: 20 (2.0, 14.8)

T3: 25 (2.6, 18.4)









T4: 37 (3.7, 27.1)

EB-00364

(3)

T3

T4

T1

T2

(2)

(1)

(4)
