General Description

EXTERIOR BODY PANELS

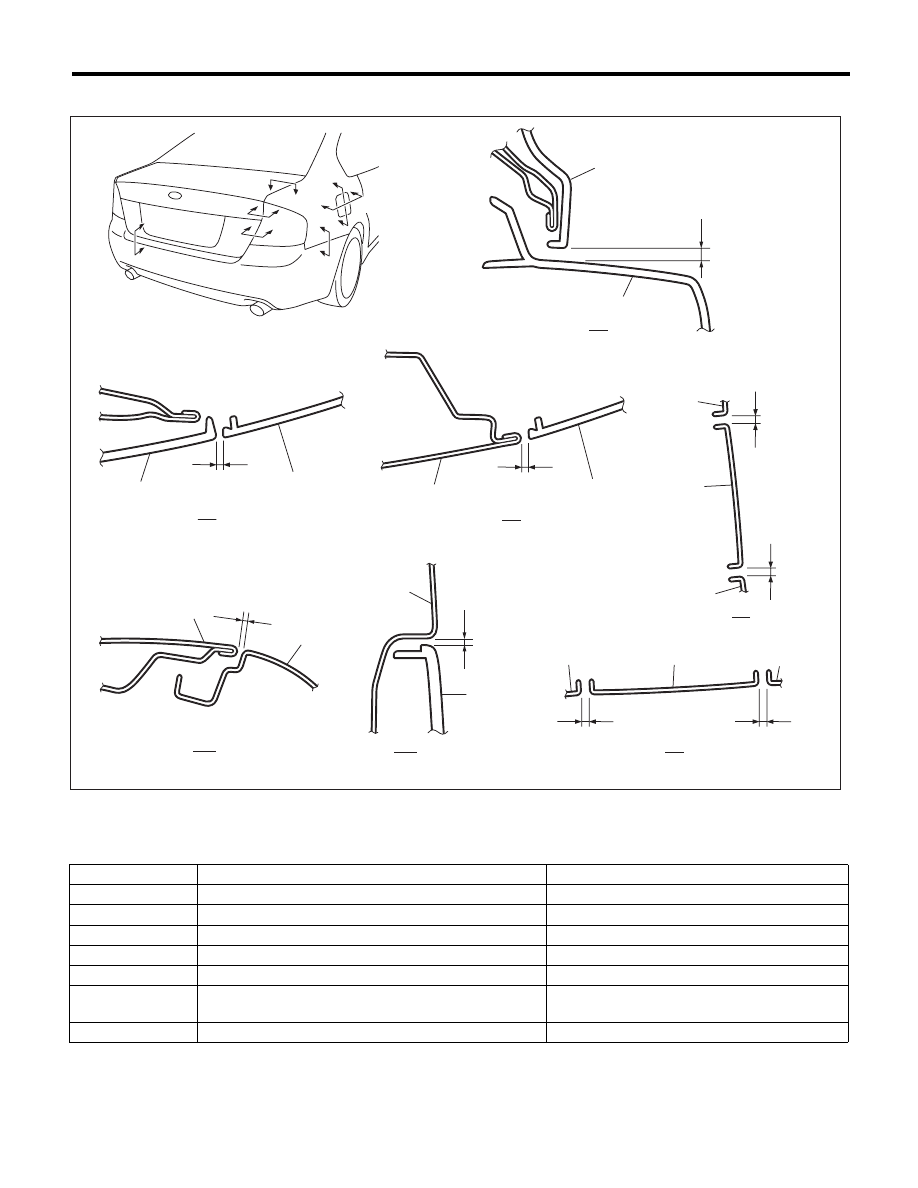

3. REAR (SEDAN MODEL)

(1)

Trunk lid panel

(3)

Rear bumper

(5)

Fuel filler lid

(2)

Rear combination light

(4)

Rear fender panel

(6)

Trunk lid garnish

Section

Part

Specification

(A)

Trunk lid garnish to Rear bumper

7.0

r1.0 mm (0.28r0.04 in)

(B)

Trunk lid garnish to Rear combination light

4.0

r1.0 mm (0.16r0.04 in)

(C)

Trunk lid panel to Rear combination light

3.5

r1.0 mm (0.14r0.04 in)

(D)

Trunk lid panel to Rear fender panel

3.5

r1.0 mm (0.14r0.04 in)

(E)

Rear fender panel to Rear bumper

1.0

r0.7 mm (0.04r0.03 in)

(F)

Rear fender panel to Fuel filler lid (longitudinal direction)

F1: 3.7

r0.5 mm (0.15r0.02 in)

F2: 3.4

r0.5 mm (0.13r0.02 in)

(G)

Rear fender panel to Fuel filler lid (lateral direction)

G1, G2: 3.5

r0.5 mm (0.14r0.02 in)

(6)

(2)

(B)

(D)

(1)

(4)

(E)

(4)

(3)

(C)

(1)

(2)

(A)

(6)

(3)

G1

G2

(G)

(5)

(4)

(4)

(F)

(4)

(5)

F2

F1

(4)

(A)

(E)

(F)

(D)

(C)

(B)

(G)

EB-00322

EB-5

General Description

EXTERIOR BODY PANELS

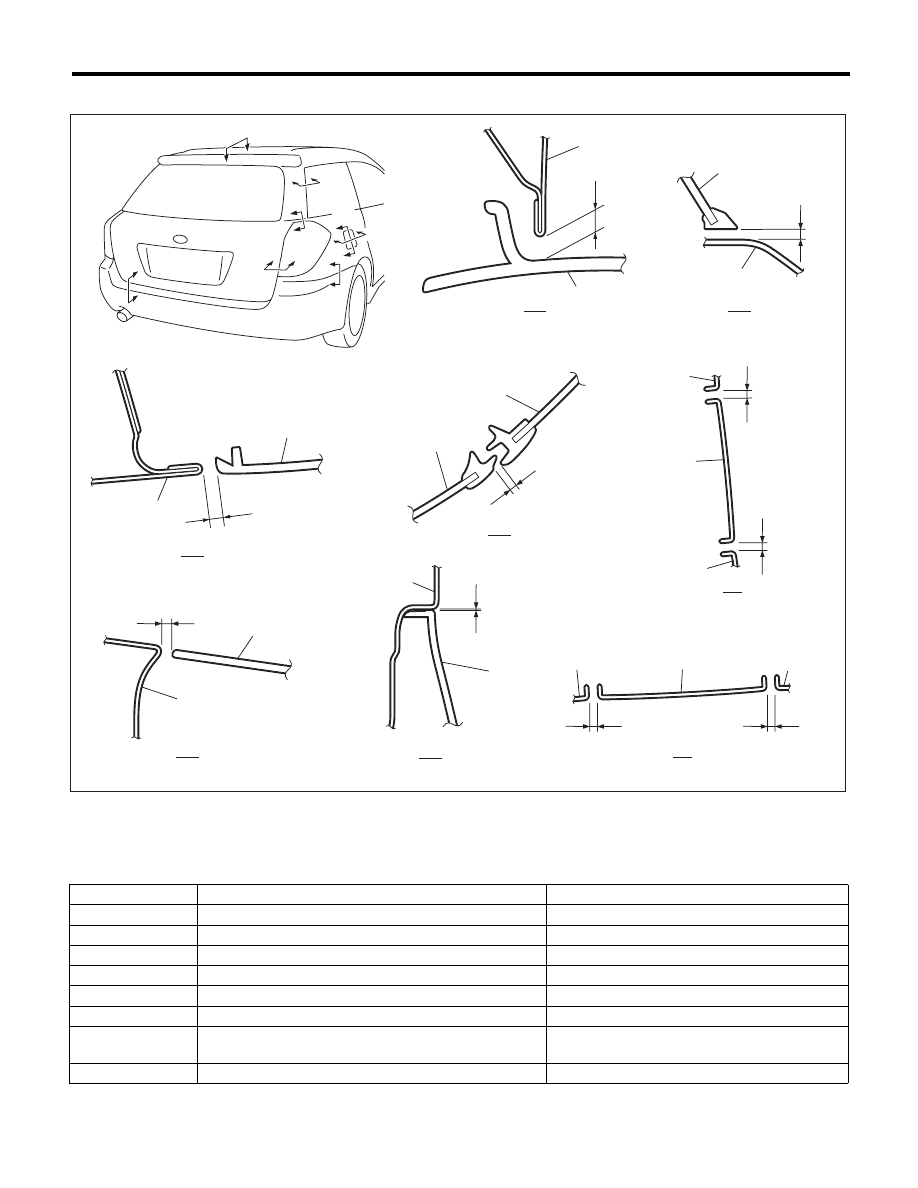

4. REAR (WAGON MODEL)

(1)

Rear gate panel

(4)

Roof panel

(7)

Rear fender panel

(2)

Rear bumper

(5)

Rear gate glass

(8)

Fuel filler lid

(3)

Rear combination light

(6)

Rear quarter glass

(9)

Roof spoiler

Section

Part

Specification

(A)

Rear gate panel to Rear bumper

8.0

r1.0 mm (0.31r0.04 in)

(B)

Rear gate panel to Rear combination light

5.0

r1.0 mm (0.20r0.04 in)

(C)

Rear gate glass to Rear combination light

5.5

r1.0 mm (0.22r0.04 in)

(D)

Rear gate glass to Rear quarter glass

4.0

r1.5 mm (0.16r0.06 in)

(E)

Roof panel to Roof spoiler

5.5

r1.0 mm (0.22r0.04 in)

(F)

Rear fender panel to Rear bumper

1.0

r0.7 mm (0.04r0.03 in)

(G)

Rear fender panel to Fuel filler lid (longitudinal direction)

G1: 3.7

r0.5 mm (0.15r0.02 in)

G2: 3.4

r0.5 mm (0.13r0.02 in)

(H)

Rear fender panel to Fuel filler lid (lateral direction)

H1, H2: 3.5

r0.5 mm (0.14r0.02 in)

EB-00179

H1

H2

(H)

(8)

(7)

(7)

(G)

(7)

(8)

G2

G1

(7)

(A)

(1)

(2)

(C)

(3)

(5)

(D)

(5)

(6)

(B)

(1)

(3)

(F)

(7)

(2)

(E)

(4)

(9)

(E)

(D)

(A)

(C)

(B)

(F)

(G)

(H)

EB-6

General Description

EXTERIOR BODY PANELS

B: COMPONENT

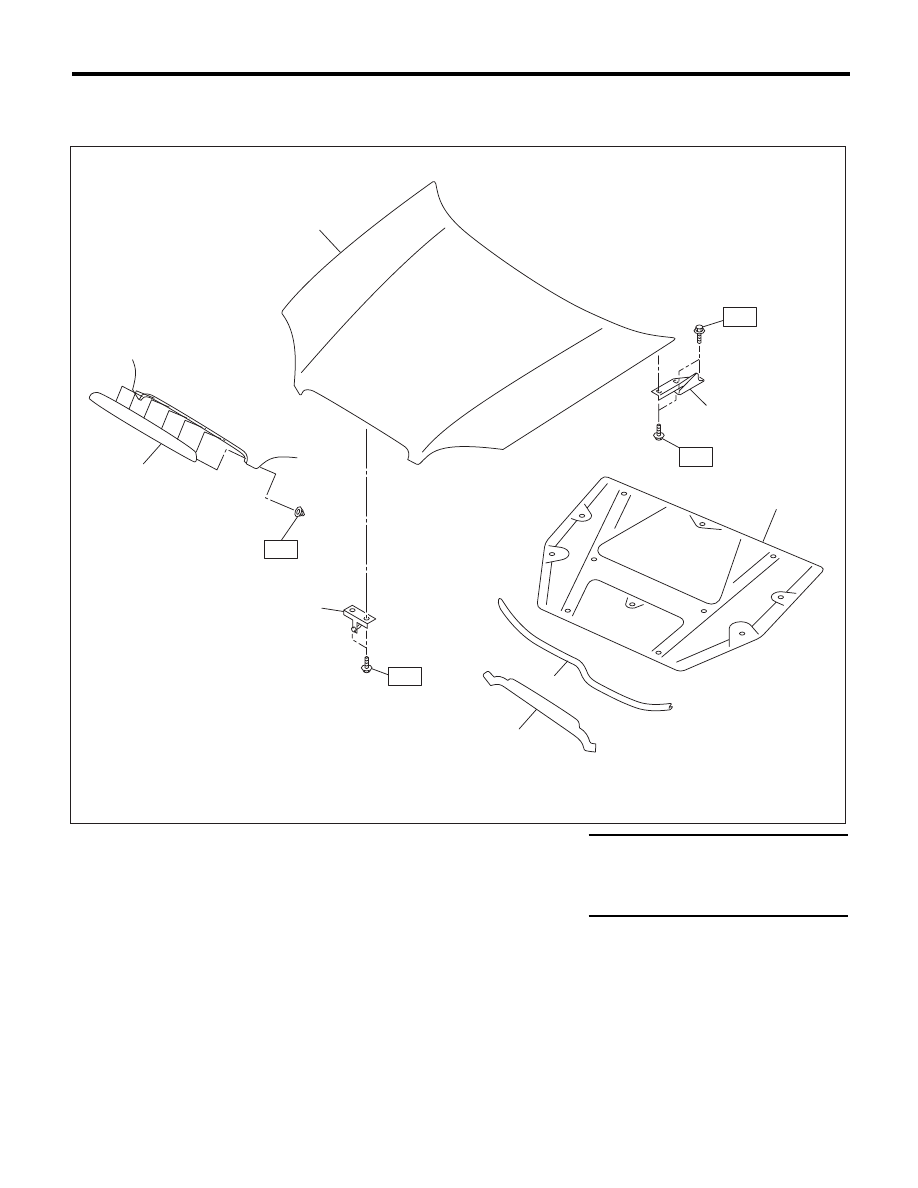

1. FRONT HOOD

(1)

Front hood panel

(5)

Front hood weather strip

Tightening torque:N·m (kgf-m, ft-lb)

(2)

Front hood insulator

(6)

Front hood striker

T1: 4.5 (0.46, 3.3)

(3)

Front hood hinge

(7)

Front upper grille
(OUTBACK model)

T2: 25 (2.6, 18.4)

(4)

Intake duct weather strip

T3: 33 (3.4, 24.5)

EB-00354

T3

T2

T2

(6)

(5)

(4)

(3)

(1)

(2)

(7)

T1

EB-7

General Description

EXTERIOR BODY PANELS

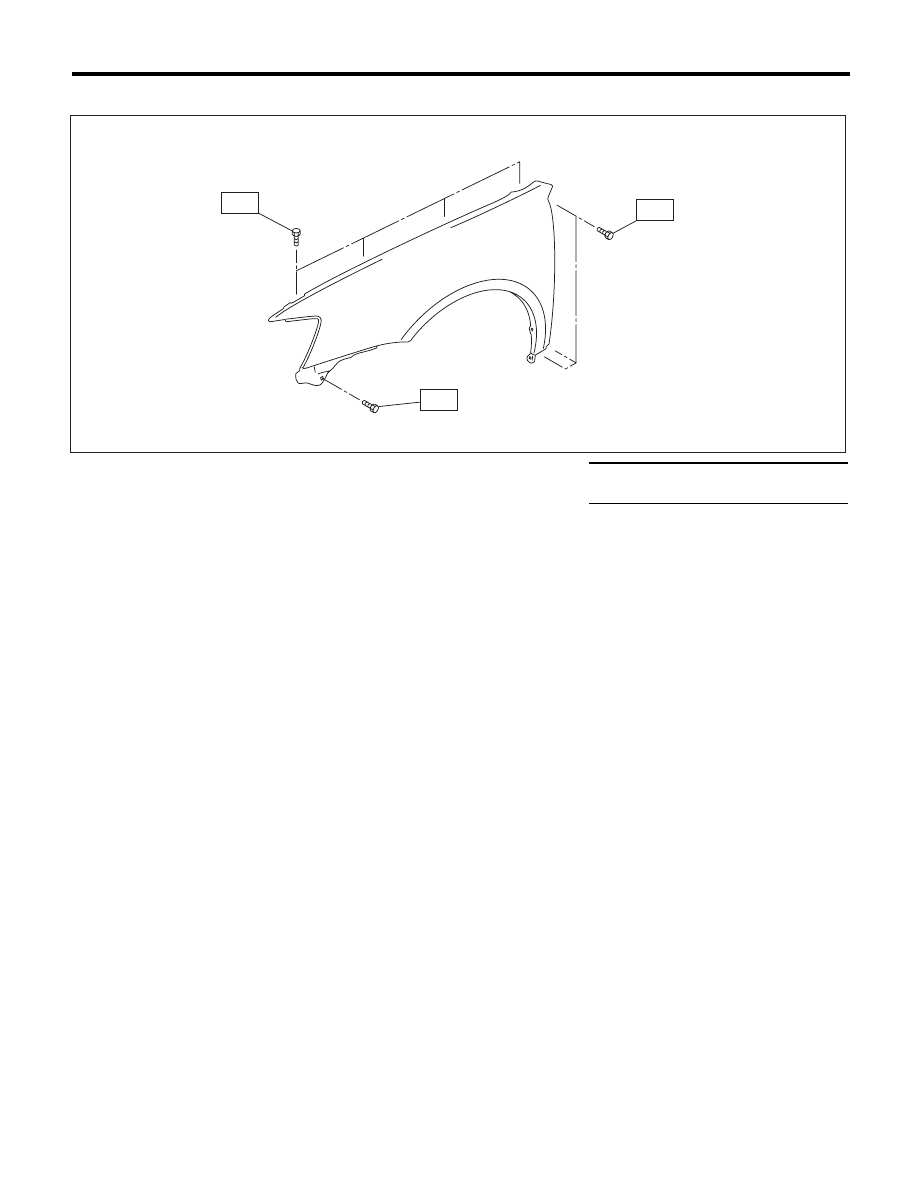

2. FRONT FENDER PANEL









Tightening torque:N·m (kgf-m, ft-lb)









T: 7.5 (0.76, 5.5)

EB-00145

T

T

T
