2. AWD STICKER

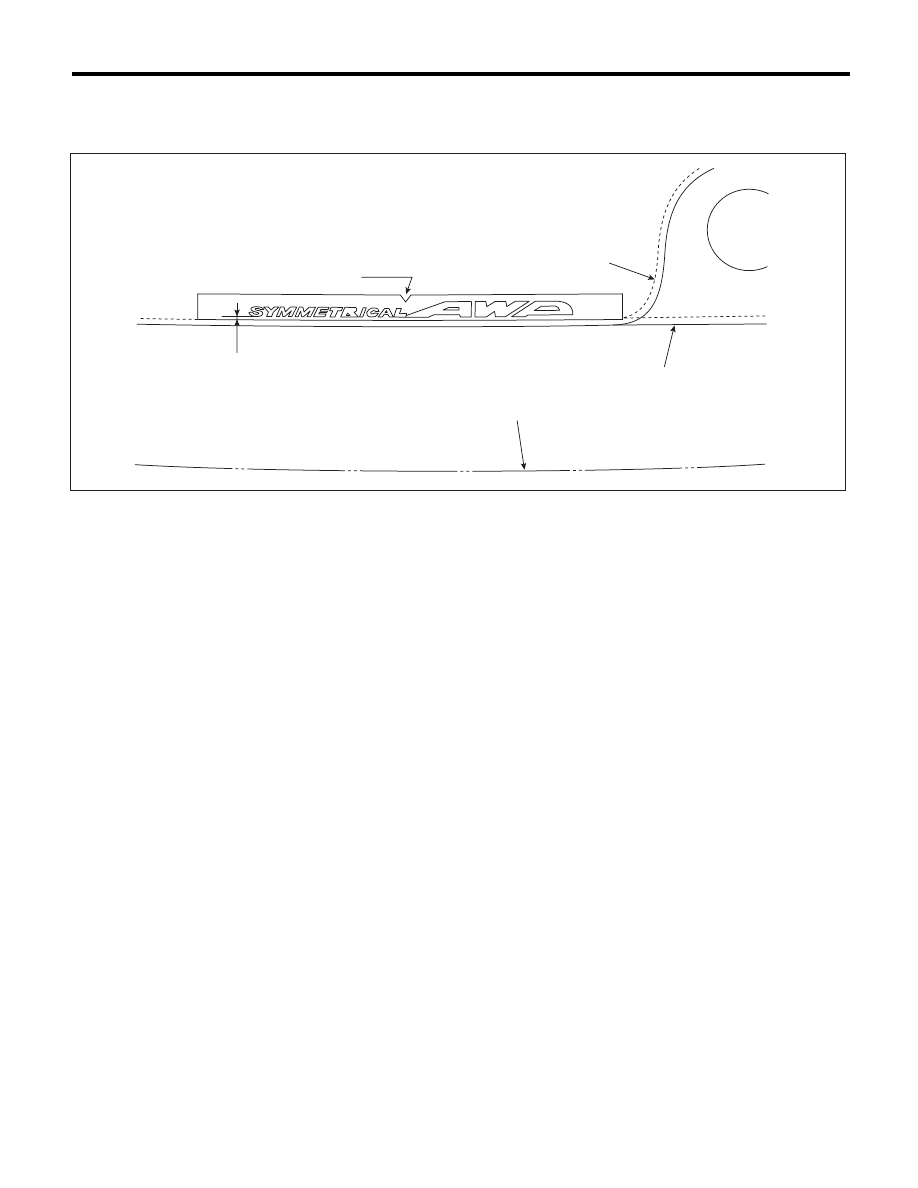

Apply the AWD sticker from inside of the glass according to the following dimensions.
• Sedan model

(a)

Apply the application tape by
aligning the cut out to the edge of
the rear glass center.





















(1)

1 mm (0.04 in)

(3)

Gradation end of the ceramic print
(without rear wiper)

(4)

End of rear glass

(2)

Gradation end of the ceramic print
(with rear wiper)

(a)

(2)

(3)

(4)

(1)

 EI-00741

EI-80

Ornament

EXTERIOR/INTERIOR TRIM

EB-2

General Description

EXTERIOR BODY PANELS

1. General Description

A: SPECIFICATION

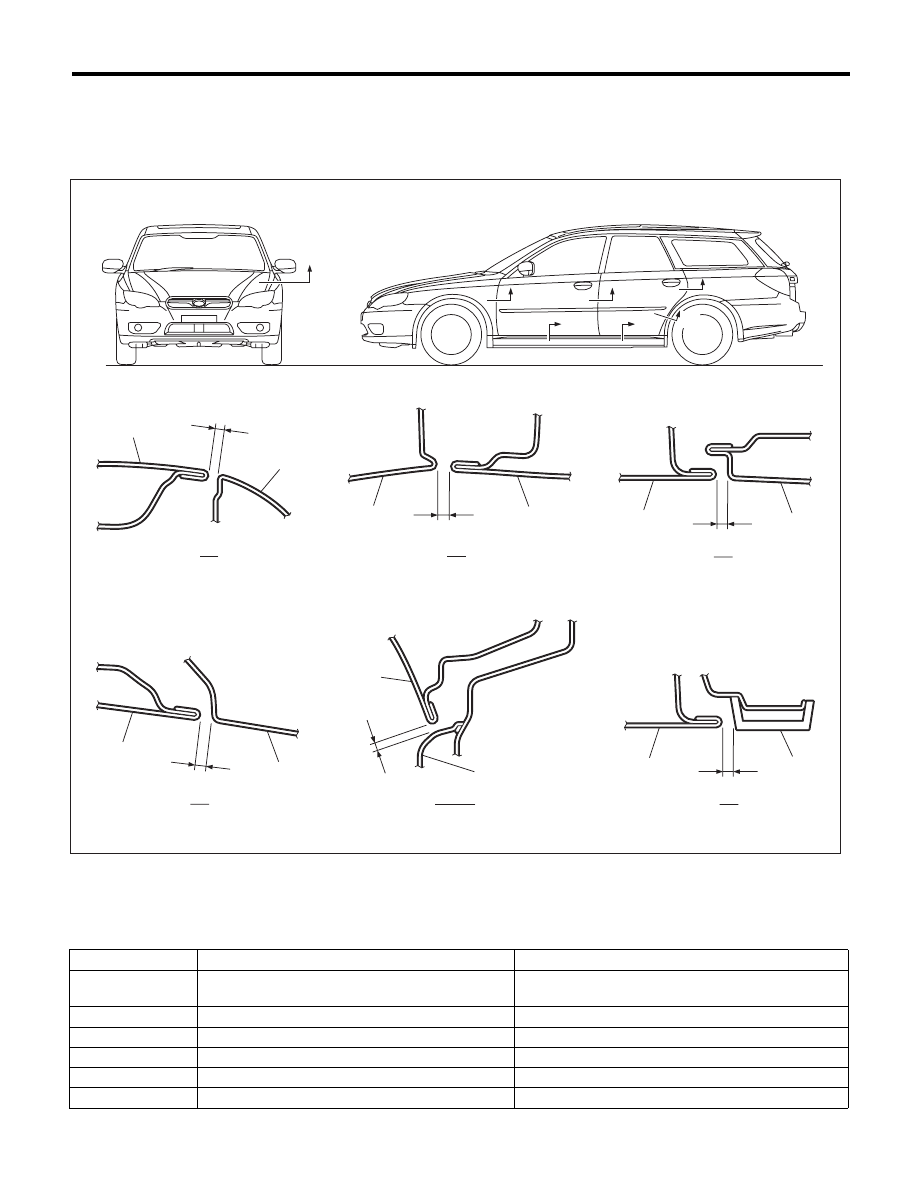

1. SIDE

(1)

Front hood panel

(4)

Rear door panel

(7)

Side sill

(2)

Front fender panel

(5)

Rear quarter panel

(8)

Rear quarter lower protector

(3)

Front door panel

(6)

Door panel





Section

Part

Specification

(A)

Front hood panel to Front fender panel

Sedan• wagon model: 3.6

r1.0 mm (0.14r0.04 in)

OUTBACK model: 3.8

r1.0 mm (0.15r0.04 in)

(B)

Front fender panel to Front door panel

4.7

r1.0 mm (0.18r0.04 in)

(C)

Front door panel to Rear door panel

5.1

r1.0 mm (0.20r0.04 in)

(D)

Rear door panel to Rear quarter panel

4.6

r1.0 mm (0.18r0.04 in)

(E), (F)

Door panel to Side sill

6.0

r1.0 mm (0.24r0.04 in)

(G)

Rear door panel to Rear quarter lower protector

4.8

r1.0 mm (0.19r0.04 in)

(A)

(B)

(C)

(D)

(E)

(F)

(G)

(1)

(2)

(A)

(2)

(3)

(B)

(3)

(4)

(C)

(4)

(5)

(D)

(7)

(6)

(E),(F)

(4)

(G)

(8)

EB-00320

EB-3

General Description

EXTERIOR BODY PANELS

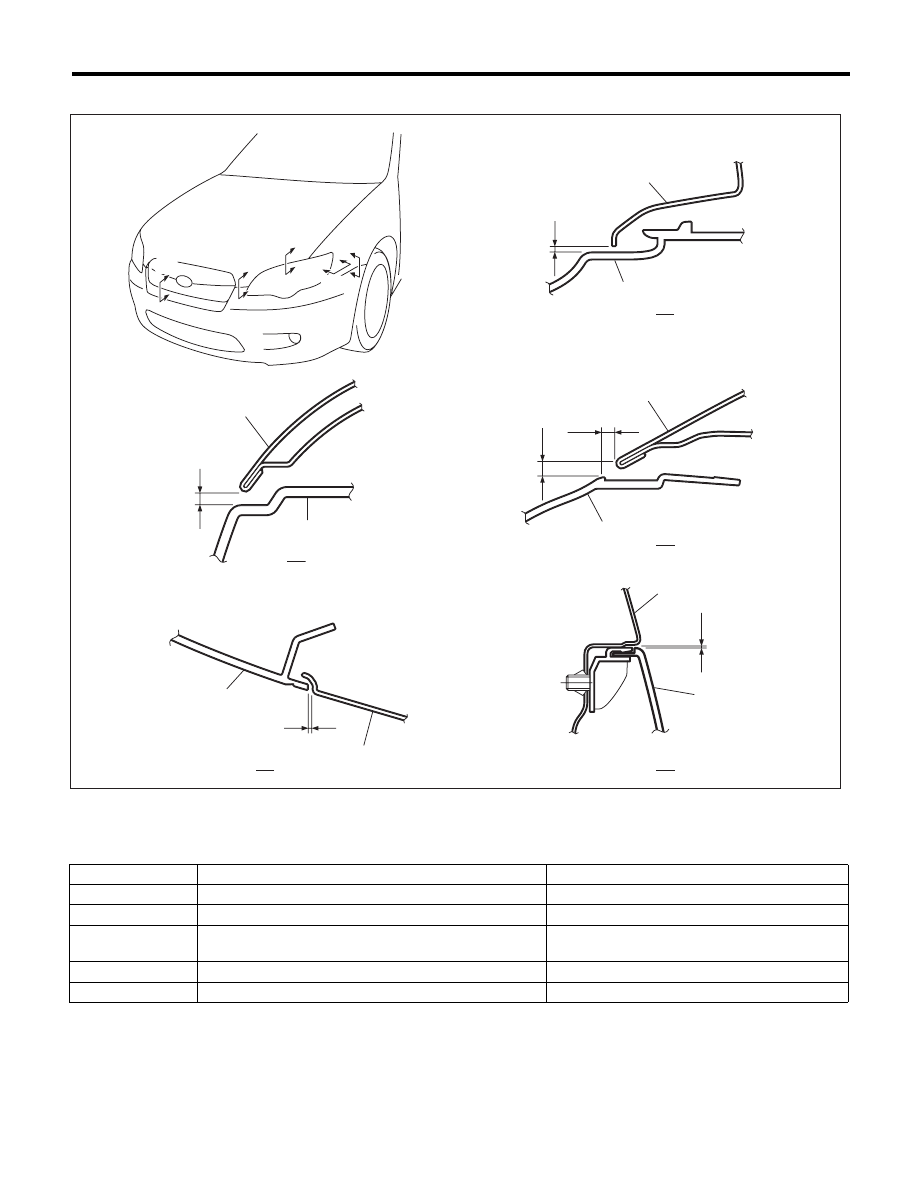

2. FRONT

(1)

Front bumper

(3)

Front hood panel

(5)

Front fender panel

(2)

Front grille

(4)

Headlight





Section

Part

Standard value

(A)

Front bumper to Front grille (longitudinal direction)

1.0

r0.7 mm (0.04r0.03 in)

(B)

Front hood panel to Front bumper

4.0 — 6.0 mm (0.16 — 0.24 in)

(C)

Front hood panel to Headlight

C1: 6.0

r1.0 mm (0.24r0.04 in)

C2: 5.0

r1.0 mm (0.20r0.04 in)

(D)

Front fender panel to Headlight

1.5

r1.0 mm (0.06r0.04 in)

(E)

Front fender panel to Front bumper

1.0

r0.7 mm (0.04r0.03 in)

(3)

(1)

(B)

(4)

(3)

C2

C1

(C)

(1)

(2)

(A)

(5)

(4)

(D)

(5)

(1)

(E)

(A)

(B)

(C)

(D)

(E)

EB-00321
