EI-71

Trunk Room Trim

EXTERIOR/INTERIOR TRIM

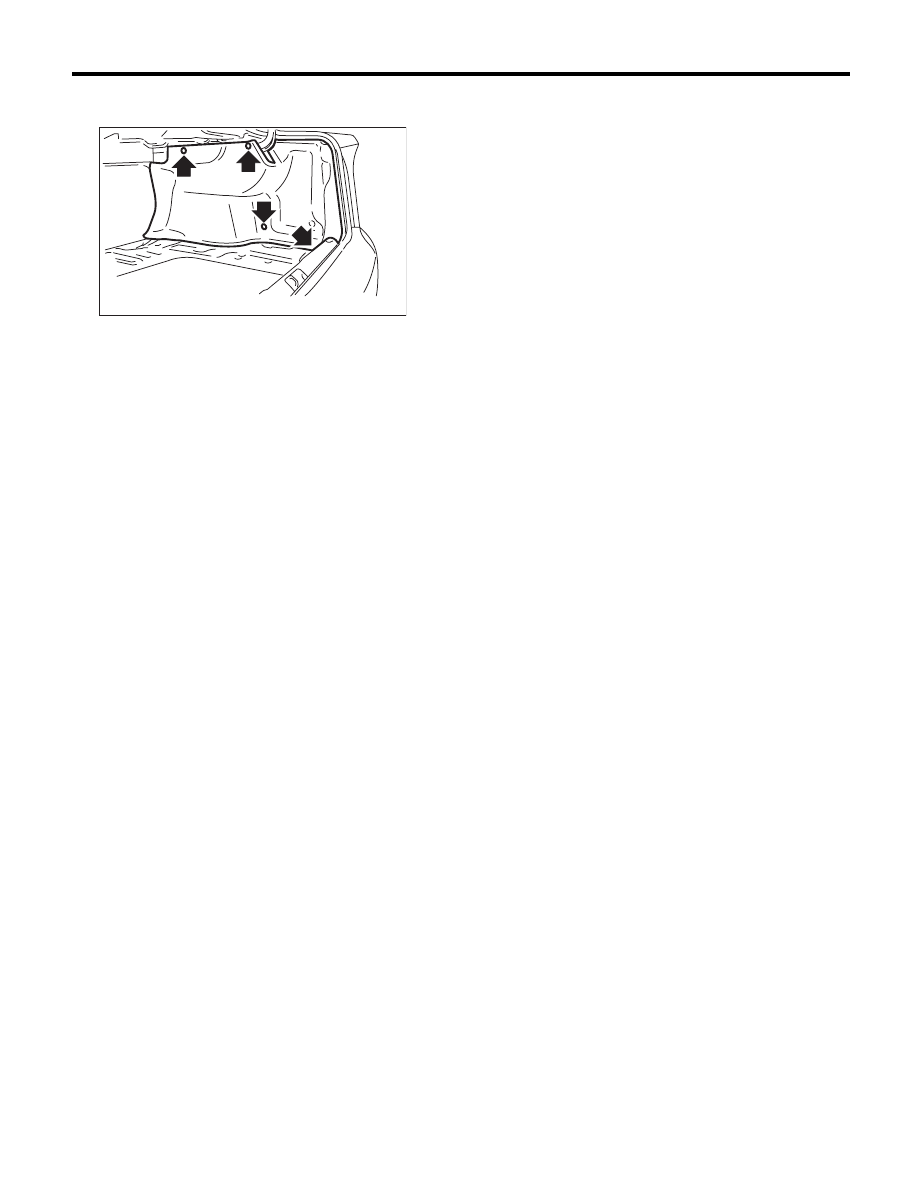

4) Remove the trim clips, and remove the trunk
side trim.

B: INSTALLATION

Install in the reverse order of removal.

EI-00626

EI-72

Floor Mat

EXTERIOR/INTERIOR TRIM

32.Floor Mat

A: REMOVAL

1) Remove the front seats. <Ref. to SE-9, REMOV-
AL, Front Seat.>
2) Remove the rear seat cushion. <Ref. to SE-18,
REMOVAL, Rear Seat.>
3) Remove the console box. <Ref. to EI-54, Con-
sole Box.>
4) Remove the console side panel. <Ref. to EI-55,
REMOVAL, Center Console.>
5) Remove the lower inner trim. <Ref. to EI-61, RE-
MOVAL, Lower Inner Trim.>
6) Remove the clips from the floor mat.
7) Remove the mat hook on both sides.
8) Remove the mat from toe board area.
9) Remove the mat from rear heater duct.
10) Roll the mat, and then take it out of opened rear
door.

B: INSTALLATION

Install in the reverse order of removal.

NOTE:
• Secure the mat firmly with hook and clip.
• Insert the mat edge firmly into the groove of side
sill cover.

EI-01443

EI-73

Luggage Floor Box

EXTERIOR/INTERIOR TRIM

33.Luggage Floor Box

A: REMOVAL

1) Remove the luggage floor mat.
2) Remove the clips, and remove the luggage floor
box.

B: INSTALLATION

Install in the reverse order of removal.

EI-00678

EI-74

Trunk Lid Garnish

EXTERIOR/INTERIOR TRIM

34.Trunk Lid Garnish

A: REMOVAL

1) Remove the license plate, and loosen bolts (A).

2) Remove the clip in the upper corner of the trunk
lid garnish.

3) Place your hands between the trunk lid garnish
and the trunk lid panel, and remove the trunk lid
garnish starting from the edge, in order.

B: INSTALLATION

Install in the reverse order of removal.

Tightening torque:

7.5 N·m (0.76 kgf-m, 5.5 ft-lb)

EI-00568

(A)

EI-01031

EI-01032
