EI-75

Rear Gate Garnish

EXTERIOR/INTERIOR TRIM

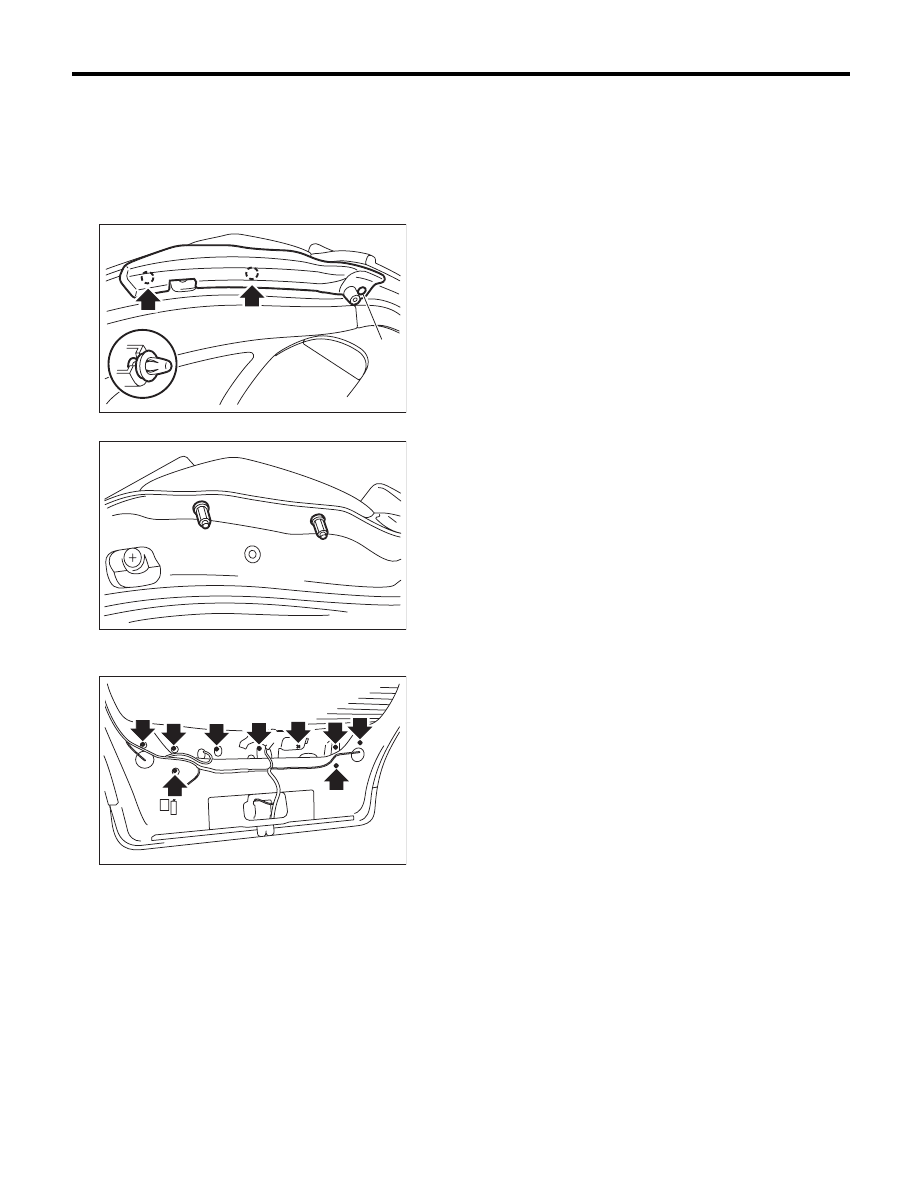

35.Rear Gate Garnish

A: REMOVAL

1) Remove the rear gate trim. <Ref. to EI-68, RE-
MOVAL, Rear Gate Trim.>
2) Remove clip (A), and remove the rear gate panel
side cover.

3) Remove the hexagon cap nut.

4) Remove the nuts, disconnect connectors, and
remove the rear gate garnish.

B: INSTALLATION

Install in the reverse order of removal.

Tightening torque:

4.5 N·m (0.46 kgf-m, 3.32 ft-lb)

(A)

EI-00569

EI-00630

EI-00631

EI-76

Heat Shield Cover

EXTERIOR/INTERIOR TRIM

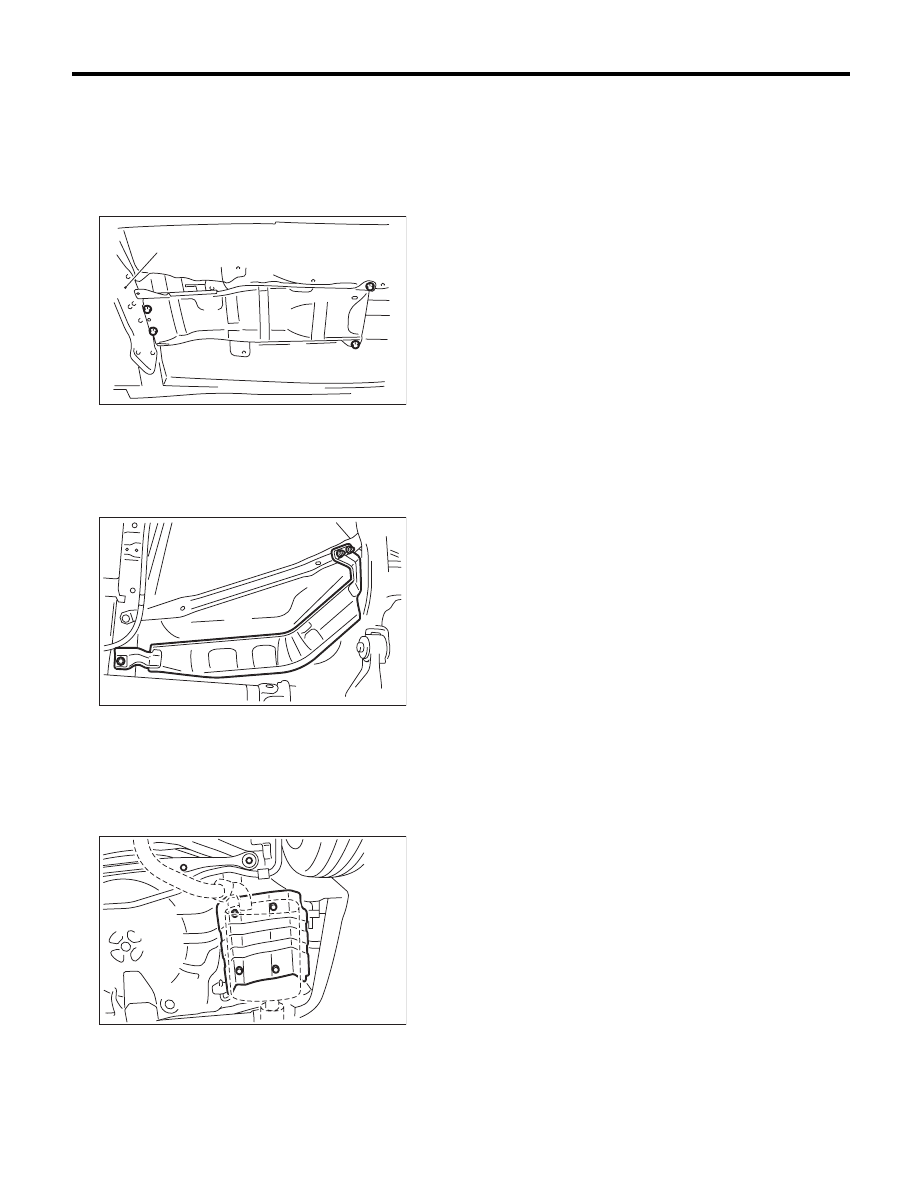

36.Heat Shield Cover

A: REMOVAL

1. FRONT HEAT SHIELD COVER

Remove the four bolts to remove the front heat
shield cover.

2. CENTER HEAT SHIELD COVER

Remove the nut and bolt to remove center heat
shield cover.

3. REAR HEAT SHIELD COVER

1) Remove the muffler. <Ref. to EX(H4SO)-10, RE-
MOVAL, Muffler.> <Ref. to EX(H4DOTC)-14, RE-
MOVAL, Muffler.>
2) Remove the four bolts to remove the rear heat
shield cover.

B: INSTALLATION

Install in the reverse order of removal.

(A) Transmission mount

DI-00211

(A)

EI-00679

EI-00680

EI-77

Ornament

EXTERIOR/INTERIOR TRIM

37.Ornament

A: INSTALLATION

1. LETTER MARK

Adhere the letter mark according to the following measurements.

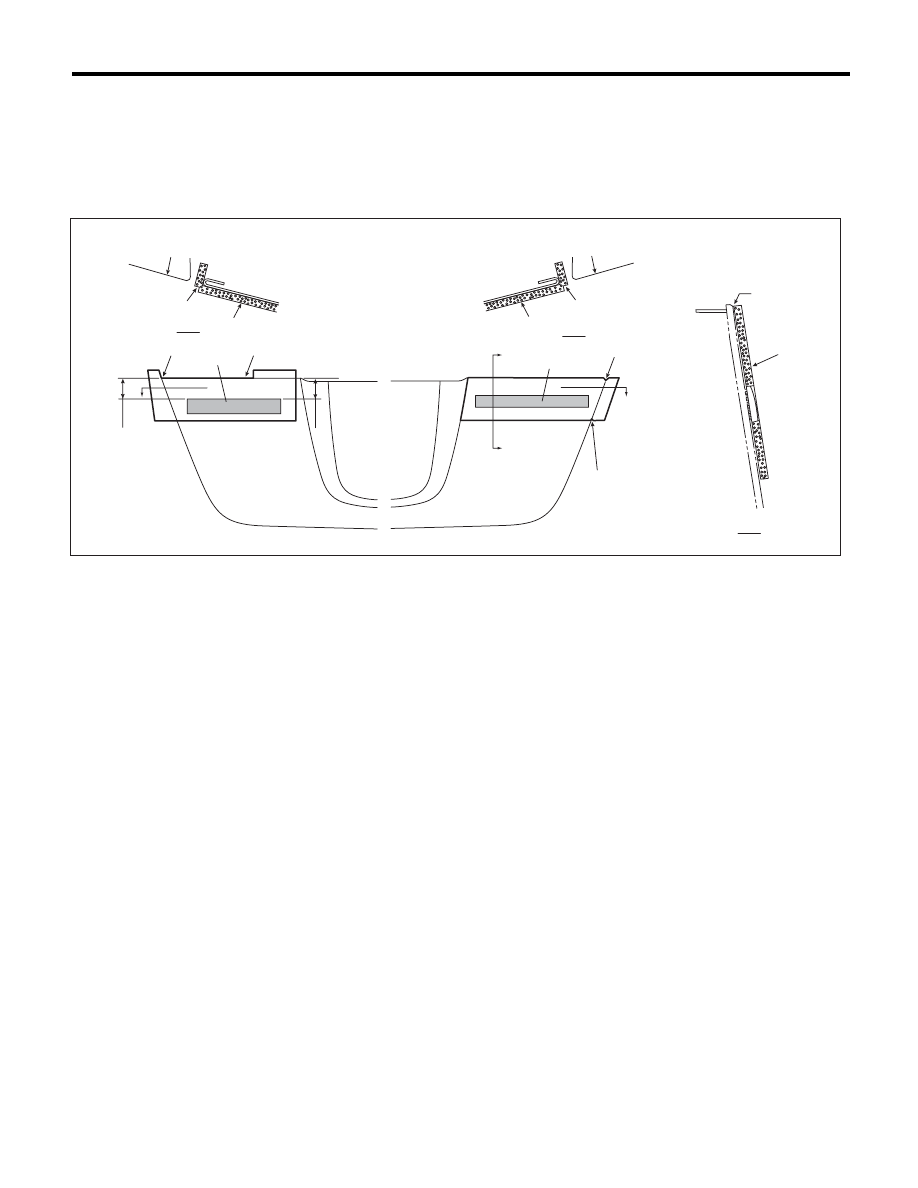

• Sedan model

(a)

Apply the edge of application tape
by aligning with the end of the
radius for the trunk lid garnish.

(b)

Apply the application tape by
aligning with the end of the radius,
at the upper edge of the trunk lid
garnish.

(c)

Align the slit of the application
tape to the panel end.

(f)

35 mm (1.38 in)

(d)

Apply the application tape by
aligning the cut out to the edge of
the trunk lid garnish.

(e)

33 mm (1.3 in)













(1)

Letter mark

(2)

Application tape

(3)

Rear combination light

(2)

(b)

(d)

(d)

C

B

C

C-C

B-B

(1)

(2)

(C)

(3)

A-A

A

(2)

(3)

(1)

(a)

(b)

(e)

(f)

EI-01673

EI-78

Ornament

EXTERIOR/INTERIOR TRIM

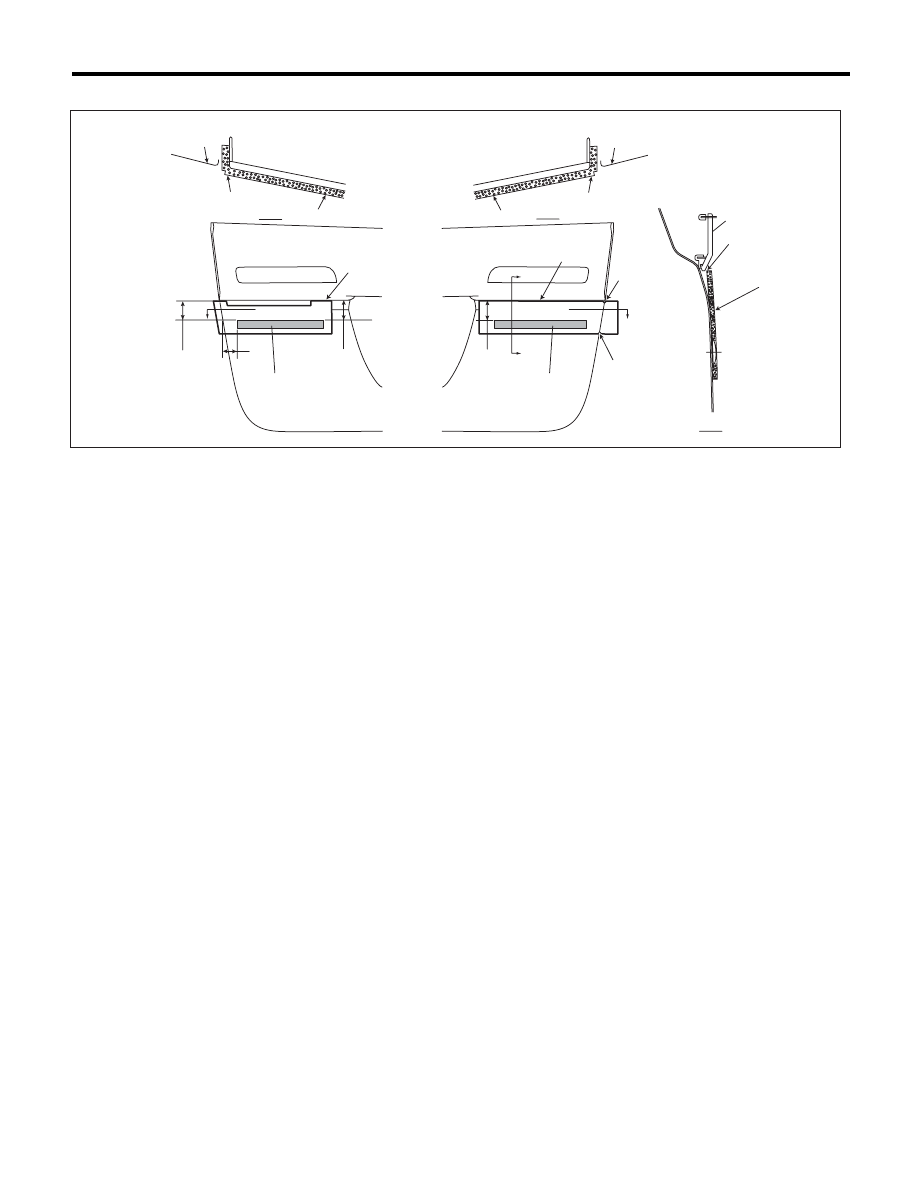

• Wagon model

(a)

Apply the application tape by
aligning the cut out to the edge of
the rear gate panel.

(b)

Apply the application tape by
aligning it with the outer bottom
end of the rear gate garnish.

(c)

Align the slit of the application
tape to the panel end.

(f)

45.5 mm (1.79 in)

(d)

44.5 mm (1.75 in)

(e)

45 mm (1.77 in)













(1)

Letter mark

(3)

Rear gate garnish

(4)

Rear combination light

(2)

Application

tape





B-B

(2)

(b)

(3)

(a)

(a)

B

B

C

C-C

(1)

(2)

(C)

(4)

(e)

(f)

(d)

(g)

A

A-A

(1)

(2)

(C)

(4)

(b)

(b)

EI-01674
