Subaru Legacy IV (2008 year). Manual - part 1141

EI-63

Rear Quarter Trim

EXTERIOR/INTERIOR TRIM

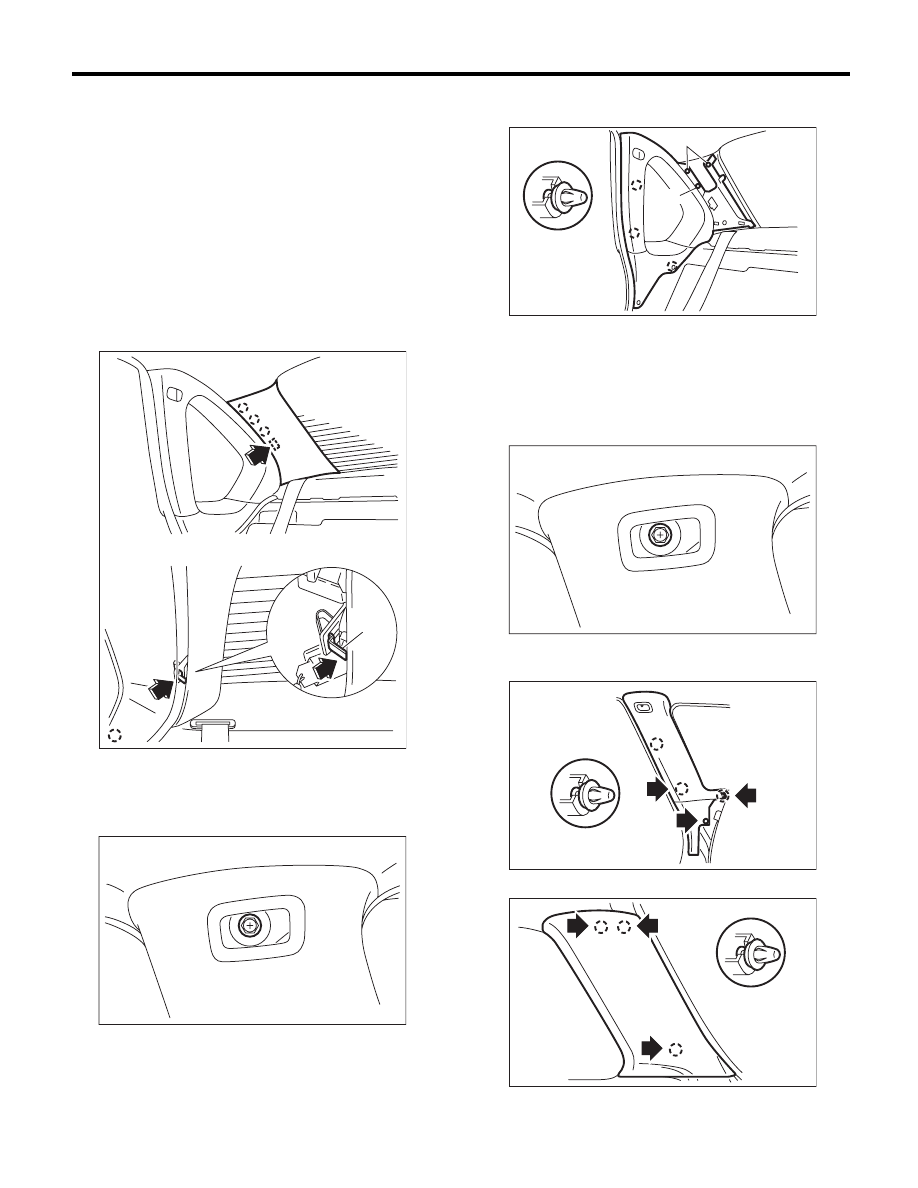

25.Rear Quarter Trim

A: REMOVAL

1. SEDAN MODEL

1) Remove the rear seat. <Ref. to SE-18, SEDAN
MODEL, REMOVAL, Rear Seat.>
2) Turn over the trim, and remove the quarter trim
rear by pressing the claw (A) of the metal clip using
a flat screwdriver, etc.

CAUTION:
When the metal clip comes off or becomes
damaged, replace both trim and metal clips
with new parts.

3) Remove the cap on the upper side of the trim,
and remove the bolt inside.

4) Remove the bolts (A), and remove the quarter
trim (front).

2. WAGON MODEL

1) Remove the rear seat cushion and backrest
shoulder. <Ref. to SE-19, WAGON MODEL, RE-
MOVAL, Rear Seat.>
2) Remove the cap on the upper side of the pillar
trim, and remove the bolt inside.

3) Remove the clip, and remove the quarter front
pillar trim.

4) Remove the quarter rear pillar trim.

(B) Hook

EI-00682

(A)

:(B)

EI-00562

EI-00839

(A)

(A)

EI-00562

EI-01029

EI-00564

EI-64

Rear Quarter Trim

EXTERIOR/INTERIOR TRIM

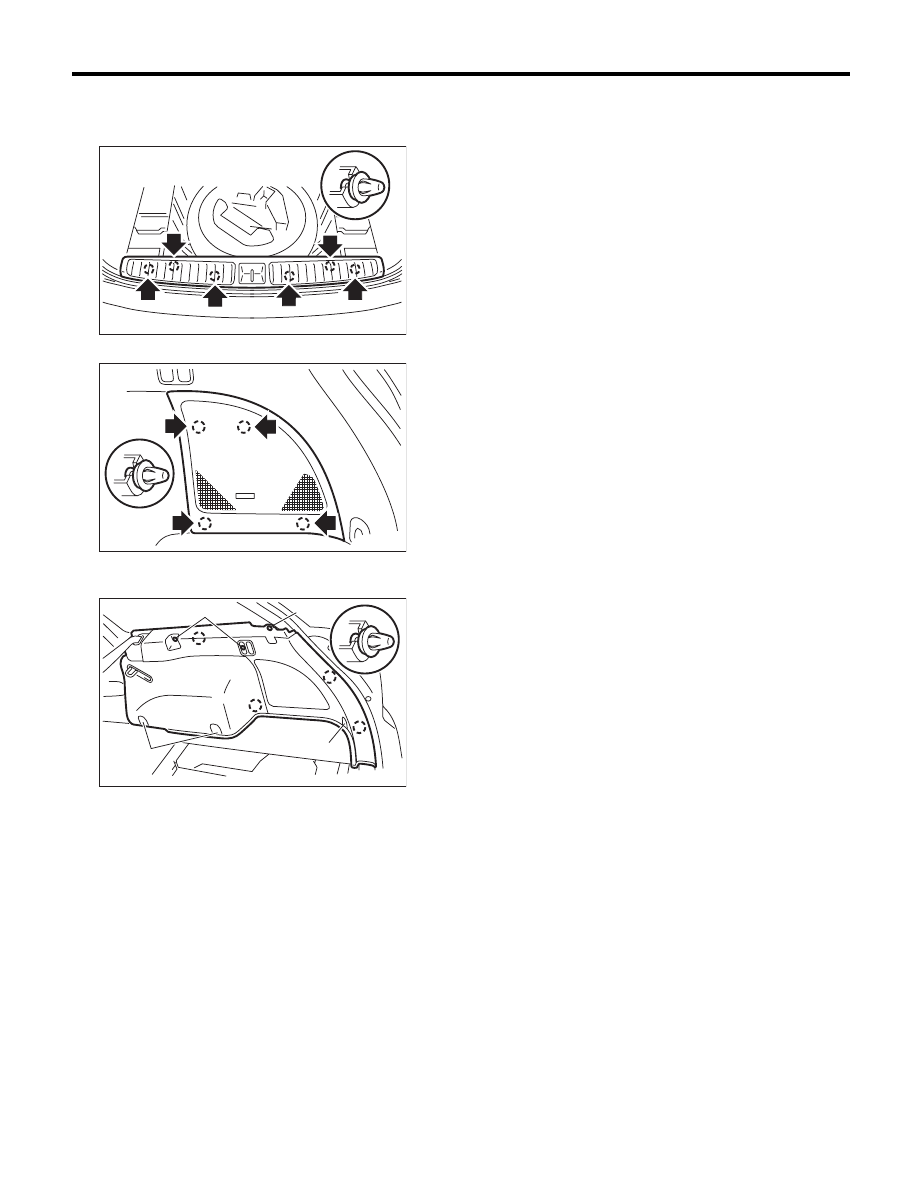

5) Remove the luggage floor box. <Ref. to EI-73,
REMOVAL, Luggage Floor Box.>
6) Remove the luggage floor end cover.

7) Remove the woofer cover. (Model with woofer)

8) Remove the screws (A) and bolts (B), and re-
move the quarter lower trim.

NOTE:
• Remove the screw cover on the tonneau cover
installation area.
• Pull out the shopping bag hook, and remove the
screw on the far end.

B: INSTALLATION

Install in the reverse order of removal.

Tightening torque:

7.5 N·m (0.76 kgf-m, 5.5 ft-lb)

EI-00570

EI-00622

EI-00567

(B)

(A)

(B)

(A)

EI-65

Sun Visor

EXTERIOR/INTERIOR TRIM

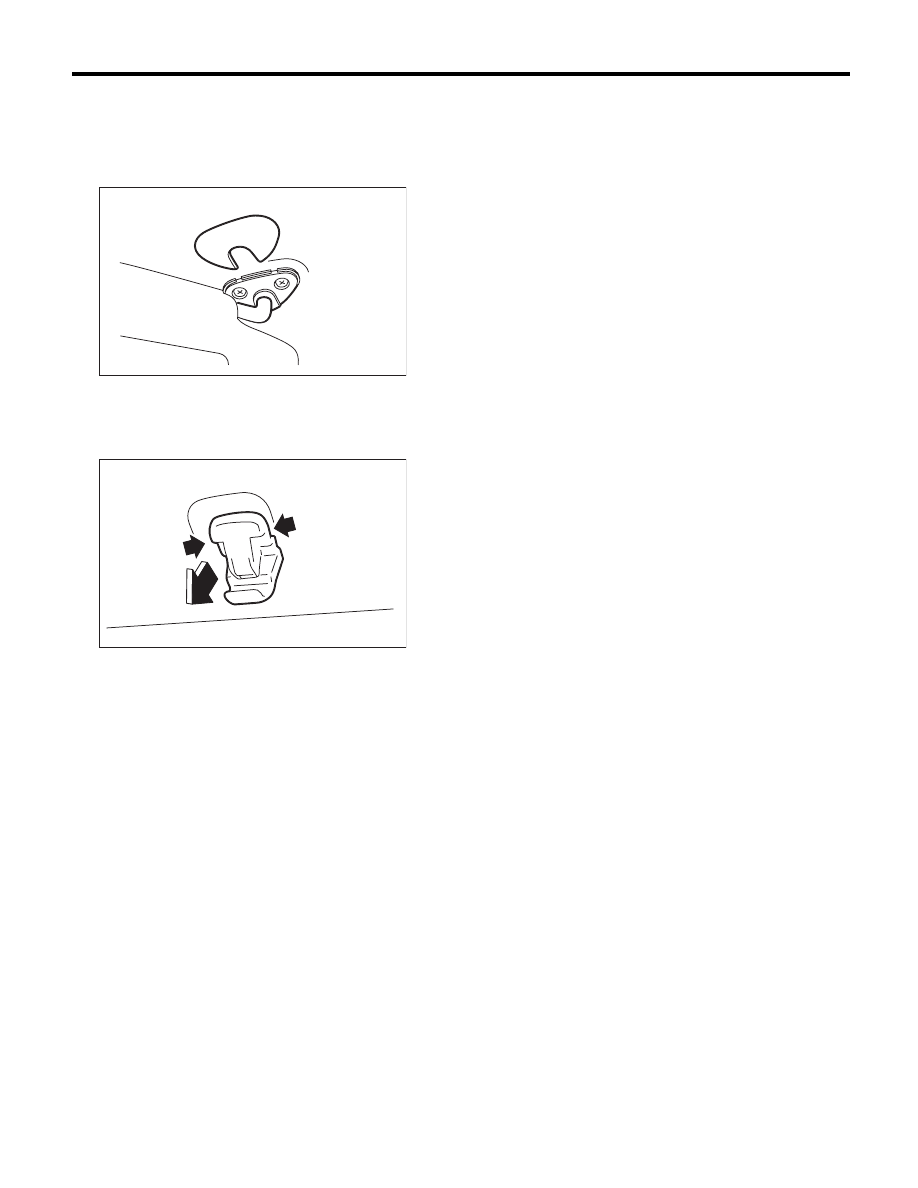

26.Sun Visor

A: REMOVAL

1) Remove the cover, loosen the mounting screws,
and remove the sun visor.

2) Disconnect the connector. (Model with vanity
mirror light)
3) While pressing the (A) on the both side using flat
tip screwdriver, pull the sun visor hook to remove it.

B: INSTALLATION

Install in the reverse order of removal.

EI-00661

EI-00662

(A)

(A)

EI-66

Assist Grip

EXTERIOR/INTERIOR TRIM

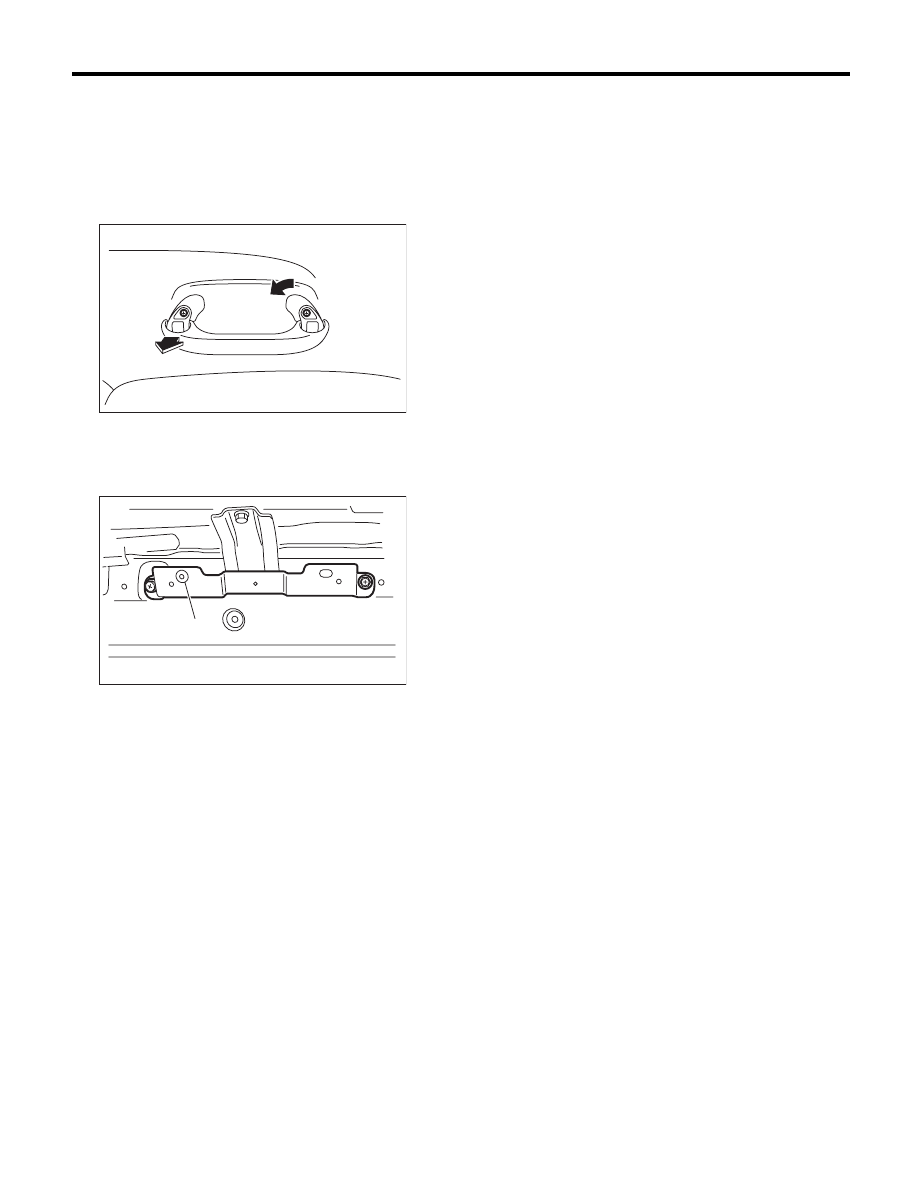

27.Assist Grip

A: REMOVAL

1) Remove the screw cover, and remove the screw
inside.
2) Pull the left side of assist grip, and rotate the
right side of it counterclockwise to remove.

3) Remove the roof trim. <Ref. to EI-67, REMOV-
AL, Roof Trim.>
4) Remove the bolts, and remove the assist grip
bracket.

B: INSTALLATION

CAUTION:
Be sure to install the grommet to assist grip
bracket.
When the assist grip is installed with no grom-
met, it ill cause the grip to not return properly.
Install in the reverse order of removal.

(A) Grommet

EI-00809

EI-01065

(A)
