SSANGYONG  Y200

9D-74  BODY ELECTRICAL

YAD9D2B0

5 Driver Power Seat

Recline Switch

6 Driver Power Seat

Switch
(Slide, Height, Tilt)

7 Seat Heater Control

Unit

1 Slide Adjusting Motor
2 Height Adjusting

Motor

3 Tilt Adjusting Motor
4 Recline Adjusting

Motor

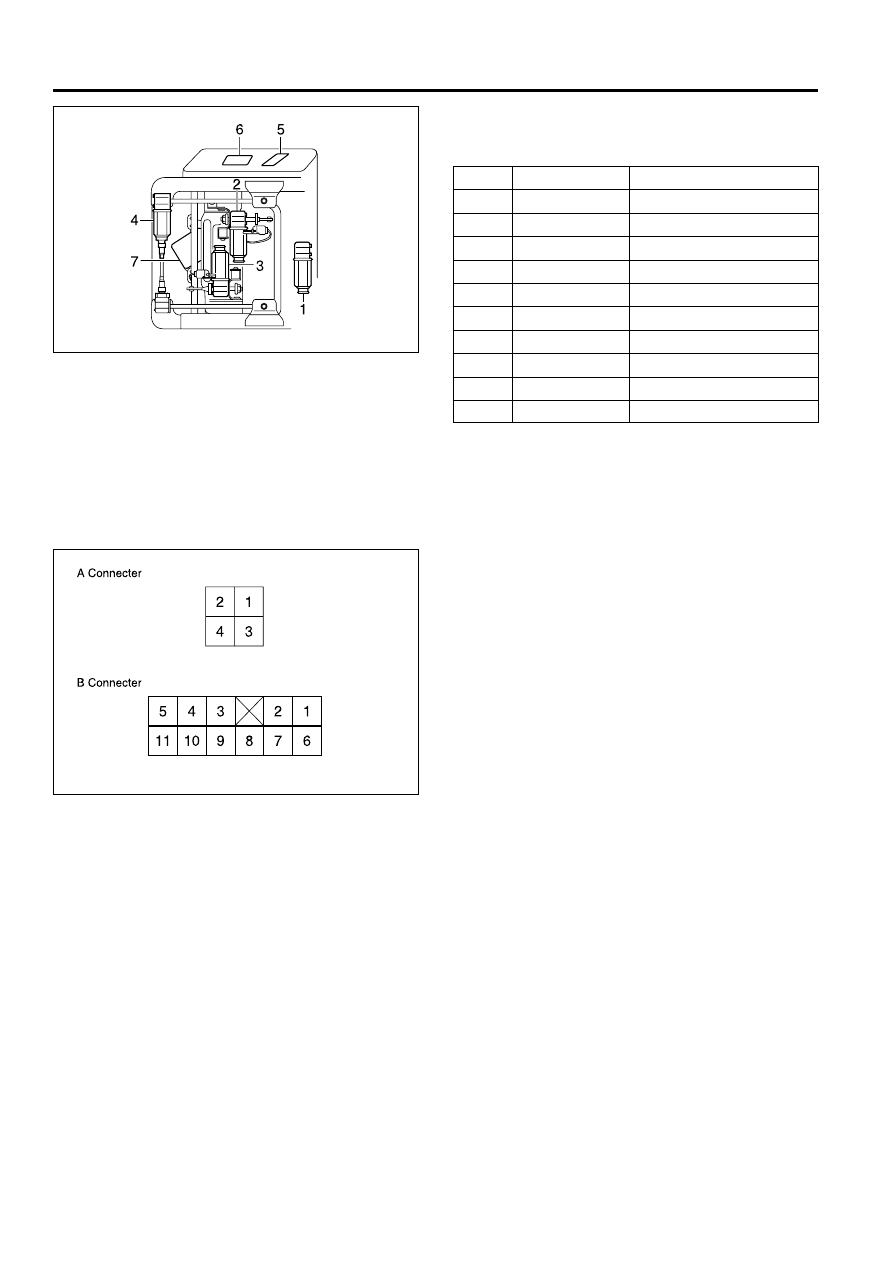

Power seat

Connector and connected circuit

NO.

A1, A2

A3, A4

B1

B2

B3

B4

B5

B6

B7

B11

Size / color

 BW

 BLACK

WB

Y

GB

RG

BY

GY

BR

GB

Connected circuit

Battery

Ground

Slide

Slide

Tilt

Tilt

Recline

Height

Height

Recline

YAD9D2C0

BODY ELECTRICAL  9D-75

SSANGYONG  Y200

YAD9D2E0

YAD9D2F0

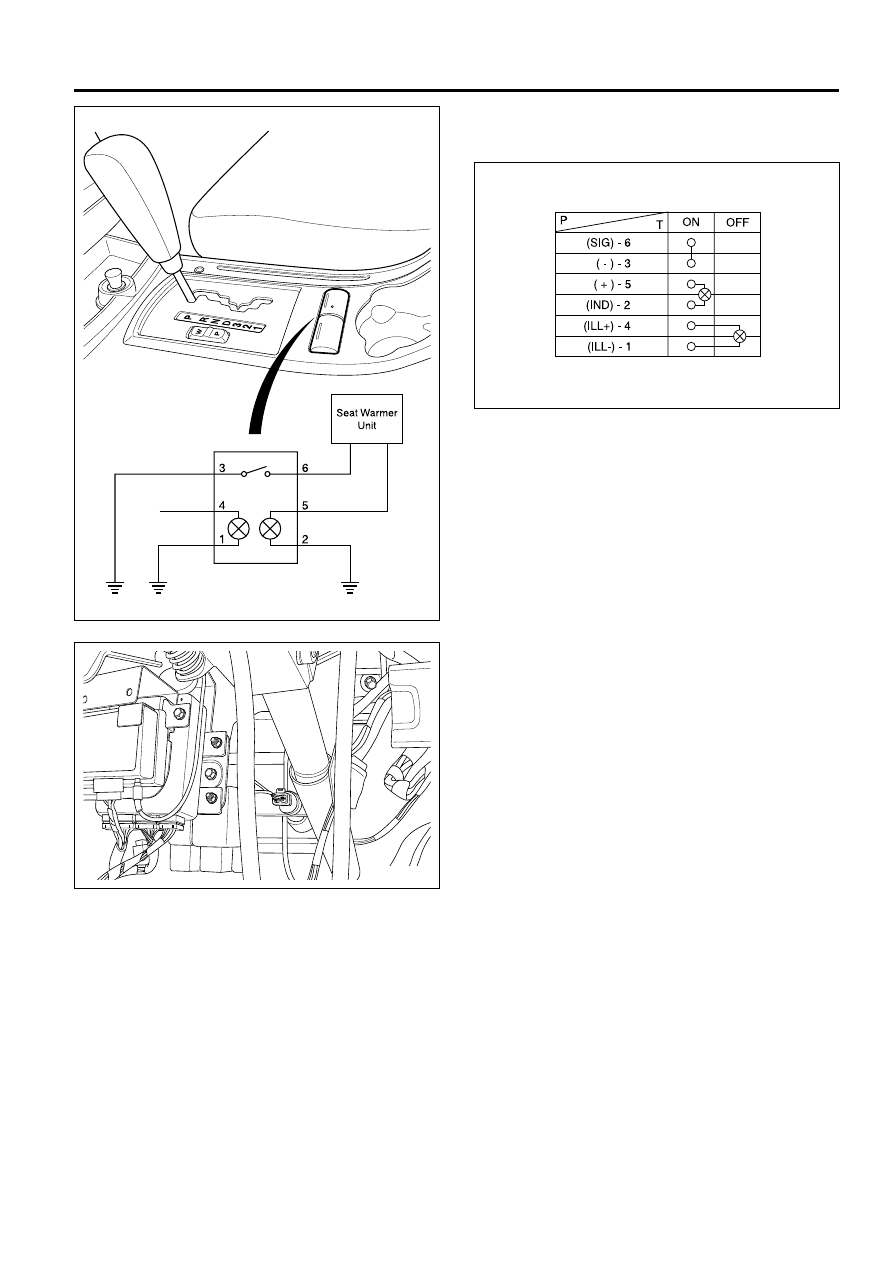

Seat warmer switch

Connected circuit

Stics

Summary

Stics which is electron control unit, has the function of
sixteen, if stics is unnormal at the sensor or load, unit
of stics has self –diagnosis.

YAD9D2D0

SSANGYONG  Y200

9D-76  BODY ELECTRICAL

YAD9D2G0

FUNCTION OF OPERATION AND
THE CHARACTERISTIC

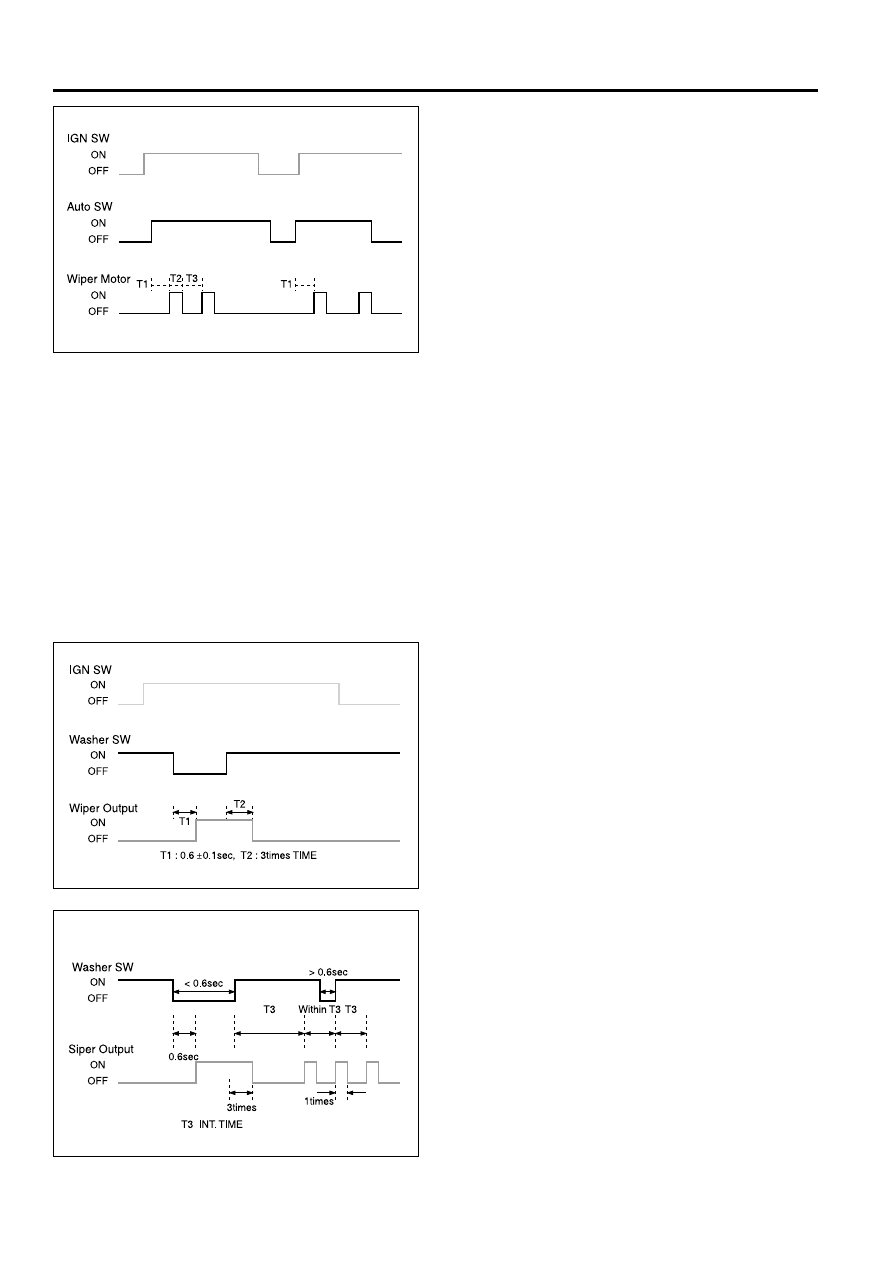

Intermittent Wiper of Velocity Induction Type

1. Intermittent wiper of velocity induction type which

is linked according to velocity of vehicle,
intermittent time is changed automatically a kind
of wiper system, this one is controlled by below
switch of control.

- Auto switch : which is selected to the intermittent

mode.

- Time control switch of the intermittent : this one

control the intermittent time

- Intermittent time is set (at 0 km/h ) : 2.6 ± 0.5

sec ~ 18 sec ± 2 sec

2. After IGN 2 switch is “ ON” , turn auto switch on,

or after turn auto switch is “ ON” , turn IGN2 on,
immediately, velocity linking mode is operating.

2. While the intermittent wiper is operating, washer

switch is turned on more than 0.6 seconds and
then washer linked wiper is operating, if washer
switch is turned between 0.2 and 0.6, such as
MIST wiper, wiper is operating only once

Washer linking wiper

1. As ignition switch is turning on, if washer switch

is “ON”, after 0.6 second, wiper is operating, after
washer switch is “OFF”, wiper is operating 3 times
and then wiper is turned “OFF”

YAD9D2H0

YAD9D2J0

BODY ELECTRICAL  9D-77

SSANGYONG  Y200

YAD9D2K0

YAD9D2L0

YAD9D2M0

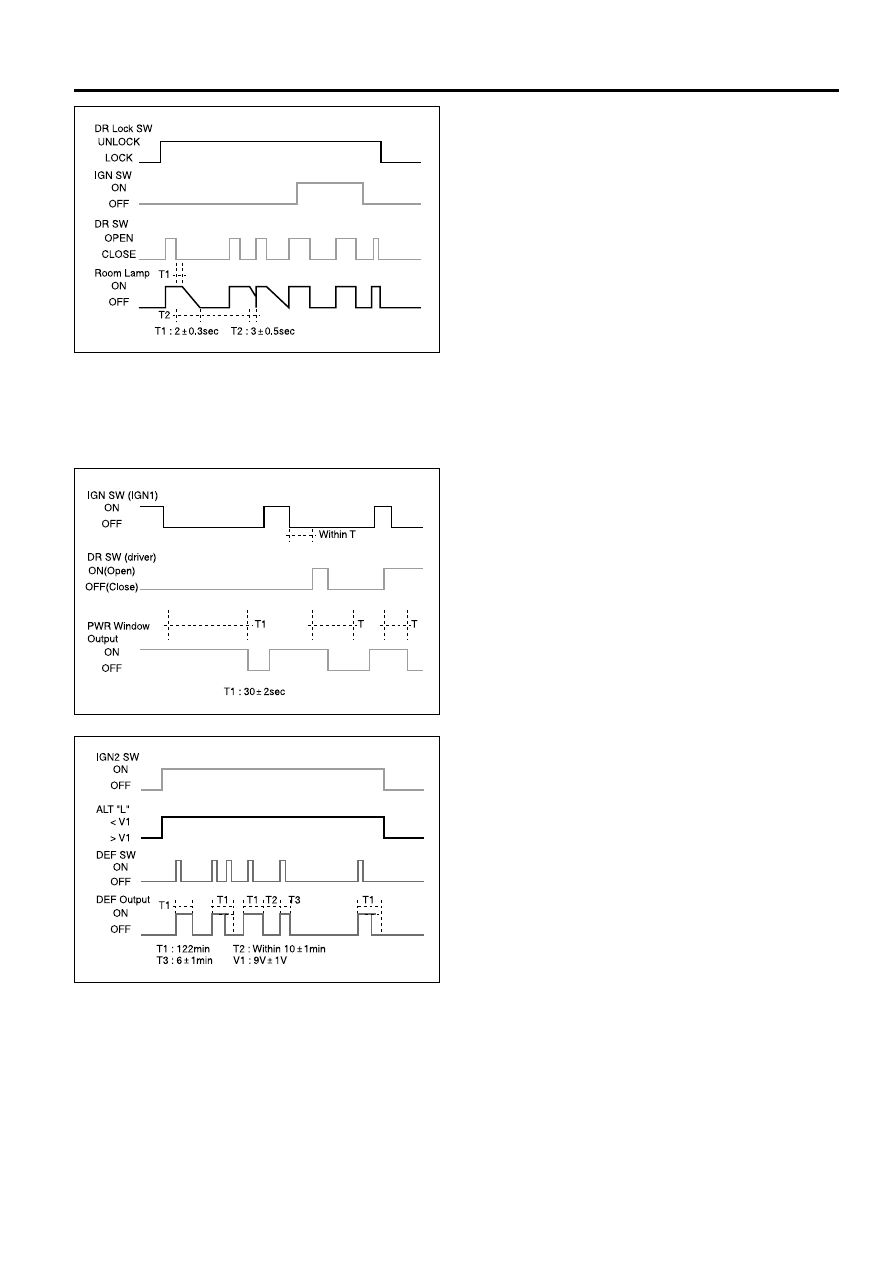

Room lamp of light sensitive type

1. As switch of room lamp is set on the position of

door is linked operation, release lock switch of
driver or lock switch of passenger, turn the switch
of ignition (IGN2) “OFF”, and then open up door,
lamp of room is turned on, after door is closed,
after 2 seconds, light is “ON” and then gradually
is sensing light, after 3 seconds approximately,
should be turned off completely.

2. If switch of ignition (IGN2) is turned “ON” or lock

switch of driver seat or passenger is set free, open
up door and then the light is turned on  and if door
driver seat and passenger are closed, and
then,immediately should be turned off (Disregard
time of turning on which is less than 0.2 seconds).

3. Capacity of time resolving is more than 32 stem

per 1 seconds.

Function of defogger timer

1. At state of engine which is operated, if switch of

defogger is operated, defogger is operated
(12 minutes).

2. Under defogger is operating, if switch of defogger

is reoperated, operating is stopped.

3. After operation of defogger is finished, within 10

minutes, again switch of defogger is turned on
only once this one is operated for 6 minutes.
(except that switch of defogger is turned off )

4. If ignition switch (IGN2) is “OFF” or if the VOLT of

L terminal of alternator is less than 10 V, operating
of defogger is stopped.

Power window of time delaying

After turn ignition switch (IGN1) OFF, during 30
seconds, switch of power window is operating available
and within this time (30 seconds) if door is opened up,
from at that time, time is extending for 30 minutes,if
door is closed within a time extended, power is “ OFF”.
