SSANGYONG  Y200

9D-70  BODY ELECTRICAL

SWITCH AND ELECTRICAL SYSTEM

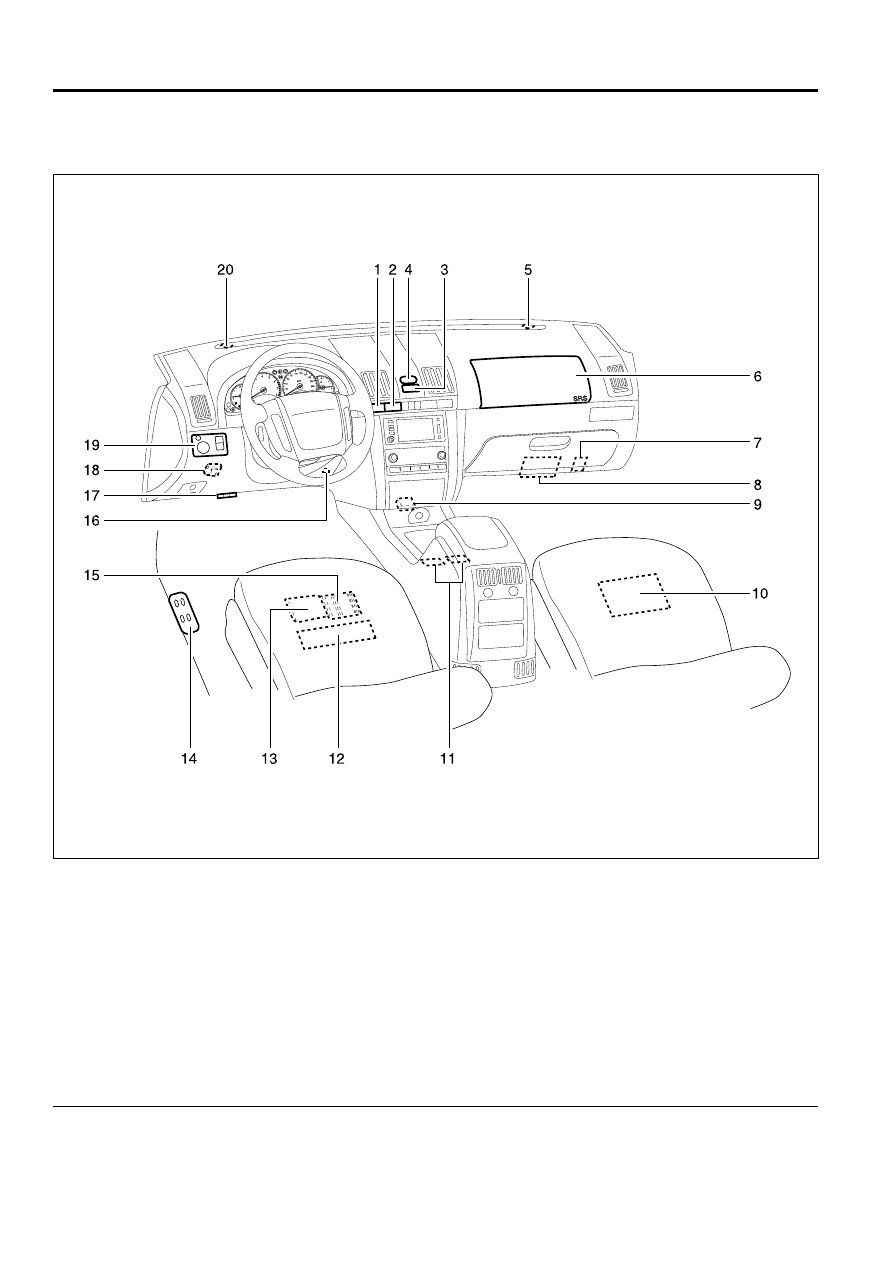

Components

1 Defogger Switch
2 Front Switch of Fog Lamp
3 Digital Watch
4 Switch of Hazard Warning Lamp
5 Sensing Unit of Auto Lighting
6 Air Bag of Passenger
7 Unit of EGR

Unit of OVPR

8 ECM
9 SDM

10 Nevigation System

YAD9D1V0

11 Switch of Seat Warmer
12 Unit of Seat Position and Seat Warmer
13 TCM
14 Switch of Position Memory
15 TOD, TCCU
16 Internal Sensor of Temp
17 Connector of Self Dignosis
18 Stics / Rekes
19 Fold Switch of Side Mirror
20 Sensor of Sun

BODY ELECTRICAL  9D-71

SSANGYONG  Y200

YAD9D1W0

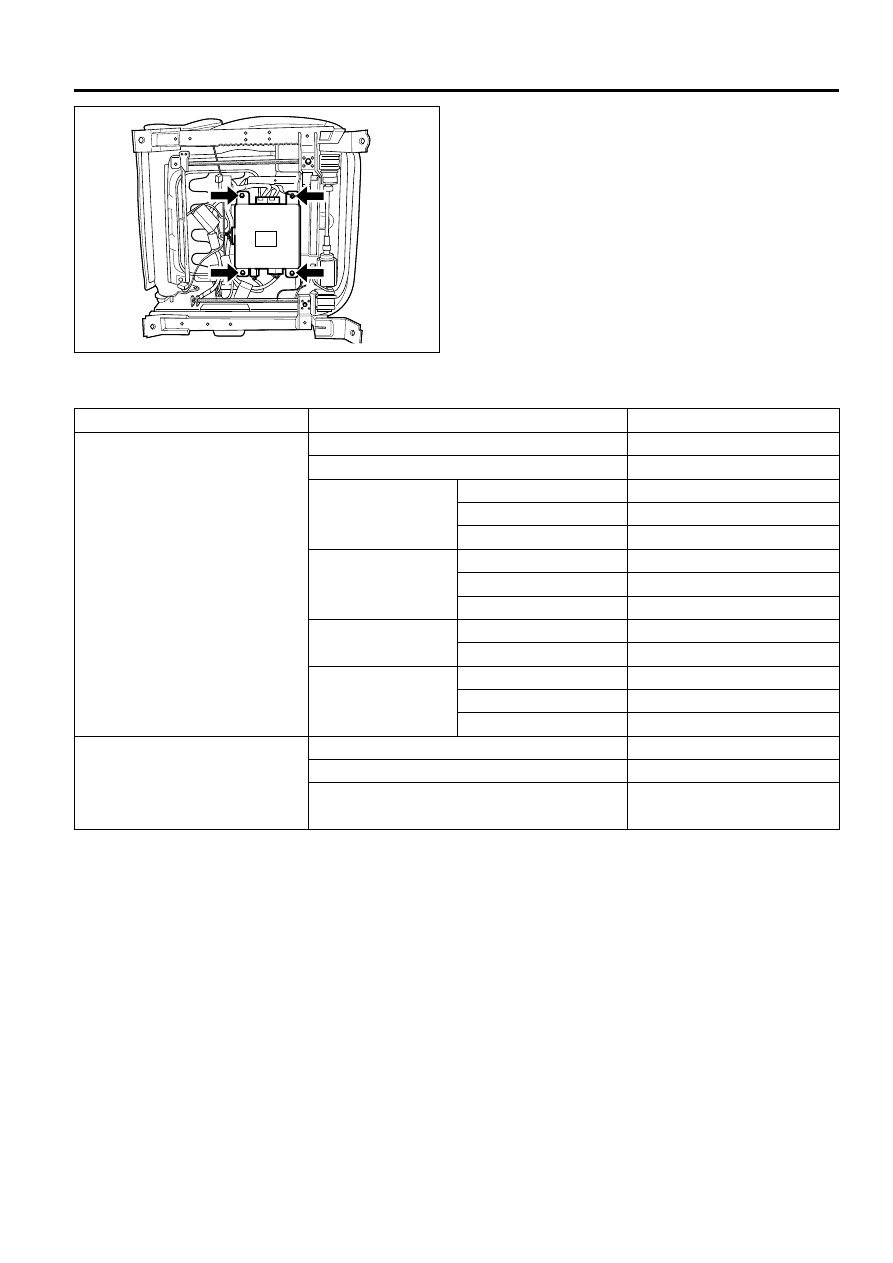

Description of System

Unit of seat position and seat warmer

This unit is located on the lower section of passenger
which controls driver seat and out side mirror manual
operation, put in memory, function of returning and
also has a function which warm up seat and fold up
outside mirror.

Function of Operation

  Type

SEAT

Regardless of ignition switch

 Outside mirror

Description

 Operating voltage

 Rang of operating temp

  Specification

DC 11 - 15 V

-30 °C - 80°C

20 ± 7 mm/sec

10.6 ± 5 mm/sec

7 ± 2 mm/sec

228 ± 3 mm

23 °

↔

 0

↔

 48 °

30 ± 3 mm

7 A

8 A

DC 12 V / 1A

35



°c - 45



°c

0.3 - 0.7 kgf

-8



° - 8



°

-8



° - 8



°

± 67 °

Slide

Tilt

Height

Slide

Recline

Lift

Slide

Tilt and lift

Rated load

Range of operating temp

Foce of switch operation

Angle of up and down

Angle of left and right

Angle of folding

Operating speed of

seat

Operating distance

of seat

 Operating current

(at 13.5 V)

Heater switch of

seat

SSANGYONG  Y200

9D-72  BODY ELECTRICAL

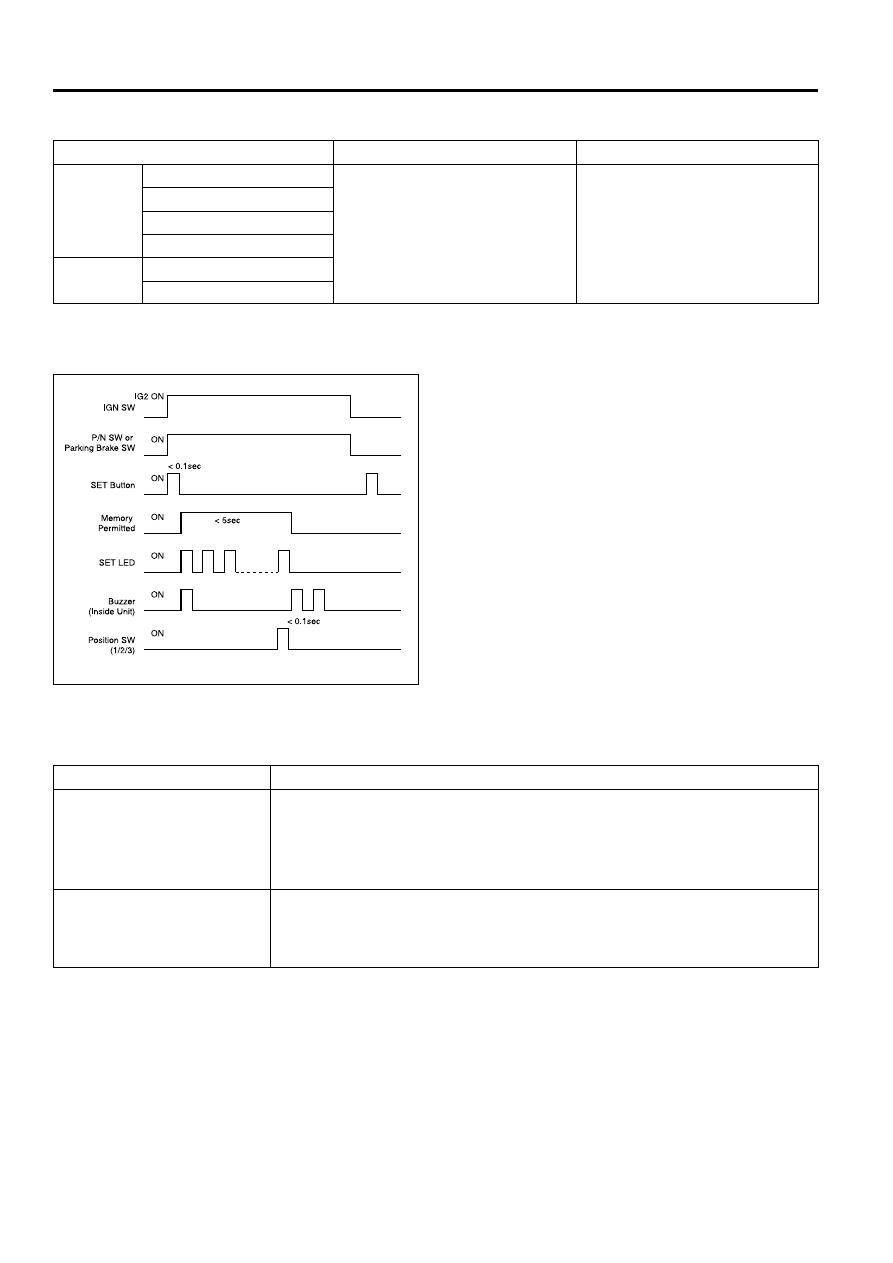

Seat and Out Side Mirror, With Memory

Set memory

1. Condition: If ignition is “ON”

position of selector lever is “P
and N

2. Parking brake is “ O N ”
3. Switch of set is “ON

4. Switch of 1/2/3 is operating

within 5 seconds

 Release mory

1. After switch of set is“ON”

time is passed more than 5
seconds.

2. While switch of seat or switch

of outside mirror (manual
operati on is set)

3. Ignition switch is “OFF”

Seat

Outside

mirror

Slide

Recline

Lift (front/rear)

Warmer (driver/passenger)

Up and down

Left and right

 Part of function

YAD9D1X0

Function of Memory Return

Item

Operation condition

The state of operation: Another

condition is set under function

of memory is returning

Description

1. Position of selector lever is “ P and N on condition that, ignition switch is

“ON”

2. Automatic vehicle: P/N or parking brake is “ON”

3. Manual transmission : parking brake is “ON”
4. Memory return is operating at the state of stop (vehicle speed : 0 km/h).

1. If position button is operating while memory is returning, memory is

returnng as memory is set on before.

2. While memory is returning, button of stop is set, return operation is stoping

 immediately.

The  characteristic of operation.

BODY ELECTRICAL  9D-73

SSANGYONG  Y200

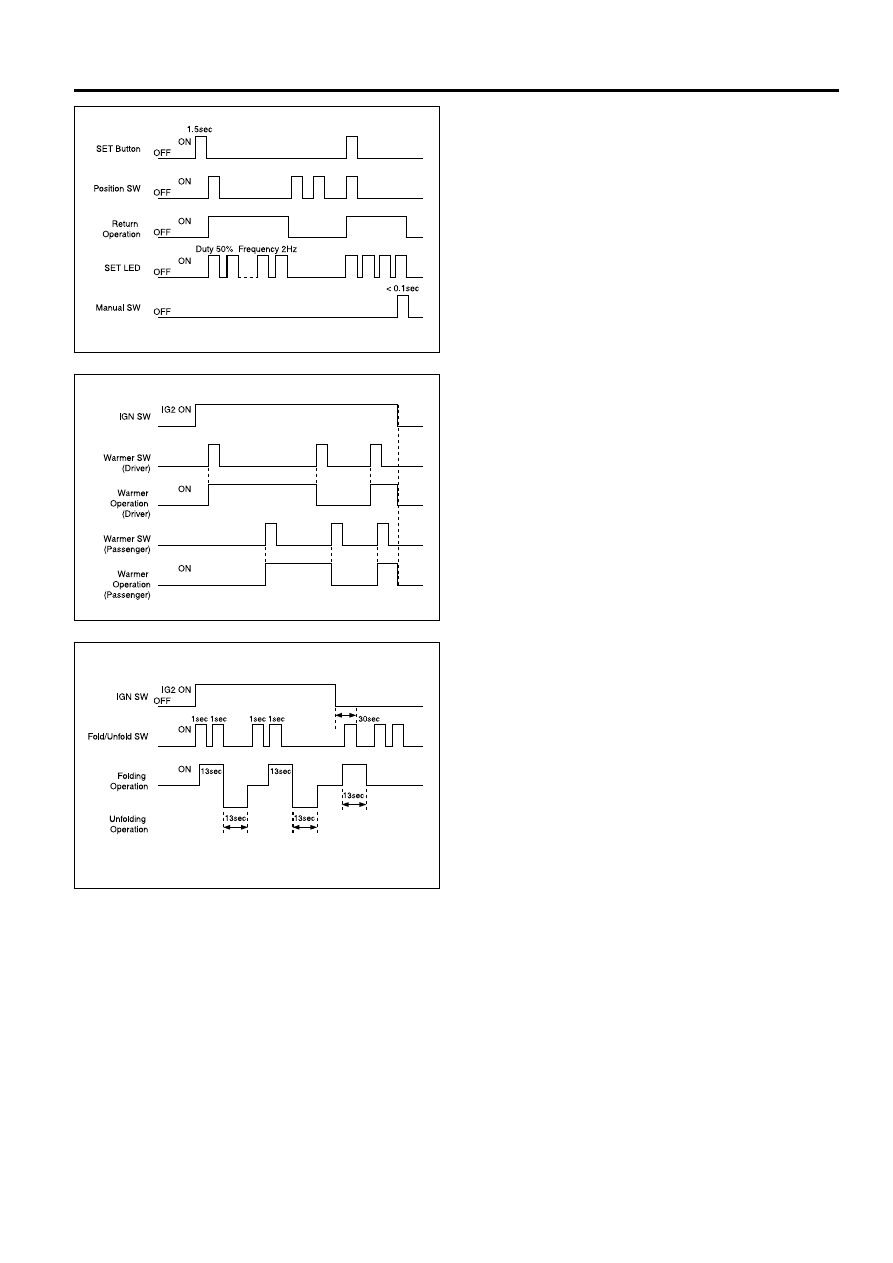

The characteristic of operation

Function of outside mirror(folding /unfolding )

Function of seat warmer

YAD9D1Y0

YAD9D1Z0

YAD9D2A0
