SSANGYONG  Y200

9D-62  BODY ELECTRICAL

YAD9D0U0

YAD9D0V0

YAD9D0W0

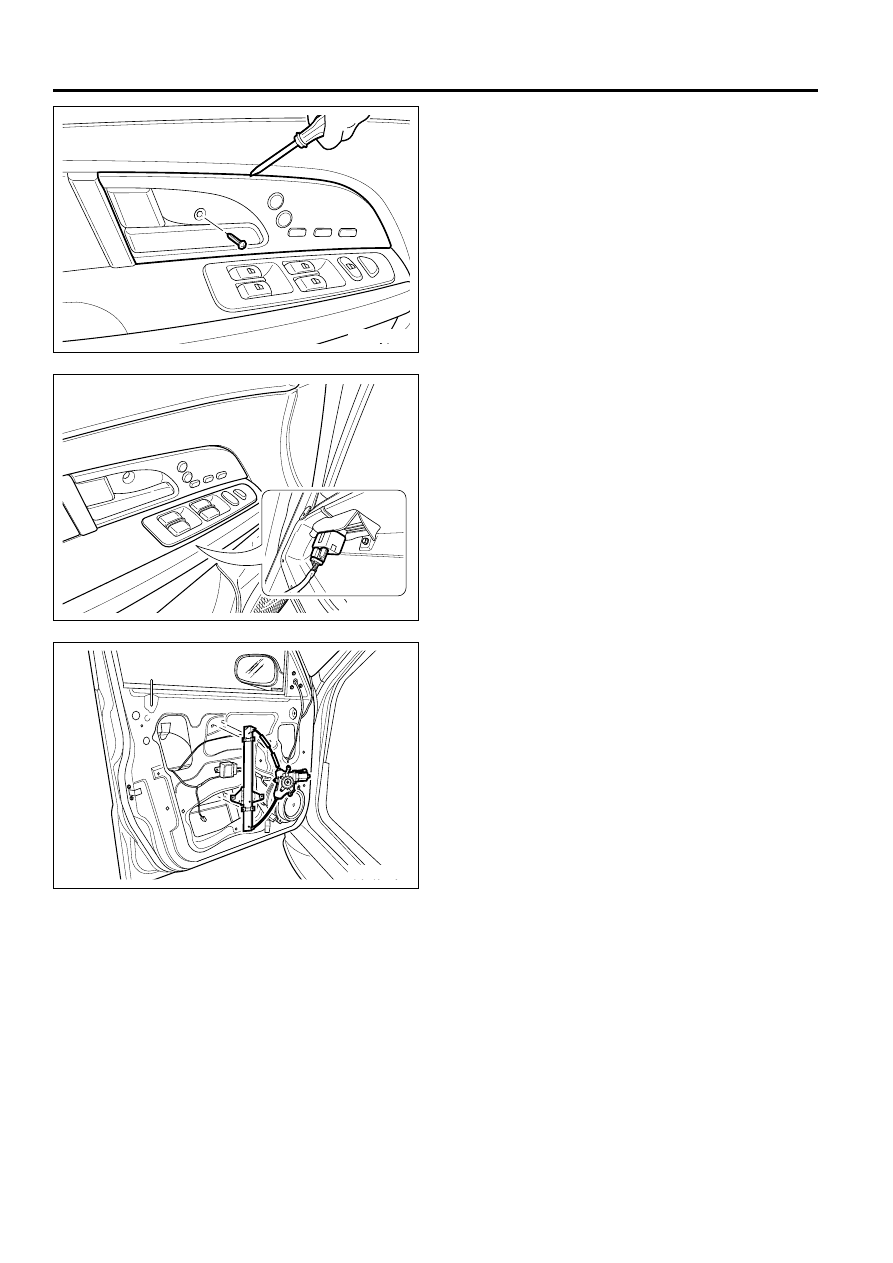

Removal and Installation

1. After inserting switch of window in the door handle,

separate grip of fixing hook.

3. Remove trim of door and seal.

4. After window glass is removed, remove regulator

assembly.

5. Remove motor of window from the regulator which

is separated.

6. Install the reverse order of removal.

2. After connector of window switch is separated,

remove window switch assembly.

BODY ELECTRICAL  9D-63

SSANGYONG  Y200

YAD9D0Z0

YAD9D0Y0

Check and Repair

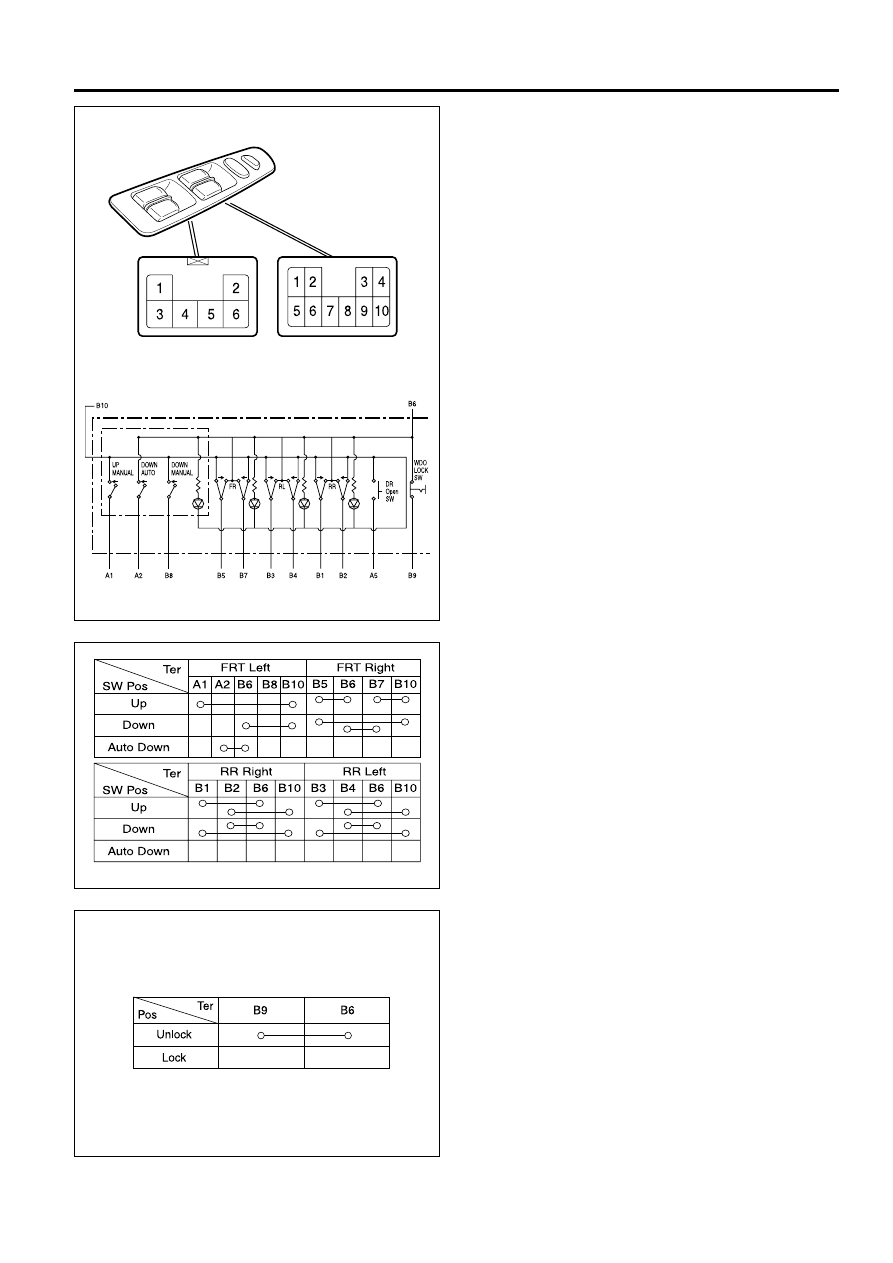

Main switch of power window

2. Lockong system of window.

YAD9D0X0

1. After main switch of power window is removed in

the driver seat, check that applying an electric
current of each terminal.

SSANGYONG  Y200

9D-64  BODY ELECTRICAL

YAD9D1C0

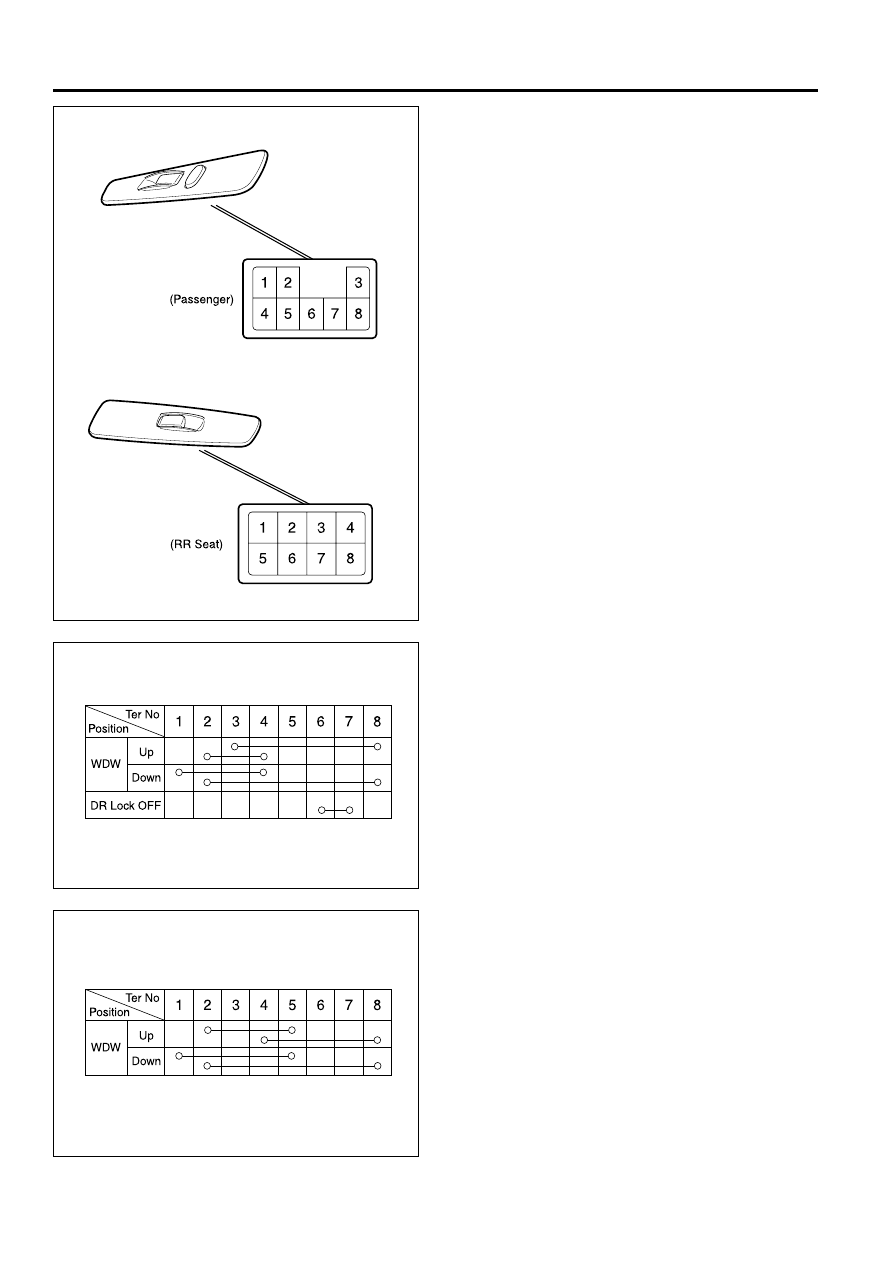

Serve switch of passenger set and rear seat

1. After switch is removed, check that applying an

electric current of each terminal.

Rear seat

YAD9D1A0

YAD9D1B0

Passenger seat

BODY ELECTRICAL  9D-65

SSANGYONG  Y200

YAD9D1D0

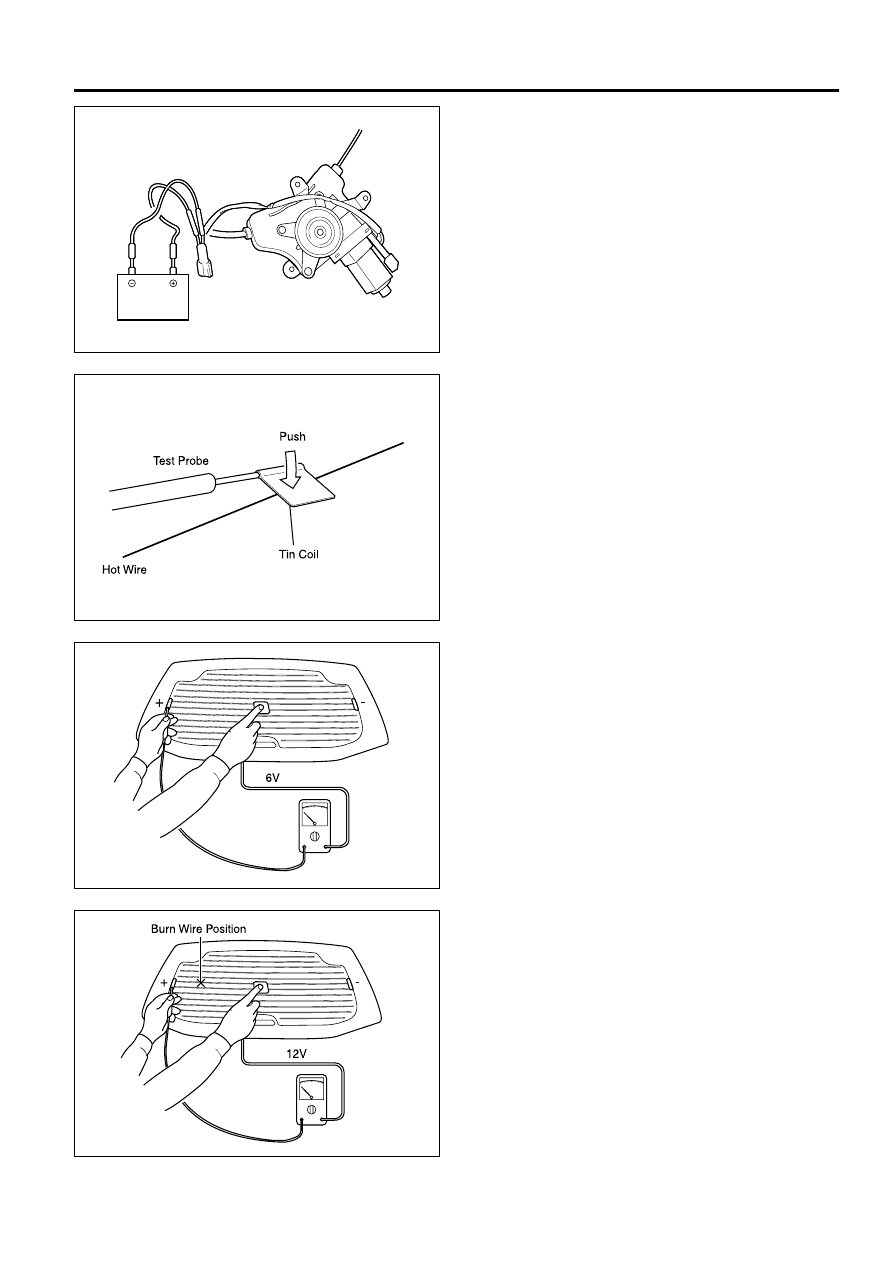

Check motor of power window

After terminal of motor is connected, check that motor
is operating softly, and then change pole of current,
motor is operating to the reverse direction softly, if
motor is operating unnormal, and then replace motor.

YAD9D1E0

YAD9D1F0

YAD9D1G0

Check rear window and defogger of quarter glass

Notice: It is prevention for the defogger not to have a
impact, so after taping foil of tin at the end of tester,
foil of tin is moving along with line of grid for checking
the circuit open or not.

2) If defogger is damaged by a fire between

center and positive terminal, value of voltage
is indicated 12 V.

1. At the state of idling, after switch of defogger is

turned on, check the below description.

1) After turn switch of defogger on, measure

voltage of defogger with voltmeter in the center
of glass, if value of voltage is 6V, heater line of
rear window is normal.
