SSANGYONG  Y200

9D-66  BODY ELECTRICAL

YAD9D1J0

YAD9D1K0

YAD9D1L0

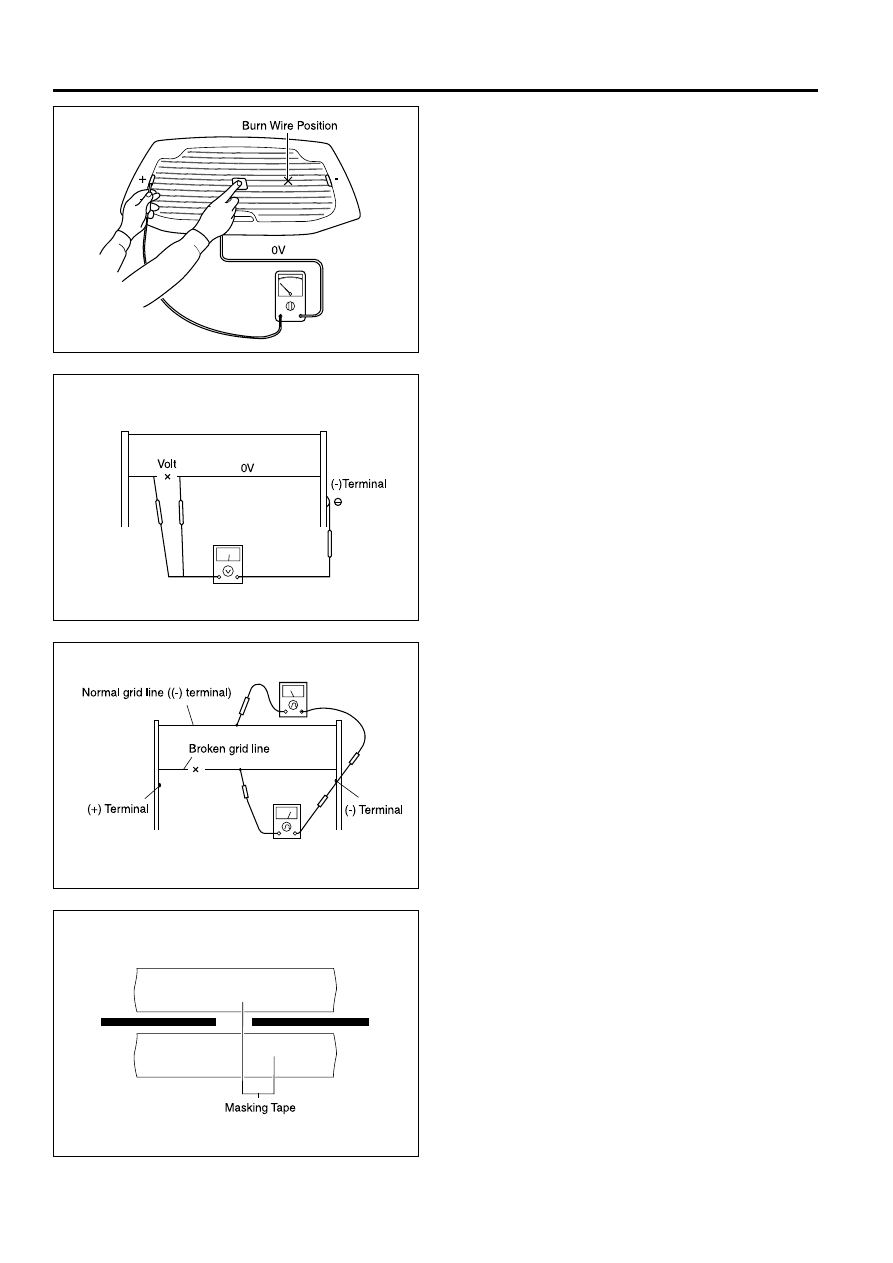

4) Lid of tester is moving into the section which is

assumed circuit open, after measuring circuit
open look for the section of 0 V, voltage which
is changed in the section, which is open of
circuit.

Method to repair grid line of defogger

After being prepared, repair section of defogger which
is broken.

1) Paint of applying electric current

2) Thinner of paint

3) Masking tape

4) Alcohol

2. After turn switch of defogger off, check the below

description.

Using voltmeter, measure resistence of each
defogger in the center of grid line, resistence
between the same terminal and defogger orderly.
Broken section of defogger is 2 times rather than
other the section of defogger, section which is
impacted with the rapid change of resistence.

YAD9D1H0

3) If defogger is damaged by a fire between

center and negative terminal, value of voltage
is indicated 0 V.

BODY ELECTRICAL  9D-67

SSANGYONG  Y200

5) Slim brush

Clean up the section of defogger which is broken,
indicating like left picture, with the state which is
sticking masking tape, clean up with alcohol. After
mixing between paint of applying electric current
and thinner per interval of 15 minutes, paint 3
times. Before power is supplying, pull tape out of
the section broken, to finish up better, after drying
up completely (approximately after one day),
remove the edge painting unnecessary with knife.

Notice:  After repairing, clean up glass with the
soft towel, grid line with the towel wet.

YAD9D1M0

YAD9D1N0

YAD9D1P0

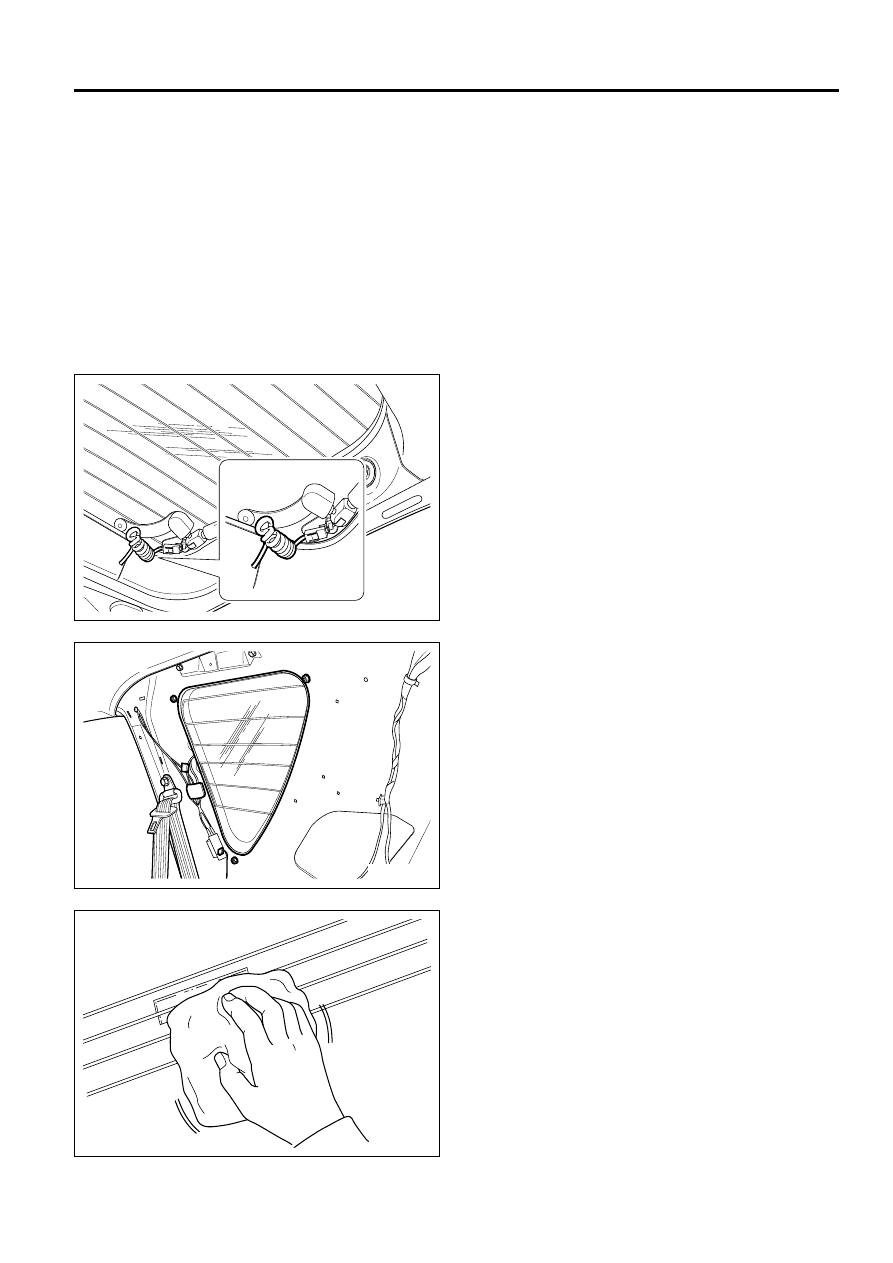

3. After checking grid line, scraping approximately

6 mm to both section from disconnection of a line
with wooden spoon, clean up these section, a kind
of cloth wet with alcohol.

1. Disconnect cable of negative terminal of battery.

2. Disconnect defogger connector of tail gate.

SSANGYONG  Y200

9D-68  BODY ELECTRICAL

YAD9D1R0

YAD9D1S0

YAD9D1T0

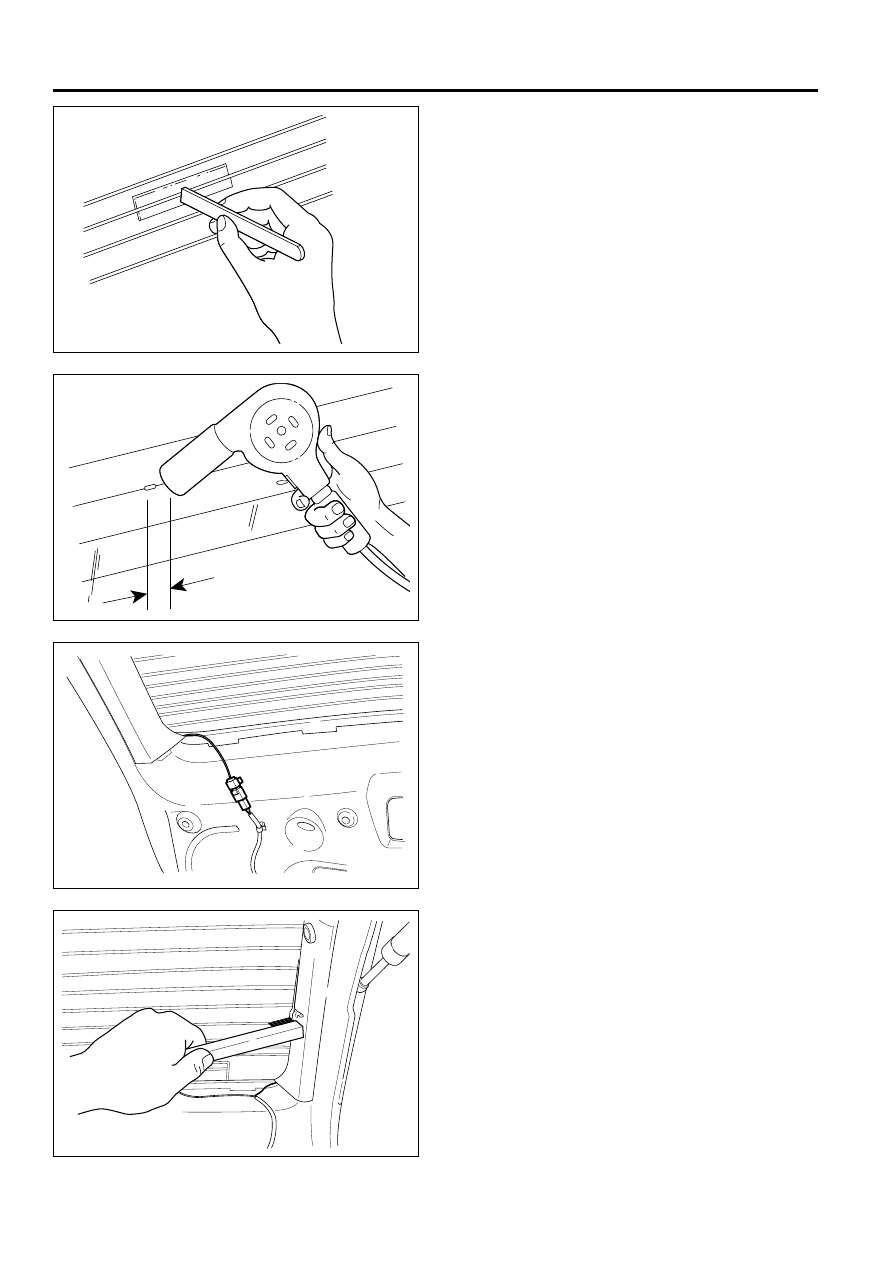

7. Heat up the section which is repaired, keep

distance 25 mm from this section, with drier below
149¡É for 1-2 minutes

Notice:  Repair material of grid line dry up with
heating, while is heating repairing section  trim
which is linked should be protected from heating,
pay attention to deformation of interior trim

8. If grid line of repairing is discolored, after

spreading coating of paint of iodine on section
discolored, if get spreading out of grid line, after
half hour is passed, clean up grid line with soft
wiper.

Repair of defogger of tail gate

Copper line of glass defogger have reinstallation
available with soldering, soldering consists of 30 %
silver solder and rosin solvent

1. Disconnect negative cable of battery.

2. Scrape the around section of repair with wooden

spoon

3. After spreading on the copper line, clean up on

the section which is repaired with brush.

9.  Check if grid line is repaired or not, operate glass

defogger of back door.

Notice: Until repair material is dried up completely,
this is needed 24 hours at least, section repaired
should be protected from unnormal material.

YAD9D1Q0

4. Attach tape of repair of grid line properly.

•

Attach tape to have a same width with grid line.

5. Spread material of repair with wooden spoon.

6. Remove tape carefully.

BODY ELECTRICAL  9D-69

SSANGYONG  Y200

YAD9D1U0

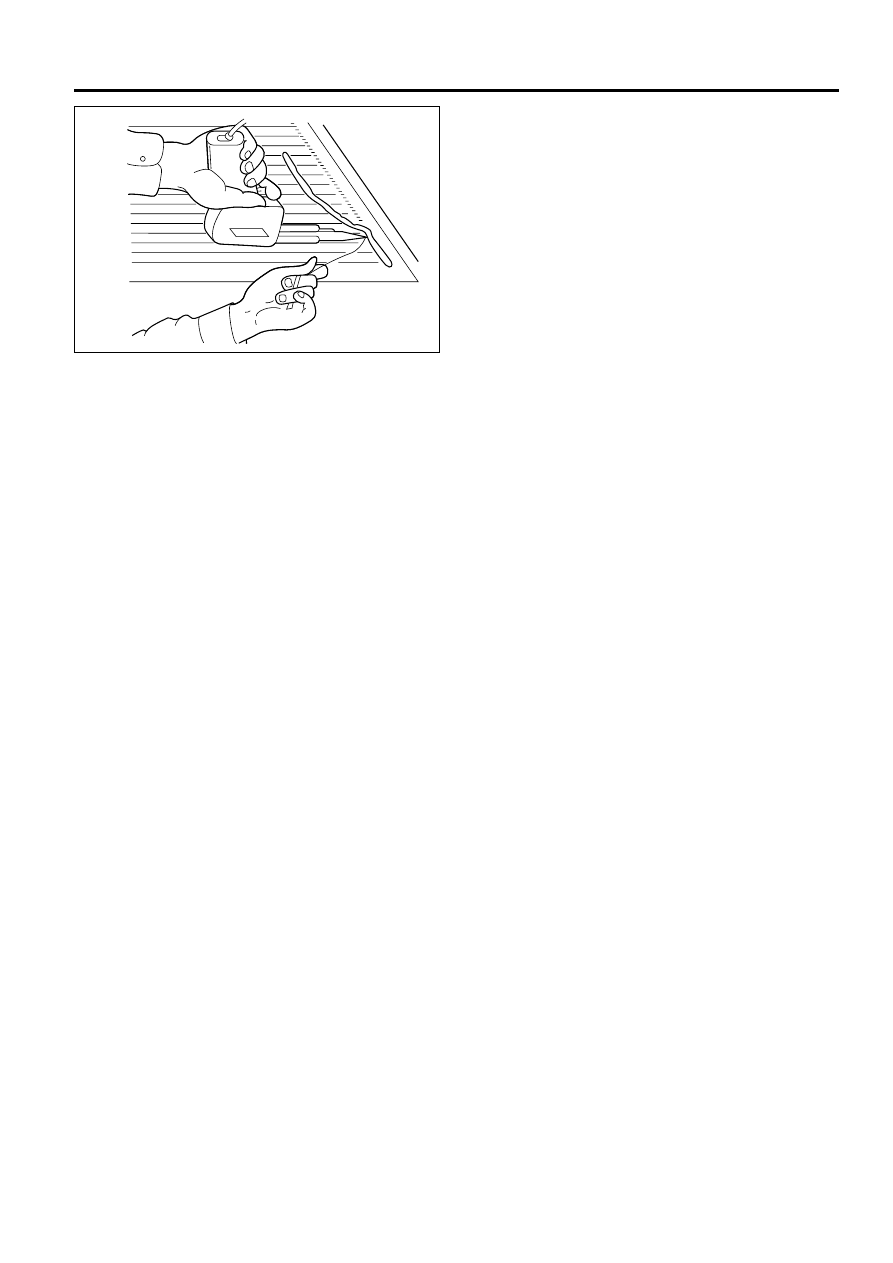

4. Put soldering on the the end of soldering gun.

5. If copper line is repaired with soldering, for copper

line not to overheat, this work  should be repaired
under limit of temperature which can melt solder.
