SSANGYONG  Y200

9D-58  BODY ELECTRICAL

YAD9D0L0

YAD9D0M0

YAD9D0N0

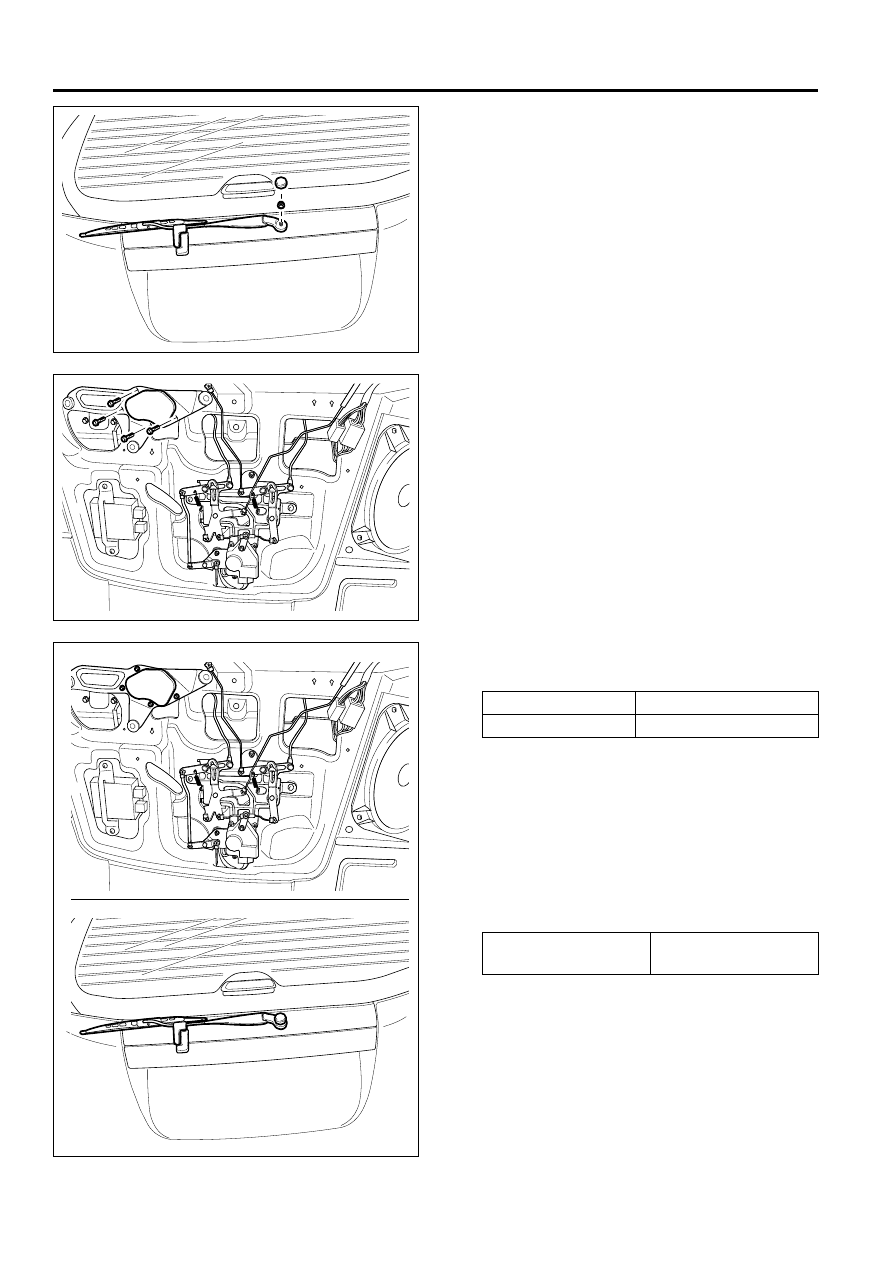

Rear wiper assembly

1. After cap of wiper arm, remove nut of wiper and

blade of wiper.

5. Install the reverse order of removal.

Wiper motor assembly

2. Remove trim of tail gate.

3. After connector of wiper motor is separated,

release fixing nut.

4. Remove wiper motor assembly from the tail gate.

Torque of Tightening

19 - 28 N•m

(44 - 52 lb-ft)

Rear wiper blade

Bolt of motor

Bolt of motor bracket

7 - 11 N•m

7 - 9 N•m

BODY ELECTRICAL  9D-59

SSANGYONG  Y200

YAD9D0P0

YAD9D0Q0

YAD9D0R0

Check

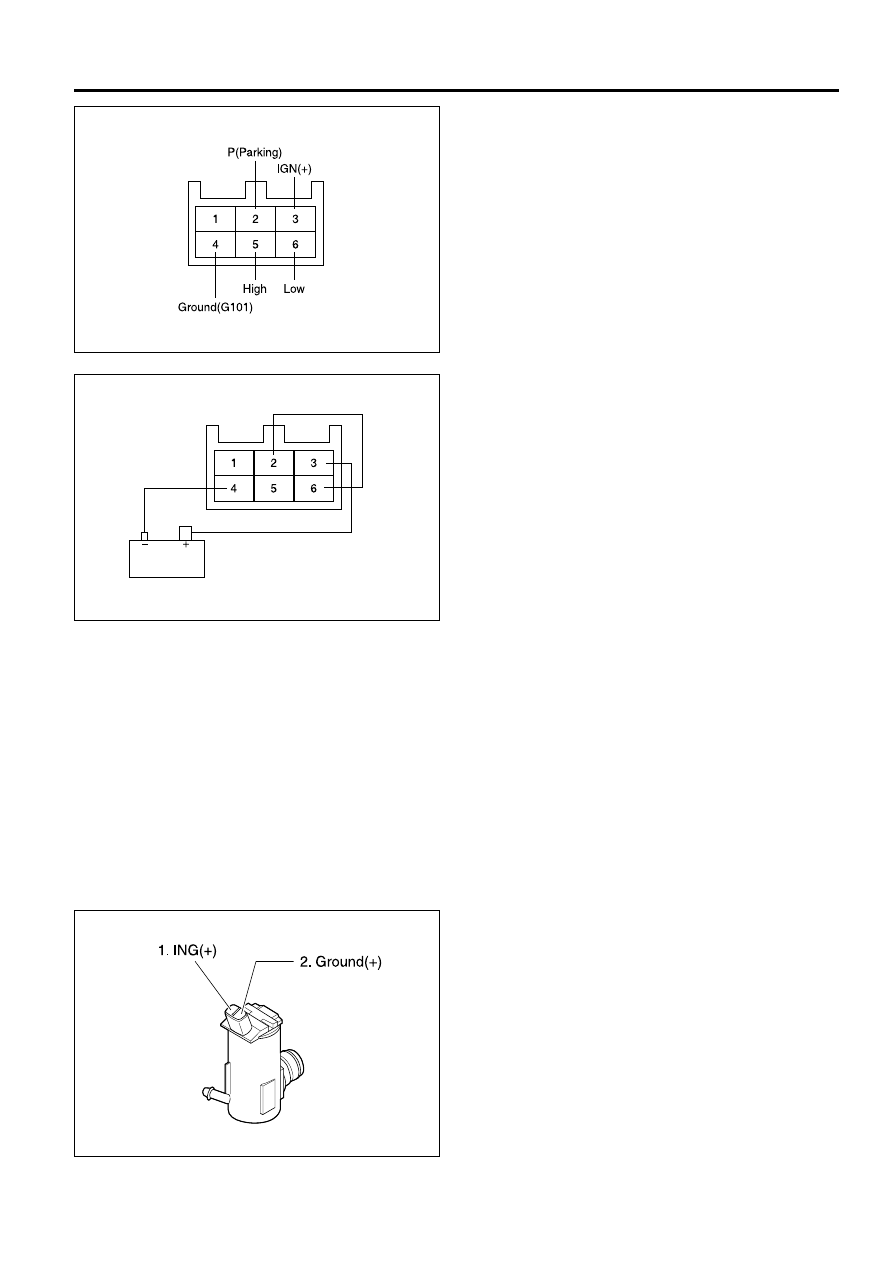

Check speed of front wiper motor

1. Remove connector from the motor of wiper.

2. Connect positive terminal into 3 terminal and

negative terminal into 6 terminal.

3. Check motor with low speed.

4. Connect positive terminal into 3 terminal and

negative terminal into 5 terminal.

5. Check motor with high speed.

Check washer motor

1. After installing washer motor into washer tank, and

then fill fluid of washer

2. Connect 1 terminal into positive terminal of battery

and 2 terminal into 3 negative terminal

3. Aftter motor of washer is operated, check the fluid

of washer is operated.

Check motor of rear wiper

1. Remove connector from the motor of rear wiper

2. Connect positive terminal into 4 terminal and

negative terminal into 3 terminal.

3. Check motor is operating normally, if motor has a

problem, replace motor.

Check operation of automatic stop of front

1. Operate motor with low speed

2. After separating 6 terminal, stop operation of motor

except position of “OFF”

3. Connect 2 terminal and 6 terminal.

4. After connecting positive terminal into 3 terminal,

and then 4 terminal turn to the ground.

5. Check motor at the “OFF” position.

SSANGYONG  Y200

9D-60  BODY ELECTRICAL

YAD9D0S0

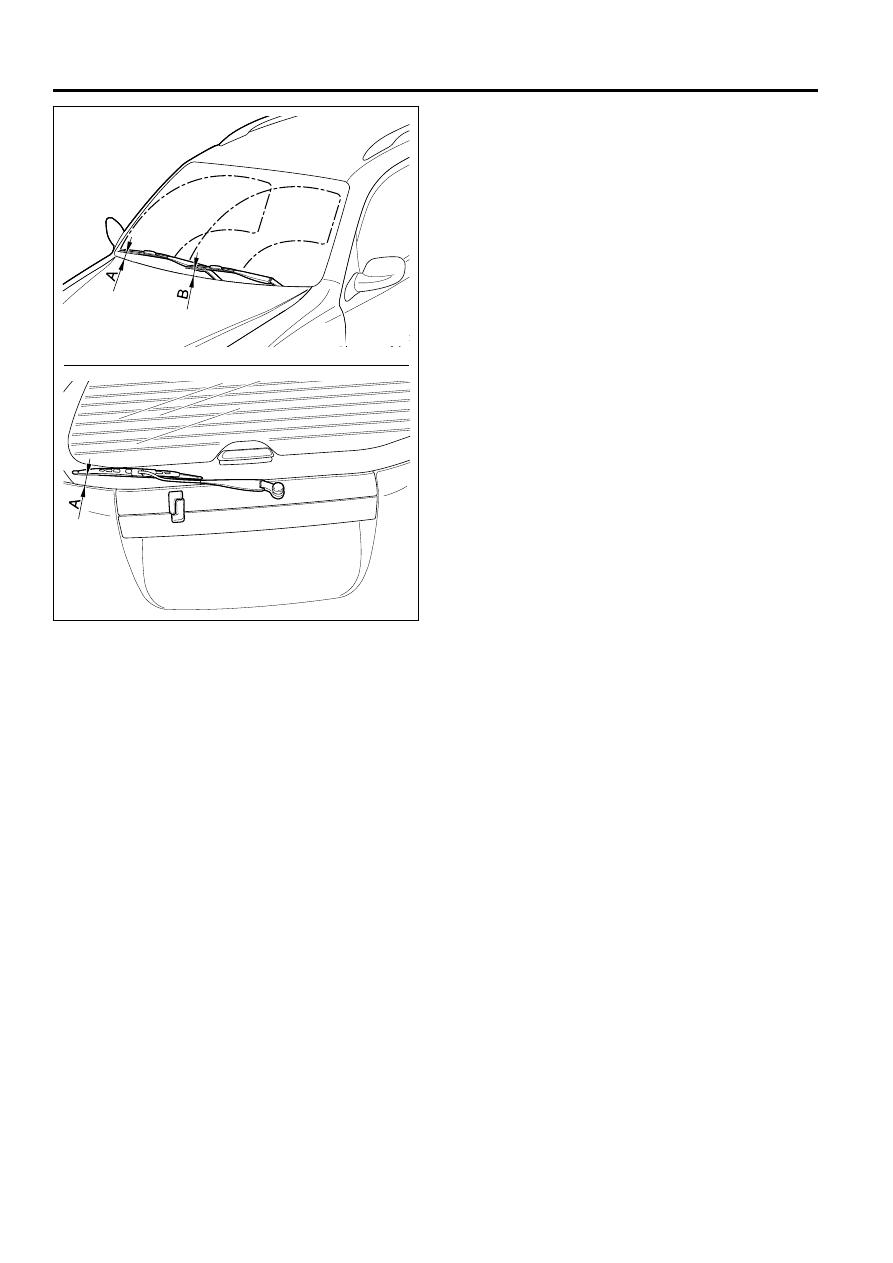

Check position of wiper arm

While installing wiper arm, check position of front wiper
arm and rear wipe arm, and reinstall, to positioned
original position.

•

Front wiper arm:  Distance from the end of cowl
grill to the blade: 45 mm

•

Rear wiper arm:  Distance from the lower section of
rear glass to the blade: 30 mm

BODY ELECTRICAL  9D-61

SSANGYONG  Y200

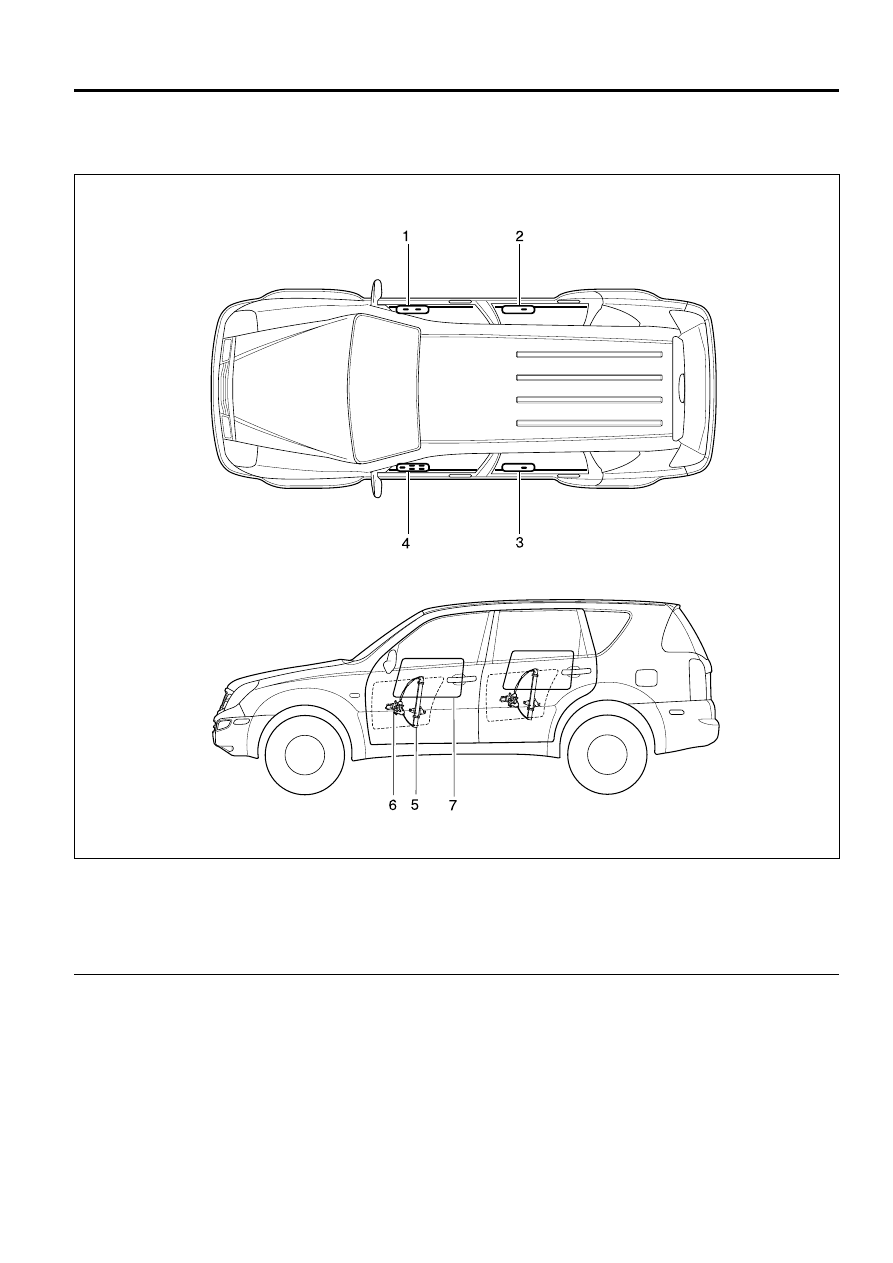

POWER WINDOW

Components

YAD9D0T0

1 Power Window Switch Of Passenger Seat
2 Power Window Switch Of Rr Seat (LH)
3 Power Window Switch Of Rr Seat (RH)
4 Power Window Switch Of Driver Seat

5 Window Regulator
6 Window Motor
7 Window
