SsangYong Rexton. Manual - part 691

SSANGYONG  Y200

9D-78  BODY ELECTRICAL

YAD9D2N0

YAD9D2P0

Warning lamp of no wearing seat belt

1. If switch of ignition is turned on, warning lamp of

seat belt is lighting on for 6 seconds with 0.6
seconds of frequency duty 50 %, chime bell is
sounding for 6 seconds with 0.6 seconds of
frequency duty 50 %.

2. Within 6 seconds, if switch of ignition is “OFF”,

chime bell is not operated immediately.

Within 6 seconds, if switch of seat belt is “OFF”,
chime bell is not operated immediately, and
warning lamp of seat belt is sounding for 6
seconds.

3. After seat belt is worn under ignition is “ON”, on

the every time that seat belt is taken off, chime
bell is always operating.

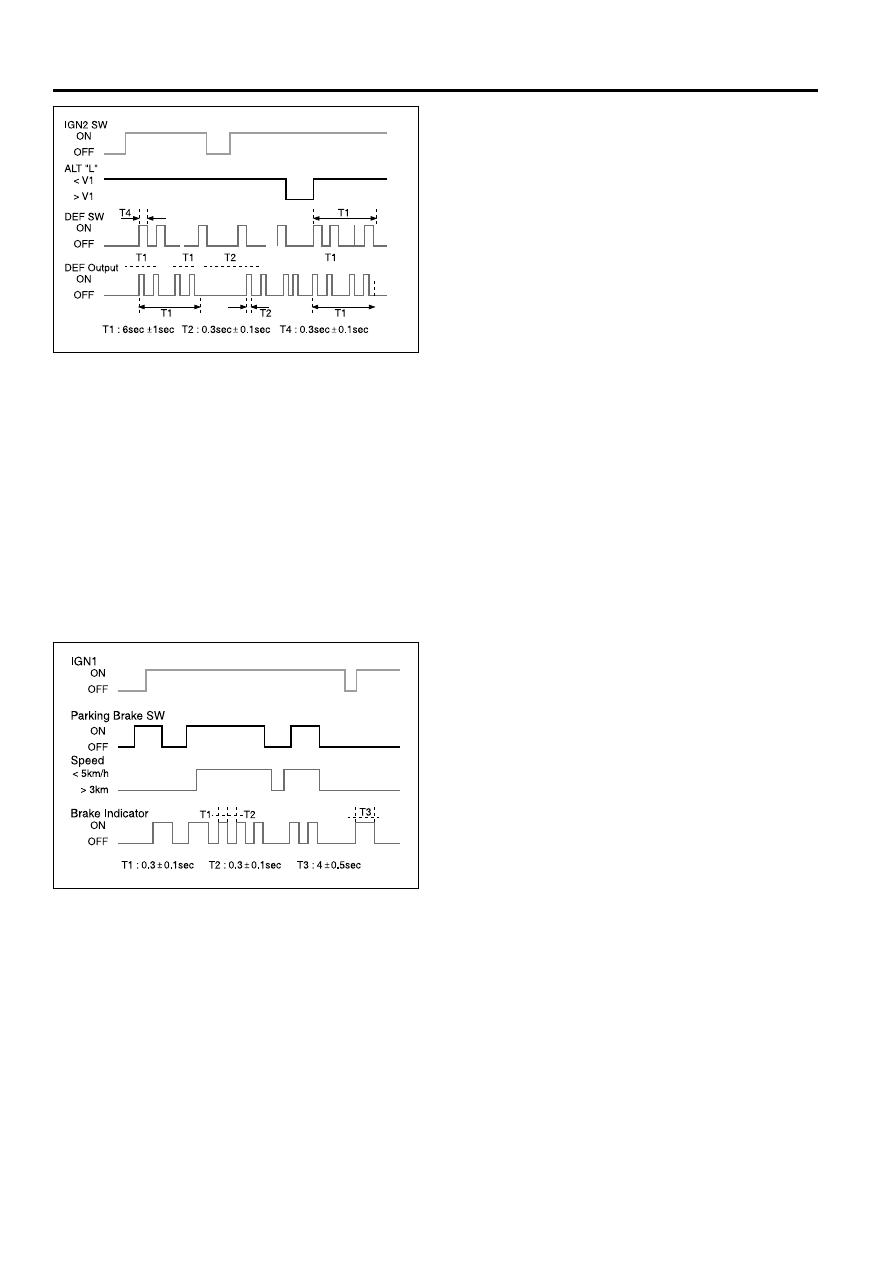

Warning lamp of parking breake

1. Parking brake is pulling under vehicle’s stopping,

warning lamp is turned “ON”, under this situation
vehicle is running and then speed of vehicle goes
up to 3  - 5 km/h or after speed of vehicle goes up
more than 5 km/h if parking brake is pulled, lamp
of warning should be turned off (After switch of
ignition is turned on, after time is passed more
than 1.5 seconds, speed of vehicle should be
sensed.

2. While switch of IGN 1 is off in the above number

1, warning lamp of brake is “OFF”

3. While switch of parking brake under the state of

“OFF”, after key of ING 1 is OFF, as switch of
ignition is “ON”, after lighting is four times, and
then “OFF”

       (During lighting of 4 seconds, if key of ignition is

“OFF”, immediately is turned “OFF”)

BODY ELECTRICAL  9D-79

SSANGYONG  Y200

YAD9D2Q0

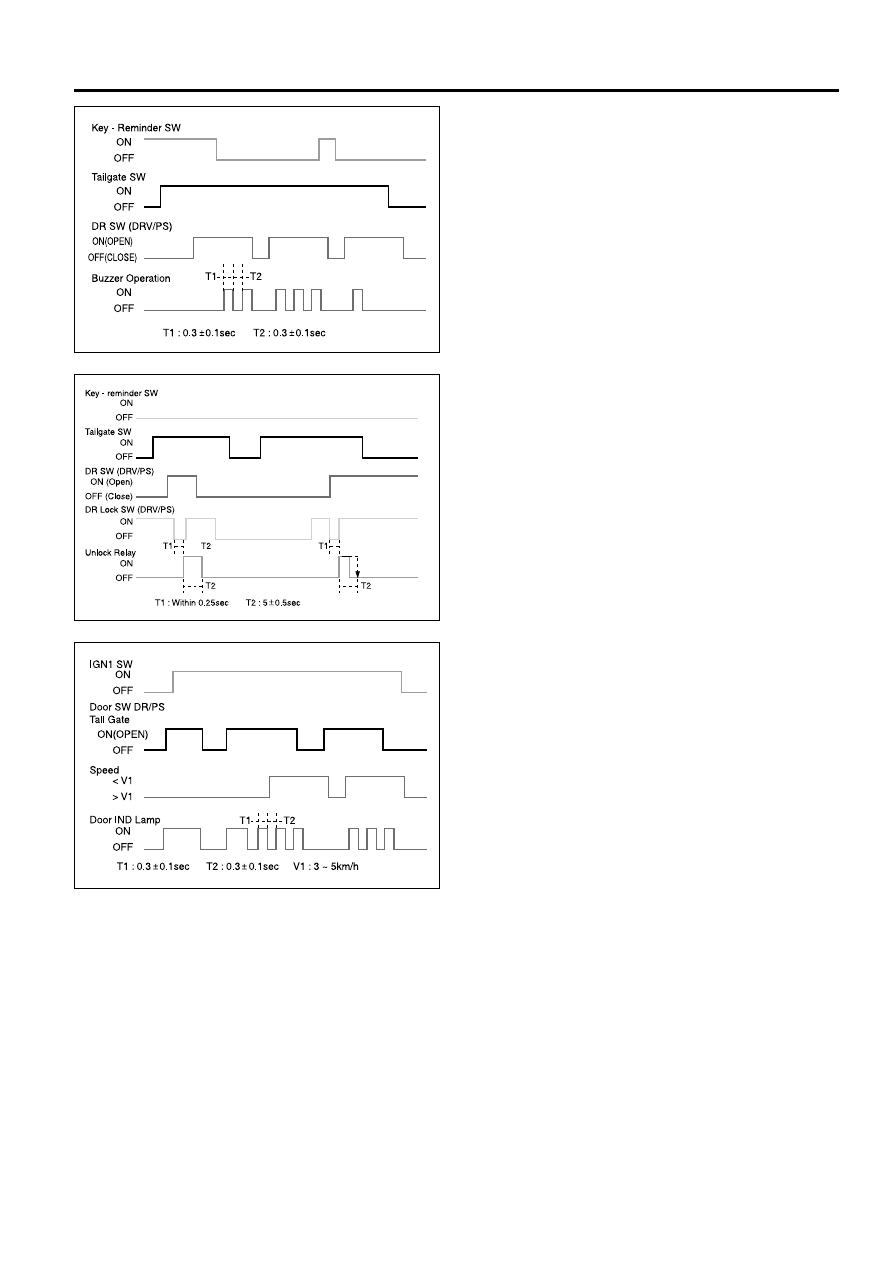

 The waring of operating tail lamp

1. If switch of key reminder is “OFF” under the state

of operating switch of tail lamp, rekes is also
not operating. If there is no the vigilance of robbery
or the condition of alarm, under this situation, open
up door of passenger seat or driver seat, buzzer
is  “ON/OFF repeatedly by the frequency of 0.3
seconds.

2. If one of them is getting out of above 1 description,

buzzer should be “OFF” immediately.

At this time, if lock switch of driver seat or
passenger seat is locked, unlock relay is operating
for 5 seconds at this time,if all the door of driver
seat and passenger seat are closed or switch of
tail lamp is “OFF”, relay of unlock is “OFF”
immediately.

YAD9D2R0

YAD9D2S0

The waring of opening door

1. At state of warning lamp to the door which is

opened, if door is opened up, the state of half
closing, if velocity of vehicle is more than V1 (3 km/h –
5km/h),after speed of velocity is more than V1,
the state of half closing or if door is opened up,
the lamp of warning should be “ON AND OFF”
repeatedly. (After switch of IGN 1 is “ON”.,after
the time is passing more than 1.5 second, velocity
of vehicle should be sensed.)

SSANGYONG  Y200

9D-80  BODY ELECTRICAL

YAD9D2U0

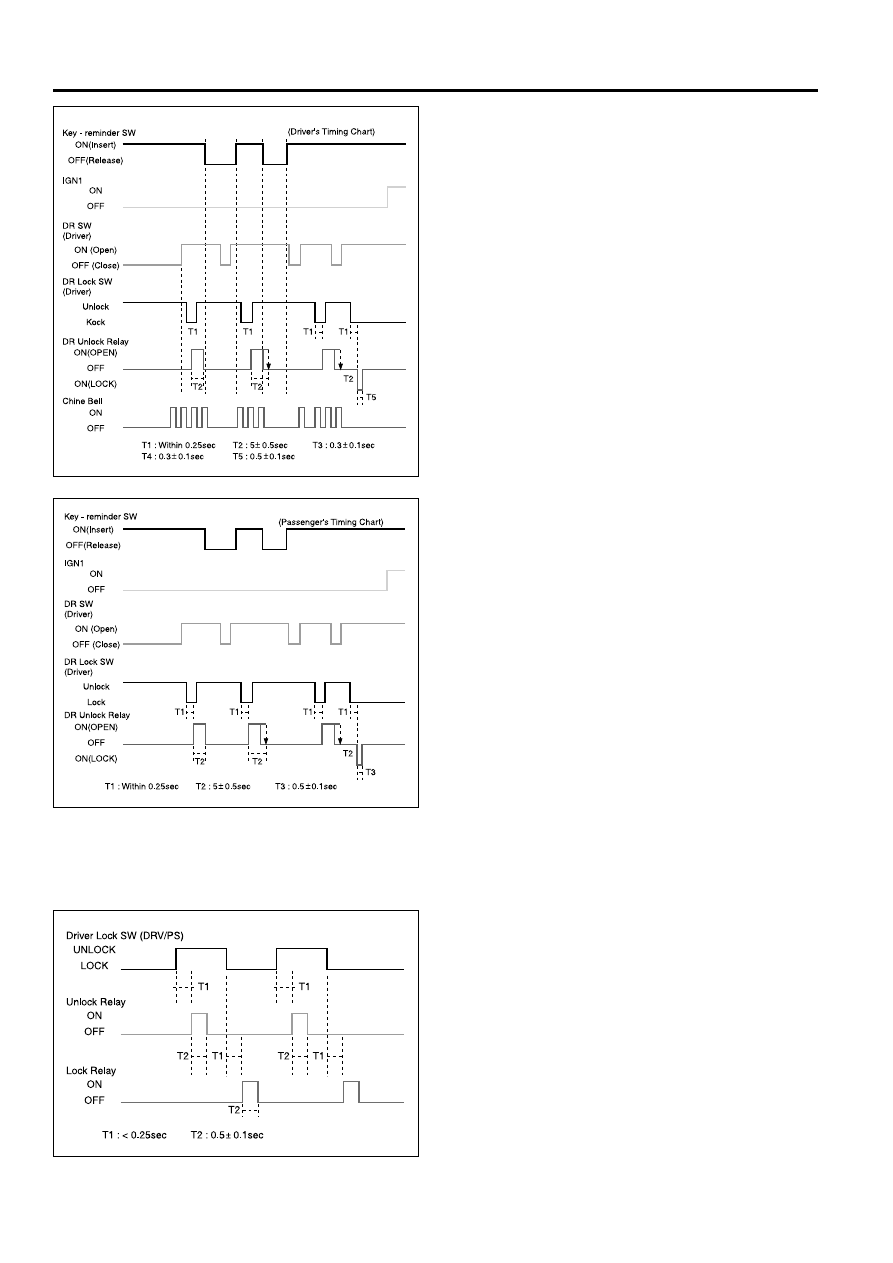

Central locking function

1. If door lock nob of driver seat or passenger seat

is downed, all the door are locked, and if door
lock nob of driver seat or passenger seat is lifted,
all the door are unlocked.

If door of driver seat or passenger seat is locked
or unlocked by key at the external area, the same
situation will be happen.

YAD9D2V0

YAD9D2T0

The warning of not being pulling key out of key
hole

1. If the switch of ignition is turned on and then open

up the door, chime bell is operating, if nob of door
lock is locking, nob is up from the original position,
door should get back to the state of unlock.

2. This function should not be operated under the

state of IGN 1 switch of BEING TURNED ON.

If the key is pulled or door is closed, the signal of
operating should be “OFF”, should be operated
prior to warning lamp of “NOT BEING TURNED
OFF”.

BODY ELECTRICAL  9D-81

SSANGYONG  Y200

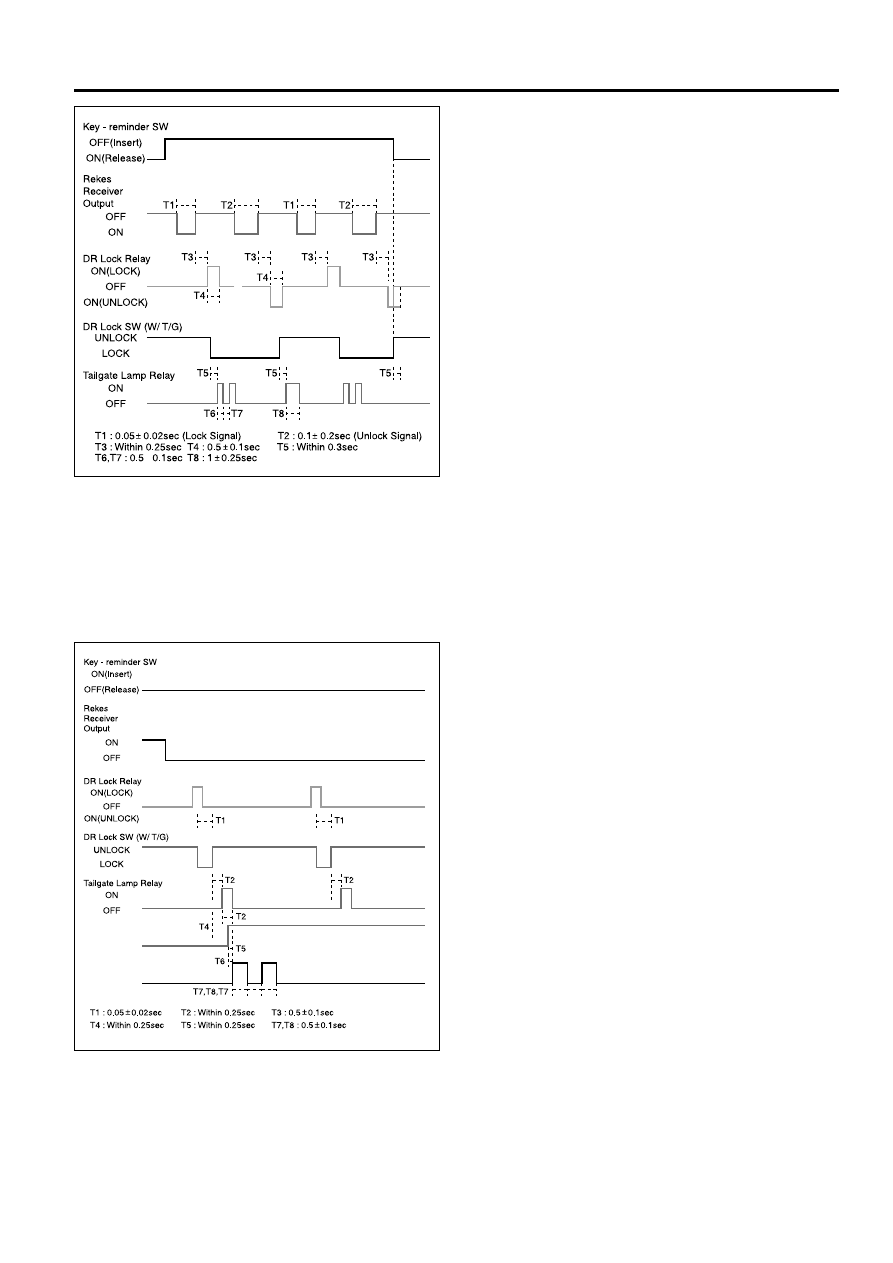

Function which is linked with rekes

1. If switch of key reminder is “OFF”, all the door

are locked or unlocked according to the signal of
rekes

2. If the rekes is unlocked, lock switch of driver seat

door is locked, unlock relay of driver seat is “ON”
for 0.5 seconds(multi-function), and then unlock
of rekes is operating, relay of unlock is “ON” for
0.5 seconds.

3. Under the operation of above 2 number, after 0.5

second of operating the unlock relay to the driver
seat, lock switch of driver seat door is locked,
release function of the multifunction, before battery
is “ON/OFF”, while unlock of rekes is operating,
only relay of unlock is operating.

After unlock is operating, within 30seconds, if
opening of door is not operated, after 30 seconds,
door should be locked automatically.

YAD9D2X0

The alarming of robbery

Function of alarming robbery is made a alarming
unrecognized method by intruder, which cause buzzer
to make a alarming sound and notice to surrounding
people, has operating mode as below .

1. set on the situation of vigilance.

•

Setting on the situation of vigilance is available
on condition that door is locked by the
transmitter of rekes, but if door is locked by
key, state of vigilance should not be set.

•

If switch of ignition is removed, under all the
door and hood are closed, signal of lock of
o p e r a t i o n   f r o m   t h e   r e c e i v e r   o f   r e k e s   i s
transferred low speed into high speed, after that,
within 0.5 seconds, lock switch of all the door
are transferred ON into OFF, after happening of
signal, 0.5 seconds later, should be set to the
state of vigilance.

•

As the state of robbery vigilance is set on, siren
is operating for 0.05 seconds, tail lamp is
operating two times for 0.5 seconds.

YAD9D2W0
